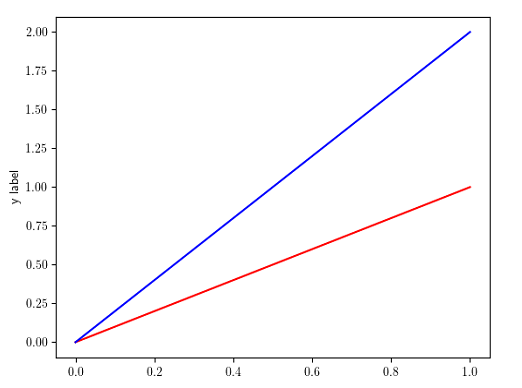

我正在使用matplotlib 3.4.3、ubuntu 20.04和 。我Python 3.8 試圖用多色更改標簽顏色，但它顯示黑色而沒有給出任何錯誤。我已經安裝了所有軟體包并
uj5u.com熱心網友回復：

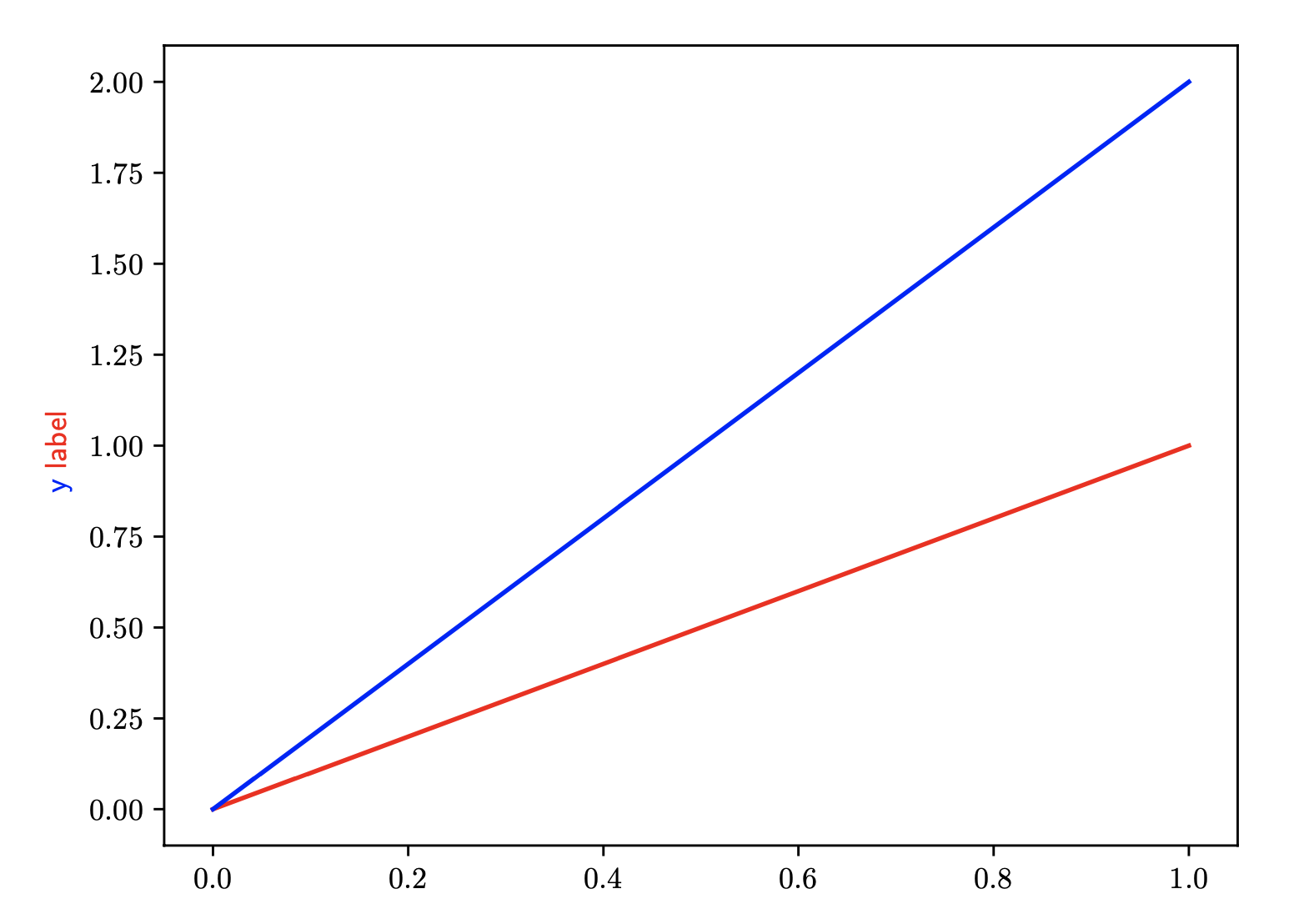

這似乎是許多 matplotlib 后端的已知問題。例如，請參見此處：
注意：在python 3.7.10, matplotlib 3.4.2,上測驗MacOS 10.15.7

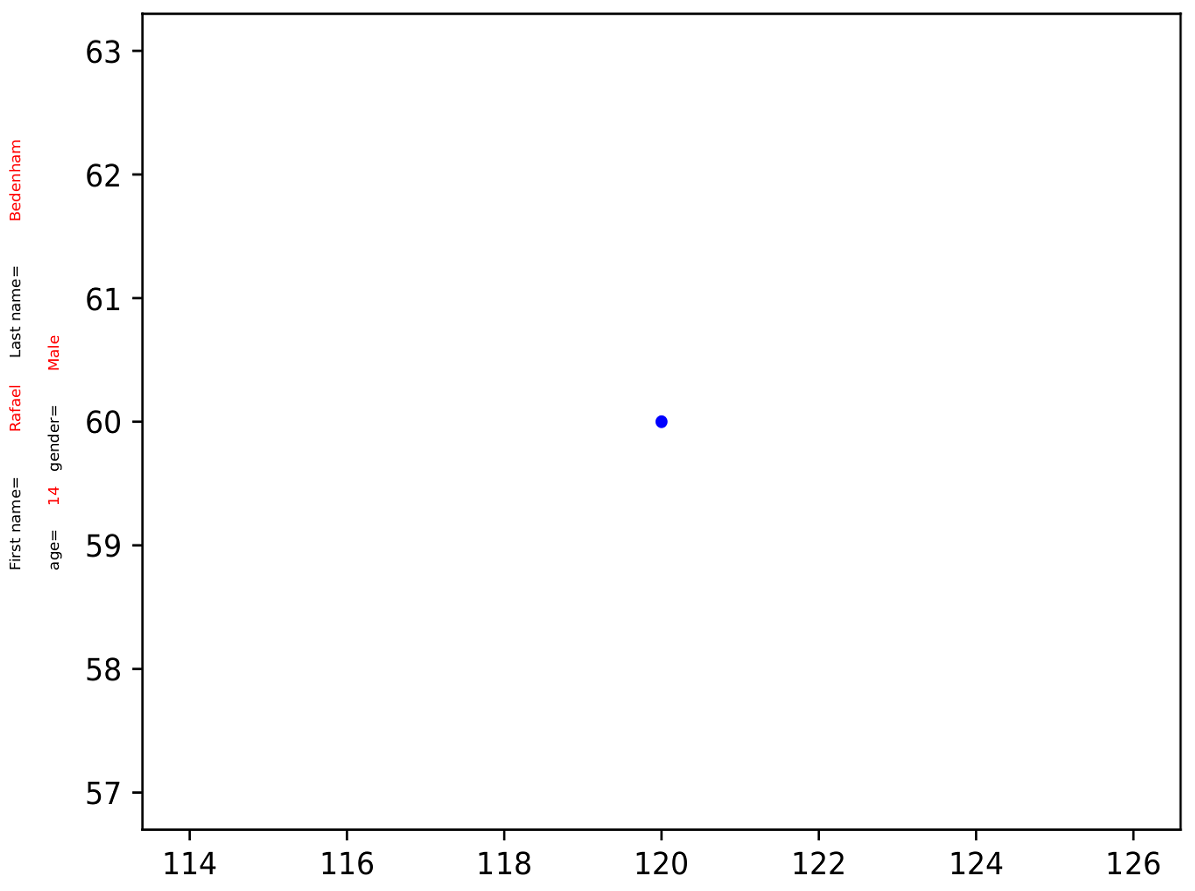

uj5u.com熱心網友回復：
import pandas as pd
from matplotlib import pyplot as plt
from matplotlib.transforms import Affine2D
import os
cwd = os.path.dirname(__file__)
def rainbow_text(x, y, strings, colors, orientation='vertical',
ax=None, **kwargs):
if ax is None:
ax = plt.gca()
t = ax.transData
canvas = ax.figure.canvas
assert orientation in ['horizontal', 'vertical']
if orientation == 'vertical':
kwargs.update(rotation=90, verticalalignment='bottom')
for s, c in zip(strings, colors):
text = ax.text(x, y, s " ", color=c, transform=t, **kwargs)
# Need to draw to update the text position.
text.draw(canvas.get_renderer())
ex = text.get_window_extent()
if orientation == 'horizontal':
t = text.get_transform() Affine2D().translate(ex.width, 0)
else:
t = text.get_transform() Affine2D().translate(0, ex.height)

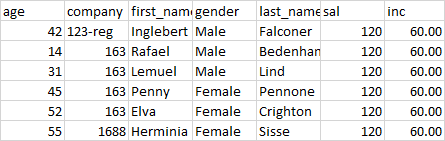

df = pd.read_csv('emp.csv', error_bad_lines=False)
colors_ = ['black', 'red', 'black', 'red']
i=0
for row in df.itertuples(index=True, name='Pandas'):
plt.scatter(getattr(row, "sal"), getattr(row, "inc"), color = 'b', s=10)
word = ['First name=', str(getattr(row, "first_name")), 'Last name=', str(getattr(row, "last_name"))]
rainbow_text(df["sal"].min()-8.3, df["inc"].median()-1.2, word, colors_, size=5)
word = ['age=', str(getattr(row, "age")), 'gender=', str(getattr(row, "gender"))]
rainbow_text(df["sal"].min()-7.8, df["inc"].median()-1.2, word, colors_, size=5)
plt.savefig(os.path.join(cwd, 'fig/Test_fig_' str(i) '.pdf'), format='pdf', dpi=600, bbox_inches='tight')
i = 1
plt.show()
