一.需求

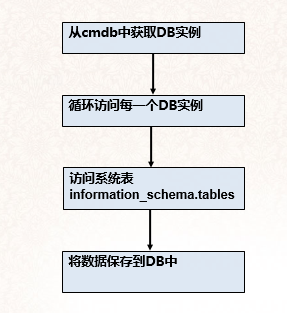

統計收集各個實體上table的資訊，主要是表的記錄數及大小，
收集的范圍是cmdb中所有的資料庫實體，
二.公共基礎檔案說明
1.組態檔
配置文為db_servers_conf.ini，假設cmdb的DBServer為119.119.119.119，單獨存放收集監控資料的DBserver為110.110.110.110. 這兩個DB實體的訪問用戶名一樣，定義在了[uid_mysql] 部分，需要去收集的各個DB實體，用到的賬號密碼是另一個，定義在了[collector_mysql]部分，
[uid_mysql] dbuid = 用*戶*名 dbuid_p_w_d = 相*應*密*碼 [cmdb_server] db_host = 119.119.119.119 db_port = 3306 [dbmonitor_server] db_host = 110.110.110.110 db_port = 3306 [collector_mysql] collector = DB*實*例*用*戶*名 collector_p_w_d = DB*實*例*密*碼
2.定義宣告db連接
檔案為get_mysql_db_connect.py
# -*- coding: utf-8 -*- import sys import os import configparser import pymysql # 獲取連接串資訊 def mysql_get_db_connect(db_host, db_port): db_host = db_host db_port = db_port db_ps_file = os.path.join(sys.path[0], "db_servers_conf.ini") config = configparser.ConfigParser() config.read(db_ps_file, encoding="utf-8") db_user = config.get('uid_mysql', 'dbuid') db_pwd = config.get('uid_mysql', 'dbuid_p_w_d') conn = pymysql.connect(host=db_host, port=db_port, user=db_user, password=db_pwd, connect_timeout=5, read_timeout=5, write_timeout=5) return conn # 獲取連接串資訊 def mysql_get_collectdb_connect(db_host, db_port): db_host = db_host db_port = db_port db_ps_file = os.path.join(sys.path[0], "db_servers_conf.ini") config = configparser.ConfigParser() config.read(db_ps_file, encoding="utf-8") db_user = config.get('collector_mysql', 'collector') db_pwd = config.get('collector_mysql', 'collector_p_w_d') conn = pymysql.connect(host=db_host, port=db_port, user=db_user, password=db_pwd, connect_timeout=5, read_timeout=5, write_timeout=5) return conn
3.定義宣告訪問db的操作
檔案為mysql_exec_sql.py,注意需要匯入上面的model，
# -*- coding: utf-8 -*- import get_mysql_db_connect def mysql_exec_dml_sql(db_host, db_port, exec_sql): conn = mysql_get_db_connect.mysql_get_db_connect(db_host, db_port) with conn.cursor() as cursor_db: cursor_db.execute(exec_sql) conn.commit() ##需要顯式關閉 cursor_db.close() conn.close() def mysql_exec_select_sql(db_host, db_port, exec_sql): conn = mysql_get_db_connect.mysql_get_db_connect(db_host, db_port) with conn.cursor() as cursor_db: cursor_db.execute(exec_sql) sql_rst = cursor_db.fetchall() ##顯式關閉conn cursor_db.close() conn.close() return sql_rst def mysql_exec_select_sql_include_colnames(db_host, db_port, exec_sql): conn = mysql_get_db_connect.mysql_get_db_connect(db_host, db_port) with conn.cursor() as cursor_db: cursor_db.execute(exec_sql) sql_rst = cursor_db.fetchall() col_names = cursor_db.description return sql_rst, col_names
三.主要代碼
3.1 創建保存資料的腳本
用來保存收集表資訊的表：table_info
create table `table_info` ( `id` int(11) NOT NULL AUTO_INCREMENT, `host_ip` varchar(50) NOT NULL DEFAULT '0', `port` varchar(10) NOT NULL DEFAULT '3306', `db_name` varchar(100) NOT NULL DEFAULT '' COMMENT '資料庫名字', `table_name` varchar(100) NOT NULL DEFAULT '' COMMENT '表名字', `table_rows` bigint NOT NULL DEFAULT 0 COMMENT '表行數', `table_data_length` bigint, `table_index_length` bigint, `table_data_free` bigint, `table_auto_increment` bigint, `creator` varchar(50) NOT NULL DEFAULT '', `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP, `operator` varchar(50) NOT NULL DEFAULT '', `operate_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP, PRIMARY KEY (`id`) ) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8mb4 ;
收集程序，如果訪問某個實體例外時，將失敗的資訊保存到表 gather_error_info 中，以便跟蹤分析，
create table `gather_error_info` ( `id` int(11) NOT NULL AUTO_INCREMENT, `app_name` varchar(150) NOT NULL DEFAULT '報錯的程式', `host_ip` varchar(50) NOT NULL DEFAULT '0', `port` varchar(10) NOT NULL DEFAULT '3306', `db_name` varchar(60) NOT NULL DEFAULT '0' COMMENT '資料庫名字', `error_msg` varchar(500) NOT NULL DEFAULT '報錯的程式', `status` int(11) NOT NULL DEFAULT '2', `creator` varchar(50) NOT NULL DEFAULT '', `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP, `operator` varchar(50) NOT NULL DEFAULT '', `operate_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP, PRIMARY KEY (`id`) ) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8mb4;
3.2 收集的功能腳本
定義收集 DB_info的腳本 collect_tables_info.py
# -*- coding: utf-8 -*- import sys import os import datetime import configparser import pymysql import mysql_get_db_connect import mysql_exec_sql import mysql_collect_exec_sql import pandas as pd def collect_tables_info(): db_ps_file = os.path.join(sys.path[0], "db_servers_conf.ini") config = configparser.ConfigParser() config.read(db_ps_file, encoding="utf-8") cmdb_host = config.get('cmdb_server', 'db_host') cmdb_port = config.getint('cmdb_server', 'db_port') monitor_db_host = config.get('dbmonitor_server', 'db_host') monitor_db_port = config.getint('dbmonitor_server', 'db_port') # 獲取需要遍歷的DB串列 exec_sql_1 = """ select vm_ip_address,port,b.vm_host_name,remark FROM cmdbdb.mysqldb_instance ; """ exec_sql_tablesizeinfo = """ select TABLE_SCHEMA,table_name,table_rows,data_length ,index_length,data_free,auto_increment from information_schema.tables where TABLE_SCHEMA not in ('mysql','information_schema','performance_schema','sys') and TABLE_TYPE ='BASE TABLE'; """ exec_sql_insert_tablesize = " insert into monitordb.table_info (host_ip,port,db_name,table_name,table_rows,table_data_length,table_index_length,table_data_free,table_auto_increment) \ VALUES ('%s', '%s','%s','%s', %s ,%s, %s,%s, %s) ;" exec_sql_error = " insert into monitordb.gather_db_error (app_name,host_ip,port,error_msg) \ VALUES ('%s', '%s','%s','%s') ;" sql_rst_1 = mysql_exec_sql.mysql_exec_select_sql(cmdb_host, cmdb_port, exec_sql_1) if len(sql_rst_1): for i in range(len(sql_rst_1)): rw_host = list(sql_rst_1[i]) db_host_ip = rw_host[0] db_port_s = rw_host[1] ##print(type(rw_host)) ###ValueError: port should be of type int db_port = int(db_port_s) try: sql_rst_tablesize = mysql_collect_exec_sql.mysql_exec_select_sql(db_host_ip, db_port, exec_sql_tablesizeinfo) ##print(sql_rst_tablesize) if len(sql_rst_tablesize): for i in range(len(sql_rst_tablesize)): rw_tableinfo = list(sql_rst_tablesize[i]) rw_db_name = rw_tableinfo[0] rw_table_name = rw_tableinfo[1] rw_table_rows = rw_tableinfo[2] rw_data_length = rw_tableinfo[3] rw_index_length = rw_tableinfo[4] rw_data_free = rw_tableinfo[5] rw_auto_increment = rw_tableinfo[6] ##print(rw_auto_increment) ##Python中對變數是否為None的判斷 if rw_auto_increment is None: rw_auto_increment = 0 ###一定要有一個exec_sql_insert_table_com，如果是exec_sql_insert_tablesize = exec_sql_insert_tablesize % ( db_host_ip....... ####則提示報錯:報錯資訊是 TypeError: not all arguments converted during string formatting exec_sql_insert_table_com = exec_sql_insert_tablesize % ( db_host_ip , db_port_s, rw_db_name, rw_table_name , rw_table_rows , rw_data_length , rw_index_length , rw_data_free , rw_auto_increment) print(exec_sql_insert_table_com) sql_insert_rst_1 = mysql_exec_sql.mysql_exec_dml_sql(monitor_db_host, monitor_db_port, exec_sql_insert_table_com) #print(sql_insert_rst_1) except: ####print('TypeError的錯誤資訊如下:' + str(TypeError)) print(db_host_ip +' '+str(db_port) + '登入例外無法獲取table資訊,請檢查實體和訪問賬號!') exec_sql_error_sql = exec_sql_error % ( 'collect_tables_info',db_host_ip , str(db_port),'登入例外，獲取table資訊失敗,請檢查實體和訪問的賬號!!!' ) sql_insert_err_rst_1 = mysql_exec_sql.mysql_exec_dml_sql(monitor_db_host, monitor_db_port, exec_sql_error_sql) ##print(sql_rst_1) else: print('查詢無結果集') collect_tables_info()
