環境：
AlmaLinux release 9.1
MySQL Community Server Ver 8.0.33
Replication Manager v2.2.40 for MariaDB 10.x and MySQL 5.7 Series
ProxySQL version 2.5.1-90-gbedaa6c
主機分配情況：
采用hyper-v創建虛擬機的方式進行的，創建1臺模板之后另外3臺匯入虛擬機復制，
1、安裝mysql
mysql8的默認加密插件變為了caching_sha2_password需要修改成mysql_native_password，因為proxysql不支持caching_sha2_password
安裝完成后在server01、02、03上創建以下用戶
rep-manager供replication-manager使用，repl供主從復制使用
mysql> create user 'rep-manager'@'%' identified by 'your password'; Query OK, 0 rows affected (0.01 sec) mysql> create user 'repl'@'%' identified by 'your password'; Query OK, 0 rows affected (0.02 sec) mysql> create user 'proxysql'@'%' identified by 'your password'; Query OK, 0 rows affected (0.02 sec) mysql> grant process,replication slave,replication client on *.* to 'proxysql'@'%'; Query OK, 0 rows affected (0.01 sec) mysql> grant select,replication slave,replication client,reload,super on *.* to 'repl'@'%'; Query OK, 0 rows affected, 1 warning (0.01 sec) mysql> grant all privileges on *.* to 'rep-manager'@'%' with grant option; Query OK, 0 rows affected (0.01 sec) mysql> flush privileges; Query OK, 0 rows affected (0.01 sec)
2、復制虛擬機
3、在server00上安裝replication-manager
4、在server00上安裝proxysql
5、啟動mysql，創建主從半同步復制
半同步需要安裝插件，在主庫和從庫上都安裝
mysql> install plugin rpl_semi_sync_source soname 'semisync_source.so'; mysql> install plugin rpl_semi_sync_replica soname 'semisync_replica.so'; mysql> show plugins;
+----------------------------------+----------+--------------------+---------------------+---------+
| Name | Status | Type | Library | License |
+----------------------------------+----------+--------------------+---------------------+---------+
| binlog | ACTIVE | STORAGE ENGINE | NULL | GPL |
| mysql_native_password | ACTIVE | AUTHENTICATION | NULL | GPL |
| sha256_password | ACTIVE | AUTHENTICATION | NULL | GPL |
| caching_sha2_password | ACTIVE | AUTHENTICATION | NULL | GPL |
| sha2_cache_cleaner | ACTIVE | AUDIT | NULL | GPL |
| daemon_keyring_proxy_plugin | ACTIVE | DAEMON | NULL | GPL |
| CSV | ACTIVE | STORAGE ENGINE | NULL | GPL |
| MEMORY | ACTIVE | STORAGE ENGINE | NULL | GPL |
| InnoDB | ACTIVE | STORAGE ENGINE | NULL | GPL |
| INNODB_TRX | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_CMP | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_CMP_RESET | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_CMPMEM | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_CMPMEM_RESET | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_CMP_PER_INDEX | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_CMP_PER_INDEX_RESET | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_BUFFER_PAGE | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_BUFFER_PAGE_LRU | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_BUFFER_POOL_STATS | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_TEMP_TABLE_INFO | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_METRICS | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_FT_DEFAULT_STOPWORD | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_FT_DELETED | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_FT_BEING_DELETED | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_FT_CONFIG | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_FT_INDEX_CACHE | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_FT_INDEX_TABLE | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_TABLES | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_TABLESTATS | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_INDEXES | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_TABLESPACES | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_COLUMNS | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_VIRTUAL | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_CACHED_INDEXES | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| INNODB_SESSION_TEMP_TABLESPACES | ACTIVE | INFORMATION SCHEMA | NULL | GPL |
| MyISAM | ACTIVE | STORAGE ENGINE | NULL | GPL |
| MRG_MYISAM | ACTIVE | STORAGE ENGINE | NULL | GPL |
| PERFORMANCE_SCHEMA | ACTIVE | STORAGE ENGINE | NULL | GPL |
| TempTable | ACTIVE | STORAGE ENGINE | NULL | GPL |
| ARCHIVE | ACTIVE | STORAGE ENGINE | NULL | GPL |
| BLACKHOLE | ACTIVE | STORAGE ENGINE | NULL | GPL |
| FEDERATED | DISABLED | STORAGE ENGINE | NULL | GPL |
| ndbcluster | DISABLED | STORAGE ENGINE | NULL | GPL |
| ndbinfo | DISABLED | STORAGE ENGINE | NULL | GPL |
| ndb_transid_mysql_connection_map | DISABLED | INFORMATION SCHEMA | NULL | GPL |
| ngram | ACTIVE | FTPARSER | NULL | GPL |
| mysqlx_cache_cleaner | ACTIVE | AUDIT | NULL | GPL |
| mysqlx | ACTIVE | DAEMON | NULL | GPL |
| rpl_semi_sync_source | ACTIVE | REPLICATION | semisync_source.so | GPL |
| rpl_semi_sync_replica | ACTIVE | REPLICATION | semisync_replica.so | GPL |
+----------------------------------+----------+--------------------+---------------------+---------+
50 rows in set (0.00 sec)
要想永久啟用半同步需將配置寫入my.cnf看下面的配置即可，
在主庫上查看是否啟用了半同步
mysql> show variables like 'rpl_semi%';
+---------------------------------------------+------------+
| Variable_name | Value |
+---------------------------------------------+------------+
| rpl_semi_sync_replica_enabled | ON |
| rpl_semi_sync_replica_trace_level | 32 |
| rpl_semi_sync_source_enabled | ON |
| rpl_semi_sync_source_timeout | 10000 |
| rpl_semi_sync_source_trace_level | 32 |
| rpl_semi_sync_source_wait_for_replica_count | 1 |
| rpl_semi_sync_source_wait_no_replica | ON |
| rpl_semi_sync_source_wait_point | AFTER_SYNC |
+---------------------------------------------+------------+
從庫上
mysql> show variables like 'rpl_semi%';
+---------------------------------------------+------------+
| Variable_name | Value |
+---------------------------------------------+------------+
| rpl_semi_sync_replica_enabled | ON |
| rpl_semi_sync_replica_trace_level | 32 |
| rpl_semi_sync_source_enabled | ON |
| rpl_semi_sync_source_timeout | 10000 |
| rpl_semi_sync_source_trace_level | 32 |
| rpl_semi_sync_source_wait_for_replica_count | 1 |
| rpl_semi_sync_source_wait_no_replica | ON |
| rpl_semi_sync_source_wait_point | AFTER_SYNC |
+---------------------------------------------+------------+
8 rows in set (0.01 sec)
master主機mysql配置my.cnf如下
# For advice on how to change settings please see
# http://dev.mysql.com/doc/refman/8.0/en/server-configuration-defaults.html
[mysqld]
#
# Remove leading # and set to the amount of RAM for the most important data
# cache in MySQL. Start at 70% of total RAM for dedicated server, else 10%.
# innodb_buffer_pool_size = 128M
#
# Remove the leading "# " to disable binary logging
# Binary logging captures changes between backups and is enabled by
# default. It's default setting is log_bin=binlog
# disable_log_bin
#
# Remove leading # to set options mainly useful for reporting servers.
# The server defaults are faster for transactions and fast SELECTs.
# Adjust sizes as needed, experiment to find the optimal values.
# join_buffer_size = 128M
# sort_buffer_size = 2M
# read_rnd_buffer_size = 2M
#
# Remove leading # to revert to previous value for default_authentication_plugin,
# this will increase compatibility with older clients. For background, see:
# https://dev.mysql.com/doc/refman/8.0/en/server-system-variables.html#sysvar_default_authentication_plugin
# default-authentication-plugin=mysql_native_password
datadir=/var/lib/mysql
socket=/var/lib/mysql/mysql.sock
log-error=/var/log/mysqld.log
pid-file=/var/run/mysqld/mysqld.pid
default-authentication-plugin=mysql_native_password
######replication settings######
server-id=1001
log-bin=mysql-bin
binlog_format=row
binlog-ignore-db=mysql
binlog-ignore-db=information_schema
binlog-ignore-db=performance_schema
binlog-ignore-db=sys
######gtid#######
gtid_mode=on
enforce_gtid_consistency=on
binlog_gtid_simple_recovery=on
relay_log_recovery = ON
relay-log-index=mysql-relay
relay-log=mysql-relay
loose_rpl_semi_sync_source_enabled = ON
loose_rpl_semi_sync_replica_enabled = ON
log_slow_replica_statements = 1
slave主機myql的配置如下：
# For advice on how to change settings please see
# http://dev.mysql.com/doc/refman/8.0/en/server-configuration-defaults.html
[mysqld]
#
# Remove leading # and set to the amount of RAM for the most important data
# cache in MySQL. Start at 70% of total RAM for dedicated server, else 10%.
# innodb_buffer_pool_size = 128M
#
# Remove the leading "# " to disable binary logging
# Binary logging captures changes between backups and is enabled by
# default. It's default setting is log_bin=binlog
# disable_log_bin
#
# Remove leading # to set options mainly useful for reporting servers.
# The server defaults are faster for transactions and fast SELECTs.
# Adjust sizes as needed, experiment to find the optimal values.
# join_buffer_size = 128M
# sort_buffer_size = 2M
# read_rnd_buffer_size = 2M
#
# Remove leading # to revert to previous value for default_authentication_plugin,
# this will increase compatibility with older clients. For background, see:
# https://dev.mysql.com/doc/refman/8.0/en/server-system-variables.html#sysvar_default_authentication_plugin
# default-authentication-plugin=mysql_native_password
datadir=/var/lib/mysql
socket=/var/lib/mysql/mysql.sock
log-error=/var/log/mysqld.log
pid-file=/var/run/mysqld/mysqld.pid
default-authentication-plugin=mysql_native_password
######replication settings######
server-id=1002
log-bin=mysql-bin
binlog_format=row
log_slave_updates=on
relay_log_recovery=1
binlog-ignore-db=mysql
binlog-ignore-db=information_schema
binlog-ignore-db=performance_schema
binlog-ignore-db=sys
######gtid#######
gtid_mode=on
enforce_gtid_consistency=on
binlog_gtid_simple_recovery=on
relay_log_recovery = ON
relay-log-index=mysql-relay
relay-log=mysql-relay
loose_rpl_semi_sync_source_enabled = ON
loose_rpl_semi_sync_replica_enabled = ON
log_slow_replica_statements = 1
read_only = on
啟動主從
mysql> CHANGE REPLICATION SOURCE to SOURCE_HOST='server01.mshome.net',SOURCE_USER='repl',SOURCE_PASSWORD='your password',SOURCE_PORT=3306;
Query OK, 0 rows affected, 3 warnings (0.03 sec)
mysql> start replica;
Query OK, 0 rows affected (0.02 sec)
mysql> show replica status\G;
*************************** 1. row ***************************
Replica_IO_State: Waiting for source to send event
Source_Host: server01.mshome.net
Source_User: repl
Source_Port: 3306
Connect_Retry: 60
Source_Log_File: mysql-bin.000009
Read_Source_Log_Pos: 157
Relay_Log_File: mysql-relay.000010
Relay_Log_Pos: 373
Relay_Source_Log_File: mysql-bin.000009
Replica_IO_Running: Yes
Replica_SQL_Running: Yes
Replicate_Do_DB:
Replicate_Ignore_DB:
Replicate_Do_Table:
Replicate_Ignore_Table:
Replicate_Wild_Do_Table:
Replicate_Wild_Ignore_Table:
Last_Errno: 0
Last_Error:
Skip_Counter: 0
Exec_Source_Log_Pos: 157
Relay_Log_Space: 795
Until_Condition: None
Until_Log_File:
Until_Log_Pos: 0
Source_SSL_Allowed: No
Source_SSL_CA_File:
Source_SSL_CA_Path:
Source_SSL_Cert:
Source_SSL_Cipher:
Source_SSL_Key:
Seconds_Behind_Source: 0
Source_SSL_Verify_Server_Cert: No
Last_IO_Errno: 0
Last_IO_Error:
Last_SQL_Errno: 0
Last_SQL_Error:
Replicate_Ignore_Server_Ids:
Source_Server_Id: 1001
Source_UUID: 590af332-e04e-11ed-8935-00155d030202
Source_Info_File: mysql.slave_master_info
SQL_Delay: 0
SQL_Remaining_Delay: NULL
Replica_SQL_Running_State: Replica has read all relay log; waiting for more updates
Source_Retry_Count: 86400
Source_Bind:
Last_IO_Error_Timestamp:
Last_SQL_Error_Timestamp:
Source_SSL_Crl:
Source_SSL_Crlpath:
Retrieved_Gtid_Set:
Executed_Gtid_Set:
Auto_Position: 0
Replicate_Rewrite_DB:
Channel_Name:
Source_TLS_Version:
Source_public_key_path:
Get_Source_public_key: 1
Network_Namespace:
1 row in set (0.00 sec)
ERROR:
No query specified

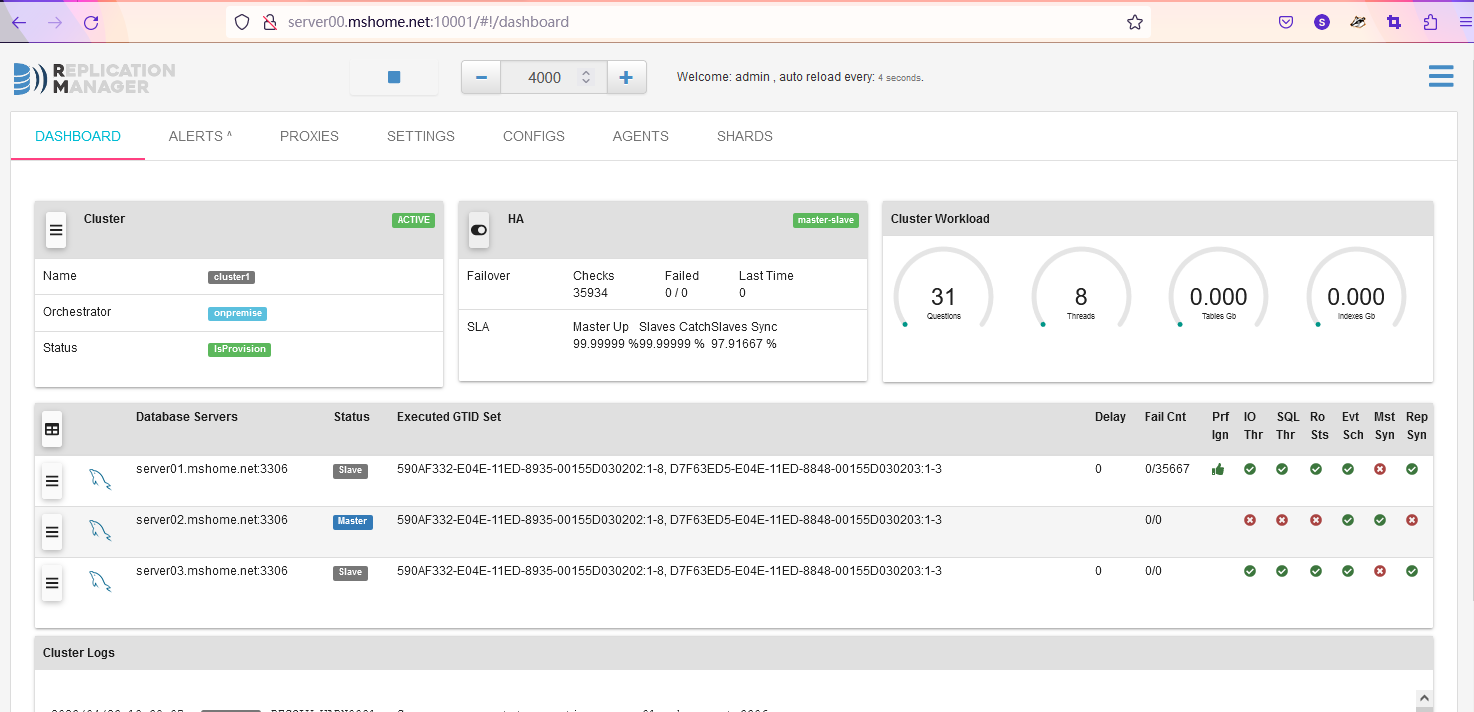

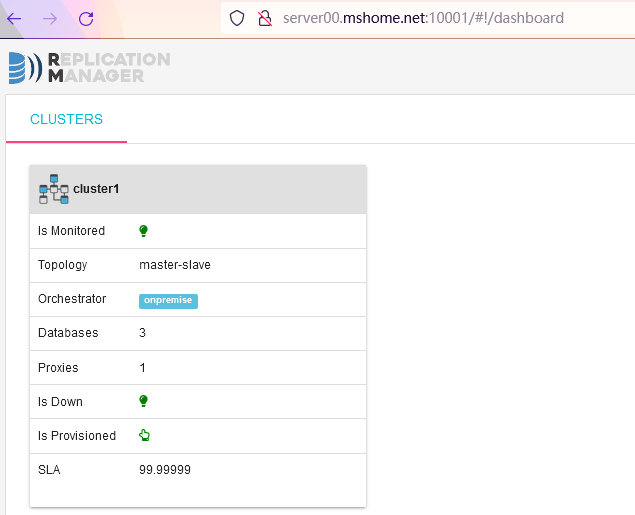

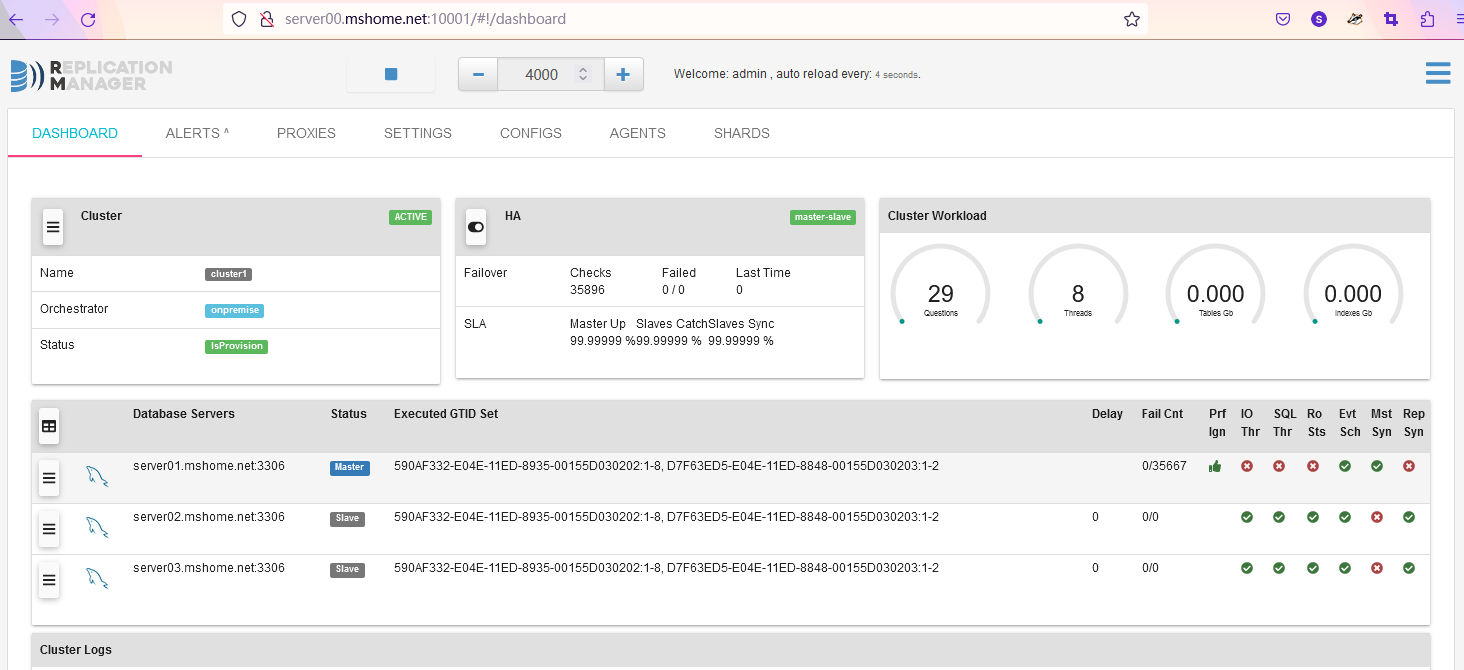

server00主機上安裝了replication-manager和proxysql
replication-manager的配置如下
查看replication-manager組態檔cluster1.toml
cat /etc/replication-manager/cluster.d/cluster1.toml
[cluster1] title = "cluster1" prov-orchestrator = "onpremise" prov-db-tags = "innodb,noquerycache,slow,pfs,pkg,linux,smallredolog,logtotable" prov-db-memory = "256" prov-db-memory-shared-pct = "threads:16,innodb:60,myisam:10,aria:10,rocksdb:1,tokudb:1,s3:1,archive:1,querycache:0" prov-db-disk-size = "1" prov-db-cpu-cores = "1" prov-db-disk-iops = "300" db-servers-hosts = "server01.mshome.net:3306,server02.mshome.net:3306,server03.mshome.net:3306" db-servers-prefered-master = "server01.mshome.net:3306" db-servers-credential = "rep-manager:yourpassword" db-servers-connect-timeout = 5 replication-credential = "rep-manager:yourpassword" verbose = false log-failed-election = true log-level = 1 log-rotate-max-age = 7 log-rotate-max-backup = 7 log-rotate-max-size = 5 log-sql-in-monitoring = true log-sst = true ############## ## TOPOLOGY ## ############## replication-multi-master = false replication-multi-tier-slave = false ############ # BACKUPS ## ########### backup-streaming = false backup-streaming-aws-access-key-id = "admin" backup-streaming-aws-access-secret = "xxxx" backup-streaming-endpoint= "https://s3.signal18.io/" backup-streaming-region= "fr-1" backup-streaming-bucket= "repman"
#####這里可以設定備份工具restic，工具可以跨服務器，結合minio備份就很爽了，后續再介紹吧 backup-restic = false backup-restic-aws = false backup-physical-type = "mariabackup" backup-logical-type = "mysqldump" backup-restic-aws-access-secret = "xxxx" backup-restic-password = "xxxx" backup-restic-binary-path = "/usr/bin/restic" monitoring-scheduler = true scheduler-db-servers-logical-backup = true scheduler-db-servers-logical-backup-cron= "0 30 23 * * 6" scheduler-db-servers-logs = false scheduler-db-servers-logs-cron = "0 0 * * * *" scheduler-db-servers-logs-table-keep = 4 scheduler-db-servers-logs-table-rotate = false scheduler-db-servers-logs-table-rotate-cron = "0 0 0/6 * * *" scheduler-db-servers-optimize = false scheduler-db-servers-optimize-cron = "0 0 3 1 * 5" scheduler-db-servers-physical-backup = true scheduler-db-servers-physical-backup-cron = "0 30 23 * * *" ############## ## FAILOVER ## ############## failover-mode = "manual" failover-pre-script = "" failover-post-script = "" ## Slaves will re enter with read-only failover-readonly-state = true failover-event-scheduler = false failover-event-status = false ## Failover after N failures detection failover-falsepositive-ping-counter = 5 ## Cancel failover if already N failover ## Cancel failover if last failover was N seconds before ## Cancel failover in semi-sync when one slave is not in sync ## Cancel failover if one slave receive master heartbeat ## Cancel failover when replication delay is more than N seconds failover-limit = 0 failover-time-limit = 0 failover-at-sync = false failover-max-slave-delay = 30 failover-restart-unsafe = false # failover-falsepositive-heartbeat = true # failover-falsepositive-heartbeat-timeout = 3 # failover-falsepositive-maxscale = false # failover-falsepositive-maxscale-timeout = 14 # failover-falsepositive-external = false # failover-falsepositive-external-port = 80 ################ ## SWITCHOVER ## ################ ## In switchover Wait N milliseconds before killing long running transactions ## Cancel switchover if transaction running more than N seconds ## Cancel switchover if write query running more than N seconds ## Cancel switchover if one of the slaves is not synced based on GTID equality switchover-wait-kill = 5000 switchover-wait-trx = 10 switchover-wait-write-query = 10 switchover-at-equal-gtid = false switchover-at-sync = false switchover-max-slave-delay = 30 ############ ## REJOIN ## ############ autorejoin = true autorejoin-script = "" autorejoin-semisync = true autorejoin-backup-binlog = true autorejoin-flashback = false autorejoin-mysqldump = false #################### ## CHECKS & FORCE ## #################### check-replication-filters = true check-binlog-filters = true check-replication-state = true force-slave-heartbeat= false force-slave-heartbeat-retry = 5 force-slave-heartbeat-time = 3 force-slave-gtid-mode = false force-slave-semisync = false force-slave-failover-readonly-state = false force-binlog-row = false force-binlog-annotate = false force-binlog-slowqueries = false force-binlog-compress = false force-binlog-checksum = false force-inmemory-binlog-cache-size = false force-disk-relaylog-size-limit = false force-disk-relaylog-size-limit-size = 1000000000 force-sync-binlog = false force-sync-innodb = false ############## ## MAXSCALE ## ############## ## for 2 nodes cluster maxscale can be driven by replication manager maxscale = false maxscale-binlog = false maxscale-servers = "192.168.0.201" maxscale-port = 4003 maxscale-user = "admin" maxscale-pass = "mariadb" ## When true replication manager drive maxscale server state ## Not required unless multiple maxscale or release does not support detect_stale_slave maxscale-disable-monitor = false ## maxinfo|maxadmin maxscale-get-info-method = "maxadmin" maxscale-maxinfo-port = 4002 maxscale-write-port = 4007 maxscale-read-port = 4008 maxscale-read-write-port = 4006 maxscale-binlog-port = 4000 ############# ## HAPROXY ## ############# ## Wrapper mode unless maxscale or proxysql required to be located with replication-manager haproxy = false haproxy-binary-path = "/usr/sbin/haproxy" ## Read write traffic ## Read only load balance least connection traffic haproxy-write-port = 3306 haproxy-read-port = 3307 #################### ## SHARDING PROXY ## #################### mdbshardproxy = false mdbshardproxy-hosts = "127.0.0.1:3306" mdbshardproxy-user = "root:mariadb" ################################# ###### proxysql settings ######## ################################# proxysql = true proxysql-servers = "127.0.0.1" proxysql-port = "6033" proxysql-admin-port = "6032" proxysql-writer-hostgroup = "1000" proxysql-reader-hostgroup = "1001" proxysql-user = "admin" proxysql-password = "admin" proxysql-bootstrap = false proxysql-bootstrap-users = false #不從master復制用戶到proxysql，因為復制會出問題
查看replication-manager組態檔config.toml
cat /etc/replication-manager/config.toml
[Default] include = "/etc/replication-manager/cluster.d" monitoring-save-config = false monitoring-datadir = "/var/lib/replication-manager" #monitoring-sharedir = "/usr/share/replication-manager" ## Timeout in seconds between consecutive monitoring monitoring-ticker = 2 ######### ## LOG ## ######### log-file = "/var/log/replication-manager.log" log-heartbeat = false log-syslog = false ################# ## ARBITRATION ## ################# arbitration-external = false arbitration-external-secret = "13787932529099014144" arbitration-external-hosts = "88.191.151.84:80" arbitration-peer-hosts ="127.0.0.1:10002" ## Unique value on each replication-manager arbitration-external-unique-id = 0 ########## ## HTTP ## ########## http-server = true http-bind-address = "0.0.0.0" http-port = "10001" http-auth = false http-session-lifetime = 3600 http-bootstrap-button = false http-refresh-interval = 4000 ######### ## API ## ######### api-credentials = "admin:repman" api-port = "10005" api-https-bind = false api-credentials-acl-allow = "admin:cluster proxy db prov,dba:cluster proxy db,foo:" api-credentials-acl-discard = false api-credentials-external = "dba:repman,foo:bar" ############ ## ALERTS ## ############ mail-from = "replication-manager@localhost" mail-smtp-addr = "localhost:25" mail-to = "[email protected]" mail-smtp-password="" mail-smtp-user="" alert-slack-channel = "#support" alert-slack-url = "" alert-slack-user = "svar" ########## # STATS ## ########## graphite-metrics = false graphite-carbon-host = "127.0.0.1" graphite-carbon-port = 2003 graphite-embedded = false graphite-carbon-api-port = 10002 graphite-carbon-server-port = 10003 graphite-carbon-link-port = 7002 graphite-carbon-pickle-port = 2004 graphite-carbon-pprof-port = 7007
####這里可以設定邏輯備份和物理備份的程式，結合上面的配置里的restic做備份，很不錯，后續有時間了再繼續配置吧 backup-mydumper-path = "/usr/local/bin/mydumper" backup-myloader-path = "/usr/local/bin/myloader" backup-mysqlbinlog-path = "/usr/local/bin/mysqlbinlog" backup-mysqldump-path = "/usr/local/bin/mysqldump" ############## # BENCHMARK ## ############## sysbench-binary-path = "/usr/bin/sysbench" sysbench-threads = 4 sysbench-time = 100 sysbench-v1 = true

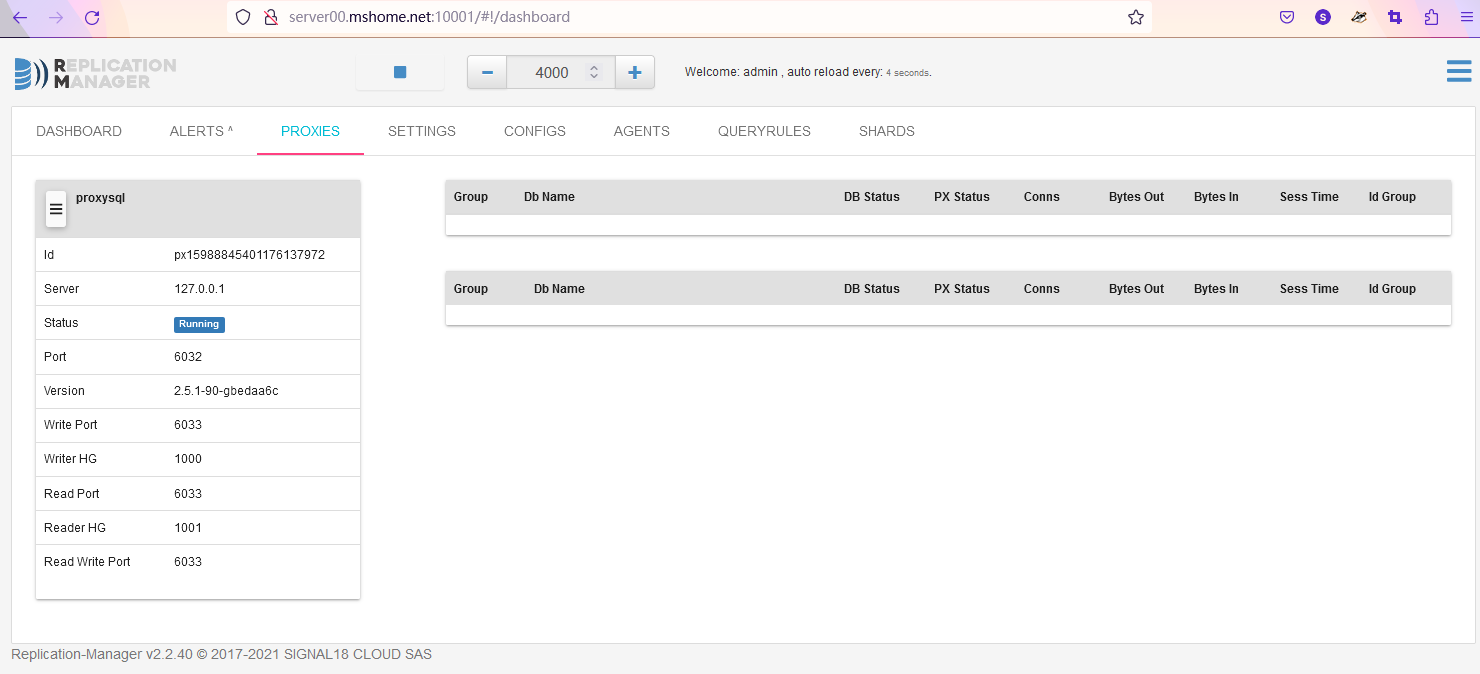

查看proxysql的配置
cat /etc/proxysql.cnf
#file proxysql.cfg ######################################################################################## # This config file is parsed using libconfig , and its grammar is described in: # http://www.hyperrealm.com/libconfig/libconfig_manual.html#Configuration-File-Grammar # Grammar is also copied at the end of this file ######################################################################################## ######################################################################################## # IMPORTANT INFORMATION REGARDING THIS CONFIGURATION FILE: ######################################################################################## # On startup, ProxySQL reads its config file (if present) to determine its datadir. # What happens next depends on if the database file (disk) is present in the defined # datadir (i.e. "/var/lib/proxysql/proxysql.db"). # # If the database file is found, ProxySQL initializes its in-memory configuration from # the persisted on-disk database. So, disk configuration gets loaded into memory and # then propagated towards the runtime configuration. # # If the database file is not found and a config file exists, the config file is parsed # and its content is loaded into the in-memory database, to then be both saved on-disk # database and loaded at runtime. # # IMPORTANT: If a database file is found, the config file is NOT parsed. In this case # ProxySQL initializes its in-memory configuration from the persisted on-disk # database ONLY. In other words, the configuration found in the proxysql.cnf # file is only used to initial the on-disk database read on the first startup. # # In order to FORCE a re-initialise of the on-disk database from the configuration file # the ProxySQL service should be started with "systemctl start proxysql-initial". # ######################################################################################## datadir="/var/lib/proxysql" errorlog="/var/lib/proxysql/proxysql.log" admin_variables= { admin_credentials="admin:admin" # mysql_ifaces="127.0.0.1:6032;/tmp/proxysql_admin.sock" mysql_ifaces="0.0.0.0:6032" # refresh_interval=2000 # debug=true } mysql_variables= { threads=4 max_connections=2048 default_query_delay=0 default_query_timeout=36000000 have_compress=true poll_timeout=2000 # interfaces="0.0.0.0:6033;/tmp/proxysql.sock" interfaces="0.0.0.0:6033" default_schema="information_schema" stacksize=1048576 server_version="5.5.30" connect_timeout_server=3000 # make sure to configure monitor username and password # https://github.com/sysown/proxysql/wiki/Global-variables#mysql-monitor_username-mysql-monitor_password monitor_username="monitor" monitor_password="monitor" monitor_history=600000 monitor_connect_interval=60000 monitor_ping_interval=10000 monitor_read_only_interval=1500 monitor_read_only_timeout=500 ping_interval_server_msec=120000 ping_timeout_server=500 commands_stats=true sessions_sort=true connect_retries_on_failure=10 } # defines all the MySQL servers mysql_servers = ( # { # address = "127.0.0.1" # no default, required . If port is 0 , address is interpred as a Unix Socket Domain # port = 3306 # no default, required . If port is 0 , address is interpred as a Unix Socket Domain # hostgroup = 0 # no default, required # status = "ONLINE" # default: ONLINE # weight = 1 # default: 1 # compression = 0 # default: 0 # max_replication_lag = 10 # default 0 . If greater than 0 and replication lag passes such threshold, the server is shunned # }, # { # address = "/var/lib/mysql/mysql.sock" # port = 0 # hostgroup = 0 # }, # { # address="127.0.0.1" # port=21891 # hostgroup=0 # max_connections=200 # }, # { address="127.0.0.2" , port=3306 , hostgroup=0, max_connections=5 }, # { address="127.0.0.1" , port=21892 , hostgroup=1 }, # { address="127.0.0.1" , port=21893 , hostgroup=1 } # { address="127.0.0.2" , port=3306 , hostgroup=1 }, # { address="127.0.0.3" , port=3306 , hostgroup=1 }, # { address="127.0.0.4" , port=3306 , hostgroup=1 }, # { address="/var/lib/mysql/mysql.sock" , port=0 , hostgroup=1 } ) # defines all the MySQL users mysql_users: ( # { # username = "username" # no default , required # password = "password" # default: '' # default_hostgroup = 0 # default: 0 # active = 1 # default: 1 # }, # { # username = "root" # password = "" # default_hostgroup = 0 # max_connections=1000 # default_schema="test" # active = 1 # }, # { username = "user1" , password = "password" , default_hostgroup = 0 , active = 0 } ) #defines MySQL Query Rules mysql_query_rules: ( # { # rule_id=1 # active=1 # match_pattern="^SELECT .* FOR UPDATE$" # destination_hostgroup=0 # apply=1 # }, # { # rule_id=2 # active=1 # match_pattern="^SELECT" # destination_hostgroup=1 # apply=1 # } ) scheduler= ( # { # id=1 # active=0 # interval_ms=10000 # filename="/var/lib/proxysql/proxysql_galera_checker.sh" # arg1="0" # arg2="0" # arg3="0" # arg4="1" # arg5="/var/lib/proxysql/proxysql_galera_checker.log" # } ) mysql_replication_hostgroups= ( # { # writer_hostgroup=30 # reader_hostgroup=40 # comment="test repl 1" # }, # { # writer_hostgroup=50 # reader_hostgroup=60 # comment="test repl 2" # } ) # http://www.hyperrealm.com/libconfig/libconfig_manual.html#Configuration-File-Grammar # # Below is the BNF grammar for configuration files. Comments and include directives are not part of the grammar, so they are not included here. # # configuration = setting-list | empty # # setting-list = setting | setting-list setting # # setting = name (":" | "=") value (";" | "," | empty) # # value = scalar-value | array | list | group # # value-list = value | value-list "," value # # scalar-value = boolean | integer | integer64 | hex | hex64 | float # | string # # scalar-value-list = scalar-value | scalar-value-list "," scalar-value # # array = "[" (scalar-value-list | empty) "]" # # list = "(" (value-list | empty) ")" # # group = "{" (setting-list | empty) "}" # # empty =
其實proxysql配置基本上在啟動了之后都是通過資料庫來設定的組態檔

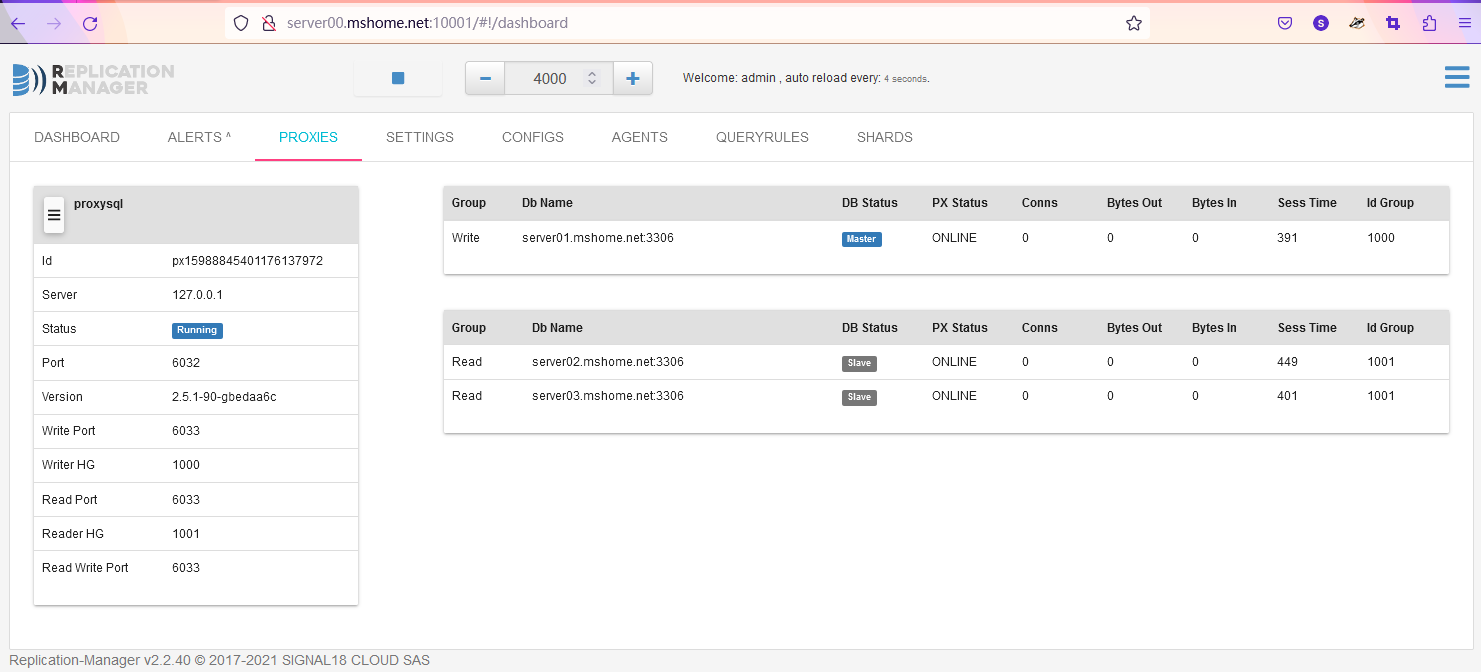

proxysql的配置如下，進入proxysql
[root@server00 ~]# mysql -uadmin -p -P6032 -h127.0.0.1 --prompt='proxysql Admin> ' Enter password: Welcome to the MySQL monitor. Commands end with ; or \g. Your MySQL connection id is 9037 Server version: 5.5.30 (ProxySQL Admin Module) Copyright (c) 2000, 2023, Oracle and/or its affiliates. Oracle is a registered trademark of Oracle Corporation and/or its affiliates. Other names may be trademarks of their respective owners. Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. proxysql Admin>
proxysql Admin> set mysql-monitor_username='proxysql';
Query OK, 1 row affected (0.00 sec)
proxysql Admin> set mysql-monitor_password='your password';
Query OK, 1 row affected (0.00 sec)
proxysql Admin> select * from global_variables;
| mysql-monitor_username | proxysql |
| mysql-monitor_password | your password |
| mysql-monitor_history | 600000 |
| mysql-monitor_connect_interval | 60000 |
| mysql-monitor_ping_interval | 10000 |
| mysql-monitor_read_only_interval | 1500 |
| mysql-monitor_read_only_timeout | 500 |
| mysql-ping_interval_server_msec | 120000 |
| mysql-ping_timeout_server | 500 |
| mysql-commands_stats | true |
| mysql-sessions_sort | true |
| mysql-connect_retries_on_failure | 10 |
| mysql-server_capabilities | 569899 |
+----------------------------------------------------------------------+--------------------------------------------+
proxysql Admin> load mysql variables to runtime;
Query OK, 0 rows affected (0.00 sec)
proxysql Admin> save mysql variables to disk;
Query OK, 155 rows affected (0.01 sec)
proxysql Admin> insert into mysql_replication_hostgroups values(1000,1001,'read_only','讀1000寫1001分離');
Query OK, 1 row affected (0.00 sec)
proxysql Admin> insert into mysql_servers(hostgroup_id,hostname,port) values(1000,'server01.mshome.net',3306);
Query OK, 1 row affected (0.00 sec)
proxysql Admin> insert into mysql_servers(hostgroup_id,hostname,port) values(1001,'server02.mshome.net',3306);
Query OK, 1 row affected (0.00 sec)
proxysql Admin> insert into mysql_servers(hostgroup_id,hostname,port) values(1001,'server03.mshome.net',3306);
Query OK, 1 row affected (0.00 sec)
proxysql Admin> load mysql servers to runtime;
Query OK, 0 rows affected (0.00 sec)
proxysql Admin> save mysql servers to disk;
Query OK, 0 rows affected (0.05 sec)
proxysql Admin> delete from mysql_users;
Query OK, 1 row affected (0.00 sec)
proxysql Admin> insert into mysql_users(username,password,default_hostgroup) values('appbox','Appbox@123',1000);
Query OK, 1 row affected (0.00 sec)
proxysql Admin> load mysql users to runtime;
Query OK, 0 rows affected (0.00 sec)
proxysql Admin> save mysql users to disk;
Query OK, 0 rows affected (0.02 sec)
按照以上配置打開replication-manager的web管理端，默認賬號admin密碼repman
切換主從后
切換主從后
在server01的主庫上創建appbox用戶
mysql> create user appbox@'%' identified by 'Appbox@123'; Query OK, 0 rows affected (0.01 sec) mysql> create database appboxdb character set utf8mb4; Query OK, 1 row affected (0.01 sec) mysql> grant all privileges on appboxdb.* to appbox@'%'; Query OK, 0 rows affected (0.01 sec) mysql>

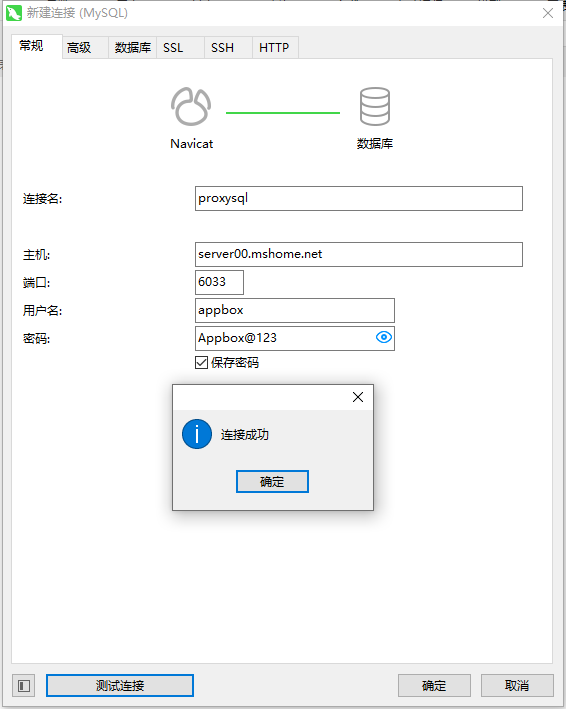

用Navicat連proxysql
在proxysql中插入讀寫規則
insert into mysql_query_rules(rule_id,active,match_digest,destination_hostgroup,apply)values(1,1,'^SELECT.*FOR UPDATE$',100,1); insert into mysql_query_rules(rule_id,active,match_digest,destination_hostgroup,apply)values(2,1,'^SELECT',1000,1);
load mysql query rules to runtime;
save mysql query rules to disk;
bash下進行讀寫測驗
for i in {1..100}; do mysql -uappbox -pAppbox@123 -h server00.mshome.net -P6033 -e 'select @@server_id;' ; sleep 0.5; done
如果有用，歡迎打賞，不限金額
-------------------------------------------------
保持專注，只做一件事，做好這件事！@
-------------------------------------------------
轉載請註明出處，本文鏈接：https://www.uj5u.com/shujuku/550988.html
標籤：MySQL
下一篇：返回列表
