基于CChart的K線繪制工具KLineChart-有解無憂

CChart是本人開發的一款C++曲線繪制庫，經過多年的迭代，目前已經發布了第四個大版本，見本人在論壇發布的帖子https://bbs.csdn.net/topics/392520079。
CChart的內核可拓展性非常好，最近在此基礎上，開發了一個繪制K線圖的工具KLineChart。
由于本人對股票一竅不通，這個工具還比較粗糙。

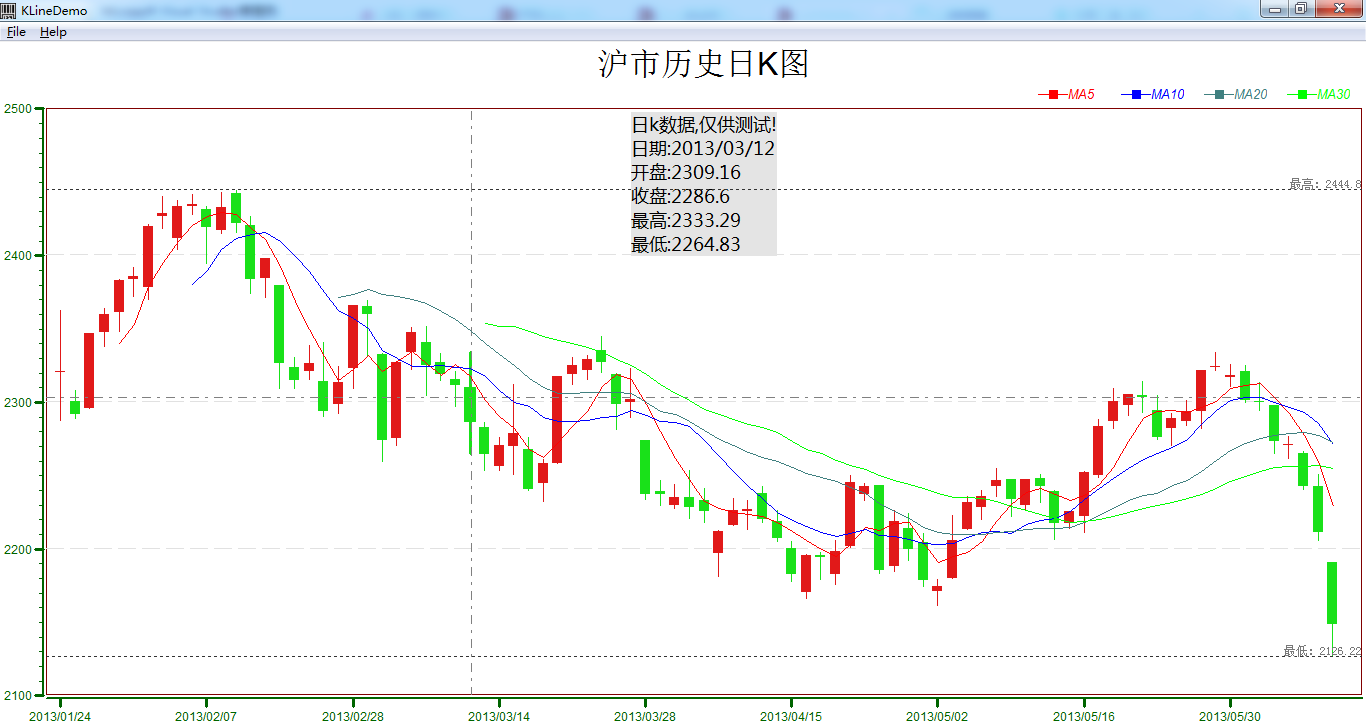

用此工具編制的一個界面如圖。

比較簡單，并不是非常專業的股票軟體界面，不過也還是可以用。如果有需求，后面還可以繼續完善。
下面簡單介紹一下這個工具的用法。
基于CChart的一貫特點，KLineChart的用法非常簡單，Attach到一個視窗上，然后加上K線資料即可。
這里是在一個最簡單的Win32程式里面示范。
首先準備資料，本人從網上拷貝了一個資料，如下所示。

typedef struct stMyData

{

	TCHAR strTime[32];

	double fOpen, fClose, fLowest, fHighest;

}KlData;



KlData mydata[] = {

	{_T("2013/1/24"), 2320.26,2320.26,2287.3,2362.94},

	{_T("2013/1/25"), 2300,2291.3,2288.26,2308.38},

	{_T("2013/1/28"), 2295.35,2346.5,2295.35,2346.92},

	{_T("2013/1/29"), 2347.22,2358.98,2337.35,2363.8},

	{_T("2013/1/30"), 2360.75,2382.48,2347.89,2383.76},

	{_T("2013/1/31"), 2383.43,2385.42,2371.23,2391.82},

	{_T("2013/2/1"), 2377.41,2419.02,2369.57,2421.15},

	{_T("2013/2/4"), 2425.92,2428.15,2417.58,2440.38},

	{_T("2013/2/5"), 2411,2433.13,2403.3,2437.42},

	{_T("2013/2/6"), 2432.68,2434.48,2427.7,2441.73},

	{_T("2013/2/7"), 2430.69,2418.53,2394.22,2433.89},

	{_T("2013/2/8"), 2416.62,2432.4,2414.4,2443.03},

	{_T("2013/2/18"), 2441.91,2421.56,2415.43,2444.8},

	{_T("2013/2/19"), 2420.26,2382.91,2373.53,2427.07},

	{_T("2013/2/20"), 2383.49,2397.18,2370.61,2397.94},

	{_T("2013/2/21"), 2378.82,2325.95,2309.17,2378.82},

	{_T("2013/2/22"), 2322.94,2314.16,2308.76,2330.88},

	{_T("2013/2/25"), 2320.62,2325.82,2315.01,2338.78},

	{_T("2013/2/26"), 2313.74,2293.34,2289.89,2340.71},

	{_T("2013/2/27"), 2297.77,2313.22,2292.03,2324.63},

	{_T("2013/2/28"), 2322.32,2365.59,2308.92,2366.16},

	{_T("2013/3/1"), 2364.54,2359.51,2330.86,2369.65},

	{_T("2013/3/4"), 2332.08,2273.4,2259.25,2333.54},

	{_T("2013/3/5"), 2274.81,2326.31,2270.1,2328.14},

	{_T("2013/3/6"), 2333.61,2347.18,2321.6,2351.44},

	{_T("2013/3/7"), 2340.44,2324.29,2304.27,2352.02},

	{_T("2013/3/8"), 2326.42,2318.61,2314.59,2333.67},

	{_T("2013/3/11"), 2314.68,2310.59,2296.58,2320.96},

	{_T("2013/3/12"), 2309.16,2286.6,2264.83,2333.29},

	{_T("2013/3/13"), 2282.17,2263.97,2253.25,2286.33},

	{_T("2013/3/14"), 2255.77,2270.28,2253.31,2276.22},

	{_T("2013/3/15"), 2269.31,2278.4,2250,2312.08},

	{_T("2013/3/18"), 2267.29,2240.02,2239.21,2276.05},

	{_T("2013/3/19"), 2244.26,2257.43,2232.02,2261.31},

	{_T("2013/3/20"), 2257.74,2317.37,2257.42,2317.86},

	{_T("2013/3/21"), 2318.21,2324.24,2311.6,2330.81},

	{_T("2013/3/22"), 2321.4,2328.28,2314.97,2332},

	{_T("2013/3/25"), 2334.74,2326.72,2319.91,2344.89},

	{_T("2013/3/26"), 2318.58,2297.67,2281.12,2319.99},

	{_T("2013/3/27"), 2299.38,2301.26,2289,2323.48},

	{_T("2013/3/28"), 2273.55,2236.3,2232.91,2273.55},

	{_T("2013/3/29"), 2238.49,2236.62,2228.81,2246.87},

	{_T("2013/4/1"), 2229.46,2234.4,2227.31,2243.95},

	{_T("2013/4/2"), 2234.9,2227.74,2220.44,2253.42},

	{_T("2013/4/3"), 2232.69,2225.29,2217.25,2241.34},

	{_T("2013/4/8"), 2196.24,2211.59,2180.67,2212.59},

	{_T("2013/4/9"), 2215.47,2225.77,2215.47,2234.73},

	{_T("2013/4/10"), 2224.93,2226.13,2212.56,2233.04},

	{_T("2013/4/11"), 2236.98,2219.55,2217.26,2242.48},

	{_T("2013/4/12"), 2218.09,2206.78,2204.44,2226.26},

	{_T("2013/4/15"), 2199.91,2181.94,2177.39,2204.99},

	{_T("2013/4/16"), 2169.63,2194.85,2165.78,2196.43},

	{_T("2013/4/17"), 2195.03,2193.8,2178.47,2197.51},

	{_T("2013/4/18"), 2181.82,2197.6,2175.44,2206.03},

	{_T("2013/4/19"), 2201.12,2244.64,2200.58,2250.11},

	{_T("2013/4/22"), 2236.4,2242.17,2232.26,2245.12},

	{_T("2013/4/23"), 2242.62,2184.54,2182.81,2242.62},

	{_T("2013/4/24"), 2187.35,2218.32,2184.11,2226.12},

	{_T("2013/4/25"), 2213.19,2199.31,2191.85,2224.63},

	{_T("2013/4/26"), 2203.89,2177.91,2173.86,2210.58},

	{_T("2013/5/2"), 2170.78,2174.12,2161.14,2179.65},

	{_T("2013/5/3"), 2179.05,2205.5,2179.05,2222.81},

	{_T("2013/5/6"), 2212.5,2231.17,2212.5,2236.07},

	{_T("2013/5/7"), 2227.86,2235.57,2219.44,2240.26},

	{_T("2013/5/8"), 2242.39,2246.3,2235.42,2255.21},

	{_T("2013/5/9"), 2246.96,2232.97,2221.38,2247.86},

	{_T("2013/5/10"), 2228.82,2246.83,2225.81,2247.67},

	{_T("2013/5/13"), 2247.68,2241.92,2231.36,2250.85},

	{_T("2013/5/14"), 2238.9,2217.01,2205.87,2239.93},

	{_T("2013/5/15"), 2217.09,2224.8,2213.58,2225.19},

	{_T("2013/5/16"), 2221.34,2251.81,2210.77,2252.87},

	{_T("2013/5/17"), 2249.81,2282.87,2248.41,2288.09},

	{_T("2013/5/20"), 2286.33,2299.99,2281.9,2309.39},

	{_T("2013/5/21"), 2297.11,2305.11,2290.12,2305.3},

	{_T("2013/5/22"), 2303.75,2302.4,2292.43,2314.18},

	{_T("2013/5/23"), 2293.81,2275.67,2274.1,2304.95},

	{_T("2013/5/24"), 2281.45,2288.53,2270.25,2292.59},

	{_T("2013/5/27"), 2286.66,2293.08,2283.94,2301.7},

	{_T("2013/5/28"), 2293.4,2321.32,2281.47,2322.1},

	{_T("2013/5/29"), 2323.54,2324.02,2321.17,2334.33},

	{_T("2013/5/30"), 2316.25,2317.75,2310.49,2325.72},

	{_T("2013/5/31"), 2320.74,2300.59,2299.37,2325.53},

	{_T("2013/6/3"), 2300.21,2299.25,2294.11,2313.43},

	{_T("2013/6/4"), 2297.1,2272.42,2264.76,2297.1},

	{_T("2013/6/5"), 2270.71,2270.93,2260.87,2276.86},

	{_T("2013/6/6"), 2264.43,2242.11,2240.07,2266.69},

	{_T("2013/6/7"), 2242.26,2210.9,2205.07,2250.63},

	{_T("2013/6/13"), 2190.1,2148.35,2126.22,2190.1}

};

一個畫圖變數

static CKLineChartWnd chartWnd;

貼視窗

chartWnd.Attach(hWnd);

下面是真正需要的代碼



			for(i=0; i<sizeof(mydata)/sizeof(KlData); i++)

			{

				chartWnd.GetChart()->AddKNode(mydata[i].strTime, _T("%Y/%m/%d"), mydata[i].fOpen, mydata[i].fClose, mydata[i].fLowest, mydata[i].fHighest);

			}

			chartWnd.GetChart()->AddMALine(5);

			chartWnd.GetChart()->AddMALine(10);

			chartWnd.GetChart()->AddMALine(20);

			chartWnd.GetChart()->AddMALine(30);

			chartWnd.GetChart()->SetTitle(_T("滬市歷史日K圖"));

好了，大功告成！
上面的回圈是添加K線資料，后面用AddMALine函式添加了4條移動平均線，分別是5日，10日，20日，30日平均線。可以發現，代碼十分簡潔。
這段代碼的效果如上圖所示，不僅畫出了K線圖，還可以回應滑鼠動作。
本文中的KLineChart工具，以及例子的源代碼，都可以在本人的網站http://www.cchart.net/下載。

uj5u.com熱心網友回復：

強大

uj5u.com熱心網友回復：

看起來很不錯，大神是如何煉成的？

uj5u.com熱心網友回復：

參考 3 樓 uouo88 的回復:

看起來很不錯，大神是如何煉成的？

不敢當啊！
