QT多執行緒呼叫攝像頭錄屏軟體開發

文章目錄

QT多執行緒呼叫攝像頭錄屏軟體開發
前言
一、呼叫攝像頭
二、UI界面設計
- 1.Button
- 2.滑鼠選擇矩形框錄制
- 3.ffmpeg命令列壓縮
總結

前言

實驗室專案需求，需要錄制攝像頭視頻畫面，海康大華自帶的攝像頭網頁錄制功能沒有選取區域錄制功能，并且錄制檔案保存不夠便捷，檔案太大，所以自己開發這個軟體，并且用了opencv壓縮視頻，可選用調取ffmpeg命令列來進一步壓縮錄制到的視頻，

一、呼叫攝像頭

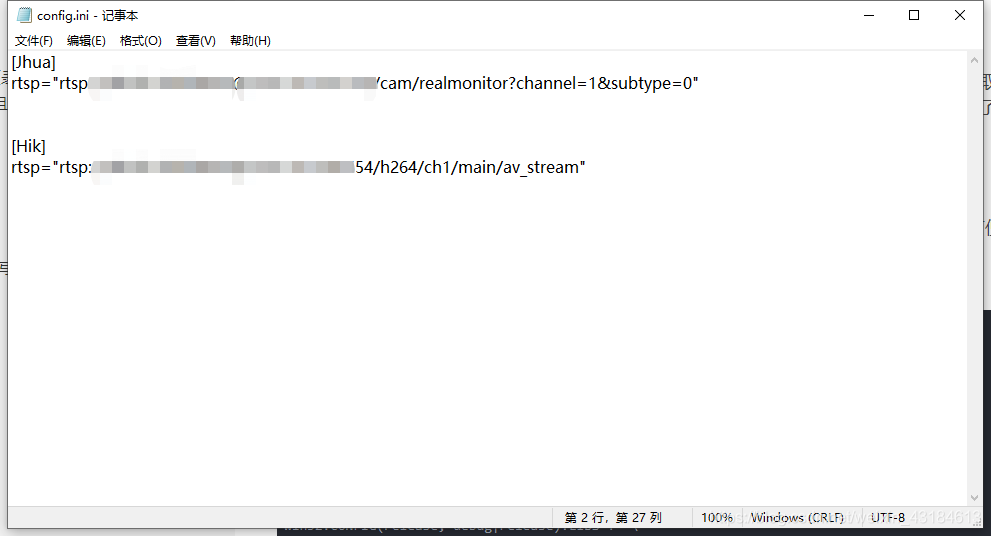

實驗室常用的攝像頭有海康和大華兩種，rtsp有所區別，所以把攝像頭rtsp寫入組態檔方便呼叫,

在.pro檔案中引入opencv庫，我用的是3.4.3版本

LIBS += \
D:\Softwares\ffmpeg4.1.3\lib\*.lib

INCLUDEPATH +=\
include\
D:/Softwares/opencv3.4.3GPU/build/include\
D:/Softwares/ffmpeg4.1.3/include


win32:CONFIG(release, debug|release):LIBS += \
D:/Softwares/opencv3.4.3/build/x64/vc14/lib/opencv_world343.lib
else:win32:CONFIG(debug, debug|release): LIBS += \
D:/Softwares/opencv3.4.3/build/x64/vc14/lib/opencv_world343d.lib

然后是呼叫攝像頭代碼片段

readvideo.h

public slots:
    void setFlag(bool flag = false);
    void openCamera();

private:
    cv::VideoCapture capture;
    cv::VideoWriter writer;
    cv::Mat src_image;

void readvideo::openCamera()
{
    QString sFilePath = QCoreApplication::applicationDirPath()+"/config.ini";
    if(!QFileInfo::exists(sFilePath))
    {
        printf("FilePath is inexist!");
    }
    QSettings setting(sFilePath, QSettings::IniFormat);
    setting.beginGroup("Hik");
    QString iPrtsp = setting.value("rtsp").toString();

    setting.endGroup();
    capture.open(iPrtsp.toStdString().c_str());
    if(!capture.isOpened())
    {
        return;
    }
}

二、UI界面設計

1.Button

設計了五個button，分別對應五個功能，都是最關鍵的功能，在此不一一介紹，直接上代碼
button功能

代碼如下（示例）：

MainWindow.h
#ifndef MAINWINDOW_H
#define MAINWINDOW_H
#include <QMainWindow>
#include <opencv2/core/core.hpp>
#include <opencv2/highgui.hpp>
#include <opencv2/opencv.hpp>
#include <opencv2/imgproc.hpp>
#include <QTimer>
#include <QDebug>
#include <QThread>
#include <QList>
#include"readvideo.h"
#include"mousechoose.h"


namespace Ui {
class MainWindow;
}

class MainWindow : public QMainWindow
{
    Q_OBJECT

public:
    explicit MainWindow(QWidget *parent = 0);
    ~MainWindow();

private slots:

    void receivePicture(QImage img);

    void on_openCamera_clicked();

    void on_startRecord_clicked();

    void on_closeCamera_clicked();

    void on_saveComplete_clicked();

    void on_cut_clicked();

private:
    Ui::MainWindow *ui;
    MouseChoose *m_choose;
    QThread *mainThread;
    readvideo *videoThread;
    QTimer fps_timer;
};

#endif // MAINWINDOW_H

MainWindow.cpp
#include "mainwindow.h"
#include "ui_mainwindow.h"
#include <QMessageBox>
#include <QVBoxLayout>
#include <Qdir>
#include <QDebug>
#include "MyLabel.h"
#include <QProcess>
#include <QFileDialog>

using namespace cv;

MainWindow::MainWindow(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::MainWindow)
{
    ui->setupUi(this);
    m_choose = new MouseChoose(this);
    m_choose->setGeometry(0,0,1920,980);
    mainThread = new QThread;
    videoThread = new readvideo;
    videoThread->moveToThread(mainThread);
    connect(&fps_timer, SIGNAL(timeout()),videoThread,SLOT(mainwindowDisplay()));
    connect(videoThread,SIGNAL(sendPicture(QImage)),this,SLOT(receivePicture(QImage)));
    this->setWindowTitle(QStringLiteral("攝像頭畫面錄制"));
    fps_timer.setInterval(40);//每秒顯示25幀
    QString save_picture = QCoreApplication::applicationDirPath();
    QDir dir;
    dir.cd(save_picture);
    if(!dir.exists("Video"))
    {
        dir.mkdir("Video");
    }
}

MainWindow::~MainWindow()
{
    mainThread->wait();
    delete videoThread;
    delete mainThread;
    delete m_choose;
    delete ui;
}


void MainWindow::receivePicture(QImage img)
{
    ui->label1->setPixmap(QPixmap::fromImage(img));
}


void MainWindow::on_openCamera_clicked()
{
    mainThread->start();
    fps_timer.start();
    videoThread->openCamera();
}

void MainWindow::on_startRecord_clicked()
{
    videoThread->setFlag(false);
    videoThread->startRecord();
}

void MainWindow::on_closeCamera_clicked()
{
    fps_timer.stop();
    videoThread->closeCamera();
    mainThread->quit();
    mainThread->wait();
    ui->label1->clear();

}

void MainWindow::on_saveComplete_clicked()
{
    videoThread->setFlag(true);
    videoThread->saveComplete();
}



void MainWindow::on_cut_clicked()
{
    //選擇檔案打開保存
    QProcess * p = new QProcess(this);
    QString program = "D:/Softwares/ffmpeg4.1.3/bin/ffmpeg.exe";
    QString fileName = QFileDialog::getOpenFileName(
            this,
            tr("select a file."),
            ".",
            tr("video files(*.avi *.mp4 *.wmv)"));
    QStringList argu;
    argu.append("-i");
    argu.append(fileName.toStdString().c_str());
    argu.append("-s");
    argu.append("1920x1080");
    argu.append("-c:v");
    argu.append("libx265");
    argu.append("-c:a");
    argu.append("aac");
    argu.append("-b:v");
    argu.append("200k");
    argu.append("-r");
    argu.append("25");
    argu.append("D:/QtProjects/SaveVideo/debug/Video/outtest.mp4");
    p->start(program,argu);
    p->waitForFinished();
    delete p;
}

2.滑鼠選擇矩形框錄制

根據QT帶的滑鼠事件來截取錄制區域，如果不選擇矩形框那么就是全屏錄制

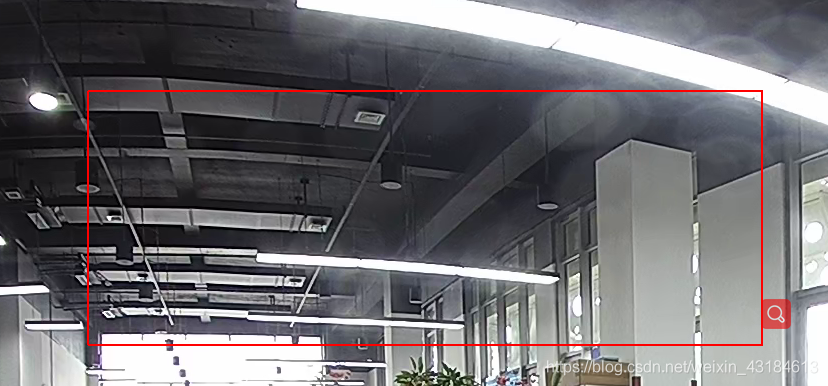

滑鼠選擇錄制區域

代碼如下（示例）：

MouseChoose.h
#ifndef MOUSECHOOSE_H
#define MOUSECHOOSE_H
#include <QLabel>
#include <QPainter>
#include <opencv2/opencv.hpp>
#include <opencv2/core/core.hpp>
#include <opencv2/videoio.hpp>
#include <opencv2/highgui/highgui.hpp>

class MouseChoose : public QLabel
{
    Q_OBJECT
public:
    explicit MouseChoose(QWidget *parent = nullptr);

    //滑鼠按下
    void mousePressEvent(QMouseEvent *ev);

    //滑鼠釋放
    void mouseReleaseEvent(QMouseEvent *ev);

    //滑鼠移動
    void  mouseMoveEvent(QMouseEvent *ev);

    //繪圖操作
    void paintEvent(QPaintEvent *event);

    static int m_x,m_y,m_width,m_height;

private:

    QRect roirect;
    bool m_isMousePress;
    QPainter m_painter;
    QPoint m_beginPoint;
    QPoint m_midPoint;
    QPoint m_endPoint;

};
#endif // MOUSECHOOSE_H

MouseChoose.cpp
#include "mousechoose.h"
#include <QDebug>
#include <QMouseEvent>
#include <QPainter>
#include <QRect>
#include <QLabel>

MouseChoose::MouseChoose(QWidget *parent) : QLabel(parent)
{


}

//滑鼠按下
void MouseChoose::mousePressEvent(QMouseEvent *ev)
{
    //當滑鼠左鍵按下  提示資訊
    if( ev->button() ==  Qt::LeftButton)
    {
        m_isMousePress = true;
        //獲取點坐標
        m_beginPoint = ev->pos();
        qDebug()<<"00"<<m_beginPoint;
        //update();
    }
}


//滑鼠釋放
void MouseChoose::mouseReleaseEvent(QMouseEvent *ev)
{
    if(ev->button()==Qt::LeftButton)
    {
        m_endPoint = ev->pos();
        m_isMousePress = false;
        qDebug()<<"00"<<m_endPoint;
        update();
    }
}
//滑鼠移動，更新矩形框
void MouseChoose::mouseMoveEvent(QMouseEvent *ev)
{
    if( ev->buttons() & Qt::LeftButton )
    {
        m_midPoint=ev->pos();
        update();
    }
}

//靜態成員變數在類外分配記憶體空間

int MouseChoose::m_x = 0;
int MouseChoose::m_y = 0;
int MouseChoose::m_width = 0;
int MouseChoose::m_height = 0;

//畫矩形框
void MouseChoose::paintEvent(QPaintEvent *ev)
{
    QLabel::paintEvent(ev);//先呼叫父類的paintEvent

    QPainter m_painter(this);
    m_painter.setPen(QPen(Qt::red,2));
    if (m_isMousePress)
    {
        roirect = QRect(m_beginPoint,m_midPoint);
        m_painter.drawRect(roirect);
        MouseChoose::m_x = m_beginPoint.x();
        MouseChoose::m_y = m_beginPoint.y();
        MouseChoose::m_width = abs(m_midPoint.x() - m_beginPoint.x());
        MouseChoose::m_height =abs(m_midPoint.y() - m_beginPoint.y());
    }
    else
    {
        roirect = QRect(m_beginPoint,m_endPoint);
        m_painter.drawRect(roirect);
        MouseChoose::m_x = m_beginPoint.x();
        MouseChoose::m_y = m_beginPoint.y();
        MouseChoose::m_width = abs(m_endPoint.x() - m_beginPoint.x());
        MouseChoose::m_height = abs(m_endPoint.y() - m_beginPoint.y());
    }

}

3.ffmpeg命令列壓縮

這部分已經放在Button下了，可以參考，具體實作可以去其他博主參考格式
現附上readvideo剩余代碼

ReadVideo.h
#ifndef READVIDEO_H
#define READVIDEO_H

#include <QObject>
#include <QThread>
#include <opencv2/opencv.hpp>
#include <opencv2/core/core.hpp>
#include <opencv2/videoio.hpp>
#include <opencv2/highgui/highgui.hpp>
#include <QMutex>
#include "mousechoose.h"
#include <QFileDialog>

class readvideo : public QObject
{
    Q_OBJECT
public:
    explicit readvideo(QObject *parent = 0);
    ~readvideo();

signals:
    void sendPicture(const QImage &img);

public slots:
    void setFlag(bool flag = false);
    void openCamera();
    void startRecord();
    void closeCamera();
    void saveComplete();
    void mainwindowDisplay();

private:
    MouseChoose *m_choose;
    cv::VideoCapture capture;
    cv::VideoWriter writer;
    cv::Mat src_image;
    QMutex m_Mutex;
    bool stopFlag=false;
    bool m_bUpdateMat;
};

#endif // READVIDEO_H

ReadVideo.cpp
#include "readvideo.h"
#include <QMessageBox>
#include <iostream>
#include <QDebug>
#include <QSettings>
#include <QFileInfo>
#include <QFileDialog>
#include <QDateTime>
#include <QCoreApplication>
#include <Windows.h>


readvideo::readvideo(QObject *parent):
    QObject(parent)
{
    stopFlag = false;
    m_choose = new MouseChoose;
    m_bUpdateMat  =false;
}
readvideo::~readvideo()
{
    delete m_choose;
}

void readvideo::openCamera()
{
    QString sFilePath = QCoreApplication::applicationDirPath()+"/config.ini";
    if(!QFileInfo::exists(sFilePath))
    {
        printf("FilePath is inexist!");
    }
    QSettings setting(sFilePath, QSettings::IniFormat);
    setting.beginGroup("Hik");
    QString iPrtsp = setting.value("rtsp").toString();

    setting.endGroup();
    capture.open(iPrtsp.toStdString().c_str());
    if(!capture.isOpened())
    {
        return;
    }
}

void readvideo::startRecord()
{

    QString fileName = QFileDialog::getSaveFileName(nullptr,"保存檔案",".",tr("*.mp4"));
    cv::String file_path = fileName.toStdString();
    int fps = capture.get(CV_CAP_PROP_FPS);
    if(MouseChoose::m_height == 0)
    {
        writer.open(file_path,CV_FOURCC('D', 'I', 'V', 'X'), fps, cv::Size(capture.get(CV_CAP_PROP_FRAME_WIDTH),capture.get(CV_CAP_PROP_FRAME_HEIGHT)));
    }
    else
    {
        writer.open(file_path,CV_FOURCC('D', 'I', 'V', 'X'), fps, cv::Size(MouseChoose::m_width,MouseChoose::m_height));
    }

    while(!stopFlag)
    {
        //capture >> src_image;
        if(m_bUpdateMat)
        {
            cv::Rect rect;
            rect.width = MouseChoose::m_width;
            rect.height = MouseChoose::m_height;
            rect.x = MouseChoose::m_x;
            rect.y = MouseChoose::m_y;
            if(MouseChoose::m_height == 0)
            {
                //                cv::imshow("錄制畫面",src_image);
                writer.write(src_image);
                m_bUpdateMat = false;
            }
            else
            {
                cv::Mat roimage = src_image(rect).clone();
                //                cv::imshow("錄制畫面", roimage);
                writer.write(roimage);
                m_bUpdateMat = false;
            }
        }
        cv::waitKey(1);
    }
    writer.release();
}

void readvideo::mainwindowDisplay()
{
    //40ms更新一次，如果不加m_bUpdateMat判斷，程式這需要10ms，開始錄制需要10ms，那么3幀錄得都是同一畫面
//    m_Mutex.lock();
    capture >> src_image;
    QImage img = QImage((const unsigned char*)src_image.data,
                        src_image.cols, src_image.rows, QImage::Format_RGB888).rgbSwapped(); //RGB格式轉換成BGR格式
    m_bUpdateMat = true;
//    m_Mutex.unlock();
    emit sendPicture(img);
}

void readvideo::closeCamera()
{
    if(!stopFlag)   //如果還在保存視頻,則關閉cv視窗
    {
        cv::destroyWindow("video");
    }
    capture.release();
    writer.release();
}

void readvideo::setFlag(bool flag)
{
    stopFlag = flag;
}

void readvideo::saveComplete()
{
    cv::destroyWindow("video");
}

該處使用的url網路請求的資料，

總結

主執行緒和呼叫攝像頭執行緒，我用的是 QT更推薦的moveToThread——用moveToThread將繼承于QObject的類轉移到Thread里這種方式，具體實作代碼中很清晰，這里附上我的參考博客鏈接，
