【嵌入式】STM32利用arm-dsp庫進行FIR濾波

2021-04-30 18:55:47 其他

目錄

    • 一、Matlab中的FIR實驗
      • 1.搭建原始信號
      • 2.設計FIR濾波器
      • 3.FIR濾波
      • 4.濾波前后對比
    • 二、嵌入式平臺FIR濾波移植
      • 1.arm-dsp庫移植
      • 2.獲得FIR濾波系數
      • 3.基于arm-dsp的FIR程式

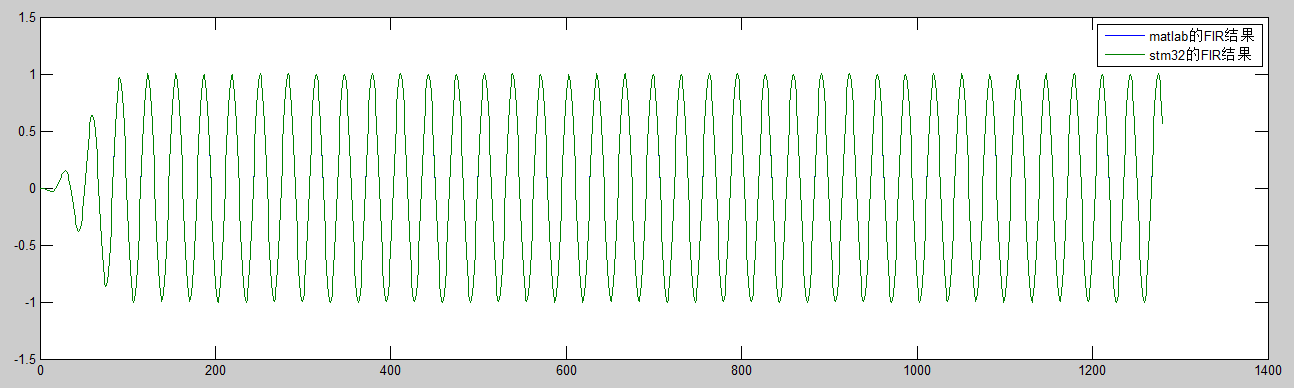

      • 4.濾波結果-與Matlab比對
    • 三、總結

電力電子應用中，往往需要對電流、電壓信號進行采樣，濾除干擾頻段的信號，或者保留、提取感興趣的頻段的信號，通過模擬濾波往往難以達到較好的效果，因此需要采用數字濾波器，
常用的數字濾波器有IIR、FIR濾波器兩種，FIR 濾波器最重要的優點就是由于不存在系統極點，FIR 濾波器是絕對穩定的系統，FIR 濾波器還確保了線性相位，這在信號處理中也非常重要，此外，由于不需要反饋，FIR 濾波器的實作也比 IIR 濾波器簡單，FIR 濾波器的缺點在于它的性能不如同樣階數的 IIR 濾波器，不過由于數字計算硬體的飛速發展，這一點已經不成為問題，再加上引入計算機輔助設計，FIR 濾波器的設計也得到極大的簡化，基于上述原因，FIR 濾波器比 IIR 濾波器的應用更廣泛，
這篇博文就通過Matlab仿真來直觀的介紹FIR濾波器的用途，并將FIR濾波器移植到以STM32F4為基礎的嵌入式平臺中，

一、Matlab中的FIR實驗

通過一個簡單的實驗來使用FIR濾波器：將200Hz正弦信號疊加到基波50Hz的正弦信號上，然后利用FIR濾波器提取200Hz信號，采樣率設定為6400Hz，

1.搭建原始信號

在simulink搭建簡易混合電路，將幅值為1的50Hz正弦波與幅值為1的200Hz正弦波混合，

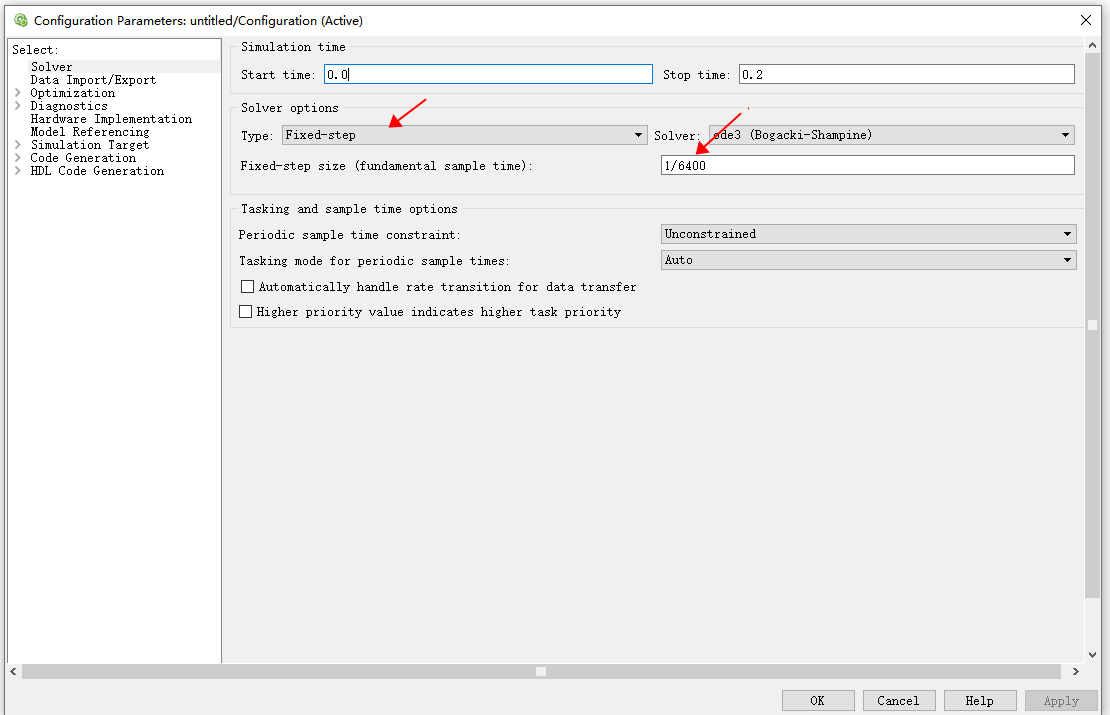

首先設定simulink的仿真步長為固定步長，1/6400，那么就相當于采樣率為6400Hz，如圖所示，

搭建電路如下圖所示，其中1為多路復合，為了在scope中分別查看50Hz和200Hz的原始信號，2為信號疊加混合，即50Hz混合200Hz的信號，

運行0.2秒，即10個50Hz周波，查看scope視窗如下圖所示，可以看到上方為50Hz、200Hz的原始信號，下方為混合后的信號，我們現在要做的就是利用FIR濾波器將200Hz信號從下方的信號中提取出來，將scope資料匯出到workspace待用，

2.設計FIR濾波器

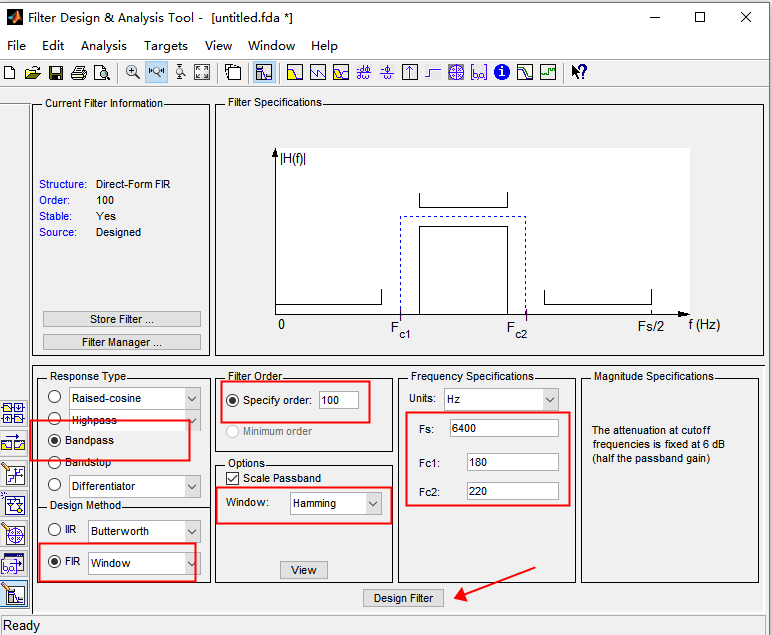

在matlab命令列輸入fdatool，打開濾波器設計工具，
1.選擇帶通濾波、FIR視窗濾波；
2.選擇常用的漢寧窗；
3.指定FIR階數，一般來講，階數越高，濾波效果越好，但運算量越大，需要在濾波效果和運行速度上做一個取舍，這里我們暫時設定為100階；
4.設定采樣頻率為6400Hz，要與simulink中的相符；
5.設定帶通范圍，這里我們設定為帶通范圍180~220Hz；
6.點擊Design Filter；

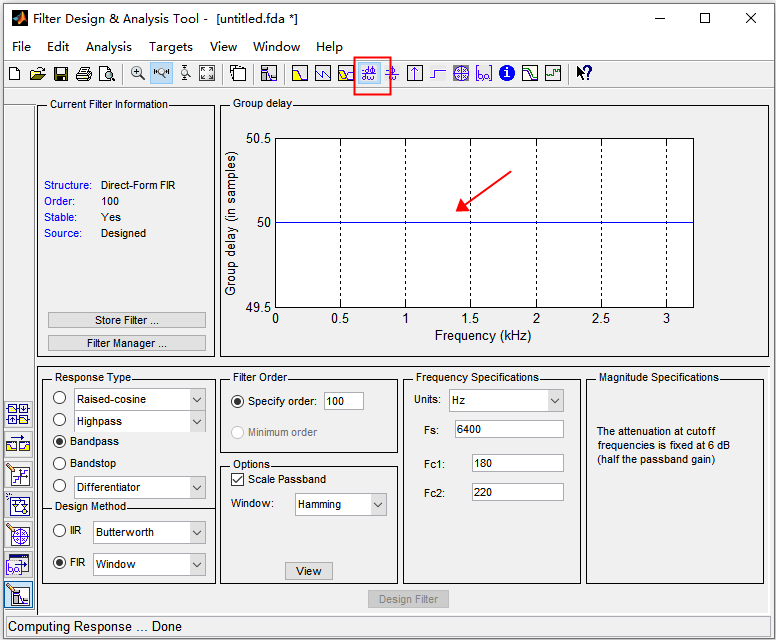

7.點擊Group Delay Response可以查看濾波器的相位延遲，這里是50，這個數要記住，后邊要用到，


生成濾波器后，我們將濾波器匯出到workspace中，具體操作為：file->export->Export As選擇Objects，默認的濾波器名字為Hd，

3.FIR濾波

至此，worksapce中已經有了scope中匯出的原始波形、混雜波形，以及設計好的濾波器Hd，
在命令列中對混雜信號進行濾波：

fileter(Hd,rawSignal)

其中rawSignal為混雜信號，即scope中下方的波形，運行后，ans中就存盤了濾波后的波形，

4.濾波前后對比

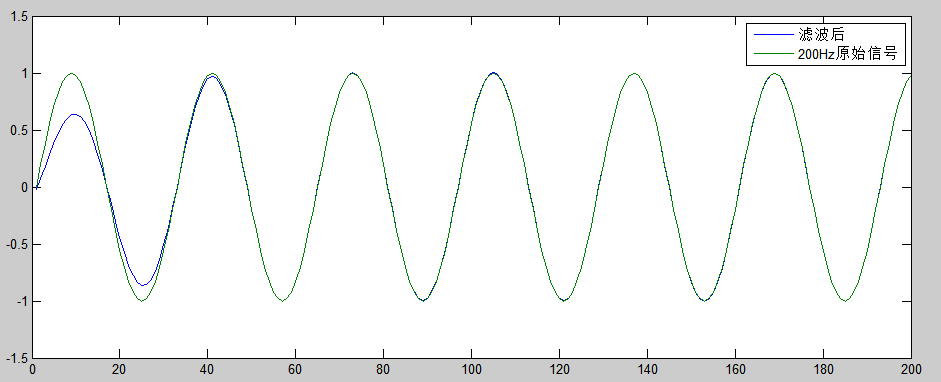

將濾波后的波形與原始的200Hz信號進行比對：

plot(1:200,ans(51:250),1:200,raw200Hz(1:200))

其中，濾波后的信號要從51開始，因為濾波器在設計時的FIR相位延遲為50，即第51個點才為濾波后的資料起始點，raw200Hz為從scope中匯出的200Hz信號資料，繪圖后如下圖所示，可以看出FIR濾波震蕩穩定后，能較好的帶通200Hz信號，幅值、相位均與原信號相同，50Hz信號被濾掉，

二、嵌入式平臺FIR濾波移植

1.arm-dsp庫移植

arm-dsp庫的移植可以參考我之前的博客【嵌入式】利用arm-DSP庫進行FFT計算，獲得信號的頻譜、幅值及相位(上)中的二-1節內容，

2.獲得FIR濾波系數

還是在fdatool中，當設計玩濾波器后，點擊Targets->Generate C Header.
打開生成的fdacoefs.h，里邊的BL即為FIR濾波器階數，B陣列即為FIR濾波器系數，將前邊的資料型別real64_T改為float即可，

/*
 * Filter Coefficients (C Source) generated by the Filter Design and Analysis Tool
 * Generated by MATLAB(R) 8.3 and the Signal Processing Toolbox 6.21.
 * Generated on: 28-Apr-2021 15:33:18
 */

/*
 * Discrete-Time FIR Filter (real)
 * -------------------------------
 * Filter Structure  : Direct-Form FIR
 * Filter Length     : 101
 * Stable            : Yes
 * Linear Phase      : Yes (Type 1)
 */

/* General type conversion for MATLAB generated C-code  */
#include "tmwtypes.h"
/*
 * Expected path to tmwtypes.h
 * F:\MatLab\extern\include\tmwtypes.h
 */
const int BL = 101;
const real64_T B[101] = {
  -0.002364379994766,-0.002555816813742, -0.00271143828077,-0.002821346700614,
  -0.002865814202786,-0.002816683118228,-0.002640000779638,-0.002299699197689,
  -0.001762028066288,-0.001000368319048,4.399291056296e-18, 0.001237622441001,
   0.002691519514449, 0.004319142530531, 0.006055934652271, 0.007816685262717,
   0.009498734985135,  0.01098694698435,  0.01216021777687,  0.01289916830821,
    0.01309454373426,  0.01265576722454,  0.01151904640175, 0.009654425543614,
   0.007071214384679, 0.003821304224151,-5.964020643576e-18,-0.004255853855223,
  -0.008772504883931, -0.01334655058446, -0.01775451146912, -0.02176424083345,
   -0.02514755140538, -0.02769333338392, -0.02922037668388,  -0.0295890978537,
   -0.02871141129903, -0.02655807388539, -0.02316296707884, -0.01862395375005,
   -0.01310014718858, -0.00680564532364,-1.977442795623e-17, 0.007024104515362,
    0.01395531112556,  0.02047939405639,  0.02629552027152,  0.03113204072429,
    0.03476090062898,  0.03700983073789,  0.03777160643401,  0.03700983073789,
    0.03476090062898,  0.03113204072429,  0.02629552027152,  0.02047939405639,
    0.01395531112556, 0.007024104515362,-1.977442795623e-17, -0.00680564532364,
   -0.01310014718858, -0.01862395375005, -0.02316296707884, -0.02655807388539,
   -0.02871141129903,  -0.0295890978537, -0.02922037668388, -0.02769333338392,
   -0.02514755140538, -0.02176424083345, -0.01775451146912, -0.01334655058446,
  -0.008772504883931,-0.004255853855223,-5.964020643576e-18, 0.003821304224151,
   0.007071214384679, 0.009654425543614,  0.01151904640175,  0.01265576722454,
    0.01309454373426,  0.01289916830821,  0.01216021777687,  0.01098694698435,
   0.009498734985135, 0.007816685262717, 0.006055934652271, 0.004319142530531,
   0.002691519514449, 0.001237622441001,4.399291056296e-18,-0.001000368319048,
  -0.001762028066288,-0.002299699197689,-0.002640000779638,-0.002816683118228,
  -0.002865814202786,-0.002821346700614, -0.00271143828077,-0.002555816813742,
  -0.002364379994766
};

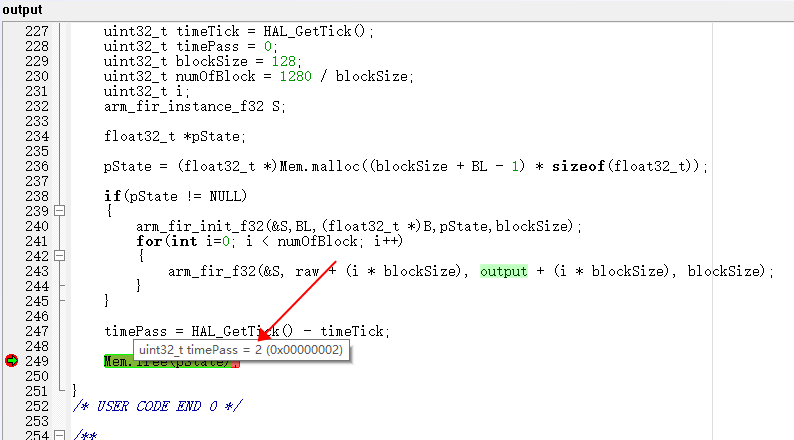

3.基于arm-dsp的FIR程式

1.將混雜信號采樣值復制到C陣列raw中，

const float raw[1280] = {0,0.244157996343546,0.480700572694650,0.702300707474964,0.902197103202676,1.07444979220581,1.21416420976575,1.31767513379545,1.38268343236509,1.40834037383351,
1.39527626933728,1.34557235649577,1.26267701420615,1.15126953751204,1.01707671652874,0.866649276863147,0.707106781186548,0.545860803338831,0.390327020997647,0.247637298461043,
0.124362831115998,0.0262589976977269,-0.0419582681629318,-0.0767959872797872,-0.0761204674887133,-0.0392412152202096,0.0330608032209223,0.138561640891999,0.273678499216683,0.433606276945179,
0.612501294307107,0.803705134189045,1.00000000000000,1.19388577822130,1.37786815903729,1.54474674298438,1.68789206158978,1.80150086549709,1.88081986824350,1.92232934558625,
1.92387953251129,1.88477457352667,1.80580079685964,1.68919822230282,1.53857639348909,1.35877776450025,1.15569388572783,0.936041447371087,0.707106781186548,0.476468632830889,
0.251709851798556,0.0401290714728317,-0.151536548166946,-0.317366868109323,-0.452482795685290,-0.553230186972949,-0.617316567634911,-0.643895427011010,-0.633594855256824,-0.588489432399282,
-0.512016459170419,-0.408839758564241,-0.284666292035529,-0.146022647688710,-3.67394039744206e-16,0.146022647688711,0.284666292035529,0.408839758564241,0.512016459170420,0.588489432399282,
0.633594855256825,0.643895427011010,0.617316567634910,0.553230186972948,0.452482795685289,0.317366868109324,0.151536548166945,-0.0401290714728307,-0.251709851798557,-0.476468632830890,
-0.707106781186549,-0.936041447371088,-1.15569388572783,-1.35877776450025,-1.53857639348909,-1.68919822230282,-1.80580079685964,-1.88477457352667,-1.92387953251129,-1.92232934558625,
-1.88081986824350,-1.80150086549709,-1.68789206158978,-1.54474674298438,-1.37786815903729,-1.19388577822130,-1.00000000000000,-0.803705134189046,-0.612501294307106,-0.433606276945178,
-0.273678499216683,-0.138561640891999,-0.0330608032209226,0.0392412152202102,0.0761204674887134,0.0767959872797871,0.0419582681629319,-0.0262589976977280,-0.124362831115999,-0.247637298461043,
-0.390327020997648,-0.545860803338834,-0.707106781186550,-0.866649276863148,-1.01707671652874,-1.15126953751204,-1.26267701420615,-1.34557235649577,-1.39527626933728,-1.40834037383351,
-1.38268343236509,-1.31767513379545,-1.21416420976575,-1.07444979220581,-0.902197103202674,-0.702300707474963,-0.480700572694650,-0.244157996343547,-1.22464679914735e-15,0.244157996343549,
0.480700572694652,0.702300707474965,0.902197103202676,1.07444979220581,1.21416420976575,1.31767513379545,1.38268343236509,1.40834037383351,1.39527626933728,1.34557235649577,
1.26267701420615,1.15126953751204,1.01707671652874,0.866649276863147,0.707106781186549,0.545860803338832,0.390327020997646,0.247637298461042,0.124362831115998,0.0262589976977273,
-0.0419582681629314,-0.0767959872797872,-0.0761204674887132,-0.0392412152202096,0.0330608032209218,0.138561640892000,0.273678499216684,0.433606276945180,0.612501294307107,0.803705134189047,
1.00000000000000,1.19388577822130,1.37786815903729,1.54474674298439,1.68789206158978,1.80150086549709,1.88081986824350,1.92232934558625,1.92387953251129,1.88477457352667,
1.80580079685964,1.68919822230282,1.53857639348909,1.35877776450025,1.15569388572782,0.936041447371084,0.707106781186545,0.476468632830888,0.251709851798555,0.0401290714728308,
-0.151536548166945,-0.317366868109323,-0.452482795685288,-0.553230186972950,-0.617316567634911,-0.643895427011010,-0.633594855256824,-0.588489432399281,-0.512016459170419,-0.408839758564240,
-0.284666292035529,-0.146022647688706,-1.10218211923262e-15,0.146022647688709,0.284666292035527,0.408839758564238,0.512016459170421,0.588489432399282,0.633594855256825,0.643895427011010,
0.617316567634910,0.553230186972946,0.452482795685290,0.317366868109319,0.151536548166948,-0.0401290714728279,-0.251709851798559,-0.476468632830885,-0.707106781186550,-0.936041447371081,
-1.15569388572783,-1.35877776450025,-1.53857639348909,-1.68919822230282,-1.80580079685964,-1.88477457352667,-1.92387953251129,-1.92232934558625,-1.88081986824350,-1.80150086549709,
-1.68789206158978,-1.54474674298438,-1.37786815903728,-1.19388577822130,-0.999999999999995,-0.803705134189046,-0.612501294307103,-0.433606276945176,-0.273678499216681,-0.138561640891998,
-0.0330608032209183,0.0392412152202098,0.0761204674887133,0.0767959872797871,0.0419582681629321,-0.0262589976977290,-0.124362831115996,-0.247637298461045,-0.390327020997644,-0.545860803338833,
-0.707106781186549,-0.866649276863148,-1.01707671652874,-1.15126953751204,-1.26267701420615,-1.34557235649577,-1.39527626933728,-1.40834037383351,-1.38268343236509,-1.31767513379545,
-1.21416420976575,-1.07444979220581,-0.902197103202675,-0.702300707474956,-0.480700572694651,-0.244157996343539,-2.44929359829471e-15,0.244157996343543,0.480700572694655,0.702300707474960,
0.902197103202678,1.07444979220581,1.21416420976575,1.31767513379545,1.38268343236509,1.40834037383351,1.39527626933728,1.34557235649577,1.26267701420615,1.15126953751204,
1.01707671652873,0.866649276863145,0.707106781186546,0.545860803338830,0.390327020997642,0.247637298461043,0.124362831115994,0.0262589976977277,-0.0419582681629329,-0.0767959872797874,
-0.0761204674887129,-0.0392412152202090,0.0330608032209198,0.138561640892000,0.273678499216683,0.433606276945179,0.612501294307106,0.803705134189050,0.999999999999998,1.19388577822130,
1.37786815903728,1.54474674298439,1.68789206158978,1.80150086549709,1.88081986824350,1.92232934558625,1.92387953251129,1.88477457352667,1.80580079685964,1.68919822230281,
1.53857639348910,1.35877776450024,1.15569388572782,0.936041447371085,0.707106781186546,0.476468632830881,0.251709851798556,0.0401290714728245,-0.151536548166944,-0.317366868109322,
-0.452482795685292,-0.553230186972947,-0.617316567634911,-0.643895427011010,-0.633594855256824,-0.588489432399281,-0.512016459170419,-0.408839758564241,-0.284666292035525,-0.146022647688712,
3.49210031947972e-15,0.146022647688708,0.284666292035531,0.408839758564242,0.512016459170420,0.588489432399282,0.633594855256826,0.643895427011010,0.617316567634909,0.553230186972949,
0.452482795685286,0.317366868109326,0.151536548166942,-0.0401290714728269,-0.251709851798558,-0.476468632830900,-0.707106781186549,-0.936041447371096,-1.15569388572783,-1.35877776450025,
-1.53857639348909,-1.68919822230282,-1.80580079685964,-1.88477457352667,-1.92387953251129,-1.92232934558625,-1.88081986824350,-1.80150086549709,-1.68789206158977,-1.54474674298438,
-1.37786815903728,-1.19388577822130,-0.999999999999996,-0.803705134189033,-0.612501294307104,-0.433606276945171,-0.273678499216682,-0.138561640891994,-0.0330608032209219,0.0392412152202076,
0.0761204674887132,0.0767959872797880,0.0419582681629324,-0.0262589976977287,-0.124362831115996,-0.247637298461045,-0.390327020997654,-0.545860803338832,-0.707106781186554,-0.866649276863147,
-1.01707671652874,-1.15126953751203,-1.26267701420615,-1.34557235649577,-1.39527626933728,-1.40834037383351,-1.38268343236509,-1.31767513379545,-1.21416420976575,-1.07444979220580,
-0.902197103202676,-0.702300707474957,-0.480700572694636,-0.244157996343540,-3.67394039744206e-15,0.244157996343551,0.480700572694645,0.702300707474966,0.902197103202670,1.07444979220581,
1.21416420976574,1.31767513379545,1.38268343236509,1.40834037383351,1.39527626933728,1.34557235649576,1.26267701420615,1.15126953751203,1.01707671652873,0.866649276863140,
0.707106781186547,0.545860803338837,0.390327020997637,0.247637298461039,0.124362831115999,0.0262589976977311,-0.0419582681629346,-0.0767959872797873,-0.0761204674887137,-0.0392412152202092,
0.0330608032209192,0.138561640891999,0.273678499216688,0.433606276945178,0.612501294307099,0.803705134189056,1.00000000000000,1.19388577822130,1.37786815903728,1.54474674298439,
1.68789206158978,1.80150086549709,1.88081986824350,1.92232934558625,1.92387953251129,1.88477457352667,1.80580079685964,1.68919822230281,1.53857639348908,1.35877776450024,
1.15569388572783,0.936041447371070,0.707106781186539,0.476468632830891,0.251709851798565,0.0401290714728182,-0.151536548166950,-0.317366868109321,-0.452482795685291,-0.553230186972947,
-0.617316567634911,-0.643895427011011,-0.633594855256824,-0.588489432399284,-0.512016459170413,-0.408839758564237,-0.284666292035531,-0.146022647688717,8.08638275819206e-15,0.146022647688712,
0.284666292035526,0.408839758564242,0.512016459170423,0.588489432399281,0.633594855256825,0.643895427011010,0.617316567634909,0.553230186972943,0.452482795685287,0.317366868109326,
0.151536548166930,-0.0401290714728405,-0.251709851798557,-0.476468632830883,-0.707106781186548,-0.936041447371095,-1.15569388572783,-1.35877776450025,-1.53857639348909,-1.68919822230282,
-1.80580079685965,-1.88477457352667,-1.92387953251129,-1.92232934558625,-1.88081986824349,-1.80150086549709,-1.68789206158978,-1.54474674298437,-1.37786815903728,-1.19388577822130,
-0.999999999999997,-0.803705134189034,-0.612501294307105,-0.433606276945171,-0.273678499216682,-0.138561640891994,-0.0330608032209160,0.0392412152202113,0.0761204674887130,0.0767959872797880,
0.0419582681629289,-0.0262589976977282,-0.124362831115995,-0.247637298461044,-0.390327020997654,-0.545860803338831,-0.707106781186553,-0.866649276863146,-1.01707671652874,-1.15126953751203,
-1.26267701420615,-1.34557235649577,-1.39527626933728,-1.40834037383351,-1.38268343236509,-1.31767513379545,-1.21416420976574,-1.07444979220580,-0.902197103202677,-0.702300707474974,
-0.480700572694637,-0.244157996343542,-4.89858719658941e-15,0.244157996343549,0.480700572694644,0.702300707474965,0.902197103202683,1.07444979220581,1.21416420976574,1.31767513379546,
1.38268343236509,1.40834037383351,1.39527626933729,1.34557235649576,1.26267701420615,1.15126953751204,1.01707671652873,0.866649276863141,0.707106781186548,0.545860803338826,
0.390327020997649,0.247637298461040,0.124362831115991,0.0262589976977254,-0.0419582681629305,-0.0767959872797885,-0.0761204674887125,-0.0392412152202095,0.0330608032209189,0.138561640891998,
0.273678499216687,0.433606276945177,0.612501294307111,0.803705134189041,1.00000000000000,1.19388577822131,1.37786815903729,1.54474674298438,1.68789206158979,1.80150086549709,
1.88081986824350,1.92232934558625,1.92387953251129,1.88477457352667,1.80580079685964,1.68919822230282,1.53857639348909,1.35877776450025,1.15569388572782,0.936041447371087,
0.707106781186540,0.476468632830875,0.251709851798550,0.0401290714728340,-0.151536548166936,-0.317366868109331,-0.452482795685291,-0.553230186972946,-0.617316567634910,-0.643895427011011,
-0.633594855256825,-0.588489432399280,-0.512016459170420,-0.408839758564238,-0.284666292035522,-0.146022647688708,-3.30654635769785e-15,0.146022647688722,0.284666292035535,0.408839758564241,
0.512016459170416,0.588489432399286,0.633594855256825,0.643895427011011,0.617316567634909,0.553230186972944,0.452482795685287,0.317366868109316,0.151536548166944,-0.0401290714728249,
-0.251709851798572,-0.476468632830898,-0.707106781186546,-0.936041447371077,-1.15569388572784,-1.35877776450025,-1.53857639348909,-1.68919822230282,-1.80580079685965,-1.88477457352667,
-1.92387953251129,-1.92232934558625,-1.88081986824349,-1.80150086549709,-1.68789206158977,-1.54474674298439,-1.37786815903728,-1.19388577822129,-0.999999999999998,-0.803705134189049,
-0.612501294307093,-0.433606276945172,-0.273678499216683,-0.138561640892004,-0.0330608032209163,0.0392412152202111,0.0761204674887129,0.0767959872797868,0.0419582681629329,-0.0262589976977278,
-0.124362831116003,-0.247637298461043,-0.390327020997642,-0.545860803338842,-0.707106781186552,-0.866649276863145,-1.01707671652873,-1.15126953751204,-1.26267701420615,-1.34557235649577,
-1.39527626933728,-1.40834037383351,-1.38268343236509,-1.31767513379545,-1.21416420976575,-1.07444979220580,-0.902197103202664,-0.702300707474959,-0.480700572694655,-0.244157996343525,
1.16403343982657e-14,0.244157996343548,0.480700572694643,0.702300707474964,0.902197103202682,1.07444979220581,1.21416420976575,1.31767513379545,1.38268343236509,1.40834037383351,
1.39527626933728,1.34557235649577,1.26267701420614,1.15126953751203,1.01707671652874,0.866649276863153,0.707106781186537,0.545860803338827,0.390327020997649,0.247637298461050,
0.124362831115992,0.0262589976977259,-0.0419582681629302,-0.0767959872797860,-0.0761204674887126,-0.0392412152202098,0.0330608032209184,0.138561640892006,0.273678499216686,0.433606276945176,
0.612501294307124,0.803705134189054,1.00000000000000,1.19388577822132,1.37786815903730,1.54474674298439,1.68789206158978,1.80150086549710,1.88081986824350,1.92232934558625,
1.92387953251129,1.88477457352667,1.80580079685964,1.68919822230282,1.53857639348910,1.35877776450023,1.15569388572782,0.936041447371089,0.707106781186558,0.476468632830876,
0.251709851798551,0.0401290714728351,-0.151536548166935,-0.317366868109331,-0.452482795685290,-0.553230186972946,-0.617316567634914,-0.643895427011011,-0.633594855256825,-0.588489432399284,
-0.512016459170414,-0.408839758564238,-0.284666292035532,-0.146022647688698,6.61680659921524e-15,0.146022647688711,0.284666292035544,0.408839758564249,0.512016459170422,0.588489432399281,
0.633594855256827,0.643895427011010,0.617316567634910,0.553230186972950,0.452482795685279,0.317366868109317,0.151536548166945,-0.0401290714728239,-0.251709851798539,-0.476468632830897,
-0.707106781186545,-0.936041447371076,-1.15569388572781,-1.35877776450025,-1.53857639348909,-1.68919822230281,-1.80580079685965,-1.88477457352667,-1.92387953251129,-1.92232934558625,
-1.88081986824349,-1.80150086549709,-1.68789206158977,-1.54474674298437,-1.37786815903728,-1.19388577822128,-0.999999999999984,-0.803705134189036,-0.612501294307107,-0.433606276945161,
-0.273678499216673,-0.138561640891996,-0.0330608032209233,0.0392412152202067,0.0761204674887143,0.0767959872797869,0.0419582681629331,-0.0262589976977213,-0.124362831116002,-0.247637298461043,
-0.390327020997641,-0.545860803338818,-0.707106781186552,-0.866649276863144,-1.01707671652873,-1.15126953751204,-1.26267701420615,-1.34557235649577,-1.39527626933729,-1.40834037383351,
-1.38268343236509,-1.31767513379544,-1.21416420976574,-1.07444979220581,-0.902197103202652,-0.702300707474945,-0.480700572694639,-0.244157996343544,-7.34788079488412e-15,0.244157996343564,
0.480700572694659,0.702300707474963,0.902197103202668,1.07444979220582,1.21416420976575,1.31767513379545,1.38268343236509,1.40834037383351,1.39527626933728,1.34557235649577,
1.26267701420616,1.15126953751203,1.01707671652874,0.866649276863154,0.707106781186538,0.545860803338828,0.390327020997650,0.247637298461031,0.124362831115993,0.0262589976977263,
-0.0419582681629376,-0.0767959872797883,-0.0761204674887126,-0.0392412152202022,0.0330608032209309,0.138561640892006,0.273678499216686,0.433606276945175,0.612501294307123,0.803705134189053,
1.00000000000000,1.19388577822129,1.37786815903727,1.54474674298437,1.68789206158980,1.80150086549710,1.88081986824350,1.92232934558625,1.92387953251129,1.88477457352668,
1.80580079685965,1.68919822230282,1.53857639348907,1.35877776450023,1.15569388572782,0.936041447371090,0.707106781186559,0.476468632830878,0.251709851798552,0.0401290714728360,
-0.151536548166934,-0.317366868109330,-0.452482795685289,-0.553230186972957,-0.617316567634913,-0.643895427011011,-0.633594855256825,-0.588489432399285,-0.512016459170428,-0.408839758564222,
-0.284666292035513,-0.146022647688699,5.88201851972683e-15,0.146022647688710,0.284666292035524,0.408839758564231,0.512016459170409,0.588489432399289,0.633594855256827,0.643895427011010,
0.617316567634910,0.553230186972951,0.452482795685297,0.317366868109318,0.151536548166946,-0.0401290714728229,-0.251709851798570,-0.476468632830896,-0.707106781186544,-0.936041447371108,
-1.15569388572784,-1.35877776450025,-1.53857639348909,-1.68919822230281,-1.80580079685965,-1.88477457352668,-1.92387953251129,-1.92232934558625,-1.88081986824349,-1.80150086549709,
-1.68789206158979,-1.54474674298440,-1.37786815903726,-1.19388577822128,-0.999999999999985,-0.803705134189037,-0.612501294307108,-0.433606276945186,-0.273678499216695,-0.138561640891996,
-0.0330608032209108,0.0392412152202144,0.0761204674887142,0.0767959872797869,0.0419582681629335,-0.0262589976977330,-0.124362831116002,-0.247637298461042,-0.390327020997640,-0.545860803338840,
-0.707106781186551,-0.866649276863166,-1.01707671652875,-1.15126953751204,-1.26267701420615,-1.34557235649576,-1.39527626933728,-1.40834037383351,-1.38268343236508,-1.31767513379544,
-1.21416420976574,-1.07444979220581,-0.902197103202680,-0.702300707474977,-0.480700572694674,-0.244157996343510,2.69546091939735e-14,0.244157996343563,0.480700572694657,0.702300707474962,
0.902197103202667,1.07444979220582,1.21416420976575,1.31767513379545,1.38268343236509,1.40834037383351,1.39527626933728,1.34557235649577,1.26267701420614,1.15126953751203,
1.01707671652874,0.866649276863155,0.707106781186539,0.545860803338829,0.390327020997629,0.247637298461032,0.124362831115993,0.0262589976977268,-0.0419582681629297,-0.0767959872797858,
-0.0761204674887100,-0.0392412152202024,0.0330608032209304,0.138561640892005,0.273678499216685,0.433606276945174,0.612501294307095,0.803705134189024,1,1.19388577822132,
1.37786815903730,1.54474674298439,1.68789206158978,1.80150086549708,1.88081986824350,1.92232934558625,1.92387953251129,1.88477457352667,1.80580079685964,1.68919822230282,
1.53857639348908,1.35877776450023,1.15569388572782,0.936041447371091,0.707106781186560,0.476468632830879,0.251709851798522,0.0401290714728076,-0.151536548166959,-0.317366868109329,
-0.452482795685289,-0.553230186972945,-0.617316567634907,-0.643895427011009,-0.633594855256821,-0.588489432399276,-0.512016459170415,-0.408839758564239,-0.284666292035533,-0.146022647688720,
5.14723044023841e-15,0.146022647688710,0.284666292035543,0.408839758564248,0.512016459170421,0.588489432399280,0.633594855256827,0.643895427011010,0.617316567634910,0.553230186972951,
0.452482795685281,0.317366868109318,0.151536548166920,-0.0401290714728512,-0.251709851798569,-0.476468632830895,-0.707106781186543,-0.936041447371074,-1.15569388572781,-1.35877776450028,
-1.53857639348911,-1.68919822230283,-1.80580079685965,-1.88477457352667,-1.92387953251129,-1.92232934558625,-1.88081986824349,-1.80150086549708,-1.68789206158977,-1.54474674298438,
-1.37786815903729,-1.19388577822131,-0.999999999999986,-0.803705134189038,-0.612501294307109,-0.433606276945162,-0.273678499216675,-0.138561640891997,-0.0330608032209242,0.0392412152202141,
0.0761204674887140,0.0767959872797871,0.0419582681629337,-0.0262589976977204,-0.124362831116001,-0.247637298461061,-0.390327020997661,-0.545860803338840,-0.707106781186550,-0.866649276863143,
-1.01707671652873,-1.15126953751202,-1.26267701420616,-1.34557235649577,-1.39527626933729,-1.40834037383351,-1.38268343236509,-1.31767513379545,-1.21416420976576,-1.07444979220581,
-0.902197103202654,-0.702300707474947,-0.480700572694641,-0.244157996343546,-9.79717439317883e-15,0.244157996343562,0.480700572694656,0.702300707474961,0.902197103202666,1.07444979220582,
1.21416420976575,1.31767513379546,1.38268343236509,1.40834037383351,1.39527626933728,1.34557235649577,1.26267701420616,1.15126953751201,1.01707671652872,0.866649276863133,
0.707106781186540,0.545860803338829,0.390327020997652,0.247637298461052,0.124362831116010,0.0262589976977150,-0.0419582681629370,-0.0767959872797882,-0.0761204674887128,-0.0392412152202106,
0.0330608032209170,0.138561640892005,0.273678499216684,0.433606276945174,0.612501294307121,0.803705134189051,0.999999999999999,1.19388577822132,1.37786815903730,1.54474674298439,
1.68789206158978,1.80150086549708,1.88081986824350,1.92232934558625,1.92387953251128,1.88477457352667,1.80580079685964,1.68919822230282,1.53857639348910,1.35877776450026,
1.15569388572779,0.936041447371059,0.707106781186528,0.476468632830880,0.251709851798555,0.0401290714728381,-0.151536548166932,-0.317366868109328,-0.452482795685288,-0.553230186972956,
-0.617316567634913,-0.643895427011011,-0.633594855256825,-0.588489432399276,-0.512016459170415,-0.408839758564240,-0.284666292035534,-0.146022647688700,4.41244236075000e-15,0.146022647688730,
0.284666292035542,0.408839758564247,0.512016459170421,0.588489432399280,0.633594855256823,0.643895427011010,0.617316567634904,0.553230186972940,0.452482795685281,0.317366868109319,
0.151536548166947,-0.0401290714728209,-0.251709851798536,-0.476468632830893,-0.707106781186575,-0.936041447371106,-1.15569388572784,-1.35877776450025,-1.53857639348909,-1.68919822230281,
-1.80580079685964,-1.88477457352667,-1.92387953251129,-1.92232934558625,-1.88081986824349,-1.80150086549709,-1.68789206158977,-1.54474674298438,-1.37786815903729,-1.19388577822131,
-0.999999999999987,-0.803705134189039,-0.612501294307083,-0.433606276945163,-0.273678499216675,-0.138561640891997,-0.0330608032209246,0.0392412152202060,0.0761204674887113,0.0767959872797847,
0.0419582681629264,-0.0262589976977321,-0.124362831116000,-0.247637298461041,-0.390327020997639,-0.545860803338816,-0.707106781186549,-0.866649276863165,-1.01707671652875,-1.15126953751204,
-1.26267701420615,-1.34557235649576,-1.39527626933729,-1.40834037383351,-1.38268343236509,-1.31767513379544,-1.21416420976574,-1.07444979220581,-0.902197103202655,-0.702300707474948,
-0.480700572694643,-0.244157996343548,-1.10218211923262e-14,0.244157996343526,0.480700572694688,0.702300707474991,0.902197103202692,1.07444979220582,1.21416420976575,1.31767513379545,
1.38268343236509,1.40834037383351,1.39527626933728,1.34557235649576,1.26267701420614,1.15126953751203,1.01707671652874,0.866649276863156,0.707106781186540,0.545860803338830,
0.390327020997631,0.247637298461033,0.124362831115994,0.0262589976977276,-0.0419582681629368,-0.0767959872797881,-0.0761204674887129,-0.0392412152202110,0.0330608032209165,0.138561640892004,
0.273678499216705,0.433606276945197,0.612501294307120,0.803705134189050,0.999999999999998,1.19388577822129,1.37786815903727,1.54474674298441,1.68789206158979,1.80150086549710,
1.88081986824350,1.92232934558625,1.92387953251129,1.88477457352668,1.80580079685964,1.68919822230280,1.53857639348908,1.35877776450024,1.15569388572782,0.936041447371093,
0.707106781186563,0.476468632830881,0.251709851798556,0.0401290714728096,-0.151536548166957,-0.317366868109327,-0.452482795685288,-0.553230186972956,-0.617316567634913,-0.643895427011011,
-0.633594855256825,-0.588489432399285,-0.512016459170416,-0.408839758564224,-0.284666292035515,-0.146022647688701,3.67765428126159e-15,0.146022647688708,0.284666292035522,0.408839758564230,
0.512016459170434,0.588489432399288,0.633594855256827,0.643895427011010,0.617316567634910,0.553230186972952,0.452482795685299,0.317366868109320,0.151536548166922,-0.0401290714728491,
-0.251709851798567,-0.476468632830892,-0.707106781186541,-0.936041447371104,-1.15569388572783,-1.35877776450025,-1.53857639348909,-1.68919822230283,-1.80580079685964,-1.88477457352668,
-1.92387953251129,-1.92232934558625,-1.88081986824350,-1.80150086549709,-1.68789206158979,-1.54474674298436,-1.37786815903726,-1.19388577822128,-0.999999999999988,-0.803705134189040,
-0.612501294307111,-0.433606276945189,-0.273678499216698,-0.138561640891980,-0.0330608032209121,0.0392412152202136,0.0761204674887138,0.0767959872797873,0.0419582681629341,-0.0262589976977317,
-0.124362831116000,-0.247637298461040,-0.390327020997660,-0.545860803338838,-0.707106781186548,-0.866649276863164,-1.01707671652875,-1.15126953751204,-1.26267701420615,-1.34557235649576,
-1.39527626933729,-1.40834037383351,-1.38268343236508,-1.31767513379544,-1.21416420976574,-1.07444979220581,-0.902197103202683,-0.702300707474980,-0.480700572694610,-0.244157996343514};

2.利用arm_fir_init_f32和arm_fir_f32進行FIR計算，
首先講解arm_fir_init_f32 FIR初始化函式，其函式原型為

void arm_fir_init_f32(
  arm_fir_instance_f32 * S,
  uint16_t numTaps,
  float32_t * pCoeffs,
  float32_t * pState,
  uint32_t blockSize)

其中：S為fir實體指標；numTaps為FIR階數；pCoeffs為FIR系數指標；pState為狀態陣列指標，其實就是一個計算程序中需要開辟的快取，用于計算，其長度為numTaps+blockSize-1；blockSize為計算塊的長度，大于1，小于等于原始資料的總長度即可，

配置好arm_fir_init_f32后，即可使用arm_fir_f32進行FIR計算，arm_fir_f32的函式原型為

void arm_fir_f32(
const arm_fir_instance_f32 * S,
float32_t * pSrc,
float32_t * pDst,
uint32_t blockSize)

由于設定了blockSize，即每次呼叫arm_fir_f32計算的資料長度，如blockSize設定為128時，要對總長度為1280的原始資料進行計算，就要回圈呼叫10次arm_fir_f32，其中pSrc和pDst指標也要隨著回圈進行后移，
具體FIR程式如下所示：

float32_t output[1280] = {0};
void FIR()
{
	uint32_t timeTick = HAL_GetTick();		//函式進入時間戳
	uint32_t timePass = 0;					//計算用時
	uint32_t blockSize = 128;				//塊長度，原始資料長度為1280
	uint32_t numOfBlock = 1280 / blockSize;	//
	uint32_t i;
	arm_fir_instance_f32 S;

	float32_t *pState;

	pState = (float32_t *)Mem.malloc((blockSize + BL - 1) * sizeof(float32_t));

	if(pState != NULL)
	{
		arm_fir_init_f32(&S,BL,(float32_t *)B,pState,blockSize);
		for(int i=0; i < numOfBlock; i++)
		{
			arm_fir_f32(&S, raw + (i * blockSize), output + (i * blockSize), blockSize);
		}
	}

    timePass = HAL_GetTick() - timeTick;

	Mem.free(pState);

}

其中，timePass保存了計算所需要的時間；output為FIR濾波后的資料輸出陣列；設定blockSize為128，則numOfblock塊個數就是raw陣列的長度1280除以128；pState為臨時使用記憶體池申請的快取，如果你的程式中沒有記憶體池，可以直接開辟一個長度為1280的float陣列，或者直接使用malloc動態申請，
運行后，timePass等于2，說明對1280個點進行100階的FIR濾波只需要2ms，速度已經非常快了，

4.濾波結果-與Matlab比對

將output陣列資料匯出，匯入到matlab中，與matlab的FIR濾波結果進行比對，發現一模一樣完全重合，證明了stm32呼叫arm-dsp庫FIR濾波的準確性、可靠性和高效性，

 plot(1:1280,ans(1:1280),1:1280,stm32out)

三、總結

實際工程應用中，往往是單片機對信號進行采樣，將波形保存在一個陣列中，然后再使用FIR進行濾波處理，一般的工程開發程序為：
1.分析原始信號，確定濾波目標；
2.匯出單片機采樣資料，在matlab中設計合適的FIR濾波器；
3.匯出Matlab濾波器系數到單片機程式；
4.利用arm-dsp庫進行FIR濾波計算，

轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/281714.html

標籤：其他

上一篇：藍橋杯STM32F103RB通用定時器（一）定時功能

下一篇：用于計算無線充電中LCC補償網路器件引數的小程式

標籤雲
其他(157675) Python(38076) JavaScript(25376) Java(17977) C(15215) 區塊鏈(8255) C＃(7972) AI(7469) 爪哇(7425) MySQL(7132) html(6777) 基礎類(6313) sql(6102) 熊猫(6058) PHP(5869) 数组(5741) R(5409) Linux(5327) 反应(5209) 腳本語言(PerlPython)(5129) 非技術區(4971) Android(4554) 数据框(4311) css(4259) 节点.js(4032) C語言(3288) json(3245) 列表(3129) 扑(3119) C++語言(3117) 安卓(2998) 打字稿(2995) VBA(2789) Java相關(2746) 疑難問題(2699) 细绳(2522) 單片機工控(2479) iOS(2429) ASP.NET(2402) MongoDB(2323) 麻木的(2285) 正则表达式(2254) 字典(2211) 循环(2198) 迅速(2185) 擅长(2169) 镖(2155) 功能(1967) .NET技术(1958) Web開發(1951) python-3.x(1918) HtmlCss(1915) 弹簧靴(1913) C++(1909) xml(1889) PostgreSQL(1872) .NETCore(1853) 谷歌表格(1846) Unity3D(1843) for循环(1842)

熱門瀏覽
  • 網閘典型架構簡述

    網閘架構一般分為兩種：三主機的三系統架構網閘和雙主機的2+1架構網閘。 三主機架構分別為內端機、外端機和仲裁機。三機無論從軟體和硬體上均各自獨立。首先從硬體上來看，三機都用各自獨立的主板、記憶體及存盤設備。從軟體上來看，三機有各自獨立的作業系統。這樣能達到完全的三機獨立。對于“2+1”系統，“2”分為 ......

    uj5u.com 2020-09-10 02:00:44 more
  • 如何從xshell上傳檔案到centos linux虛擬機里

    如何從xshell上傳檔案到centos linux虛擬機里及：虛擬機CentOs下執行 yum -y install lrzsz命令，出現錯誤：鏡像無法找到軟體包 前言 一、安裝lrzsz步驟 二、上傳檔案 三、遇到的問題及解決方案 總結 前言 提示：其實很簡單，往虛擬機上安裝一個上傳檔案的工具 ......

    uj5u.com 2020-09-10 02:00:47 more
  • 一、SQLMAP入門

    一、SQLMAP入門 1、判斷是否存在注入 sqlmap.py -u 網址/id=1 id=1不可缺少。當注入點后面的引數大于兩個時。需要加雙引號， sqlmap.py -u "網址/id=1&uid=1" 2、判斷文本中的請求是否存在注入 從文本中加載http請求，SQLMAP可以從一個文本檔案中 ......

    uj5u.com 2020-09-10 02:00:50 more
  • Metasploit 簡單使用教程

    metasploit 簡單使用教程 浩先生， 2020-08-28 16:18:25 分類專欄： kail 網路安全 linux 文章標簽： linux資訊安全 編輯 著作權 metasploit 使用教程 前言 一、Metasploit是什么？ 二、準備作業 三、具體步驟 前言 Msfconsole ......

    uj5u.com 2020-09-10 02:00:53 more
  • 游戲逆向之驅動層與用戶層通訊

    驅動層代碼： #pragma once #include <ntifs.h> #define add_code CTL_CODE(FILE_DEVICE_UNKNOWN,0x800,METHOD_BUFFERED,FILE_ANY_ACCESS) /* 更多游戲逆向視頻www.yxfzedu.com ......

    uj5u.com 2020-09-10 02:00:56 more
  • 北斗電力時鐘（北斗授時服務器）讓網路資料更精準

    北斗電力時鐘（北斗授時服務器）讓網路資料更精準 北斗電力時鐘（北斗授時服務器）讓網路資料更精準 京準電子科技官微——ahjzsz 近幾年，資訊技術的得了快速發展，互聯網在逐漸普及，其在人們生活和生產中都得到了廣泛應用，并且取得了不錯的應用效果。計算機網路資訊在電力系統中的應用，一方面使電力系統的運行 ......

    uj5u.com 2020-09-10 02:01:03 more
  • 【CTF】CTFHub 技能樹 彩蛋 writeup

    ?碎碎念 CTFHub：https://www.ctfhub.com/ 筆者入門CTF時時剛開始刷的是bugku的舊平臺，后來才有了CTFHub。 感覺不論是網頁UI設計，還是題目質量，賽事跟蹤，工具軟體都做得很不錯。 而且因為獨到的金幣制度的確讓人有一種想去刷題賺金幣的感覺。 個人還是非常喜歡這個 ......

    uj5u.com 2020-09-10 02:04:05 more
  • 02windows基礎操作

    我學到了一下幾點 Windows系統目錄結構與滲透的作用 常見Windows的服務詳解 Windows埠詳解 常用的Windows注冊表詳解 hacker DOS命令詳解（net user / type /md /rd/ dir /cd /net use copy、批處理 等） 利用dos命令制作 ......

    uj5u.com 2020-09-10 02:04:18 more
  • 03.Linux基礎操作

    我學到了以下幾點 01Linux系統介紹02系統安裝，密碼啊破解03Linux常用命令04LAMP 01LINUX windows： win03 8 12 16 19 配置不繁瑣 Linux：redhat,centos(紅帽社區版)，Ubuntu server,suse unix:金融機構，證券，銀 ......

    uj5u.com 2020-09-10 02:04:30 more
  • 05HTML

    01HTML介紹 02頭部標簽講解03基礎標簽講解04表單標簽講解 HTML前段語言 js1.了解代碼2.根據代碼 懂得挖掘漏洞 （POST注入/XSS漏洞上傳）3.黑帽seo 白帽seo 客戶網站被黑帽植入劫持代碼如何處理4.熟悉html表單 <html><head><title>TDK標題，描述 ......

    uj5u.com 2020-09-10 02:04:36 more
最新发布
  • 2023年最新微信小程式抓包教程

    01 開門見山 隔一個月發一篇文章，不過分。 首先回顧一下《微信系結手機號資料庫被脫庫事件》，我也是第一時間得知了這個訊息，然后跟蹤了整件事情的經過。下面是這起事件的相關截圖以及近日流出的一萬條資料樣本： 個人認為這件事也沒什么，還不如關注一下之前45億快遞資料查詢渠道疑似在近日復活的訊息。 訊息是 ......

    uj5u.com 2023-04-20 08:48:24 more
  • web3 產品介紹：metamask 錢包 使用最多的瀏覽器插件錢包

    Metamask錢包是一種基于區塊鏈技術的數字貨幣錢包，它允許用戶在安全、便捷的環境下管理自己的加密資產。Metamask錢包是以太坊生態系統中最流行的錢包之一，它具有易于使用、安全性高和功能強大等優點。 本文將詳細介紹Metamask錢包的功能和使用方法。 一、 Metamask錢包的功能 數字資 ......

    uj5u.com 2023-04-20 08:47:46 more
  • vulnhub_Earth

    前言 靶機地址->>>vulnhub_Earth 攻擊機ip：192.168.20.121 靶機ip：192.168.20.122 參考文章 https://www.cnblogs.com/Jing-X/archive/2022/04/03/16097695.html https://www.cnb ......

    uj5u.com 2023-04-20 07:46:20 more
  • 從4k到42k，軟體測驗工程師的漲薪史，給我看哭了

    清明節一過，盲猜大家已經無心上班，在數著日子準備過五一，但一想到銀行卡里的余額……瞬間心情就不美麗了。最近，2023年高校畢業生就業調查顯示，本科畢業月平均起薪為5825元。調查一出，便有很多同學表示自己又被平均了。看著這一資料，不免讓人想到前不久中國青年報的一項調查：近六成大學生認為畢業10年內會 ......

    uj5u.com 2023-04-20 07:44:00 more
  • 最新版本 Stable Diffusion 開源 AI 繪畫工具之中文自動提詞篇

    🎈 標簽生成器 由于輸入正向提示詞 prompt 和反向提示詞 negative prompt 都是使用英文，所以對學習母語的我們非常不友好 使用網址：https://tinygeeker.github.io/p/ai-prompt-generator 這個網址是為了讓大家在使用 AI 繪畫的時候 ......

    uj5u.com 2023-04-20 07:43:36 more
  • 漫談前端自動化測驗演進之路及測驗工具分析

    隨著前端技術的不斷發展和應用程式的日益復雜，前端自動化測驗也在不斷演進。隨著 Web 應用程式變得越來越復雜，自動化測驗的需求也越來越高。如今，自動化測驗已經成為 Web 應用程式開發程序中不可或缺的一部分，它們可以幫助開發人員更快地發現和修復錯誤，提高應用程式的性能和可靠性。 ......

    uj5u.com 2023-04-20 07:43:16 more
  • CANN開發實踐：4個DVPP記憶體問題的典型案例解讀

    摘要：由于DVPP媒體資料處理功能對存放輸入、輸出資料的記憶體有更高的要求（例如，記憶體首地址128位元組對齊），因此需呼叫專用的記憶體申請介面，那么本期就分享幾個關于DVPP記憶體問題的典型案例，并給出原因分析及解決方法。 本文分享自華為云社區《FAQ_DVPP記憶體問題案例》，作者：昇騰CANN。 DVPP ......

    uj5u.com 2023-04-20 07:43:03 more
  • msf學習

    msf學習 以kali自帶的msf為例 一、msf核心模塊與功能 msf模塊都放在/usr/share/metasploit-framework/modules目錄下 1、auxiliary 輔助模塊，輔助滲透（埠掃描、登錄密碼爆破、漏洞驗證等） 2、encoders 編碼器模塊，主要包含各種編碼 ......

    uj5u.com 2023-04-20 07:42:59 more
  • Halcon軟體安裝與界面簡介

    1. 下載Halcon17版本到到本地 2. 雙擊安裝包后 3. 步驟如下 1.2 Halcon軟體安裝 界面分為四大塊 1. Halcon的五個助手 1) 影像采集助手：與相機連接，設定相機引數，采集影像 2) 標定助手：九點標定或是其它的標定，生成標定檔案及內參外參，可以將像素單位轉換為長度單位 ......

    uj5u.com 2023-04-20 07:42:17 more
  • 在MacOS下使用Unity3D開發游戲

    第一次發博客，先發一下我的游戲開發環境吧。 去年2月份買了一臺MacBookPro2021 M1pro(以下簡稱mbp)，這一年來一直在用mbp開發游戲。我大致分享一下我的開發工具以及使用體驗。 1、Unity 官網鏈接： https://unity.cn/releases 我一般使用的Apple ......

    uj5u.com 2023-04-20 07:40:19 more

Copyright © 2010-2020 有解無憂
