OLED螢屏

OLED即有機發光管(Organic Light-Emitting Diode，OLED)，OLED顯示技術具有自發光、廣視角、幾乎無窮高的對比度、較低功耗、極高反應速度、可用于繞曲性面板、使用溫度范圍廣、構造及制程簡單等有點，被認為是下一代的平面顯示屏新興應用技術，

OLED顯示和傳統的LCD顯示不同，其可以自發光，所以不需要背光燈，這使得OLED顯示屏相對于LCD顯示屏尺寸更薄，同時顯示效果更優，

常用的OLED螢屏有藍色、黃色、白色等幾種，屏的大小為0.96寸，像素點為128*64，所以我們稱為0.96oled屏或者12864屏，

OLED螢屏特點

模塊尺寸：23.7 *23.8mm
電源電壓：3.3-5.5V
驅動芯片：SSD1306
測驗平臺：提供 k60/k10，9s12XS128，51，stm32，stm8等單片機，

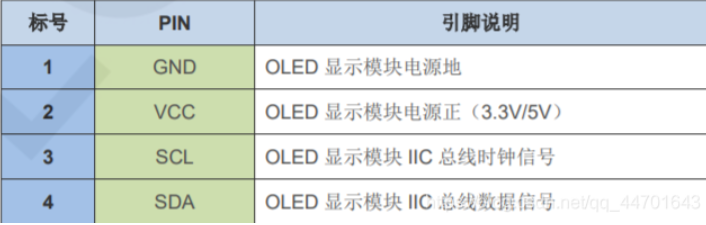

OLED螢屏接線說明

OLED螢屏顯存

OLED本身是沒有顯存的，他的現存是依賴SSD1306提供的，而SSD1306提供一塊顯存，

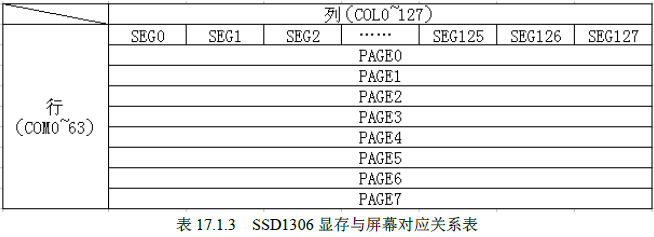

SSD1306顯存總共為128*64bit大小，SSD1306將這些顯存分成了8頁，每頁包含了128個位元組，

0.96寸的oled又叫12864顯示屏，解析度為128*64（這么多個像素點），由128列，64行組成，其中64行又被分為8頁，每頁8行！

OLED螢屏原理

STM32內部建立一個快取(共128*8個位元組），每次修改的時候，只是修改STM32上的快取(實際上就是SRAM)，修改完后一次性把STM32上的快取資料寫入到OLED的GRAM，

這個方法也有壞處，對于SRAM很小的單片機（51系列）就比較麻煩，

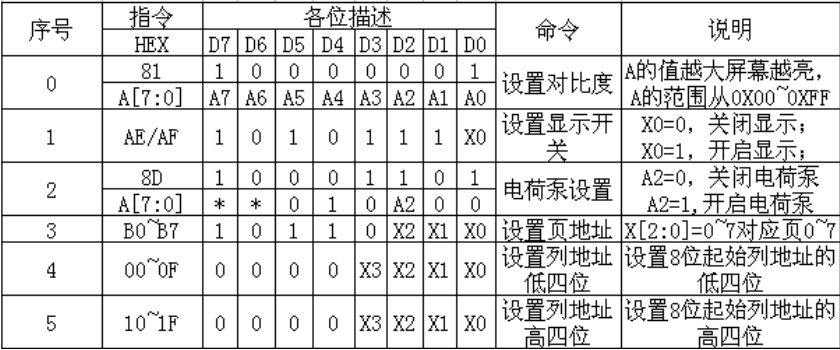

OLED螢屏常用指令

命令0X81：設定對比度，包含兩個位元組，第一個0X81為命令，隨后方法是的一個位元組要設定這個對比度，值越大螢屏越亮，

命令0XAE/0XAF：0XAE為關閉顯示命令，0XAF為開啟顯示命令

命令0X8D：包含兩個位元組，第一個為命令字，第二個為設定值，第二個位元組的BIT2表示電荷泵的開關狀態，A2該位為1（0x14）開啟電荷泵，為0（0x10）則關閉，模塊初始化的時候，這個必須要開啟，否則看不到螢屏顯示，

命令0XB0~B7：用于設定頁地址，其低三位的值對應GRAM頁地址，

命令0X00~0X0F：用于設定顯示時的起始列地址低四位，

命令0X10~0X1F：用于設定顯示時的起始列地址高四位，

OLED螢屏字模軟體的使用

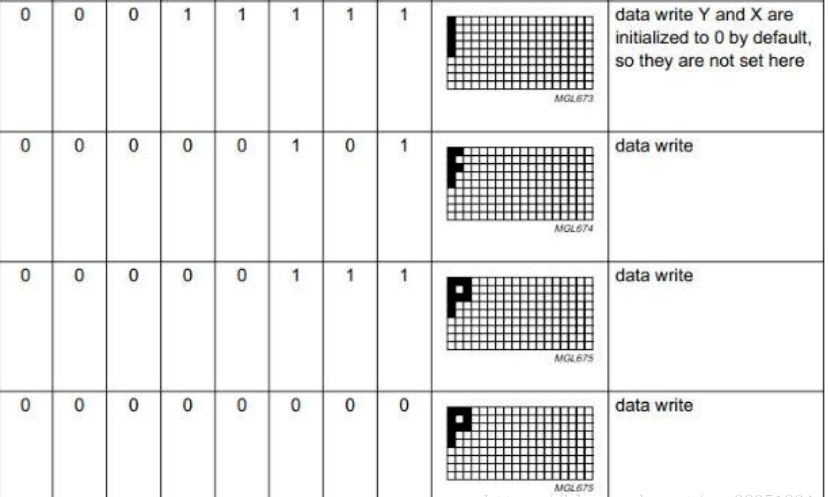

OLED點陣的點亮方式，舉個顯示”P”的例子，最左邊位最高位P7，

這個圖畫錯了從下到上應該是8個點，他畫了9個點，從下至上第2個點開始，

可以看出，要想顯示”P”，首先寫入0x1f，則顯示一個豎杠，之后控制器自動水平移動到下一列，
再寫入0X05,則出現兩個小橫桿，這個兩個橫桿就是0X05中0000 0101中兩個1所處的位置，寫完第二列后，控制器自動跳到第三列.
再寫入0X07,第四列寫入0X00后，P就顯示出來了，這也說明，即使你只想再一列的最上端顯示一個小點，即寫入0X01，
即你不能一次性控制一個點陣，只能一次性控制八位點陣，即一列點陣，這也決定了字模選擇的取模方式為“列行式”，

寫命令

void WriteCmd(unsigned char I2C_Command)
{
	I2C_WriteByte(0x00,I2C_Command);//從0x00開始寫指令
}

寫資料

void WriteData(unsigned char I2C_Data)
{
	I2C_WriteByte(0x40,I2C_Data);//從0x40開始寫資料
}

OLED 初始化（廠家提供的代碼）

void OLED_Init(void)
{
		delay_ms(100);
		WriteCmd(0xAE); //display off
		WriteCmd(0x20);	//Set Memory Addressing Mode
		WriteCmd(0x10);	//00,Horizontal Addressing Mode;01,Vertical Addressing Mode;10,Page Addressing Mode (RESET);11,Invalid
		WriteCmd(0xb0);	//Set Page Start Address for Page Addressing Mode,0-7
		WriteCmd(0xc8);	//Set COM Output Scan Direction
		WriteCmd(0x00); //---set low column address
		WriteCmd(0x10); //---set high column address
		WriteCmd(0x40); //--set start line address
		WriteCmd(0x81); //--set contrast control register
		WriteCmd(0xff); //áá?èμ÷?ú 0x00~0xff
		WriteCmd(0xa1); //--set segment re-map 0 to 127
		WriteCmd(0xa6); //--set normal display
		WriteCmd(0xa8); //--set multiplex ratio(1 to 64)
		WriteCmd(0x3F); //
		WriteCmd(0xa4); //0xa4,Output follows RAM content;0xa5,Output ignores RAM content
		WriteCmd(0xd3); //-set display offset
		WriteCmd(0x00); //-not offset
		WriteCmd(0xd5); //--set display clock divide ratio/oscillator frequency
		WriteCmd(0xf0); //--set divide ratio
		WriteCmd(0xd9); //--set pre-charge period
		WriteCmd(0x22); //
		WriteCmd(0xda); //--set com pins hardware configuration
		WriteCmd(0x12);
		WriteCmd(0xdb); //--set vcomh
		WriteCmd(0x20); //0x20,0.77xVcc
		WriteCmd(0x8d); //--set DC-DC enable
		WriteCmd(0x14); //
		WriteCmd(0xaf); //--turn on oled panel
}

設定起點坐標

void OLED_setPos(unsigned char x,unsigned char y)
{
	WriteCmd(0xb0+y);               //設定頁 0xB0代表頁為第0頁
	WriteCmd( (x&0xf0) >>4 | 0x10); //設定列 低四位 獲取高四位資料右移動4位并保存，且讓第5位為1
	WriteCmd( (x&0x0f) | 0x01);     //設定列 高四位 保留最后一位資料，并讓最后一位資料置1
}

全屏填充

//全屏處理函式
void OLED_FILL(unsigned char Fill_data)
{
	unsigned char m,n;

	WriteCmd(0xb0+m); //設定頁，b0 第0頁，+m 偏移頁數
	WriteCmd(0x00);   //設定列的低四位地址
	WriteCmd(0x10);   //設定列的高四位地址，具體效果可查看oled指令表

	for(m=0;m<8;m++) //頁回圈，有8頁
	{
		for(n=0;n<128;n++) //列回圈 有128列
		{
			WriteData(Fill_Data) //寫資料
		}
	}
}

清屏

//清屏函式，在全屏處理函式上進行的修改
void OLED_CLS(void)
{
	OLED_Fill(0x00);
}

OLED 打開

void OLED_ON()
{
	WriteCmd(0XAF);//開啟顯示
	WriteCmd(0X8D);//設定電荷泵
	WriteCmd(0x14);//開啟電荷泵
}

OLED 關閉

void OLED_OFF()
{
	WriteCmd(0xAE);//關閉顯示
	WriteCmd(0x8D);//設定電荷泵
	WriteCmd(0x10);//關閉電荷泵
}

顯示字串


 /**
  * @brief  OLED_ShowStr，顯示codetab.h中的ASCII字符,有6*8和8*16可選擇
  * @param  x,y：起始點坐標(x:0~127, y:0~7);
    *      ch[]：要顯示的字串;
    *  TextSize：字符大小(1:6*8 ; 2:8*16)
    * @retval 無
*/

void OLED_ShowStr(unsigned char x,unsigned char y,unsigned char ch[],unsigned int TextSize)
{
	unsigned char c=0,i=0,j=0;

	switch(TextSize)
	{
		case 1: //6x8大小的字串
		{
			while(ch[j] != '\0') //遍歷到字串尾
			{
				c = ch[j] - 32; //字符對應的ASCII碼 -32 = 從空格開始的偏移量

				if(x>126)  //即將寫滿這一頁
				{
					x = 0; //回到第一列
					y++;   //頁往下翻
				}

				OLED_setPos(x,y); //游標重新置點

				for(i=0;i<6;i++) //一個字符有6個字庫資料
				{
					WriteData(F6x8[c][6]); //寫入字庫資料
				}

				x += 6; //寫完一個字符，偏移6列
				j++; //偏移字符
			}
		}
		break;

		case 2: //8x16大小的字串
		{
			while(ch[j] != '\0')
			{
				c = ch[j] - 32; //字符對應的ASCII碼 -32 = 從空格開始的偏移量

				if(x>120)
				{
					x = 0;
					y++;
				}

				OLED_SetPos(x,y); //游標重新置點

				for(i=0;i<8;i++) //一個字符有16個字庫資料，上一頁寫一半 8
				{
					WriteData(F8X16[c*16+i]); //c*16 從空格開始的偏移量，+i 偏移到第i個資料
				}

				OLED_SetPos(x,y+1); //y+1 另起一頁繼續寫，如果沒有這句話，效果直接只有字的一半

				for(i=0;i<8;i++) //下一頁寫一半 8
				{
					WriteData(F8X16[c*16+8+i]); //c*16 從空格開始的偏移量，+8 上一頁偏移的8個資料,+i 偏移到第i個資料
				}

				x += 8; //寫完一個字符，偏移8列
				j++; //偏移字符
			}
		}
		break;
	}
}

顯示中文

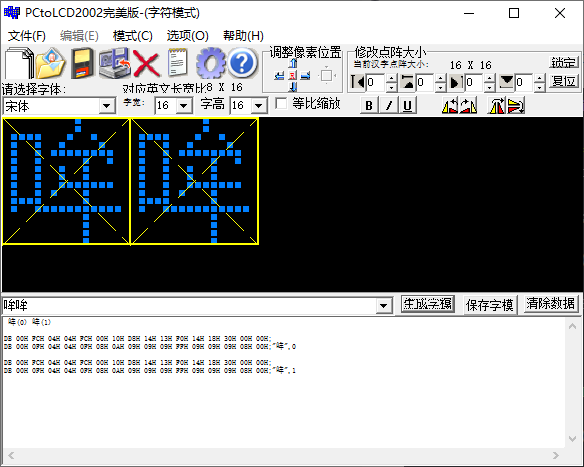

用 128x64取字軟體（PCtoLCD2002.exe）生成資料

128x64取字軟體
提取碼：djay

/**
  * @brief  OLED_ShowCN，顯示codetab.h中的漢字,16*16點陣
  * @param  x,y：起始點坐標(x:0~127, y:0~7);
  *           N：漢字在codetab.h中的索引
  * @retval 無
* */

void OLED_ShowCN(unsigned char x,unsigned char y,unsigned char N)
{
	unsigned char i = 0;
	unsigned char addr = N*32; //漢字的地址

	OLED_SetPos(x,y); //游標重新置點

	for(i=0;i<16;i++) //一個漢字有32個字庫資料，上一頁寫一半 16
	{
		WriteData(F16X16[addr]);
		addr += 1; //地址偏移
	}

	OLED_SetPos(x,y+1); //y+1 另起一頁繼續寫，如果沒有這句話，效果直接只有字的一半

	for(i=0;i<16;i++) //下一頁寫一半 16
	{
		WriteData(F16X16[addr]);
		addr += 1; //地址偏移
	}
}

顯示黑白圖片

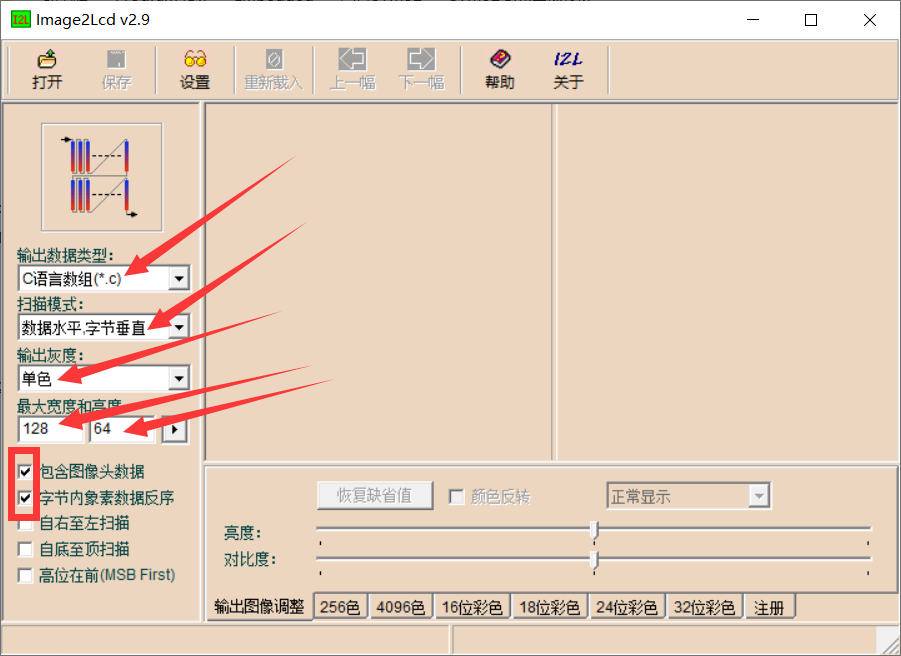

用 BMP影像轉化（Image2Lcd.exe）生成資料

BMP影像轉化
提取碼：tgch

/**
  * @brief  OLED_DrawBMP，顯示BMP位圖
  * @param  x0,y0：起始點坐標(x0:0~127, y0:0~7);
  *         x1,y1：起點對角線(結束點)的坐標(x1:1~128,y1:1~8)
  * @retval 無
 * */

void OLED_ShowBMP(unsigned char x0,unsigned char y0,unsigned char x1,unsigned char y1,unsigned char BMP[])
{
	unsigned char x,y;
	unsigned char j=0;

	if(y1 % 8 == 0) //分頁，一頁8行
	{
		y=y/8; //滿8為1頁
	}
	else
	{
		y=y/8+1; //不滿8，也湊成1頁
	}

	for(y=y0;y<y1;y++)
	{
		OLED_SetPos(x0,y); //寫完一頁，游標重新回到下一頁開頭

		for(x=x0;x<x1;x++)
		{
			WriteData(BMP[j++]);
		}
	}
}

整合

oled.c

#include "oled.h"
#include "stm32f10x.h"
#include "SysTick.h"
#include "codetab.h"

//初始化硬體IIC引腳
void I2C_Configuration(void)
{
		GPIO_InitTypeDef GPIO_InitStructure;
		I2C_InitTypeDef I2C_InitStructure;

		RCC_APB1PeriphClockCmd(RCC_APB1Periph_I2C1, ENABLE);
		RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOB, ENABLE);

		//PB6——SCL PB7——SDA
		GPIO_InitStructure.GPIO_Mode  = GPIO_Mode_AF_OD;
		GPIO_InitStructure.GPIO_Pin   = GPIO_Pin_6 | GPIO_Pin_7;
		GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;

		GPIO_Init(GPIOB, &GPIO_InitStructure);

		I2C_DeInit(I2C1);
		I2C_InitStructure.I2C_Ack                 = I2C_Ack_Enable;
		I2C_InitStructure.I2C_AcknowledgedAddress = I2C_AcknowledgedAddress_7bit;
		I2C_InitStructure.I2C_ClockSpeed          = 400000;
		I2C_InitStructure.I2C_DutyCycle           = I2C_DutyCycle_2;
		I2C_InitStructure.I2C_Mode                = I2C_Mode_I2C;
		I2C_InitStructure.I2C_OwnAddress1         = 0x30;

		I2C_Init(I2C1, &I2C_InitStructure);
		I2C_Cmd(I2C1, ENABLE);
}

//向OLED暫存器地址寫一個byte的資料
void I2C_WriteByte(uint8_t addr,uint8_t data)
{
		while( I2C_GetFlagStatus(I2C1, I2C_FLAG_BUSY) );
		I2C_GenerateSTART(I2C1, ENABLE);

		while( !I2C_CheckEvent(I2C1, I2C_EVENT_MASTER_MODE_SELECT) );
		I2C_Send7bitAddress(I2C1, OLED_ADDRESS, I2C_Direction_Transmitter);

		while( !I2C_CheckEvent(I2C1, I2C_EVENT_MASTER_TRANSMITTER_MODE_SELECTED) );
		I2C_SendData(I2C1, addr);

		while( !I2C_CheckEvent(I2C1, I2C_EVENT_MASTER_BYTE_TRANSMITTING) );
		I2C_SendData(I2C1, data);

		while( !I2C_CheckEvent(I2C1, I2C_EVENT_MASTER_BYTE_TRANSMITTED) );
		I2C_GenerateSTOP(I2C1, ENABLE);
}

//寫指令
void WriteCmd(unsigned char I2C_Command)
{
		I2C_WriteByte(0x00,I2C_Command);
}

//寫資料
void WriteData(unsigned char I2C_Data)
{
		I2C_WriteByte(0x40,I2C_Data);
}

//廠家初始化代碼
void OLED_Init(void)
{
		delay_ms(100);
		WriteCmd(0xAE); //display off
		WriteCmd(0x20);	//Set Memory Addressing Mode
		WriteCmd(0x10);	//00,Horizontal Addressing Mode;01,Vertical Addressing Mode;10,Page Addressing Mode (RESET);11,Invalid
		WriteCmd(0xb0);	//Set Page Start Address for Page Addressing Mode,0-7
		WriteCmd(0xc8);	//Set COM Output Scan Direction
		WriteCmd(0x00); //---set low column address
		WriteCmd(0x10); //---set high column address
		WriteCmd(0x40); //--set start line address
		WriteCmd(0x81); //--set contrast control register
		WriteCmd(0xff); //áá?èμ÷?ú 0x00~0xff
		WriteCmd(0xa1); //--set segment re-map 0 to 127
		WriteCmd(0xa6); //--set normal display
		WriteCmd(0xa8); //--set multiplex ratio(1 to 64)
		WriteCmd(0x3F); //
		WriteCmd(0xa4); //0xa4,Output follows RAM content;0xa5,Output ignores RAM content
		WriteCmd(0xd3); //-set display offset
		WriteCmd(0x00); //-not offset
		WriteCmd(0xd5); //--set display clock divide ratio/oscillator frequency
		WriteCmd(0xf0); //--set divide ratio
		WriteCmd(0xd9); //--set pre-charge period
		WriteCmd(0x22); //
		WriteCmd(0xda); //--set com pins hardware configuration
		WriteCmd(0x12);
		WriteCmd(0xdb); //--set vcomh
		WriteCmd(0x20); //0x20,0.77xVcc
		WriteCmd(0x8d); //--set DC-DC enable
		WriteCmd(0x14); //
		WriteCmd(0xaf); //--turn on oled panel

}

//設定游標起始坐標（x,y）
void OLED_SetPos(unsigned char x,unsigned char y)
{
		WriteCmd(0xb0+y);
		WriteCmd( (x & 0xf0) >> 4 | 0x10 );
		WriteCmd( (x & 0x0f) | 0x01 );
}

//填充整個螢屏
void OLED_Fill(unsigned char Fill_Data)
{
		unsigned char m,n;

		for(m=0;m<8;m++)
		{
				WriteCmd(0xb0+m);
				WriteCmd(0x00);
				WriteCmd(0x10);

				for(n=0;n<128;n++)
				{
						WriteData(Fill_Data);
				}
		}
}

//清屏
void OLED_CLS(void)
{
		OLED_Fill(0x00);
}

//將OLED從休眠中喚醒
void OLED_ON(void)
{
		WriteCmd(0xAF);
		WriteCmd(0x8D);
		WriteCmd(0x14);
}

//讓OLED休眠 -- 休眠模式下,OLED功耗不到10uA
void OLED_OFF(void)
{
		WriteCmd(0xAE);
		WriteCmd(0x8D);
		WriteCmd(0x10);
}

void OLED_ShowStr(unsigned char x,unsigned char y,unsigned char ch[],unsigned char TextSize)
{
		unsigned char c = 0,i = 0,j = 0;

		switch(TextSize)
		{
			case 1:
			{
					while(ch[j] != '\0')
					{
							c = ch[j] - 32;
							if(x>126)
							{
									x = 0;
									y++;
							}

							OLED_SetPos(x,y);

							for(i=0;i<6;i++)
							{
									WriteData(F6x8[c][i]);
							}
							x+=6;
							j++;
					}
			}
			break;

			case 2:
			{
					while(ch[j] != '\0')
					{
							c = ch[j] - 32;

							if(x>120)
							{
									x = 0;
									y++;
							}

							OLED_SetPos(x,y);

							for(i=0;i<8;i++)
							{
									WriteData(F8X16[c*16+i]);
							}

							OLED_SetPos(x,y+1);

							for(i=0;i<8;i++)
							{
									WriteData(F8X16[c*16+i+8]);
							}
							x+=8;
							j++;
					}
			}
			break;
		}
}

void OLED_ShowCN(unsigned char x,unsigned char y,unsigned char N)
{
		unsigned char i = 0;
		unsigned char addr = 32*N;

		OLED_SetPos(x,y);

		for(i=0;i<16;i++)
		{
				WriteData(F16X16[addr]);
				addr += 1;
		}

		OLED_SetPos(x,y+1);

		for(i=0;i<16;i++)
		{
				WriteData(F16X16[addr]);
				addr += 1;
		}
}

void OLED_ShowBMP(unsigned char x0,unsigned char y0,unsigned char x1,unsigned char y1,unsigned char BMP[])
{
		unsigned char x,y;
		unsigned int j = 0;

		if(y1 % 8 == 0)
		{
				y = y1 / 8;
		}
		else
		{
				y = y1 / 8+1;
		}

		for(y=y0;y<y1;y++)
		{
				OLED_SetPos(x0,y);

				for(x=x0;x<x1;x++)
				{
						WriteData(BMP1[j++]);
				}
		}
}

oled.h

#ifndef _oled_h_
#define _oled_h_

#include "stm32f10x.h"
#define OLED_ADDRESS 0x78

void I2C_Configuration(void);
void I2C_WriteByte(uint8_t addr,uint8_t data);
void WriteCmd(unsigned char I2C_Command);
void WriteData(unsigned char I2C_Data);
void OLED_Init(void);
void OLED_SetPos(unsigned char x,unsigned char y);
void OLED_Fill(unsigned char Fill_Data);
void OLED_CLS(void);
void OLED_ON(void);
void OLED_OFF(void);
void OLED_ShowStr(unsigned char x,unsigned char y,unsigned char ch[],unsigned char TextSize);
void OLED_ShowCN(unsigned char x,unsigned char y,unsigned char N);
void OLED_ShowBMP(unsigned char x0,unsigned char y0,unsigned char x1,unsigned char y1,unsigned char BMP[]);

#endif

main.c

#include "stm32f10x.h"
#include "main.h"
#include "led.h"
#include "shake.h"
#include "relay.h"
#include "exti.h"
#include "usart.h"
#include "tim.h"
#include "motor.h"
#include "SysTick.h"
#include "HC_SR04.h"
#include "oled.h"

extern const unsigned char BMP1[];

int main()
{
//		unsigned char i=0;

		I2C_Configuration();
		OLED_Init();
		delay_ms(2000);

		OLED_Fill(0xFF);
		delay_ms(2000);

		OLED_Fill(0x00);
		delay_ms(2000);

//		OLED_ShowStr(31,2,"Hello World",1);
//		OLED_ShowStr(21,5,"Hello World",2);

		while(1)
		{
				/*
				for(i=0;i<2;i++)
				{
						OLED_ShowCN(6*8+i*16,0,i); //+i*16 每偏移一個漢字需要偏移16列，在螢屏中間顯示兩個字“哞哞”
				}
				*/

				OLED_ShowBMP(0,0,128,8,(unsigned char *)BMP1);
		}

}

codetab.h

unsigned char F16X16[] =
{
	0x00,0xFC,0x04,0x04,0xFC,0x00,0x10,0xD8,0x14,0x13,0xF0,0x14,0x18,0x30,0x00,0x00,
	0x00,0x0F,0x04,0x04,0x0F,0x08,0x0A,0x09,0x09,0x09,0xFF,0x09,0x09,0x09,0x08,0x00,//"哞",0

	0x00,0xFC,0x04,0x04,0xFC,0x00,0x10,0xD8,0x14,0x13,0xF0,0x14,0x18,0x30,0x00,0x00,
	0x00,0x0F,0x04,0x04,0x0F,0x08,0x0A,0x09,0x09,0x09,0xFF,0x09,0x09,0x09,0x08,0x00,//"哞",1
};

const unsigned char F6x8[][6] =
{
	0x00, 0x00, 0x00, 0x00, 0x00, 0x00,// sp
	0x00, 0x00, 0x00, 0x2f, 0x00, 0x00,// !
	0x00, 0x00, 0x07, 0x00, 0x07, 0x00,// "
	0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14,// #
	0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12,// $
	0x00, 0x62, 0x64, 0x08, 0x13, 0x23,// %
	0x00, 0x36, 0x49, 0x55, 0x22, 0x50,// &
	0x00, 0x00, 0x05, 0x03, 0x00, 0x00,// '
	0x00, 0x00, 0x1c, 0x22, 0x41, 0x00,// (
	0x00, 0x00, 0x41, 0x22, 0x1c, 0x00,// )
	0x00, 0x14, 0x08, 0x3E, 0x08, 0x14,// *
	0x00, 0x08, 0x08, 0x3E, 0x08, 0x08,// +
	0x00, 0x00, 0x00, 0xA0, 0x60, 0x00,// ,
	0x00, 0x08, 0x08, 0x08, 0x08, 0x08,// -
	0x00, 0x00, 0x60, 0x60, 0x00, 0x00,// .
	0x00, 0x20, 0x10, 0x08, 0x04, 0x02,// /
	0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E,// 0
	0x00, 0x00, 0x42, 0x7F, 0x40, 0x00,// 1
	0x00, 0x42, 0x61, 0x51, 0x49, 0x46,// 2
	0x00, 0x21, 0x41, 0x45, 0x4B, 0x31,// 3
	0x00, 0x18, 0x14, 0x12, 0x7F, 0x10,// 4
	0x00, 0x27, 0x45, 0x45, 0x45, 0x39,// 5
	0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30,// 6
	0x00, 0x01, 0x71, 0x09, 0x05, 0x03,// 7
	0x00, 0x36, 0x49, 0x49, 0x49, 0x36,// 8
	0x00, 0x06, 0x49, 0x49, 0x29, 0x1E,// 9
	0x00, 0x00, 0x36, 0x36, 0x00, 0x00,// :
	0x00, 0x00, 0x56, 0x36, 0x00, 0x00,// ;
	0x00, 0x08, 0x14, 0x22, 0x41, 0x00,// <
	0x00, 0x14, 0x14, 0x14, 0x14, 0x14,// =
	0x00, 0x00, 0x41, 0x22, 0x14, 0x08,// >
	0x00, 0x02, 0x01, 0x51, 0x09, 0x06,// ?
	0x00, 0x32, 0x49, 0x59, 0x51, 0x3E,// @
	0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C,// A
	0x00, 0x7F, 0x49, 0x49, 0x49, 0x36,// B
	0x00, 0x3E, 0x41, 0x41, 0x41, 0x22,// C
	0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C,// D
	0x00, 0x7F, 0x49, 0x49, 0x49, 0x41,// E
	0x00, 0x7F, 0x09, 0x09, 0x09, 0x01,// F
	0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A,// G
	0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F,// H
	0x00, 0x00, 0x41, 0x7F, 0x41, 0x00,// I
	0x00, 0x20, 0x40, 0x41, 0x3F, 0x01,// J
	0x00, 0x7F, 0x08, 0x14, 0x22, 0x41,// K
	0x00, 0x7F, 0x40, 0x40, 0x40, 0x40,// L
	0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F,// M
	0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F,// N
	0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E,// O
	0x00, 0x7F, 0x09, 0x09, 0x09, 0x06,// P
	0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E,// Q
	0x00, 0x7F, 0x09, 0x19, 0x29, 0x46,// R
	0x00, 0x46, 0x49, 0x49, 0x49, 0x31,// S
	0x00, 0x01, 0x01, 0x7F, 0x01, 0x01,// T
	0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F,// U
	0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F,// V
	0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F,// W
	0x00, 0x63, 0x14, 0x08, 0x14, 0x63,// X
	0x00, 0x07, 0x08, 0x70, 0x08, 0x07,// Y
	0x00, 0x61, 0x51, 0x49, 0x45, 0x43,// Z
	0x00, 0x00, 0x7F, 0x41, 0x41, 0x00,// [
	0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55,// 55
	0x00, 0x00, 0x41, 0x41, 0x7F, 0x00,// ]
	0x00, 0x04, 0x02, 0x01, 0x02, 0x04,// ^
	0x00, 0x40, 0x40, 0x40, 0x40, 0x40,// _
	0x00, 0x00, 0x01, 0x02, 0x04, 0x00,// '
	0x00, 0x20, 0x54, 0x54, 0x54, 0x78,// a
	0x00, 0x7F, 0x48, 0x44, 0x44, 0x38,// b
	0x00, 0x38, 0x44, 0x44, 0x44, 0x20,// c
	0x00, 0x38, 0x44, 0x44, 0x48, 0x7F,// d
	0x00, 0x38, 0x54, 0x54, 0x54, 0x18,// e
	0x00, 0x08, 0x7E, 0x09, 0x01, 0x02,// f
	0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C,// g
	0x00, 0x7F, 0x08, 0x04, 0x04, 0x78,// h
	0x00, 0x00, 0x44, 0x7D, 0x40, 0x00,// i
	0x00, 0x40, 0x80, 0x84, 0x7D, 0x00,// j
	0x00, 0x7F, 0x10, 0x28, 0x44, 0x00,// k
	0x00, 0x00, 0x41, 0x7F, 0x40, 0x00,// l
	0x00, 0x7C, 0x04, 0x18, 0x04, 0x78,// m
	0x00, 0x7C, 0x08, 0x04, 0x04, 0x78,// n
	0x00, 0x38, 0x44, 0x44, 0x44, 0x38,// o
	0x00, 0xFC, 0x24, 0x24, 0x24, 0x18,// p
	0x00, 0x18, 0x24, 0x24, 0x18, 0xFC,// q
	0x00, 0x7C, 0x08, 0x04, 0x04, 0x08,// r
	0x00, 0x48, 0x54, 0x54, 0x54, 0x20,// s
	0x00, 0x04, 0x3F, 0x44, 0x40, 0x20,// t
	0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C,// u
	0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C,// v
	0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C,// w
	0x00, 0x44, 0x28, 0x10, 0x28, 0x44,// x
	0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C,// y
	0x00, 0x44, 0x64, 0x54, 0x4C, 0x44,// z
	0x14, 0x14, 0x14, 0x14, 0x14, 0x14,// horiz lines
};
const unsigned char F8X16[]=
{
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,// 0
  0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00,//! 1
  0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//" 2
  0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00,//# 3
  0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00,//$ 4
  0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00,//% 5
  0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10,//& 6
  0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//' 7
  0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00,//( 8
  0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00,//) 9
  0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00,//* 10
  0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00,//+ 11
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00,//, 12
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,//- 13
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,//. 14
  0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00,/// 15
  0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00,//0 16
  0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//1 17
  0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00,//2 18
  0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00,//3 19
  0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00,//4 20
  0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00,//5 21
  0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00,//6 22
  0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,//7 23
  0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00,//8 24
  0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00,//9 25
  0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,//: 26
  0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00,//; 27
  0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00,//< 28
  0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00,//= 29
  0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00,//> 30
  0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00,//? 31
  0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00,//@ 32
  0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20,//A 33
  0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00,//B 34
  0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00,//C 35
  0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00,//D 36
  0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00,//E 37
  0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00,//F 38
  0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00,//G 39
  0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20,//H 40
  0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//I 41
  0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00,//J 42
  0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00,//K 43
  0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00,//L 44
  0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00,//M 45
  0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00,//N 46
  0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00,//O 47
  0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00,//P 48
  0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00,//Q 49
  0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20,//R 50
  0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00,//S 51
  0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//T 52
  0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//U 53
  0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00,//V 54
  0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00,//W 55
  0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20,//X 56
  0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//Y 57
  0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00,//Z 58
  0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00,//[ 59
  0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00,//\ 60
  0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,//] 61
  0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//^ 62
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,//_ 63
  0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//` 64
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20,//a 65
  0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00,//b 66
  0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00,//c 67
  0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20,//d 68
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00,//e 69
  0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//f 70
  0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00,//g 71
  0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//h 72
  0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//i 73
  0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,//j 74
  0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00,//k 75
  0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//l 76
  0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F,//m 77
  0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//n 78
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//o 79
  0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00,//p 80
  0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80,//q 81
  0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00,//r 82
  0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00,//s 83
  0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00,//t 84
  0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20,//u 85
  0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00,//v 86
  0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00,//w 87
  0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00,//x 88
  0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00,//y 89
  0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00,//z 90
  0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,//{ 91
  0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,//| 92
  0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00,//} 93
  0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//~ 94
};

unsigned char BMP1[] =
{
	 0X22,0X01,0X80,0X00,0X2F,0X00,
0XFE,0XFE,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFE,0XFE,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFB,0XFB,0X7B,0X9B,0XF7,0XF7,
0XFF,0XFF,0XEF,0XEF,0XF7,0XD7,0XFF,0XBF,0X6F,0XFF,0XFF,0XDF,0XFF,0XBF,0XFF,0XFF,
0XBF,0XFF,0XBF,0XBF,0XBF,0XFF,0XDF,0XDF,0XDF,0X9F,0XAF,0XBF,0XB7,0XBF,0XFF,0XEF,
0X2F,0XF7,0XFB,0XFF,0XFD,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XC1,0XBF,0XFF,0X7F,0XFF,
0XFF,0X7F,0X7F,0XEF,0XD7,0XAF,0XD7,0XF3,0XF3,0XF6,0XF9,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFE,0XFC,0XFE,0XFF,0XFF,0XFD,0XF8,0X0C,0XF6,0XFE,0XFE,0XF5,0XED,0XDF,0XE7,
0XF7,0XFB,0XF6,0XFF,0XD9,0XED,0XE9,0X1B,0X6F,0X9F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X7F,0X7F,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF3,0XF5,0XF7,0XF7,
0XF7,0XF7,0XFF,0XEF,0XEF,0XFF,0XFF,0XDF,0XBF,0XBF,0X7F,0XFF,0XFF,0XC7,0X7B,0XFB,
0XFB,0XF6,0XF6,0X0F,0X87,0X85,0X07,0X11,0X1A,0X3B,0X3F,0X79,0X7A,0XFB,0XFC,0XF7,
0XA7,0XA7,0X6B,0XAF,0XEB,0XFA,0X94,0XE3,0XF6,0XB7,0XC7,0XD7,0X57,0X77,0XFF,0X7F,
0XFF,0XBF,0X7F,0XF7,0X27,0XF3,0X17,0XD5,0X8F,0XCF,0X9A,0X3C,0XFE,0XFF,0XFE,0XF7,
0XFF,0XFF,0XDF,0XDD,0XED,0XED,0XFB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFE,0XFF,0XFD,0XFC,
0XFD,0XFF,0XFB,0XFB,0XFE,0XFD,0XF5,0XF7,0XF7,0XF4,0XFA,0XFB,0XFF,0XFD,0XFD,0XFF,
0XFE,0XFE,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFE,0XFE,0XD7,0XFF,0XFF,
0XF0,0XF6,0XFF,0XFF,0XFE,0XFE,0XF9,0XFF,0XFB,0XF9,0XF1,0XE2,0XFD,0XFF,0XF7,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0X3F,0X3F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,
0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,
0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,
0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,
0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,
0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,
0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,
0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X3F,0X3F,
};

轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/321456.html

標籤：其他

上一篇：一種利用人參酒自動診斷失眠的儀器

下一篇：嵌入式電路設計（stm32電路設計）

12. STM32——硬體IIC驅動OLED螢屏顯示
