一、訂制ListView的界面

1.先建立一個Fruit水果類

package com.example.listviewtest;

?

?

public class Fruit {

  private String name;



  private int imageId;



  public Fruit(String name,int imageId) {

    this.name=name;

    this.imageId = imageId;

  }

  public String getName() {

    return name;

  }

  public int getImageId() {

    return imageId;



  }

}

2.然后建立一個展示水果的LayOut檔案

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

    android:layout_width="match_parent"

    android:layout_height="match_parent"

    android:orientation="vertical" >



<ImageView

    android:id="@+id/fruit_image"

    android:layout_width="wrap_content"

    android:layout_height="wrap_content" />

?

<TextView

    android:id="@+id/fruit_name"

    android:layout_width="wrap_content"

    android:layout_height="wrap_content"

    android:layout_gravity="center"

    android:layout_marginLeft="10dip" />



</LinearLayout>

然后新建一個FruitAdapter配接器，來繼承ArrayAdapter

package com.example.listviewtest;

import android.widget.ArrayAdapter;

import android.widget.ImageView;

import android.widget.TextView;

import android.content.Context;

import java.util.List;

?

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

?

?

public class FruitAdapter extends ArrayAdapter<Fruit> {



  private int resourceId;



  public FruitAdapter(Context context,int textViewResourceId,List<Fruit> objects) {

    super(context,textViewResourceId,objects);

    resourceId = textViewResourceId;

  }



  @Override

  public View getView(int position,View convertView,ViewGroup parent) {

    Fruit fruit = getItem(position);//獲取當前項的Fruit實體

    View view = LayoutInflater.from(getContext()).inflate(resourceId,null);

    ImageView fruitImage = (ImageView) view.findViewById(R.id.fruit_image);

    TextView fruitName = (TextView) view.findViewById(R.id.fruit_name);

    fruitImage.setImageResource(fruit.getImageId());

    fruitName.setText(fruit.getName());

    return view;



  }

}

最后我們完善我們的主程式

package com.example.listviewtest;

?

import java.util.List;

?

import android.app.Activity;

import android.os.Bundle;

import android.view.Menu;

import android.view.MenuItem;

import android.widget.ArrayAdapter;

import android.widget.ListView;

import java.util.*;

//import java.lang.ArrayAdapter;

?

public class MainActivity extends Activity {



  private List<Fruit> fruitList = new ArrayList<Fruit>();



//  private String[] data = https://www.cnblogs.com/ruigege0000/p/{"Apple","Banana","Orange","Watermelon","Pear","Grape","Pineapple","Strawberry","Cherry"};



  @Override

  protected void onCreate(Bundle savedInstanceState) {

    super.onCreate(savedInstanceState);

    setContentView(R.layout.activity_main);



    initFruits();//初始化水果資料

    FruitAdapter adapter = new FruitAdapter(MainActivity.this,R.layout.fruit_item,fruitList);



//    ArrayAdapter<String> adapter = new ArrayAdapter<String>(

//        MainActivity.this,android.R.layout.simple_list_item_1,data);

    ListView listView = (ListView) findViewById(R.id.list_view);

    listView.setAdapter(adapter);



  }

  private void initFruits() {

    Fruit apple = new Fruit("Apple",R.drawable.apple_pic);

    fruitList.add(apple);

    Fruit banana = new Fruit("Banana",R.drawable.banana_pic);

    fruitList.add(banana);

    Fruit orange =new Fruit("Orange",R.drawable.orange_pic);

    fruitList.add(orange);



  }

}

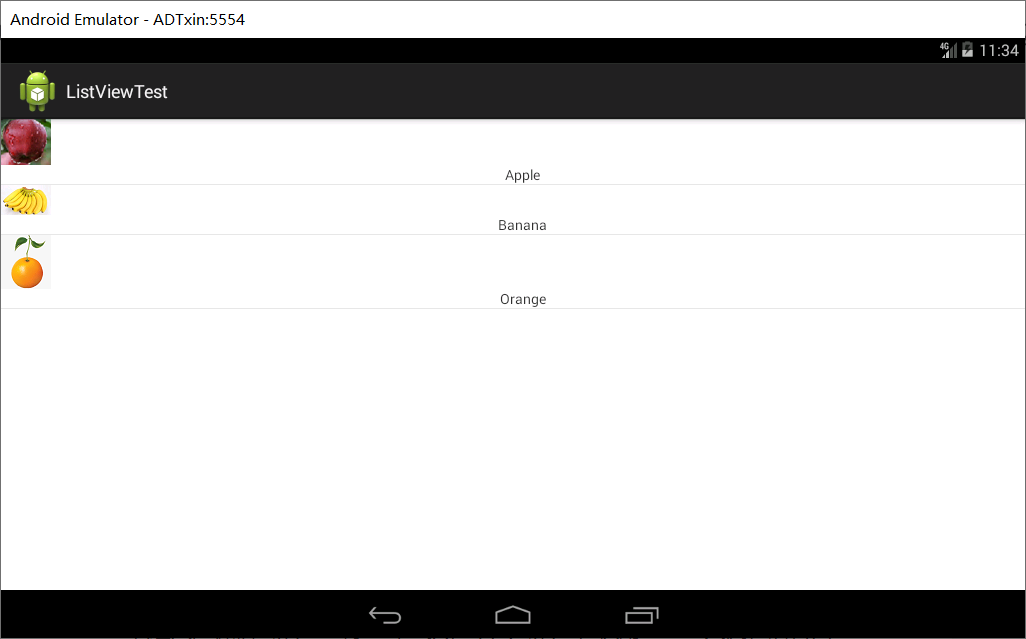

這樣運行我們的代碼，得到如下的結果

二、提升ListView的運行效率

1.我們通過下面的注釋內容可以看出，這一段代碼的重構，可以將畫面的流暢程度提升，以及快取一個View?Holder物件就可以大幅度提升運行速度，

package com.example.listviewtest;

import android.widget.ArrayAdapter;

import android.widget.ImageView;

import android.widget.TextView;

import android.content.Context;

import java.util.List;

?

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

?

?

public class FruitAdapter extends ArrayAdapter<Fruit> {







  private int resourceId;



  public FruitAdapter(Context context,int textViewResourceId,List<Fruit> objects) {

    super(context,textViewResourceId,objects);

    resourceId = textViewResourceId;

  }



  @Override

  public View getView(int position,View convertView,ViewGroup parent) {

    Fruit fruit = getItem(position);//獲取當前項的Fruit實體

//    View view = LayoutInflater.from(getContext()).inflate(resourceId,null);

    //上面我們注釋掉一個View實體，我們下一行先初始化一個View實體

    View view;

    ViewHolder viewHolder;

    if(convertView == null) {//如果這個View不存在的話，我們就直接建一個View

      view = LayoutInflater.from(getContext()).inflate(resourceId,null);

      viewHolder = new ViewHolder();

      viewHolder.fruitImage = (ImageView) view.findViewById(R.id.fruit_image);

      viewHolder.fruitName = (TextView) view.findViewById(R.id.fruit_name);

      view.setTag(viewHolder);//將ViewHolder存盤在View中



    }else {

      view = convertView;//如果View已經存在了，那么我們就復用已經存在了的View,這樣就可以避免再次重新生成View,節省了運行時間

      viewHolder = (ViewHolder) view.getTag();//呼叫getTag方法，把ViewHolder重新取出，

    }

    //這里我們建立了一個內部類，用來存盤已經生成了的fruitImage和fruieName的實體，就省的每次都需要通過findViewById的方法，來去記憶體中查找目標實體

    viewHolder.fruitImage.setImageResource(fruit.getImageId());

    viewHolder.fruitName.setText(fruit.getName());

?

//    ImageView fruitImage = (ImageView) view.findViewById(R.id.fruit_image);

//    TextView fruitName = (TextView) view.findViewById(R.id.fruit_name);

//    fruitImage.setImageResource(fruit.getImageId());

//    fruitName.setText(fruit.getName());

    return view;



  }

  class ViewHolder{

    ImageView fruitImage;



    TextView fruitName;

  }

}

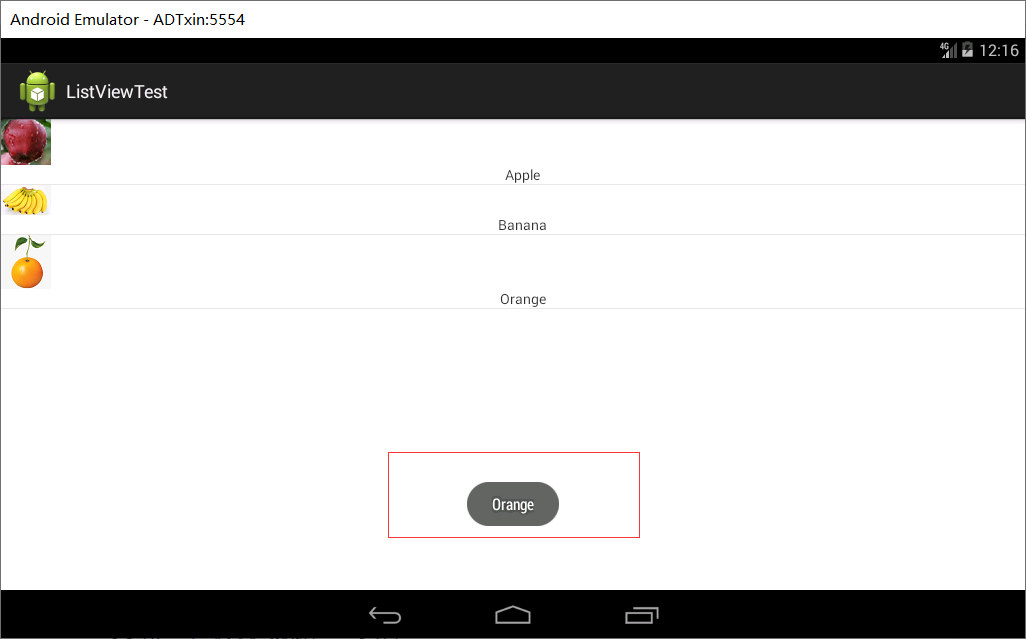

三、ListView的點擊事件

如果只列出了幾條內容，我們不能通過點擊?List來來獲取我們想要知道的資訊，那將是毫無意義的，

接下來就在MainActivity?中來注冊我們的點擊事件，

package com.example.listviewtest;

?

import java.util.List;

?

import android.app.Activity;

import android.os.Bundle;

import android.view.Menu;

import android.view.MenuItem;

import android.view.View;

import android.widget.AdapterView;

import android.widget.AdapterView.OnItemClickListener;

import android.widget.ArrayAdapter;

import android.widget.ListView;

import android.widget.Toast;

?

import java.util.*;

//import java.lang.ArrayAdapter;

?

public class MainActivity extends Activity {



  private List<Fruit> fruitList = new ArrayList<Fruit>();



//  private String[] data = https://www.cnblogs.com/ruigege0000/p/{"Apple","Banana","Orange","Watermelon","Pear","Grape","Pineapple","Strawberry","Cherry"};



  @Override

  protected void onCreate(Bundle savedInstanceState) {

    super.onCreate(savedInstanceState);

    setContentView(R.layout.activity_main);



    initFruits();//初始化水果資料

    FruitAdapter adapter = new FruitAdapter(MainActivity.this,R.layout.fruit_item,fruitList);



//    ArrayAdapter<String> adapter = new ArrayAdapter<String>(

//        MainActivity.this,android.R.layout.simple_list_item_1,data);

    ListView listView = (ListView) findViewById(R.id.list_view);

    listView.setAdapter(adapter);



    //接下來就來注冊點擊事件

    listView.setOnItemClickListener(new OnItemClickListener() {

      @Override

      public void onItemClick(AdapterView<?> parent,View view,int position,long id) {

        Fruit fruit = fruitList.get(position);

        Toast.makeText(MainActivity.this, fruit.getName(), Toast.LENGTH_SHORT).show();

      }

    });



  }

  private void initFruits() {

    Fruit apple = new Fruit("Apple",R.drawable.apple_pic);

    fruitList.add(apple);

    Fruit banana = new Fruit("Banana",R.drawable.banana_pic);

    fruitList.add(banana);

    Fruit orange =new Fruit("Orange",R.drawable.orange_pic);

    fruitList.add(orange);



  }

}

四、原始碼：

1.專案地址

https://github.com/ruigege66/Android/tree/master/ListViewTest

2.CSDN：https://blog.csdn.net/weixin_44630050

3.博客園：https://www.cnblogs.com/ruigege0000/

4.歡迎關注微信公眾號：傅里葉變換，個人公眾號，僅用于學習交流，后臺回復”禮包“，獲取大資料學習資料
