一、Dockerfile常用指令

二、sshd服務搭建

先準備好sshd服務檔案夾所需要的各種檔案

[root@localhost ~]# mkdir sshd         ####創建檔案夾
[root@localhost ~]# cd sshd
[root@localhost sshd]# vim Dockerfile   ###在此寫入命令
FROM centos:7
MAINTAINER The centos project <cloud-centos>
RUN yum -y update
RUN yum -y install openssh* net-tools lsof telnet passwd
RUN echo '123456' | passwd --stdin root
RUN sed -i 's/UsePAM yes/UsePAM no/g' /etc/ssh/sshd_config
RUN ssh-keygen -t rsa -f /etc/ssh/ssh_host_rsa_key
RUN sed -i '/^session\s\+required\s\+pam_loginuid.so/s/^/#/' /etc/pam.d/sshd
RUN mkdir -p /root/.ssh && chown root.root /root && chmod 700 /root/.ssh
EXPOSE 22
CMD ["/usr/sbin/sshd","-D"]

生成鏡像和容器
-P表示映射埠隨機，一般第一個隨機埠映射都是32768

[root@localhost sshd]# docker build -t sshd:new .
[root@localhost sshd]# docker run -d -P sshd:new
2da672497af63a432f06b2ad9c6321b5d016d917f807c64bc3b786659325ace2
[root@localhost sshd]# docker ps -a
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS                     PORTS                   NAMES
2da672497af6        sshd:new            "/usr/sbin/sshd -D"      36 seconds ago      Up 35 seconds              0.0.0.0:32768->22/tcp   nervous_thompson

在宿主機上ssh連接測驗

[root@localhost sshd]# ssh localhost -p 32768
The authenticity of host '[localhost]:32768 ([::1]:32768)' can't be established.
RSA key fingerprint is SHA256:20mGqPVwslDf0X5SSg/TPIzvlJBOI5uIQNIZmO17IE0.
RSA key fingerprint is MD5:16:90:d5:a0:92:e2:74:ec:36:9a:31:83:da:85:3e:59.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '[localhost]:32768' (RSA) to the list of known hosts.
root@localhost's password:
Permission denied, please try again.
root@localhost's password:
[root@2da672497af6 ~]# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 172.17.0.2  netmask 255.255.0.0  broadcast 172.17.255.255
        ether 02:42:ac:11:00:02  txqueuelen 0  (Ethernet)
        RX packets 55  bytes 6776 (6.6 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 33  bytes 5351 (5.2 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        loop  txqueuelen 1  (Local Loopback)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

三、systemctl服務搭建

systemctl檔案夾準備

[root@localhost ~]# mkdir systemctl
[root@localhost ~]# cd systemctl/
[root@localhost systemctl]# vim Dockerfile
FROM sshd:new
ENV container docker
RUN (cd /lib/systemd/system/sysinit.target.wants/; for i in *;do [ $i == \
systemd-tmpfiles-setup.service ] || rm -f $i;done); \
rm -f /lib/systemd/system/multi-user.target.wants/*; \
rm -f /etc/systemd/system/*.wants/*; \
rm -f /lib/systemd/system/local-fs.target.wants/*; \
rm -f /lib/systemd/system/sockets.target.wants/*udev*; \
rm -f /lib/systemd/system/sockets.target.wants/*initctl*; \
rm -f /lib/systemd/system/basic.target.wants/*; \
rm -f /lib/systemd/system/anaconda.target.wants/*;
VOLUME [ "/sys/fs/cgroup" ]
CMD ["/usr/sbin/init"]

生成鏡像，不降權生成容器

[root@localhost systemctl]# docker build -t systemd:new .

//privileged container內的root擁有真正的root權限，否則，container內的root只是外部的一個普通用戶權限，

[root@localhost systemctl]#docker run --privileged -it -v /sys/fs/cgroup:/sys/fs/cgroup:ro systemd:new /sbin/init &

//docker run中有“/sbin/init”會覆寫CMD中的這個指令,所以這個不寫也行

[root@localhost system]# docker ps -a
CONTAINER ID        IMAGE               COMMAND                  CREATED
a7a6eec323db        systemd:new         "/usr/sbin/init"         6 minutes ago
1f5770fd8d4a        e3a9ae84ac4d        "/bin/sh -c '（cd /l…"    16 minutes ago
2da672497af6        sshd:new            "/usr/sbin/sshd -D"      About an hour ag
be0fdd9831fe        httpd:centos        "/run.sh"                15 hours ago
19ed00c77db9        centos:7            "/bin/bash"              16 hours ago
fd562f234cca        nginx:latest        "/docker-entrypoint.…"   16 hours ago

進入容器測驗

[root@localhost system]# docker exec -it a7a6eec323db bash
[root@a7a6eec323db /]# systemctl status sshd
● sshd.service - OpenSSH server daemon
   Loaded: loaded (/usr/lib/systemd/system/sshd.service; disabled; vendor preset: enabled)
   Active: inactive (dead)
     Docs: man:sshd(8)
           man:sshd_config(5)
[root@a7a6eec323db /]# systemctl start sshd
[root@a7a6eec323db /]# systemctl status sshd
● sshd.service - OpenSSH server daemon
   Loaded: loaded (/usr/lib/systemd/system/sshd.service; disabled; vendor preset: enabled)
   Active: active (running) since Tue 2020-11-10 07:50:48 UTC; 7s ago
     Docs: man:sshd(8)
           man:sshd_config(5)
 Main PID: 90 (sshd)
   CGroup: /docker/a7a6eec323dbbee5786a7d927b85dc5651fd93dfec65e2cc474ad74a265ee0a2/system.slice/sshd.service
           └─90 /usr/sbin/sshd -D

Nov 10 07:50:48 a7a6eec323db systemd[1]: Starting OpenSSH server daemon...
Nov 10 07:50:48 a7a6eec323db sshd[90]: WARNING: 'UsePAM no' is not supporte...s.
Nov 10 07:50:48 a7a6eec323db sshd[90]: Server listening on 0.0.0.0 port 22.
Nov 10 07:50:48 a7a6eec323db sshd[90]: Server listening on :: port 22.
Nov 10 07:50:48 a7a6eec323db systemd[1]: Started OpenSSH server daemon.
Hint: Some lines were ellipsized, use -l to show in full.

四、nginx服務搭建

準備nginx檔案夾內容

[root@localhost ~]# mkdir nginx
[root@localhost ~]# cd nginx/
[root@localhost nginx]# vim Dockerfile
FROM centos:7
MAINTAINER this is nigix image <yang>
RUN yum -y update
RUN yum -y install gcc gcc-c++ make pcre-devel zlib-devel
RUN useradd -M -s /sbin/nologin nginx
ADD nginx-1.15.9.tar.gz /usr/local/src   ###ADD 在把宿主機上的壓縮包復制到容器當中的同時，進行了解壓縮
WORKDIR /usr/local/src
WORKDIR nginx-1.15.9
RUN ./configure \
--prefix=/usr/local/nginx \
--user=nginx \
--group=nginx \
--with-http_stub_status_module && make && make install
ENV PATH /usr/local/nginx/sbin:$PATH
EXPOSE 80
EXPOSE 443
RUN echo "daemon off;">>/usr/local/nginx/conf/nginx.conf
ADD run.sh /run.sh
RUN chmod 755 /run.sh
CMD ["/run.sh"]


[root@localhost nginx]# vim run.sh
#!/bin/bash
/usr/local/nginx/sbin/nginx

生成鏡像，產生容器，埠隨機，這里產生的是32770

docker build -t nginx:new .
docker run -d -P nginx:new
[root@localhost nginx]# docker ps -a
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS                      PORTS                                           NAMES
2984555bb816        nginx:new           "/run.sh"                10 seconds ago      Up 9 seconds                0.0.0.0:32770->80/tcp, 0.0.0.0:32769->443/tcp   zen_leavitt

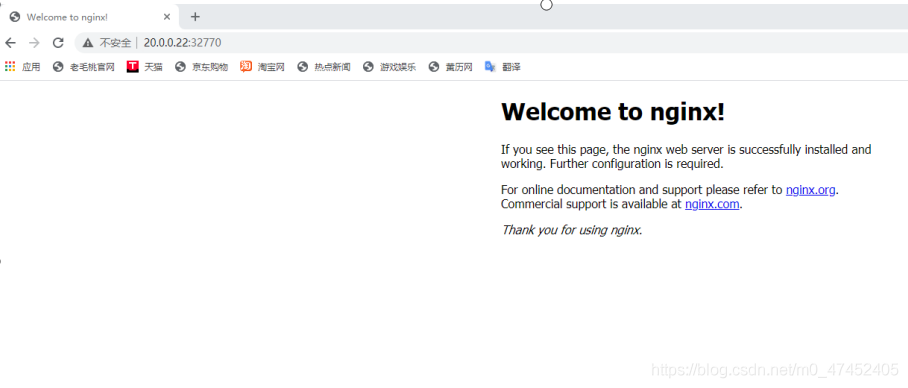

測驗

五、tomat服務搭建

準備tomcat檔案夾

#######################tomcat##########################
[root@localhost ~]# mkdir tomcat
[root@localhost ~]# cd tomcat/
[root@localhost nginx]# vim Dockerfile
FROM centos:7
MAINTAINER this is a tomcat image <yang>
ADD jdk-8u144-linux-x64.tar.gz /usr/local/
WORKDIR /usr/local/
RUN mv jdk1.8.0_144 /usr/local/java
ENV JAVA_BIN /usr/local/java/bin
ENV JAVA_HOME /usr/local/java
ENV JRE_HOME /usr/local/java/jre
ENV CLASSPATH $JAVA_HOME/lib/tools.jar：$JAVA_HOME/lib/dt.jar
ENV PATH $JAVA_HOME/bin:$PATH
ADD apache-tomcat-8.5.23.tar.gz /usr/local/
RUN mv /usr/local/apache-tomcat-8.5.23 /usr/local/tomcat
EXPOSE 8080
ENTRYPOINT ["/usr/local/tomcat/bin/catalina.sh","run"]

生成鏡像，產生容器指定埠1216

[root@localhost tomcat]#docker build -t tomcat:centos .
[root@localhost tomcat]# docker run -d --name tomcat -p 1216:8080 tomcat:centos
05d268df642182457a64b4596644b0aff240232dd3a107c9aa711c9e7c877a4e
[root@localhost tomcat]# docker ps -a
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS                                           NAMES
05d268df6421        tomcat:centos       "/usr/local/tomcat/b…"   12 seconds ago      Up 11 seconds       0.0.0.0:1216->8080/tcp                          tomcat
2984555bb816        nginx:new           "/run.sh"                4 hours ago         Up 4 hours          0.0.0.0:32770->80/tcp, 0.0.0.0:32769->443/tcp   zen_leavitt
a7a6eec323db        systemd:new         "/usr/sbin/init"         5 hours ago         Up 4 hours          22/tcp                                          practical_shannon
2da672497af6        sshd:new            "/usr/sbin/sshd -D"      6 hours ago         Up 6 hours          0.0.0.0:32768->22/tcp                           nervous_tho

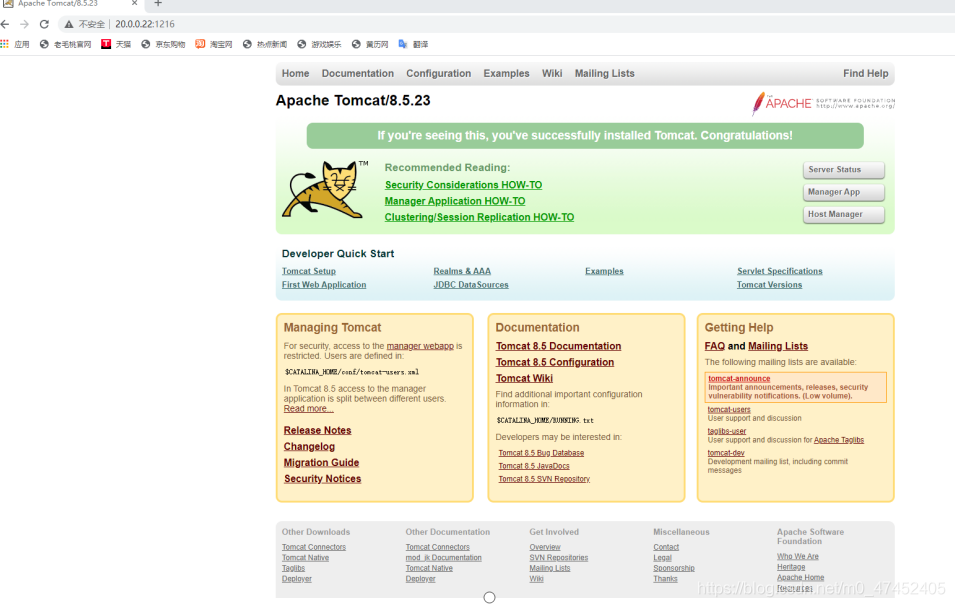

測驗

六、mysql服務搭建

創建MySQL檔案夾，準備Dockerfile檔案

mkdir mysql
cd mysql
vim Dockerfile
FROM centos:7
MAINTAINER this is a mysql image <yang>
EXPOSE 3306
RUN yum -y update
RUN yum -y install \
gcc \
gcc-c++ \
make \
ncurses \
ncurses-devel \
bison \
cmake
RUN useradd -s /sbin/nologin mysql
ADD mysql-boost-5.7.20.tar.gz /opt
WORKDIR /opt/mysql-5.7.20/
RUN cmake \
-DCMAKE_INSTALL_PREFIX=/usr/local/mysql \
-DMYSQL_UNIX_ADDR=/usr/local/mysql/mysql.sock \
-DSYSCONFDIR=/etc \
-DSYSTEMD_PID_DIR=/usr/local/mysql \
-DDEFAULT_CHARSET=utf8  \
-DDEFAULT_COLLATION=utf8_general_ci \
-DWITH_INNOBASE_STORAGE_ENGINE=1 \
-DWITH_ARCHIVE_STORAGE_ENGINE=1 \
-DWITH_BLACKHOLE_STORAGE_ENGINE=1 \
-DWITH_PERFSCHEMA_STORAGE_ENGINE=1 \
-DMYSQL_DATADIR=/usr/local/mysql/data \
-DWITH_BOOST=boost \
-DWITH_SYSTEMD=1
RUN make -j3 && make install
RUN chown -R mysql:mysql /usr/local/mysql/
RUN rm -rf /etc/my.cnf
ADD my.cnf /etc
RUN chown mysql:mysql /etc/my.cnf
ENV PATH /usr/local/mysql/bin:/usr/local/mysql/lib:$PATH
WORKDIR /usr/local/mysql/
RUN bin/mysqld \
--initialize-insecure \
--user=mysql \
--basedir=/usr/local/mysql \
--datadir=/usr/local/mysql/data
RUN cp usr/lib/systemd/system/mysqld.service /usr/lib/systemd/system/
ADD run.sh /opt/run.sh
RUN chmod 755 /run.sh
RUN sh /run.sh
CMD ["init"]

準備my.cnf檔案

vim my.cnf
[client]
port = 3306
default-character-set=utf8
socket = /usr/local/mysql/mysql.sock

[mysql]
port = 3306
default-character-set=utf8
socket = /usr/local/mysql/mysql.sock

[mysqld]
user = mysql
basedir = /usr/local/mysql
datadir = /usr/local/mysql/data
port = 3306
character_set_server=utf8
pid-file = /usr/local/mysql/mysqld.pid
socket = /usr/local/mysql/mysql.sock
server-id = 1

sql_mode=NO_ENGINE_SUBSTITUTION,STRICT_TRANS_TABLES,NO_AUTO_CREATE_USER,NO_AUTO_VALUE_ON_ZERO,NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO,PIPES_AS_CONCAT,ANSI_QUOTES

準備run.sh檔案

vim run.sh
#!/bin/bash
systemctl enable mysqld

建立鏡像，生成容器，隨機埠32775

[root@localhost mysql]#docker build -t mysql:test .


Successfully tagged mysql:new2
[root@localhost mysql]# docker run -d -P --privileged mysql:new2
94bd8ed7f0ff6131406c0f2b3f68b32dc03a927f95ef0c22e216ee4a3131f013
[root@localhost mysql]# docker ps -a
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS                         PORTS                                           NAMES
94bd8ed7f0ff        mysql:new2          "init"                   5 seconds ago       Up 5 seconds                   0.0.0.0:32775->3306/tcp                         dazzling_robinson

進入容器，進入資料庫，初次進入直接回車，不需要密碼

[root@localhost mysql]# docker exec -it 94bd8ed7f0ff /bin/bash
[root@94bd8ed7f0ff mysql]# mysql -uroot -p
Enter password:
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 3
Server version: 5.7.20 Source distribution

Copyright (c) 2000, 2017, Oracle and/or its affiliates. All rights reserved.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

給本地和遠程連接授權
mysql>grant all privileges on *.* to 'root'@'%' identified by 'abc123';
mysql>grant all privileges on *.* to 'root'@'localhost' identified by 'abc123';
mysql>flush privileges;

測驗

另一臺虛擬機
[root@localhost ~]# yum -y install mariadb
[root@localhost ~]# mysql -h 20.0.0.22 -P 32775 -uroot -p
Enter password: 這里是剛剛授權設定的密碼
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MySQL connection id is 5
Server version: 5.7.20 Source distribution

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MySQL [(none)]>
MySQL [(none)]> create database info;  ###在這里創建資料庫
Query OK, 1 row affected (0.00 sec)


在容器里看，有info
mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| info               |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
5 rows in set (0.00 sec)
