binder的原理和實作方法不過多贅述，我們這里主要是從代碼的層面告訴你如何去看binder在代碼中的使用

直接上代碼

	binderserver端的services代碼，

public class BinderService extends Service{
    private List<Dog> mDogsList = new ArrayList<Dog>();

    private final IDogManager.DogManagerImpl mBinder = new IDogManager.DogManagerImpl() {
        @Override
        public List<Dog> getDogList() throws RemoteException {
            Log.d("qqq","getDogList services");
            return mDogsList;
        }

        @Override
        public void attchinfo(IPersonManager iPersonManager) throws RemoteException {
            Log.d("qqq","attchinfo services");
            iPersonManager.addPersonDog(new Dog());
        }
    };

    @Override
    public IBinder onBind(Intent intent) {
        Log.d("qqq"," services onBind");
        return mBinder.asBinder();
    }
}

	這是binderClient生成的代碼

public class MainActivity extends Activity{
    private IDogManager mService;
	 private Ainfo mAinfo;

	    public class Ainfo extends IPersonManager.Stub{

	        @Override
	        public void addPersonDog(Dog dog){
	            Log.d("qqq","client addPersonDog");
	        }
	    }
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
		mAinfo = new Ainfo();
        Intent intent = new Intent("com.example.binderservice.BinderService");
        intent.setPackage("com.example.binderservice");
        bindService(intent, sc, Context.BIND_AUTO_CREATE);
    }

    private ServiceConnection sc = new ServiceConnection() {
        @Override
        public void onServiceConnected(ComponentName name, IBinder service) {
            Log.d("qqq","onServiceConnected");
            mService = IDogManager.DogManagerImpl.asInterface(service);
            try {
                mService.attchinfo(mAinfo);
            } catch (RemoteException e) {
                e.printStackTrace();
            }
        }

        @Override
        public void onServiceDisconnected(ComponentName name) {
            mService = null;
        }
    };
}

		這是binder代碼，也是我們aidl生成的代碼

public interface IDogManager extends IInterface {

    static final String DESCRIPTOR = "com.example.administrator.writebindercodeexample.IDogManager";
    static final int TRANSACTION_getDogList = IBinder.FIRST_CALL_TRANSACTION + 0;
    static final int TRANSACTION_addDog = IBinder.FIRST_CALL_TRANSACTION + 1;
    static final int TRANSACTION_attachinfo = IBinder.FIRST_CALL_TRANSACTION + 2;

    public List<Dog> getDogList() throws RemoteException;

    public void attchinfo(IPersonManager iPersonManager) throws RemoteException;

    public abstract class DogManagerImpl extends Binder implements IDogManager {

        public DogManagerImpl() {
            Log.d("qqq", "DogManagerImpl");
            this.attachInterface(this, DESCRIPTOR);
        }

        public static com.example.binderservice.IDogManager asInterface(android.os.IBinder obj) {
            Log.d("qqq", "asInterface");
            if ((obj == null)) {
                return null;
            }
            android.os.IInterface iin = obj.queryLocalInterface(DESCRIPTOR);
            //如果是同1個行程，也就是說行程內通信的話 我們就回傳括號內里的物件
            if (((iin != null) && (iin instanceof com.example.binderservice.IDogManager))) {
                return ((com.example.binderservice.IDogManager) iin);
            }
            //如果不是同一行程，是2個行程之間相互通信，那我們就得回傳這個Stub.Proxy 看上去叫Stub 代理的物件了
            return new com.example.binderservice.IDogManager.DogManagerImpl.Proxy(obj);
        }


        @Override
        public IBinder asBinder() {
            return this;
        }

        @Override
        protected boolean onTransact(int code, Parcel data, Parcel reply, int flags) throws RemoteException {
            Log.d("qqq", "onTransact " + code);
            switch (code) {
                case INTERFACE_TRANSACTION: {
                    reply.writeString(DESCRIPTOR);
                    return true;
                }
                case TRANSACTION_getDogList: {
                    data.enforceInterface(DESCRIPTOR);
                    java.util.List<com.example.binderservice.Dog> _result = this.getDogList();
                    reply.writeNoException();
                    reply.writeTypedList(_result);
                    return true;
                }
                case TRANSACTION_attachinfo: {
                    data.enforceInterface(DESCRIPTOR);
                    com.example.binderservice.IPersonManager _arg0;
                    _arg0 = com.example.binderservice.IPersonManager.Stub.asInterface(data.readStrongBinder());
                    this.attchinfo(_arg0);
                    reply.writeNoException();
                    return true;
                }
            }
            return super.onTransact(code, data, reply, flags);
        }

        private static class Proxy extends DogManagerImpl {
            private android.os.IBinder mRemote;

            Proxy(android.os.IBinder remote) {
                mRemote = remote;
            }

            @Override
            public android.os.IBinder asBinder() {
                Log.d("qqq", "asBinder");
                return mRemote;
            }

            public java.lang.String getInterfaceDescriptor() {
                Log.d("qqq", "getInterfaceDescriptor");
                return DESCRIPTOR;
            }

            @Override
            public java.util.List<com.example.binderservice.Dog> getDogList() throws android.os.RemoteException {
                Log.d("qqq", "getDogList");
                android.os.Parcel _data = android.os.Parcel.obtain();
                android.os.Parcel _reply = android.os.Parcel.obtain();
                java.util.List<com.example.binderservice.Dog> _result;
                try {
                    _data.writeInterfaceToken(DESCRIPTOR);
                    mRemote.transact(DogManagerImpl.TRANSACTION_getDogList, _data, _reply, 0);
                    _reply.readException();
                    _result = _reply.createTypedArrayList(com.example.binderservice.Dog.CREATOR);
                } finally {
                    _reply.recycle();
                    _data.recycle();
                }
                return _result;
            }

            @Override
            public void attchinfo(IPersonManager iPersonManager) throws RemoteException {
                android.os.Parcel _data = android.os.Parcel.obtain();
                android.os.Parcel _reply = android.os.Parcel.obtain();
                try {
                    _data.writeInterfaceToken(DESCRIPTOR);
                    _data.writeStrongBinder((iPersonManager != null) ? iPersonManager.asBinder() : null);
                    mRemote.transact(DogManagerImpl.TRANSACTION_attachinfo, _data, _reply, 0);
                    _reply.readException();
                } finally {
                    _reply.recycle();
                    _data.recycle();
                }
            }
        }
    }
}

1 大家都知道binder的第一步是services端向serverManager注冊，

那么代碼的第一步在哪里呢？如何向serverManager注冊呢
是`this.attachInterface(this, DESCRIPTOR);`
我們來找一下

    private final IDogManager.DogManagerImpl mBinder = new IDogManager.DogManagerImpl() {
        @Override
        public List<Dog> getDogList() throws RemoteException {
            Log.d("qqq","getDogList services");
            return mDogsList;
        }

        @Override
        public void attchinfo(IPersonManager iPersonManager) throws RemoteException {
            Log.d("qqq","attchinfo services");
            iPersonManager.addPersonDog(new Dog());
        }
    };

public abstract class DogManagerImpl extends Binder implements IDogManager {

        public DogManagerImpl() {
            Log.d("qqq", "DogManagerImpl");
            this.attachInterface(this, DESCRIPTOR);
        }

大家可以看到當我們new出來的IDogManager.DogManagerImpl mBinder 會走到父類的構造方法，這里也就是實作了第一步，向ServerManager注冊，
所以也就可以這么說，只要是new出來的public abstract class A extends Binder implements IInterface的物件，基本上都是默認實作了向ServerManager注冊的（默認aidl是在構造方法中實作了this.attachInterface(this, DESCRIPTOR);），

2 第二步，Client端向ServerManager端查詢binder服務，拿到代理物件，

關鍵代碼是obj.queryLocalInterface(DESCRIPTOR);

private ServiceConnection sc = new ServiceConnection() {
        @Override
        public void onServiceConnected(ComponentName name, IBinder service) {
            Log.d("qqq","onServiceConnected");
            mService = IDogManager.DogManagerImpl.asInterface(service);
            try {
                mService.attchinfo(mAinfo);
            } catch (RemoteException e) {
                e.printStackTrace();
            }
        }

        @Override
        public void onServiceDisconnected(ComponentName name) {
            mService = null;
        }
    };

public static com.example.binderservice.IDogManager asInterface(android.os.IBinder obj) {
            Log.d("qqq", "asInterface");
            if ((obj == null)) {
                return null;
            }
            android.os.IInterface iin = obj.queryLocalInterface(DESCRIPTOR);
            //如果是同1個行程，也就是說行程內通信的話 我們就回傳括號內里的物件
            if (((iin != null) && (iin instanceof com.example.binderservice.IDogManager))) {
                return ((com.example.binderservice.IDogManager) iin);
            }
            //如果不是同一行程，是2個行程之間相互通信，那我們就得回傳這個Stub.Proxy 看上去叫Stub 代理的物件了
            return new com.example.binderservice.IDogManager.DogManagerImpl.Proxy(obj);
        }

大家可以看到當我們bind service以后，會拿到IBinder service，這個物件是bind上service后Services端回傳的，

    @Override
    public IBinder onBind(Intent intent) {
        Log.d("qqq"," services onBind");
        return mBinder.asBinder();
    }

大家看這行代碼

mService = IDogManager.DogManagerImpl.asInterface(service);

這個asInterface就會走到android.os.IInterface iin = obj.queryLocalInterface(DESCRIPTOR);
這就是第二步，Client向ServerManager查詢binder服務，
接下來會拿到代理物件

return new com.example.binderservice.IDogManager.DogManagerImpl.Proxy(obj);

第三步，使用代理物件的方法，請Service端計算

關鍵方法mRemote.transact

@Override
        public void onServiceConnected(ComponentName name, IBinder service) {
            Log.d("qqq","onServiceConnected");
            mService = IDogManager.DogManagerImpl.asInterface(service);
            try {
                mService.attchinfo(mAinfo);
            } catch (RemoteException e) {
                e.printStackTrace();
            }
        }

這里會走到哪里呢？

@Override
            public void attchinfo(IPersonManager iPersonManager) throws RemoteException {
                android.os.Parcel _data = android.os.Parcel.obtain();
                android.os.Parcel _reply = android.os.Parcel.obtain();
                try {
                    _data.writeInterfaceToken(DESCRIPTOR);
                    _data.writeStrongBinder((iPersonManager != null) ? iPersonManager.asBinder() : null);
                    mRemote.transact(DogManagerImpl.TRANSACTION_attachinfo, _data, _reply, 0);
                    _reply.readException();
                } finally {
                    _reply.recycle();
                    _data.recycle();
                }
            }

當代碼走到mRemote.transact(DogManagerImpl.TRANSACTION_attachinfo, _data, _reply, 0);
表示我要把引數和傳遞給了ServerManager，請Services端進行計算，之后行程會休眠，等待結果，
休眠在中間
mRemote.transact(DogManagerImpl.TRANSACTION_attachinfo, _data, _reply, 0); _reply.readException();
_reply.readException();意思是有例外會回傳到這里，
當然這么說是不正確的，你可以這么理解，這個方法是無引數回傳的，放個有引數回傳的方法，

@Override
            public java.util.List<com.example.binderservice.Dog> getDogList() throws android.os.RemoteException {
                Log.d("qqq", "getDogList");
                android.os.Parcel _data = android.os.Parcel.obtain();
                android.os.Parcel _reply = android.os.Parcel.obtain();
                java.util.List<com.example.binderservice.Dog> _result;
                try {
                    _data.writeInterfaceToken(DESCRIPTOR);
                    mRemote.transact(DogManagerImpl.TRANSACTION_getDogList, _data, _reply, 0);
                    _reply.readException();
                    _result = _reply.createTypedArrayList(com.example.binderservice.Dog.CREATOR);
                } finally {
                    _reply.recycle();
                    _data.recycle();
                }
                return _result;
            }

                    _reply.readException();
                    _result = _reply.createTypedArrayList(com.example.binderservice.Dog.CREATOR);

這個_result是回傳結果，最后return就回傳到你呼叫的地方，

第四步，binder經過一系列系統呼叫，到servceis端計算并回傳結果

關鍵方法ontransact

        @Override
        protected boolean onTransact(int code, Parcel data, Parcel reply, int flags) throws RemoteException {
            Log.d("qqq", "onTransact " + code);
            switch (code) {
                case INTERFACE_TRANSACTION: {
                    reply.writeString(DESCRIPTOR);
                    return true;
                }
                case TRANSACTION_getDogList: {
                    data.enforceInterface(DESCRIPTOR);
                    java.util.List<com.example.binderservice.Dog> _result = this.getDogList();
                    reply.writeNoException();
                    reply.writeTypedList(_result);
                    return true;
                }
                case TRANSACTION_attachinfo: {
                    data.enforceInterface(DESCRIPTOR);
                    com.example.binderservice.IPersonManager _arg0;
                    _arg0 = com.example.binderservice.IPersonManager.Stub.asInterface(data.readStrongBinder());
                    this.attchinfo(_arg0);
                    reply.writeNoException();
                    return true;
                }
            }
            return super.onTransact(code, data, reply, flags);
        }

經過一系列呼叫，代碼就會走到service端的onTransact方法，這里會根據你之前Client傳的引數，判斷你要調取的方法，進行調取，
這里的_arg0就是引數（這里是我使用了雙向binder通訊，所以引數是另外一個binder（mAinfo）————IPersonManager，請忽略，理解內涵即可），
最后會調取this.attchinfo(_arg0);，也就是走到

    private final IDogManager.DogManagerImpl mBinder = new IDogManager.DogManagerImpl() {
        @Override
        public List<Dog> getDogList() throws RemoteException {
            Log.d("qqq","getDogList services");
            return mDogsList;
        }

        @Override
        public void attchinfo(IPersonManager iPersonManager) throws RemoteException {
            Log.d("qqq","attchinfo services");
            iPersonManager.addPersonDog(new Dog());
        }
    };

這里的attchinfo進行計算，
有回傳結果的

                case TRANSACTION_getDogList: {
                    data.enforceInterface(DESCRIPTOR);
                    java.util.List<com.example.binderservice.Dog> _result = this.getDogList();
                    reply.writeNoException();
                    reply.writeTypedList(_result);
                    return true;
                }

reply.writeTypedList(_result);寫結果進去（不同類別有差異，具體寫法以aidl生成的檔案為主），

計算完成以后，會走return super.onTransact(code, data, reply, flags);回傳給Client端，

第五步，Client端收到結果

之前說過會在這里休眠

@Override
            public java.util.List<com.example.binderservice.Dog> getDogList() throws android.os.RemoteException {
                Log.d("qqq", "getDogList");
                android.os.Parcel _data = android.os.Parcel.obtain();
                android.os.Parcel _reply = android.os.Parcel.obtain();
                java.util.List<com.example.binderservice.Dog> _result;
                try {
                    _data.writeInterfaceToken(DESCRIPTOR);
                    mRemote.transact(DogManagerImpl.TRANSACTION_getDogList, _data, _reply, 0);
                    _reply.readException();
                    _result = _reply.createTypedArrayList(com.example.binderservice.Dog.CREATOR);
                } finally {
                    _reply.recycle();
                    _data.recycle();
                }
                return _result;
            }

當Service端計算出結果以后，會喚醒到這里，最后回傳結果到呼叫處，

后話

當然framework代碼不完全是bind服務這種型別得到Ibinder物件，有些是直接傳遞的，但是大家可以這么理解
asBinder是把自己實作的binder物體的參考發出去，這里對應service端的那個mBinder的參考，
asInterface是Client去獲得代理物件準備和Service通訊的，

舉個原碼例子，
在Instrumentation.java中

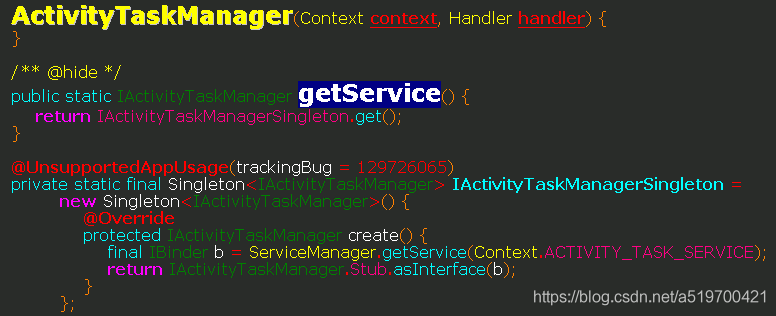

原碼會用這個去startactivity，我們看看ATM.getService()

在這里插入圖片描述

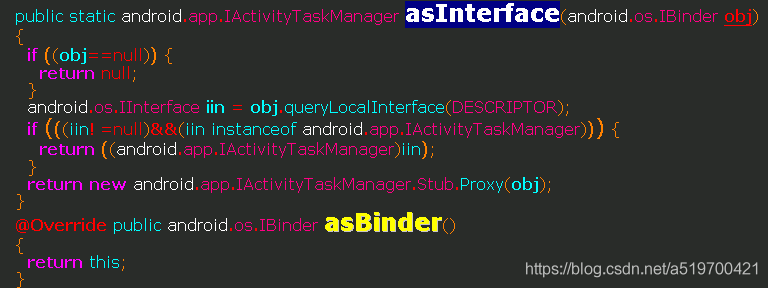

再看看asinterface

這里的asinterface就是去獲得代理物件去和Service通訊，
所以接下來的ATM.getService().startActivity會掉到SystemServer行程中處理，

到此為止，一次binder通訊的呼叫就完成了，
新手第一次寫博客，不對之處，請各位大佬指正，有疑問的話，歡迎交流

轉載請註明出處，本文鏈接：https://www.uj5u.com/yidong/240556.html

標籤：其他

上一篇：Android中ContentObserver與Settings的全域資料監聽整理

下一篇：自定義View從實作到原理（六）- 實作自定義組合控制元件
