案例演示–注冊界面

為更好地完善昨天的學習內容，我將昨天所撰寫的代碼進行了修改，完成了注冊界面的Activity事件，

實作步驟

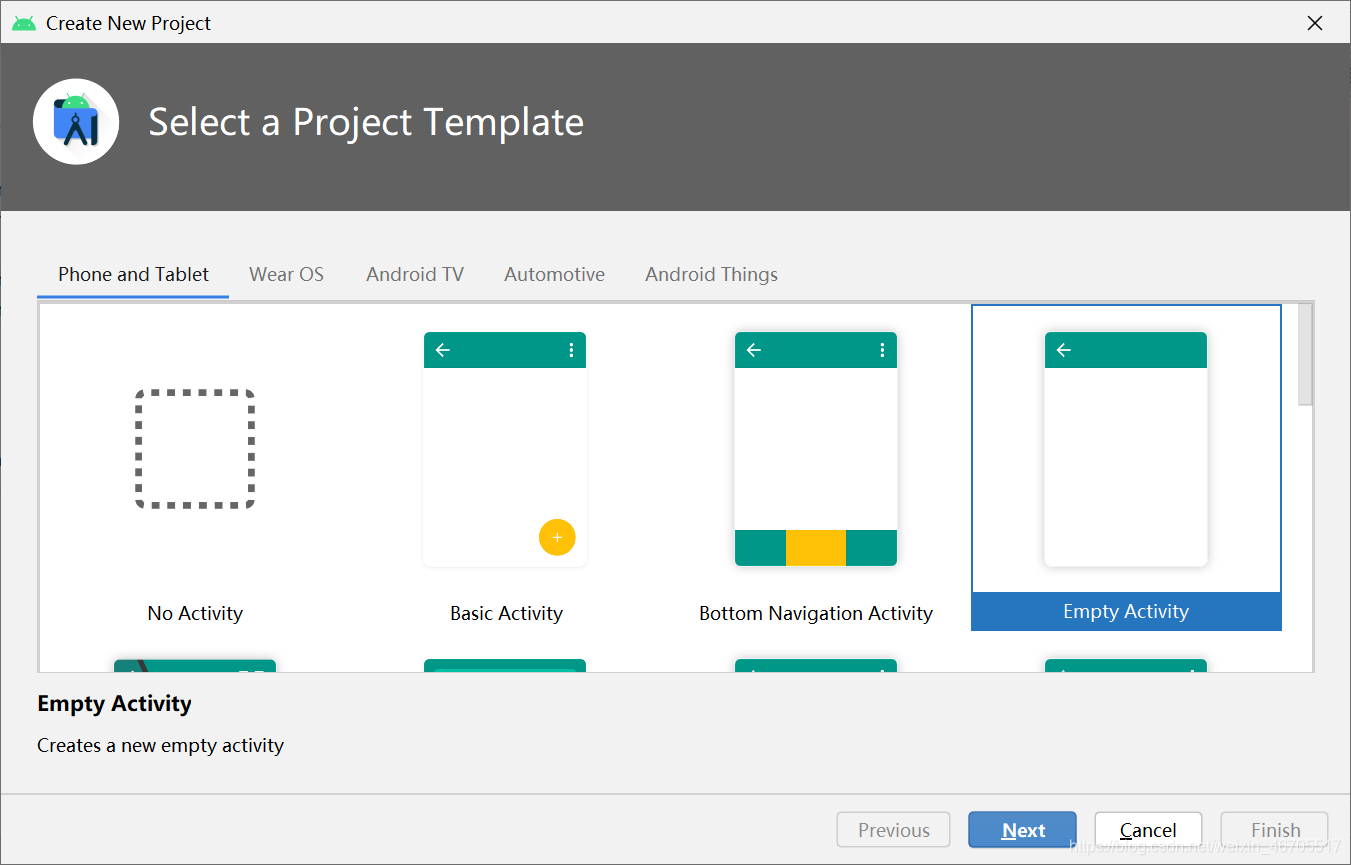

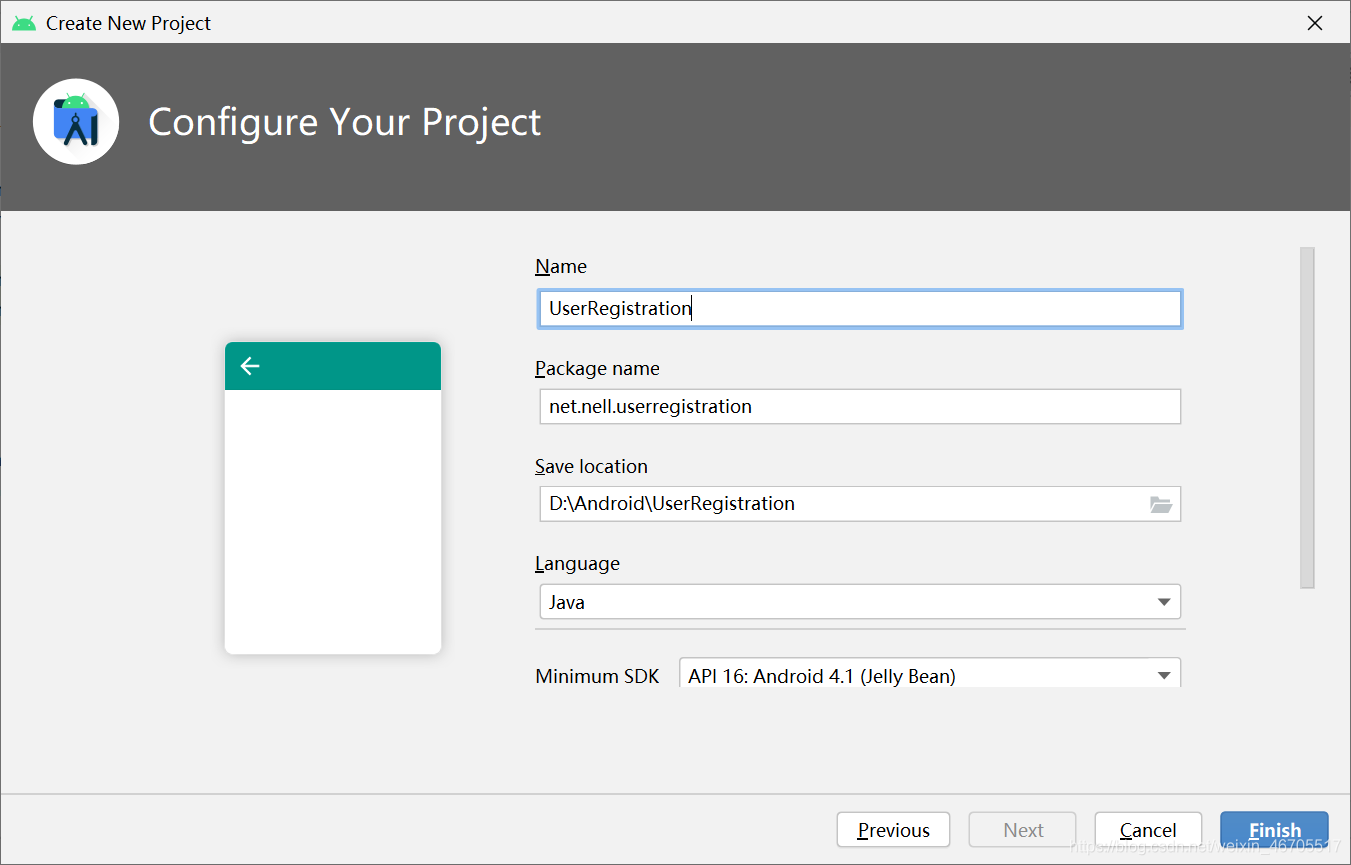

1.創建新專案

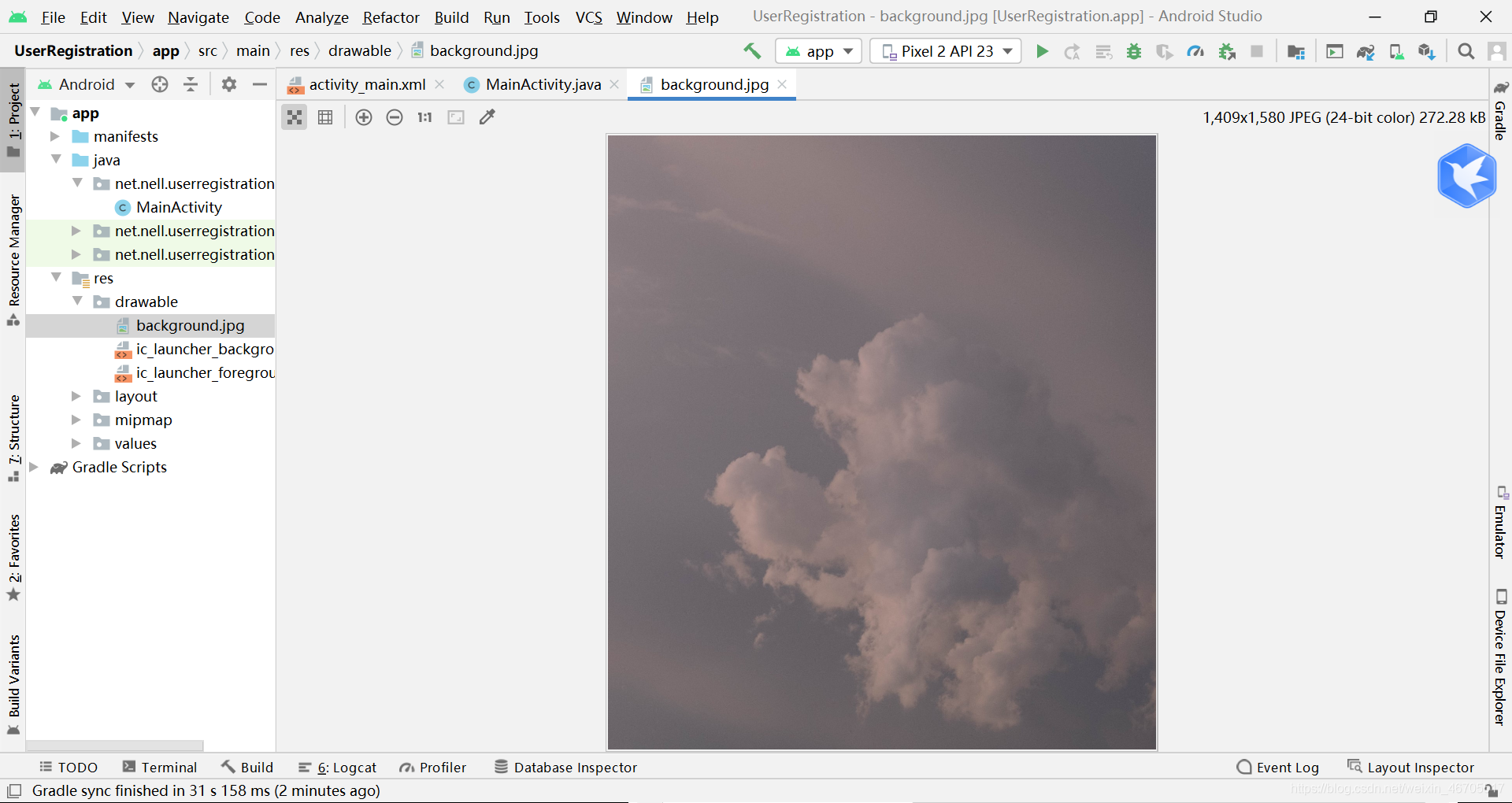

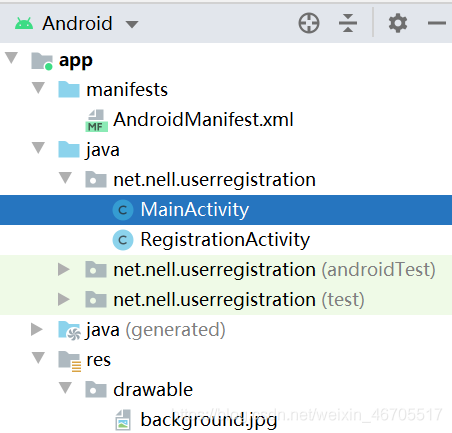

2.添加背景圖片

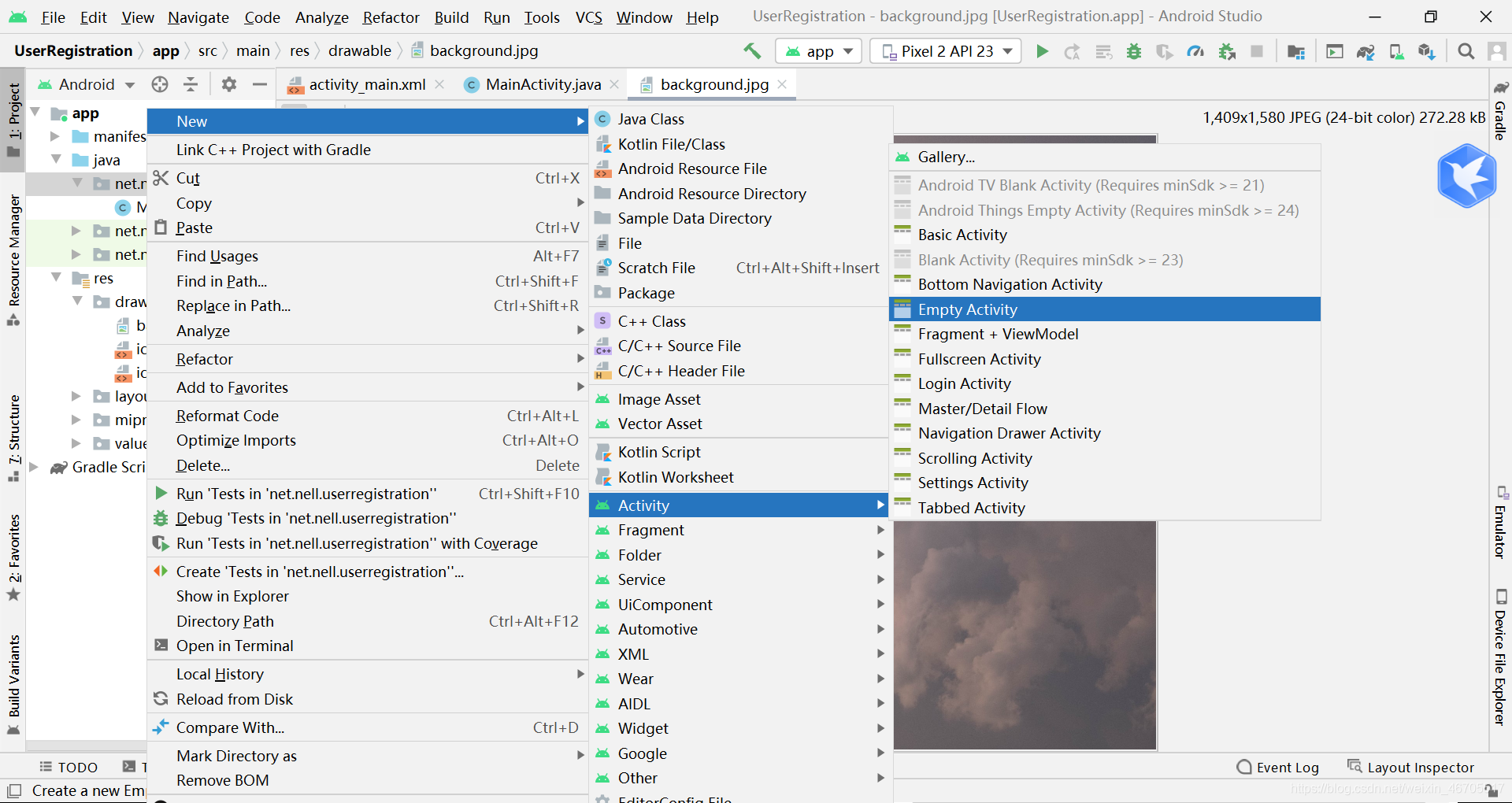

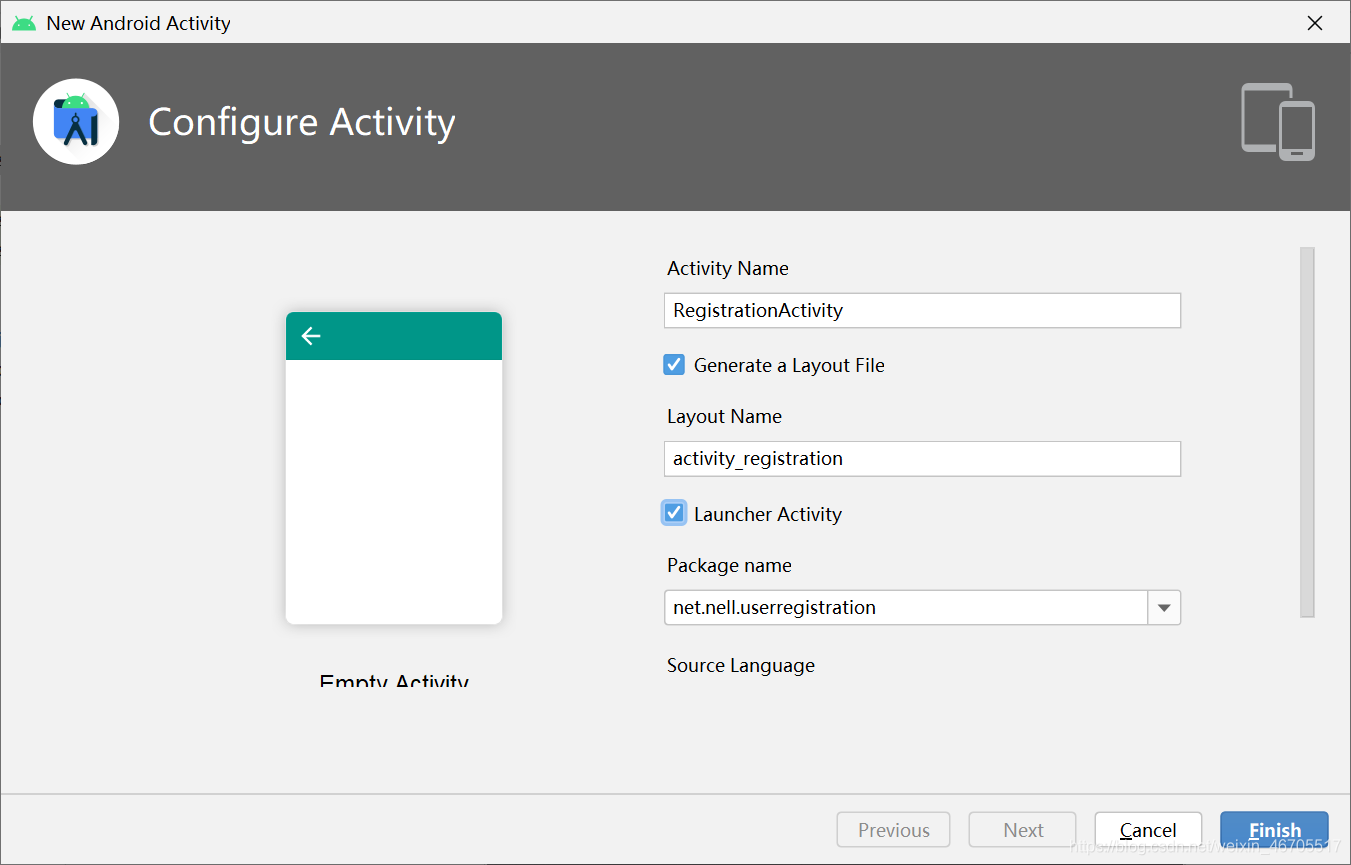

3.基于模板創建登錄視窗

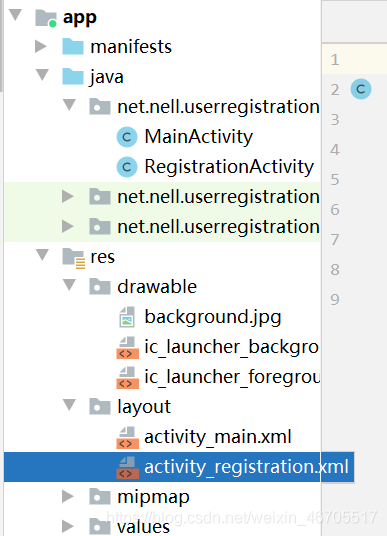

4.撰寫activity_registration.xml檔案

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@drawable/background"
    android:gravity="center"
    android:padding="15dp"
    android:orientation="vertical">
    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:id="@+id/tvUserLogin"
        android:layout_marginBottom="30dp"
        android:text="@string/user_registration"
        android:textColor="@color/white"
        android:textSize="25sp"/>
    <!--姓名-->
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center_horizontal"
        android:orientation="horizontal">
        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:id="@+id/tvName"
            android:text="@string/user_name"
            android:textColor="#000000"
            android:textSize="20sp"/>
        <EditText
            android:layout_width="150dp"
            android:layout_height="wrap_content"
            android:id="@+id/edtName"
            android:ems="10"
            android:hint="@string/input_name"
            android:singleLine="true"/>
    </LinearLayout>
    <!--性別-->
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center_horizontal"
        android:orientation="horizontal">

        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:id="@+id/tvSex"
            android:text="@string/sex"
            android:textColor="#000000"
            android:textSize="20sp"/>

        <EditText
            android:layout_width="150dp"
            android:layout_height="wrap_content"
            android:ems="10"
            android:hint="@string/input_sex"
            android:id="@+id/edtSex"
            android:singleLine="true"/>
    </LinearLayout>
    <!--年齡-->
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center_horizontal"
        android:orientation="horizontal">

        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:id="@+id/tvAge"
            android:text="@string/age"
            android:textColor="#000000"
            android:textSize="20sp"/>

        <EditText
            android:layout_width="150dp"
            android:layout_height="wrap_content"
            android:ems="10"
            android:hint="@string/input_age"
            android:id="@+id/edtAge"
            android:singleLine="true"/>
    </LinearLayout>
    <!--電話-->
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center_horizontal"
        android:orientation="horizontal">

        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:id="@+id/tvNumber"
            android:text="@string/number"
            android:textColor="#000000"
            android:textSize="20sp"/>

        <EditText
            android:layout_width="150dp"
            android:layout_height="wrap_content"
            android:ems="10"
            android:hint="@string/input_number"
            android:id="@+id/edtNumber"
            android:singleLine="true"/>
    </LinearLayout>

    <!--郵箱-->
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center_horizontal"
        android:orientation="horizontal">

        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:id="@+id/tvEmail"
            android:text="@string/email"
            android:textColor="#000000"
            android:textSize="20sp"/>

        <EditText
            android:layout_width="150dp"
            android:layout_height="wrap_content"
            android:ems="10"
            android:hint="@string/input_email"
            android:id="@+id/edtEmail"
            android:singleLine="true"/>
    </LinearLayout>
    <!--主頁-->
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center_horizontal"
        android:orientation="horizontal">

        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:id="@+id/tvMainpage"
            android:text="@string/mainpage"
            android:textColor="#000000"
            android:textSize="20sp"/>

        <EditText
            android:layout_width="150dp"
            android:layout_height="wrap_content"
            android:ems="10"
            android:hint="@string/input_mainpage"
            android:id="@+id/edtMainpage"
            android:singleLine="true"/>
    </LinearLayout>

    <!--備注-->
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center_horizontal"
        android:orientation="horizontal">

        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:id="@+id/tvRemark"
            android:text="@string/remark"
            android:textColor="#000000"
            android:textSize="20sp"/>

        <EditText
            android:layout_width="150dp"
            android:layout_height="wrap_content"
            android:ems="10"
            android:hint="@string/input_remark"
            android:id="@+id/edtRemark"
            android:singleLine="true"/>
    </LinearLayout>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginTop="30dp"
        android:gravity="center_horizontal"
        android:orientation="horizontal">
        <Button
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:id="@+id/btnRegistration"
            android:paddingRight="30dp"
            android:paddingLeft="30dp"
            android:text="@string/registration"
            android:textSize="20sp"/>

        <Button
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:id="@+id/btnCancel"
            android:paddingLeft="30dp"
            android:paddingRight="30dp"
            android:text="@string/cancel"
            android:textSize="20sp"/>
    </LinearLayout>

</LinearLayout>

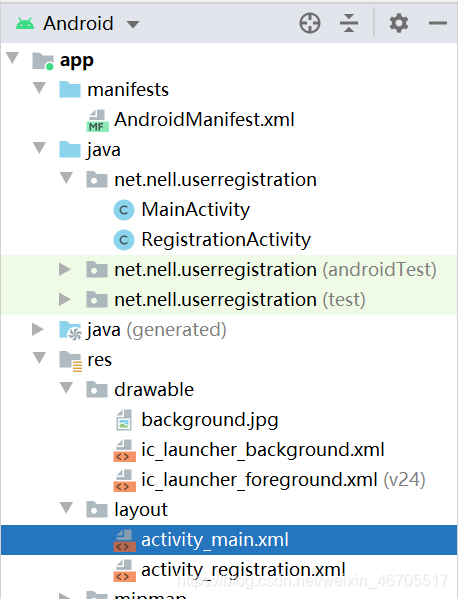

5.撰寫activity_main.xml檔案

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:gravity="center"
    tools:context=".MainActivity">

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:id="@+id/tvMessage"
        android:textSize="25dp"
        android:textColor="#e066ff"/>

</LinearLayout>

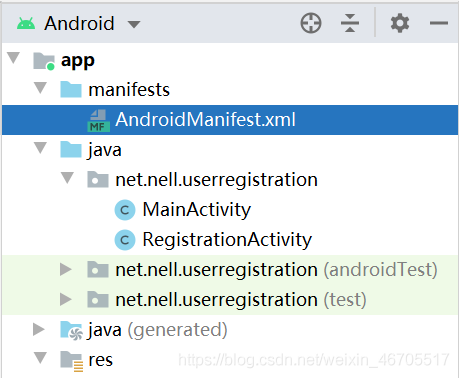

6.撰寫專案清單檔案

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="net.nell.userregistration">

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/Theme.UserRegistration">
        <activity android:name=".RegistrationActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
        <activity android:name=".MainActivity">
            <!--<intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>-->
        </activity>
    </application>

</manifest>

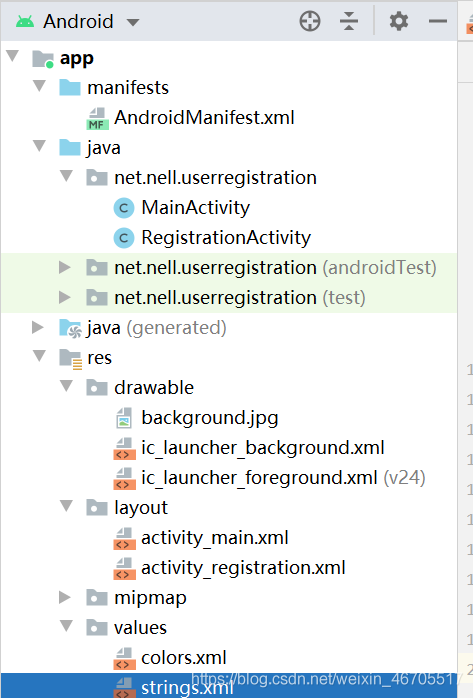

7.字串檔案strings.xml

<resources>
    <string name="app_name">UserRegistration</string>
    <string name="user_registration">用戶登錄</string>
    <string name="user_name">姓名：</string>
    <string name="input_name">請輸入您的姓名</string>
    <string name="sex">性別：</string>
    <string name="input_sex">請輸入您的性別</string>
    <string name="age">年齡：</string>
    <string name="input_age">請輸入您的年齡</string>
    <string name="number">電話：</string>
    <string name="input_number">請輸入您的電話</string>
    <string name="email">郵箱:</string>
    <string name="input_email">請輸入您的郵箱</string>
    <string name="mainpage">主頁：</string>
    <string name="input_mainpage">請輸入你的主頁</string>
    <string name="remark">備注：</string>
    <string name="input_remark">請輸入您的備注</string>
    <string name="registration">注冊</string>
    <string name="cancel">取消</string>
</resources>

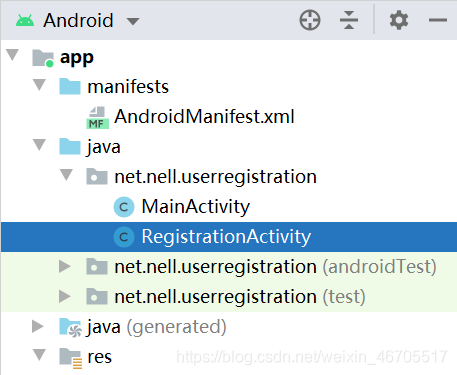

8.注冊視窗

package net.nell.userregistration;

import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;

import androidx.appcompat.app.AppCompatActivity;

public class RegistrationActivity extends AppCompatActivity {
    private EditText edtName;
    private EditText edtSex;
    private EditText edtAge;
    private EditText edtNumber;
    private EditText edtEmail;
    private EditText edtMainpage;
    private EditText edtRemark;
    private Button btnRegistration;
    private Button btnCancel;


    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_registration);

        edtName = findViewById(R.id.edtName);
        edtSex = findViewById(R.id.edtSex);
        edtAge = findViewById(R.id.edtAge);
        edtNumber = findViewById(R.id.edtNumber);
        edtEmail = findViewById(R.id.edtEmail);
        edtMainpage = findViewById(R.id.edtMainpage);
        edtRemark = findViewById(R.id.edtRemark);
        btnRegistration = findViewById(R.id.btnRegistration);
        btnCancel = findViewById(R.id.btnCancel);

        btnRegistration.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                String strName = edtName.getText().toString().trim();
                String strSex = edtSex.getText().toString().trim();
                String strAge = edtAge.getText().toString().trim();
                String strNumber = edtNumber.getText().toString().trim();
                String strEmail = edtEmail.getText().toString().trim();
                String strMainpage = edtMainpage.getText().toString().trim();
                String strRemark = edtRemark.getText().toString().trim();

                Intent intent = new Intent(RegistrationActivity.this,MainActivity.class);
                Bundle data = new Bundle();
                data.putString("strName：",strName);
                data.putString("strSex",strSex);
                data.putString("strAge",strAge);
                data.putString("strNumber",strNumber);
                data.putString("strEmail",strEmail);
                data.putString("strMainpage",strMainpage);
                data.putString("strRemark",strRemark);
                intent.putExtras(data);
                startActivity(intent);


            }
        });
        btnCancel.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                finish();
            }
        });

    }
}

9.主界面檔案

package net.nell.userregistration;

import android.content.Intent;
import android.os.Bundle;
import android.widget.TextView;

import androidx.appcompat.app.AppCompatActivity;

public class MainActivity extends AppCompatActivity {
    private TextView tvMessage;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        tvMessage = findViewById(R.id.tvMessage);

        Intent intent = getIntent();
        Bundle data = intent.getExtras();
        String strName = data.getString("strName");
        String strSex = data.getString("strSex");
        String strAge = data.getString("strAge");
        String strNumber = data.getString("strNumber");
        String strEmail = data.getString("strEmail");
        String strMainpage = data.getString("strMainpage");
        String strRemark = data.getString("strRemark");

        String Message = "恭喜，注冊成功！\n 姓名："+ strName + "\n性別："+strSex+"\n年齡:"+strAge+"\n電話："+strNumber+"\n郵箱："+strEmail+"\n主頁："+strMainpage+"\n備注："+strRemark;
        tvMessage.setText(Message);



    }
}

10.運行程式，查看結果

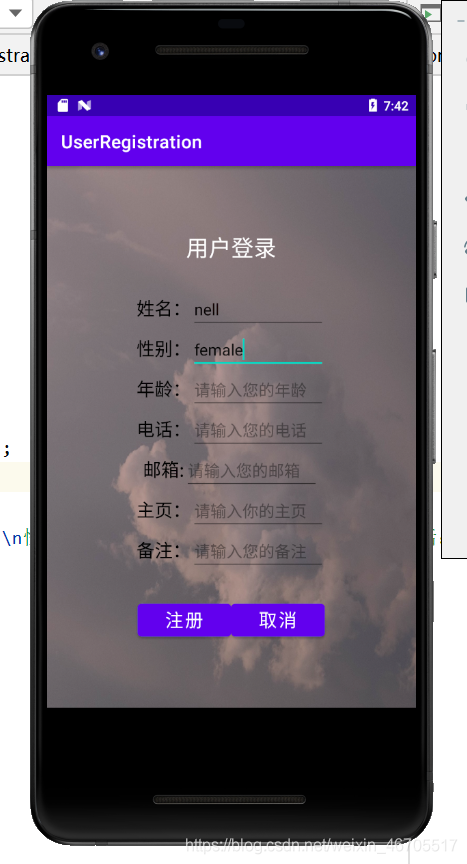

輸入資訊時

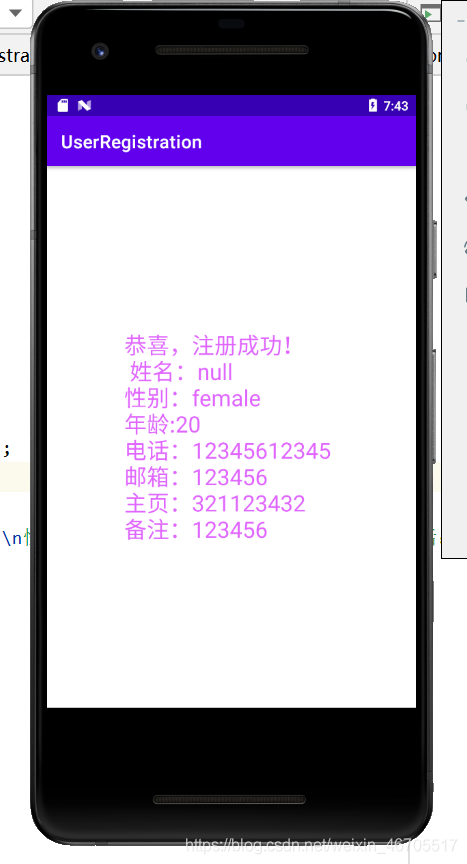

輸入完成后

第二次人物的完成的大概就是如昨天和今天的內容一樣，在玩成任務的程序中，進行學習會使我們的學習內容更加有趣，也可以讓我們更加能夠適應新東西，并且把學習帶的東西，用在實處，明天我們將進行第三個人物的開始，
