五、INVISIBLE、GONE、VISIBLE的實作邏輯-有解無憂

INVISIBLE、GONE、VISIBLE這三個變數，應該是我們最常用的了，有沒有思考系統是怎么實作的呢？

ViewGroup

首先要明確一點，通常使用的View都是放在ViewGroup以及ViewGroup子類的，大小都是在父控制元件的onMeasure和onLayout來進行確定，我們從最簡單的FrameLayout原來來看看，它是怎么實作View的GONE操作的，

onMeasure階段:

   @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        int count = getChildCount();
		//判斷自己是不是EXACTLY，對應的就是判斷自己是不是Match_Parent
        final boolean measureMatchParentChildren =
                MeasureSpec.getMode(widthMeasureSpec) != MeasureSpec.EXACTLY ||
                MeasureSpec.getMode(heightMeasureSpec) != MeasureSpec.EXACTLY;
        mMatchParentChildren.clear();

        int maxHeight = 0;
        int maxWidth = 0;
        int childState = 0;
		//獲取最大寬度與高度
        for (int i = 0; i < count; i++) {
            final View child = getChildAt(i);
            //需要測量所有子view||不為GONE時，才需要測量
            if (mMeasureAllChildren || child.getVisibility() != GONE) {
                measureChildWithMargins(child, widthMeasureSpec, 0, heightMeasureSpec, 0);
                final LayoutParams lp = (LayoutParams) child.getLayoutParams();
                maxWidth = Math.max(maxWidth,
                        child.getMeasuredWidth() + lp.leftMargin + lp.rightMargin);
                maxHeight = Math.max(maxHeight,
                        child.getMeasuredHeight() + lp.topMargin + lp.bottomMargin);
                childState = combineMeasuredStates(childState, child.getMeasuredState());
                if (measureMatchParentChildren) {
                    if (lp.width == LayoutParams.MATCH_PARENT ||
                            lp.height == LayoutParams.MATCH_PARENT) {
                        mMatchParentChildren.add(child);
                    }
                }
            }
        }
		//加上pandding
        maxWidth += getPaddingLeftWithForeground() + getPaddingRightWithForeground();
        maxHeight += getPaddingTopWithForeground() + getPaddingBottomWithForeground();
		//.....
		//設定好FrameLayout的高度和寬度.此時FrameLayout的measureHeight與MeasureWidth已經有值了
        setMeasuredDimension(resolveSizeAndState(maxWidth, widthMeasureSpec, childState),
                resolveSizeAndState(maxHeight, heightMeasureSpec,
                        childState << MEASURED_HEIGHT_STATE_SHIFT));
         //.....
        }
    }

上面的onMeasure其實就做一件事，就是把FrameLayout的maxWidth和maxHeight算出來，在計算時過濾掉mMeasureAllChildren = false是的child是gone的情況，那么問題來了，這個mMeasureAllChildren是做什么的呢？看原始碼的賦值，我們找到方法

  /**
     * Sets whether to consider all children, or just those in
     * the VISIBLE or INVISIBLE state, when measuring. Defaults to false.
     *
     * @param measureAll true to consider children marked GONE, false otherwise.
     * Default value is false.
     *
     * @attr ref android.R.styleable#FrameLayout_measureAllChildren
     */
    @android.view.RemotableViewMethod
    public void setMeasureAllChildren(boolean measureAll) {
        mMeasureAllChildren = measureAll;
    }

看注釋的意思是，當為true時，為GONE的所有children也會被測量，所以，也并不是說GONE了，我們就不會去測量這個child，得是FrameLayout這個measureAllChildren的屬性為false時，GONE才不會去測量，為了驗證我們的閱讀的原始碼，我寫出了以下例子:
假設我們有如下xml:

<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:measureAllChildren="true"
    android:background="@color/black"
    tools:context=".MainActivity">

    <TextView
        android:layout_width="20dp"
        android:layout_height="20dp"
        android:text="Hello World!"
        android:background="@android:color/holo_red_dark"
      />
    <TextView
        android:layout_width="200dp"
        android:visibility="gone"
        android:layout_height="200dp"
        android:text="Hello World!"
        android:background="@android:color/holo_red_dark"
        />

</FrameLayout>

按照前面我們對measureAllChildren的解讀，measureAllChildren為true，此時FrameLayout的黑色應該是200dp，看實驗結果:

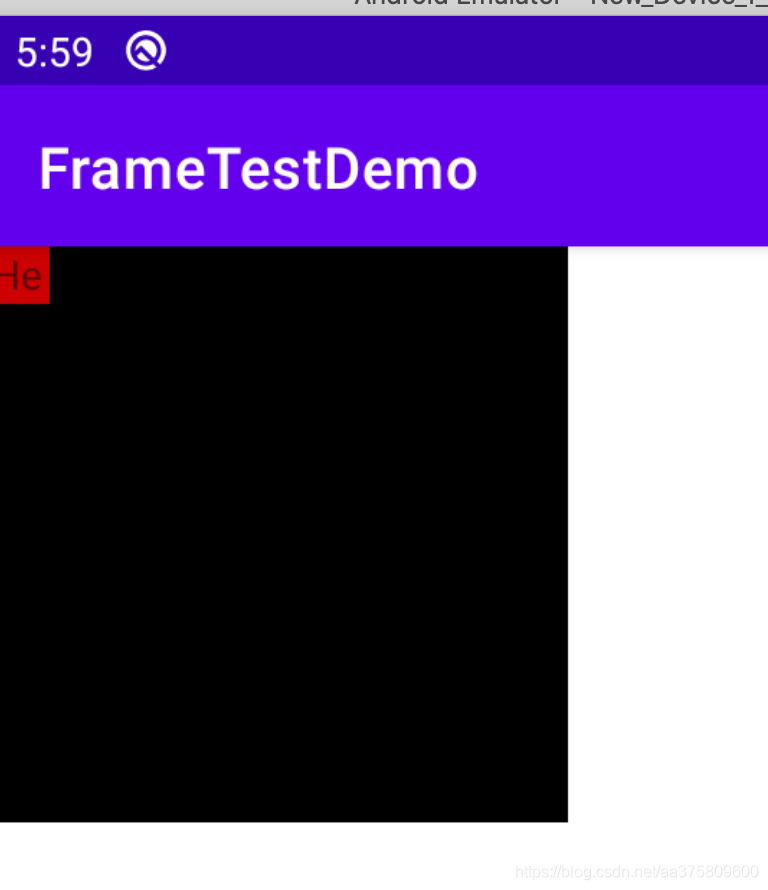

在這里插入圖片描述
從實驗結果看，我們的假設閱讀原始碼得到的結論和實驗結果是一致的，默認情況下mMeasureAllChildren是false,所以我們日常使用時，GONE實際上是不會計算實際大小的，

    @UnsupportedAppUsage
    boolean mMeasureAllChildren = false;

GONE的問題，搞清楚了，現在我們來看看測量里面INVISIBLE

 for (int i = 0; i < count; i++) {
            final View child = getChildAt(i);
            //需要測量所有子view||不為GONE時，才需要測量
            if (mMeasureAllChildren || child.getVisibility() != GONE) {
                measureChildWithMargins(child, widthMeasureSpec, 0, heightMeasureSpec, 0);
                final LayoutParams lp = (LayoutParams) child.getLayoutParams();
                maxWidth = Math.max(maxWidth,
                        child.getMeasuredWidth() + lp.leftMargin + lp.rightMargin);
                maxHeight = Math.max(maxHeight,
                        child.getMeasuredHeight() + lp.topMargin + lp.bottomMargin);
                childState = combineMeasuredStates(childState, child.getMeasuredState());
                if (measureMatchParentChildren) {
                    if (lp.width == LayoutParams.MATCH_PARENT ||
                            lp.height == LayoutParams.MATCH_PARENT) {
                        mMatchParentChildren.add(child);
                    }
                }
            }
        }

在上一段代碼中，并未有對INVISIBLE做一個攔截，也就是說，INVISIBLE在測量階段和VISIBLE是一樣的，

onLayout階段

onLayout我們之前已經講過，它不僅可以控制子view的位置，實際上，也可以控制子view的大小，翻開FrameLayout的源代碼


    @Override
    protected void onLayout(boolean changed, int left, int top, int right, int bottom) {
        layoutChildren(left, top, right, bottom, false /* no force left gravity */);
    }

    void layoutChildren(int left, int top, int right, int bottom, boolean forceLeftGravity) {
        final int count = getChildCount();

        final int parentLeft = getPaddingLeftWithForeground();
        final int parentRight = right - left - getPaddingRightWithForeground();

        final int parentTop = getPaddingTopWithForeground();
        final int parentBottom = bottom - top - getPaddingBottomWithForeground();

        for (int i = 0; i < count; i++) {
            final View child = getChildAt(i);
            //和onMeasure相似的GONE判斷
            if (child.getVisibility() != GONE) {
                final LayoutParams lp = (LayoutParams) child.getLayoutParams();

                final int width = child.getMeasuredWidth();
                final int height = child.getMeasuredHeight();

                int childLeft;
                int childTop;

                int gravity = lp.gravity;
                if (gravity == -1) {
                    gravity = DEFAULT_CHILD_GRAVITY;
                }

                final int layoutDirection = getLayoutDirection();
                final int absoluteGravity = Gravity.getAbsoluteGravity(gravity, layoutDirection);
                final int verticalGravity = gravity & Gravity.VERTICAL_GRAVITY_MASK;

                switch (absoluteGravity & Gravity.HORIZONTAL_GRAVITY_MASK) {
                    case Gravity.CENTER_HORIZONTAL:
                        childLeft = parentLeft + (parentRight - parentLeft - width) / 2 +
                        lp.leftMargin - lp.rightMargin;
                        break;
                    case Gravity.RIGHT:
                        if (!forceLeftGravity) {
                            childLeft = parentRight - width - lp.rightMargin;
                            break;
                        }
                    case Gravity.LEFT:
                    default:
                        childLeft = parentLeft + lp.leftMargin;
                }

                switch (verticalGravity) {
                    case Gravity.TOP:
                        childTop = parentTop + lp.topMargin;
                        break;
                    case Gravity.CENTER_VERTICAL:
                        childTop = parentTop + (parentBottom - parentTop - height) / 2 +
                        lp.topMargin - lp.bottomMargin;
                        break;
                    case Gravity.BOTTOM:
                        childTop = parentBottom - height - lp.bottomMargin;
                        break;
                    default:
                        childTop = parentTop + lp.topMargin;
                }

                child.layout(childLeft, childTop, childLeft + width, childTop + height);
            }
        }
    }

上述的代碼，是Android SDK30中，FrameLayout的onLayout全部代碼，其實上述代碼做的事情也很簡單，就是計算各種gravity.僅需關注child.getVisibility() != GONE 這一行，表示GONE的時候，child是不參與layout的，不參與layout代表什么呢？不參與layout即表示，子view不會被放到擺放在viewgroup中，即使你已經測量過了，

通過通讀FrameLayout的源代碼可以給我們提供的思考是什么？

如果我們自定義了ViewGroup.在測量階段，我們需要處理View的GONE事件，否則View仍然會進入onMeasure，
并非GONE了，就不會被測量了，
分析一類問題，要從最簡單的樣本開始，

看完了ViewGroup的onMeasure和onLayout，我們也僅能知道為GONE并且mMeasureAllChildren == false時,child不會被layout.但是INVISIBLE還是會Layout的啊，那INVISIBLE這個漏網之魚，他的控制顯然就不是在ViewGroup層面來做的了，那我們就要去看看View的setVisibility

View

上面已經分析完了GONE,這里我們著重分析一下INVISIBLE，INVISIBLE的控制，一般我們通過

 /**
     * Set the visibility state of this view.
     *
     * @param visibility One of {@link #VISIBLE}, {@link #INVISIBLE}, or {@link #GONE}.
     * @attr ref android.R.styleable#View_visibility
     */
    @RemotableViewMethod
    public void setVisibility(@Visibility int visibility) {
        setFlags(visibility, VISIBILITY_MASK);
    }

內部呼叫的其實是

  /**
     * Set flags controlling behavior of this view.
     *
     * @param flags Constant indicating the value which should be set
     * @param mask Constant indicating the bit range that should be changed
     */
    @UnsupportedAppUsage(maxTargetSdk = Build.VERSION_CODES.P, trackingBug = 115609023)
    void setFlags(int flags, int mask) {
    	//判斷現在的flags和之前的flag是否有變化
        int old = mViewFlags;
        mViewFlags = (mViewFlags & ~mask) | (flags & mask);
        int changed = mViewFlags ^ old;
        if (changed == 0) {
            return;
        }
        int privateFlags = mPrivateFlags;
        boolean shouldNotifyFocusableAvailable = false;


        final int newVisibility = flags & VISIBILITY_MASK;
        if (newVisibility == VISIBLE) {
            if ((changed & VISIBILITY_MASK) != 0) {
          		 //... 省略和焦點相關的代碼

                mPrivateFlags |= PFLAG_DRAWN;
                invalidate(true);
                needGlobalAttributesUpdate(true);
            }
        }

        /* Check if the GONE bit has changed */
        if ((changed & GONE) != 0) {
            needGlobalAttributesUpdate(false);
            requestLayout();

            if (((mViewFlags & VISIBILITY_MASK) == GONE)) {
                destroyDrawingCache();
                if (mParent instanceof View) {
                    // GONE views noop invalidation, so invalidate the parent
                    ((View) mParent).invalidate(true);
                }
                // Mark the view drawn to ensure that it gets invalidated properly the next
                // time it is visible and gets invalidated
                mPrivateFlags |= PFLAG_DRAWN;
            }
        }

        /* Check if the VISIBLE bit has changed */
        if ((changed & INVISIBLE) != 0) {
            needGlobalAttributesUpdate(false);
            /*
             * If this view is becoming invisible, set the DRAWN flag so that
             * the next invalidate() will not be skipped.
             */
            mPrivateFlags |= PFLAG_DRAWN;

            if (((mViewFlags & VISIBILITY_MASK) == INVISIBLE)) {
                //... 省略和焦點相關的代碼
            }
        }

        if ((changed & VISIBILITY_MASK) != 0) {
            // If the view is invisible, cleanup its display list to free up resources
            if (newVisibility != VISIBLE && mAttachInfo != null) {
                cleanupDraw();
            }

            if (mParent instanceof ViewGroup) {
                ViewGroup parent = (ViewGroup) mParent;
                parent.onChildVisibilityChanged(this, (changed & VISIBILITY_MASK),
                        newVisibility);
                parent.invalidate(true);
            } else if (mParent != null) {
                mParent.invalidateChild(this, null);
            }

            if (mAttachInfo != null) {
                dispatchVisibilityChanged(this, newVisibility);

                // Aggregated visibility changes are dispatched to attached views
                // in visible windows where the parent is currently shown/drawn
                // or the parent is not a ViewGroup (and therefore assumed to be a ViewRoot),
                // discounting clipping or overlapping. This makes it a good place
                // to change animation states.
                if (mParent != null && getWindowVisibility() == VISIBLE &&
                        ((!(mParent instanceof ViewGroup)) || ((ViewGroup) mParent).isShown())) {
                    dispatchVisibilityAggregated(newVisibility == VISIBLE);
                }
            }
        }
    }

首先我們來看一下第一段原始碼:

  int old = mViewFlags;
  mViewFlags = (mViewFlags & ~mask) | (flags & mask);
  int changed = mViewFlags ^ old;
  if (changed == 0) {
      return;
  }

哦吼，一堆位運算，頭大，我們來，弄個對照表

符號	描述	運算規則
&	與	兩個位都為 1 時，結果才為 1
I	或	兩個位都是 0 時，結果才為 0
^	異或	兩個位相同時為 0，相異為 1
~	取反	0 變 1，1 變 0
<<	左移	各二進位全部左移若干位，高位丟棄，低位補 0
>>	右移	各二進位全部右移若干位，對無符號數，高位補 0，有符號數，各編譯器處理方法不一樣，有的補符號位(算術右移)，有的補 0 (邏輯右移)

我們知道mask的值是VISIBILITY_MASK = 0x0000000C ,GONG,VISIBLE,INVISIBLE的值：

	//二進制 0000
    public static final int VISIBLE = 0x00000000;

	//二進制 0100
    public static final int INVISIBLE = 0x00000004;

   	//二進制 1000
    public static final int GONE = 0x00000008;

	//二進制 1100
   static final int VISIBILITY_MASK = 0x0000000C;

首先來看這行

 mViewFlags = (mViewFlags & ~mask) | (flags & mask);

我們先來分析前半部分 (mViewFlags & ~mask) 這個mask的值是通過setVisibility 傳過來的，值為VISIBILITY_MASK,二進制位1100，取反"~“后，0011，神奇的事情來了，此時無論mViewFlags是GONE、VISIBLE、INVISIBLE與”&"上mask的反碼，都是0，那證明這段代碼的意思就是把前面的標志位資料清除掉，

//推導程序
INVISIBLE & ~ VISIBILITY_MASK
0100 & ~1100
0100 & 0011
0000

VISIBLE & ~VISIBLE_MASK
0000 & ~1100
0000 & 0011
0000

GONE & ~VISIBLE_MASK
1000 & ~1100
1000 & 0011
0000

現在來分析后半部分 (flags & mask) ，上面我們講到，&~是清除，那&是什么呢，推導一下吧

VISIBLE & ~VISIBLE_MASK
0000 & 1100
0000

INVISIBLE & VISIBILITY_MASK
0100 & 1100
0100

GONE & VISIBILITY_MASK
1000 & 1100
1000

相信你發現了吧，INVISIBLE、VISIBLE、GONE這三個標志位，&上mask之后，都是自己，前面講了&~mask都是0，現在這個&mask都是自己，那不是相當于直接給mViewFlags賦值為flag就完事兒了嗎？事情當然不會這么簡單啦，接下來我們繼續看

  int old = mViewFlags;
  mViewFlags = (mViewFlags & ~mask) | (flags & mask);
  int changed = mViewFlags ^ old;
  if (changed == 0) {
      return;
  }

這里面還有一個關鍵代碼:int changed = mViewFlags ^ old;,old表示的是上一輪的flags,mViewFlags表示的是當前設定成的flag,老規矩推導一下吧

INVISIBILE ^ VISIBLE
0100 ^ 0000
0100

GONE ^ VISIBLE
1000 ^ 0000
1000

GONE ^ INVISIBILE
1000 ^ 0100
1100

GONE ^ GONE
1000 ^ 1000
0000

INVISIBLE^INVISIBLE
0100 ^ 0100
0000

從推導可以看出，如果上一輪和這一輪的flag不同，那change >0,如果相同,chang==0，change等于0就直接return了，那么現在可以進行總結一下了，這里的位運算主要是用來計算和上一輪的標志位是否一致，

接下來，我們接著分析

final int newVisibility = flags & VISIBILITY_MASK;
if (newVisibility == VISIBLE) {
    if ((changed & VISIBILITY_MASK) != 0) {
  		 //... 省略和焦點相關的代碼

        mPrivateFlags |= PFLAG_DRAWN;
        invalidate(true);
        needGlobalAttributesUpdate(true);
    }
}

前面我們講到了flags&mask的結果最后還是等于flag，changed&mask同理，這里代碼就很好理解了，當心的flags為visible,且上一輪不是visible,那這里就執行invalidate重繪界面，
那我還很好奇invalidate里面是怎么寫的，


    void invalidateInternal(int l, int t, int r, int b, boolean invalidateCache,
            boolean fullInvalidate) {
        if (mGhostView != null) {
            mGhostView.invalidate(true);
            return;
        }

        if (skipInvalidate()) {
            return;
        }

      //...將view畫到螢屏上
    }

mGhostView這個是view上面的一層overlay先不用管，通常情況下是為空的，著重看一下skipInvalidate.原始碼如下


    /**
     * Do not invalidate views which are not visible and which are not running an animation. They
     * will not get drawn and they should not set dirty flags as if they will be drawn
     */
    private boolean skipInvalidate() {
        return (mViewFlags & VISIBILITY_MASK) != VISIBLE && mCurrentAnimation == null &&
                (!(mParent instanceof ViewGroup) ||
                        !((ViewGroup) mParent).isViewTransitioning(this));
    }

這段代碼就比較簡單了，如果不是VISIBLE狀態和沒有影片并且父view不是viewgroup，就跳過，假設我們將一個viewgroup的子view設定為gone,并且沒有影片，那我們就直接skip了，即不會再顯示，到此為止，INVISIBLE、GONE、VISIBLE的的實作已經全線完了，

轉載請註明出處，本文鏈接：https://www.uj5u.com/yidong/255238.html

標籤：其他

上一篇：Effective Objective-C 2.0閱讀筆記

下一篇：目前最新版AndroidStudio詳細安裝教程，純萌新安裝
