效果展示

高級自定義進度條

講了這么多期了，大家多少應該明白自定義控制元件的套路了，如果還不明白，請把我的前五講仔細復習一下，里面每一步講的比較仔細，廢話不多說，直接上碼

原始碼分析

熟記于心的“五步走”法

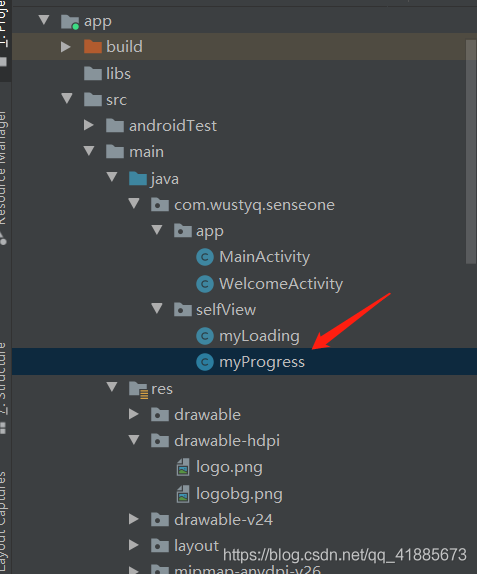

第一步：創建自定義控制元件類（繼承于View）

第二步：創建自定義屬性

在這里，我們就不分析需要哪些自定義屬性了，直接給大家上自定義屬性檔案，大家現在應該具備理解能力了

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <declare-styleable name="myProgress">
<!--圓環底色、四種分色-->
        <attr name="bgColor" format="color"/>
        <attr name="oneColor" format="color"/>
        <attr name="twoColor" format="color"/>
        <attr name="threeColor" format="color"/>
        <attr name="fourColor" format="color"/>
        <attr name="borderWidth" format="dimension"/>
        <attr name="radius" format="dimension"/>
<!--        文字大小、文字顏色-->
        <attr name="progressText" format="string"/>
        <attr name="progressTextSize" format="dimension"/>
        <attr name="progressTextColor" format="color"/>
    </declare-styleable>
</resources>

第三步：在布局檔案中應用

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".app.MainActivity">

    <com.wustyq.senseone.selfView.myProgress
        android:id="@+id/mp_myProgress"
        android:layout_width="180dp"
        android:layout_height="180dp"
        app:bgColor="#99cccccc"
        app:oneColor="#ccdefc"
        app:twoColor="#89b2f8"
        app:threeColor="#4a8af4"
        app:fourColor="#2d77f2"
        app:borderWidth="15dp"
        app:radius="70dp"
        app:progressText="總進度"
        app:progressTextColor="#1b57de"
        app:progressTextSize="20sp"/>
    <Button
        android:id="@+id/bt_test_one"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginLeft="10dp"
        android:text="點我試試"/>

</LinearLayout>

第四步：獲取自定義屬性值并撰寫相應方法

package com.wustyq.senseone.selfView;

import android.content.Context;
import android.content.res.TypedArray;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Rect;
import android.graphics.RectF;
import android.util.AttributeSet;
import android.util.DisplayMetrics;
import android.util.TypedValue;
import android.view.View;

import androidx.annotation.Nullable;

import com.wustyq.senseone.R;

public class myProgress extends View {

    private int mBgColor;
    private int mOneColor;
    private int mTwoColor;
    private int mThreeColor;
    private int mFourColor;
    private int mBorderWidth;
    private String mProgressText;
    private int mProgressTextSize;
    private int mProgressTextColor;
    private int mRadius;

    private Paint mBgPaint;
    private Paint mOnePaint;
    private Paint mTwoPaint;
    private Paint mThreePaint;
    private Paint mFourPaint;
    private Paint mProgressPaint;
    private Paint mTextPaint;

    //當前進度
    private float mCurrentProgress = 0.0f;

    public myProgress(Context context) {
        this(context,null);
    }

    public myProgress(Context context, @Nullable AttributeSet attrs) {
        this(context, attrs,0);
    }

    public myProgress(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        TypedArray typedArray = context.obtainStyledAttributes(attrs, R.styleable.myProgress);

        mBgColor = typedArray.getColor(R.styleable.myProgress_bgColor,mBgColor);
        mOneColor = typedArray.getColor(R.styleable.myProgress_oneColor,mOneColor);
        mTwoColor = typedArray.getColor(R.styleable.myProgress_twoColor,mTwoColor);
        mThreeColor = typedArray.getColor(R.styleable.myProgress_threeColor,mThreeColor);
        mFourColor = typedArray.getColor(R.styleable.myProgress_fourColor,mFourColor);
        mBorderWidth = (int) typedArray.getDimension(R.styleable.myProgress_borderWidth,dip2px(mBorderWidth));
        mRadius = (int) typedArray.getDimension(R.styleable.myProgress_radius,mRadius);

        mProgressText = typedArray.getString(R.styleable.myProgress_progressText);
        mProgressTextSize = typedArray.getDimensionPixelSize(R.styleable.myProgress_progressTextSize,sp2px(mProgressTextSize));
        mProgressTextColor = typedArray.getColor(R.styleable.myProgress_progressTextColor,mProgressTextColor);
        //根據顏色獲取畫筆
        mBgPaint = initPaint(mBgColor);
        mOnePaint = initPaint(mOneColor);
        mTwoPaint = initPaint(mTwoColor);
        mThreePaint = initPaint(mThreeColor);
        mFourPaint = initPaint(mFourColor);
        mProgressPaint = initTextPaint(mProgressTextColor,mProgressTextSize);
        mTextPaint = initTextPaint(Color.parseColor("#000000"),14);

        typedArray.recycle();
    }

    private int sp2px(int sp) {
        return (int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_SP,sp,getResources().getDisplayMetrics());
    }

    private float dip2px(int dip) {
        return TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP,dip,getResources().getDisplayMetrics());
    }

    private Paint initTextPaint(int TextColor,int textSize) {
        Paint paint = new Paint();
        paint.setAntiAlias(true);
        paint.setDither(true);
        paint.setTextSize(textSize);
        paint.setColor(TextColor);
        return paint;
    }

    private Paint initPaint(int Color) {
        Paint paint = new Paint();
        paint.setAntiAlias(true);
        paint.setDither(true);
        paint.setStrokeWidth(mBorderWidth);
        paint.setColor(Color);
        return paint;
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);

        //保證是正方形
        int width = MeasureSpec.getSize(widthMeasureSpec);
        int height = MeasureSpec.getSize(heightMeasureSpec);

        setMeasuredDimension(width>height?height:width,width>height?height:width);
    }

    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);
        //繪制底部文字
        mTextPaint.setTextSize(mProgressTextSize);
        canvas.drawText(mProgressText,getWidth()/2-getTextWidth(mProgressText)/2, (float) (getHeight()/2+getTextHeight(mProgressText)),mTextPaint);
        //繪制基圓
        drawBgCircle(canvas);
        //獲取進度文字
        String currentProgressString =(int) (mCurrentProgress*100) + "%";
        if (mCurrentProgress >= 0.0f && mCurrentProgress <= 0.25f){
            canvas.drawText(currentProgressString,getWidth()/2-getTextWidth(currentProgressString)/2,
                    (float) (getHeight()/2-getTextHeight(currentProgressString)*0.5),mProgressPaint);
            drawArc(canvas,mOnePaint,0,360*mCurrentProgress);
        }else if (mCurrentProgress > 0.25f && mCurrentProgress <= 0.5f){
            canvas.drawText(currentProgressString,getWidth()/2-getTextWidth(currentProgressString)/2,
                    (float) (getHeight()/2-getTextHeight(currentProgressString)*0.5),mProgressPaint);
            drawArc(canvas,mOnePaint,0,90);
            drawArc(canvas,mTwoPaint,90, (float) (360*(mCurrentProgress - 0.25)));
        }else if (mCurrentProgress > 0.5f && mCurrentProgress <= 0.75f){
            canvas.drawText(currentProgressString,getWidth()/2-getTextWidth(currentProgressString)/2,
                    (float) (getHeight()/2-getTextHeight(currentProgressString)*0.5),mProgressPaint);
            drawArc(canvas,mOnePaint,0,90);
            drawArc(canvas,mTwoPaint,90, 90);
            drawArc(canvas,mThreePaint,180,(float) (360*(mCurrentProgress - 0.5)));
        }else if (mCurrentProgress > 0.75f && mCurrentProgress <= 1.0f){
            canvas.drawText(currentProgressString,getWidth()/2-getTextWidth(currentProgressString)/2,
                    (float) (getHeight()/2-getTextHeight(currentProgressString)*0.5),mProgressPaint);
            drawArc(canvas,mOnePaint,0,90);
            drawArc(canvas,mTwoPaint,90, 90);
            drawArc(canvas,mThreePaint,180,90);
            drawArc(canvas,mFourPaint,270,(float) (360*(mCurrentProgress - 0.75)));
        }
    }


    private void drawArc(Canvas canvas,Paint paint,float start,float end) {
        paint.setStyle(Paint.Style.STROKE);
        float left = getWidth()/2 - mRadius;
        float top = getHeight()/2 -mRadius;
        float right = getWidth()/2 + mRadius;
        float bottom = getHeight()/2 + mRadius;
        RectF rectf = new RectF(left,top,right,bottom);
        canvas.drawArc(rectf,start,end,false,paint);
        canvas.save();
    }

    private void drawBgCircle(Canvas canvas) {
        mBgPaint.setStyle(Paint.Style.STROKE);
        canvas.drawCircle(getWidth()/2,getHeight()/2,mRadius,mBgPaint);
    }

    //獲取文字 width、height
    private float getTextWidth(String str){
        Rect bounds = new Rect();
        mTextPaint.getTextBounds(str,0,str.length(),bounds);
        return bounds.width();
    }
    private float getTextHeight(String str){
        Rect bounds = new Rect();
        mTextPaint.getTextBounds(str,0,str.length(),bounds);
        return bounds.height();
    }

    //提供外界設定當前進度
    public synchronized void setCurrentProgress(float progress) {
        this.mCurrentProgress = progress;
        invalidate();
    }
}

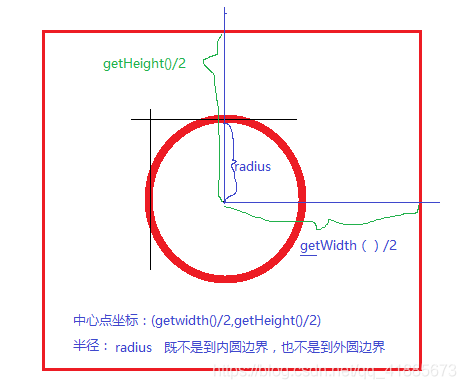

在這里，比較費腦子的就是如何讓圓弧和圓重疊在一起，代碼里面有公式，配合下面這張圖理解

第五步：在外面使用

package com.wustyq.senseone.app;

import android.animation.ObjectAnimator;
import android.animation.ValueAnimator;
import android.app.Activity;
import android.os.Bundle;
import android.view.Gravity;
import android.view.View;
import android.view.animation.BounceInterpolator;
import android.view.animation.DecelerateInterpolator;
import android.widget.Button;
import android.widget.Toast;

import com.wustyq.senseone.R;
import com.wustyq.senseone.selfView.myProgress;

public class MainActivity extends Activity implements View.OnClickListener {

    private myProgress mp_myProgress;
    private Button bt_test_one;
    private int clickNum = 0;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        initWelcome();
        initView();
        initData();
    }

    private void initView() {
        mp_myProgress = findViewById(R.id.mp_myProgress);
        bt_test_one = findViewById(R.id.bt_test_one);
    }

    private void initData() {
        bt_test_one.setOnClickListener(this);
    }

    private void initWelcome() {
        Toast toast = Toast.makeText(this, null, Toast.LENGTH_SHORT);
        toast.setText("歡迎來到第一感知，很高興為您服務");
        toast.setGravity(Gravity.CENTER,0,0);
        toast.show();
    }

    @Override
    public void onClick(View v) {
        switch(v.getId()){
            case R.id.bt_test_one:
            {
                System.out.println(clickNum + "clickNum");
                if (clickNum == 0){
                    setValueObject(mp_myProgress,0.0f,0.25f);
                    clickNum++;
                }else if (clickNum == 1){
                    setValueObject(mp_myProgress,0.25f,0.5f);
                    clickNum++;
                }else if (clickNum == 2){
                    setValueObject(mp_myProgress,0.5f,0.75f);
                    clickNum++;
                }else if (clickNum == 3){
                    setValueObject(mp_myProgress,0.75f,1.0f);
                    clickNum = 0;
                }
            }
                break;
        }
    }

    private void setValueObject(final myProgress view, float start, float end) {
        ValueAnimator valueAnimator = ObjectAnimator.ofFloat(start, end);
        valueAnimator.setDuration(2000);
        valueAnimator.setInterpolator(new DecelerateInterpolator());
        valueAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
            @Override
            public void onAnimationUpdate(ValueAnimator animation) {
                float animatedValue = (float) animation.getAnimatedValue();
                view.setCurrentProgress(animatedValue);
            }
        });
        valueAnimator.start();
    }
}

總結

我計劃多寫幾個組件，放在一起，然后把原始碼一起上傳供大家參考！！！
