Android 一種簡單的標題欄

使用viewpager+CommonTabLayout上圖下文底部導航欄

第一步 匯入CommonTabLayout依賴

implementation ‘com.flyco.tablayout:FlycoTabLayout_Lib:2.0.2@aar’

第二步 創建布局

// An highlighted block
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:orientation="vertical"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <androidx.viewpager.widget.ViewPager
        android:layout_weight="1"
        android:id="@+id/vp"
        android:layout_height="0dp"
        android:layout_width="match_parent">
    </androidx.viewpager.widget.ViewPager>
    <com.flyco.tablayout.CommonTabLayout
        android:layout_width="match_parent"
        android:id="@+id/tab"
        app:tl_textSelectColor="#0077F3"
        app:tl_textUnselectColor="#000"
        android:layout_height="50dp">
    </com.flyco.tablayout.CommonTabLayout>

</LinearLayout>

第三步 創建一個類實作CustomTabEntity介面

// An highlighted block
/**
 * @author
 * @description: 封裝的CustomTabEntityDemo類
 * @date
 */
public class CustomTabEntityDemo implements CustomTabEntity {
    private String tab;
    private int SelectedIcon;
    private int TabUnselectedIcon;

    public CustomTabEntityDemo(String tab, int selectedIcon, int tabUnselectedIcon) {
        this.tab = tab;
        SelectedIcon = selectedIcon;
        TabUnselectedIcon = tabUnselectedIcon;
    }

    @Override
    public String getTabTitle() {
        return tab;
    }

    @Override
    public int getTabSelectedIcon() {
        return SelectedIcon;
    }

    @Override
    public int getTabUnselectedIcon() {
        return TabUnselectedIcon;
    }
}

第四步 在activity中關聯起來

// An highlighted block
package com.zywl.myapplication;

import android.os.Bundle;

import androidx.annotation.Nullable;
import androidx.appcompat.app.AppCompatActivity;
import androidx.fragment.app.Fragment;
import androidx.fragment.app.FragmentPagerAdapter;
import androidx.viewpager.widget.ViewPager;

import com.flyco.tablayout.CommonTabLayout;
import com.flyco.tablayout.listener.CustomTabEntity;
import com.flyco.tablayout.listener.OnTabSelectListener;
import com.zywl.myapplication.fragment.FirstFragment;
import com.zywl.myapplication.fragment.SecondFragment;
import com.zywl.myapplication.fragment.ThirdFragment;

import java.util.ArrayList;
import java.util.List;

import butterknife.BindView;
import butterknife.ButterKnife;

/**
 * 上圖下文   主頁面
 */
public class MainActivity extends AppCompatActivity {

    private ViewPager vp;
    private CommonTabLayout tab;
    //創建fragment集合
    private List<Fragment> flist=new ArrayList<>();
    private ArrayList<CustomTabEntity> Clist=new ArrayList<>();

    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        //找控制元件
        vp = findViewById(R.id.vp);
        tab = findViewById(R.id.tab);
        //添加集合
        flist.add(new FirstFragment());
        flist.add(new SecondFragment());
        flist.add(new ThirdFragment());
        //獲取到封裝的物件然后把資料存進去
        CustomTabEntityDemo c1 = new CustomTabEntityDemo("第一頁", R.mipmap.ic_launcher, R.mipmap.ic_launcher_round);
        CustomTabEntityDemo c2 = new CustomTabEntityDemo("第二頁", R.mipmap.ic_launcher, R.mipmap.ic_launcher_round);
        CustomTabEntityDemo c3 = new CustomTabEntityDemo("第三頁", R.mipmap.ic_launcher, R.mipmap.ic_launcher_round);
        //把創建好的物件存放到集合中
        Clist.add(c1);
        Clist.add(c2);
        Clist.add(c3);
        //CommonTabLayout 與ViewPage 進行關聯
        tab.setTabData(Clist);
        //設定viewpager配接器
        vp.setAdapter(new FragmentPagerAdapter(getSupportFragmentManager()) {
            @Override
            public Fragment getItem(int position) {
                return flist.get(position);
            }

            @Override
            public int getCount() {
                return flist.size();
            }
        });
        //
        //設定CommonTabLayout 點擊時間
        tab.setOnTabSelectListener(new OnTabSelectListener() {
            @Override
            public void onTabSelect(int position) {
                vp.setCurrentItem(position);
            }

            @Override
            public void onTabReselect(int position) {

            }
        });
        //設定viewpager滑動事件
        vp.addOnPageChangeListener(new ViewPager.OnPageChangeListener() {
            @Override
            public void onPageScrolled(int position, float positionOffset, int positionOffsetPixels) {

            }

            @Override
            public void onPageSelected(int position) {
                tab.setCurrentTab(position);
            }

            @Override
            public void onPageScrollStateChanged(int state) {

            }
        });
    }



}

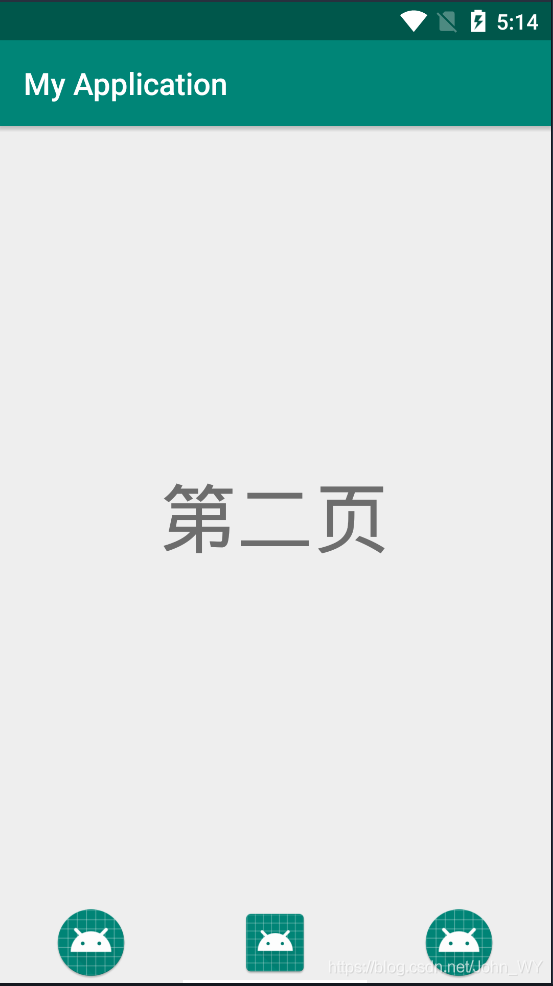

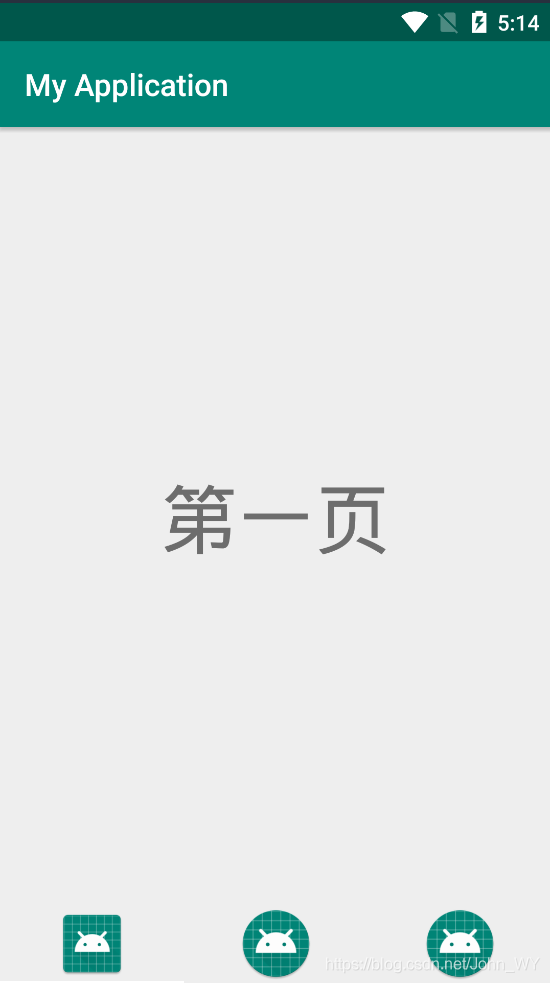

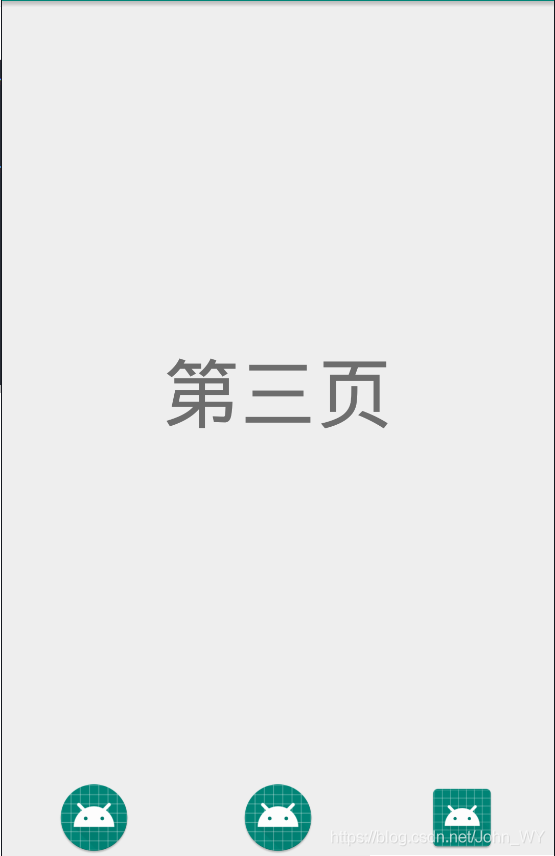

第五步 最終效果
