iOS-宮格拼圖-有解無憂

思路

要求設計思路是類似手持拼圖游戲，拼圖需求要求有一塊為空白版，作為移動方塊的預留位置用，通過選擇圖片后在起初對所有影像方塊隨機打亂順序時，發現隨機打亂順序，沒辦法拼圖完成，拼圖移動是空白快最臨近的上下左右四個影像塊的移動，在打亂順序的時候，也要按照這個演算法邏輯實作，才能拼圖完成；

另外邏輯實作上，用tag來記錄圖片，用accessibilityValue 來記錄圖片的實際位置標記；

用三個陣列來實作順序打亂、正序校驗、拼圖位置的校驗等，起初對三個陣列進行相同的初始化值；

實作

變數及相關初始化

///次序，用來排序
@property (nonatomic,strong) NSMutableArray * orderArray;
///次序，用來亂序打亂拼圖
@property (nonatomic,strong) NSMutableArray * disorderArray;
///次序，用來拼圖移動位置記錄
@property (nonatomic,strong) NSMutableArray * puzzleArray;
///圖片原圖
@property (nonatomic,strong) UIImage * puzzleImage;
///行、列數【難度】
@property (nonatomic,assign) NSInteger rows;
///方塊圖間距
@property (nonatomic,assign) CGFloat itemSpace;
///四周邊距
@property (nonatomic,assign) CGFloat marginSpace;

///是否允許拼圖
@property (nonatomic,assign) BOOL allowJoint;
///拖動拼圖
@property (nonatomic,strong) UIImageView * panImageView;
///拖動拼圖Frame
@property (nonatomic,assign) CGRect  panImageFrame;

- (instancetype)initWithFrame:(CGRect)frame
                         rows:(NSInteger)rows
                  puzzleImage:(UIImage *)puzzleImage{
    self = [super initWithFrame:frame];
    if (self) {
        _rows = rows;
        _puzzleImage = puzzleImage;
        [self setupPP];
    }
    return self;
}

- (void)setupPP{
    self.userInteractionEnabled = NO;
    _allowJoint = YES;
    _orderArray = [NSMutableArray array];
    _disorderArray = [NSMutableArray array];
    _puzzleArray = [NSMutableArray array];

//    _rows = 6;
    _itemSpace = floor(_rows*xkScale/(_rows/2));
    _marginSpace = floor(_rows*xkScale);

    self.backgroundColor = [UIColor whiteSmoke];


    [self setupOrderArray:(_rows * _rows)];

    ///如果圖片的大小大于當前寬度，就壓縮
    if (_puzzleImage.size.width > CGRectGetWidth(self.frame)) {
        UIGraphicsBeginImageContextWithOptions(self.bounds.size, NO, 1);
        [_puzzleImage drawInRect:CGRectMake(0,0,self.bounds.size.width,self.bounds.size.height)];
        UIImage* newImage = UIGraphicsGetImageFromCurrentImageContext();
        UIGraphicsEndImageContext();
        _puzzleImage = newImage;
    }

    CGFloat pWidth = (CGRectGetWidth(self.frame)  - _itemSpace*(_rows-1) - _marginSpace*2)/_rows;
    CGFloat pHeight = (CGRectGetHeight(self.frame)  - _itemSpace*(_rows-1) - _marginSpace*2)/_rows;

    for (int i = 0; i < _rows; i ++) {
        for (int j = 0; j < _rows; j ++) {
            NSInteger order = _rows * i + j;
            NSLog(@"order = %ld",order);
            /*
            NSInteger indexes_x = 0;
            NSInteger indexes_y = 0;

            if (order < (_rows *_rows) - 1) {
                NSInteger location = [_disorderArray[order] integerValue];
                indexes_y = location/_rows;///第幾行
                indexes_x = location%_rows;///第幾個
            }
            else{
                indexes_y = _rows - 1;
                indexes_x = _rows - 1;
            }
            CGFloat x_img = _marginSpace + (indexes_x)*(pWidth + _itemSpace);
            CGFloat y_img = _marginSpace + (indexes_y)*(pHeight + _itemSpace);
            */
            CGFloat x = _marginSpace + (j)*(pWidth + _itemSpace);
            CGFloat y = _marginSpace + (i)*(pHeight + _itemSpace);


            UIImageView *imgView = [self puzzleImageWithFrame:CGRectMake(x, y, pWidth, pHeight)];
            //將UIImage轉化成CGImage
            CGImageRef imageRef = CGImageCreateWithImageInRect(_puzzleImage.CGImage, CGRectMake(x, y, pWidth, pHeight));
            //將CGImage轉化成UIImage
            UIImage *imageNew = [UIImage imageWithCGImage:imageRef];
            imgView.image = imageNew;
            ///用來標記view
            imgView.tag = order + 1;
            ///用來記錄view位置
            imgView.accessibilityValue = https://www.cnblogs.com/wangkejia/p/[NSString stringWithFormat:@"%ld",order + 1];
            [self addSubview:imgView];

            if (imgView.tag == (_rows * _rows)) {
                imgView.image = [UIImage imageNamed:@"pp_chunk"];
                imgView.backgroundColor = [UIColor whiteSmoke];
            }
        }
    }

    dispatch_time_t popTime = dispatch_time(DISPATCH_TIME_NOW, 1.5 * NSEC_PER_SEC);
    dispatch_after(popTime, dispatch_get_main_queue(), ^(void){
        [self startDisorganizePuzzleImage];
    });
}

- (void)setupOrderArray:(NSInteger)count{
    for (int i = 1; i<=count; i ++) {
        [_orderArray addObject:[NSString stringWithFormat:@"%d",i]];
        [_disorderArray addObject:[NSString stringWithFormat:@"%d",i]];
        [_puzzleArray addObject:[NSString stringWithFormat:@"%d",i]];

    }
}

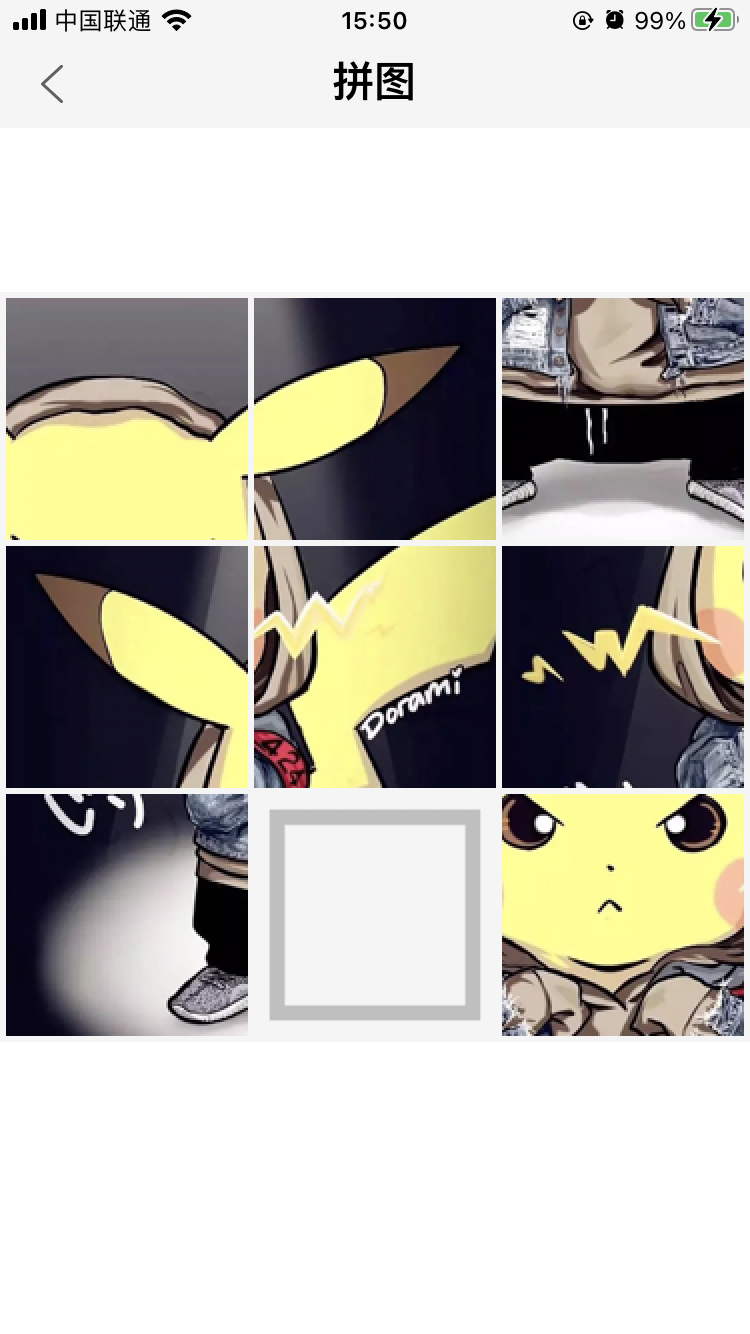

打亂拼圖順序

打亂拼圖順序的演算法和規則，可以根據打亂的程度或者次數，通過遞回添加結束條件

- (void)setupDisorganizePuzzleImageNumber:(NSInteger)number{
    if (number <= 0) {
        self.userInteractionEnabled = YES;
        return;
    }
    self.userInteractionEnabled = NO;
    ///獲取空白格
    UIImageView *emImg = [self viewWithTag:(_rows * _rows)];
    ///獲取空白格的位置
    NSInteger emLocation = [emImg.accessibilityValue integerValue];
    ///通過空白格位置，獲取四周可以移動的格子的位置與tag
    NSMutableArray *arrayLoc = [NSMutableArray array];
    NSInteger  upLocation = emLocation - _rows;
    NSInteger  downLocation = emLocation + _rows;
    NSInteger  leftLocation = emLocation - 1;
    NSInteger  righjtLocation = emLocation + 1;
    if (upLocation > 0) {///上
        [arrayLoc addObject:@(upLocation)];
    }
    if (downLocation <= (_rows*_rows)) {///下
        [arrayLoc addObject:@(downLocation)];
    }
    if (leftLocation%_rows != 0 && leftLocation <= (_rows*_rows)) {///左
        [arrayLoc addObject:@(leftLocation)];
    }
    if (righjtLocation%_rows != 1 && righjtLocation <= (_rows*_rows)) {///右
        [arrayLoc addObject:@(righjtLocation)];
    }
    ///隨機獲取一個轉移目標
    NSInteger random = arc4random() % arrayLoc.count;
    NSInteger targetLocation = [arrayLoc[random] integerValue];
    NSInteger targetIndex = [_disorderArray indexOfObject:[NSString stringWithFormat:@"%ld",targetLocation]];
    ///獲取目標試圖
    UIImageView *targetImg = [self viewWithTag:targetIndex + 1];
    if (targetImg) {
        CGRect targetRect = CGRectMake(CGRectGetMinX(targetImg.frame),
                                       CGRectGetMinY(targetImg.frame),
                                       CGRectGetWidth(targetImg.frame),
                                       CGRectGetHeight(targetImg.frame));
        CGRect emRect = CGRectMake(CGRectGetMinX(emImg.frame),
                                   CGRectGetMinY(emImg.frame),
                                   CGRectGetWidth(emImg.frame),
                                   CGRectGetHeight(emImg.frame));
        [UIView animateWithDuration:0.01 animations:^{
            emImg.frame = targetRect;
            targetImg.frame = emRect;
        } completion:^(BOOL finished) {
            ///處理交換【打亂次序】
            NSInteger emIndex = [_disorderArray indexOfObject:emImg.accessibilityValue];
            [_disorderArray exchangeObjectAtIndex:(targetIndex) withObjectAtIndex:(emIndex)];

            ///切換保存順序【拼圖】
            NSInteger accesTarget = [targetImg.accessibilityValue integerValue] - 1;
            NSInteger accesEm = [emImg.accessibilityValue integerValue] - 1;
            [_puzzleArray exchangeObjectAtIndex:(accesTarget) withObjectAtIndex:(accesEm)];

            targetImg.accessibilityValue = [NSString stringWithFormat:@"%ld",emLocation];
            emImg.accessibilityValue = [NSString stringWithFormat:@"%ld",targetLocation];


            [self setupDisorganizePuzzleImageNumber:number - 1];
        }];
    }
}

拼圖點擊手勢（空白格不允許）

///拼圖點擊事件
- (void)puzzleImageTapClick:(UITapGestureRecognizer *)tap{
    NSInteger tapTag = tap.view.tag;
    UIImageView *tapImg = [self viewWithTag:tapTag];
    [self puzzleImageTapGestureHandler:tapImg];
}

///點擊手勢操作
- (void)puzzleImageTapGestureHandler:(UIImageView *)puzzleImage{
    if (!_allowJoint) {
        return;
    }
    NSInteger emTag = (_rows * _rows);
    NSInteger tapTag = puzzleImage.tag;
    if (emTag == tapTag) {
        return;
    }
    UIImageView *emImg = [self viewWithTag:emTag];
    UIImageView *tapImg = puzzleImage;

    CGFloat emMinX = floor(CGRectGetMinX(emImg.frame));
    CGFloat emMaxX = floor(CGRectGetMaxX(emImg.frame));
    CGFloat emMinY = floor(CGRectGetMinY(emImg.frame));
    CGFloat emMaxY = floor(CGRectGetMaxY(emImg.frame));

    CGFloat tapMinX = floor(CGRectGetMinX(tapImg.frame));
    CGFloat tapMaxX = floor(CGRectGetMaxX(tapImg.frame));
    CGFloat tapMinY = floor(CGRectGetMinY(tapImg.frame));
    CGFloat tapMaxY = floor(CGRectGetMaxY(tapImg.frame));

    BOOL isExchange = NO;
    if ((tapMinX == emMinX) &&
        fabs((tapMaxY + _itemSpace) - emMinY) < 5*xkScale){
        isExchange = YES;
    }
    else if ((tapMinX == emMinX) &&
             fabs((emMaxY + _itemSpace) - tapMinY) < 5*xkScale){
        isExchange = YES;
    }
    else if ((tapMinY == emMinY) &&
             fabs((tapMaxX + _itemSpace) - emMinX) < 5*xkScale){
        isExchange = YES;
    }
    else if ((tapMinY == emMinY) &&
             fabs((emMaxX + _itemSpace) - tapMinX) < 5*xkScale){
        isExchange = YES;
    }
    else{
        isExchange = NO;
    }

    CGRect tapRect = CGRectMake(CGRectGetMinX(tapImg.frame),
                                CGRectGetMinY(tapImg.frame),
                                CGRectGetWidth(tapImg.frame),
                                CGRectGetHeight(tapImg.frame));
    CGRect emRect = CGRectMake(CGRectGetMinX(emImg.frame),
                               CGRectGetMinY(emImg.frame),
                               CGRectGetWidth(emImg.frame),
                               CGRectGetHeight(emImg.frame));
    if (isExchange) {
        NSLog(@"允許交換");
        [UIView animateWithDuration:0.3 animations:^{
            _allowJoint = NO;
            emImg.frame = tapRect;
            tapImg.frame = emRect;
        } completion:^(BOOL finished) {


            NSInteger accesTap = [tapImg.accessibilityValue integerValue];
            NSInteger accesEm = [emImg.accessibilityValue integerValue];
            ///因為accessibilityValue與tag一樣，索引需要減1
            [_puzzleArray exchangeObjectAtIndex:(accesTap - 1) withObjectAtIndex:(accesEm - 1)];
            tapImg.accessibilityValue = [NSString stringWithFormat:@"%ld",accesEm];
            emImg.accessibilityValue = [NSString stringWithFormat:@"%ld",accesTap];
            _allowJoint = YES;
            if ([self isPuzzleImageFinish]) {

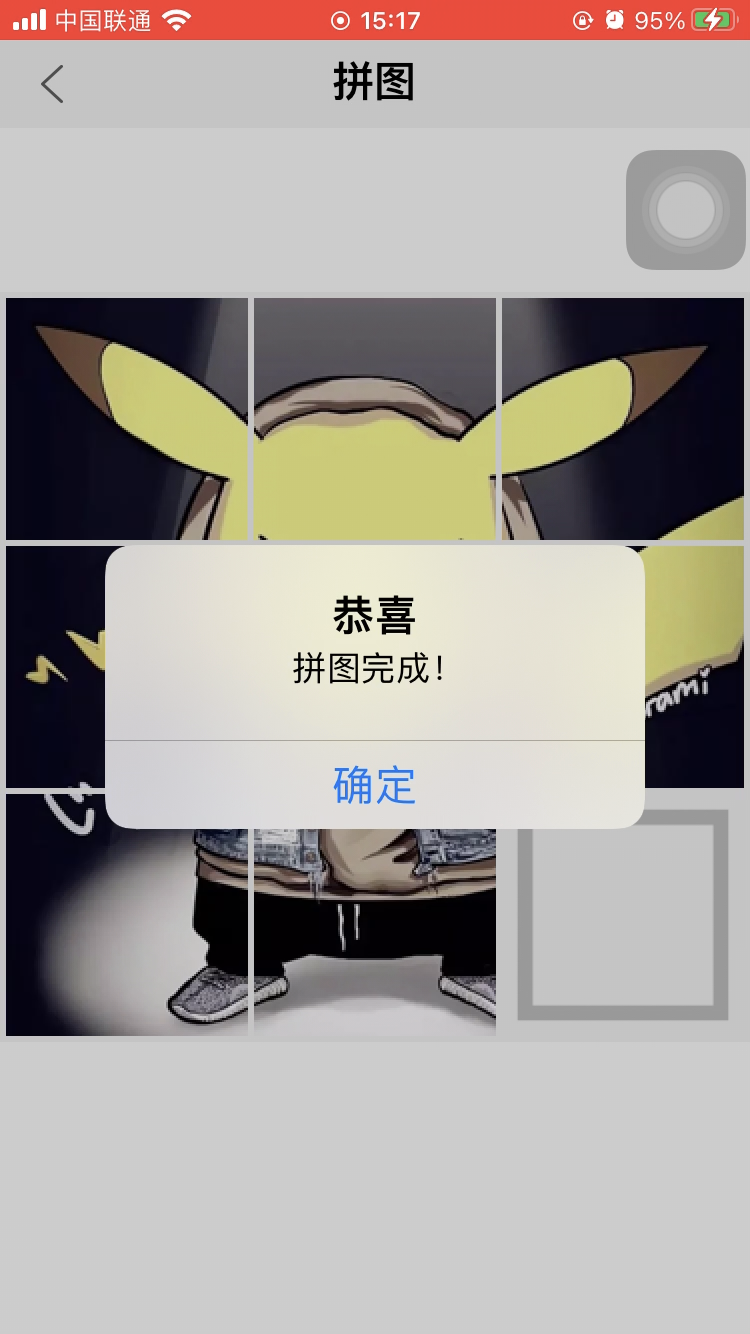

                NSLog(@"拼圖完成");
                [self puzzleImageFinishHandler];
            }
            else{
                NSLog(@"繼續加油");
            }

        }];
    }
    else{
        NSLog(@"不允許交換");
    }
}

拼圖拖動手勢（空白格不允許）

/// 拼圖拖動
- (void)puzzleImagePanGesture:(UIPanGestureRecognizer *)pan{
    _panImageView = (UIImageView *)pan.view;
    [self bringSubviewToFront:pan.view];
    if (_panImageView.tag == (_rows * _rows)) {///空白格

    }
    else{
        if (pan.state == UIGestureRecognizerStateBegan) {
            _panImageFrame = pan.view.frame;
            _panImageView = (UIImageView *)pan.view;
        }
        else if (pan.state == UIGestureRecognizerStateChanged){
            //獲取偏移量
            CGPoint transP = [pan translationInView:pan.view];
            // 移動圖片控制元件
            CGRect tapRect = CGRectMake(CGRectGetMinX(pan.view.frame) + transP.x,
                                        CGRectGetMinY(pan.view.frame) + transP.y,
                                        CGRectGetWidth(pan.view.frame),
                                        CGRectGetHeight(pan.view.frame));
            pan.view.frame = tapRect;
            // 復位,表示相對上一次位置復位重置
            [pan setTranslation:CGPointZero inView:pan.view];
        }
        else if (pan.state == UIGestureRecognizerStateEnded){
            if (!_allowJoint) {
                [UIView animateWithDuration:0.1 animations:^{
                    _allowJoint = NO;
                    _panImageView.frame = _panImageFrame;
                } completion:^(BOOL finished) {
                    _allowJoint = YES;
                }];
                return;
            }

            NSInteger emTag = (_rows * _rows);
            UIImageView *emImg = [self viewWithTag:emTag];
            CGPoint point1 = _panImageView.center;
            CGPoint point2 = emImg.center;
            CGFloat distance = sqrt(pow((point1.x - point2.x), 2) + pow((point1.y - point2.y), 2));
            if (distance <= CGRectGetHeight(_panImageFrame)/2) {///中心點相差小于20的，允許判斷是否交換位置
                [self puzzleImagePanGestureHandler:_panImageView defaultFrame:_panImageFrame];
            }
            else{///放回原來位置
                [UIView animateWithDuration:0.1 animations:^{
                    _allowJoint = NO;
                    _panImageView.frame = _panImageFrame;
                } completion:^(BOOL finished) {
                    _allowJoint = YES;
                }];
            }

        }
        else{

        }
    }
}

///拖動手勢操作
- (void)puzzleImagePanGestureHandler:(UIImageView *)puzzleImage defaultFrame:(CGRect)defaultFrame{

    NSInteger emTag = (_rows * _rows);
    NSInteger tapTag = puzzleImage.tag;
    if (emTag == tapTag) {
        return;
    }
    UIImageView *emImg = [self viewWithTag:emTag];
    UIImageView *tapImg = puzzleImage;

    CGFloat emMinX = floor(CGRectGetMinX(emImg.frame));
    CGFloat emMaxX = floor(CGRectGetMaxX(emImg.frame));
    CGFloat emMinY = floor(CGRectGetMinY(emImg.frame));
    CGFloat emMaxY = floor(CGRectGetMaxY(emImg.frame));

    CGFloat tapMinX = floor(CGRectGetMinX(defaultFrame));
    CGFloat tapMaxX = floor(CGRectGetMaxX(defaultFrame));
    CGFloat tapMinY = floor(CGRectGetMinY(defaultFrame));
    CGFloat tapMaxY = floor(CGRectGetMaxY(defaultFrame));

    BOOL isExchange = NO;
    if ((tapMinX == emMinX) &&
        fabs((tapMaxY + _itemSpace) - emMinY) < 5*xkScale){
        isExchange = YES;
    }
    else if ((tapMinX == emMinX) &&
             fabs((emMaxY + _itemSpace) - tapMinY) < 5*xkScale){
        isExchange = YES;
    }
    else if ((tapMinY == emMinY) &&
             fabs((tapMaxX + _itemSpace) - emMinX) < 5*xkScale){
        isExchange = YES;
    }
    else if ((tapMinY == emMinY) &&
             fabs((emMaxX + _itemSpace) - tapMinX) < 5*xkScale){
        isExchange = YES;
    }
    else{
        isExchange = NO;
    }

    CGRect emRect = CGRectMake(CGRectGetMinX(emImg.frame),
                               CGRectGetMinY(emImg.frame),
                               CGRectGetWidth(emImg.frame),
                               CGRectGetHeight(emImg.frame));
    if (isExchange) {
        NSLog(@"允許交換");
        [UIView animateWithDuration:0.3 animations:^{
            _allowJoint = NO;
            emImg.frame = defaultFrame;
            tapImg.frame = emRect;
        } completion:^(BOOL finished) {
            NSInteger accesTap = [tapImg.accessibilityValue integerValue];
            NSInteger accesEm = [emImg.accessibilityValue integerValue];

            [_puzzleArray exchangeObjectAtIndex:(accesTap - 1) withObjectAtIndex:(accesEm - 1)];
            tapImg.accessibilityValue = [NSString stringWithFormat:@"%ld",accesEm];
            emImg.accessibilityValue = [NSString stringWithFormat:@"%ld",accesTap];
            _allowJoint = YES;
            if ([self isPuzzleImageFinish]) {
                NSLog(@"拼圖完成");
                [self puzzleImageFinishHandler];
            }
            else{
                NSLog(@"繼續加油");
            }
        }];
    }
    else{
        NSLog(@"不允許交換");
        ///原圖歸位
        [UIView animateWithDuration:0.3 animations:^{
            _allowJoint = NO;
            tapImg.frame = defaultFrame;
        } completion:^(BOOL finished) {
            _allowJoint = YES;
        }];

    }
}

判斷拼圖是否完成

- (BOOL)isPuzzleImageFinish{
    NSString *order = [_orderArray componentsJoinedByString:@""];
    NSString *after = [_puzzleArray componentsJoinedByString:@""];
    return [order isEqualToString:after];
}

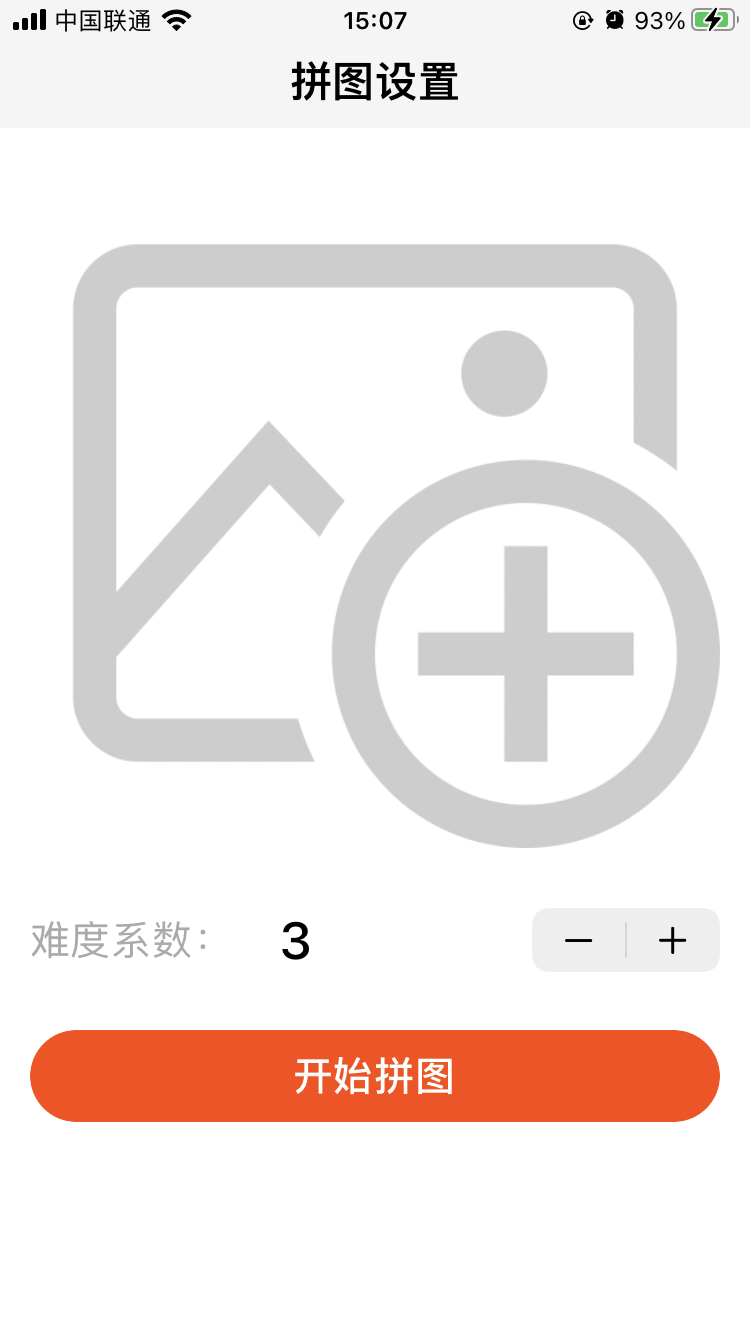

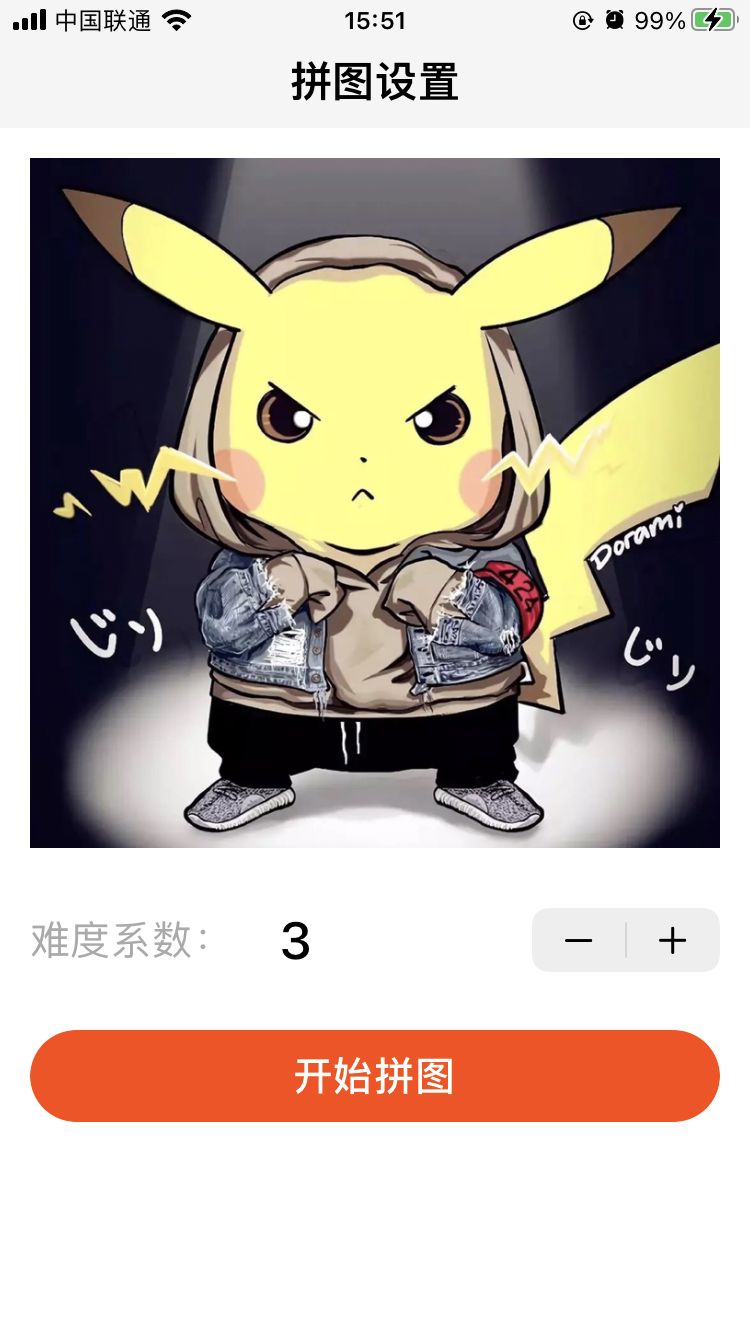

效果

轉載請註明出處，本文鏈接：https://www.uj5u.com/yidong/273576.html

標籤：iOS

上一篇：Android Activity之間的資料傳遞

下一篇：iOS底層原理（五）Runtime（下）
