【VirtualAPP雙開系列02】行程管理

目錄：

• 1. 運行 VirtualAPP，查看行程
• 2. VirtualAPP 分成四種型別的行程
• 3. 關于 Stub
• 4. 關于 ServiceManager

1. 運行 VirtualAPP，查看行程

adb shell;
top;

在 VirtualAPP 中打開百度 App, 可以看到如下輸出：

PID USER         PR  NI VIRT  RES  SHR S[%CPU] %MEM     TIME+ ARGS

2498 u0_a1809     20   0 1.3G  79M  61M S  0.0   1.4   0:00.48 com.docker:x
2443 u0_a1809     10 -10 1.3G 120M  87M S  0.0   2.1   0:01.19 com.docker
6155 u0_a2009     20   0 1.3G  97M  51M S  8.0   1.7   0:02.66 com.docker:p1

922 system       -2   0 343M  18M  12M S 35.6   0.3  92:29.87 surfaceflinger
1214 system       10 -10 8.4G 323M 323M S  1.0   5.7  44:46.97 system_server

5043 u0_a1809     20   0 1.5G 290M  80M S  0.3   5.1   0:09.86 com.baidu.searchbox:loki
5007 u0_a1809     20   0 1.5G 288M  77M S  0.0   5.1   0:08.45 com.baidu.searchbox:titanSandbox

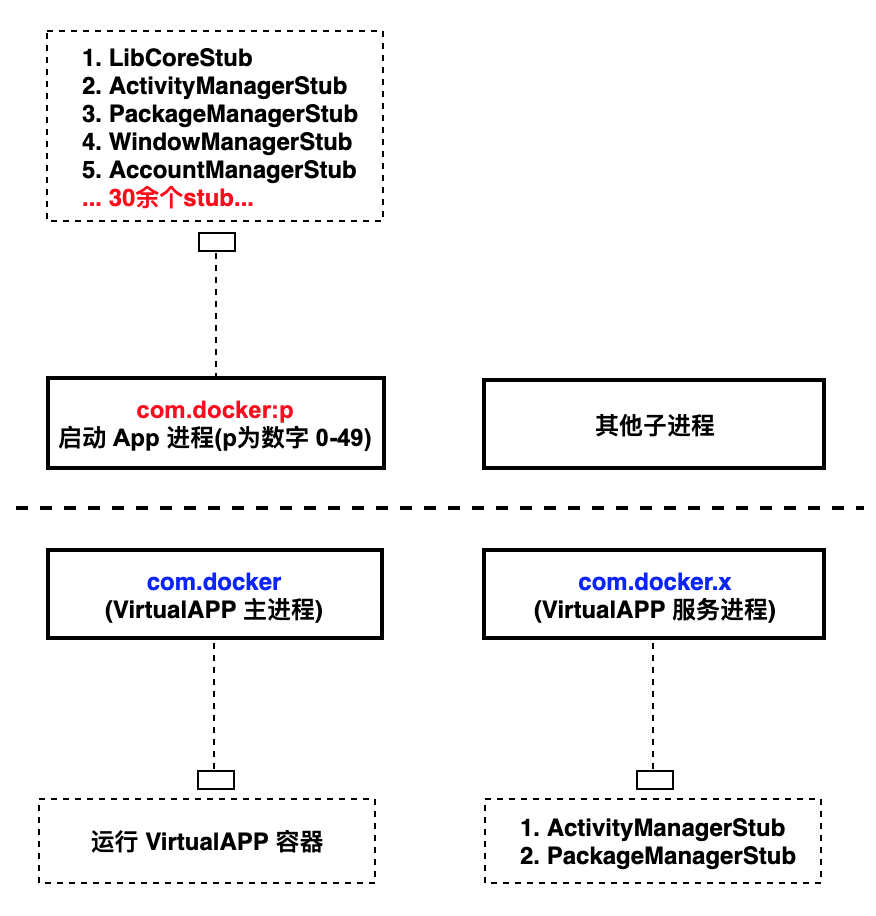

2. VirtualAPP 分成四種型別的行程

public class DockerCore {
    /**
     * Process type
     */
    private enum ProcessType {
        /**
         * Server process
         */
        Server,
        /**
         * Virtual app process
         */
        VAppClient,
        /**
         * Main process
         */
        Main,
        /**
         * Child process
         */
        CHILD
    }
}

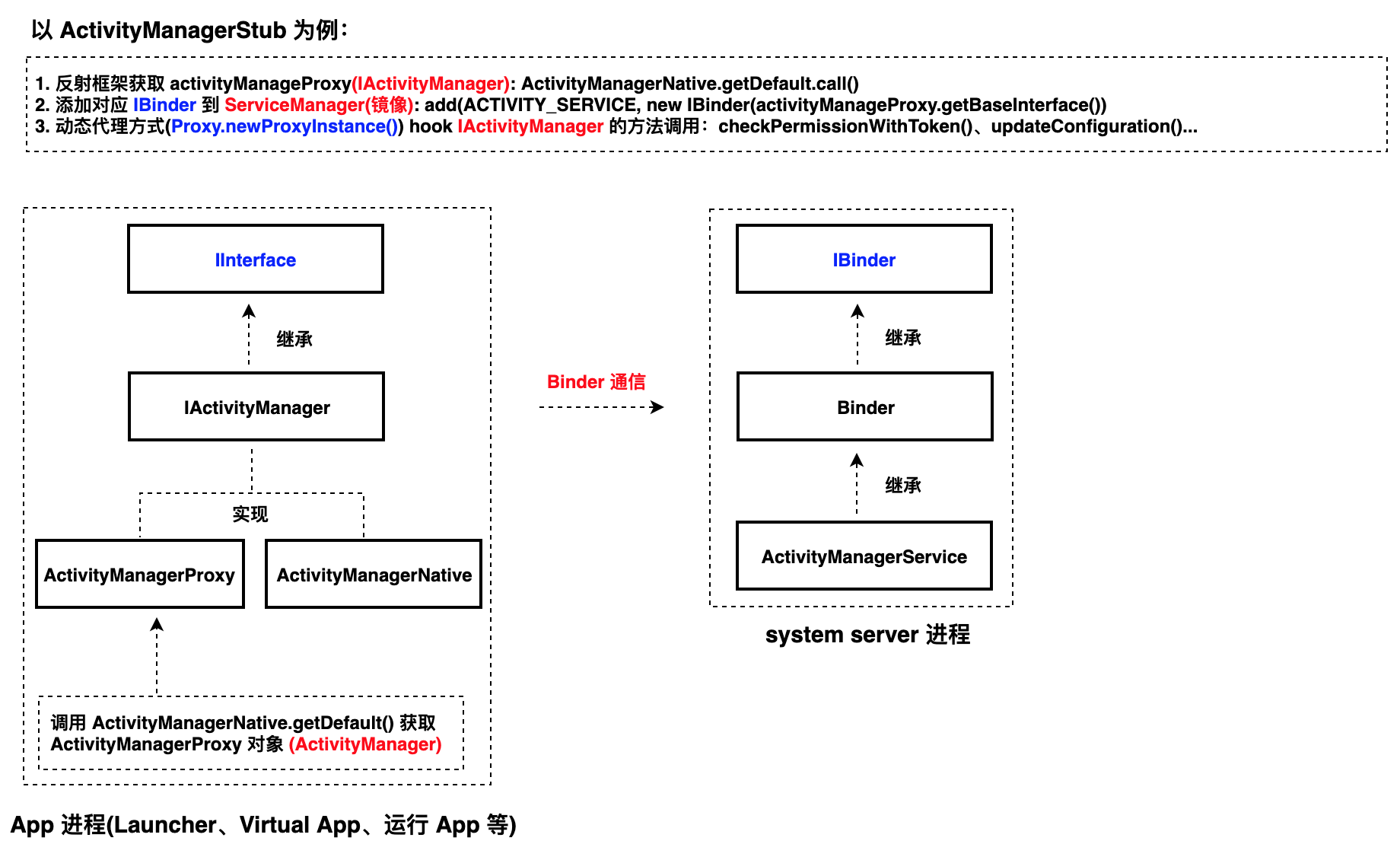

3. 關于 Stub

package com.android.dockercore.client.hook.proxies.am;

@Inject(MethodProxies.class)
public class ActivityManagerStub extends MethodInvocationProxy<MethodInvocationStub<IInterface>> {

    public ActivityManagerStub() {
        // 呼叫 ActivityManagerNative 相關鏡像類反射獲取 ActivityManagerProxy(IActivityManager 型別) 物件
        super(new MethodInvocationStub<>(ActivityManagerNative.getDefault.call()));
    }

    @Override
    public void inject() throws Throwable {
        if (BuildCompat.isOreo()) {
            Object singleton = ActivityManagerOreo.IActivityManagerSingleton.get();
            Singleton.mInstance.set(singleton, getInvocationStub().getProxyInterface());
        } else {
            if (ActivityManagerNative.gDefault.type() == IActivityManager.TYPE) {
                ActivityManagerNative.gDefault.set(getInvocationStub().getProxyInterface());
            } else if (ActivityManagerNative.gDefault.type() == Singleton.TYPE) {
                Object gDefault = ActivityManagerNative.gDefault.get();
                Singleton.mInstance.set(gDefault, getInvocationStub().getProxyInterface());
            }
        }
        // 構造 IBinder, 傳入 ActivityManagerProxy.getBaseInterface(IInterface 型別)
        BinderInvocationStub hookAMBinder = new BinderInvocationStub(getInvocationStub().getBaseInterface());
        hookAMBinder.copyMethodProxies(getInvocationStub());
        // 添加到鏡像類 ServiveManager
        ServiceManager.sCache.get().put(Context.ACTIVITY_SERVICE, hookAMBinder);
    }

    @Override
    protected void onBindMethods() {
        super.onBindMethods();

        // 運行 app 啟動行程，hook AMS 相關函式
        if (DockerCore.get().isVAppProcess()) {
            addMethodProxy(new StaticMethodProxy("navigateUpTo") {
                @Override
                public Object call(Object who, Method method, Object... args) throws Throwable {
                    return method.invoke(who, args);
                }
            });
            addMethodProxy(new ReplaceLastUidMethodProxy("checkPermissionWithToken"));
            addMethodProxy(new isUserRunning());
            addMethodProxy(new ResultStaticMethodProxy("updateConfiguration", 0));
            addMethodProxy(new ReplaceCallingPkgMethodProxy("setAppLockedVerifying"));
            addMethodProxy(new StaticMethodProxy("checkUriPermission") {
                @Override
                public Object afterCall(Object who, Method method, Object[] args, Object result) throws Throwable {
                    return PackageManager.PERMISSION_GRANTED;
                }
            });
            addMethodProxy(new StaticMethodProxy("getRecentTasks") {
                @Override
                public Object call(Object who, Method method, Object... args) throws Throwable {
                    // ...
                    return _infos;
                }
            });
            addMethodProxy(new StaticMethodProxy("getRunningTasks") {
                @Override
                public Object call(Object who, Method method, Object... args) throws Throwable {
                    // ...
                    return _infos;
                }
            });
        }
    }

    //...
}

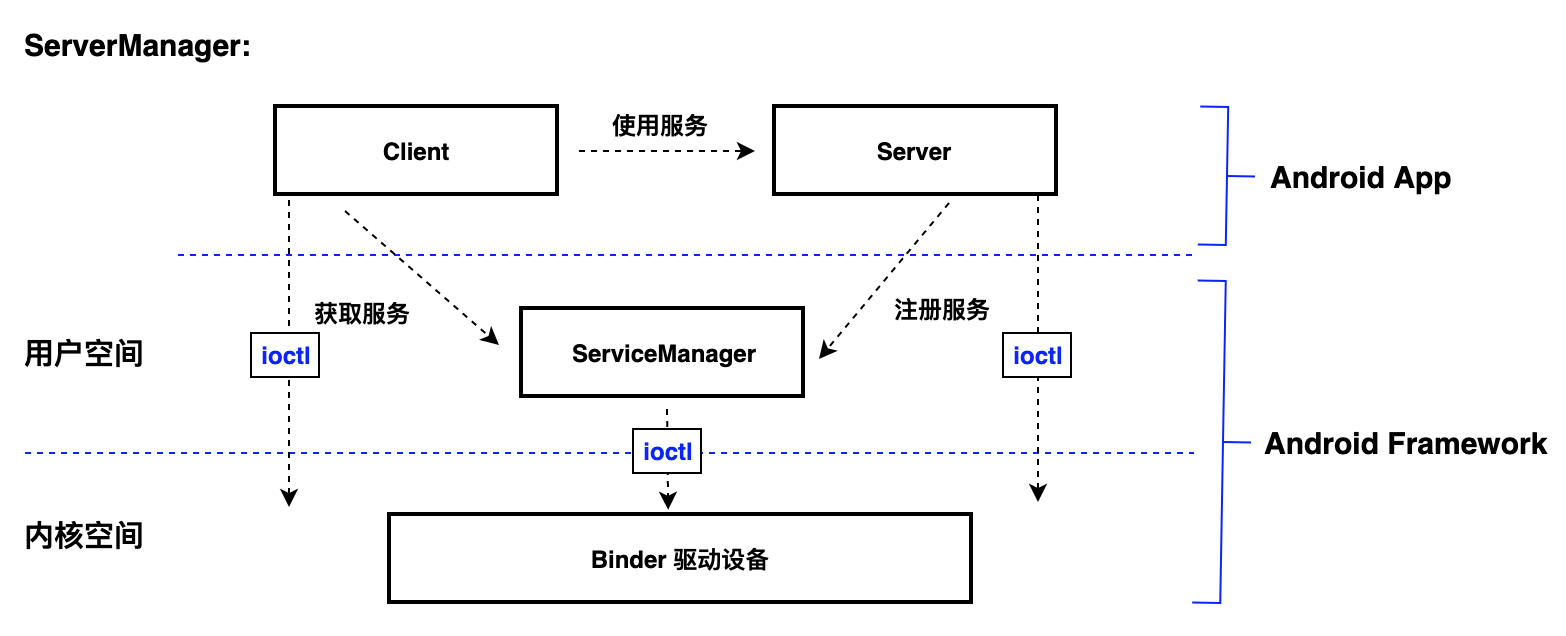

4. 關于 ServiceManager

VirtualAPP 鏡像類 ServiceManager:

package mirror.android.os;

import android.os.IBinder;
import android.os.IInterface;

import java.util.Map;

import mirror.RefClass;
import mirror.MethodParams;
import mirror.RefStaticObject;
import mirror.RefStaticMethod;

public class ServiceManager {
    // 映射到 Java 層真實的 android.os.ServiceManager，內部會通過 binder 呼叫到 framework(c++ 的 ServiceManager)
    public static Class<?> TYPE = RefClass.load(ServiceManager.class, "android.os.ServiceManager");
    @MethodParams({String.class, IBinder.class})
    public static RefStaticMethod<Void> addService;
    public static RefStaticMethod<IBinder> checkService;
    public static RefStaticMethod<IInterface> getIServiceManager;
    public static RefStaticMethod<IBinder> getService;
    public static RefStaticMethod<String[]> listServices;
    public static RefStaticObject<Map<String, IBinder>> sCache;
}

看看 android.os.ServiceManager 的實作：

/*
 * Copyright (C) 2007 The Android Open Source Project
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package android.os;

import com.android.internal.os.BinderInternal;

import android.util.Log;

import java.util.HashMap;
import java.util.Map;

/** @hide */
public final class ServiceManager {
    private static final String TAG = "ServiceManager";

    private static IServiceManager sServiceManager;
    private static HashMap<String, IBinder> sCache = new HashMap<String, IBinder>();

    private static IServiceManager getIServiceManager() {
        if (sServiceManager != null) {
            return sServiceManager;
        }

        // 采用了單例模式獲取ServiceManager getIServiceManager()回傳的是ServiceManagerProxy(簡稱SMP)物件
        sServiceManager = ServiceManagerNative.asInterface(BinderInternal.getContextObject());
        return sServiceManager;
    }

    /**
     * 關于getIServiceManager()，等價于new ServiceManagerProxy(new BinderProxy())，
     * 其中sCache = new HashMap<String, IBinder>()以hashmap格式快取已組成的名稱，請求獲取服務程序中，先從快取中查詢是否存在，
     * 如果快取中不存在的話，再通過binder互動來查詢相應的服務
     */
    public static IBinder getService(String name) {
        try {
            IBinder service = sCache.get(name);
            if (service != null) {
                return service;
            } else {
                return getIServiceManager().getService(name);
            }
        } catch (RemoteException e) {
            Log.e(TAG, "error in getService", e);
        }
        return null;
    }

    public static void addService(String name, IBinder service) {
        try {
            // 先獲取SMP物件，則執行注冊服務操作
            getIServiceManager().addService(name, service, false);
        } catch (RemoteException e) {
            Log.e(TAG, "error in addService", e);
        }
    }

    public static void addService(String name, IBinder service, boolean allowIsolated) {
        try {
            getIServiceManager().addService(name, service, allowIsolated);
        } catch (RemoteException e) {
            Log.e(TAG, "error in addService", e);
        }
    }

    public static IBinder checkService(String name) {
        try {
            IBinder service = sCache.get(name);
            if (service != null) {
                return service;
            } else {
                return getIServiceManager().checkService(name);
            }
        } catch (RemoteException e) {
            Log.e(TAG, "error in checkService", e);
            return null;
        }
    }

    public static String[] listServices() {
        try {
            return getIServiceManager().listServices();
        } catch (RemoteException e) {
            Log.e(TAG, "error in listServices", e);
            return null;
        }
    }

    public static void initServiceCache(Map<String, IBinder> cache) {
        if (sCache.size() != 0) {
            throw new IllegalStateException("setServiceCache may only be called once");
        }
        sCache.putAll(cache);
    }
}
