什么是RunLoop

從字面意思來看，就是運行回圈的意思，其實就是在程式運行程序中回圈做一些事情

RunLoop的應用范疇

下面幾個技術都需要在RunLoop下才能進行

定時器（Timer）、PerformSelector- GCD Async Main Queue- 事件回應、手勢識別、界面重繪- 網路請求- AutoreleasePool

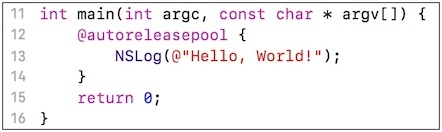

在main函式中，如果沒有RunLoop，那么下面代碼執行完第三行后就會退出程式

獲取RunLoop物件

iOS中有2套API來訪問和使用RunLoop

Foundation：NSRunLoop
Core Foundation：CFRunLoopRef

NSRunLoop是基于CFRunLoopRef的一層OC包裝，兩者都代表著RunLoop物件

CFRunLoopRef的開源代碼地址：https://opensource.apple.com/tarballs/CF/

在代碼中的呼叫方法：

NSRunLoop *runloop = [NSRunLoop currentRunLoop];
CFRunLoopRef runloop2 = CFRunLoopGetCurrent();

RunLoop與執行緒

每條執行緒都有唯一的一個與之對應的RunLoop物件
RunLoop保存在一個全域的Dictionary里，執行緒作為key，RunLoop作為value
執行緒剛創建時并沒有RunLoop物件，RunLoop會在第一次獲取它時創建
RunLoop會在執行緒結束時銷毀

下面兩種方式都可以獲取到主執行緒的RunLoop，主執行緒的RunLoop會在main函式執行UIApplicationMain的時候自動創建，所以呼叫[NSRunLoop currentRunLoop]時已經有了RunLoop物件

NSLog(@"%p %p", [NSRunLoop currentRunLoop], [NSRunLoop mainRunLoop]);
NSLog(@"%p %p", CFRunLoopGetCurrent(), CFRunLoopGetMain());

在子執行緒里一開始是沒有創建RunLoop物件的，需要呼叫[NSRunLoop currentRunLoop]才會創建

我們可以從原始碼CFRunloop.c檔案中查看對應實作

CF_EXPORT CFRunLoopRef _CFRunLoopGet0(pthread_t t) {
    if (pthread_equal(t, kNilPthreadT)) {
	t = pthread_main_thread_np();
    }
    __CFLock(&loopsLock);

    // 如果沒有__CFRunLoops字典，先創建一個
    if (!__CFRunLoops) {
        __CFUnlock(&loopsLock);
	CFMutableDictionaryRef dict = CFDictionaryCreateMutable(kCFAllocatorSystemDefault, 0, NULL, &kCFTypeDictionaryValueCallBacks);

    // 然后創建主執行緒的runloop，對應主執行緒的key存盤到字典中
	CFRunLoopRef mainLoop = __CFRunLoopCreate(pthread_main_thread_np());
	CFDictionarySetValue(dict, pthreadPointer(pthread_main_thread_np()), mainLoop);
	if (!OSAtomicCompareAndSwapPtrBarrier(NULL, dict, (void * volatile *)&__CFRunLoops)) {
	    CFRelease(dict);
	}
	CFRelease(mainLoop);
        __CFLock(&loopsLock);
    }

    // 從字典__CFRunLoops里面獲取runloop
    // key: pthreadPointer
    CFRunLoopRef loop = (CFRunLoopRef)CFDictionaryGetValue(__CFRunLoops, pthreadPointer(t));
    __CFUnlock(&loopsLock);

    // 如果沒有與之對應的runloop物件，就創建一個新的runloop
    if (!loop) {
	CFRunLoopRef newLoop = __CFRunLoopCreate(t);
        __CFLock(&loopsLock);

    // 再次判斷是否有該runloop物件
	loop = (CFRunLoopRef)CFDictionaryGetValue(__CFRunLoops, pthreadPointer(t));
    // 如果沒有，就將新創建的runloop賦值進去
	if (!loop) {
	    CFDictionarySetValue(__CFRunLoops, pthreadPointer(t), newLoop);
	    loop = newLoop;
	}
        // don't release run loops inside the loopsLock, because CFRunLoopDeallocate may end up taking it
        __CFUnlock(&loopsLock);
	CFRelease(newLoop);
    }
    if (pthread_equal(t, pthread_self())) {
        _CFSetTSD(__CFTSDKeyRunLoop, (void *)loop, NULL);
        if (0 == _CFGetTSD(__CFTSDKeyRunLoopCntr)) {
            _CFSetTSD(__CFTSDKeyRunLoopCntr, (void *)(PTHREAD_DESTRUCTOR_ITERATIONS-1), (void (*)(void *))__CFFinalizeRunLoop);
        }
    }
    return loop;
}

RunLoop的底層結構

我們通過原始碼可以看到CFRunLoopRef的本質是一個__CFRunLoop結構體型別

typedef struct CF_BRIDGED_MUTABLE_TYPE(id) __CFRunLoop * CFRunLoopRef;

struct __CFRunLoop {
    CFRuntimeBase _base;
    pthread_mutex_t _lock;			/* locked for accessing mode list */
    __CFPort _wakeUpPort;			// used for CFRunLoopWakeUp
    Boolean _unused;
    volatile _per_run_data *_perRunData;              // reset for runs of the run loop
    pthread_t _pthread; // 對應的執行緒
    uint32_t _winthread;
    CFMutableSetRef _commonModes; // 標記為通用的模式
    CFMutableSetRef _commonModeItems;
    CFRunLoopModeRef _currentMode; // 當前模式
    CFMutableSetRef _modes; // 所有模式
    struct _block_item *_blocks_head;
    struct _block_item *_blocks_tail;
    CFAbsoluteTime _runTime;
    CFAbsoluteTime _sleepTime;
    CFTypeRef _counterpart;
};

再來查看里面的_currentMode型別為CFRunLoopModeRef，表示RunLoop的運行模式，本質是__CFRunLoopMode的結構體型別

typedef struct __CFRunLoopMode *CFRunLoopModeRef;

struct __CFRunLoopMode {
    CFRuntimeBase _base;
    pthread_mutex_t _lock;	/* must have the run loop locked before locking this */
    CFStringRef _name;
    Boolean _stopped;
    char _padding[3];

    // _sources0、_sources1就是平時需要處理的事情
    CFMutableSetRef _sources0;
    CFMutableSetRef _sources1;
    CFMutableArrayRef _observers; // 監聽器
    CFMutableArrayRef _timers; // 定時器
    CFMutableDictionaryRef _portToV1SourceMap;
    __CFPortSet _portSet;
    CFIndex _observerMask;
#if USE_DISPATCH_SOURCE_FOR_TIMERS
    dispatch_source_t _timerSource;
    dispatch_queue_t _queue;
    Boolean _timerFired; // set to true by the source when a timer has fired
    Boolean _dispatchTimerArmed;
#endif
#if USE_MK_TIMER_TOO
    mach_port_t _timerPort;
    Boolean _mkTimerArmed;
#endif
#if DEPLOYMENT_TARGET_WINDOWS
    DWORD _msgQMask;
    void (*_msgPump)(void);
#endif
    uint64_t _timerSoftDeadline; /* TSR */
    uint64_t _timerHardDeadline; /* TSR */
};

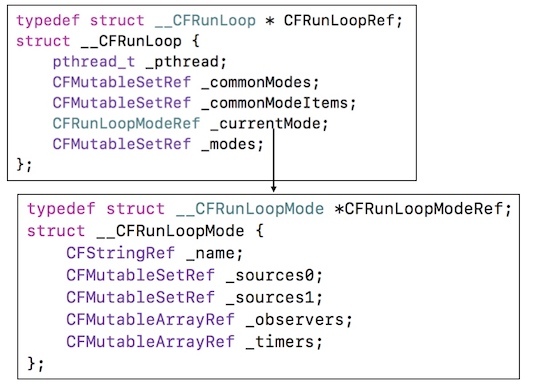

CFRunLoopRef的內部結構可以用下圖來表述

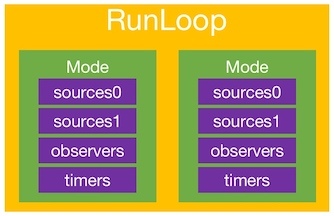

CFRunLoopModeRef在RunLoop中的關系可以用下圖表示

CFRunLoopModeRef

Mode的作用

一個RunLoop包含若干個Mode，每個Mode又包含若干個Source0/Source1/Timer/Observer- RunLoop啟動時只能選擇其中一個Mode，作為currentMode
如果需要切換Mode，只能退出當前Loop，再重新選擇一個Mode進入 - 不同組的Source0/Source1/Timer/Observer能分隔開來，互不影響
- 切換Mode程式不會退出，也是在內部做的切換
如果Mode里沒有任何Source0/Source1/Timer/Observer，RunLoop會立馬退出

RunLoop里面常見的Mode

kCFRunLoopDefaultMode（NSDefaultRunLoopMode）：App的默認Mode，通常主執行緒是在這個Mode下運行
UITrackingRunLoopMode：界面跟蹤Mode，用于ScrollView追蹤觸摸滑動，保證界面滑動時不受其他Mode影響
kCFRunLoopCommonModes默認包括kCFRunLoopDefaultMode、UITrackingRunLoopMode

Mode中成員的用途

Source0 - 觸摸事件處理 - performSelector:onThread:- Source1 - 基于Port的執行緒間通信 - 系統事件捕捉（比如捕捉到點擊事件，然后再交給Source0來做處理）- Timers - NSTimer定時器 - performSelector:withObject:afterDelay:- Observers - 用于監聽RunLoop的狀態（監聽RunLoop是否沒有事件要處理了） - UI重繪（在RunLoop將要進入睡眠時喚醒重繪UI） - Autorelease pool（在RunLoop將要進入睡眠時喚醒進行記憶體釋放）

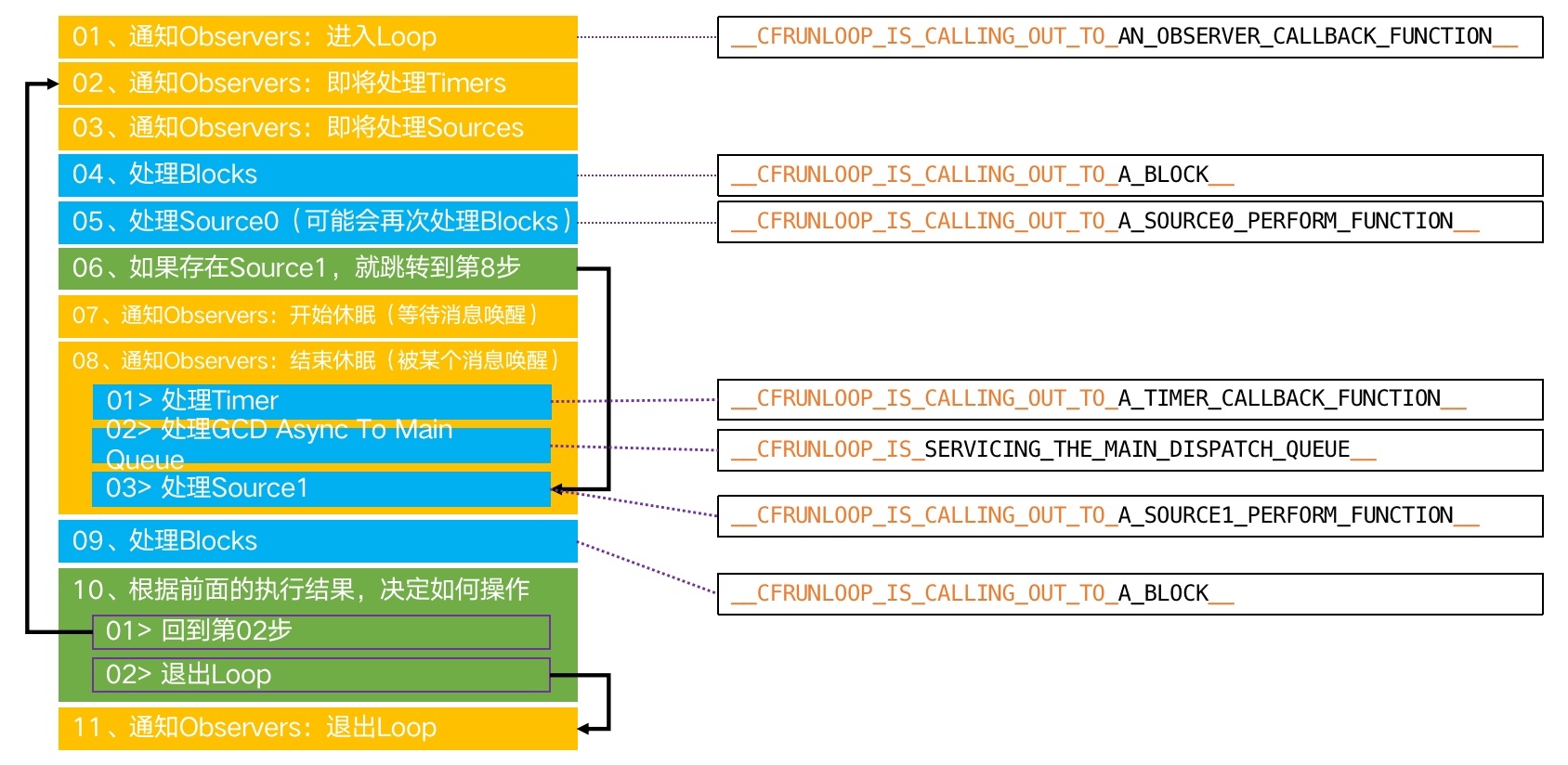

RunLoop的運行邏輯

通過代碼監聽

我們可以通過添加觀察者Observer的方式來監聽RunLoop的狀態以及模式變化

1.通過函式呼叫的方式來監聽

// 創建Observer
// kCFRunLoopAllActivities：監聽所有狀態變化
CFRunLoopObserverRef observer = CFRunLoopObserverCreate(kCFAllocatorDefault, kCFRunLoopAllActivities, YES, 0, observeRunLoopActicities, NULL);
// 添加Observer到RunLoop中
CFRunLoopAddObserver(CFRunLoopGetMain(), observer, kCFRunLoopCommonModes);
// 釋放（C語言中create創建后要對應釋放觀察者）
CFRelease(observer);

void observeRunLoopActicities(CFRunLoopObserverRef observer, CFRunLoopActivity activity, void *info)
{
    switch (activity) {
        case kCFRunLoopEntry:
            NSLog(@"kCFRunLoopEntry");
            break;
        case kCFRunLoopBeforeTimers:
            NSLog(@"kCFRunLoopBeforeTimers");
            break;
        case kCFRunLoopBeforeSources:
            NSLog(@"kCFRunLoopBeforeSources");
            break;
        case kCFRunLoopBeforeWaiting:
            NSLog(@"kCFRunLoopBeforeWaiting");
            break;
        case kCFRunLoopAfterWaiting:
            NSLog(@"kCFRunLoopAfterWaiting");
            break;
        case kCFRunLoopExit:
            NSLog(@"kCFRunLoopExit");
            break;
        default:
            break;
    }
}

2.通過block回呼來監聽

// 創建Observer
CFRunLoopObserverRef observer = CFRunLoopObserverCreateWithHandler(kCFAllocatorDefault, kCFRunLoopAllActivities, YES, 0, ^(CFRunLoopObserverRef observer, CFRunLoopActivity activity) {
   switch (activity) {
       case kCFRunLoopEntry: {
           CFRunLoopMode mode = CFRunLoopCopyCurrentMode(CFRunLoopGetCurrent());
           NSLog(@"kCFRunLoopEntry - %@", mode);
           CFRelease(mode);
           break;
       }

       case kCFRunLoopBeforeTimers: {
           CFRunLoopMode mode = CFRunLoopCopyCurrentMode(CFRunLoopGetCurrent());
           NSLog(@"kCFRunLoopBeforeTimers - %@", mode);
           CFRelease(mode);
           break;
       }

       case kCFRunLoopBeforeSources: {
           CFRunLoopMode mode = CFRunLoopCopyCurrentMode(CFRunLoopGetCurrent());
           NSLog(@"kCFRunLoopBeforeSources - %@", mode);
           CFRelease(mode);
           break;
       }

       case kCFRunLoopBeforeWaiting: {
           CFRunLoopMode mode = CFRunLoopCopyCurrentMode(CFRunLoopGetCurrent());
           NSLog(@"kCFRunLoopBeforeWaiting - %@", mode);
           CFRelease(mode);
           break;
       }

       case kCFRunLoopAfterWaiting: {
           CFRunLoopMode mode = CFRunLoopCopyCurrentMode(CFRunLoopGetCurrent());
           NSLog(@"kCFRunLoopAfterWaiting - %@", mode);
           CFRelease(mode);
           break;
       }

       case kCFRunLoopExit: {
           CFRunLoopMode mode = CFRunLoopCopyCurrentMode(CFRunLoopGetCurrent());
           NSLog(@"kCFRunLoopExit - %@", mode);
           CFRelease(mode);
           break;
       }

       default:
           break;
   }
});

// 添加Observer到RunLoop中
CFRunLoopAddObserver(CFRunLoopGetMain(), observer, kCFRunLoopCommonModes);
// 釋放
CFRelease(observer);

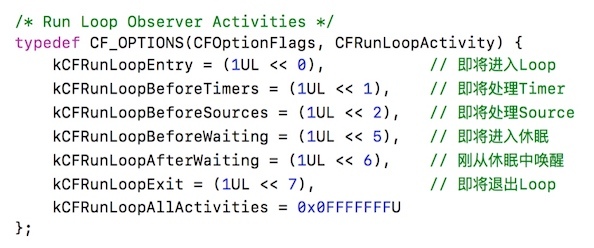

下面是RunLoop狀態變化的列舉注釋

通過原始碼分析

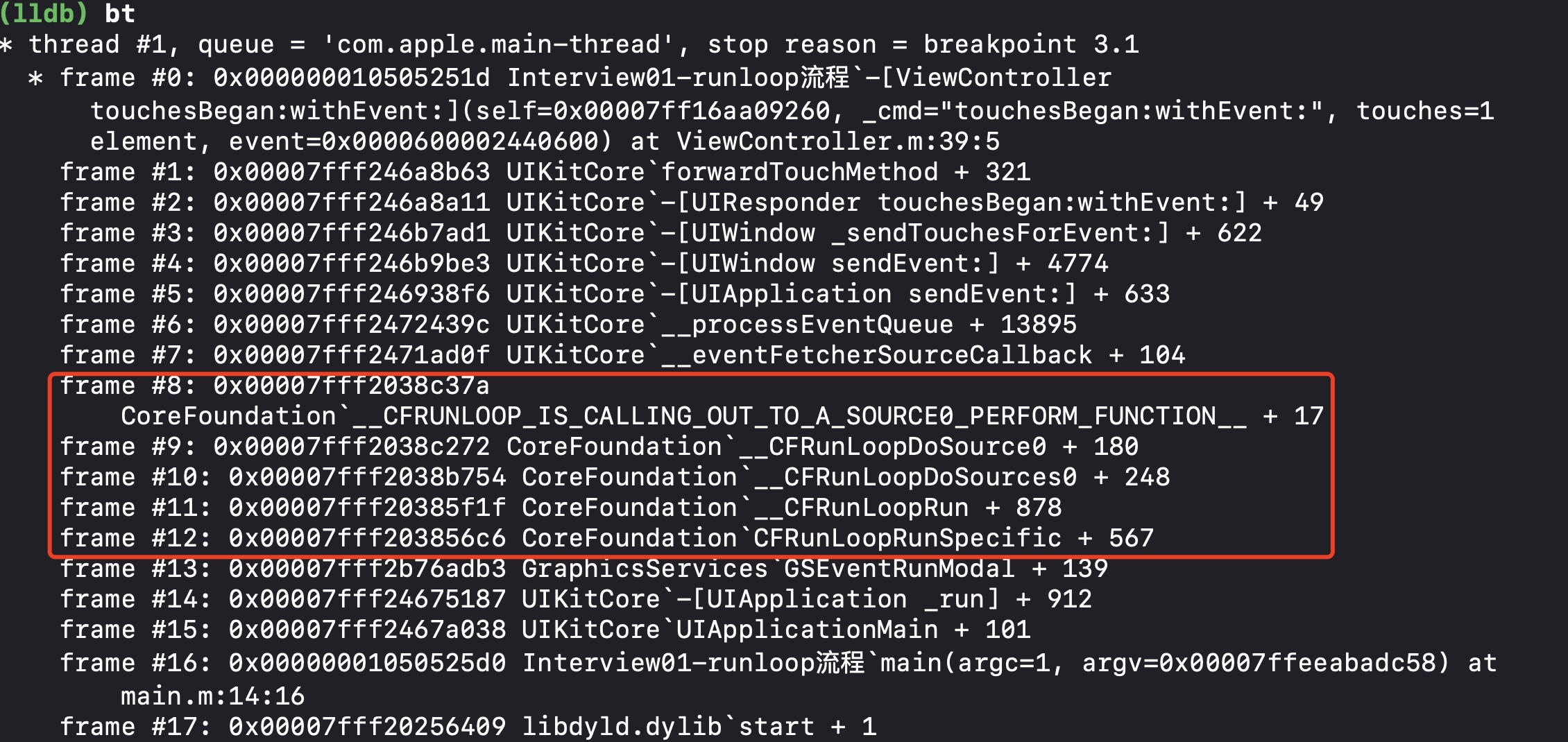

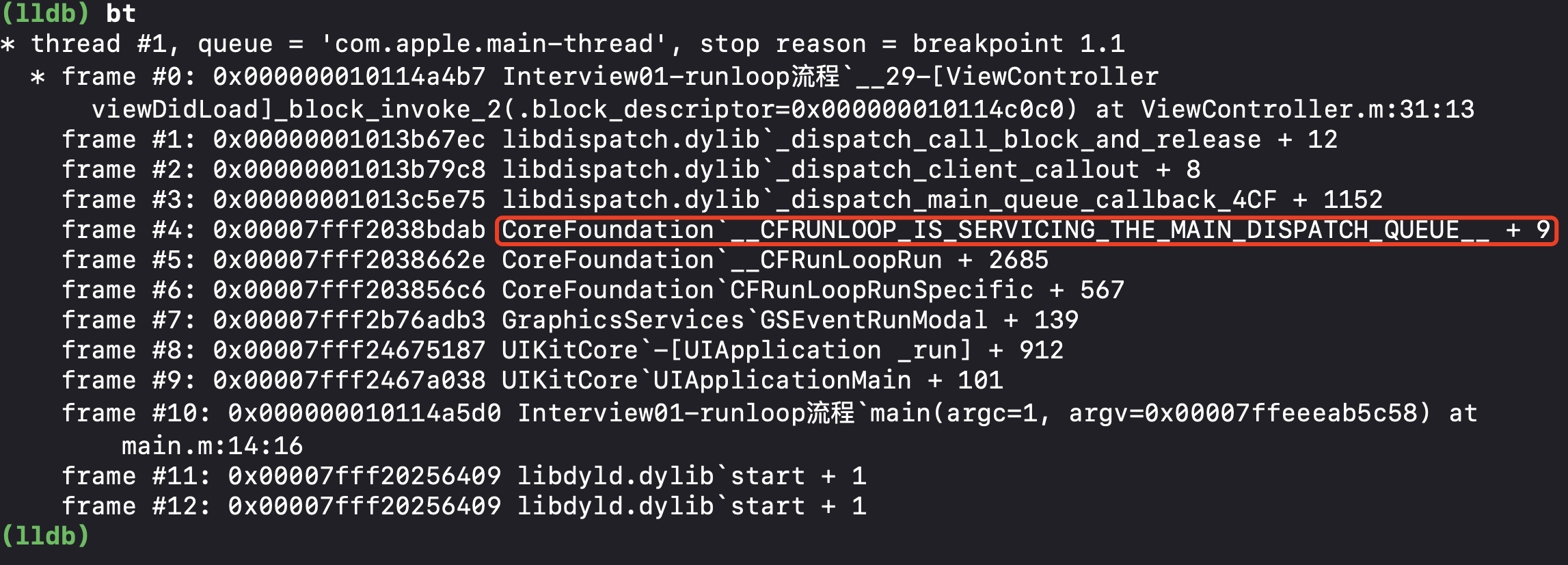

我們新建一個專案并運行，然后可以通過LLDB的命令bt來查看詳細的呼叫程序

可以看到RunLoop的呼叫是從CFRunLoopRunSpecific函式開始的，那么我們在原始碼可以找到該函式的實作來進行分析

SInt32 CFRunLoopRunSpecific(CFRunLoopRef rl, CFStringRef modeName, CFTimeInterval seconds, Boolean returnAfterSourceHandled) {     /* DOES CALLOUT */
    CHECK_FOR_FORK();
    if (__CFRunLoopIsDeallocating(rl)) return kCFRunLoopRunFinished;
    __CFRunLoopLock(rl);
    CFRunLoopModeRef currentMode = __CFRunLoopFindMode(rl, modeName, false);
    if (NULL == currentMode || __CFRunLoopModeIsEmpty(rl, currentMode, rl->_currentMode)) {
	Boolean did = false;
	if (currentMode) __CFRunLoopModeUnlock(currentMode);
	__CFRunLoopUnlock(rl);
	return did ? kCFRunLoopRunHandledSource : kCFRunLoopRunFinished;
    }
    volatile _per_run_data *previousPerRun = __CFRunLoopPushPerRunData(rl);
    CFRunLoopModeRef previousMode = rl->_currentMode;
    rl->_currentMode = currentMode;
    int32_t result = kCFRunLoopRunFinished;

    // 通知observer進入Loop
	if (currentMode->_observerMask & kCFRunLoopEntry ) __CFRunLoopDoObservers(rl, currentMode, kCFRunLoopEntry);
    // 具體要做的事情
	result = __CFRunLoopRun(rl, currentMode, seconds, returnAfterSourceHandled, previousMode);
	if (currentMode->_observerMask & kCFRunLoopExit )
        // 通知observer，退出Loop
        __CFRunLoopDoObservers(rl, currentMode, kCFRunLoopExit);

        __CFRunLoopModeUnlock(currentMode);
        __CFRunLoopPopPerRunData(rl, previousPerRun);
	rl->_currentMode = previousMode;
    __CFRunLoopUnlock(rl);
    return result;
}

我們可以看到核心代碼是在__CFRunLoopRun函式中

static int32_t __CFRunLoopRun(CFRunLoopRef rl, CFRunLoopModeRef rlm, CFTimeInterval seconds, Boolean stopAfterHandle, CFRunLoopModeRef previousMode) {
    uint64_t startTSR = mach_absolute_time();

    if (__CFRunLoopIsStopped(rl)) {
        __CFRunLoopUnsetStopped(rl);
	return kCFRunLoopRunStopped;
    } else if (rlm->_stopped) {
	rlm->_stopped = false;
	return kCFRunLoopRunStopped;
    }

    mach_port_name_t dispatchPort = MACH_PORT_NULL;
    Boolean libdispatchQSafe = pthread_main_np() && ((HANDLE_DISPATCH_ON_BASE_INVOCATION_ONLY && NULL == previousMode) || (!HANDLE_DISPATCH_ON_BASE_INVOCATION_ONLY && 0 == _CFGetTSD(__CFTSDKeyIsInGCDMainQ)));
    if (libdispatchQSafe && (CFRunLoopGetMain() == rl) && CFSetContainsValue(rl->_commonModes, rlm->_name)) dispatchPort = _dispatch_get_main_queue_port_4CF();

#if USE_DISPATCH_SOURCE_FOR_TIMERS
    mach_port_name_t modeQueuePort = MACH_PORT_NULL;
    if (rlm->_queue) {
        modeQueuePort = _dispatch_runloop_root_queue_get_port_4CF(rlm->_queue);
        if (!modeQueuePort) {
            CRASH("Unable to get port for run loop mode queue (%d)", -1);
        }
    }
#endif

    dispatch_source_t timeout_timer = NULL;
    struct __timeout_context *timeout_context = (struct __timeout_context *)malloc(sizeof(*timeout_context));
    if (seconds <= 0.0) { // instant timeout
        seconds = 0.0;
        timeout_context->termTSR = 0ULL;
    } else if (seconds <= TIMER_INTERVAL_LIMIT) {
	dispatch_queue_t queue = pthread_main_np() ? __CFDispatchQueueGetGenericMatchingMain() : __CFDispatchQueueGetGenericBackground();
	timeout_timer = dispatch_source_create(DISPATCH_SOURCE_TYPE_TIMER, 0, 0, queue);
        dispatch_retain(timeout_timer);
	timeout_context->ds = timeout_timer;
	timeout_context->rl = (CFRunLoopRef)CFRetain(rl);
	timeout_context->termTSR = startTSR + __CFTimeIntervalToTSR(seconds);
	dispatch_set_context(timeout_timer, timeout_context); // source gets ownership of context
	dispatch_source_set_event_handler_f(timeout_timer, __CFRunLoopTimeout);
        dispatch_source_set_cancel_handler_f(timeout_timer, __CFRunLoopTimeoutCancel);
        uint64_t ns_at = (uint64_t)((__CFTSRToTimeInterval(startTSR) + seconds) * 1000000000ULL);
        dispatch_source_set_timer(timeout_timer, dispatch_time(1, ns_at), DISPATCH_TIME_FOREVER, 1000ULL);
        dispatch_resume(timeout_timer);
    } else { // infinite timeout
        seconds = 9999999999.0;
        timeout_context->termTSR = UINT64_MAX;
    }

    Boolean didDispatchPortLastTime = true;
    int32_t retVal = 0;

    // ---- 回圈具體做的事情 do...while ----
    do {
#if DEPLOYMENT_TARGET_MACOSX || DEPLOYMENT_TARGET_EMBEDDED || DEPLOYMENT_TARGET_EMBEDDED_MINI
        voucher_mach_msg_state_t voucherState = VOUCHER_MACH_MSG_STATE_UNCHANGED;
        voucher_t voucherCopy = NULL;
#endif
        uint8_t msg_buffer[3 * 1024];
#if DEPLOYMENT_TARGET_MACOSX || DEPLOYMENT_TARGET_EMBEDDED || DEPLOYMENT_TARGET_EMBEDDED_MINI
        mach_msg_header_t *msg = NULL;
        mach_port_t livePort = MACH_PORT_NULL;

        // windows平臺
#elif DEPLOYMENT_TARGET_WINDOWS
        HANDLE livePort = NULL;
        Boolean windowsMessageReceived = false;
#endif
	__CFPortSet waitSet = rlm->_portSet;

        __CFRunLoopUnsetIgnoreWakeUps(rl);

        // 通知observer：即將處理timer
        if (rlm->_observerMask & kCFRunLoopBeforeTimers) __CFRunLoopDoObservers(rl, rlm, kCFRunLoopBeforeTimers);
        // 通知observer：即將處理sources
        if (rlm->_observerMask & kCFRunLoopBeforeSources) __CFRunLoopDoObservers(rl, rlm, kCFRunLoopBeforeSources);

    // 處理blocks
	__CFRunLoopDoBlocks(rl, rlm);
        // 處理source0
        Boolean sourceHandledThisLoop = __CFRunLoopDoSources0(rl, rlm, stopAfterHandle);
        if (sourceHandledThisLoop) {
            // 處理blocks
            __CFRunLoopDoBlocks(rl, rlm);
	}

        Boolean poll = sourceHandledThisLoop || (0ULL == timeout_context->termTSR);

        if (MACH_PORT_NULL != dispatchPort && !didDispatchPortLastTime) {
#if DEPLOYMENT_TARGET_MACOSX || DEPLOYMENT_TARGET_EMBEDDED || DEPLOYMENT_TARGET_EMBEDDED_MINI
            msg = (mach_msg_header_t *)msg_buffer;
            // 判斷有無source1
            if (__CFRunLoopServiceMachPort(dispatchPort, &msg, sizeof(msg_buffer), &livePort, 0, &voucherState, NULL)) {
                // 如果有就跳轉到handle_msg
                goto handle_msg;
            }
#elif DEPLOYMENT_TARGET_WINDOWS
            if (__CFRunLoopWaitForMultipleObjects(NULL, &dispatchPort, 0, 0, &livePort, NULL)) {
                goto handle_msg;
            }
#endif
        }

        didDispatchPortLastTime = false;

	if (!poll && (rlm->_observerMask & kCFRunLoopBeforeWaiting))
        // 通知observer：即將休眠
        __CFRunLoopDoObservers(rl, rlm, kCFRunLoopBeforeWaiting);
	__CFRunLoopSetSleeping(rl);
	// do not do any user callouts after this point (after notifying of sleeping)

        // Must push the local-to-this-activation ports in on every loop
        // iteration, as this mode could be run re-entrantly and we don't
        // want these ports to get serviced.

        __CFPortSetInsert(dispatchPort, waitSet);

	__CFRunLoopModeUnlock(rlm);
	__CFRunLoopUnlock(rl);

        CFAbsoluteTime sleepStart = poll ? 0.0 : CFAbsoluteTimeGetCurrent();

#if DEPLOYMENT_TARGET_MACOSX || DEPLOYMENT_TARGET_EMBEDDED || DEPLOYMENT_TARGET_EMBEDDED_MINI
#if USE_DISPATCH_SOURCE_FOR_TIMERS
        do {
            if (kCFUseCollectableAllocator) {
                // objc_clear_stack(0);
                // <rdar://problem/16393959>
                memset(msg_buffer, 0, sizeof(msg_buffer));
            }
            msg = (mach_msg_header_t *)msg_buffer;

            // 等待別的訊息來喚醒當前執行緒
            __CFRunLoopServiceMachPort(waitSet, &msg, sizeof(msg_buffer), &livePort, poll ? 0 : TIMEOUT_INFINITY, &voucherState, &voucherCopy);

            if (modeQueuePort != MACH_PORT_NULL && livePort == modeQueuePort) {
                // Drain the internal queue. If one of the callout blocks sets the timerFired flag, break out and service the timer.
                while (_dispatch_runloop_root_queue_perform_4CF(rlm->_queue));
                if (rlm->_timerFired) {
                    // Leave livePort as the queue port, and service timers below
                    rlm->_timerFired = false;
                    break;
                } else {
                    if (msg && msg != (mach_msg_header_t *)msg_buffer) free(msg);
                }
            } else {
                // Go ahead and leave the inner loop.
                break;
            }
        } while (1);
#else
        if (kCFUseCollectableAllocator) {
            // objc_clear_stack(0);
            // <rdar://problem/16393959>
            memset(msg_buffer, 0, sizeof(msg_buffer));
        }
        msg = (mach_msg_header_t *)msg_buffer;
        __CFRunLoopServiceMachPort(waitSet, &msg, sizeof(msg_buffer), &livePort, poll ? 0 : TIMEOUT_INFINITY, &voucherState, &voucherCopy);
#endif


#elif DEPLOYMENT_TARGET_WINDOWS
        // Here, use the app-supplied message queue mask. They will set this if they are interested in having this run loop receive windows messages.
        __CFRunLoopWaitForMultipleObjects(waitSet, NULL, poll ? 0 : TIMEOUT_INFINITY, rlm->_msgQMask, &livePort, &windowsMessageReceived);
#endif

        __CFRunLoopLock(rl);
        __CFRunLoopModeLock(rlm);

        rl->_sleepTime += (poll ? 0.0 : (CFAbsoluteTimeGetCurrent() - sleepStart));

        // Must remove the local-to-this-activation ports in on every loop
        // iteration, as this mode could be run re-entrantly and we don't
        // want these ports to get serviced. Also, we don't want them left
        // in there if this function returns.

        __CFPortSetRemove(dispatchPort, waitSet);

        __CFRunLoopSetIgnoreWakeUps(rl);

        // user callouts now OK again
	__CFRunLoopUnsetSleeping(rl);
	if (!poll && (rlm->_observerMask & kCFRunLoopAfterWaiting))
        // 通知observer：結束休眠
        __CFRunLoopDoObservers(rl, rlm, kCFRunLoopAfterWaiting);
        // 呼叫handle_msg
        handle_msg:;
        __CFRunLoopSetIgnoreWakeUps(rl);

#if DEPLOYMENT_TARGET_WINDOWS
        if (windowsMessageReceived) {
            // These Win32 APIs cause a callout, so make sure we're unlocked first and relocked after
            __CFRunLoopModeUnlock(rlm);
	    __CFRunLoopUnlock(rl);

            if (rlm->_msgPump) {
                rlm->_msgPump();
            } else {
                MSG msg;
                if (PeekMessage(&msg, NULL, 0, 0, PM_REMOVE | PM_NOYIELD)) {
                    TranslateMessage(&msg);
                    DispatchMessage(&msg);
                }
            }

            __CFRunLoopLock(rl);
	    __CFRunLoopModeLock(rlm);
 	    sourceHandledThisLoop = true;

            // To prevent starvation of sources other than the message queue, we check again to see if any other sources need to be serviced
            // Use 0 for the mask so windows messages are ignored this time. Also use 0 for the timeout, because we're just checking to see if the things are signalled right now -- we will wait on them again later.
            // NOTE: Ignore the dispatch source (it's not in the wait set anymore) and also don't run the observers here since we are polling.
            __CFRunLoopSetSleeping(rl);
            __CFRunLoopModeUnlock(rlm);
            __CFRunLoopUnlock(rl);

            __CFRunLoopWaitForMultipleObjects(waitSet, NULL, 0, 0, &livePort, NULL);

            __CFRunLoopLock(rl);
            __CFRunLoopModeLock(rlm);
            __CFRunLoopUnsetSleeping(rl);
            // If we have a new live port then it will be handled below as normal
        }


#endif
        // 判斷是怎么醒來的
        if (MACH_PORT_NULL == livePort) {
            CFRUNLOOP_WAKEUP_FOR_NOTHING();
            // handle nothing
        } else if (livePort == rl->_wakeUpPort) {
            CFRUNLOOP_WAKEUP_FOR_WAKEUP();
            // do nothing on Mac OS
#if DEPLOYMENT_TARGET_WINDOWS
            // Always reset the wake up port, or risk spinning forever
            ResetEvent(rl->_wakeUpPort);
#endif
        }

#if USE_DISPATCH_SOURCE_FOR_TIMERS
        // 被timer喚醒
        else if (modeQueuePort != MACH_PORT_NULL && livePort == modeQueuePort) {
            CFRUNLOOP_WAKEUP_FOR_TIMER();
            if (!__CFRunLoopDoTimers(rl, rlm, mach_absolute_time())) {
                // Re-arm the next timer, because we apparently fired early
                // 處理timers
                __CFArmNextTimerInMode(rlm, rl);
            }
        }
#endif
#if USE_MK_TIMER_TOO
        // 被timer喚醒
        else if (rlm->_timerPort != MACH_PORT_NULL && livePort == rlm->_timerPort) {
            CFRUNLOOP_WAKEUP_FOR_TIMER();
            // On Windows, we have observed an issue where the timer port is set before the time which we requested it to be set. For example, we set the fire time to be TSR 167646765860, but it is actually observed firing at TSR 167646764145, which is 1715 ticks early. The result is that, when __CFRunLoopDoTimers checks to see if any of the run loop timers should be firing, it appears to be 'too early' for the next timer, and no timers are handled.
            // In this case, the timer port has been automatically reset (since it was returned from MsgWaitForMultipleObjectsEx), and if we do not re-arm it, then no timers will ever be serviced again unless something adjusts the timer list (e.g. adding or removing timers). The fix for the issue is to reset the timer here if CFRunLoopDoTimers did not handle a timer itself. 9308754
            if (!__CFRunLoopDoTimers(rl, rlm, mach_absolute_time())) {
                // Re-arm the next timer
                // 處理timers
                __CFArmNextTimerInMode(rlm, rl);
            }
        }
#endif
        // 被gcd喚醒
        else if (livePort == dispatchPort) {
            CFRUNLOOP_WAKEUP_FOR_DISPATCH();
            __CFRunLoopModeUnlock(rlm);
            __CFRunLoopUnlock(rl);
            _CFSetTSD(__CFTSDKeyIsInGCDMainQ, (void *)6, NULL);
#if DEPLOYMENT_TARGET_WINDOWS
            void *msg = 0;
#endif
            // 處理gcd相關事情
            __CFRUNLOOP_IS_SERVICING_THE_MAIN_DISPATCH_QUEUE__(msg);
            _CFSetTSD(__CFTSDKeyIsInGCDMainQ, (void *)0, NULL);
            __CFRunLoopLock(rl);
            __CFRunLoopModeLock(rlm);
            sourceHandledThisLoop = true;
            didDispatchPortLastTime = true;
        } else {
            // 被source1喚醒
            CFRUNLOOP_WAKEUP_FOR_SOURCE();

            // If we received a voucher from this mach_msg, then put a copy of the new voucher into TSD. CFMachPortBoost will look in the TSD for the voucher. By using the value in the TSD we tie the CFMachPortBoost to this received mach_msg explicitly without a chance for anything in between the two pieces of code to set the voucher again.
            voucher_t previousVoucher = _CFSetTSD(__CFTSDKeyMachMessageHasVoucher, (void *)voucherCopy, os_release);

            // Despite the name, this works for windows handles as well
            CFRunLoopSourceRef rls = __CFRunLoopModeFindSourceForMachPort(rl, rlm, livePort);
            if (rls) {
#if DEPLOYMENT_TARGET_MACOSX || DEPLOYMENT_TARGET_EMBEDDED || DEPLOYMENT_TARGET_EMBEDDED_MINI
            // 處理source1
		mach_msg_header_t *reply = NULL;
		sourceHandledThisLoop = __CFRunLoopDoSource1(rl, rlm, rls, msg, msg->msgh_size, &reply) || sourceHandledThisLoop;
		if (NULL != reply) {
		    (void)mach_msg(reply, MACH_SEND_MSG, reply->msgh_size, 0, MACH_PORT_NULL, 0, MACH_PORT_NULL);
		    CFAllocatorDeallocate(kCFAllocatorSystemDefault, reply);
		}
#elif DEPLOYMENT_TARGET_WINDOWS
                sourceHandledThisLoop = __CFRunLoopDoSource1(rl, rlm, rls) || sourceHandledThisLoop;
#endif
	    }

            // Restore the previous voucher
            _CFSetTSD(__CFTSDKeyMachMessageHasVoucher, previousVoucher, os_release);

        }
#if DEPLOYMENT_TARGET_MACOSX || DEPLOYMENT_TARGET_EMBEDDED || DEPLOYMENT_TARGET_EMBEDDED_MINI
        if (msg && msg != (mach_msg_header_t *)msg_buffer) free(msg);
#endif
    // 處理block
	__CFRunLoopDoBlocks(rl, rlm);

    // 根據retVal回傳值來決定要做什么
	if (sourceHandledThisLoop && stopAfterHandle) {
	    retVal = kCFRunLoopRunHandledSource;
        } else if (timeout_context->termTSR < mach_absolute_time()) {
            retVal = kCFRunLoopRunTimedOut;
	} else if (__CFRunLoopIsStopped(rl)) {
            __CFRunLoopUnsetStopped(rl);
	    retVal = kCFRunLoopRunStopped;
	} else if (rlm->_stopped) {
	    rlm->_stopped = false;
	    retVal = kCFRunLoopRunStopped;
	} else if (__CFRunLoopModeIsEmpty(rl, rlm, previousMode)) {
	    retVal = kCFRunLoopRunFinished;
	}

#if DEPLOYMENT_TARGET_MACOSX || DEPLOYMENT_TARGET_EMBEDDED || DEPLOYMENT_TARGET_EMBEDDED_MINI
        voucher_mach_msg_revert(voucherState);
        os_release(voucherCopy);
#endif

    } while (0 == retVal);
    // ---- 回圈結束 -----


    if (timeout_timer) {
        dispatch_source_cancel(timeout_timer);
        dispatch_release(timeout_timer);
    } else {
        free(timeout_context);
    }

    // 如果不等于0就退出loop
    return retVal;
}

細節分析

在__CFRunLoopDoObservers函式里會呼叫通知observer的代碼來執行__CFRUNLOOP_IS_CALLING_OUT_TO_AN_OBSERVER_CALLBACK_FUNCTION__

static void __CFRunLoopDoObservers(CFRunLoopRef rl, CFRunLoopModeRef rlm, CFRunLoopActivity activity) {	/* DOES CALLOUT */
    CHECK_FOR_FORK();

    CFIndex cnt = rlm->_observers ? CFArrayGetCount(rlm->_observers) : 0;
    if (cnt < 1) return;

    /* Fire the observers */
    STACK_BUFFER_DECL(CFRunLoopObserverRef, buffer, (cnt <= 1024) ? cnt : 1);
    CFRunLoopObserverRef *collectedObservers = (cnt <= 1024) ? buffer : (CFRunLoopObserverRef *)malloc(cnt * sizeof(CFRunLoopObserverRef));
    CFIndex obs_cnt = 0;
    for (CFIndex idx = 0; idx < cnt; idx++) {
        CFRunLoopObserverRef rlo = (CFRunLoopObserverRef)CFArrayGetValueAtIndex(rlm->_observers, idx);
        if (0 != (rlo->_activities & activity) && __CFIsValid(rlo) && !__CFRunLoopObserverIsFiring(rlo)) {
            collectedObservers[obs_cnt++] = (CFRunLoopObserverRef)CFRetain(rlo);
        }
    }
    __CFRunLoopModeUnlock(rlm);
    __CFRunLoopUnlock(rl);
    for (CFIndex idx = 0; idx < obs_cnt; idx++) {
        CFRunLoopObserverRef rlo = collectedObservers[idx];
        __CFRunLoopObserverLock(rlo);
        if (__CFIsValid(rlo)) {
            Boolean doInvalidate = !__CFRunLoopObserverRepeats(rlo);
            __CFRunLoopObserverSetFiring(rlo);
            __CFRunLoopObserverUnlock(rlo);
            // 這句才是真正處理observer的代碼
            __CFRUNLOOP_IS_CALLING_OUT_TO_AN_OBSERVER_CALLBACK_FUNCTION__(rlo->_callout, rlo, activity, rlo->_context.info);
            if (doInvalidate) {
                CFRunLoopObserverInvalidate(rlo);
            }
            __CFRunLoopObserverUnsetFiring(rlo);
        } else {
            __CFRunLoopObserverUnlock(rlo);
        }
        CFRelease(rlo);
    }
    __CFRunLoopLock(rl);
    __CFRunLoopModeLock(rlm);

    if (collectedObservers != buffer) free(collectedObservers);
}

在__CFRunLoopDoSources0函式中會呼叫處理Source0的代碼__CFRUNLOOP_IS_CALLING_OUT_TO_A_SOURCE0_PERFORM_FUNCTION__

static Boolean __CFRunLoopDoSources0(CFRunLoopRef rl, CFRunLoopModeRef rlm, Boolean stopAfterHandle) {	/* DOES CALLOUT */
    CHECK_FOR_FORK();
    CFTypeRef sources = NULL;
    Boolean sourceHandled = false;

    /* Fire the version 0 sources */
    if (NULL != rlm->_sources0 && 0 < CFSetGetCount(rlm->_sources0)) {
	CFSetApplyFunction(rlm->_sources0, (__CFRunLoopCollectSources0), &sources);
    }
    if (NULL != sources) {
	__CFRunLoopModeUnlock(rlm);
	__CFRunLoopUnlock(rl);
	// sources is either a single (retained) CFRunLoopSourceRef or an array of (retained) CFRunLoopSourceRef
	if (CFGetTypeID(sources) == CFRunLoopSourceGetTypeID()) {
	    CFRunLoopSourceRef rls = (CFRunLoopSourceRef)sources;
	    __CFRunLoopSourceLock(rls);
            if (__CFRunLoopSourceIsSignaled(rls)) {
	        __CFRunLoopSourceUnsetSignaled(rls);
	        if (__CFIsValid(rls)) {
	            __CFRunLoopSourceUnlock(rls);
                // 這句才是處理source0的真正的代碼
                    __CFRUNLOOP_IS_CALLING_OUT_TO_A_SOURCE0_PERFORM_FUNCTION__(rls->_context.version0.perform, rls->_context.version0.info);
	            CHECK_FOR_FORK();
	            sourceHandled = true;
	        } else {
	            __CFRunLoopSourceUnlock(rls);
	        }
            } else {
                __CFRunLoopSourceUnlock(rls);
            }
	} else {
	    CFIndex cnt = CFArrayGetCount((CFArrayRef)sources);
	    CFArraySortValues((CFMutableArrayRef)sources, CFRangeMake(0, cnt), (__CFRunLoopSourceComparator), NULL);
	    for (CFIndex idx = 0; idx < cnt; idx++) {
		CFRunLoopSourceRef rls = (CFRunLoopSourceRef)CFArrayGetValueAtIndex((CFArrayRef)sources, idx);
		__CFRunLoopSourceLock(rls);
                if (__CFRunLoopSourceIsSignaled(rls)) {
		    __CFRunLoopSourceUnsetSignaled(rls);
		    if (__CFIsValid(rls)) {
		        __CFRunLoopSourceUnlock(rls);
                        __CFRUNLOOP_IS_CALLING_OUT_TO_A_SOURCE0_PERFORM_FUNCTION__(rls->_context.version0.perform, rls->_context.version0.info);
		        CHECK_FOR_FORK();
		        sourceHandled = true;
		    } else {
		        __CFRunLoopSourceUnlock(rls);
		    }
                } else {
                    __CFRunLoopSourceUnlock(rls);
                }
		if (stopAfterHandle && sourceHandled) {
		    break;
		}
	    }
	}
	CFRelease(sources);
	__CFRunLoopLock(rl);
	__CFRunLoopModeLock(rlm);
    }
    return sourceHandled;
}

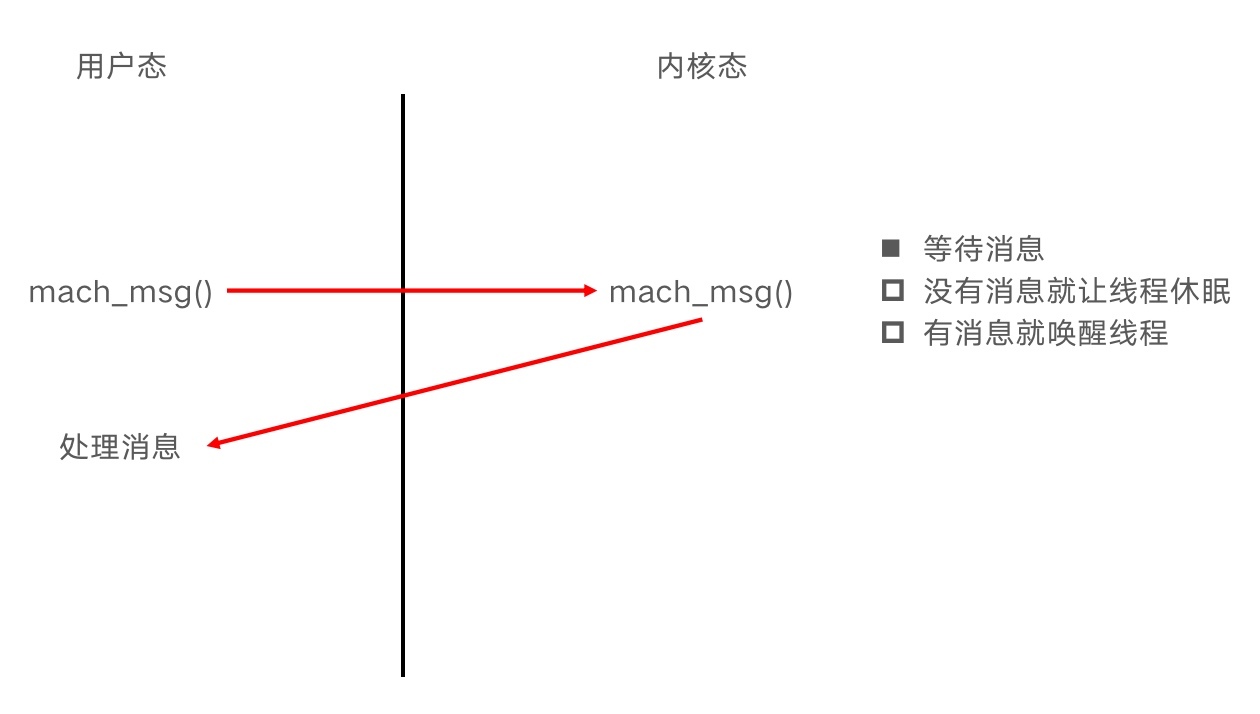

__CFRunLoopServiceMachPort意味著RunLoop進入睡眠，也就是會阻塞當前執行緒，不再往后執行代碼；只有當RunLoop被喚醒才會繼續執行后面的代碼，這種阻塞是真正的阻塞，執行緒會進入休息，不再做任何事情，和寫個死回圈的阻塞是不一樣的，死回圈還是會執行代碼，執行緒還是要一直作業的

static Boolean __CFRunLoopServiceMachPort(mach_port_name_t port, mach_msg_header_t **buffer, size_t buffer_size, mach_port_t *livePort, mach_msg_timeout_t timeout, voucher_mach_msg_state_t *voucherState, voucher_t *voucherCopy) {
    Boolean originalBuffer = true;
    kern_return_t ret = KERN_SUCCESS;
    for (;;) {		/* In that sleep of death what nightmares may come ... */
        mach_msg_header_t *msg = (mach_msg_header_t *)*buffer;
        msg->msgh_bits = 0;
        msg->msgh_local_port = port;
        msg->msgh_remote_port = MACH_PORT_NULL;
        msg->msgh_size = buffer_size;
        msg->msgh_id = 0;
        if (TIMEOUT_INFINITY == timeout) { CFRUNLOOP_SLEEP(); } else { CFRUNLOOP_POLL(); }

        // 內核層面的api呼叫
        ret = mach_msg(msg, MACH_RCV_MSG|(voucherState ? MACH_RCV_VOUCHER : 0)|MACH_RCV_LARGE|((TIMEOUT_INFINITY != timeout) ? MACH_RCV_TIMEOUT : 0)|MACH_RCV_TRAILER_TYPE(MACH_MSG_TRAILER_FORMAT_0)|MACH_RCV_TRAILER_ELEMENTS(MACH_RCV_TRAILER_AV), 0, msg->msgh_size, port, timeout, MACH_PORT_NULL);

        // Take care of all voucher-related work right after mach_msg.
        // If we don't release the previous voucher we're going to leak it.
        voucher_mach_msg_revert(*voucherState);

        // Someone will be responsible for calling voucher_mach_msg_revert. This call makes the received voucher the current one.
        *voucherState = voucher_mach_msg_adopt(msg);

        if (voucherCopy) {
            if (*voucherState != VOUCHER_MACH_MSG_STATE_UNCHANGED) {
                // Caller requested a copy of the voucher at this point. By doing this right next to mach_msg we make sure that no voucher has been set in between the return of mach_msg and the use of the voucher copy.
                // CFMachPortBoost uses the voucher to drop importance explicitly. However, we want to make sure we only drop importance for a new voucher (not unchanged), so we only set the TSD when the voucher is not state_unchanged.
                *voucherCopy = voucher_copy();
            } else {
                *voucherCopy = NULL;
            }
        }

        CFRUNLOOP_WAKEUP(ret);
        if (MACH_MSG_SUCCESS == ret) {
            *livePort = msg ? msg->msgh_local_port : MACH_PORT_NULL;
            return true;
        }
        if (MACH_RCV_TIMED_OUT == ret) {
            if (!originalBuffer) free(msg);
            *buffer = NULL;
            *livePort = MACH_PORT_NULL;
            return false;
        }
        if (MACH_RCV_TOO_LARGE != ret) break;
        buffer_size = round_msg(msg->msgh_size + MAX_TRAILER_SIZE);
        if (originalBuffer) *buffer = NULL;
        originalBuffer = false;
        *buffer = realloc(*buffer, buffer_size);
    }
    HALT;
    return false;
}

通過原始碼我們可以看到內部會呼叫內核層面的API來進行真正的休眠

呼叫API我們可以分為用戶態和內核態的兩種狀態切換，RunLoop進入睡眠就是從用戶態切換到內核態的呼叫，然后有訊息喚醒執行緒時再切換到用戶態來處理事件

總結

RunLoop的整個運行邏輯可以用下圖來表述

以__CFRUNLOOP_IS_開頭的大寫函式都是真正去實行呼叫的函式

RunLoop對GCD的特殊處理

我們運行下面代碼，并在GCD的回呼里打斷點，通過LLDB的指令bt列印來查看RunLoop的執行程序

@implementation ViewController

- (void)viewDidLoad {
    [super viewDidLoad];

   dispatch_async(dispatch_get_global_queue(0, 0), ^{

        // 處理一些子執行緒的邏輯

        // 回到主執行緒去重繪UI界面
        dispatch_async(dispatch_get_main_queue(), ^{
            NSLog(@"11111111111");
        });
    });
}
@end

可以看到RunLoop會處理GCD的回到主執行緒的呼叫情況，其他時候GCD都是有自己的邏輯去處理的，所以這是一個特殊情況

RunLoop的實際應用

解決NSTimer在滑動時停止作業的問題

如果定時器和滾動頁面同時存在的情況下，可能會遇到因為頁面滾動，而定時器停止的問題，見下面代碼

// 通過這種方式添加定時器
[NSTimer scheduledTimerWithTimeInterval:1.0 repeats:YES block:^(NSTimer * _Nonnull timer) {
   NSLog(@"%d", ++count);
}];

原因是因為這樣添加定時器會默認指定在RunLoop的NSDefaultRunLoopMode下進行，而處理頁面滾動是在RunLoop的UITrackingRunLoopMode模式下進行的

解決辦法：通過以下方式添加定時器，并選擇NSRunLoopCommonModes模式

static int count = 0;

NSTimer *timer = [NSTimer timerWithTimeInterval:1.0 repeats:YES block:^(NSTimer * _Nonnull timer) {
   NSLog(@"%d", ++count);
}];

[[NSRunLoop currentRunLoop] addTimer:timer forMode:NSRunLoopCommonModes];

NSRunLoopCommonModes并不是真的模式，而是一種標記，會讓定時器同時能在這兩種模式下都進行作業

選擇通用模式會將這兩種模式都添加到RunLoop底層__CFRunLoop結構體里的_commonModes成員變數里，_commonModes意味著在通用模式下可以執行的模式串列，而定時器timer也會被加入到_commonModeItems串列中；沒有設定為通用模式的定時器timer只存在于__CFRunLoopMode里面的成員變數timers這個串列中

控制執行緒生命周期（執行緒保活）

執行緒在程式運行中執行完代碼就會自動銷毀了，見下面代碼，可以利用RunLoop來進行執行緒保活

- (void)viewDidLoad {
    [super viewDidLoad];

    Thread *thread = [[Thread alloc] initWithTarget:self selector:@selector(run) object:nil];
    [thread start];
}

- (void)run {
    NSLog(@"%s %@", __func__, [NSThread currentThread]);
}

完成實作代碼如下

@interface Thread : NSThread

@end

@implementation Thread

- (void)dealloc
{
    NSLog(@"%s", __func__);
}
@end

@interface ViewController ()
@property (strong, nonatomic) Thread *thread;
@property (assign, nonatomic, getter=isStoped) BOOL stopped;
@end

@implementation ViewController

- (void)viewDidLoad {
    [super viewDidLoad];

    __weak typeof(self) weakSelf = self;

    self.stopped = NO;
    self.thread = [[Thread alloc] initWithBlock:^{
        NSLog(@"%@----begin----", [NSThread currentThread]);

        // 往RunLoop里面添加Source\Timer\Observer
        [[NSRunLoop currentRunLoop] addPort:[[NSPort alloc] init] forMode:NSDefaultRunLoopMode];

        while (weakSelf && !weakSelf.isStoped) {
            [[NSRunLoop currentRunLoop] runMode:NSDefaultRunLoopMode beforeDate:[NSDate distantFuture]];
        }

        NSLog(@"%@----end----", [NSThread currentThread]);
    }];
    [self.thread start];
}

- (void)touchesBegan:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event
{
    if (!self.thread) return;
    [self performSelector:@selector(test) onThread:self.thread withObject:nil waitUntilDone:NO];
}

// 子執行緒需要執行的任務
- (void)test
{
    NSLog(@"%s %@", __func__, [NSThread currentThread]);
}

- (IBAction)stop {
    if (!self.thread) return;

    // 在子執行緒呼叫stop（waitUntilDone設定為YES，代表子執行緒的代碼執行完畢后，這個方法才會往下走）
    [self performSelector:@selector(stopThread) onThread:self.thread withObject:nil waitUntilDone:YES];
}

// 用于停止子執行緒的RunLoop
- (void)stopThread
{
    // 設定標記為YES
    self.stopped = YES;

    // 停止RunLoop
    CFRunLoopStop(CFRunLoopGetCurrent());
    NSLog(@"%s %@", __func__, [NSThread currentThread]);

    // 清空執行緒
    self.thread = nil;
}

- (void)dealloc
{
    NSLog(@"%s", __func__);

    [self stop];
}

@end

細節分析

1.控制器增加一個Thread *thread的屬性來在多個方法能操作同一條執行緒

@property (strong, nonatomic) Thread *thread;

2.通過block的方式來創建執行緒是為了避免@selector里面會對Controller進行參考，Controller又持有thread，會造成回圈參考，無法釋放

self.thread = [[Thread alloc] initWithBlock:^{

}];
[self.thread start];

3.在子執行緒里創建一個RunLoop物件，如果沒有任何成員變數那么創建完就會馬上退出，所以添加一個空白的任務Source1，也就是[[NSPort alloc] init]，讓RunLoop不會退出

[[NSRunLoop currentRunLoop] addPort:[[NSPort alloc] init] forMode:NSDefaultRunLoopMode];

添加的任務是個空的任務，RunLoop其實沒有任何事情要執行，所以會進入到睡眠狀態，所以會卡住執行緒不再往下執行代碼

// 這句代碼不會執行
NSLog(@"%@----end----", [NSThread currentThread]);

4.采用回圈創建RunLoop而不使用[[NSRunLoop currentRunLoop] run]是因為run方法的底層就是死回圈進行runMode: beforeDate:的呼叫，那么就無法停止所有的RunLoop，所以我們自己實作while回圈，并通過狀態值來控制什么時候可以停止創建RunLoop

while (weakSelf && !weakSelf.isStoped) {
  [[NSRunLoop currentRunLoop] runMode:NSDefaultRunLoopMode beforeDate:[NSDate distantFuture]];
}

5.添加任務和結束RunLoop都要在同一個子執行緒來完成

[self performSelector:@selector(test) onThread:self.thread withObject:nil waitUntilDone:NO];

// 子執行緒需要執行的任務
- (void)test
{
    NSLog(@"%s %@", __func__, [NSThread currentThread]);
}

[self performSelector:@selector(stopThread) onThread:self.thread withObject:nil waitUntilDone:YES];

// 用于停止子執行緒的RunLoop
- (void)stopThread
{
    // 設定標記為YES
    self.stopped = YES;

    // 停止RunLoop
    CFRunLoopStop(CFRunLoopGetCurrent());
    NSLog(@"%s %@", __func__, [NSThread currentThread]);

    // 清空執行緒
    self.thread = nil;
}

6.waitUntilDone:表示是否執行完selector的函式呼叫再繼續往下執行代碼，如果為NO，那么執行完performSelector，控制器就真的銷毀了，這時再去呼叫到self就會報野指標的錯誤；設定為YES，代碼會等子執行緒的stopThread執行完畢才會去真正銷毀控制器

7.while回圈里進行self的判斷是為了防止執行了dealloc方法會將弱指標已經至為nil了，那么回圈的判斷就會為true，再次進入創建RunLoop；所以要確保self有值的情況下判斷條件才成立

while (weakSelf && !weakSelf.isStoped) {
  [[NSRunLoop currentRunLoop] runMode:NSDefaultRunLoopMode beforeDate:[NSDate distantFuture]];
}

[NSDate distantFuture]表示的是未來無限長的時間

封裝優化

我們對上述代碼進行封裝優化，以便更好的集成，如下所示

// PermenantThread.h
typedef void (^PermenantThreadTask)(void);

@interface PermenantThread : NSObject

/**
 開啟執行緒
 */
//- (void)run;

/**
 在當前子執行緒執行一個任務
 */
- (void)executeTask:(PermenantThreadTask)task;

/**
 結束執行緒
 */
- (void)stop;

@end

// PermenantThread.m
/** Thread **/
@interface Thread : NSThread
@end
@implementation Thread
- (void)dealloc
{
    NSLog(@"%s", __func__);
}
@end

/** PermenantThread **/
@interface PermenantThread()
@property (strong, nonatomic) Thread *innerThread;
@property (assign, nonatomic, getter=isStopped) BOOL stopped;
@end

@implementation PermenantThread
#pragma mark - public methods
- (instancetype)init
{
    if (self = [super init]) {
        self.stopped = NO;

        __weak typeof(self) weakSelf = self;

        self.innerThread = [[Thread alloc] initWithBlock:^{
            [[NSRunLoop currentRunLoop] addPort:[[NSPort alloc] init] forMode:NSDefaultRunLoopMode];

            while (weakSelf && !weakSelf.isStopped) {
                [[NSRunLoop currentRunLoop] runMode:NSDefaultRunLoopMode beforeDate:[NSDate distantFuture]];
            }
        }];

        [self.innerThread start];
    }
    return self;
}

//- (void)run
//{
//    if (!self.innerThread) return;
//
//    [self.innerThread start];
//}

- (void)executeTask:(PermenantThreadTask)task
{
    if (!self.innerThread || !task) return;

    [self performSelector:@selector(__executeTask:) onThread:self.innerThread withObject:task waitUntilDone:NO];
}

- (void)stop
{
    if (!self.innerThread) return;

    [self performSelector:@selector(__stop) onThread:self.innerThread withObject:nil waitUntilDone:YES];
}

- (void)dealloc
{
    NSLog(@"%s", __func__);

    [self stop];
}

#pragma mark - private methods
- (void)__stop
{
    self.stopped = YES;
    CFRunLoopStop(CFRunLoopGetCurrent());
    self.innerThread = nil;
}

- (void)__executeTask:(PermenantThreadTask)task
{
    task();
}

@end

然后在Controller里就可以簡單的集成使用了

@interface ViewController ()
@property (strong, nonatomic) PermenantThread *thread;
@end

@implementation ViewController

- (void)viewDidLoad {
    [super viewDidLoad];

    self.thread = [[PermenantThread alloc] init];
}

- (void)touchesBegan:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event
{
    [self.thread executeTask:^{
        NSLog(@"執行任務 - %@", [NSThread currentThread]);
    }];
}

- (IBAction)stop {
    [self.thread stop];
}

- (void)dealloc
{
    NSLog(@"%s", __func__);
}

@end

也可以將PermenantThread的實作里RunLoop的創建用C語言的API來實作

/** Thread **/
@interface Thread : NSThread
@end
@implementation Thread
- (void)dealloc
{
    NSLog(@"%s", __func__);
}
@end

/** PermenantThread **/
@interface PermenantThread()
@property (strong, nonatomic) Thread *innerThread;
@end

@implementation PermenantThread
#pragma mark - public methods
- (instancetype)init
{
    if (self = [super init]) {
        self.innerThread = [[Thread alloc] initWithBlock:^{
            NSLog(@"begin----");

            // 創建背景關系（要初始化一下結構體）
            CFRunLoopSourceContext context = {0};

            // 創建source
            CFRunLoopSourceRef source = CFRunLoopSourceCreate(kCFAllocatorDefault, 0, &context);

            // 往Runloop中添加source
            CFRunLoopAddSource(CFRunLoopGetCurrent(), source, kCFRunLoopDefaultMode);

            // 銷毀source
            CFRelease(source);

            // 啟動（第三個引數設定為false表示不退出，等同于加上while回圈）
            CFRunLoopRunInMode(kCFRunLoopDefaultMode, 1.0e10, false);

//            while (weakSelf && !weakSelf.isStopped) {
//                // 第3個引數：returnAfterSourceHandled，設定為true，代表執行完source后就會退出當前loop
//                CFRunLoopRunInMode(kCFRunLoopDefaultMode, 1.0e10, true);
//            }

            NSLog(@"end----");
        }];

        [self.innerThread start];
    }
    return self;
}

//- (void)run
//{
//    if (!self.innerThread) return;
//
//    [self.innerThread start];
//}

- (void)executeTask:(PermenantThreadTask)task
{
    if (!self.innerThread || !task) return;

    [self performSelector:@selector(__executeTask:) onThread:self.innerThread withObject:task waitUntilDone:NO];
}

- (void)stop
{
    if (!self.innerThread) return;

    [self performSelector:@selector(__stop) onThread:self.innerThread withObject:nil waitUntilDone:YES];
}

- (void)dealloc
{
    NSLog(@"%s", __func__);

    [self stop];
}

#pragma mark - private methods
- (void)__stop
{
    CFRunLoopStop(CFRunLoopGetCurrent());
    self.innerThread = nil;
}

- (void)__executeTask:(PermenantThreadTask)task
{
    task();
}

@end

轉載請註明出處，本文鏈接：https://www.uj5u.com/yidong/274022.html

標籤：iOS

上一篇：VS2019 創建Qt專案，沒有x64

下一篇：iOS底層原理（七）多執行緒（上）
