文章目錄

1.Lifecycle了解
2.生命周期獲取對比
- 2.1 之前的生命周期獲取
- 2.2 Lifecycle回呼生命周期
3.原始碼分析
- 3.1 類關系圖
- 3.2 ComponentActvitiy.onCreate
- 3.3 getLifecycle方法
- 3.4 Lifecycle.Event
- 3.5 ReportFragment的創建
- 3.6 LifecycleCallbacks.registerIn(activity)
- 3.7 ReportFragment.dispatch 版本兼容
- 3.8 Lifecycle.State
- 3.9 handleLifecycleEvent
- 3.10 sync
- 3.11 forwardPass
- 3.12 發送生命周期狀態
- 3.13 簡易流程圖

1.Lifecycle了解

到官方檔案下看 Google Lifecycle，Lifecycle的作用是：生命周期感知型組件可執行操作來回應另一個組件（如 Activity 和 Fragment）的生命周期狀態的變化，這些組件有助于您寫出更有條理且往往更精簡的代碼，這樣的代碼更易于維護，
我們之前開發，因為Activity 或者是 Fragment 的生命周期問題而間接引起的記憶體問題挺多的，比如每次都要寫資源，或者控制元件工具的回收釋放，如果忘記寫了，那么可能會引起記憶體泄漏，而現在搭配 Lifecycle，給我們生命周期的回呼，就不必再像以前在某個生命周期加上邏輯代碼，而是直接提前寫對應的代碼，更好解決生命周期問題，

2.生命周期獲取對比

2.1 之前的生命周期獲取

我們需要Activity重寫每一個生命周期的方法，在里面加入邏輯，如果某個回收忘記寫了，就可能觸發記憶體泄漏問題，

override fun onPause() {
    super.onPause()
    Log.d(TAG, "onPause")
}

override fun onStop() {
    super.onStop()
    Log.d(TAG, "onStop")
}

override fun onStart() {
    super.onStart()
    Log.d(TAG, "onStart")
}

override fun onResume() {
    super.onResume()
    Log.d(TAG, "onResume")
}

override fun onRestart() {
    super.onRestart()
    Log.d(TAG, "onRestart")
}

override fun onDestroy() {
    super.onDestroy()
    Log.d(TAG, "onDestroy")
}

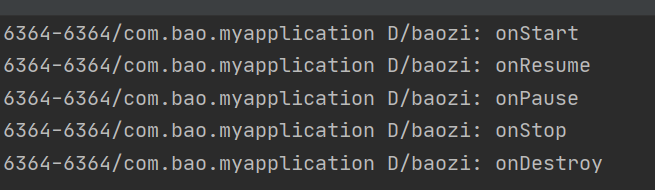

之前的生命周期

2.2 Lifecycle回呼生命周期

使用Lifecycle，只要拿到Activity的Lifecycle，注冊觀察，就能回呼生命周期了，非常方便，如果寫的自定義View或者工具，需要生命周期感知，就可以利用Lifecycle，將邏輯寫在內部，代碼也更間接，使用者也不要去注意創建回收問題，

lifecycle.addObserver(object : LifecycleEventObserver {
    override fun onStateChanged(source: LifecycleOwner, event: Lifecycle.Event) {
      Log.d(TAG,event.toString())
    }
})

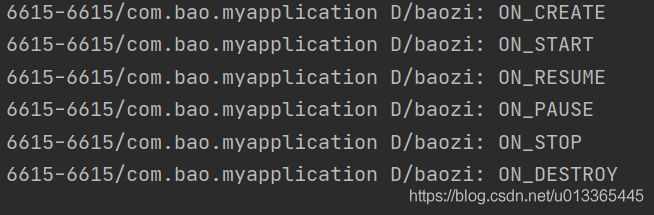

Lifecycle

3.原始碼分析

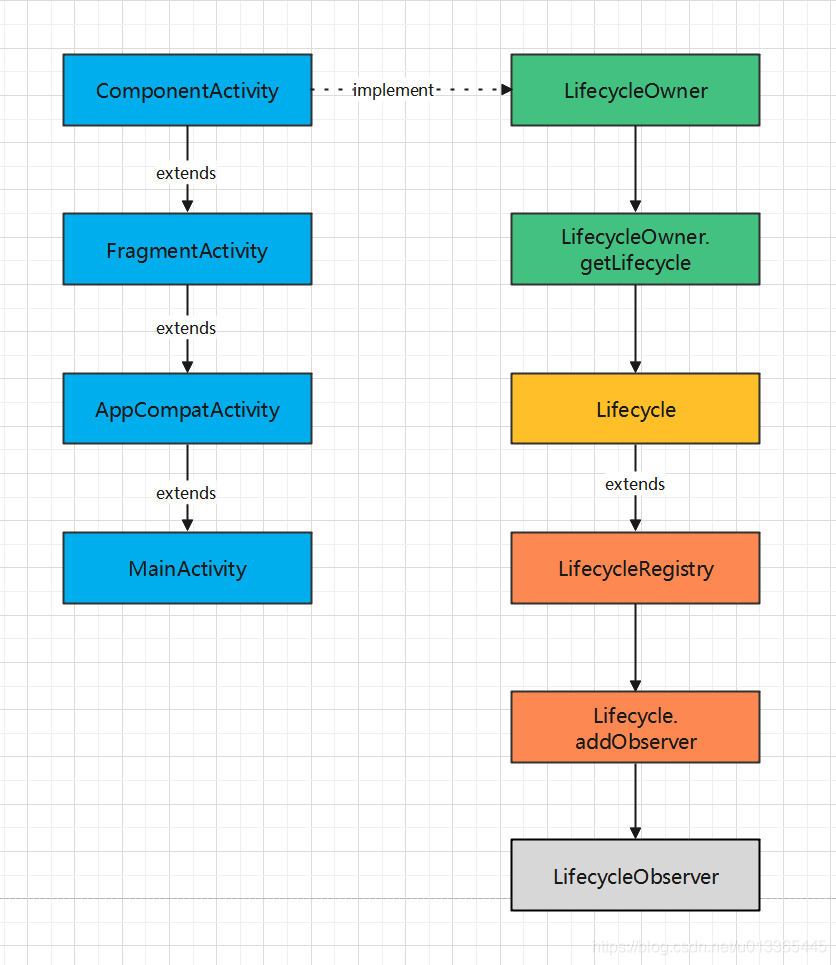

3.1 類關系圖

Lifecycle

在Activity 獲取 Lifecycle，實際上是通過Activity的父類 ComponentActvitiy 獲取，父類實作了 LifecycleOwner 介面，就能獲取 Lifecycle ,最后注冊 LifecycleObserver 就能拿到生命周期回呼了，

3.2 ComponentActvitiy.onCreate

在ComponentActvitiy的 onCreate 方法里面可以看到 ReportFragment 的創建，

	/* ComponentActvitiy */
    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        ...
        ReportFragment.injectIfNeededIn(this);
        ...
    }

3.3 getLifecycle方法

	/* ComponentActvitiy */
  	private final LifecycleRegistry mLifecycleRegistry = new LifecycleRegistry(this);

    @NonNull
    @Override
    public Lifecycle getLifecycle() {
        return mLifecycleRegistry;
    }

3.4 Lifecycle.Event

Lifecycle.Event 是個列舉類，這里的生命周期 Event 并不是Fragment的，在后面的生命周期處理時會用上的，

    public enum Event {
        ON_CREATE,
        ON_START,
        ON_RESUME,
        ON_PAUSE,
        ON_STOP,
        ON_DESTROY,
        ON_ANY;
       ...
    }

3.5 ReportFragment的創建

ReportFragment 是一個 沒有界面的Fragment，如果有了解過Glide原理的同學，應該也知道這個方法，就是通過看不見的Fragment，來感知生命周期，讓使用者無需考慮生命周期的問題，
在SDK29以上的版本使用的是 LifecycleCallbacks.registerIn(activity)，

	/* ReportFragment */
    public static void injectIfNeededIn(Activity activity) {
        if (Build.VERSION.SDK_INT >= 29) {
            // On API 29+, we can register for the correct Lifecycle callbacks directly
            LifecycleCallbacks.registerIn(activity);
        }
        // Prior to API 29 and to maintain compatibility with older versions of
        // ProcessLifecycleOwner (which may not be updated when lifecycle-runtime is updated and
        // need to support activities that don't extend from FragmentActivity from support lib),
        // use a framework fragment to get the correct timing of Lifecycle events
        android.app.FragmentManager manager = activity.getFragmentManager();
        if (manager.findFragmentByTag(REPORT_FRAGMENT_TAG) == null) {
            manager.beginTransaction().add(new ReportFragment(), REPORT_FRAGMENT_TAG).commit();
            // Hopefully, we are the first to make a transaction.
            manager.executePendingTransactions();
        }
    }

3.6 LifecycleCallbacks.registerIn(activity)

LifecycleCallbacks 實作了 Application.ActivityLifecycleCallbacks介面，在SDK29以上的生命周期分發是由Application 分發的，activity注冊就能回呼，
大名鼎鼎的LeakCanary在監聽Activity生命周期，也是使用 Application.ActivityLifecycleCallbacks，

    @RequiresApi(29)
    static class LifecycleCallbacks implements Application.ActivityLifecycleCallbacks {

        static void registerIn(Activity activity) {
            activity.registerActivityLifecycleCallbacks(new LifecycleCallbacks());
        }
		...
        @Override
        public void onActivityPostCreated(@NonNull Activity activity,
                @Nullable Bundle savedInstanceState) {
            dispatch(activity, Lifecycle.Event.ON_CREATE);
        }
      ...
    }

3.7 ReportFragment.dispatch 版本兼容

如果SDK版本小于29，ReportFragment的各個生命周期方法里，會呼叫 dispatch 方法，
比如 onActivityCreated，
反正無論是使用 LifecycleCallbacks.registerIn(activity)，還是 Fragment 的生命周期回呼，最后都會dispatch，

    @Override
    public void onActivityCreated(Bundle savedInstanceState) {
        super.onActivityCreated(savedInstanceState);
        dispatchCreate(mProcessListener);
        dispatch(Lifecycle.Event.ON_CREATE);
    }

    private void dispatch(@NonNull Lifecycle.Event event) {
        if (Build.VERSION.SDK_INT < 29) {
            // Only dispatch events from ReportFragment on API levels prior
            // to API 29. On API 29+, this is handled by the ActivityLifecycleCallbacks
            // added in ReportFragment.injectIfNeededIn
            dispatch(getActivity(), event);
        }
    }

    static void dispatch(@NonNull Activity activity, @NonNull Lifecycle.Event event) {
        if (activity instanceof LifecycleRegistryOwner) {
            ((LifecycleRegistryOwner) activity).getLifecycle().handleLifecycleEvent(event);
            return;
        }

        if (activity instanceof LifecycleOwner) {
            Lifecycle lifecycle = ((LifecycleOwner) activity).getLifecycle();
            if (lifecycle instanceof LifecycleRegistry) {
                ((LifecycleRegistry) lifecycle).handleLifecycleEvent(event);
            }
        }
    }

3.8 Lifecycle.State

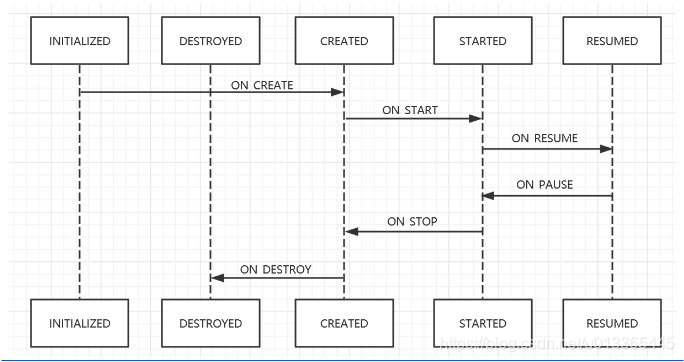

這個類跟Lifecycle.Event的關系看圖就能理解，
State只有5個但是生命周期可是不止5個，所以Google他們設計時，就創建流程正著走，銷毀流程就反正走，

Lifecycle.State

	/* Lifecycle.State */
    public enum State {
        DESTROYED,

        INITIALIZED,

        CREATED,

        STARTED,

        RESUMED;

        public boolean isAtLeast(@NonNull State state) {
            return compareTo(state) >= 0;
        }
    }

3.9 handleLifecycleEvent

LifecycleRegistryOwner 也是繼承 LifecycleOwner，所以他們最后都會執行 LifecycleRegistry 的 handleLifecycleEvent 方法，
就是把 Lifecycle.Event處理一下，轉化成 Lifecycle.State，

	/* Lifecycle.Event */
        @NonNull
        public State getTargetState() {
            switch (this) {
                case ON_CREATE:
                case ON_STOP:
                    return State.CREATED;
                case ON_START:
                case ON_PAUSE:
                    return State.STARTED;
                case ON_RESUME:
                    return State.RESUMED;
                case ON_DESTROY:
                    return State.DESTROYED;
                case ON_ANY:
                    break;
            }
            throw new IllegalArgumentException(this + " has no target state");
        }

將 Lifecycle.State 繼續往下傳，先用 mState 保存，再 sync 方法處理，


	/* LifecycleRegistry  */
    public void handleLifecycleEvent(@NonNull Lifecycle.Event event) {
        enforceMainThreadIfNeeded("handleLifecycleEvent");
        moveToState(event.getTargetState());
    }

    private void moveToState(State next) {
        if (mState == next) {
            return;
        }
        //保存state狀態
        mState = next;
        if (mHandlingEvent || mAddingObserverCounter != 0) {
            mNewEventOccurred = true;
            // we will figure out what to do on upper level.
            return;
        }
        mHandlingEvent = true;
        sync();
        mHandlingEvent = false;
    }

3.10 sync

這里利用上一個方法保存的mState，用于比較，判斷是正向執行還是反向執行生命周期，

	/* LifecycleRegistry  */
    private void sync() {
    	//這是弱參考包裝過的LifecycleOwner
        LifecycleOwner lifecycleOwner = mLifecycleOwner.get();
        if (lifecycleOwner == null) {
            throw new IllegalStateException("LifecycleOwner of this LifecycleRegistry is already"
                    + "garbage collected. It is too late to change lifecycle state.");
        }
        while (!isSynced()) {
            mNewEventOccurred = false;
            // no need to check eldest for nullability, because isSynced does it for us.
            //上一個方法保存的mState，跟組件之前的的mState對比
            if (mState.compareTo(mObserverMap.eldest().getValue().mState) < 0) {
            	//返向執行流程
                backwardPass(lifecycleOwner);
            }

            Map.Entry<LifecycleObserver, ObserverWithState> newest = mObserverMap.newest();
            if (!mNewEventOccurred && newest != null
                    && mState.compareTo(newest.getValue().mState) > 0) {
                //正向執行流程
                forwardPass(lifecycleOwner);
            }
        }
        mNewEventOccurred = false;
    }

3.11 forwardPass

反向的邏輯差不多，只是執行 backwardPass ，先轉換Stata，最后執行 observer.dispatchEvent，
這里又把 Lifecycle.State 轉回 Lifecycle.Event，然后給觀察者分發出去，

		/* Lifecycle.Event */
        @Nullable
        public static Event upFrom(@NonNull State state) {
            switch (state) {
                case INITIALIZED:
                    return ON_CREATE;
                case CREATED:
                    return ON_START;
                case STARTED:
                    return ON_RESUME;
                default:
                    return null;
            }
        }

轉換 Event.upFrom ，發送 observer.dispatchEvent，

	/* LifecycleRegistry  */
    private void forwardPass(LifecycleOwner lifecycleOwner) {
        Iterator<Map.Entry<LifecycleObserver, ObserverWithState>> ascendingIterator =
                mObserverMap.iteratorWithAdditions();
        while (ascendingIterator.hasNext() && !mNewEventOccurred) {
            Map.Entry<LifecycleObserver, ObserverWithState> entry = ascendingIterator.next();
            ObserverWithState observer = entry.getValue();
            while ((observer.mState.compareTo(mState) < 0 && !mNewEventOccurred
                    && mObserverMap.contains(entry.getKey()))) {
                pushParentState(observer.mState);

				//轉化
                final Event event = Event.upFrom(observer.mState);
                if (event == null) {
                    throw new IllegalStateException("no event up from " + observer.mState);
                }
				//發送
                observer.dispatchEvent(lifecycleOwner, event);
                popParentState();
            }
        }
    }

3.12 發送生命周期狀態

ObserverWithState 發送出 Lifecycle.Event ，至此就結束了，有注冊訂閱關系的地方就能收到，

    static class ObserverWithState {
        State mState;
        LifecycleEventObserver mLifecycleObserver;

        ObserverWithState(LifecycleObserver observer, State initialState) {
            mLifecycleObserver = Lifecycling.lifecycleEventObserver(observer);
            mState = initialState;
        }

		/* 分發生命周期狀態 */
        void dispatchEvent(LifecycleOwner owner, Event event) {
            State newState = event.getTargetState();
            mState = min(mState, newState);
            mLifecycleObserver.onStateChanged(owner, event);
            mState = newState;
        }
    }

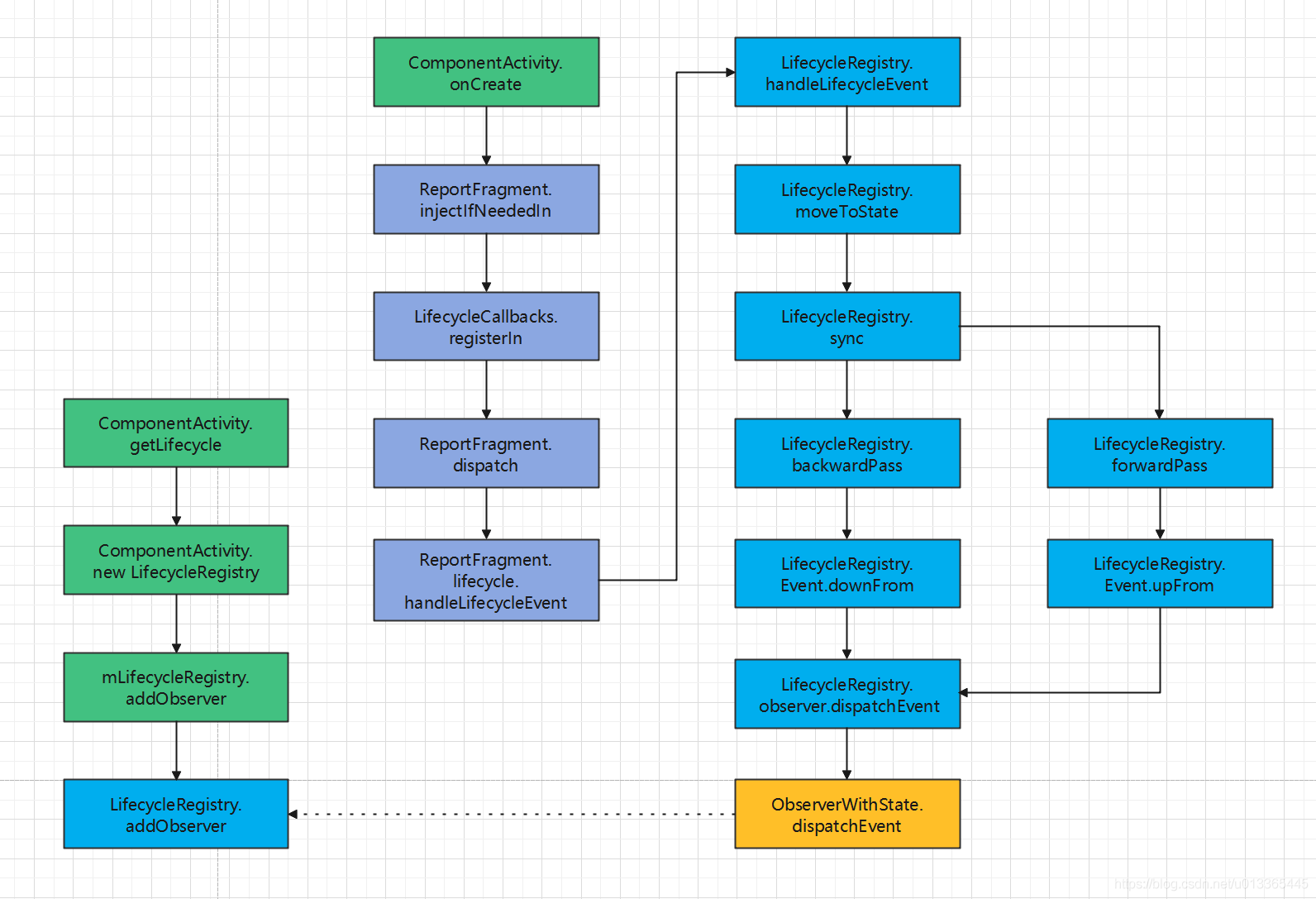

3.13 簡易流程圖

簡易流程圖
