iOS 使用 Charts 庫實作分時、K線及指標

Charts 是iOS中比較強大的圖表開源庫，使用的Swift 開發(Obj-c專案也可以使用)，支持餅圖(PieChart)、折線圖(線狀圖)、柱狀圖(BarChart),以及股票圖(CandleStickChart)等多種圖表,并能漸變填充和影片加載以及自定義，具體可參考官網：https://github.com/danielgindi/Charts，其中CombinedChartView混合圖表非常實用，可以使用任意圖表混合搭配，實作股票蠟燭圖(也支持西方的行情圖)和相應指標圖形，效果圖參考如下：

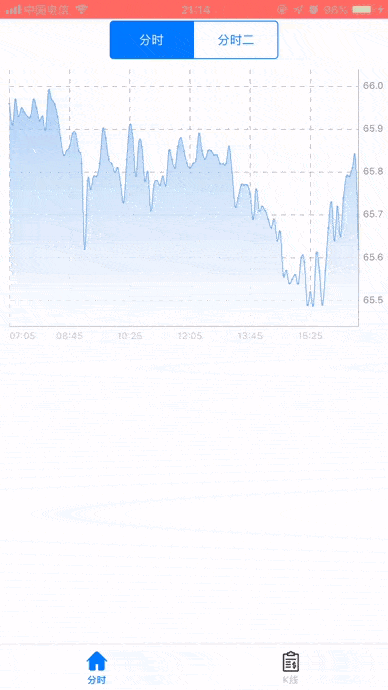

效果圖中主要實作以下了幾個功能：

1、主行情圖及MA、BOLL指標圖影片加載，縮放、滑動

2、副圖MACD、KDJ指標圖影片加載，縮放、滑動

3、自定義十字線及其主副圖選中值獲取

4、指標切換

現將主要參考代碼列出如下：

一、定義行情主副圖表以及相應屬性設定

import Charts

/// 混合主股票蠟燭圖
    private lazy var combineLineStickChart:CombinedChartView = {[weak self] in
        autoreleasepool {
            let _stChartView = CombinedChartView.init()

            //縮放樣式
            MarketSetting.setZoomStyleFor(Chart: _stChartView)

            //空視圖樣式
            MarketSetting.setEmptyStyleFor(Chart: _stChartView)

            //右邊刻度樣式
            MarketSetting.setRightCalibrationStyleFor(Chart: _stChartView, andShowCount: 7)


            //底部橫軸樣式
            MarketSetting.setBottomCalibrationStyleFor(Chart: _stChartView,
                                                       andIsShow: true,
                                                       withShowCount: 3)

            //整體樣式
            MarketSetting.setGradStyleFor(Chart: _stChartView,
                                          withEdgeInsets: .init(top: 10, left: 10, bottom: 0, right: 0),
                                          andDelegate:self)

            return _stChartView
        }
    }()

/// 混合副圖指標
    private lazy var combineLineChare:CombinedChartView = {[weak self] in
        autoreleasepool {
            let _ccv = CombinedChartView.init()

            //設定影片時間
            _ccv.animate(xAxisDuration:MarketSetting.timeInterval)

            //整體樣式
            MarketSetting.setGradStyleFor(Chart: _ccv,
                                          withEdgeInsets: .init(top: 0, left: 10, bottom: 0, right: 1.5),
                                          andDelegate:self)

            //底部橫軸樣式
            MarketSetting.setBottomCalibrationStyleFor(Chart: _ccv,
                                                       andIsShow: false,
                                                       withShowCount: 0)

            //縮放樣式
            MarketSetting.setZoomStyleFor(Chart: _ccv)

            //空視圖樣式
            MarketSetting.setEmptyStyleFor(Chart: _ccv)

            //右邊刻度樣式
            MarketSetting.setRightCalibrationStyleFor(Chart: _ccv, andShowCount: 3)

            return _ccv
        }
    }()

屬性設定及描述參考：

/// 行情樣式設定
struct MarketSetting {

    /// 副圖指標資料
    static var dicKpiData = [String:[Double]]()

    /// 主圖指標資料
    static var dicKpiMainData = [String:[Double]]()

    /// 十字線顏色
    static let highlightColor = UIColor.lightGray

    /// 右邊刻度顏色
    static let labelRightTextColor = UIColor.black

    /// 右邊刻度字體大小
    static let labelRightFont = UIFont.systemFont(ofSize: 10)

    /// 影片時間
    static let timeInterval = TimeInterval.init(1.5)

    /// 紅漲
    static let red_color:UIColor = UIColor.init().colorFromHexInt(hex: 0xF5324D)

    /// 綠跌
    static let greent_color:UIColor = UIColor.init().colorFromHexInt(hex: 0x2DB476)

    /// dif 顏色
    static let dif_color:UIColor = UIColor.init(hexString: "#E6B970")!

    /// dea 顏色
    static let dea_color:UIColor = UIColor.init(hexString: "#4C6E9C")!

    /// macd 顏色
    static let kacd_color:UIColor = UIColor.purple

    /// 其他
    static let kother_color:UIColor = UIColor.brown

    /// 比率
    static let right_ratio:Double = 1.5 / 288

    /// 副圖指標
    static let arrMinorKPI = ["MACD","KDJ"]

    /// 主圖指標
    static let arrMainKPI = ["MA","BOLL"]

    /// 副圖當前指標索引
    static var minorCurrentIndex:Int = 0

    /// 主圖當前指標索引
    static var mainCurrentIndex:Int = 0
}


//MARK: -
/// 行情相關設定
extension MarketSetting {


    /// 設定縮放樣式
    /// - Parameter chart: BarLineChartViewBase
    static func setZoomStyleFor(Chart chart:BarLineChartViewBase){
        //縮放
        chart.scaleXEnabled = true
        chart.scaleYEnabled = false

        //自動縮放
        chart.autoScaleMinMaxEnabled = false
        chart.highlightPerTapEnabled = true

        //高亮拖拽
        chart.highlightPerDragEnabled = true

        //手勢捏合
        chart.pinchZoomEnabled = false

        //開啟拖拽
        chart.dragEnabled = true

        //0 1 慣性
        chart.dragDecelerationFrictionCoef = 0.95

        //最大縮放值 最小縮放值  y軸不縮放 minScl maxScl根據實際情況調整
        chart.setScaleMinima(5, scaleY: 1)

        //最大縮放級別
        chart.viewPortHandler.setMaximumScaleX(20)

        //是否顯示圖例
        chart.legend.enabled = false

        //禁止雙擊縮放 有需要可以設定為YES
        chart.doubleTapToZoomEnabled = false

        //最大顯示數(兩者搭配使用)
        chart.maxVisibleCount = 30
    }


    /// 設定空視圖樣式
    /// - Parameter chart: BarLineChartViewBase
    static func setEmptyStyleFor(Chart chart:BarLineChartViewBase) {
        //[S]暫無資料
        chart.noDataText = "暫無資料"
        chart.noDataTextAlignment = .center
        chart.noDataTextColor = UIColor.lightGray
        chart.noDataFont = UIFont.systemFont(ofSize: 15)
        //[E]
    }


    /// 設定右邊縱軸刻度樣式
    /// - Parameters:
    ///   - chart: BarLineChartViewBase
    ///   - c: 展示刻度數
    static func setRightCalibrationStyleFor(Chart chart:BarLineChartViewBase,
                                            andShowCount c:Int) {
        //[S]設定y軸相關引數 將坐標軸顯示在右邊
        let rightAxi:YAxis = chart.rightAxis
        rightAxi.enabled = true

        //保留兩位小數
        rightAxi.decimals = 2

        //設定顯示最大點數
        rightAxi.labelCount = c
        //強制label個數
        rightAxi.forceLabelsEnabled = false

        rightAxi.drawGridLinesEnabled = true
        rightAxi.drawAxisLineEnabled = false

        //內邊框
        rightAxi.gridLineDashLengths = [5.0, 5.0]
        rightAxi.gridLineDashPhase = 0

        //label位置
        rightAxi.labelPosition = .outsideChart

        //文字顏色
        rightAxi.labelTextColor = MarketSetting.labelRightTextColor

        //文字字體
        rightAxi.labelFont = MarketSetting.labelRightFont
        //[E]

        //左邊刻度
        chart.leftAxis.enabled = false
    }


    /// 設定左邊縱軸刻度樣式
    /// - Parameters:
    ///   - chart: BarLineChartViewBase
    ///   - c: 展示刻度數
    static func setLeftCalibrationStyleFor(Chart chart:BarLineChartViewBase,
                                           andShowCount c:Int) {
        //[S]設定y軸相關引數 將坐標軸顯示在右邊
        let leftAxi:YAxis = chart.leftAxis
        leftAxi.enabled = true

        //保留兩位小數
        leftAxi.decimals = 2

        //設定顯示最大點數
        leftAxi.labelCount = c
        //強制label個數
        leftAxi.forceLabelsEnabled = false

        leftAxi.drawGridLinesEnabled = true
        leftAxi.drawAxisLineEnabled = false

        //內邊框
        leftAxi.gridLineDashLengths = [5.0, 5.0]
        leftAxi.gridLineDashPhase = 0

        //label位置
        leftAxi.labelPosition = .outsideChart

        //文字顏色
        leftAxi.labelTextColor = MarketSetting.labelRightTextColor

        //文字字體
        leftAxi.labelFont = MarketSetting.labelRightFont
        //[E]

        //左邊刻度
        chart.rightAxis.enabled = false
    }


    /// 設定底部橫軸樣式
    /// - Parameters:
    ///   - chart: BarLineChartViewBase
    ///   - show: true 顯示刻度 防止不顯示
    ///   - c: 顯示刻度條數
    static func setBottomCalibrationStyleFor(Chart chart:BarLineChartViewBase,
                                             andIsShow show:Bool,
                                             withShowCount c:Int) {
        //設定X軸相關引數
        chart.xAxis.enabled = show
        chart.xAxis.labelPosition = .bottom
        chart.xAxis.labelCount = c
        chart.xAxis.drawGridLinesEnabled = false
        chart.xAxis.drawAxisLineEnabled = true

        //避免文字顯示不全 這個屬性很重要
        chart.xAxis.avoidFirstLastClippingEnabled = true

        //第一個和最后一個圖會顯示一半(顯示不全)
        chart.xAxis.spaceMin = 0.5
        chart.xAxis.spaceMax = 0.5

        //強制label個數
        chart.xAxis.forceLabelsEnabled = false

        //設定重復不顯示
        chart.xAxis.granularityEnabled = true

        //間距
        chart.xAxis.granularity = 1
    }


    /// 設定背景、邊框等樣式
    /// - Parameters:
    ///   - chart: BarLineChartViewBase
    ///   - sgbg: true 顯示背景
    ///   - bgc: 背景色
    ///   - sb: true 顯示邊框
    ///   - bdc: 邊框背景
    ///   - edg: UIEdgeInsets 偏移(防止靠邊沒顯示全)
    static func setGradStyleFor(Chart chart:BarLineChartViewBase,
                                andShowGridBackground sgbg:Bool = false,
                                withBGColor bgc:UIColor = UIColor.clear,
                                andShowBorders sb:Bool = false,
                                andBorderColor bdc:UIColor = UIColor.clear,
                                withEdgeInsets edg:UIEdgeInsets = UIEdgeInsets.init(top: 10, left: 10, bottom: 10, right: 10),
                                andDelegate _delegate:ChartViewDelegate? = nil) {

        //是否顯示氣泡
        chart.drawMarkers = false
        chart.delegate = _delegate

        //畫板以及邊框顏色
        chart.gridBackgroundColor = bgc
        chart.borderColor = bdc

        //根據需要顯示或隱藏邊框以及畫板
        chart.drawGridBackgroundEnabled = sgbg
        chart.drawBordersEnabled = sb

        chart.backgroundColor = bgc

        //設定偏移
        chart.setExtraOffsets(left: edg.left,
                              top: edg.top,
                              right: edg.right,
                              bottom: edg.bottom)

        //描述文字
        chart.chartDescription?.enabled = false
    }


    /// 設定股票資料源
    /// - Parameter yv: [ChartDataEntry]
    /// - Returns: CandleChartDataSet
    static func setStockDataSetFor(Values yv:[ChartDataEntry]) -> CandleChartDataSet {
        let dataSet = CandleChartDataSet.init(entries: yv, label: nil)

        //軸線方向
        dataSet.axisDependency = .right

        //不在面板上直接顯示數值
        dataSet.drawValuesEnabled = false

        //true 蠟燭圖 false 美國線
        dataSet.showCandleBar = true

        //k線柱間隙
        dataSet.barSpace = 0.1

        //這是用于顯示最高最低值區間的立線
        //dataSet.shadowColor = UIColor.black

        //立線的寬度
        dataSet.shadowWidth = 0.7
        dataSet.shadowColorSameAsCandle = true

        // close >= open 紅漲
        dataSet.increasingColor = red_color
        dataSet.neutralColor = red_color
        // 內部是否充滿顏色
        dataSet.increasingFilled = true

        // open > close 綠跌
        dataSet.decreasingColor = greent_color
        // 內部是否充滿顏色
        dataSet.decreasingFilled = true

        //十字線
        dataSet.drawHorizontalHighlightIndicatorEnabled = false
        dataSet.drawVerticalHighlightIndicatorEnabled = false
        dataSet.highlightEnabled = true

        return dataSet
    }


    /// 設定LineChartDataSet
    /// - Parameters:
    ///   - yv: [ChartDataEntry]
    ///   - c: 線條顏色
    ///   - n: 線條名稱
    /// - Returns: LineChartDataSet
    static func setLineDataFor(Values yv:[ChartDataEntry],
                               andColor c:UIColor,
                               withName n:String) -> LineChartDataSet {

        //創建LineChartDataSet物件
        let picketageSet = LineChartDataSet.init(entries: yv, label: n)

        //不在面板上直接顯示數值
        picketageSet.drawValuesEnabled = false

        //十字線
        picketageSet.drawHorizontalHighlightIndicatorEnabled = false
        picketageSet.drawVerticalHighlightIndicatorEnabled = false
        picketageSet.highlightEnabled = false

        //十字線高亮顏色
        picketageSet.highlightColor = highlightColor

        //線條顏色
        picketageSet.setColor(c)

        //沒有圓圈
        picketageSet.circleRadius = 0.0
        picketageSet.circleHoleRadius = 0.0

        return picketageSet
    }


    /// 設定柱狀圖資料
    /// - Parameters:
    ///   - yv: [ChartDataEntry]
    ///   - n: 名稱
    /// - Returns: BarChartDataSet
    static func setBarCharSetFor(Values yv:[ChartDataEntry],
                                 withName n:String) -> BarChartDataSet {

        let barChartDataSet = MyBarChartDataSet.init(entries: yv, label: n)

        barChartDataSet.axisDependency = .left
        barChartDataSet.setColors(red_color,greent_color)

        //不在面板上直接顯示數值
        barChartDataSet.drawValuesEnabled = false
        barChartDataSet.drawIconsEnabled = false

        return barChartDataSet
    }


    /// 設定柱狀圖
    /// - Parameter yv: [ChartDataEntry]
    /// - Returns: BarChartData
    static func setBarDataSetsFor(Values yv:[BarChartDataEntry]) -> [BarChartDataSet] {

        var arrTemp = [BarChartDataSet]()

        for item in yv {
            //創建BarChartDataSet物件
            let picketageSet = BarChartDataSet.init(entries: [item], label: nil)

            //不在面板上直接顯示數值
            picketageSet.drawValuesEnabled = false

            //是否顯示十字線
            picketageSet.highlightEnabled = true

            arrTemp.append(picketageSet)
        }

        return arrTemp
    }
}

二、主行情圖及MA、BOLL指標圖資料系結及影片加載

//MARK: - 主圖資料系結
extension MainView {

    /// 主圖資料系結
    /// - Parameter isChange: Bool
    private func setMainCombineLineData(isChange:Bool = false) {

        if self.arrChartData.count <= 0 { return }

        //MARK:X軸資料
        var i = 0
        var xValues = [String]()
        var yStockValue = [ChartDataEntry]()

        for item in self.arrChartData {
            let _dateTime:UInt32 = item["UpdateTime"] as! UInt32
            let _strDateTime = Utils.shareInstance().getDateTimeForUnix(unixTime: _dateTime, strFormat: "MM/dd HH:mm")
            xValues.append(_strDateTime)

            let entry = CandleChartDataEntry.init(x: Double.init(i),
                                                  shadowH: Double.init("\(item["High"] ?? "0.000")")!,
                                                  shadowL: Double.init("\(item["Low"] ?? "0.000")")!,
                                                  open: Double.init("\(item["Open"] ?? "0.000")")!,
                                                  close: Double.init("\(item["Close"] ?? "0.000")")!)

            yStockValue.append(entry)
            i += 1
        }

        if xValues.count > 0 {
            self.combineLineStickChart.xAxis.valueFormatter = IndexAxisValueFormatter.init(values: xValues)
            self.combineLineChare.xAxis.valueFormatter = IndexAxisValueFormatter.init(values: xValues)
        }

        //MARK:MA
        if MarketSetting.mainCurrentIndex == 0 {
            MarketSetting.dicKpiMainData = [
                MA.kpiType.ma5.rawValue :  MA.init().calcMA(Data: self.arrChartData, andNmbner: 5),
                MA.kpiType.ma10.rawValue : MA.init().calcMA(Data: self.arrChartData, andNmbner: 10),
                MA.kpiType.ma15.rawValue : MA.init().calcMA(Data: self.arrChartData, andNmbner: 15),
                MA.kpiType.ma30.rawValue : MA.init().calcMA(Data: self.arrChartData, andNmbner: 30),
            ]

            guard let(_arrMA5,_arrMA10,_arrMA15,_arrMA30) = (MarketSetting.dicKpiMainData[MA.kpiType.ma5.rawValue],
                                                             MarketSetting.dicKpiMainData[MA.kpiType.ma10.rawValue],
                                                             MarketSetting.dicKpiMainData[MA.kpiType.ma15.rawValue],
                                                             MarketSetting.dicKpiMainData[MA.kpiType.ma30.rawValue]) as? (
                                                                [Double],[Double],[Double],[Double]) else {
                return
            }

            self.setMainKpiDataFor(Values1: _arrMA5,
                                   Values2: _arrMA10,
                                   Values3: _arrMA15,
                                   Values4: _arrMA30,
                                   withYStockValue: yStockValue,
                                   andisChange: isChange)
        }
        //MARK:BOLL
        else if MarketSetting.mainCurrentIndex == 1 {
            MarketSetting.dicKpiMainData = BOLL.init().calcBOLLFor(Data: self.arrChartData, andNumber: 26, withP: 2)

            guard let(_arrUp,_arrMid,_arrLow) = (MarketSetting.dicKpiMainData[BOLL.kpiType.up.rawValue],
                                                 MarketSetting.dicKpiMainData[BOLL.kpiType.mid.rawValue],
                                                 MarketSetting.dicKpiMainData[BOLL.kpiType.low.rawValue]) as? (
                                                    [Double],[Double],[Double]) else {
                return
            }

            self.setMainKpiDataFor(Values1: _arrUp,
                                   Values2: _arrMid,
                                   Values3: _arrLow,
                                   withYStockValue: yStockValue,
                                   andisChange: isChange)
        }

    }


    private func setMainKpiDataFor(Values1 _arrV1:[Double],
                                   Values2 _arrV2:[Double],
                                   Values3 _arrV3:[Double],
                                   Values4 _arrV4:[Double]? = nil,
                                   withYStockValue yStockValue:[ChartDataEntry] = [ChartDataEntry](),
                                   andisChange isChange:Bool = false){

        var yV1  = [ChartDataEntry]()
        var yV2  = [ChartDataEntry]()
        var yV3  = [ChartDataEntry]()
        var yV4  = [ChartDataEntry]()

        //V1
        let _count = self.arrChartData.count
        var minIndex = self.arrChartData.count - _arrV1.count
        for i in minIndex..<_count {
            let entry = ChartDataEntry.init(x: Double.init(i),y: _arrV1[i - minIndex])
            yV1.append(entry)
        }

        //V2
        minIndex = self.arrChartData.count - _arrV2.count
        for i in minIndex..<_count {
            let entry = ChartDataEntry.init(x: Double.init(i),y: _arrV2[i - minIndex])
            yV2.append(entry)
        }

        //V3
        minIndex = self.arrChartData.count - _arrV3.count
        for i in minIndex..<_count {
            let entry = ChartDataEntry.init(x: Double.init(i),y: _arrV3[i - minIndex])
            yV3.append(entry)
        }

        //V4
        if _arrV4 != nil {
            minIndex = self.arrChartData.count - _arrV4!.count
            for i in minIndex..<_count {
                let entry = ChartDataEntry.init(x: Double.init(i),y: _arrV4![i - minIndex])
                yV4.append(entry)
            }
        }

        //設定資料
        let data:CombinedChartData = CombinedChartData.init()

        let ds = [
            MarketSetting.setLineDataFor(Values: yV1,andColor: MarketSetting.dif_color,withName: ""),
            MarketSetting.setLineDataFor(Values: yV2,andColor: MarketSetting.dea_color,withName: ""),
            MarketSetting.setLineDataFor(Values: yV3,andColor: MarketSetting.kacd_color,withName: ""),
        ]

        if _arrV4 != nil {
            MarketSetting.setLineDataFor(Values: yV4, andColor: MarketSetting.kother_color,withName:"")
        }

        data.lineData = LineChartData.init(dataSets: ds)

        //股票
        data.candleData = CandleChartData.init(dataSets:[
            MarketSetting.setStockDataSetFor(Values: yStockValue)
        ])

        self.combineLineStickChart.data = data
        if isChange {
            self.combineLineStickChart.animate(xAxisDuration: MarketSetting.timeInterval)
        }

        if let _xMax = self.combineLineStickChart.data?.xMax {
            //開局移動到最右邊xMax為最大x軸值
            self.combineLineStickChart.moveViewToX(_xMax)
        }
    }
}

三、副圖MACD、KDJ指標圖數系結及影片加載

//MARK: - 副圖指標資料系結
extension MainView {

    /// 指標圖資料系結
    /// - Parameter isChange: isChange description
    private func setCombineLineData (isChange:Bool = false,
                                     andIndex ix:Int = 0){

        //副圖指標資料
        if self.arrChartData.count > 0 {
            //MARK:MACD
            if ix == 0 {
                MarketSetting.dicKpiData = MACD.init().calcMACDFor(Data: self.arrChartData)
                guard let(_arrDif,_arrDea,_arrMACD) = (
                        MarketSetting.dicKpiData[MACD.kpiType.dif.rawValue],
                        MarketSetting.dicKpiData[MACD.kpiType.dea.rawValue],
                        MarketSetting.dicKpiData[MACD.kpiType.macd.rawValue]) as? (
                            [Double],[Double],[Double]) else {
                    return
                }

                self.setMACDFor(DIF: _arrDif, andDEA: _arrDea, andMACD: _arrMACD,withChange: isChange)
            }
            //MARK:KDJ
            else if ix == 1 {
                MarketSetting.dicKpiData = KDJ.init().calcKDJFor(Data: self.arrChartData,andNumber: 9,andK: 3,withD: 3)
                guard let(_arrK,_arrD,_arrJ) = (
                        MarketSetting.dicKpiData[KDJ.kpiType.k.rawValue],
                        MarketSetting.dicKpiData[KDJ.kpiType.d.rawValue],
                        MarketSetting.dicKpiData[KDJ.kpiType.j.rawValue]) as? (
                            [Double],[Double],[Double]) else {
                    return
                }

                self.setKDJFor(K: _arrK, andD: _arrD, andJ: _arrJ, withChange: isChange)
            }
        }
    }

    private func setMACDFor(DIF _arrDif:[Double],
                            andDEA _arrDea:[Double],
                            andMACD _arrMACD:[Double],
                            withChange isChange:Bool){

        var yDIFValues  = [ChartDataEntry]()
        var yDEAValues  = [ChartDataEntry]()
        var yMACDValues = [ChartDataEntry]()

        //DIF
        for i in 0..<_arrDif.count {
            let entry = ChartDataEntry.init(x: Double.init(i),
                                            y: _arrDif[i])
            yDIFValues.append(entry)
        }

        //DEA
        for i in 0..<_arrDea.count {
            let entry = ChartDataEntry.init(x: Double.init(i),
                                            y: _arrDea[i])
            yDEAValues.append(entry)
        }

        //MACD
        for i in 0..<_arrMACD.count {
            let entry = BarChartDataEntry.init(x: Double.init(i), y: _arrMACD[i])
            yMACDValues.append(entry)
        }

        //設定資料
        let data:CombinedChartData = CombinedChartData.init()

        //DIF,DEA
        let lineDS = LineChartData.init(dataSets: [
                                            MarketSetting.setLineDataFor(Values: yDIFValues,
                                                                         andColor: MarketSetting.dif_color,
                                                                         withName: "DIF"),
                                            MarketSetting.setLineDataFor(Values: yDEAValues,
                                                                         andColor: MarketSetting.dea_color,
                                                                         withName: "DEA")])
        data.lineData = lineDS

        //MACD
        data.barData = BarChartData.init(dataSets: [
            MarketSetting.setBarCharSetFor(Values: yMACDValues, withName: "MACD")
        ])
        self.combineLineChare.data = data

        if isChange {
            self.combineLineChare.animate(xAxisDuration: MarketSetting.timeInterval)
        }

        if let _xMax = self.combineLineChare.data?.xMax {
            //開局移動到最右邊xMax為最大x軸值
            self.combineLineChare.moveViewToX(_xMax)
        }
    }

    private func setKDJFor(K _arrK:[Double],
                           andD _arrD:[Double],
                           andJ _arrJ:[Double],
                           withChange isChange:Bool){

        var yKValues  = [ChartDataEntry]()
        var yDValues  = [ChartDataEntry]()
        var yJValues  = [ChartDataEntry]()

        //K
        for i in 0..<_arrK.count {
            let entry = ChartDataEntry.init(x: Double.init(i),
                                            y: _arrK[i])
            yKValues.append(entry)
        }

        //D
        for i in 0..<_arrD.count {
            let entry = ChartDataEntry.init(x: Double.init(i),
                                            y: _arrD[i])
            yDValues.append(entry)
        }

        //J
        for i in 0..<_arrJ.count {
            let entry = BarChartDataEntry.init(x: Double.init(i),
                                               y: _arrJ[i])
            yJValues.append(entry)
        }

        //設定資料
        let data:CombinedChartData = CombinedChartData.init()


        let lineDS = LineChartData.init(dataSets: [
            MarketSetting.setLineDataFor(Values: yKValues,
                                         andColor: MarketSetting.dif_color,
                                         withName: "K"),
            MarketSetting.setLineDataFor(Values: yDValues,
                                         andColor: MarketSetting.dea_color,
                                         withName: "D"),
            MarketSetting.setLineDataFor(Values: yJValues,
                                         andColor: MarketSetting.kacd_color,
                                         withName: "J"),
        ])
        data.lineData = lineDS

        self.combineLineChare.data = data
        if isChange {
            self.combineLineChare.animate(xAxisDuration: MarketSetting.timeInterval)
        }

        if let _xMax = self.combineLineChare.data?.xMax {
            //開局移動到最右邊xMax為最大x軸值
            self.combineLineChare.moveViewToX(_xMax)
        }
    }

}

四、自定義十字線及其主副圖選中值獲取

 //十字線
        self.addSubview(self.labVerticalLine)
        self.addSubview(self.labHorizontalLine)
        self.addSubview(self.labHorizontalRight)

        //添加手勢
        let longGest = UILongPressGestureRecognizer.init(target: self, action: #selector(longGestAction(sender:)))
        longGest.minimumPressDuration = TimeInterval.init(1.0)
        self.addGestureRecognizer(longGest)

/// 垂直線
    private lazy var labVerticalLine:YYLabel = {
        autoreleasepool {
            let _line = BaseView.createLable(rect: .zero,
                                             text: nil,
                                             textColor: nil,
                                             font: nil,
                                             backgroundColor:MarketSetting.highlightColor)
            _line.isHidden = true
            return _line
        }
    }()

    /// 水平線右邊值
    private lazy var labHorizontalRight:YYLabel = {
        autoreleasepool {
            let _line = BaseView.createLable(rect: .zero,
                                             text: "0.00",
                                             textColor: UIColor.init().colorFromHexInt(hex: 0xffffff, alpha: 0.6),
                                             font: UIFont.systemFont(ofSize: 10),
                                             backgroundColor:MarketSetting.highlightColor)
            _line.textAlignment = .left
            _line.isHidden = true
            return _line
        }
    }()

    /// 水平線
    private lazy var labHorizontalLine:YYLabel = {
        autoreleasepool {
            let _line = BaseView.createLable(rect: .zero,
                                             text: nil,
                                             textColor: nil,
                                             font: nil,
                                             backgroundColor:MarketSetting.highlightColor)
            _line.isHidden = true
            return _line
        }
    }()

十字線手勢處理：

//MARK: - 十字線(手勢)
extension MainView {

    /// 長按手勢
    /// - Parameter sender: UILongPressGestureRecognizer
    @objc private func longGestAction(sender:UILongPressGestureRecognizer) {

        let transPoint:CGPoint = sender.location(in: self.combineLineStickChart)
        if transPoint.x > K_APP_WIDTH - 30 {
            return
        }

        print(transPoint.x)

        switch sender.state {
        //MARK:開始
        case .began:
            let (_,_newPoint) = self.updatePositionFor(Point: transPoint)
            self.labVerticalLine.center = .init(x: _newPoint.x, y: self.labVerticalLine.size.height * 0.5 + 10)

            if transPoint.y >= self.combineLineStickChart.top && transPoint.y <= self.combineLineChare.bottom  {
                self.labHorizontalLine.center = .init(x: self.labHorizontalLine.width * 0.5 + 10, y: transPoint.y)
                self.updateRightViewFor(Point: transPoint)
            }

            self.labHorizontalRight.isHidden = false
            self.labHorizontalLine.isHidden = false
            self.labVerticalLine.isHidden = false
            self.bottomView.isHidden = false
            self.topView.isHidden = false

            self.btnMACDTitle.isHidden = true
            self.btnMATitle.isHidden = true
            break

        //MARK:手勢改變
        case .changed:
            let (_m,_newPoint) = self.updatePositionFor(Point: transPoint)

            if let _model = _m {
                print(String.init(format: "o:%.2f,h:%.2f,l:%.2f,c:%.2f",_model.open,_model.high,_model.low,_model.close))

                self.labOpen.text = String.init(format:"%.2f",_model.open)
                self.labHeight.text = String.init(format:"%.2f",_model.high)
                self.labLow.text = String.init(format:"%.2f",_model.low)
                self.labClose.text = String.init(format:"%.2f",_model.close)

                self.labVerticalLine.center = .init(x: _newPoint.x, y: self.labVerticalLine.size.height * 0.5 + 10)
                if transPoint.y >= self.combineLineStickChart.top && transPoint.y <= self.combineLineChare.bottom  {
                    self.labHorizontalLine.center = .init(x: self.labHorizontalLine.width * 0.5 + 10, y: transPoint.y)
                    self.updateRightViewFor(Point: transPoint)
                }

                //更新頂部
                self.updateTopViewFor(Index: Int(_model.x))

                //更新底部
                self.updateBottomViewFor(Index: Int(_model.x))
            }
            break

        //MARK:其他(取消、結束...)
        default:
            self.labHorizontalRight.isHidden = true
            self.labHorizontalLine.isHidden = true
            self.labVerticalLine.isHidden = true
            self.bottomView.isHidden = true
            self.topView.isHidden = true

            self.btnMACDTitle.isHidden = false
            self.btnMATitle.isHidden = false
            break
        }
    }


    /// 根據手勢移動的坐標獲取對應K線上的坐標
    /// - Parameter p: CGPoint
    /// - Returns: (CandleChartDataEntry?,CGPoint)
    private func updatePositionFor(Point p:CGPoint) -> (CandleChartDataEntry?,CGPoint) {
        let _model:CandleChartDataEntry? = self.combineLineStickChart.getEntryByTouchPoint(point: p) as? CandleChartDataEntry

        var _newPoint = p
        if _model != nil {
            _newPoint = self.combineLineStickChart.getPosition(entry: _model!, axis: YAxis.AxisDependency.right)
        }

        return (_model,_newPoint)
    }

    //MARK:主圖指標值
    /// 更新頂部主圖指標
    /// - Parameter ix: Int
    private func updateTopViewFor(Index ix:Int) {

        if MarketSetting.mainCurrentIndex == 0 {
            guard let(_arrMa5,_arrMa10,_arrMa15,_arrMa30) = (MarketSetting.dicKpiMainData[MA.kpiType.ma5.rawValue],MarketSetting.dicKpiMainData[MA.kpiType.ma10.rawValue],MarketSetting.dicKpiMainData[MA.kpiType.ma15.rawValue],MarketSetting.dicKpiMainData[MA.kpiType.ma30.rawValue]) as? ([Double],[Double],[Double],[Double]) else {
                return
            }

            let _count = self.arrChartData.count
            let _5Mindex = _count - _arrMa5.count
            let _10Mindex = _count - _arrMa10.count
            let _15Mindex = _count - _arrMa15.count
            let _30Mindex = _count - _arrMa30.count

            self.moveUpdateFor(View: self.topView,
                               andV1: (_arrMa5.count > (ix - _5Mindex) && (ix - _5Mindex) >= 0) ? String.init(format:"MA5:%.2f",_arrMa5[ix - _5Mindex]) : "MA5:0.00",
                               andV2: (_arrMa10.count > (ix - _10Mindex) && (ix - _10Mindex) >= 0) ? String.init(format:"MA10:%.2f",_arrMa10[ix - _10Mindex]) : "MA10:0.00",
                               withV3:(_arrMa15.count > (ix - _15Mindex) && (ix - _15Mindex) >= 0) ? String.init(format:"MA15:%.2f",_arrMa15[ix - _15Mindex]) : "MA15:0.00",
                               withV4: (_arrMa30.count > (ix - _30Mindex) && (ix - _30Mindex) >= 0) ? String.init(format:"MA30:%.2f",_arrMa30[ix - _30Mindex]) : "MA30:0.00")
        }
        else if MarketSetting.mainCurrentIndex == 1 {
            guard let(_arrUp,_arrMid,_arrLow) = (MarketSetting.dicKpiMainData[BOLL.kpiType.up.rawValue],
                                                 MarketSetting.dicKpiMainData[BOLL.kpiType.mid.rawValue],MarketSetting.dicKpiMainData[BOLL.kpiType.low.rawValue]) as? ([Double],[Double],[Double]) else {
                return
            }

            let _count = self.arrChartData.count
            let _uMindex = _count - _arrUp.count
            let _mMindex = _count - _arrMid.count
            let _lMindex = _count - _arrLow.count

            self.moveUpdateFor(View: self.topView,
                               andV1: (_arrUp.count > (ix - _uMindex) && (ix - _uMindex) >= 0) ? String.init(format:"UP:%.2f",_arrUp[ix - _uMindex]) : "UP:0.00",
                               andV2: (_arrMid.count > (ix - _mMindex) && (ix - _mMindex) >= 0) ? String.init(format:"MID:%.2f",_arrMid[ix - _mMindex]) : "MID:0.00",
                               withV3:(_arrLow.count > (ix - _lMindex) && (ix - _lMindex) >= 0) ? String.init(format:"LOW:%.2f",_arrLow[ix - _lMindex]) : "LOW:0.00",
                               withV4: nil)
        }

    }

    //MARK:副圖指標值
    /// 更新底部副圖指標
    /// - Parameter ix: Int
    private func updateBottomViewFor(Index ix:Int) {

        if MarketSetting.minorCurrentIndex == 0 {
            guard let(_arrDif,_arrDea,_arrMACD) = (MarketSetting.dicKpiData[MACD.kpiType.dif.rawValue],MarketSetting.dicKpiData[MACD.kpiType.dea.rawValue],MarketSetting.dicKpiData[MACD.kpiType.macd.rawValue]) as? ([Double],[Double],[Double]) else {
                return
            }

            self.moveUpdateFor(View:self.bottomView,
                               andV1: _arrDif.count > ix ? String.init(format:"DIF:%.2f",_arrDif[ix]) : "DIF:0.00",
                               andV2: _arrDea.count > ix ? String.init(format:"DEA:%.2f",_arrDea[ix]) : "DEA:0.00",
                               withV3: _arrMACD.count > ix ? String.init(format:"MACD:%.2f",_arrMACD[ix]) : nil,
                               withV4: nil)
        }
        else if MarketSetting.minorCurrentIndex == 1 {
            guard let(_arrK,_arrD,_arrJ) = (MarketSetting.dicKpiData[KDJ.kpiType.k.rawValue],MarketSetting.dicKpiData[KDJ.kpiType.d.rawValue],MarketSetting.dicKpiData[KDJ.kpiType.j.rawValue]) as? ([Double],[Double],[Double]) else {
                return
            }

            self.moveUpdateFor(View:self.bottomView,
                               andV1: _arrK.count > ix ? String.init(format:"K:%.2f",_arrK[ix]) : "K:0.00",
                               andV2: _arrD.count > ix ? String.init(format:"D:%.2f",_arrD[ix]) : "D:0.00",
                               withV3: _arrJ.count > ix ? String.init(format:"J:%.2f",_arrJ[ix]) : nil,
                               withV4: nil)
        }
    }

    private func moveUpdateFor(View v:UIView,
                               andV1 v1:String,
                               andV2 v2:String,
                               withV3 v3:String? = nil,
                               withV4 v4:String? = nil) {
        var labV1:YYLabel?
        var labV2:YYLabel?
        var labV3:YYLabel?
        var labV4:YYLabel?

        for _view in v.subviews {
            switch _view.tag {
            case 1:
                labV1 = _view as? YYLabel

            case 2:
                labV2 = _view as? YYLabel

            case 3:
                labV3 = _view as? YYLabel
                v.viewWithTag(33)?.isHidden = v3 == nil ? true : false

            case 4:
                labV4 = _view as? YYLabel
                v.viewWithTag(44)?.isHidden = v4 == nil ? true : false

            default:
                break
            }
        }

        labV1?.text = v1
        labV2?.text = v2
        labV3?.text = v3
        labV4?.text = v4
    }

    //MARK:十字線數值
    /// 更新右邊水平十字線數值
    /// - Parameter p: CGPoint
    private func updateRightViewFor(Point p:CGPoint) {
        self.labHorizontalRight.centerY = self.labHorizontalLine.centerY

        var _min:Double = 0.0
        var _max:Double = 0.0
        var _unitValue:Double = 0.0
        var _haveHight:CGFloat = 0.0

        //匹配主圖刻度值
        if p.y >= self.combineLineStickChart.top && p.y <= self.combineLineStickChart.bottom {
            _min = self.combineLineStickChart.rightAxis.axisMinimum
            _max = self.combineLineStickChart.rightAxis.axisMaximum

            //計算單位高度的值
            _unitValue = (_max - _min) / Double(self.combineLineStickChart.height)

            //擁有的單位高度
            _haveHight = p.y - self.combineLineStickChart.top
        }
        //匹配附圖刻度值
        else if p.y >= self.combineLineChare.top && p.y <= self.combineLineChare.bottom {
            _min = self.combineLineChare.rightAxis.axisMinimum
            _max = self.combineLineChare.rightAxis.axisMaximum

            //計算單位高度的值
            _unitValue = (_max - _min) / Double(self.combineLineChare.height)

            //擁有的單位高度
            _haveHight = p.y - self.combineLineChare.top
        }

        //賦值
        if _max > 0 {
            self.labHorizontalRight.text = String.init(format:"%.2f",_max - _unitValue * Double(_haveHight))
        }
    }
}

五、主副圖表同步回應事件

//MARK: - ChartViewDelegate
extension MainView : ChartViewDelegate {


    /// 圖表被移動(主、副圖同時回應)
    /// https://blog.csdn.net/dianchidu6913/article/details/101228178
    /// - Parameters:
    ///   - chartView: ChartViewBase
    ///   - dX: CGFloat
    ///   - dY: CGFloat
    func chartTranslated(_ chartView: ChartViewBase, dX: CGFloat, dY: CGFloat) {
        self.updateTouchFor(ChartView: chartView)
    }


    /// 圖表被縮放
    /// - Parameters:
    ///   - chartView: ChartViewBase
    ///   - scaleX: CGFloat
    ///   - scaleY: CGFloat
    func chartScaled(_ chartView: ChartViewBase, scaleX: CGFloat, scaleY: CGFloat) {
        self.updateTouchFor(ChartView: chartView)
    }


    /// 同步手勢
    /// - Parameter chartView: chartView description
    private func updateTouchFor(ChartView chartView:ChartViewBase){
        let srcMatrix:CGAffineTransform = chartView.viewPortHandler.touchMatrix

        self.combineLineStickChart.viewPortHandler.refresh(newMatrix: srcMatrix,
                                                           chart: self.combineLineStickChart,
                                                           invalidate: true)

        self.combineLineChare.viewPortHandler.refresh(newMatrix: srcMatrix,
                                                      chart: self.combineLineChare,
                                                      invalidate: true)
    }
}

由于篇幅有限指標計算以及原始碼和其他問題可留言咨詢獲取，相應引數設定見文中備注描述，

本文結束，歡迎指正！
