練習案例

視差影片 - 雅虎新聞摘要加載

效果展示

前期準備

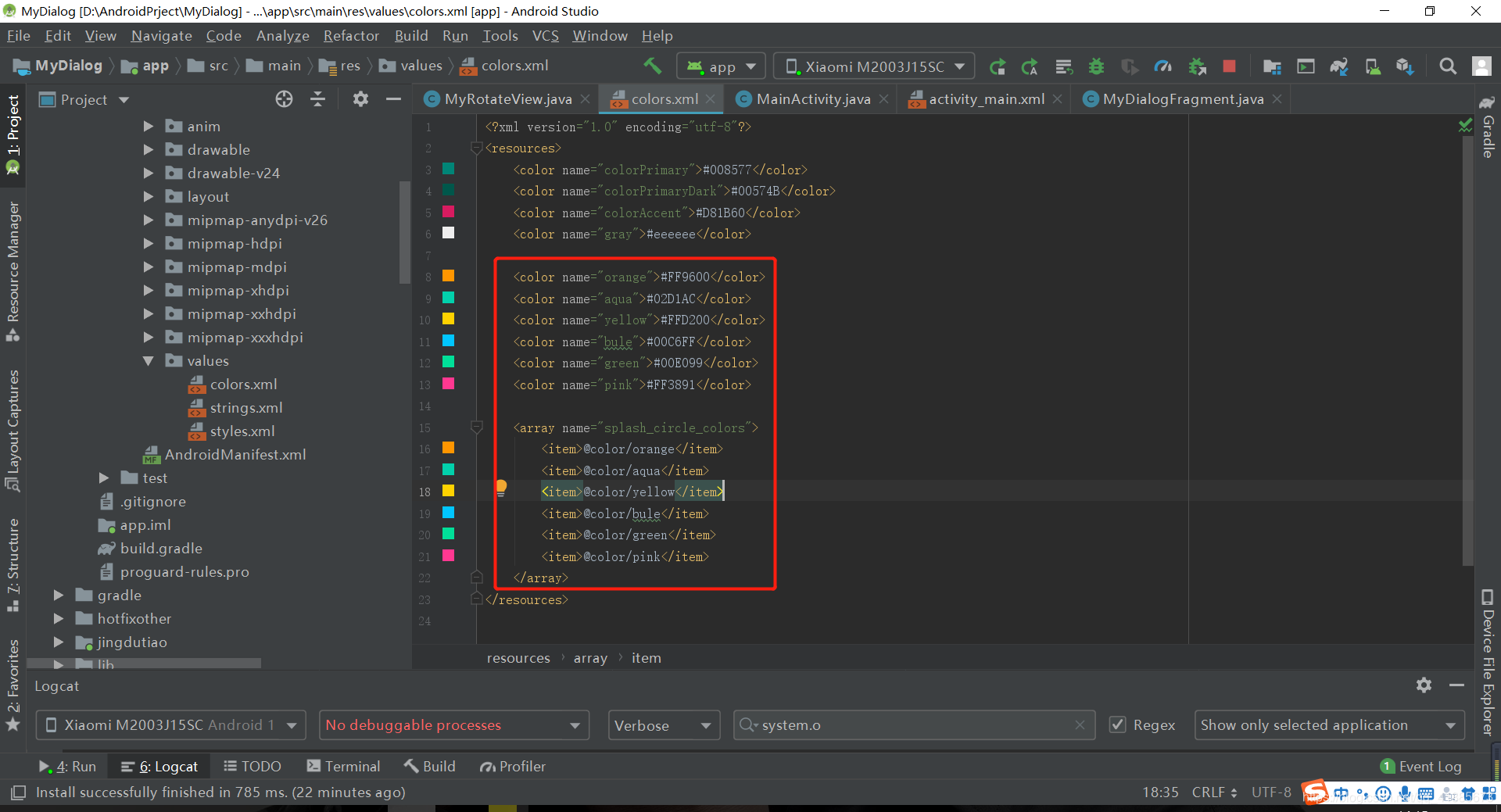

第一步：準備好顏色陣列 res => values => colors.xml

    <color name="orange">#FF9600</color>
    <color name="aqua">#02D1AC</color>
    <color name="yellow">#FFD200</color>
    <color name="bule">#00C6FF</color>
    <color name="green">#00E099</color>
    <color name="pink">#FF3891</color>

    <array name="splash_circle_colors">
        <item>@color/orange</item>
        <item>@color/aqua</item>
        <item>@color/yellow</item>
        <item>@color/bule</item>
        <item>@color/green</item>
        <item>@color/pink</item>
    </array>

自定義 View java代碼撰寫

方法一

關鍵思想：屬性影片 + 計算圓心

package com.wust.mydialog;

import android.animation.ObjectAnimator;
import android.animation.ValueAnimator;
import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Paint;
import android.util.AttributeSet;
import android.view.View;
import android.view.animation.LinearInterpolator;

import androidx.annotation.Nullable;


/**
 * ClassName: com.wust.mydialog.MyRotateView <br/>
 * Description: <br/>
 * date: 2021/8/7 12:13<br/>
 *
 * @author yiqi<br />
 * @QQ 1820762465
 * @微信 yiqiideallife
 * @技術交流QQ群 928023749
 */
public class MyRotateView extends View {

    //設定旋轉間隔時間
    private int SPLASH_CIRCLE_ROTATE_TIME = 3000;
    //設定中心圓半徑
    private float CENTER_CIRCLE_RADIUS;
    private float SMALL_CIRCLE_RADIUS;
    private float mCurrentSingle = 0f;
    private int[] mColorArray;
    private Paint mCirclePaint;
    private ValueAnimator va;

    public MyRotateView(Context context) {
        super(context);
    }

    public MyRotateView(Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
    }

    public MyRotateView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        int width = MeasureSpec.getSize(widthMeasureSpec);
        int height = MeasureSpec.getSize(heightMeasureSpec);

        //初始化引數
        initParams(width,height);

        setMeasuredDimension(width,height);
    }

    private void initParams(int w, int h) {
        //設定中心圓半徑
        CENTER_CIRCLE_RADIUS = 1/4.0f * w;
        //設定小圓的半徑
        SMALL_CIRCLE_RADIUS = 1/25.0f * w;
        //獲取小球顏色
        mColorArray = getResources().getIntArray(R.array.splash_circle_colors);
        //初始化畫筆
        mCirclePaint = new Paint();
        mCirclePaint.setDither(true);
        mCirclePaint.setAntiAlias(true);

    }

    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);
        //繪制圓
        drawSplashCircle(canvas);
    }

    private void drawSplashCircle(Canvas canvas) {
        //設定屬性影片，讓小圓轉起來
        //這里得注意，是個坑，你如果不判斷那球就不會動 因為會陷入死回圈 值影片將值設定為0 -> invalidate()重繪 -> 執行draw 又將值設為0
        if (va == null){
            va = ObjectAnimator.ofFloat(0f, 2 * (float) Math.PI);
            va.setDuration(SPLASH_CIRCLE_ROTATE_TIME);
            va.setRepeatCount(ValueAnimator.INFINITE);
            va.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
                @Override
                public void onAnimationUpdate(ValueAnimator animation) {
                    mCurrentSingle = (float) animation.getAnimatedValue();
//                    System.out.println("mCurrentSingle ->" + mCurrentSingle);
                    invalidate();
                }
            });
            va.setInterpolator(new LinearInterpolator());
            va.start();
        }

        //計算每個小球的間隔
        double spaceAngle = Math.PI*2/mColorArray.length;

        for (int i = 0; i < mColorArray.length; i++) {
            //為 每個球 畫筆 設定顏色
            mCirclePaint.setColor(mColorArray[i]);

            //利用 勾股定理 計算 小圓 中心點
            float cx = getWidth()/2 + (float) (CENTER_CIRCLE_RADIUS*Math.cos(spaceAngle*i+mCurrentSingle));
            float cy = getHeight()/2 + (float) (CENTER_CIRCLE_RADIUS*Math.sin(spaceAngle*i+mCurrentSingle));

            canvas.drawCircle(cx,cy,SMALL_CIRCLE_RADIUS,mCirclePaint);
        }
    }
}

方法二

關鍵思想：旋轉畫布法

package com.wust.mydialog;

import android.animation.ObjectAnimator;
import android.animation.ValueAnimator;
import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Paint;
import android.util.AttributeSet;
import android.view.View;
import android.view.animation.LinearInterpolator;

import androidx.annotation.Nullable;


/**
 * ClassName: com.wust.mydialog.MyRotateView <br/>
 * Description: <br/>
 * date: 2021/8/7 12:13<br/>
 *
 * @author yiqi<br />
 * @QQ 1820762465
 * @微信 yiqiideallife
 * @技術交流QQ群 928023749
 */
public class MyRotateView extends View {

    //設定旋轉間隔時間
    private int SPLASH_CIRCLE_ROTATE_TIME = 3000;
    //設定中心圓半徑
    private float CENTER_CIRCLE_RADIUS;
    private float SMALL_CIRCLE_RADIUS;
    private float mCurrentSingle = 0f;
    private int[] mColorArray;
    private Paint mCirclePaint;
    private ValueAnimator va;

    public MyRotateView(Context context) {
        super(context);
    }

    public MyRotateView(Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
    }

    public MyRotateView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        int width = MeasureSpec.getSize(widthMeasureSpec);
        int height = MeasureSpec.getSize(heightMeasureSpec);

        //初始化引數
        initParams(width,height);

        setMeasuredDimension(width,height);
    }

    private void initParams(int w, int h) {
        //設定中心圓半徑
        CENTER_CIRCLE_RADIUS = 1/4.0f * w;
        //設定小圓的半徑
        SMALL_CIRCLE_RADIUS = 1/25.0f * w;
        //獲取小球顏色
        mColorArray = getResources().getIntArray(R.array.splash_circle_colors);
        //初始化畫筆
        mCirclePaint = new Paint();
        mCirclePaint.setDither(true);
        mCirclePaint.setAntiAlias(true);

    }

    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);
        //繪制圓
        drawSplashCircle(canvas);
    }

    private void drawSplashCircle(Canvas canvas) {
        //設定屬性影片，讓小圓轉起來
        //這里得注意，是個坑，你如果不判斷那球就不會動 因為會陷入死回圈 值影片將值設定為0 -> invalidate()重繪 -> 執行draw 又將值設為0
        if (va == null){
//            va = ObjectAnimator.ofFloat(0f, 2 * (float) Math.PI);
            va = ObjectAnimator.ofFloat(0f, 360.0f);
            va.setDuration(SPLASH_CIRCLE_ROTATE_TIME);
            va.setRepeatCount(ValueAnimator.INFINITE);
            va.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
                @Override
                public void onAnimationUpdate(ValueAnimator animation) {
                    mCurrentSingle = (float) animation.getAnimatedValue();
//                    System.out.println("mCurrentSingle ->" + mCurrentSingle);
                    invalidate();
                }
            });
            va.setInterpolator(new LinearInterpolator());
            va.start();
        }

        //計算每個小球的間隔
//        double spaceAngle = Math.PI*2/mColorArray.length;
        double spaceAngle = 360.0d/mColorArray.length;
        System.out.println("spaceAngle -> " + spaceAngle);

        //利用旋轉畫布法
        canvas.save();
        canvas.rotate(mCurrentSingle,getWidth()/2,getHeight()/2);
        for (int i = 0; i < mColorArray.length; i++) {
            canvas.rotate((float) spaceAngle,getWidth()/2,getHeight()/2);
            //為 每個球 畫筆 設定顏色
            mCirclePaint.setColor(mColorArray[i]);

            //利用 勾股定理 計算 小圓 中心點
            //float cx = getWidth()/2 + (float) (CENTER_CIRCLE_RADIUS*Math.cos(spaceAngle*i+mCurrentSingle));
            //float cy = getHeight()/2 + (float) (CENTER_CIRCLE_RADIUS*Math.sin(spaceAngle*i+mCurrentSingle));

            //利用旋轉畫布法
            float cx = getWidth()/2 + CENTER_CIRCLE_RADIUS;
            float cy = getHeight()/2;

            canvas.drawCircle(cx,cy,SMALL_CIRCLE_RADIUS,mCirclePaint);
        }
        canvas.restore();
    }
}

易錯點總結：

1、canvas.rotate(mCurrentSingle,getWidth()/2,getHeight()/2);中第一個引數傳的是角度（360度的那種），而 Math.cos();中引數傳的是一個弧度（2π的那種）

2、canvas.rotate() 函式執行之后對后續畫布上的操作都是有影響的，所以，得配合 canvas.save();和 canvas.restore();使用，因此，里面的canvas.rotate((float) spaceAngle,getWidth()/2,getHeight()/2);中spaceAngle不能乘 i ，

3、畫布的旋轉除了 canvas.rotate() 函式可以實作外，還可以利用矩陣，代碼如下：

//創建矩陣
private Matrix mSpaceMatrix;
//初始化旋轉矩陣
mSpaceMatrix = new Matrix();
//初始化旋轉矩陣
mSpaceMatrix.reset();
mSpaceMatrix.postRotate((float) spaceAngle,getWidth()/2,getHeight()/2);
//畫布旋轉角度
canvas.concat(mSpaceMatrix);

完整代碼

package com.wust.mydialog;

import android.animation.ObjectAnimator;
import android.animation.ValueAnimator;
import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Matrix;
import android.graphics.Paint;
import android.util.AttributeSet;
import android.view.View;
import android.view.animation.LinearInterpolator;

import androidx.annotation.Nullable;


/**
 * ClassName: com.wust.mydialog.MyRotateView <br/>
 * Description: <br/>
 * date: 2021/8/7 12:13<br/>
 *
 * @author yiqi<br />
 * @QQ 1820762465
 * @微信 yiqiideallife
 * @技術交流QQ群 928023749
 */
public class MyRotateView extends View {

    //設定旋轉間隔時間
    private int SPLASH_CIRCLE_ROTATE_TIME = 3000;
    //設定中心圓半徑
    private float CENTER_CIRCLE_RADIUS;
    private float SMALL_CIRCLE_RADIUS;
    private float mCurrentSingle = 0f;
    private int[] mColorArray;
    private Paint mCirclePaint;
    private ValueAnimator va;
    private Matrix mSpaceMatrix;

    public MyRotateView(Context context) {
        super(context);
    }

    public MyRotateView(Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
    }

    public MyRotateView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        int width = MeasureSpec.getSize(widthMeasureSpec);
        int height = MeasureSpec.getSize(heightMeasureSpec);

        //初始化引數
        initParams(width,height);

        setMeasuredDimension(width,height);
    }

    private void initParams(int w, int h) {
        //設定中心圓半徑
        CENTER_CIRCLE_RADIUS = 1/4.0f * w;
        //設定小圓的半徑
        SMALL_CIRCLE_RADIUS = 1/25.0f * w;
        //獲取小球顏色
        mColorArray = getResources().getIntArray(R.array.splash_circle_colors);
        //初始化畫筆
        mCirclePaint = new Paint();
        mCirclePaint.setDither(true);
        mCirclePaint.setAntiAlias(true);
        //初始化旋轉矩陣
        mSpaceMatrix = new Matrix();
    }

    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);
        //繪制圓
        drawSplashCircle(canvas);
    }

    private void drawSplashCircle(Canvas canvas) {
        //設定屬性影片，讓小圓轉起來
        //這里得注意，是個坑，你如果不判斷那球就不會動 因為會陷入死回圈 值影片將值設定為0 -> invalidate()重繪 -> 執行draw 又將值設為0
        if (va == null){
//            va = ObjectAnimator.ofFloat(0f, 2 * (float) Math.PI);
            va = ObjectAnimator.ofFloat(0f, 360.0f);
            va.setDuration(SPLASH_CIRCLE_ROTATE_TIME);
            va.setRepeatCount(ValueAnimator.INFINITE);
            va.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
                @Override
                public void onAnimationUpdate(ValueAnimator animation) {
                    mCurrentSingle = (float) animation.getAnimatedValue();
//                    System.out.println("mCurrentSingle ->" + mCurrentSingle);
                    invalidate();
                }
            });
            va.setInterpolator(new LinearInterpolator());
            va.start();
        }

        //計算每個小球的間隔
//        double spaceAngle = Math.PI*2/mColorArray.length;
        double spaceAngle = 360.0d/mColorArray.length;
        //初始化旋轉矩陣
        mSpaceMatrix.reset();
        mSpaceMatrix.postRotate((float) spaceAngle,getWidth()/2,getHeight()/2);


        //利用旋轉畫布法
        canvas.save();
        canvas.rotate(mCurrentSingle,getWidth()/2,getHeight()/2);
        for (int i = 0; i < mColorArray.length; i++) {
//            canvas.rotate((float) spaceAngle,getWidth()/2,getHeight()/2);
//        System.out.println("spaceAngle -> " + spaceAngle);
            canvas.concat(mSpaceMatrix);
            //為 每個球 畫筆 設定顏色
            mCirclePaint.setColor(mColorArray[i]);

            //利用 勾股定理 計算 小圓 中心點
            //float cx = getWidth()/2 + (float) (CENTER_CIRCLE_RADIUS*Math.cos(spaceAngle*i+mCurrentSingle));
            //float cy = getHeight()/2 + (float) (CENTER_CIRCLE_RADIUS*Math.sin(spaceAngle*i+mCurrentSingle));

            //利用旋轉畫布法
            float cx = getWidth()/2 + CENTER_CIRCLE_RADIUS;
            float cy = getHeight()/2;

            canvas.drawCircle(cx,cy,SMALL_CIRCLE_RADIUS,mCirclePaint);
        }
        canvas.restore();
    }
}

注意事項：

1、canvas.concat(mSpaceMatrix);對畫布的操作也會對后面進行影響

2、Android中Matrix的set、pre、post的區別

說set、pre、post的區別之前，先說說Matrix，

Matrix包含一個3 X 3的矩陣，專門用于影像變換匹配，

Matrix提供了四種操作：

translate(平移)
rotate(旋轉)
scale(縮放)
skew(傾斜)

也就是說這4種操作都是對這個3 X 3的矩陣設值來達到變換的效果，

Matrix沒有結構體，它必須被初始化，通過reset或set方法，

OK，Matrix介紹完了，我們來看看set、pre、post的區別，

pre是在佇列最前面插入，post是在佇列最后面追加，而set先清空佇列在添加（這也是上文提到的“Matrix沒有結構體，它必須被初始化，通過reset或set方法”的原因），

下面通過一些例子具體說明：

matrix.preScale(2f,1f);
matrix.preTranslate(5f, 0f);
matrix.postScale(0.2f, 1f);
matrix.postTranslate(0.5f, 0f);

執行順序：translate(5, 0) -> scale(2f, 1f) -> scale(0.2f, 1f) -> translate(0.5f, 0f)

matrix.postTranslate(2f, 0f);
matrix.preScale(0.2f, 1f);
matrix.setScale(1f, 1f);
matrix.postScale(5f, 1f);
matrix.preTranslate(0.5f, 0f);

執行順序：translate(0.5f, 0f) -> scale(1f, 1f) -> scale(5f, 1)

轉載請註明出處，本文鏈接：https://www.uj5u.com/yidong/292757.html

標籤：其他

上一篇：Android接入三方登錄——QQ、微信、Facebook、Twitter

下一篇：android學習之內容提供器

Android實作旋轉影片的兩種方式

練習案例

效果展示

前期準備

自定義 View java代碼撰寫

方法一

方法二

易錯點總結：
