0.前言

作為一個已經作業*年的 Android 開發工程師，感覺自己是時候對了解原始碼的內容了（不管什么時候，閱讀原始碼都是很重要的），這次基于閱讀各方的有關學習資料后，自己花了近8個小時，寫出的這篇逐字稿，其中可能還是存在不全面，甚至有錯誤的地方，望諒解，后面會進行二次，三次，甚至多次的修改，也希望大家多多指正，交流~

本篇文章旨在將 OkHttp 做一個請求的流程，在原始碼中是如何實作的進行淺析，

1.OkHttp的簡單使用

可以直接在 官網 參考 https://square.github.io/okhttp/

以下是一個簡單的使用，本文暫時不分析大管家- OkHttpClient

val url = "https://square.github.io/okhttp/"
val client = OkHttpClient()
val request = Request.Builder()
        .url(url).build()
try {
    client.newCall(request).execute()
} catch (e: Exception) {
    Log.i("TAG", "onCreate: Exception---${e.message}")
}

2.淺析開始

首先從最后一行（有意義的一行）入手，最后是呼叫了 execute()，【那么，我們所有的分析都是為了知道 execute 到底做了什么？】

查看后發現是 介面 Call 的一個方法，那么我們就看看呼叫 execute() 的類，那就是 . 前面的東西，

查看后 newCall 是屬于 OkHttpClient 類，然后這個方法

override fun newCall(request: Request): Call = RealCall(this, request, forWebSocket = false)

接受了一個 request 引數【這個 request 引數就是我們自己創建的 request】，通過 RealCall 回傳一個 Call， 那么我們接著看看 RealCall 是怎么創建一個 Call 的呢？

現在進入到了 RealCall 類

那進來后，發現 RealCall 類實作了 Call 介面，那么回到最開始，我們就是想知道 execute 做了什么？那么我們來看看 RealCall 中的 execute 做了什么吧，（因為 RealCall 不是抽象類，所以exectue 一定有具體實作）

哈哈哈，果不其然，的確有

override fun execute(): Response {
  check(executed.compareAndSet(false, true)) { "Already Executed" }

  timeout.enter()
  callStart()
  try {
    client.dispatcher.executed(this)
    return getResponseWithInterceptorChain()
  } finally {
    client.dispatcher.finished(this)
  }
}

到這一步，就將問題轉化為，RealCall 的 execute 做了什么？

直接看 return 的東西，是一個 getResponseWithInterceptorChain() ，那么我們進去看看這個方法做了什么吧？[ 這個方法還是在 RealCall 中]

internal fun getResponseWithInterceptorChain(): Response {
  // Build a full stack of interceptors.
  val interceptors = mutableListOf<Interceptor>()
  interceptors += client.interceptors
  interceptors += RetryAndFollowUpInterceptor(client)
  interceptors += BridgeInterceptor(client.cookieJar)
  interceptors += CacheInterceptor(client.cache)
  interceptors += ConnectInterceptor
  if (!forWebSocket) {
    interceptors += client.networkInterceptors
  }
  interceptors += CallServerInterceptor(forWebSocket)

  val chain = RealInterceptorChain(
      call = this,
      interceptors = interceptors,
      index = 0,
      exchange = null,
      request = originalRequest,
      connectTimeoutMillis = client.connectTimeoutMillis,
      readTimeoutMillis = client.readTimeoutMillis,
      writeTimeoutMillis = client.writeTimeoutMillis
  )

  var calledNoMoreExchanges = false
  try {
    val response = chain.proceed(originalRequest)
    if (isCanceled()) {
      response.closeQuietly()
      throw IOException("Canceled")
    }
    return response
  } catch (e: IOException) {
    calledNoMoreExchanges = true
    throw noMoreExchanges(e) as Throwable
  } finally {
    if (!calledNoMoreExchanges) {
      noMoreExchanges(null)
    }
  }
}

到這一步，就將問題轉化為，getResponseWithInterceptorChain 做了什么？

依舊先找 return 的東西，發現 return 了個 response，而產生這個 response 是呼叫了 chain.proceed(originalRequest) ，那么我們看看這里的 proceed() 的方法做了什么吧？

override fun proceed(request: Request): Response {
  check(index < interceptors.size)

  calls++

  if (exchange != null) {
    check(exchange.finder.sameHostAndPort(request.url)) {
      "network interceptor ${interceptors[index - 1]} must retain the same host and port"
    }
    check(calls == 1) {
      "network interceptor ${interceptors[index - 1]} must call proceed() exactly once"
    }
  }

  // Call the next interceptor in the chain.
  val next = copy(index = index + 1, request = request)
  val interceptor = interceptors[index]

  @Suppress("USELESS_ELVIS")
  val response = interceptor.intercept(next) ?: throw NullPointerException(
      "interceptor $interceptor returned null")

  if (exchange != null) {
    check(index + 1 >= interceptors.size || next.calls == 1) {
      "network interceptor $interceptor must call proceed() exactly once"
    }
  }

  check(response.body != null) { "interceptor $interceptor returned a response with no body" }

  return response
}

同樣，找最后一行 return，往上追，看到是通過 interceptor.intercept(next) 得到的結果，next 會在上面被+1 重新賦值，這樣就可以把接力棒往下傳了，

嗯？這個 interceptor 是個啥？哪來的？

【在這里打斷一下，反問一下，我們在干嘛？為什么走到這步了？】

哦~原來是我們追溯到 RealCall 的 execute 方法中，然后里面有 getResponseWithInterceptorChain() 然后這個方法中又呼叫了 chain.proceed(originalRequest)，于是我們跳到了 RealInterceptorChain 類中查看 proceed 做了什么，這個時候，我們發現這里面呼叫了一個 interceptor.intercept(next) ，于是我們好奇了 interceptor 是哪里來的，以及它的 intercept 做了什么？我們知道這兩個之后，就知道了 RealCall 的 execute 方法做了什么，然后我們就知道 OkHttp 是如何實作一個請求的，（嗯嗯，心滿意足）

首先還是先點擊 intercept 的這個方法，發現，他是一個介面，interceptor 介面 的方法，老規矩，我們接著往上看，看看 具體的 interceptor

class RealInterceptorChain(
  internal val call: RealCall,
  private val interceptors: List<Interceptor>,
  private val index: Int,
  internal val exchange: Exchange?,
  internal val request: Request,
  internal val connectTimeoutMillis: Int,
  internal val readTimeoutMillis: Int,
  internal val writeTimeoutMillis: Int
)

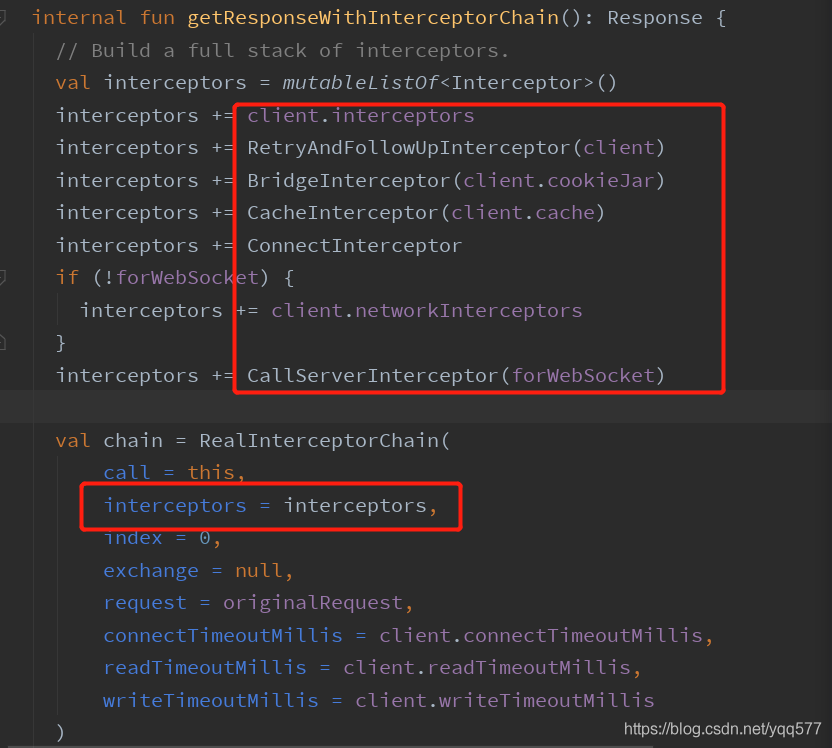

找到根處，發現這個是我們創建 RealInterceptorChain 實體的時候，傳進來的，那么我們追回上一層 RealCall 中

哦，就是有一個 list 變數，用來裝“一堆” interceptor 的，

攔截器

鏈式呼叫流程示意圖

那么接下來就嘗試把一個個 Interceptor 解讀一遍，在解讀之前，補充一點整個鏈式呼叫流程大概如下圖所示

除了最后一個 interceptor 節點，每一個節點都分為三個作業流程，前置，中置，后置，

【中置作業】將流程推到一下個節點，（通過呼叫 realChain.proceed(request)），

【前置作業】就是本身攔截器要做的一些事情，（例如：尋找可用的鏈接，拿到可用的 Cache 等等）

【后置作業】就是等下個節點把回傳值回傳后的一個作業處理，

有了上面的流程基礎，我們就可以開始分析了，

第 0 個攔截器

client.interceptors //這個是我們自己定義的 interceptors,我們暫時不理會

第一個 攔截器 RetryAndFollowUpInterceptor

/**
 * This interceptor recovers from failures and follows redirects as necessary. It may throw an
 * [IOException] if the call was canceled.
 */

剛剛我們好奇的就是這些 interceptor 的 intercep 方法做了什么，所以直接看 intercept 方法即可，

override fun intercept(chain: Interceptor.Chain): Response {
  val realChain = chain as RealInterceptorChain
  var request = chain.request
  val call = realChain.call
  var followUpCount = 0
  var priorResponse: Response? = null
  var newExchangeFinder = true
  var recoveredFailures = listOf<IOException>()
  while (true) {
    call.enterNetworkInterceptorExchange(request, newExchangeFinder)

    var response: Response
    var closeActiveExchange = true
    try {
      if (call.isCanceled()) {
        throw IOException("Canceled")
      }

      try {
        //????????????????????????????????????????????????????????????????
        response = realChain.proceed(request)
        newExchangeFinder = true
      } catch (e: RouteException) {
        // The attempt to connect via a route failed. The request will not have been sent.
        if (!recover(e.lastConnectException, call, request, requestSendStarted = false)) {
          throw e.firstConnectException.withSuppressed(recoveredFailures)
        } else {
          recoveredFailures += e.firstConnectException
        }
        newExchangeFinder = false
        continue
      } catch (e: IOException) {
        // An attempt to communicate with a server failed. The request may have been sent.
        if (!recover(e, call, request, requestSendStarted = e !is ConnectionShutdownException)) {
          throw e.withSuppressed(recoveredFailures)
        } else {
          recoveredFailures += e
        }
        newExchangeFinder = false
        continue
      }

      // Attach the prior response if it exists. Such responses never have a body.
      if (priorResponse != null) {
        response = response.newBuilder()
            .priorResponse(priorResponse.newBuilder()
                .body(null)
                .build())
            .build()
      }

      val exchange = call.interceptorScopedExchange
      val followUp = followUpRequest(response, exchange)

      if (followUp == null) {
        if (exchange != null && exchange.isDuplex) {
          call.timeoutEarlyExit()
        }
        closeActiveExchange = false
        return response
      }

      val followUpBody = followUp.body
      if (followUpBody != null && followUpBody.isOneShot()) {
        closeActiveExchange = false
        return response
      }

      response.body?.closeQuietly()

      if (++followUpCount > MAX_FOLLOW_UPS) {
        throw ProtocolException("Too many follow-up requests: $followUpCount")
      }

      request = followUp
      priorResponse = response
    } finally {
      call.exitNetworkInterceptorExchange(closeActiveExchange)
    }
  }
}

有了上面的鋪墊（呼叫流程示意圖），那么我們只需要知道 realChain.proceed(request) 就可以劃分出 前置，后置的作業了，

[//??????????????]處，就是【中置作業】，所以，我們想要【前置作業】做了什么，就往前面看，

【前置作業】call.enterNetworkInterceptorExchange(request, newExchangeFinder)

【后置作業】簡單分析一下，就在嘗試和重定向，直至成功后，回傳拿到的資料 response，并將其回傳，

追溯 enterNetworkInterceptorExchange，發現回到了 RealCall 這個類當中

fun enterNetworkInterceptorExchange(request: Request, newExchangeFinder: Boolean) {
  check(interceptorScopedExchange == null)

  synchronized(this) {
    check(!responseBodyOpen) {
      "cannot make a new request because the previous response is still open: " +
          "please call response.close()"
    }
    check(!requestBodyOpen)
  }

  if (newExchangeFinder) {
    this.exchangeFinder = ExchangeFinder(
        connectionPool,
        createAddress(request.url),
        this,
        eventListener
    )
  }
}

其中上面方法中 newExchangeFinder 為 true，所以將執行 if 代碼塊

這里主要是創建了一個 ExchangeFinder 實體，暫時先不看這個類是什么？因為現在，我們只需要知道他創建了這么一個實體出來，等真正呼叫了對應的方法的時候，我們再去看對應的方法即可，

第二個攔截器 BridgeInterceptor

/**
 * Bridges from application code to network code. First it builds a network request from a user
 * request. Then it proceeds to call the network. Finally it builds a user response from the network
 * response.
 */

通過名字和代碼注釋，這個攔截器，主要是負責 application 和 network 連接的一個連接橋攔截器，

override fun intercept(chain: Interceptor.Chain): Response {
  val userRequest = chain.request()
  val requestBuilder = userRequest.newBuilder()

  val body = userRequest.body
  if (body != null) {
    val contentType = body.contentType()
    if (contentType != null) {
      requestBuilder.header("Content-Type", contentType.toString())
    }

    val contentLength = body.contentLength()
    if (contentLength != -1L) {
      requestBuilder.header("Content-Length", contentLength.toString())
      requestBuilder.removeHeader("Transfer-Encoding")
    } else {
      requestBuilder.header("Transfer-Encoding", "chunked")
      requestBuilder.removeHeader("Content-Length")
    }
  }

  if (userRequest.header("Host") == null) {
    requestBuilder.header("Host", userRequest.url.toHostHeader())
  }

  if (userRequest.header("Connection") == null) {
    requestBuilder.header("Connection", "Keep-Alive")
  }

  // If we add an "Accept-Encoding: gzip" header field we're responsible for also decompressing
  // the transfer stream.
  var transparentGzip = false
  if (userRequest.header("Accept-Encoding") == null && userRequest.header("Range") == null) {
    transparentGzip = true
    requestBuilder.header("Accept-Encoding", "gzip")
  }

  val cookies = cookieJar.loadForRequest(userRequest.url)
  if (cookies.isNotEmpty()) {
    requestBuilder.header("Cookie", cookieHeader(cookies))
  }

  if (userRequest.header("User-Agent") == null) {
    requestBuilder.header("User-Agent", userAgent)
  }

  //????????????????????????????????????????????????????????????????
  val networkResponse = chain.proceed(requestBuilder.build())

  cookieJar.receiveHeaders(userRequest.url, networkResponse.headers)

  val responseBuilder = networkResponse.newBuilder()
      .request(userRequest)

  if (transparentGzip &&
      "gzip".equals(networkResponse.header("Content-Encoding"), ignoreCase = true) &&
      networkResponse.promisesBody()) {
    val responseBody = networkResponse.body
    if (responseBody != null) {
      val gzipSource = GzipSource(responseBody.source())
      val strippedHeaders = networkResponse.headers.newBuilder()
          .removeAll("Content-Encoding")
          .removeAll("Content-Length")
          .build()
      responseBuilder.headers(strippedHeaders)
      val contentType = networkResponse.header("Content-Type")
      responseBuilder.body(RealResponseBody(contentType, -1L, gzipSource.buffer()))
    }
  }

  return responseBuilder.build()
}

同理，找到 ? 所在所在位置，即是分割前置和后置作業的地方，

【前置作業】組裝請求頭

【后置作業】將資料解壓，轉成 response，并將其回傳

第三個攔截器 CacheInterceptor

/** Serves requests from the cache and writes responses to the cache. */

override fun intercept(chain: Interceptor.Chain): Response {
  val call = chain.call()
  val cacheCandidate = cache?.get(chain.request())

  val now = System.currentTimeMillis()

  val strategy = CacheStrategy.Factory(now, chain.request(), cacheCandidate).compute()
  val networkRequest = strategy.networkRequest
  val cacheResponse = strategy.cacheResponse

  cache?.trackResponse(strategy)
  val listener = (call as? RealCall)?.eventListener ?: EventListener.NONE

  if (cacheCandidate != null && cacheResponse == null) {
    // The cache candidate wasn't applicable. Close it.
    cacheCandidate.body?.closeQuietly()
  }

  // If we're forbidden from using the network and the cache is insufficient, fail.
  if (networkRequest == null && cacheResponse == null) {
    return Response.Builder()
        .request(chain.request())
        .protocol(Protocol.HTTP_1_1)
        .code(HTTP_GATEWAY_TIMEOUT)
        .message("Unsatisfiable Request (only-if-cached)")
        .body(EMPTY_RESPONSE)
        .sentRequestAtMillis(-1L)
        .receivedResponseAtMillis(System.currentTimeMillis())
        .build().also {
          listener.satisfactionFailure(call, it)
        }
  }

  // If we don't need the network, we're done.
  if (networkRequest == null) {
    return cacheResponse!!.newBuilder()
        .cacheResponse(stripBody(cacheResponse))
        .build().also {
          listener.cacheHit(call, it)
        }
  }

  if (cacheResponse != null) {
    listener.cacheConditionalHit(call, cacheResponse)
  } else if (cache != null) {
    listener.cacheMiss(call)
  }

  var networkResponse: Response? = null
  try {
   //????????????????????????????????????????????????????????????????
    networkResponse = chain.proceed(networkRequest)
  } finally {
    // If we're crashing on I/O or otherwise, don't leak the cache body.
    if (networkResponse == null && cacheCandidate != null) {
      cacheCandidate.body?.closeQuietly()
    }
  }

  // If we have a cache response too, then we're doing a conditional get.
  if (cacheResponse != null) {
    if (networkResponse?.code == HTTP_NOT_MODIFIED) {
      val response = cacheResponse.newBuilder()
          .headers(combine(cacheResponse.headers, networkResponse.headers))
          .sentRequestAtMillis(networkResponse.sentRequestAtMillis)
          .receivedResponseAtMillis(networkResponse.receivedResponseAtMillis)
          .cacheResponse(stripBody(cacheResponse))
          .networkResponse(stripBody(networkResponse))
          .build()

      networkResponse.body!!.close()

      // Update the cache after combining headers but before stripping the
      // Content-Encoding header (as performed by initContentStream()).
      cache!!.trackConditionalCacheHit()
      cache.update(cacheResponse, response)
      return response.also {
        listener.cacheHit(call, it)
      }
    } else {
      cacheResponse.body?.closeQuietly()
    }
  }

  val response = networkResponse!!.newBuilder()
      .cacheResponse(stripBody(cacheResponse))
      .networkResponse(stripBody(networkResponse))
      .build()

  if (cache != null) {
    if (response.promisesBody() && CacheStrategy.isCacheable(response, networkRequest)) {
      // Offer this request to the cache.
      val cacheRequest = cache.put(response)
      return cacheWritingResponse(cacheRequest, response).also {
        if (cacheResponse != null) {
          // This will log a conditional cache miss only.
          listener.cacheMiss(call)
        }
      }
    }

    if (HttpMethod.invalidatesCache(networkRequest.method)) {
      try {
        cache.remove(networkRequest)
      } catch (_: IOException) {
        // The cache cannot be written.
      }
    }
  }

  return response
}

【前置作業】拿到一個可用的 cache

val strategy = CacheStrategy.Factory(now, chain.request(), cacheCandidate).compute()

【后置作業】cacheWritingResponse 放回傳來的 cache 存起來，

第四個攔截器 ConnectInterceptor

/**
 * Opens a connection to the target server and proceeds to the next interceptor. The network might
 * be used for the returned response, or to validate a cached response with a conditional GET.
 */

override fun intercept(chain: Interceptor.Chain): Response {
  val realChain = chain as RealInterceptorChain
  val exchange = realChain.call.initExchange(chain)
  val connectedChain = realChain.copy(exchange = exchange)
  //????????????????????????????????????????????????????????????????
  return connectedChain.proceed(realChain.request)
}

那么在這上面，

可以看到【中置作業】依舊是 proceed

然后【后置作業】就是將其結果回傳，

【前置作業】打開目標服務器的連接，

核心的代碼是第 3 行代碼，那溯源，發現是在 RealCall 的一個方法

/** Finds a new or pooled connection to carry a forthcoming request and response. */
internal fun initExchange(chain: RealInterceptorChain): Exchange {
  synchronized(this) {
    check(expectMoreExchanges) { "released" }
    check(!responseBodyOpen)
    check(!requestBodyOpen)
  }

  val exchangeFinder = this.exchangeFinder!!
  val codec = exchangeFinder.find(client, chain)
  val result = Exchange(this, eventListener, exchangeFinder, codec)
  this.interceptorScopedExchange = result
  this.exchange = result
  synchronized(this) {
    this.requestBodyOpen = true
    this.responseBodyOpen = true
  }

  if (canceled) throw IOException("Canceled")
  return result
}

老規矩，看看最后一行， return 了一個 result，往上看，看到第 12 行代碼生成的，發現其中傳入的一個引數是 exchangeFinder，咦，等等，這個是我們在RetryAndFollowUpInterceptor 這個攔截器生成的那個嗎？是的，因為在 10 行，發現了，就是那個，它被用到了，第 11 行，呼叫了它的 find 方法，我們進去看看

fun find(
  client: OkHttpClient,
  chain: RealInterceptorChain
): ExchangeCodec {
  try {
    val resultConnection = findHealthyConnection(
        connectTimeout = chain.connectTimeoutMillis,
        readTimeout = chain.readTimeoutMillis,
        writeTimeout = chain.writeTimeoutMillis,
        pingIntervalMillis = client.pingIntervalMillis,
        connectionRetryEnabled = client.retryOnConnectionFailure,
        doExtensiveHealthChecks = chain.request.method != "GET"
    )
    return resultConnection.newCodec(client, chain)
  } catch (e: RouteException) {
    trackFailure(e.lastConnectException)
    throw e
  } catch (e: IOException) {
    trackFailure(e)
    throw RouteException(e)
  }
}

最后回傳的是一個 ExchangeCodec （/** Encodes HTTP requests and decodes HTTP responses. */）

看 return ，看 newCodec()【 RealCall 】 方法，這里不貼代碼了，就是根據是否是 HTTP2 來生成 HTT2 或者 HTTP1 的編碼解碼器，

那 resultConnection 是什么呢？findHealthyConnection() 生成的

溯源，發現這個在 ExchangeFinder 類中 最后發現是呼叫了 findConnection()

private fun findConnection(
  connectTimeout: Int,
  readTimeout: Int,
  writeTimeout: Int,
  pingIntervalMillis: Int,
  connectionRetryEnabled: Boolean
): RealConnection {
  if (call.isCanceled()) throw IOException("Canceled")

  // Attempt to reuse the connection from the call.
  val callConnection = call.connection // This may be mutated by releaseConnectionNoEvents()!
  if (callConnection != null) {
    var toClose: Socket? = null
    synchronized(callConnection) {
      if (callConnection.noNewExchanges || !sameHostAndPort(callConnection.route().address.url)) {
        toClose = call.releaseConnectionNoEvents()
      }
    }

    // If the call's connection wasn't released, reuse it. We don't call connectionAcquired() here
    // because we already acquired it.
    if (call.connection != null) {
      check(toClose == null)
      return callConnection
    }

    // The call's connection was released.
    toClose?.closeQuietly()
    eventListener.connectionReleased(call, callConnection)
  }

  // We need a new connection. Give it fresh stats.
  refusedStreamCount = 0
  connectionShutdownCount = 0
  otherFailureCount = 0

  // Attempt to get a connection from the pool.
  if (connectionPool.callAcquirePooledConnection(address, call, null, false)) {
    val result = call.connection!!
    eventListener.connectionAcquired(call, result)
    return result
  }

  // Nothing in the pool. Figure out what route we'll try next.
  val routes: List<Route>?
  val route: Route
  if (nextRouteToTry != null) {
    // Use a route from a preceding coalesced connection.
    routes = null
    route = nextRouteToTry!!
    nextRouteToTry = null
  } else if (routeSelection != null && routeSelection!!.hasNext()) {
    // Use a route from an existing route selection.
    routes = null
    route = routeSelection!!.next()
  } else {
    // Compute a new route selection. This is a blocking operation!
    var localRouteSelector = routeSelector
    if (localRouteSelector == null) {
      localRouteSelector = RouteSelector(address, call.client.routeDatabase, call, eventListener)
      this.routeSelector = localRouteSelector
    }
    val localRouteSelection = localRouteSelector.next()
    routeSelection = localRouteSelection
    routes = localRouteSelection.routes

    if (call.isCanceled()) throw IOException("Canceled")

    // Now that we have a set of IP addresses, make another attempt at getting a connection from
    // the pool. We have a better chance of matching thanks to connection coalescing.
    if (connectionPool.callAcquirePooledConnection(address, call, routes, false)) {
      val result = call.connection!!
      eventListener.connectionAcquired(call, result)
      return result
    }

    route = localRouteSelection.next()
  }

  // Connect. Tell the call about the connecting call so async cancels work.
  val newConnection = RealConnection(connectionPool, route)
  call.connectionToCancel = newConnection
  try {
    newConnection.connect(
        connectTimeout,
        readTimeout,
        writeTimeout,
        pingIntervalMillis,
        connectionRetryEnabled,
        call,
        eventListener
    )
  } finally {
    call.connectionToCancel = null
  }
  call.client.routeDatabase.connected(newConnection.route())

  // If we raced another call connecting to this host, coalesce the connections. This makes for 3
  // different lookups in the connection pool!
  if (connectionPool.callAcquirePooledConnection(address, call, routes, true)) {
    val result = call.connection!!
    nextRouteToTry = route
    newConnection.socket().closeQuietly()
    eventListener.connectionAcquired(call, result)
    return result
  }

  synchronized(newConnection) {
    connectionPool.put(newConnection)
    call.acquireConnectionNoEvents(newConnection)
  }

  eventListener.connectionAcquired(call, newConnection)
  return newConnection
}

搜索 （Ctrl + F）return result,發現有三處有關回傳結果，那么我們從第一個開始看起

上面代碼的第40行，

這個 if 代碼塊中，判斷條件，看上去就是從一個連接池中到拿到一個連接，如果拿到了就將這個連接回傳，

溯源 callAcquirePooledConnection() 在 RealConntectionPool 這個類中

fun callAcquirePooledConnection(
  address: Address,
  call: RealCall,
  routes: List<Route>?,
  requireMultiplexed: Boolean
): Boolean {
  for (connection in connections) {
    synchronized(connection) {
      if (requireMultiplexed && !connection.isMultiplexed) return@synchronized
      if (!connection.isEligible(address, routes)) return@synchronized
      call.acquireConnectionNoEvents(connection)
      return true
    }
  }
  return false
}

可以看到，就是從所有的連接中，遍歷出一個可以用的連接，如果存在則回傳 true，否則反之，

因為呼叫了三次這個方法，那么我們分析一下對應的引數有什么意義，

address 主要是包含了 host 和 port 的 Address 實體

call 就是 RealCall 的實體

routes 路由串列（可空）

requireMultiplexed 是否使用多路復用（針對HTTP2）

我們先對比三次呼叫的差異

connectionPool.callAcquirePooledConnection(address, call, null, false)
connectionPool.callAcquirePooledConnection(address, call, routes, false)
connectionPool.callAcquirePooledConnection(address, call, routes, true)

得出

只拿不進行[多路復用]的連接
看似好像也不拿[多路復用]的連接，其實不是，這是針對http2的獲取連接，與[多路復用無關]，原因：在isEligible 中如果不是HTTP2將會直接回傳false
只拿[多路復用]的連接

那么我們再看看這三次呼叫的時機，

第一次，就是我們正常流程的獲取一個連接，那假如沒有拿到，就會 localRouteselector 中選擇一個組的路由出來，進行第二次的獲取，如果這個時候，還是沒有拿到，那么我們就需要自己創建一個連接了，

val newConnection = RealConnection(connectionPool, route)
call.connectionToCancel = newConnection
try {
  newConnection.connect(
      connectTimeout,
      readTimeout,
      writeTimeout,
      pingIntervalMillis,
      connectionRetryEnabled,
      call,
      eventListener
  )
} finally {
  call.connectionToCancel = null
}
call.client.routeDatabase.connected(newConnection.route())

創建后，為什么？還是在連接池中拿一次呢？原因是：有兩個請求同時去訪問同一個ip地址，其中 A 已經創建了一個連接，B 也創建了一個連接，這樣就有兩個連接了,造成資源的浪費，所以當 A 創建后，B再創建后，先去連接池里面再拿一次，如果拿到了，就把自己創建的放棄掉（但又不完全放棄，nextRouteToTry 會把剛剛創建的 route 暫存起來，因為有可能真正去用的時候，A創建的那個連接又被釋放了）

那么回歸到這段分析的最開始，就是 exchangeFinder的find() 到底做了什么，那這里我小結一下，就是在連接池中找到一個可用的連接，并且生成對應的編碼解碼器，

然后在回歸到 initExchange 的方法中，最后通過 exchangeFinder 和 codec 實體化了一個Exchange 并回傳，

第五個攔截器

client.networkInterceptors //這個也是自定義的攔截器，暫時跳過

第六個攔截器 CallServerInterceptor

/** This is the last interceptor in the chain.
* It makes a network call to the server. */

在這個類中搜索 proceed，可以看到并沒有這樣的結果，

那么這個攔截器，做的事情，就是把請求發到服務器，并且把服務器回傳的資料，回傳都上一層，

小結

當所有的攔截器都放到了 chain 中，chain 呼叫 proceed ，流程就會像我們上面分析的那樣執行下來，每個攔截器都會做好自己的作業【前置作業】，到最后一個攔截器后，就是有點萬事俱備，只欠東風的感覺了，

3.結語

這次分析，全程沒有打開別的資料，所以可能會存在一些遺漏或者錯誤，歡迎大家勘正，同時，如果這篇文章對你起到了作用，歡迎一鍵三連，點贊，評論，收藏，（老B站選手了），歡迎大家私信交流~~~

本篇文章后續，會進行多次修正或者補充，以及會及時（沒有意外的話，下周末）會發布《OkHttp原始碼解讀逐字稿(2)-OkHttpClient》歡迎大家監督，催更，
