從零開始無障礙服務
前言
一、新建專案-選擇Empty Activity
二、新建BaseService類和AccessService類
- 1. BaseService類
- 2. AccessService類
三、修改AndroidManifest.xml
- 1. 添加AccessibilityService配置
- 2. 添加allocation.xml組態檔
四、修改MainActivity類
五、實作1+2+3=6

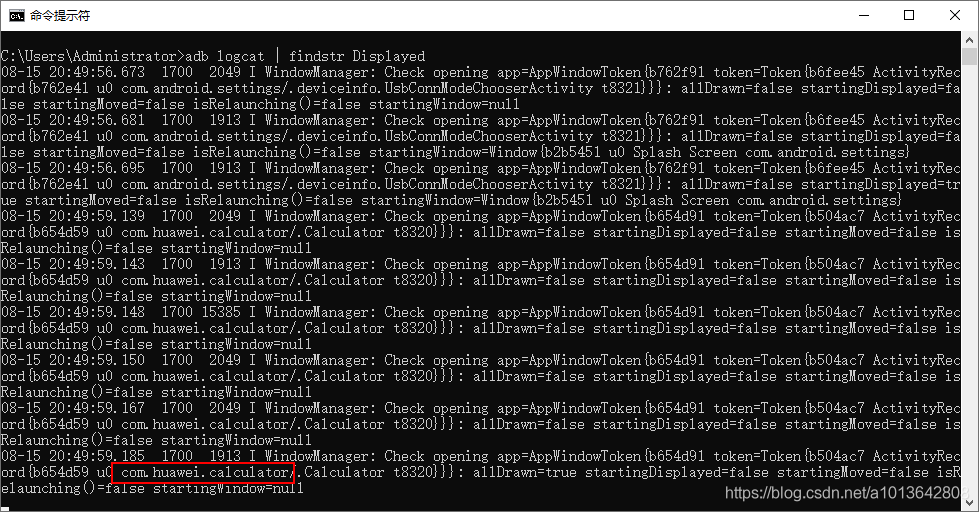

- 1. 獲取APP包名

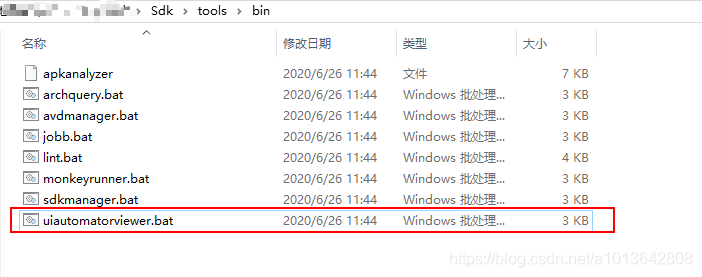

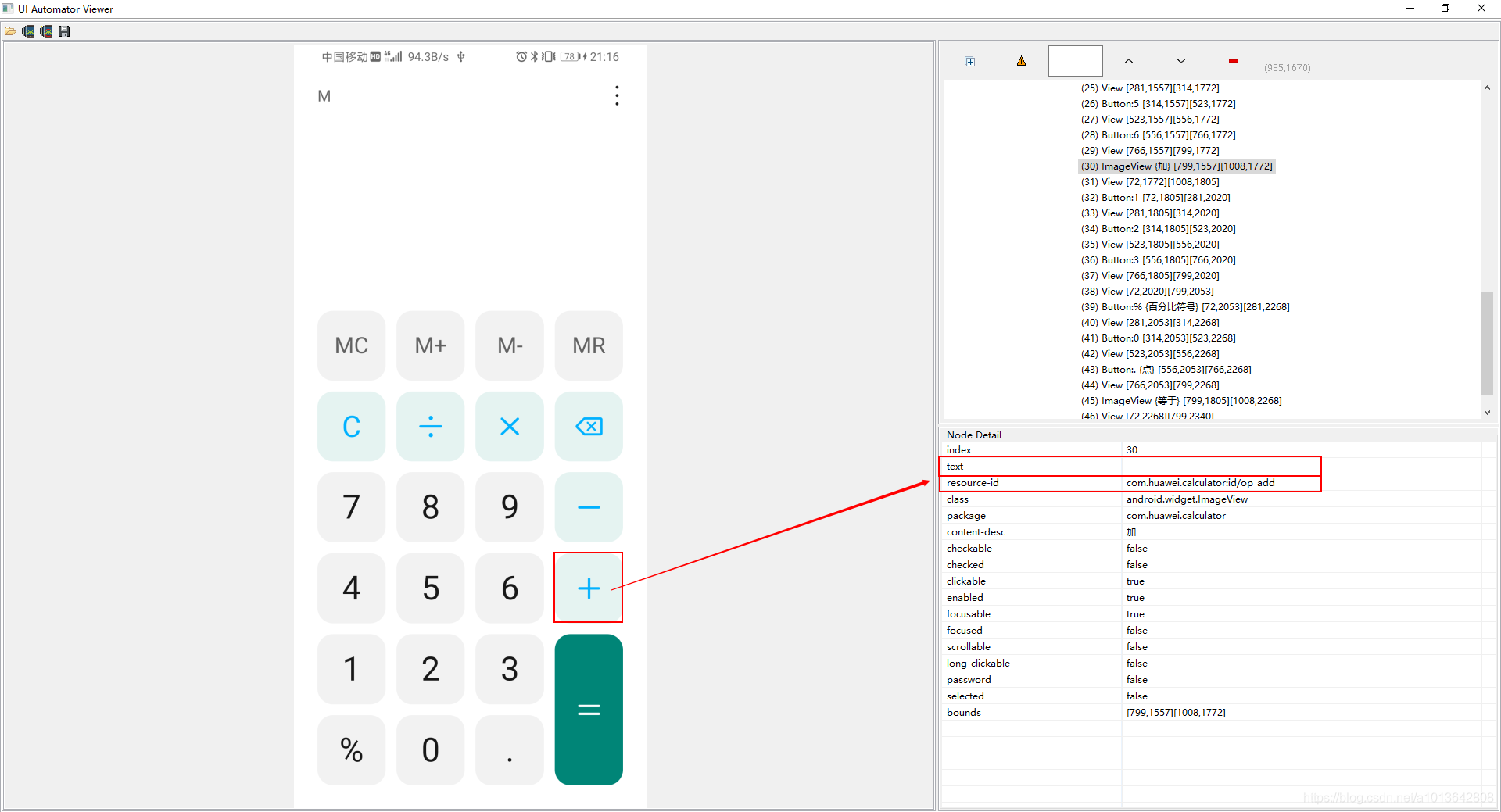

- 2. 查找并點擊1、2、3、+、=

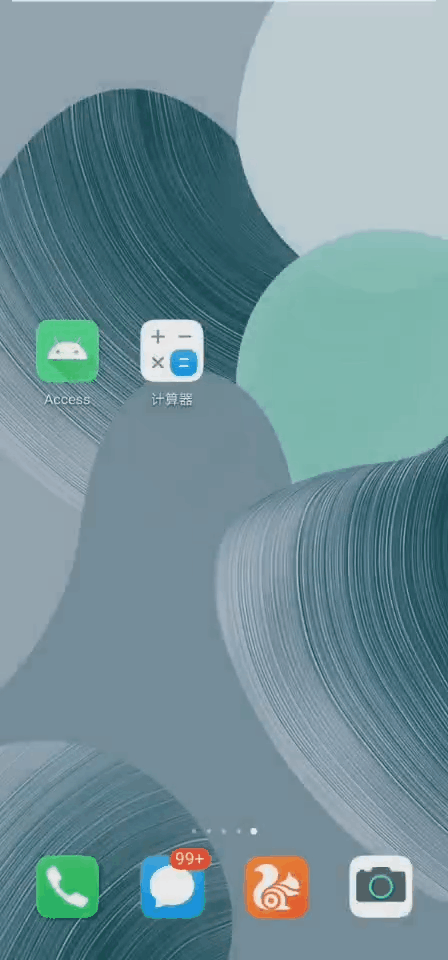

- 3. 運行效果

前言

以前安卓root權限很容易獲取的時候，可以寫一些日常作業批處理的助手工具，而現在的安卓手機權限管理越來越嚴，root權限越來越難獲取，于是就開始使用安卓自帶的無障礙服務來實作自己的操作了，雖然也有限制，但是總體的操作也是很符合預期，本文將從零撰寫一個無障礙服務的工具，不適合安卓初學者，請小白自行百度詳細，

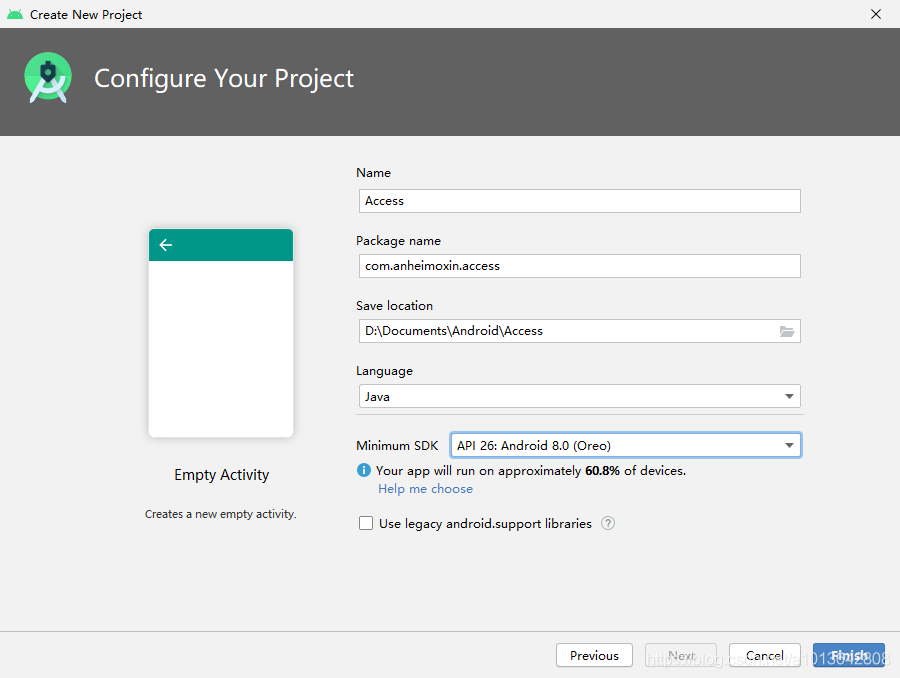

一、新建專案-選擇Empty Activity

Minimun SDK我直接選擇API 26，省去一些雜七雜八的問題，讀者有更低版本兼容需求的話，請自行填坑，

在這里插入圖片描述

二、新建BaseService類和AccessService類

1. BaseService類

BaseService繼承AccessibilityService，里面封裝了一些常用的查找、定位、手勢方法，

代碼如下：

import android.accessibilityservice.AccessibilityService;
import android.accessibilityservice.AccessibilityServiceInfo;
import android.accessibilityservice.GestureDescription;
import android.content.Context;
import android.content.Intent;
import android.graphics.Path;
import android.graphics.Rect;
import android.os.Bundle;
import android.os.Handler;
import android.os.Looper;
import android.provider.Settings;
import android.util.Log;
import android.view.accessibility.AccessibilityEvent;
import android.view.accessibility.AccessibilityManager;
import android.view.accessibility.AccessibilityNodeInfo;

import java.util.ArrayList;
import java.util.List;
import java.util.Stack;


/*
 * 基類，封裝了查找定位、點擊、手勢方法
 * */
public class BaseService extends AccessibilityService {

    private AccessibilityManager mAccessibilityManager;

    private Context mContext;

    private static BaseService mInstance;

    public void init(Context context) {
        mContext = context.getApplicationContext();
        mAccessibilityManager = (AccessibilityManager) mContext.getSystemService(Context.ACCESSIBILITY_SERVICE);

    }

    public static BaseService getInstance() {
        if (mInstance == null) {
            mInstance = new BaseService();
        }
        return mInstance;
    }

    /**
     * Check當前輔助服務是否啟用
     *
     * @param serviceName serviceName
     * @return 是否啟用
     */
    public boolean checkAccessibilityEnabled(String serviceName) {
        List<AccessibilityServiceInfo> accessibilityServices =
                mAccessibilityManager.getEnabledAccessibilityServiceList(AccessibilityServiceInfo.FEEDBACK_GENERIC);
        for (AccessibilityServiceInfo info : accessibilityServices) {
            if (info.getId().equals(serviceName)) {
                return true;
            }
        }
        return false;
    }

    /**
     * 前往開啟輔助服務界面
     */
    public void goAccess() {
        Intent intent = new Intent(Settings.ACTION_ACCESSIBILITY_SETTINGS);
        intent.setFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
        mContext.startActivity(intent);
    }

    /**
     * 模擬點擊事件,如果該node不能點擊，則點擊父node，將點擊事件一直向父級傳遞，直至到根node或者找到一個可以點擊的node
     *
     * @param nodeInfo nodeInfo
     */
    public void performViewClick(AccessibilityNodeInfo nodeInfo) {
        if (nodeInfo == null) {
            return;
        }
        while (nodeInfo != null) {
            if (nodeInfo.isClickable()) {
                nodeInfo.performAction(AccessibilityNodeInfo.ACTION_CLICK);
                break;
            }
            nodeInfo = nodeInfo.getParent();
        }
    }

    /**
     * 模擬回傳操作
     */
    public void performBackClick() {
        performGlobalAction(GLOBAL_ACTION_BACK);
    }

    /**
     * 模擬下滑操作
     */
    public void performScrollBackward() {
        performGlobalAction(AccessibilityNodeInfo.ACTION_SCROLL_BACKWARD);
    }

    /**
     * 模擬上滑操作
     */
    public void performScrollForward() {
        performGlobalAction(AccessibilityNodeInfo.ACTION_SCROLL_FORWARD);

    }

    /**
     * 查找對應文本的View，無論該node能不能點擊
     *
     * @param text text
     * @return View
     */
    public AccessibilityNodeInfo findViewByText(String text) {
        AccessibilityNodeInfo viewByText = findViewByText(text, true);
        if (viewByText == null) {
            viewByText = findViewByText(text, false);
        }
        return viewByText;
    }

    /**
     * 查找對應文本的View
     *
     * @param text      text
     * @param clickable 該View是否可以點擊
     * @return View
     */
    public AccessibilityNodeInfo findViewByText(String text, boolean clickable) {
        AccessibilityNodeInfo accessibilityNodeInfo = getRootInActiveWindow();
        if (accessibilityNodeInfo == null) {
            return null;
        }

        List<AccessibilityNodeInfo> nodeInfoList = accessibilityNodeInfo.findAccessibilityNodeInfosByText(text);
        if (nodeInfoList != null && !nodeInfoList.isEmpty()) {
            for (AccessibilityNodeInfo nodeInfo : nodeInfoList) {
                if (nodeInfo != null && (nodeInfo.isClickable() == clickable)) {
                    return nodeInfo;
                }
            }
        }
        return null;
    }

    /**
     * 查找對應ID的View
     *
     * @param id id
     * @return View
     */
    public AccessibilityNodeInfo findViewByID(String id) {
        AccessibilityNodeInfo accessibilityNodeInfo = getRootInActiveWindow();
        if (accessibilityNodeInfo == null) {
            return null;
        }
        List<AccessibilityNodeInfo> nodeInfoList = accessibilityNodeInfo.findAccessibilityNodeInfosByViewId(id);
        if (nodeInfoList != null && !nodeInfoList.isEmpty()) {
            Log.d("dd", "findViewByID: " + nodeInfoList.size());
            for (AccessibilityNodeInfo nodeInfo : nodeInfoList) {
                if (nodeInfo != null) {
                    Log.d("dd", "findViewByID: " + nodeInfo.toString());
                    return nodeInfo;
                }
            }
        }
        return null;
    }


    /**
     * 點擊對應文本的一個view，前提是這個view能夠點擊，即 clickable == true，
     *
     * @param text 要查找的文本
     */
    public void clickViewByText(String text) {
        AccessibilityNodeInfo accessibilityNodeInfo = getRootInActiveWindow();
        if (accessibilityNodeInfo == null) {
            return;
        }
        List<AccessibilityNodeInfo> nodeInfoList = accessibilityNodeInfo.findAccessibilityNodeInfosByText(text);
        if (nodeInfoList != null && !nodeInfoList.isEmpty()) {
            for (AccessibilityNodeInfo nodeInfo : nodeInfoList) {
                if (nodeInfo != null) {
                    performViewClick(nodeInfo);
                    break;
                }
            }
        }
    }

    /**
     * 點擊對應id的一個view，前提是這個view能夠點擊，即 clickable == true，
     *
     * @param id 要查找的id
     */
    public void clickViewByID(String id) {
        AccessibilityNodeInfo accessibilityNodeInfo = getRootInActiveWindow();
        if (accessibilityNodeInfo == null) {
            return;
        }
        List<AccessibilityNodeInfo> nodeInfoList = accessibilityNodeInfo.findAccessibilityNodeInfosByViewId(id);
        if (nodeInfoList != null && !nodeInfoList.isEmpty()) {
            for (AccessibilityNodeInfo nodeInfo : nodeInfoList) {
                if (nodeInfo != null) {
                    performViewClick(nodeInfo);
                    break;
                }
            }
        }
    }

    /**
     * 遞回遍歷node及其子node，點擊文本相同的節點，全點擊
     *
     * @param text
     * @param parentNode
     */
    public void clickNodesByText(String text, AccessibilityNodeInfo parentNode) {
        if (parentNode == null) {
            return;
        }

        int childCount = parentNode.getChildCount();
        if (childCount == 0) {  //葉節點
            if (parentNode.getText() == null) {
                return;
            }
            if (!text.equals(parentNode.getText().toString())) {
                return;
            }
            Rect rect = new Rect();
            parentNode.getBoundsInScreen(rect);

            int moveToX = (rect.left + rect.right) / 2;
            int moveToY = (rect.top + rect.bottom) / 2;
            int lineToX = (rect.left + rect.right) / 2;
            int lineToY = (rect.top + rect.bottom) / 2;

            gesture(moveToX, moveToY, lineToX, lineToY, 100L, 400L);
            return;
        }

        for (int i = 0; i < childCount; i++) {
            AccessibilityNodeInfo child = parentNode.getChild(i);
            clickNodesByText(text, child);
        }
    }

    /**
     * 根據文本查找節點
     *
     * @param text 要查找的文本
     * @return 與文本相同的節點串列，找不到則回傳空
     */
    public List<AccessibilityNodeInfo> findNodesByText(String text) {
        List<AccessibilityNodeInfo> accessibilityNodeInfos = new ArrayList<>();
        Stack<AccessibilityNodeInfo> nodeStack = new Stack<>();
        AccessibilityNodeInfo node = getRootInActiveWindow();

        nodeStack.add(node);
        while (!nodeStack.isEmpty()) {
            node = nodeStack.pop();
            if (node != null && node.getText() != null && node.getText().toString().equals(text)) {
                accessibilityNodeInfos.add(node);
            }

            if (node == null || node.getChildCount() == 0) {
                continue;
            }

            //獲得節點的子節點，對于二叉樹就是獲得節點的左子結點和右子節點
            int childCount = node.getChildCount();
            for (int i = 0; i < childCount; i++) {
                AccessibilityNodeInfo child = node.getChild(i);
                if (child != null) {
                    nodeStack.push(child);
                }
            }
        }
        if (accessibilityNodeInfos.size() > 0) {
            return accessibilityNodeInfos;
        } else {
            return null;
        }

    }

    /**
     * 模擬輸入，低版本的輸入有所不同，讀者請自行百度
     *
     * @param nodeInfo nodeInfo
     * @param text     text
     */
    public void inputText(AccessibilityNodeInfo nodeInfo, String text) {
        Bundle arguments = new Bundle();
        arguments.putCharSequence(AccessibilityNodeInfo.ACTION_ARGUMENT_SET_TEXT_CHARSEQUENCE, text);
        nodeInfo.performAction(AccessibilityNodeInfo.ACTION_SET_TEXT, arguments);
    }

    /**
     * 手勢操作，因為path不能小于0，因此小于則直接回傳，不操作，另外如果有需求，可以自行修改小于則設定為0或者螢屏的寬高
     *
     * @param moveToX
     * @param moveToY
     * @param lineToX
     * @param lineToY
     * @param startTime
     * @param duration
     */
    public void gesture(int moveToX, int moveToY, int lineToX, int lineToY, long startTime, long duration) {

        if (moveToX < 0 || moveToY < 0 || lineToX < 0 || lineToY < 0) {
            Log.e("path", "path nagative");
            return;
        }

        GestureDescription.Builder builder = new GestureDescription.Builder();
        Path path = new Path();
        path.moveTo(moveToX, moveToY);
        path.lineTo(lineToX, lineToY);
        GestureDescription gestureDescription = builder
                .addStroke(new GestureDescription.StrokeDescription(path, startTime, duration, false))
                .build();
        dispatchGesture(gestureDescription, new AccessibilityService.GestureResultCallback() {
            @Override
            public void onCompleted(GestureDescription gestureDescription) {
                super.onCompleted(gestureDescription);
            }

            @Override
            public void onCancelled(GestureDescription gestureDescription) {
            }
        }, new Handler(Looper.getMainLooper()));
    }

    protected void sleep(long ms) {
        try {
            Thread.sleep(ms);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    @Override
    public void onAccessibilityEvent(AccessibilityEvent event) { }

    @Override
    public void onInterrupt() { }

    @Override
    protected void onServiceConnected() { super.onServiceConnected(); }
}

2. AccessService類

AccessService則繼承BaseService，具體的無障礙處理邏輯都在這個類里面實作，

代碼如下：

import android.view.accessibility.AccessibilityEvent;

/**
 * 操作類，在這里實作具體邏輯
 */
public class AccessService extends BaseService {

    private String appPackageName = "xxx.xxx.xxx";

    @Override
    public void onAccessibilityEvent(AccessibilityEvent event) {
        String packageName = event.getPackageName() == null ? "" : event.getPackageName().toString();

        if (!packageName.equals(appPackageName)) {// 如果活動APP不是目標APP則不回應
            return;
        }
        int eventType = event.getEventType();

        switch (eventType) {
            case AccessibilityEvent.TYPE_WINDOW_CONTENT_CHANGED:// 捕獲視窗內容改變事件
                break;
            default:
                break;
        }
    }
}

三、修改AndroidManifest.xml

1. 添加AccessibilityService配置

在application節點下添加service節點，為程式配置AccessibilityService的屬性

內容如下：

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.anheimoxin.access">

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">
        <activity android:name=".MainActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />
                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>

        <!--  添加AccessibilityService配置    -->
        <service
            android:name="com.anheimoxin.access.service.AccessService"
            android:label="暗黑魔心的無障礙服務"
            android:permission="android.permission.BIND_ACCESSIBILITY_SERVICE">
            <intent-filter>
                <action android:name="android.accessibilityservice.AccessibilityService" />
            </intent-filter>
            <meta-data
                android:name="android.accessibilityservice"
                android:resource="@xml/allocation" />
        </service>

    </application>

</manifest>

2. 添加allocation.xml組態檔

在res目錄下新建xml檔案夾，并在新建的xml目錄下新建一個名為allocation.xml的檔案

檔案內容如下：

<?xml version="1.0" encoding="utf-8"?>
<accessibility-service xmlns:android="http://schemas.android.com/apk/res/android"
    android:accessibilityEventTypes="typeWindowContentChanged"
    android:accessibilityFeedbackType="feedbackGeneric"
    android:accessibilityFlags="flagDefault|flagRetrieveInteractiveWindows|flagIncludeNotImportantViews|flagRequestEnhancedWebAccessibility|flagReportViewIds"
    android:canPerformGestures="true"
    android:canRetrieveWindowContent="true"
    android:canRequestFilterKeyEvents="true"
    android:canRequestEnhancedWebAccessibility="true"
    android:notificationTimeout="300" />

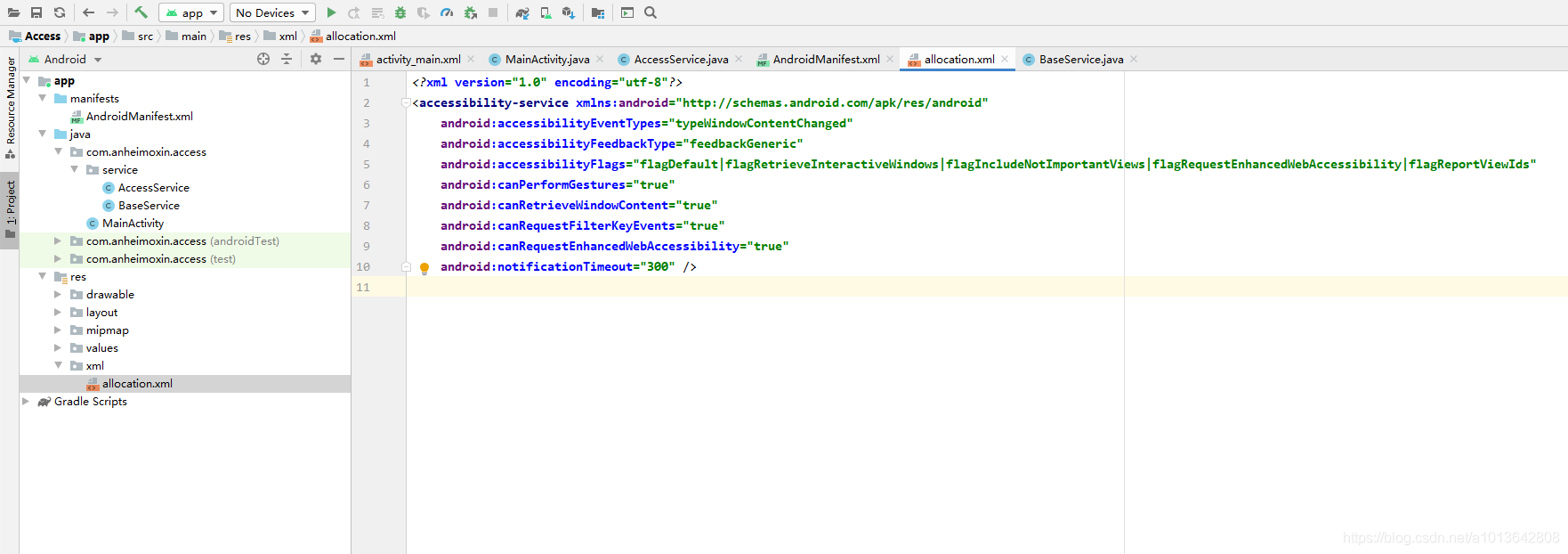

檔案結構如下圖：
在這里插入圖片描述

四、修改MainActivity類

修改MainActivity類，讓程式打開后就檢查檢查是否開啟無障礙服務并跳轉到設定頁面，

代碼如下：

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;

import com.anheimoxin.access.service.BaseService;

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        BaseService instance = BaseService.getInstance();
        instance.init(this);
        if (!instance.checkAccessibilityEnabled("暗黑魔心的無障礙服務")) {
            instance.goAccess();
        }
    }
}

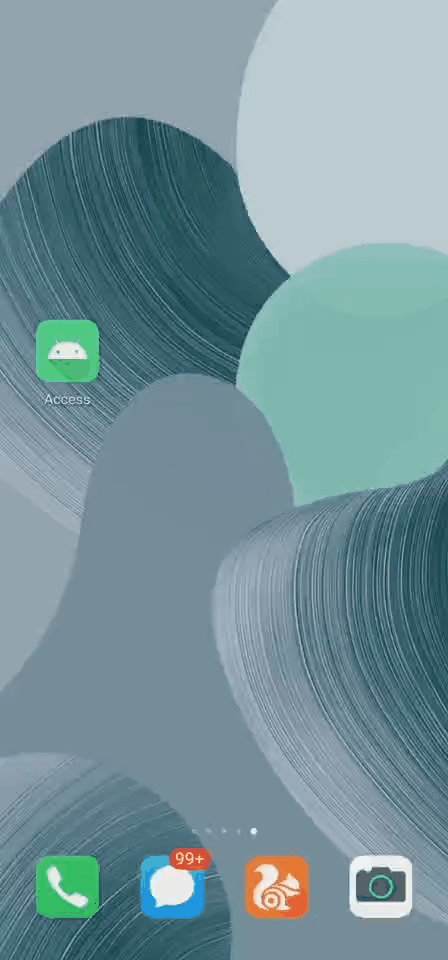

專案當前的運行效果如下：
請添加圖片描述

五、實作1+2+3=6

萬變不離其宗，這里就舉個簡單的例子，實作打開計算器后自動點擊1+2+3=6的操作，

1. 獲取APP包名

首先要獲取到計算器的包名，可以將手機設定除錯模式連接到電腦，使用ADB指令獲取，

查看當前活動的APP的包名的指令如下：

adb logcat | findstr Displayed

在這里插入圖片描述

2. 查找并點擊1、2、3、+、=

獲取到了包名就可以直接操作了，很簡單的實作，先查找定位，然后就可以點擊了，如果要詳細分析APP的布局，可以使用android studio自帶的工具UI Automator Viewer，路徑在SDK檔案夾下面的tools/bin/中

在這里插入圖片描述

實作代碼如下：

import android.graphics.Rect;
import android.view.accessibility.AccessibilityEvent;
import android.view.accessibility.AccessibilityNodeInfo;

import java.util.List;

/**
 * 操作類，在這里實作具體邏輯
 */
public class AccessService extends BaseService {

    private String appPackageName = "com.huawei.calculator";
    private boolean refresh = true; // 控制在未處理完邏輯前不要進入邏輯空間

    @Override
    public void onAccessibilityEvent(AccessibilityEvent event) {
        String packageName = event.getPackageName() == null ? "" : event.getPackageName().toString();

        if (!packageName.equals(appPackageName)) {// 如果活動APP不是目標APP則不回應
            return;
        }
        int eventType = event.getEventType();

        switch (eventType) {
            case AccessibilityEvent.TYPE_WINDOW_CONTENT_CHANGED:// 捕獲視窗內容改變事件
                if (packageName.equals(appPackageName)) {
                    if (refresh) {
                        refresh = false;

                        AccessibilityNodeInfo nodeOne = findViewByText("1");
                        if (nodeOne != null) {
                            performViewClick(nodeOne);
                            sleep(500);
                        }

                        // 有些view是沒有text的，就可以通過ID、類名等屬性來獲取
                        AccessibilityNodeInfo nodeAdd = findViewByID("com.huawei.calculator:id/op_add");
                        if (nodeOne != null) {
                            performViewClick(nodeAdd);
                            sleep(500);
                        }

                        // 查找所有的2，并點擊
                        List<AccessibilityNodeInfo> nodeOneList = findNodesByText("2");
                        if (nodeOneList != null && nodeOneList.size() != 0) {
                            for (int i = 0; i < nodeOneList.size(); i++) {
                                AccessibilityNodeInfo node = nodeOneList.get(i);
                                if (node != null) {
                                    Rect rect = new Rect();
                                    node.getBoundsInScreen(rect);

                                    int moveToX = (rect.left + rect.right) / 2;
                                    int moveToY = (rect.top + rect.bottom) / 2;
                                    int lineToX = (rect.left + rect.right) / 2;
                                    int lineToY = (rect.top + rect.bottom) / 2;

                                    // 有些View是不能點擊，這時候可以用手勢來處理
                                    gesture(moveToX, moveToY, lineToX, lineToY, 100L, 400L);
                                    sleep(500);
                                }
                            }
                        }

                        nodeAdd = findViewByID("com.huawei.calculator:id/op_add");
                        if (nodeOne != null) {
                            performViewClick(nodeAdd);
                            sleep(500);
                        }

                        // getRootInActiveWindow回傳整個view的root節點，深度優先遍歷查找所有的3，并點擊
                        clickNodesByText("3", getRootInActiveWindow());
                        sleep(500);

                        AccessibilityNodeInfo nodeEq = findViewByID("com.huawei.calculator:id/eq");
                        if (nodeOne != null) {
                            performViewClick(nodeEq);
                            sleep(500);
                        }

                        // 更多的操作請看BaseService，或者自行百度

                        refresh = true;
                    }
                }
                break;
            default:
                break;
        }
    }
}
