Android IPC（三）AIDL實作跨行程通信-有解無憂

AIDL實作連接服務
在這里插入圖片描述

AIDL實作訊息服務（客戶端→服務端）
在這里插入圖片描述
AIDL實作訊息服務（服務端→客戶端）

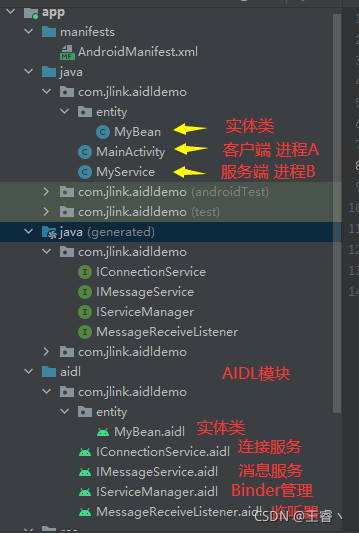

Demo結構：

大家學習的時候注意要對應上我的Demo結構路徑，否則會出現找不到檔案的問題，如果你對AIDL檔案很熟悉的話，路徑可以隨自己喜歡選擇，
在這里插入圖片描述

中間的 IConnectionService、IMessageService等等這塊區域的代碼是在Android Studio編譯時自動生成的

MyBean.aidl

package com.jlink.aidldemo.entity;

//對應java 中的MyBean
parcelable MyBean;

IConnectionService.aidl

package com.jlink.aidldemo;

//連接服務
interface IConnectionService {
    //連接
    oneway void connect();
    //取消連接
    void disconnect();
    //連接狀態
    boolean isConnected();
}

IMessageService.aidl

// IMessageService.aidl
package com.jlink.aidldemo;
import com.jlink.aidldemo.entity.MyBean;
import com.jlink.aidldemo.MessageReceiveListener;

//訊息服務
interface IMessageService {
    //發送訊息
    void sendMessage(in MyBean myBean);
    //注冊訊息接收監聽器
    void registerMessageReceiveListener(MessageReceiveListener messageReceiveListener);
    //取消注冊訊息接收監聽器
    void unRegisterMessageReceiveListener(MessageReceiveListener messageReceiveListener);
}

IServiceManager.aidl

package com.jlink.aidldemo;

interface IServiceManager {
    IBinder getService(String serviceName);
}

MessageReceiveListener.aidl

// MessageReceiveListener.aidl
package com.jlink.aidldemo;
import com.jlink.aidldemo.entity.MyBean;

//訊息監聽器
interface MessageReceiveListener {
    void onReceiveMessage(in MyBean myBean);
}

MyBean.java

public class MyBean implements android.os.Parcelable{
    private String content; //內容
    private boolean isSendSuccess;  //狀態
    public MyBean(){

    }

    protected MyBean(Parcel in) {
        content = in.readString();
        isSendSuccess = in.readByte() != 0;
    }

    public static final Creator<MyBean> CREATOR = new Creator<MyBean>() {
        @Override
        public MyBean createFromParcel(Parcel in) {
            return new MyBean(in);
        }

        @Override
        public MyBean[] newArray(int size) {
            return new MyBean[size];
        }
    };

    @Override
    public int describeContents() {
        return 0;
    }

    @Override
    public void writeToParcel(Parcel dest, int flags) {
        dest.writeString(content);
        dest.writeByte((byte) (isSendSuccess ? 1 : 0));
    }

    public String getContent() {
        return content;
    }

    public void setContent(String content) {
        this.content = content;
    }

    public boolean isSendSuccess() {
        return isSendSuccess;
    }

    public void setSendSuccess(boolean sendSuccess) {
        isSendSuccess = sendSuccess;
    }
}

MyService.java

public class MyService extends Service {
    private int num = 0;
    public MyService(){

    }

    //RemoteCallbackList 存盤 訊息監聽器
    private RemoteCallbackList<MessageReceiveListener> messageReceiveListenerRemoteCallbackList = new RemoteCallbackList<>();
    //創建計時器
    private ScheduledThreadPoolExecutor scheduledThreadPoolExecutor;
    //用來注銷計時器
    private ScheduledFuture scheduledFuture;

    @Override
    public void onCreate() {
        super.onCreate();
        scheduledThreadPoolExecutor = new ScheduledThreadPoolExecutor(1);
    }

    private Handler handler = new Handler(Looper.getMainLooper());
    private boolean isConnected = false;

    private IConnectionService connectionService = new IConnectionService.Stub() {
        @Override
        public void connect() throws RemoteException {
            isConnected = true;
            handler.post(new Runnable() {
                @Override
                public void run() {
                    Toast.makeText(MyService.this,"連接成功",Toast.LENGTH_SHORT).show();
                }
            });

            scheduledFuture = scheduledThreadPoolExecutor.scheduleAtFixedRate(new Runnable() {
                @Override
                public void run() {
                    int size = messageReceiveListenerRemoteCallbackList.beginBroadcast();
                    num++;
                    for (int i=0; i<size; i++){
                        MyBean myBean = new MyBean();
                        myBean.setContent("噴火龍怒氣值：" + num);
                        try {
                            //服務端 → 客戶端
                            messageReceiveListenerRemoteCallbackList.getBroadcastItem(i).onReceiveMessage(myBean);
                        } catch (RemoteException e) {
                            e.printStackTrace();
                        }
                    }
                    messageReceiveListenerRemoteCallbackList.finishBroadcast();
                }
            },2000,2000, TimeUnit.MILLISECONDS);

        }

        @Override
        public void disconnect() throws RemoteException {
            isConnected = false;
            //洗掉計時器
            scheduledFuture.cancel(true);
            handler.post(new Runnable() {
                @Override
                public void run() {
                    Toast.makeText(MyService.this,"斷開連接",Toast.LENGTH_SHORT).show();
                }
            });
        }

        @Override
        public boolean isConnected() throws RemoteException {
            handler.post(new Runnable() {
                @Override
                public void run() {
                    Toast.makeText(MyService.this,String.valueOf(isConnected),Toast.LENGTH_SHORT).show();
                }
            });
            return isConnected;
        }
    };

    private IMessageService messageService = new IMessageService.Stub() {
        @Override
        public void sendMessage(MyBean myBean) throws RemoteException {
            handler.post(new Runnable() {
                @Override
                public void run() {
                    Toast.makeText(MyService.this,String.valueOf(myBean.getContent()),Toast.LENGTH_SHORT).show();
                }
            });

            if (isConnected){
                myBean.setSendSuccess(true);
            }else{
                myBean.setSendSuccess(false);
            }
        }

        @Override
        public void registerMessageReceiveListener(MessageReceiveListener messageReceiveListener) throws RemoteException {
            if (messageReceiveListener != null){
                messageReceiveListenerRemoteCallbackList.register(messageReceiveListener);
            }
        }

        @Override
        public void unRegisterMessageReceiveListener(MessageReceiveListener messageReceiveListener) throws RemoteException {
            if (messageReceiveListener != null){
                messageReceiveListenerRemoteCallbackList.unregister(messageReceiveListener);
            }
        }
    };

    private IServiceManager serviceManager = new IServiceManager.Stub() {
        @Override
        public IBinder getService(String serviceName) throws RemoteException {
            if (IConnectionService.class.getSimpleName().equals(serviceName)){
                return connectionService.asBinder();
            }else if (IMessageService.class.getSimpleName().equals(serviceName)){
                return messageService.asBinder();
            }else {
                return null;
            }
        }
    };

    @Nullable
    @Override
    public IBinder onBind(Intent intent) {
        return serviceManager.asBinder();
    }
}

MainActivity.java

public class MainActivity extends AppCompatActivity implements View.OnClickListener {
    private Button btnConnect,btnDisConnect,btnIsConnect;
    private Button btnSendMessage,btnRegisterListener,btnUnregisterListener;
    private IConnectionService connectionServiceProxy;
    private IMessageService messageServiceProxy;
    private IServiceManager serviceManagerProxy;

    //監聽器的實作
    private MessageReceiveListener messageReceiveListener = new MessageReceiveListener.Stub() {
        @Override
        public void onReceiveMessage(MyBean myBean) throws RemoteException {
            new Handler(Looper.getMainLooper()).post(new Runnable() {
                @Override
                public void run() {
                    Toast.makeText(MainActivity.this,myBean.getContent(),Toast.LENGTH_SHORT).show();
                }
            });
        }
    };

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        init();
        Intent intent = new Intent(MainActivity.this,MyService.class);
        bindService(intent, new ServiceConnection() {
            @Override
            public void onServiceConnected(ComponentName name, IBinder iBinder) {
                try {
                    serviceManagerProxy = IServiceManager.Stub.asInterface(iBinder);
                    connectionServiceProxy = IConnectionService.Stub.asInterface(serviceManagerProxy.getService(IConnectionService.class.getSimpleName()));
                    messageServiceProxy = IMessageService.Stub.asInterface(serviceManagerProxy.getService(IMessageService.class.getSimpleName()));
                } catch (RemoteException e) {
                    e.printStackTrace();
                }
            }

            @Override
            public void onServiceDisconnected(ComponentName name) {

            }
        }, Context.BIND_AUTO_CREATE);

    }

    private void init() {
        btnConnect = findViewById(R.id.btn_connect);
        btnDisConnect = findViewById(R.id.btn_disconnect);
        btnIsConnect = findViewById(R.id.btn_is_connected);
        btnSendMessage = findViewById(R.id.btn_send_message);
        btnRegisterListener = findViewById(R.id.btn_register_listener);
        btnUnregisterListener = findViewById(R.id.btn_unregister_listener);
        btnIsConnect.setOnClickListener(this);
        btnConnect.setOnClickListener(this);
        btnDisConnect.setOnClickListener(this);
        btnSendMessage.setOnClickListener(this);
        btnRegisterListener.setOnClickListener(this);
        btnUnregisterListener.setOnClickListener(this);

    }

    @Override
    public void onClick(View v) {
        switch (v.getId()){
            case R.id.btn_connect:
                try {
                    //連接
                    connectionServiceProxy.connect();
                } catch (RemoteException e) {
                    e.printStackTrace();
                }
                break;
            case R.id.btn_disconnect:
                try {
                    //斷開連接
                    connectionServiceProxy.disconnect();
                } catch (RemoteException e) {
                    e.printStackTrace();
                }
                break;
            case R.id.btn_is_connected:
                try {
                    //獲取連接狀態
                    boolean isConnected = connectionServiceProxy.isConnected();
                    Toast.makeText(MainActivity.this,String.valueOf(isConnected),Toast.LENGTH_SHORT).show();
                } catch (RemoteException e) {
                    e.printStackTrace();
                }
                break;
            case R.id.btn_send_message:
                try {
                    //客戶端 → 服務端
                    MyBean myBean = new MyBean();
                    myBean.setContent("王睿對噴火龍使出了動感光波");
                    messageServiceProxy.sendMessage(myBean);
                } catch (RemoteException e) {
                    e.printStackTrace();
                }
                break;
            case R.id.btn_register_listener:
                try {
                    messageServiceProxy.registerMessageReceiveListener(messageReceiveListener);
                } catch (RemoteException e) {
                    e.printStackTrace();
                }
                break;
            case R.id.btn_unregister_listener:
                try {
                    messageServiceProxy.unRegisterMessageReceiveListener(messageReceiveListener);
                } catch (RemoteException e) {
                    e.printStackTrace();
                }
                break;
        }
    }
}

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:gravity="center"
    tools:context=".MainActivity">

    <Button
        android:id="@+id/btn_connect"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="10dp"
        android:text="連接"/>

    <Button
        android:id="@+id/btn_disconnect"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="10dp"
        android:text="取消連接"/>

    <Button
        android:id="@+id/btn_is_connected"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="10dp"
        android:text="連接狀態"/>

    <Button
        android:id="@+id/btn_send_message"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="10dp"
        android:text="發送訊息"/>

    <Button
        android:id="@+id/btn_register_listener"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="10dp"
        android:text="注冊監聽器"/>

    <Button
        android:id="@+id/btn_unregister_listener"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="10dp"
        android:text="取消監聽器"/>


</LinearLayout>

Demo地址：
鏈接：https://pan.baidu.com/s/1JHmCOeRIjGaVnwuA8RB2Jw
提取碼：u5xh
