一：TrailRenderer模擬管道流體

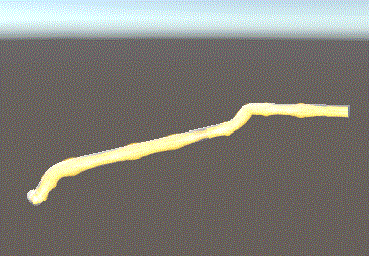

效果如圖所示：
請添加圖片描述

首先，先構造流體因子

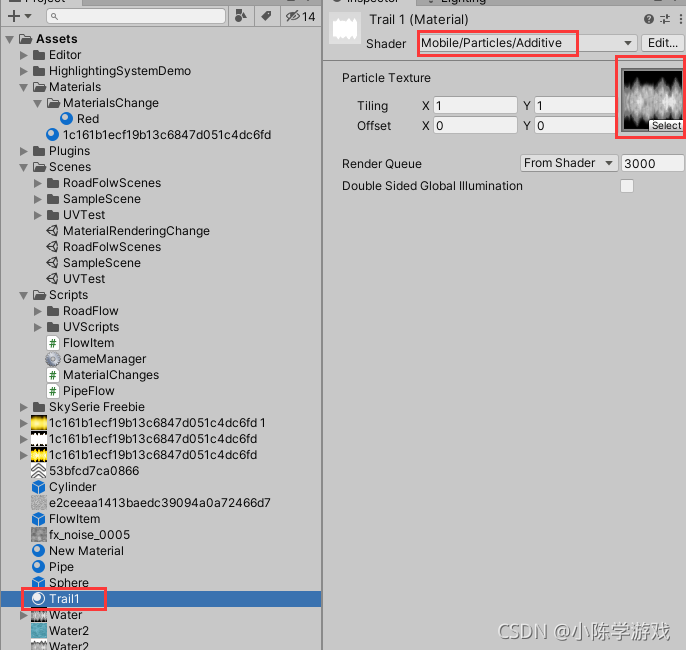

構造流體因子：創建一個空物體，掛載TrailRenderer組件，創建一個材質球，命名為Trail1，將其Shader設為Mobile/Particles/Additive,然后將下面所示的紋理圖片賦值給Trail1，作為其的Particle Texture，

紋理圖片素材：
請添加圖片描述
在這里插入圖片描述

然后掛載FlowItem腳本，完整腳本如下所示：
流體因子類：FlowItem.cs

using UnityEngine;

public class FlowItem : MonoBehaviour {

    public float DelayDestroy = 0.5f;

    private bool _isFlowing = false;
    private PipeFlow _pipeFlow;
    private int _flowIndex = 0;
    private int _nextIndex = 1;
    private float _flowPosition = 0f;
    private Coroutine _stopCoroutine;

    private void Reset()
    {
        transform.position = _pipeFlow.FlowPath[0];

        TrailRenderer[] trails = GetComponentsInChildren<TrailRenderer>();
        for (int i = 0; i < trails.Length; i++)
        {
            trails[i].Clear();
        }

        ParticleSystem[] pss = GetComponentsInChildren<ParticleSystem>();
        for (int i = 0; i < pss.Length; i++)
        {
            pss[i].SetParticles(null, 0);
        }
    }

    private void Update()
    {
        if (_isFlowing)
        {
            _flowPosition += _pipeFlow.FlowSpeeds[_flowIndex];
            transform.position = Vector3.Lerp(_pipeFlow.FlowPath[_flowIndex], _pipeFlow.FlowPath[_nextIndex], _flowPosition);

            if (_flowPosition >= 1f)
            {
                if (_nextIndex >= _pipeFlow.FlowPath.Count - 1)
                {
                    _isFlowing = false;

                    _stopCoroutine = StartCoroutine(PipeFlow.DelayExecute(() => {
                        Stop();
                    }, DelayDestroy));
                }
                else
                {
                    _flowIndex += 1;
                    _nextIndex = _flowIndex + 1;
                    _flowPosition = 0f;
                }
            }
        }
    }

    public void Shoot(PipeFlow pipeFlow)
    {
        _pipeFlow = pipeFlow;
        Reset();

        gameObject.SetActive(true);
        _isFlowing = true;
        _flowIndex = 0;
        _nextIndex = 1;
        _flowPosition = 0f;

        if (_stopCoroutine != null)
        {
            StopCoroutine(_stopCoroutine);
            _stopCoroutine = null;
        }
    }

    public void Stop()
    {
        gameObject.SetActive(false);
        _isFlowing = false;

        if (!_pipeFlow.Items.Contains(this))
        {
            _pipeFlow.Items.Add(this);
        }

        if (_stopCoroutine != null)
        {
            StopCoroutine(_stopCoroutine);
            _stopCoroutine = null;
        }
    }
}

最后將其做成預制體即可，

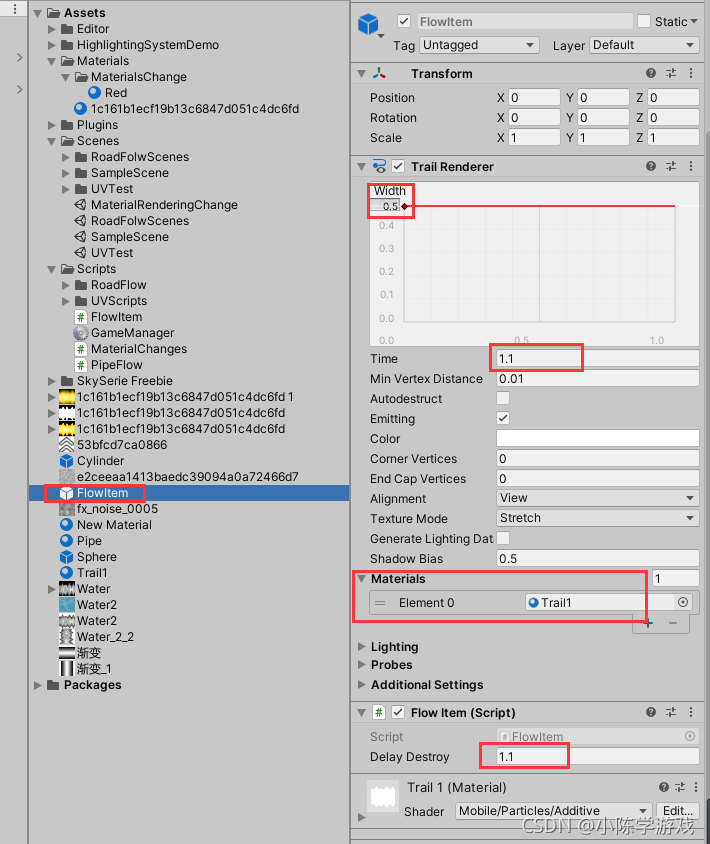

然后可以看下我TrailRenderer的屬性設定，FlowItem的Delay Destroy屬性為此流體因子延時消亡的時間，最好跟TrailRenderer的Time屬性保持一致，這樣的話才不會看到整條TrailRenderer突然消失的情況：
在這里插入圖片描述

每一個流體因子攜帶一個拖尾渲染器，由PipeFlow根據其屬性FlowInterval（間隔發射時間）進行持續發射（如果不是OnlyOnce模式），每一個流體因子從路徑起點抵達路徑終點的時間為FlowTime，

//PipeFlow.cs
public void Flow(Action endAction);

外部呼叫Flow方法為開啟流體，引數endAction當第一個流體因子抵達管道路徑終點時觸發，可以為空，

其次，實作管道路徑

因為TrailRenderer可以通過設定Corner Vertices（拐角處頂點數量）來自動圓角，所以不用考慮使用任何曲線演算法，這樣還能保證我們的路徑點絕對的貼合管道，畢竟管道模型可能會有你意想不到的彎曲復雜度，
不過我們為了要保證流體在管道的每一個位置都保持相同速度流動，所以必須為每一個路段指定不同的流動速度，
管道流體實體類：PipeFlow.cs

using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class PipeFlow : MonoBehaviour {

    public FlowItem ItemTemplate;
    public float FlowTime = 1f;
    public float FlowInterval = 0.5f;
    public bool OnlyOnce = false;

    [HideInInspector]
    public List<Vector3> FlowPath = new List<Vector3>();
    [HideInInspector]
    public List<float> FlowSpeeds = new List<float>();
    [HideInInspector]
    public List<FlowItem> Items = new List<FlowItem>();

    private bool _isInit = false;
    private bool _isFlowing = false;
    private float _flowInterval = 0f;
    private Action _actionTrigger;
    private Coroutine _actionCoroutine;

    private void Awake()
    {
        if (!_isInit)
        {
            Init();
        }
    }

    private void Init()
    {
        float tatol = 0f;
        for (int i = 0; i < FlowPath.Count - 1; i++)
        {
            tatol += Vector3.Distance(FlowPath[i], FlowPath[i + 1]);
        }
        for (int i = 0; i < FlowPath.Count - 1; i++)
        {
            float dis = Vector3.Distance(FlowPath[i], FlowPath[i + 1]);
            float time = dis / tatol * (FlowTime * 50);
            FlowSpeeds.Add(1f / time);
        }

        _isInit = true;
    }

    private void Update()
    {
        if (_isFlowing)
        {
            _flowInterval += Time.deltaTime;
            if (_flowInterval >= FlowInterval)
            {
                _flowInterval = 0f;
                ShootItem();

                if (OnlyOnce)
                {
                    _isFlowing = false;
                }
            }
        }
    }

    private void ShootItem()
    {
        if (Items.Count > 0)
        {
            Items[0].Shoot(this);
            Items.RemoveAt(0);
        }
        else
        {
            GameObject item = Instantiate(ItemTemplate.gameObject);
            item.transform.parent = transform;
            item.GetComponent<FlowItem>().Shoot(this);
        }
    }

    public void Flow(Action endAction)
    {
        if (FlowPath.Count < 2)
        {
            Debug.LogWarning("路徑點數量必須大于等于2！");
            return;
        }
        if (!ItemTemplate)
        {
            Debug.LogWarning("ItemTemplate不能為空！");
            return;
        }

        if (!_isInit)
        {
            Init();
        }

        _isFlowing = true;
        _flowInterval = FlowInterval;

        _actionTrigger = endAction;
        if (_actionCoroutine != null)
        {
            StopCoroutine(_actionCoroutine);
            _actionCoroutine = null;
        }
        if (_actionTrigger != null)
        {
            _actionCoroutine = StartCoroutine(DelayExecute(_actionTrigger, FlowTime));
        }
    }

    public void Stop()
    {
        _isFlowing = false;

        if (_actionCoroutine != null)
        {
            StopCoroutine(_actionCoroutine);
            _actionCoroutine = null;
        }

        FlowItem[] fis = transform.GetComponentsInChildren<FlowItem>();
        foreach (FlowItem fi in fis)
        {
            fi.Stop();
        }
    }

    public static IEnumerator DelayExecute(Action action, float delaySeconds)
    {
        yield return new WaitForSeconds(delaySeconds);
        action();
    }
}

該類的編輯器重寫：PipeFlowEditor.cs
這個編輯器方法主要是實作在面板上可視化、自定義編輯爐體路徑點功能，此類腳本不需要被掛載在某個物體上，

using UnityEngine;
using UnityEditor;
[CustomEditor(typeof(PipeFlow)), CanEditMultipleObjects]
public class PipeFlowEditor : Editor
{
    private PipeFlow _pipeFlow;
    private int _currentIndex = -1;
    private bool _showInEditor = true;

    private void OnEnable()
    {
        _pipeFlow = target as PipeFlow;
    }

    public override void OnInspectorGUI()
    {
        base.OnInspectorGUI();

        EditorGUILayout.BeginVertical("HelpBox");

        EditorGUILayout.BeginHorizontal();
        GUILayout.Label("FlowPath");
        _showInEditor = GUILayout.Toggle(_showInEditor, "Show In Editor");
        EditorGUILayout.EndHorizontal();

        if (_showInEditor)
        {
            EditorGUILayout.BeginHorizontal();
            if (GUILayout.Button("路徑倒置", "ButtonLeft"))
            {
                if (EditorUtility.DisplayDialog("提示", "是否將整條路徑倒置？", "是的", "我再想想"))
                {
                    if (_pipeFlow.FlowPath.Count > 1)
                    {
                        _pipeFlow.FlowPath.Reverse();
                    }
                }
            }
            if (GUILayout.Button("清空路徑點", "ButtonRight"))
            {
                if (EditorUtility.DisplayDialog("提示", "是否清空路徑點？", "是的", "我再想想"))
                {
                    _pipeFlow.FlowPath.Clear();
                    _currentIndex = -1;
                }
            }
            EditorGUILayout.EndHorizontal();

            for (int i = 0; i < _pipeFlow.FlowPath.Count; i++)
            {
                EditorGUILayout.BeginHorizontal();
                GUI.backgroundColor = _currentIndex == i ? Color.cyan : Color.white;
                if (GUILayout.Button("path point" + (i + 1), "prebutton"))
                {
                    _currentIndex = i;
                    Tools.current = Tool.None;
                }
                GUI.backgroundColor = Color.white;
                if (GUILayout.Button("", "OL Minus", GUILayout.Width(16)))
                {
                    _pipeFlow.FlowPath.RemoveAt(i);
                    _currentIndex = -1;
                }
                EditorGUILayout.EndHorizontal();
            }

            EditorGUILayout.BeginHorizontal();
            GUILayout.FlexibleSpace();
            if (GUILayout.Button("", "OL Plus", GUILayout.Width(16)))
            {
                if (_currentIndex != -1)
                {
                    _pipeFlow.FlowPath.Add(_pipeFlow.FlowPath[_currentIndex]);
                }
                else
                {
                    _pipeFlow.FlowPath.Add(new Vector3(0, 0, 0));
                }
            }
            EditorGUILayout.EndHorizontal();
        }

        EditorGUILayout.EndVertical();
    }

    private void OnSceneGUI()
    {
        if (_showInEditor)
        {
            Handles.color = Color.cyan;
            if (_pipeFlow.FlowPath.Count > 0)
            {
                Handles.Label(_pipeFlow.FlowPath[0], "[" + _pipeFlow.transform.name + "]起點", "ErrorLabel");
            }
            if (_pipeFlow.FlowPath.Count > 1)
            {
                Handles.Label(_pipeFlow.FlowPath[_pipeFlow.FlowPath.Count - 1], "[" + _pipeFlow.transform.name + "]終點", "ErrorLabel");
            }

            for (int i = 0; i < _pipeFlow.FlowPath.Count; i++)
            {
                //每一個操作手柄添加位移功能
                _pipeFlow.FlowPath[i] = Handles.PositionHandle(_pipeFlow.FlowPath[i], Quaternion.identity);
                //重新為每一個操作手柄添加序號標簽（i+1）可以在scene看到從1開始，與監視面板的“path point1”對應
                Handles.Label(_pipeFlow.FlowPath[i] + new Vector3(0, 0.025f, 0), "[" + (i + 1) + "]", "ErrorLabel");

                if (i < _pipeFlow.FlowPath.Count - 1)
                    Handles.DrawLine(_pipeFlow.FlowPath[i], _pipeFlow.FlowPath[i + 1]);
            }

            if (_currentIndex != -1)
            {
                _pipeFlow.FlowPath[_currentIndex] = Handles.PositionHandle(_pipeFlow.FlowPath[_currentIndex], Quaternion.identity);
            }
        }
    }
}

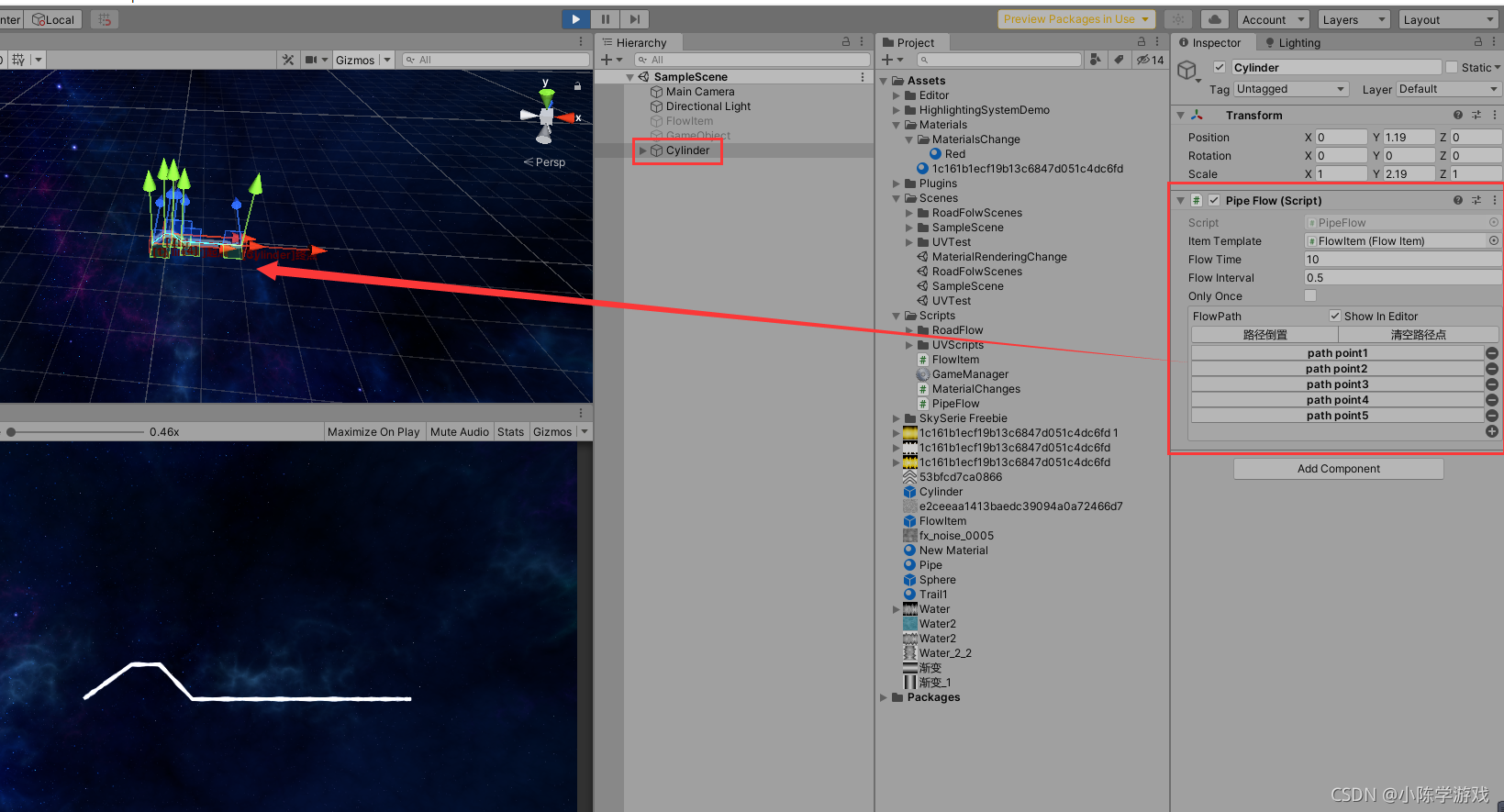

創建好上面兩個腳本類之后，然后在unity中創建一個空物體，掛載PipeFlow腳本，然后將上面所創建的流體因子賦值，設定好合適的時間引數，最后，搭建路徑點即可，如圖所示：
在這里插入圖片描述
最后，再強調一下外部呼叫PipeFlow類里Flow（）方法為開啟流體，引數endAction當第一個流體因子抵達管道路徑終點時觸發，可以為空；呼叫PipeFlow里Stop（）方法為停止流體，

二：箭頭指引效果

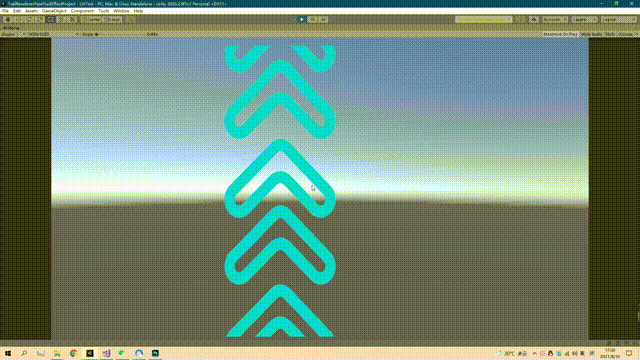

效果圖如下：
請添加圖片描述
用到的素材如下：

實作步驟如下：
首先：創建一個Cube，然后將如下腳本掛載在Cube上，腳本如下：

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class UVMoves : MonoBehaviour
{

    public float ScrollSpeed = 10;
    public int countX = 1;
    public float countY = 2;

    private float offsetX = 0.0f;
    private float offsetY = 0.0f;
    // private GameObject singleTexSize;
    // Use this for initialization
    void Start()
    {
        float x_1 = 1.0f / countX;
        float y_1 = 1.0f * countY;
       GetComponent<Renderer>().material.mainTextureScale = new Vector2(x_1, y_1);

    }

    // Update is called once per frame
    void Update()
    {
    }

    private void FixedUpdate()
    {
        float frame = (Time.time * ScrollSpeed);
        //offsetX = frame / countX;
        //水平方向運動
        //offsetY = -(frame - frame % countX) / countY / countX;
        //offsetX = frame / countX;
        //垂直方向運動
        offsetY = frame / countY;
        offsetX = -(frame - frame % countY) / countY / countX;
        GetComponent<Renderer>().material.SetTextureOffset("_MainTex", new Vector2(offsetX, -offsetY));
    }

}

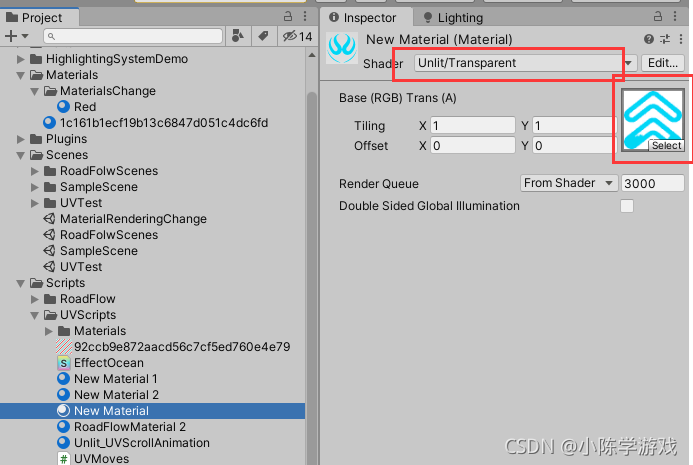

然后，創建一個材質球，Shader型別選擇為Unlit/Transparent,然后將箭頭的圖片素材賦值上去，如下圖所示：
在這里插入圖片描述
然后，將該材質賦值給創建的Cube上，即可，
原理：這種方法就是通過代碼控制貼圖的UV以一定的速度朝著一定的方向運動，

上述兩種方法，程序都比較詳細，素材資源也都提供了，基本上可以自行實作，如還不能實作的，可下載這個原工程檔案：
https://download.csdn.net/download/qq_44718259/21749562?spm=1001.2014.3001.5501

暫時就這兩個方法，后續接觸到新的流體效果實作方式再更新，
