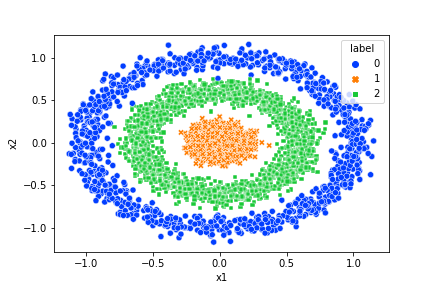

我想對我使用 make circles 生成的 3 個圓資料集執行光譜聚類，如圖所示。這三個圈子都屬于不同的階級。
from sklearn.datasets import make_circles
import seaborn as sns
import pandas as pd
import numpy as np
from sklearn.cluster import SpectralClustering
import matplotlib.pyplot as plt
import pylab as pl
import networkx as nx
X_small, y_small = make_circles(n_samples=(100,200), random_state=3,
noise=0.07, factor = 0.7)
X_large, y_large = make_circles(n_samples=(100,200), random_state=3,
noise=0.07, factor = 0.4)
y_large[y_large==1] = 2
df = pd.DataFrame(np.vstack([X_small,X_large]),columns=['x1','x2'])
df['label'] = np.hstack([y_small,y_large])
df.label.value_counts()
sns.scatterplot(data=df,x='x1',y='x2',hue='label',style='label',palette="bright")
uj5u.com熱心網友回復：
由于我無法將此問題標記為重復（

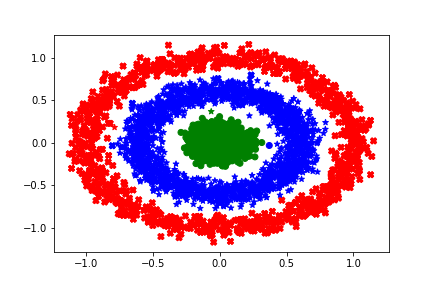

結果集群：
Edit: to use different markers to identify true classes (colors already indicating the clustering classes), as asked by OP in the comments. We unfortunately cannot use an array for markers (as for colors) to produce the plot in a single line of code, this is because marker does not accept a list as input (discussed here).
Edit2: added motivation for the use of np.expand_dims(...,axis=1) and some explanation for the plt.scatter() lines, as asked by OP in the comments.
