/ 異步 UI 更新FutureBuilder /

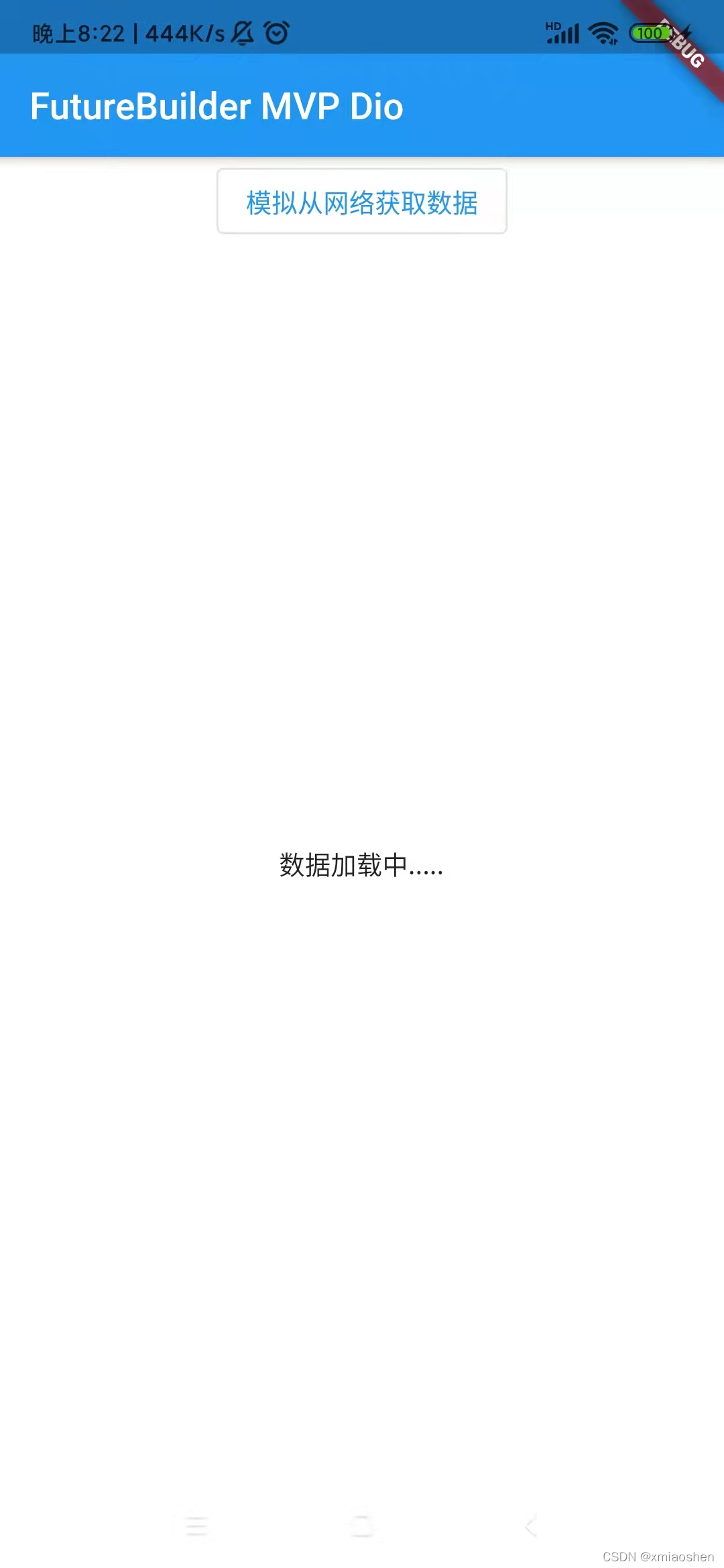

當我們打開app在網路暢通的情況下從服務器獲取資料 , 同時獲取資料需要時間 ,這時我們需要一個可以體現資料請求程序的進度條 , 獲取到資料后渲染頁面，

FutureBuilder 是繼承自 StatefulWidget builder必須要有回傳值 , 不能為空，

 const FutureBuilder({
    Key? key,
    this.future,
    this.initialData,
    required this.builder,
  }) : assert(builder != null),
       super(key: key);

final Future<T>? future;

/// The asynchronous computation to which this builder is currently connected,
  /// possibly null.
  ///
  /// If no future has yet completed, including in the case where [future] is
  /// null, the data provided to the [builder] will be set to [initialData].

builder 與異步請求建立的連接 (connected) 可能為空 (即future引數可能為空) ，如果異步請求沒有完成 , 包括future引數為空 ,那么就提供默認資料(initialData) 給 builder使用，

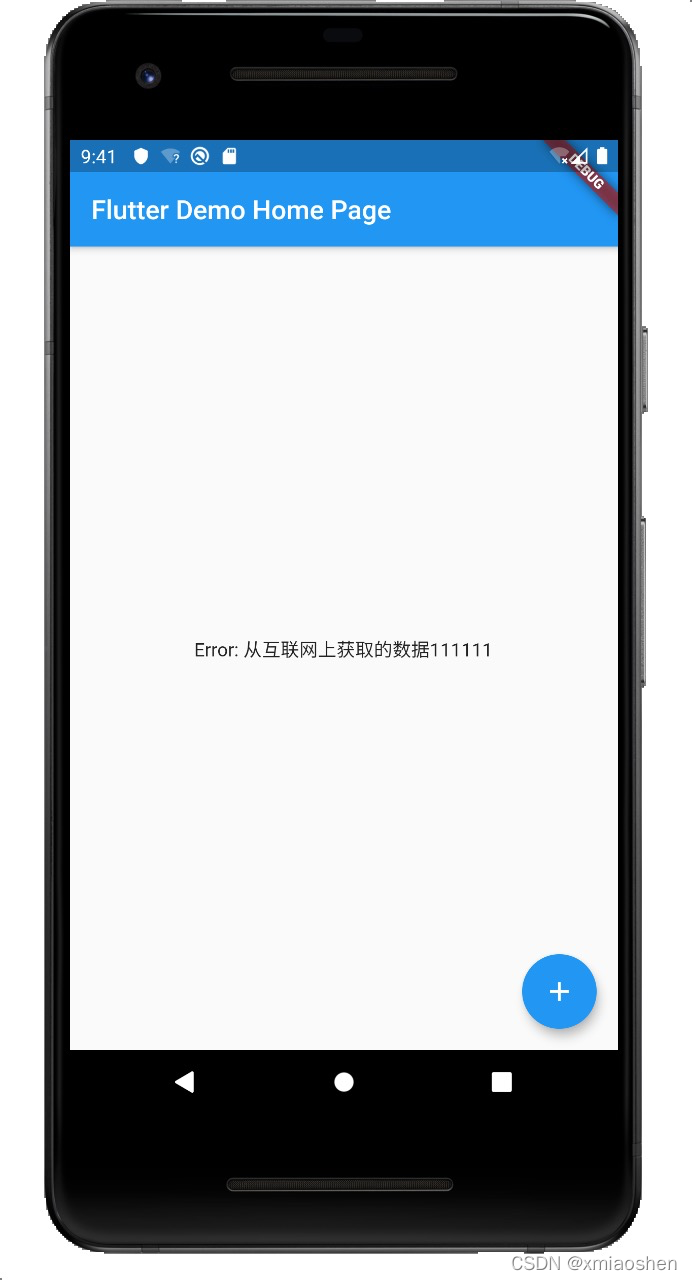

當future 不為空時

class _MyHomePageState extends State<MyHomePage> {
  var _futBuiHom;

  void _handleGetNetData() async {
    await _getNetData();
    setState(() {});
  }

  Future<String> _getNetData() async {
    return await Future.delayed(Duration(seconds: 2), () => "從互聯網上獲取的資料111111");
  }

  @override
  void initState() {
    // TODO: implement initState
    super.initState();
    _futBuiHom = _getNetData();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: Text(widget.title),
      ),
      body: Center(

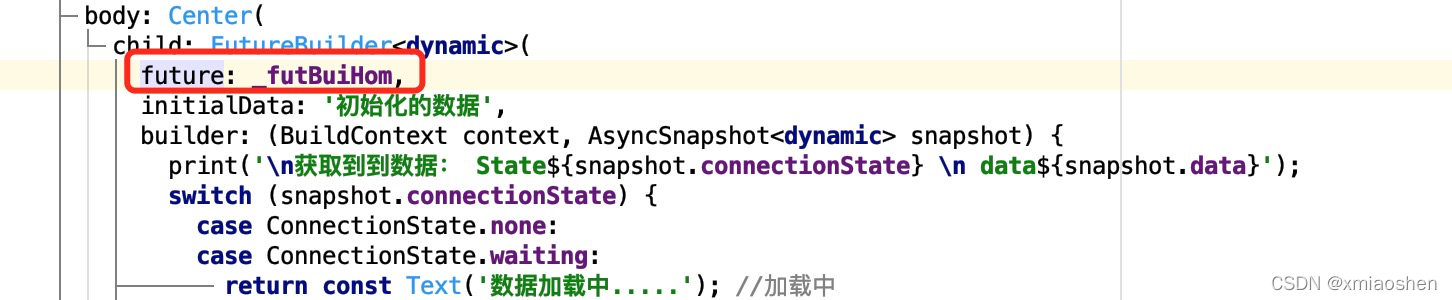

        child: FutureBuilder<dynamic>(
          future: _futBuiHom,
          initialData: '初始化的資料',
          builder: (BuildContext context, AsyncSnapshot<dynamic> snapshot) {
            print('\n獲取到到資料： State${snapshot.connectionState} \n data${snapshot.data}');
            switch (snapshot.connectionState) {
              case ConnectionState.none:
              case ConnectionState.waiting:
                return const Text('資料加載中.....'); //加載中
              default: //如果_calculation執行完畢
                if (snapshot.hasError) {
                  //若_calculation執行出現例外
                  return Text('Error: ${snapshot.hasError}');
                } else {
                  //若_calculation執行正常完成
                  return Text('Error: ${snapshot.data}');
                }
            }
          },
        ),
      ),
      floatingActionButton: FloatingActionButton(
        onPressed: _handleGetNetData,
        tooltip: '模擬從網路獲取資料',
        child: Icon(Icons.add),
      ),
    );
  }
}

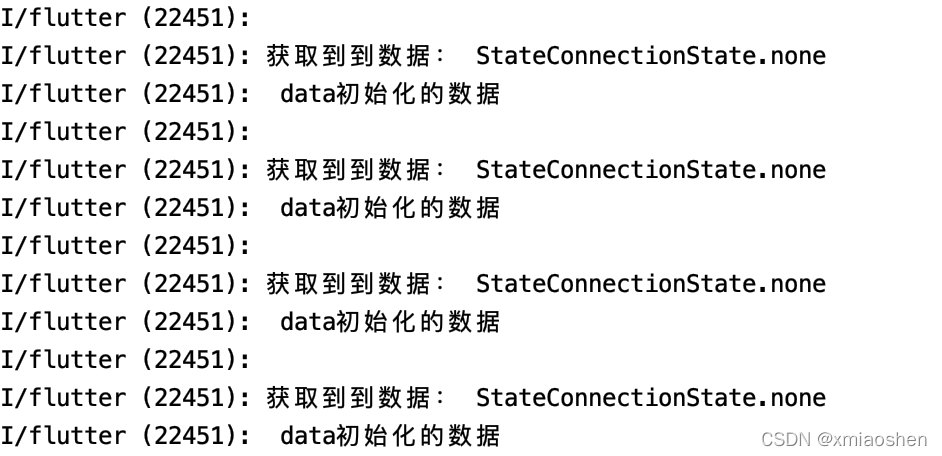

當Future 為空時

final AsyncWidgetBuilder<T> builder;

  /// The build strategy currently used by this builder.
  ///
  /// The builder is provided with an [AsyncSnapshot] object whose
  /// [AsyncSnapshot.connectionState] property will be one of the following
  /// values:
  ///
  ///  * [ConnectionState.none]: [future] is null. The [AsyncSnapshot.data] will
  ///    be set to [initialData], unless a future has previously completed, in
  ///    which case the previous result persists.
  ///
  ///  * [ConnectionState.waiting]: [future] is not null, but has not yet
  ///    completed. The [AsyncSnapshot.data] will be set to [initialData],
  ///    unless a future has previously completed, in which case the previous
  ///    result persists.
  ///
  ///  * [ConnectionState.done]: [future] is not null, and has completed. If the
  ///    future completed successfully, the [AsyncSnapshot.data] will be set to
  ///    the value to which the future completed. If it completed with an error,
  ///    [AsyncSnapshot.hasError] will be true and [AsyncSnapshot.error] will be
  ///    set to the error object.
  ///
  /// This builder must only return a widget and should not have any side
  /// effects as it may be called multiple times.

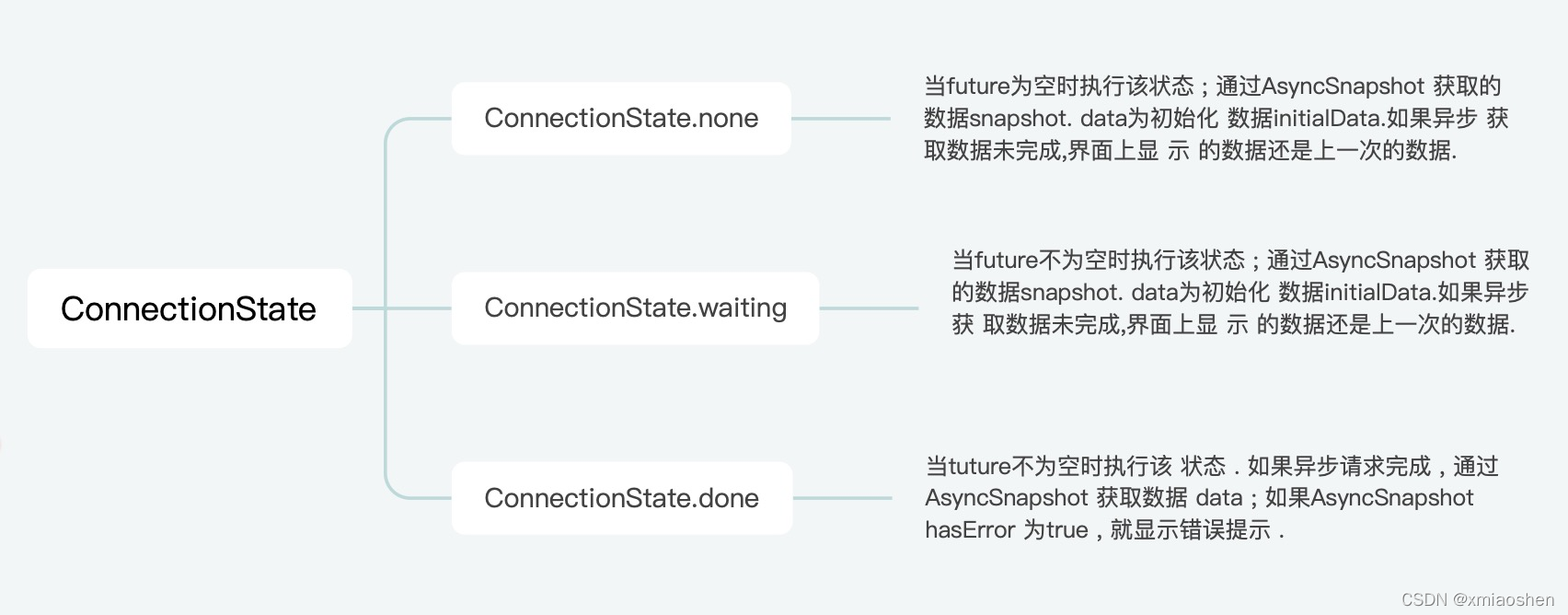

builder提供了一個AsyncSnapshot 物件 , 該物件可以獲取異步請求的狀態，

必須回傳一個Widget , 因為builder 函式會被呼叫多次，

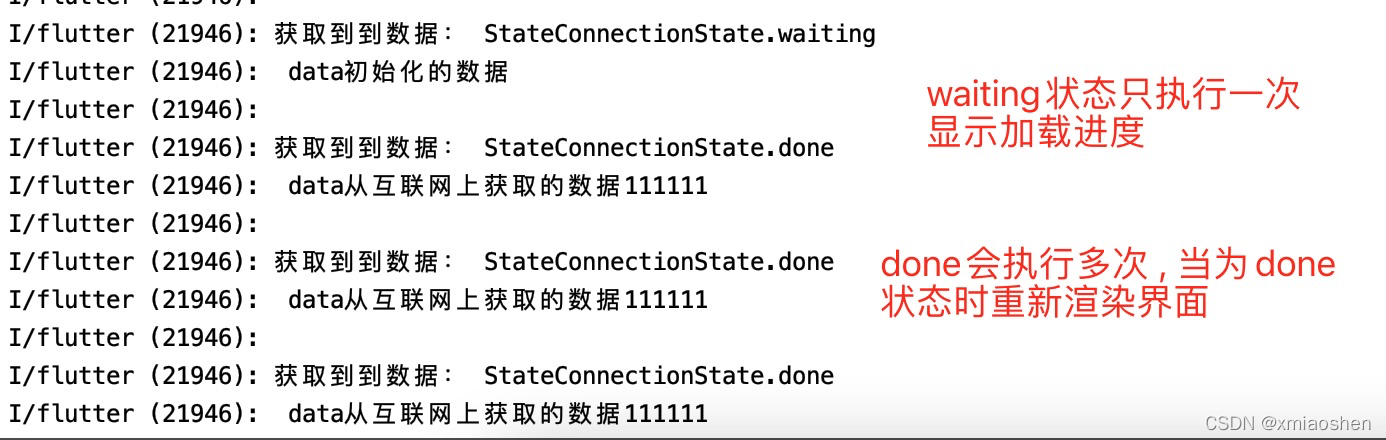

awaiting狀態下顯示異步請求進度條，

done 狀態下 , 如果hasError 為false , 就重新渲染Widget ，

final T? initialData

/// The data that will be used to create the snapshots provided until a
  /// non-null [future] has completed.
  ///
  /// If the future completes with an error, the data in the [AsyncSnapshot]
  /// provided to the [builder] will become null, regardless of [initialData].
  /// (The error itself will be available in [AsyncSnapshot.error], and
  /// [AsyncSnapshot.hasError] will be true.)

FutureBuilder 初始化資料 . 當future引數不為空 (存在異步請求時) , 異步請求完成后 builder 函式將會被回呼 .

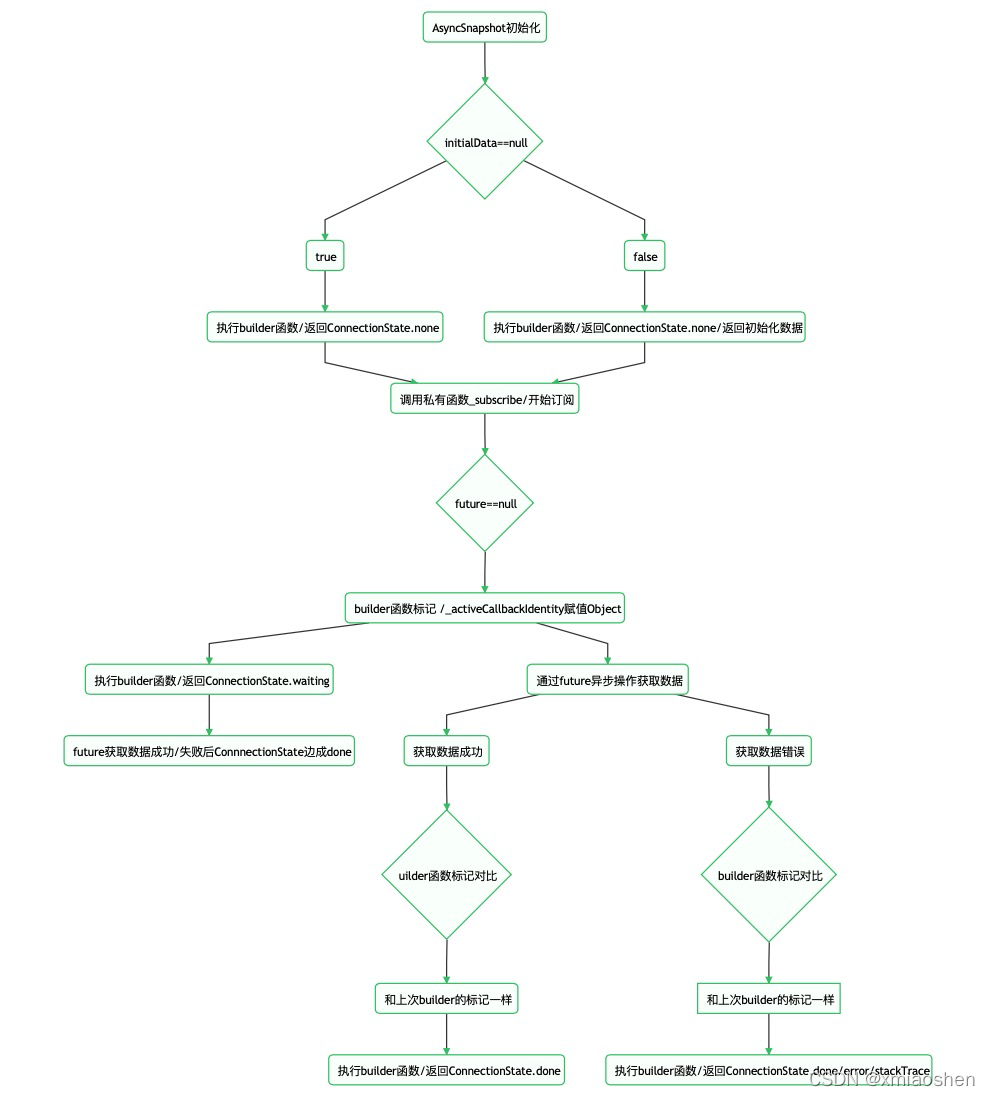

/ FutureBuilder 原始碼講解/

開始訂閱 (異步獲取資料)

  void _subscribe() {
    if (widget.future != null) {
      final Object callbackIdentity = Object();
      _activeCallbackIdentity = callbackIdentity;
      widget.future!.then<void>((T data) {
        if (_activeCallbackIdentity == callbackIdentity) {
          setState(() {
            _snapshot = AsyncSnapshot<T>.withData(ConnectionState.done, data);
          });
        }
      }, one rror: (Object error, StackTrace stackTrace) {
        if (_activeCallbackIdentity == callbackIdentity) {
          setState(() {
            _snapshot = AsyncSnapshot<T>.withError(ConnectionState.done, error, stackTrace);
          });
        }
      });
      _snapshot = _snapshot.inState(ConnectionState.waiting);
    }
  }

當父視圖呼叫 setState 函式時,子視圖的 didUpdateWidget 函式被呼叫 . 如果 future 的值直接參考獲取資料的異步函式, 那么builder 對應的函式要被呼叫多次 .

class _MyHomePageState extends State<MyHomePage> {
  var _futBuiHom;

  void _handleGetNetData() async {
    await _getNetData();
    setState(() {});
  }

  Future<String> _getNetData() async {
    return await Future.delayed(Duration(seconds: 2), () => "從互聯網上獲取的資料111111");
  }

  @override
  void initState() {
    // TODO: implement initState
    super.initState();
    _futBuiHom = _getNetData();
  }

  @override
  void didUpdateWidget(covariant MyHomePage oldWidget) {
    // TODO: implement didUpdateWidget
    super.didUpdateWidget(oldWidget);
    print('didUpdateWidget');
  }

  @override
  Widget build(BuildContext context) {

    print('build(BuildContext context)');
    return Scaffold(
      appBar: AppBar(
        title: Text(widget.title),
      ),
      body: Center(
        child: FutureBuilder<dynamic>(
          future: _getNetData(),
          initialData: '初始化的資料',
          builder: (BuildContext context, AsyncSnapshot<dynamic> snapshot) {
            print('\n獲取到到資料： State${snapshot.connectionState} \n data${snapshot.data}');
            switch (snapshot.connectionState) {
              case ConnectionState.none:
              case ConnectionState.waiting:
                return const Text('資料加載中.....'); //加載中
              default: //如果_calculation執行完畢
                if (snapshot.hasError) {
                  //若_calculation執行出現例外
                  return Text('Error: ${snapshot.hasError}');
                } else {
                  //若_calculation執行正常完成
                  return Text('Error: ${snapshot.data}');
                }
            }
          },
        ),
      ),
      floatingActionButton: FloatingActionButton(
        onPressed: _handleGetNetData,
        tooltip: '模擬從網路獲取資料',
        child: Icon(Icons.add),
      ),
    );
  }
}

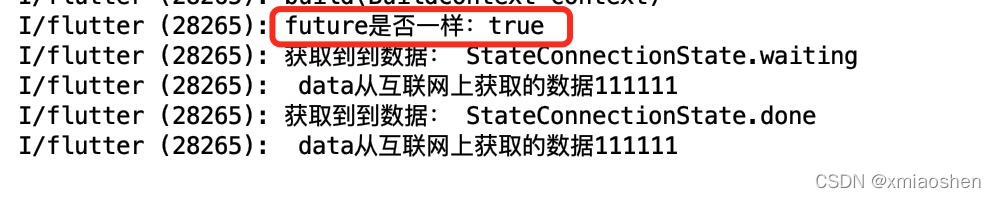

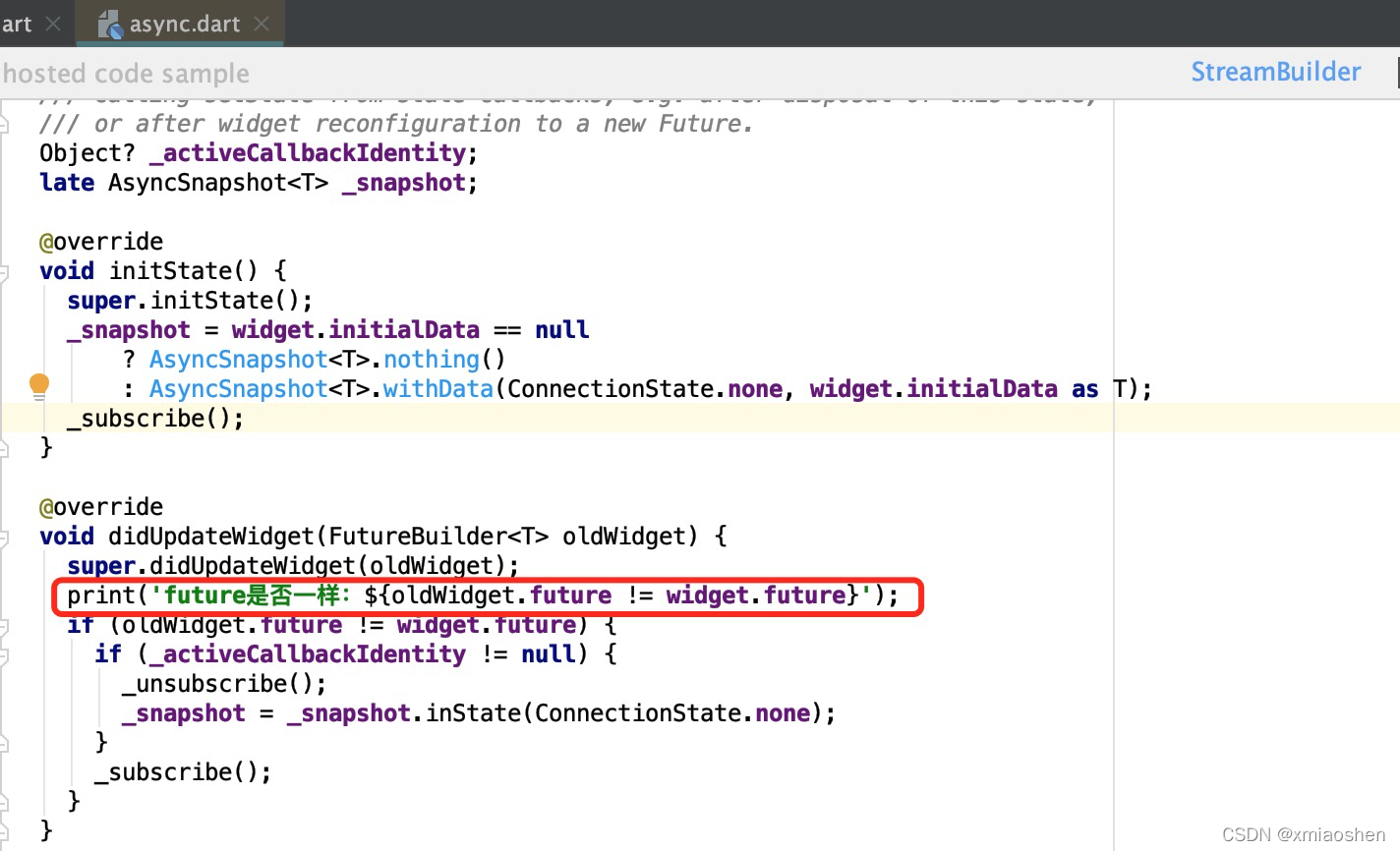

在FutureBuilder 狀態管理類 _FutureBuilderState 的 didUpdateWidget 列印當前future和上一次的future實體是否一樣 .

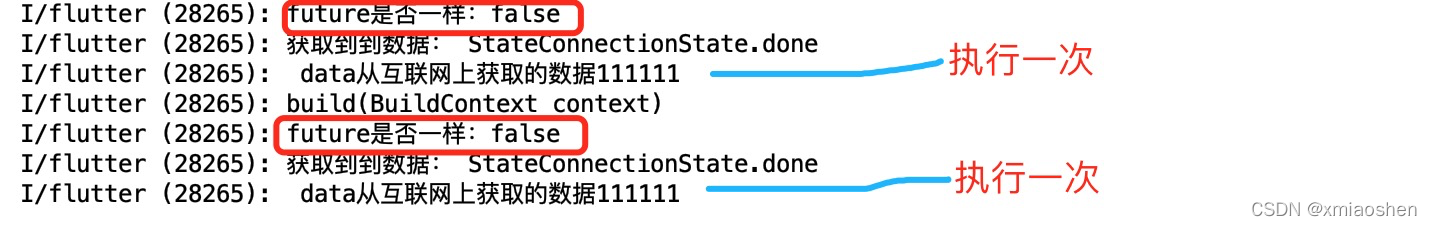

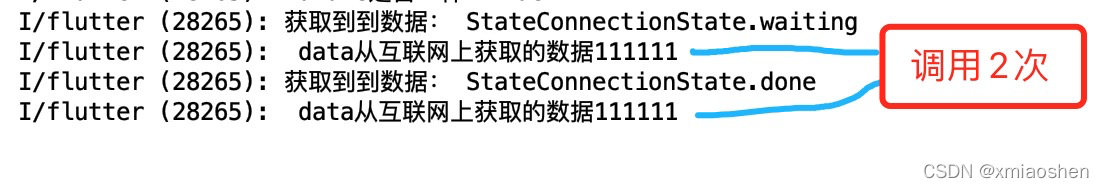

結果顯示不一樣

所以為了讓每次異步請求的實體是同一個 future ,需要在Widget 創建時在initState 函式里面初始化異步請求的future , 每次FutureBuilder 重新構建時都從原來的future異步請求中獲取資料.

 var _futBuiHom;

  Future<String> _getNetData() async {
    return await Future.delayed(Duration(seconds: 2), () => "從互聯網上獲取的資料111111");
  }

  @override
  void initState() {
    // TODO: implement initState
    super.initState();
    _futBuiHom = _getNetData();
  }

每次呼叫setState重繪界面

 void _handleGetNetData() async {
    await _getNetData();
    setState(() {});
  }

/ FutureBuilder + Dio +MVP 實作網路請求 /

Flutter 專案實戰 Dio網路請求四

import 'dart:collection';
import 'dart:core';

import 'package:connectivity/connectivity.dart';
import 'package:dio/dio.dart';
import 'package:flutter/material.dart';

import 'http_error.dart';

///http請求成功回呼
typedef HttpSuccessCallback<T> = void Function(dynamic data);

///失敗回呼
typedef HttpFailureCallback = void Function(HttpError data);

///資料決議回呼
typedef T JsonParse<T>(dynamic data);

class HttpManager {
  ///同一個CancelToken可以用于多個請求，當一個CancelToken取消時，
  ///所有使用該CancelToken的請求都會被取消，一個頁面對應一個CancelToken，
  Map<String, CancelToken> _cancelTokens = Map<String, CancelToken>();

  ///超時時間
  static const int CONNECT_TIMEOUT = 30000;
  static const int RECEIVE_TIMEOUT = 30000;

  /// http request methods
  static const String GET = 'get';
  static const String POST = 'post';

  Dio? _client;

  static final HttpManager _instance = HttpManager._internal();

  factory HttpManager() => _instance;

  Dio get client => _client!;

  /// 創建 dio 實體物件
  HttpManager._internal() {
    if (_client == null) {
      /// 全域屬性：請求前綴、連接超時時間、回應超時時間
      BaseOptions options = BaseOptions(
        connectTimeout: CONNECT_TIMEOUT,
        receiveTimeout: RECEIVE_TIMEOUT,
      );
      _client = Dio(options);
    }
  }

  ///初始化公共屬性
  /// [baseUrl] 地址前綴
  /// [connectTimeout] 連接超時趕時間
  /// [receiveTimeout] 接收超時趕時間
  /// [interceptors] 基礎攔截器
  void init(
      {String? baseUrl,
      int? connectTimeout,
      int? receiveTimeout,
      List<Interceptor>? interceptors}) {
    _client!.options = _client!.options.copyWith(
      baseUrl: baseUrl,
      connectTimeout: connectTimeout,
      receiveTimeout: receiveTimeout,
    );
    if (interceptors != null && interceptors.isNotEmpty) {
      _client!.interceptors..addAll(interceptors);
    }
  }

  ///Get網路請求
  ///[url] 網路請求地址不包含域名
  ///[params] url請求引數支持restful
  ///[options] 請求配置
  ///[successCallback] 請求成功回呼
  ///[errorCallback] 請求失敗回呼
  ///[tag] 請求統一標識，用于取消網路請求
  get({
    String? url,
    Map<String, dynamic>? params,
    Options? options,
    HttpSuccessCallback? successCallback,
    HttpFailureCallback? errorCallback,
    String? tag,
  }) async {
    return _request(
      url: url,
      params: params,
      method: GET,
      options: options,
      successCallback: successCallback!,
      errorCallback: errorCallback!,
      tag: tag!,
    );
  }

  ///post網路請求
  ///[url] 網路請求地址不包含域名
  ///[data] post 請求引數
  ///[params] url請求引數支持restful
  ///[options] 請求配置
  ///[successCallback] 請求成功回呼
  ///[errorCallback] 請求失敗回呼
  ///[tag] 請求統一標識，用于取消網路請求
  post({
    String? url,
    data,
    Map<String, dynamic>? params,
    Options? options,
    HttpSuccessCallback? successCallback,
    HttpFailureCallback? errorCallback,
    @required String? tag,
  }) async {
    return _request(
      url: url!,
      data: data,
      method: POST,
      params: params!,
      options: options!,
      successCallback: successCallback!,
      errorCallback: errorCallback!,
      tag: tag!,
    );
  }

  ///統一網路請求
  ///[url] 網路請求地址不包含域名
  ///[data] post 請求引數
  ///[params] url請求引數支持restful
  ///[options] 請求配置
  ///[successCallback] 請求成功回呼
  ///[errorCallback] 請求失敗回呼
  ///[tag] 請求統一標識，用于取消網路請求
  _request({
    String? url,
    String? method,
    data,
    Map<String, dynamic>? params,
    Options? options,
    HttpSuccessCallback? successCallback,
    HttpFailureCallback? errorCallback,
    @required String? tag,
  }) async {
    //檢查網路是否連接
    ConnectivityResult connectivityResult =
        await (Connectivity().checkConnectivity());
    if (connectivityResult == ConnectivityResult.none) {
      if (errorCallback != null) {
        errorCallback(HttpError(HttpError.NETWORK_ERROR, "網路例外，請稍后重試！"));
      }
      return;
    }
    //設定默認值
    params = params ?? {};
    method = method ?? 'GET';
    options?.method = method;
    options = options ??
        Options(
          method: method,
        );

    ///請求頭
    options.headers = await _headers();
    try {
      CancelToken cancelToken;
      cancelToken =
          (_cancelTokens[tag] == null ? CancelToken() : _cancelTokens[tag])!;
      _cancelTokens[tag!] = cancelToken;
      Response response = await _client!.request(url!,
          data: data,
          queryParameters: params,
          options: options,
          cancelToken: cancelToken);
      var _responseData = response.data;

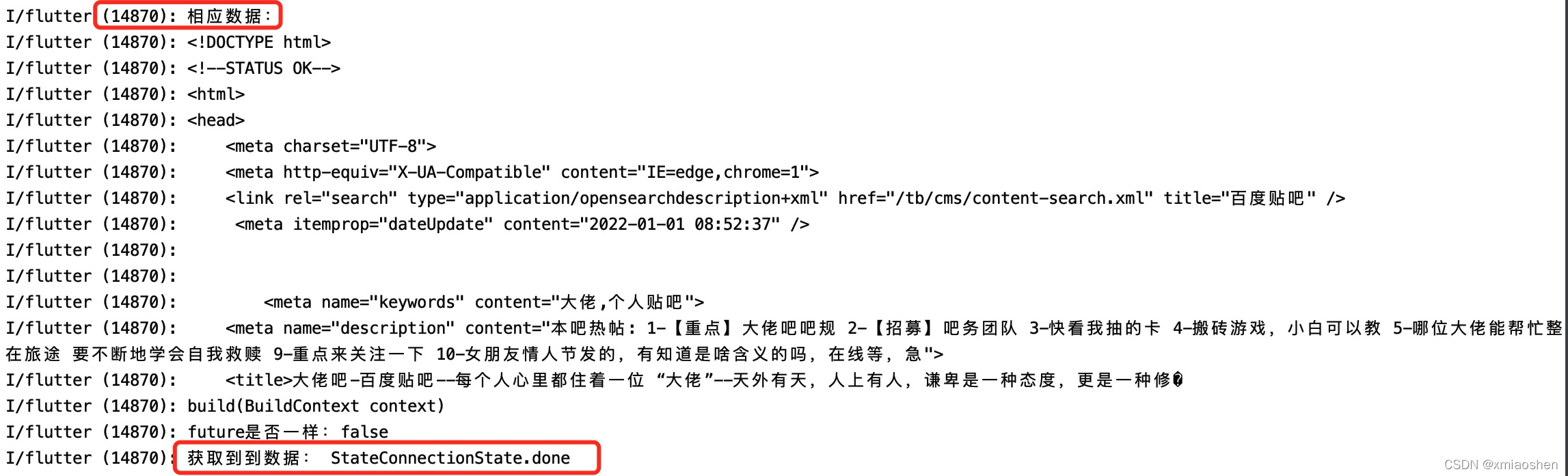

      print('相應資料：$_responseData');
      return _responseData;
      /*int statusCode = _responseData["code"];
      if (statusCode == 200) {
        //成功
        successCallback!(_responseData["data"]);
      } else {
        //失敗
        String message = _responseData["msg"].toString();
        errorCallback!(HttpError('$statusCode', message));
      }*/
    } on DioError catch (e, s) {
      if (e.type != DioErrorType.cancel) {
        errorCallback!(HttpError.dioError(e));
      }
    } catch (e, s) {
      errorCallback!(HttpError(HttpError.UNKNOWN, "未知錯誤，請稍后重試！"));
    }
  }

  ///取消網路請求
  void cancel(String tag) {
    if (_cancelTokens.containsKey(tag)) {
      if (!_cancelTokens[tag]!.isCancelled) {
        _cancelTokens[tag]!.cancel();
      }
      _cancelTokens.remove(tag);
    }
  }

  ///請求頭
  Future<Map<String, String>> _headers() async {
    Map<String, String> _headers = new HashMap();
    String _token = '';
    _headers.addAll({"token": _token});
    return _headers;
  }
}

MVP 模式 - 模型層 - 基礎類

創建IModel

import 'package:flutter_dio_mvp_futurebuilder/base/http/http_error.dart';

abstract class IModel {
  ///釋放網路請求
  void dispose();
}

typedef SuccessCallback<T> = void Function(dynamic data);

typedef FailureCallback = void Function(HttpError error);

AbstractModel

import 'IModel.dart';
abstract class AbstractModel implements IModel {
  String? _tag;

  String? get tag => _tag;

  AbstractModel() {
    _tag = '${DateTime.now().millisecondsSinceEpoch}';
  }

}

MVP模式 - Presenter基礎類

IPresenter

import 'package:flutter_dio_mvp_futurebuilder/base/view/IView.dart';

abstract class IPresenter<V extends IView> {

  void attachView(V view);


  void detachView();
}

AbstractPresenter

import 'package:flutter_dio_mvp_futurebuilder/base/model/IModel.dart';
import 'package:flutter_dio_mvp_futurebuilder/base/view/IView.dart';

import 'IPresenter.dart';

abstract class AbstractPresenter<V extends IView , M extends IModel >
    implements IPresenter {
  M? _model;
  V? _view;

  @override
  void attachView(IView  view) {
    this._model = createModel() as M?;
    this._view = view as V?;
  }

  @override
  void detachView() {
    if (_view != null) {
      _view = null;
    }
    if (_model != null) {
      _model!.dispose();
      _model = null;
    }
  }

  V? get view {
    return _view;
  }

//  V get view => _view;

  M? get model => _model;

  IModel  createModel();

}

IView

class IView {
  ///開始加載
  void startLoading() {}

  ///加載成功
  void showLoadSuccess() {}

  ///加載失敗
  void showLoadFailure(String code, String message) {}

}

BaseView

import 'package:flutter/material.dart';
import 'package:flutter_dio_mvp_futurebuilder/base/presenter/IPresenter.dart';
import 'package:flutter_dio_mvp_futurebuilder/base/view/IView.dart';

abstract class BaseView extends StatefulWidget {
  BaseView({Key? key}) : super(key: key);

  @override
  BaseViewState createState() => getState();

  ///子類實作
  BaseViewState getState();
}

abstract class BaseViewState<P extends IPresenter, V extends BaseView>
    extends State<V> with IView {
  P? presenter;

  @override
  void initState() {
    super.initState();

    presenter = createPresenter();
    if (presenter != null) {
      presenter?.attachView(this);
    }
  }

  P? createPresenter() {}

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      ///導航欄
      appBar: buildAppBar(),

      ///內容區域
      body: buildWidget(),

      ///內容區域背景顏色
      backgroundColor: buildBodyColor(),
    );
  }

  buildWidget();

  buildAppBar() => null;

  Color buildBodyColor() {
    return Color(0xff00FFFFFF);
  }
}

創建用于業務邏輯處理的callback

import 'package:flutter_dio_mvp_futurebuilder/base/model/IModel.dart';
import 'package:flutter_dio_mvp_futurebuilder/base/presenter/IPresenter.dart';
import 'package:flutter_dio_mvp_futurebuilder/base/view/IView.dart';

abstract class CDataModel extends IModel {
  ///
  loadData(Map<String, dynamic> p, SuccessCallback s, FailureCallback f);
}

abstract class CDataPresenter extends IPresenter {
  ///
  loadData(Map<String, dynamic> p);
}

abstract class CDataView extends IView {
  ///
  loadData(d);
}

模型層(Model)、Presenter、視圖層(View) 的具體實作

模型層(Model) 實作

import 'package:flutter_dio_mvp_futurebuilder/base/http/http_manager.dart';
import 'package:flutter_dio_mvp_futurebuilder/base/model/AbstractModel.dart';
import 'package:flutter_dio_mvp_futurebuilder/busmer/mvp_callback.dart';

class MData extends AbstractModel implements CDataModel {
  @override
  void dispose() {
    // TODO: implement dispose
    HttpManager().cancel(tag!);
  }

  @override
  loadData(Map<String, dynamic> p, s, f) async{
    return HttpManager().get(
        ///網路請求地址
        url: '/f',
        tag: tag!,
        successCallback: (data) {
          s(data);
        },
        errorCallback: (data) {
          f(data);
        },
        params: p);
  }
}

Presenter 實作

import 'package:flutter_dio_mvp_futurebuilder/base/model/IModel.dart';
import 'package:flutter_dio_mvp_futurebuilder/base/presenter/AbstractPresenter.dart';
import 'package:flutter_dio_mvp_futurebuilder/busmer/mvp_callback.dart';
import 'package:flutter_dio_mvp_futurebuilder/model/m_data.dart';

class PData extends AbstractPresenter<CDataView, CDataModel>
    implements CDataPresenter {
  @override
  IModel createModel() {
    return MData();
  }

  @override
  loadData(Map<String, dynamic> p) async{
    // TODO: implement loadData
    view?.startLoading();
   return model?.loadData(p, (data) {
      view?.showLoadSuccess();
      view?.loadData(data);
      model?.dispose();
    }, (error) {
      view?.showLoadFailure(error.code!, error.message!);
    });

  }
}

視圖層(View) 實作

class MyHomePage extends BaseView {
  @override
  BaseViewState<IPresenter<IView>, BaseView> getState() {
    // TODO: implement getState
    return _MyHomePageState();
  }
}

class _MyHomePageState extends BaseViewState<PData, MyHomePage>
    implements CDataView {
  var _futBuiHom;

  void _handleGetNetData() async {
    await _getNetData();
    setState(() {});
  }

  _getNetData() async {
    return await presenter!
        .loadData({'ie': 'utf-8', 'kw': '大佬', 'fr': 'search'});
  }

  @override
  void initState() {
    // TODO: implement initState
    super.initState();
    _futBuiHom = _getNetData();
  }

  @override
  loadData(d) {}

  @override
  PData? createPresenter() {
    // TODO: implement createPresenter
    return PData();
  }

  @override
  Color buildBodyColor() {
    // TODO: implement buildBodyColor
    return Color(0xffFFFFFF);
  }

  @override
  buildWidget() {
    // TODO: implement buildWidget
    print('build(BuildContext context)');

    return Column(
      children: [
        AppBar(
          title: Text('FutureBuilder MVP Dio'),
        ),
        OutlinedButton(
          onPressed: _handleGetNetData,
          child: Text('模擬從網路獲取資料'),
        ),
        Expanded(
          flex: 1,
          child: Center(
            child: FutureBuilder<dynamic>(
              future: _futBuiHom,
              initialData: '初始化的資料',
              builder: (BuildContext context, AsyncSnapshot<dynamic> snapshot) {
                print(
                    '\n獲取到到資料： State${snapshot.connectionState} \n data${snapshot.data}');
                switch (snapshot.connectionState) {
                  case ConnectionState.none:
                  case ConnectionState.waiting:
                    return const Text('資料加載中.....'); //加載中
                  default: //如果_calculation執行完畢
                    if (snapshot.hasError) {
                      //若_calculation執行出現例外
                      return Text('Error: ${snapshot.hasError}');
                    } else {
                      //若_calculation執行正常完成
                      return Text('Error: ${snapshot.data}');
                    }
                }
              },
            ),
          ),
        ),
      ],
    );
  }
}

main() 函式初始化網路請求 (網路請求需要的域名baseUrl)

void main() async {
  WidgetsFlutterBinding.ensureInitialized();
  await SystemChrome.setPreferredOrientations([DeviceOrientation.portraitUp]);
  await SystemChrome.setEnabledSystemUIOverlays(SystemUiOverlay.values);

  ///網路請求管理初始化
  HttpManager().init(baseUrl: 'https://tieba.baidu.com');
  runApp(MyApp());
}

發起了網路請求

總結

FutureBuilder 用于顯示異步請求的資料, 避免資料請求多次呼叫builder 對應的函式 , 我們需要在Widget 創建時 State 函式 initState 里面進行異步請求的初始化 .

Future+Dio+MVP 案例下載

轉載請註明出處，本文鏈接：https://www.uj5u.com/yidong/400601.html

標籤：其他

上一篇：【安卓開發】Android平臺的記賬本app（全部代碼+room框架操作資料庫+設計報告）

下一篇：【Fix Bug】針對 Google Photos 回傳的圖片Uri，裁剪照片失敗
