一、責任鏈模式
責任鏈模式是一種行為模式,為請求創建一個接收者的物件鏈.這樣就避免,一個請求鏈接多個接收者的情況.進行外部解耦.類似于單向鏈表結構，
優點：
1. 降低耦合度，它將請求的發送者和接收者解耦，
2. 簡化了物件，使得物件不需要知道鏈的結構，
3. 增強給物件指派職責的靈活性，通過改變鏈內的成員或者調動它們的次 序，允許動態地新增或者洗掉責任，
4. 增加新的請求處理類很方便，
缺點：
1. 不能保證請求一定被接收，
2. 系統性能將受到一定影響，而且在進行代碼除錯時不太方便，可能會造成回圈呼叫，
3. 可能不容易觀察運行時的特征，有礙于除錯，
在Android事件分發機制是責任鏈模式最典型的應用：
dispatchTouchEvent的,就是責任鏈中的將事件交給下一級處理的.
onInterceptTouchEvent ,就是責任鏈中,處理自己處理事務的方法.
onTouchEvent 是責任鏈中 事件上報的事件鏈，
下面我們來通過Android事件分發機制來感悟一下責任鏈模式在Android中的應用，
二、Android 事件分發傳遞機制
1. View事件傳遞分發層級結構
a). 事件收集之后最先傳遞給 Activity， 然后依次向下傳遞，大致如下：
Activity －> PhoneWindow －> DecorView －> ViewGroup －> ... －> View
這樣的事件分發機制邏輯非常清晰，可是，你是否注意到一個問題？如果最后分發到View，如果這個View也沒有處理事件怎么辦，就這樣讓事件浪費掉？當然不會啦，
b). 如果沒有任何View消費掉事件，那么這個事件會按照反方向回傳，最終傳回給Activity，如果最后 Activity 也沒有處理，本次事件才會被拋棄:
Activity <－ PhoneWindow <－ DecorView <－ ViewGroup <－ ... <－ View
可以看到，這是一個非常經典的責任鏈模式，如果我能處理就攔截下來自己干，如果自己不能處理或者不確定就交給責任鏈中下一個物件， 這種設計是非常精巧的，上層View既可以直接攔截該事件，自己處理，也可以先詢問(分發給)子View，如果子View需要就交給子View處理，如果子View不需要還能繼續交給上層View處理，既保證了事件的有序性，又非常的靈活，
View點擊事件分發有三個關鍵流程方法:
1.dispatchTouchEvent：事件下發 --- View和ViewGroup都有的方法
2.onInterceptTouchEvent：攔截下發的事件,并交給自己OnTouchEvent處理處理 ---ViewGroup才有的方法
3.onTouchEvent：事件上報 --- View和ViewGroup都有的方法

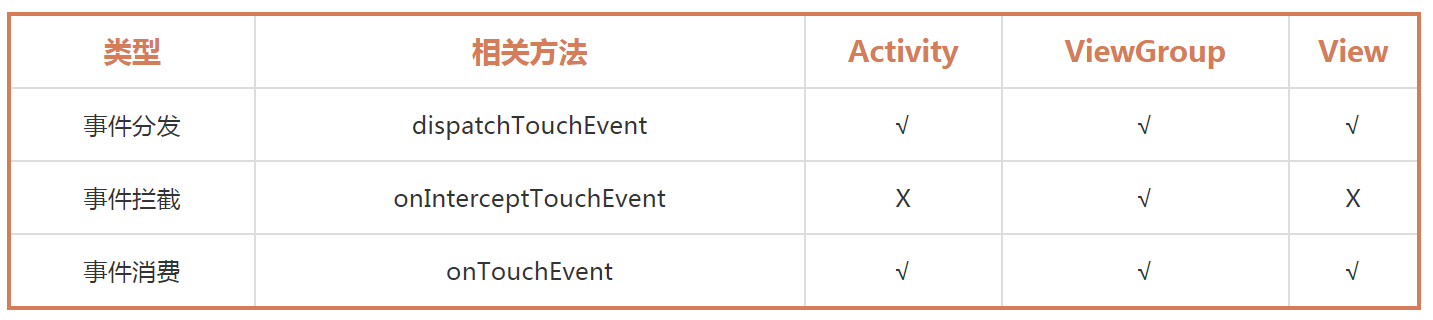

以下是不同層級對事件的分發、攔截和消費的功能表：
可以看到 Activity 和 View 都是沒有事件攔截的：
a). Activity 作為原始的事件分發者，如果 Activity 攔截了事件會導致整個螢屏都無法回應事件，這肯定不是我們想要的效果，
b). View最為事件傳遞的最末端，要么消費掉事件，要么不處理進行回傳，根本沒必要進行事件攔截，

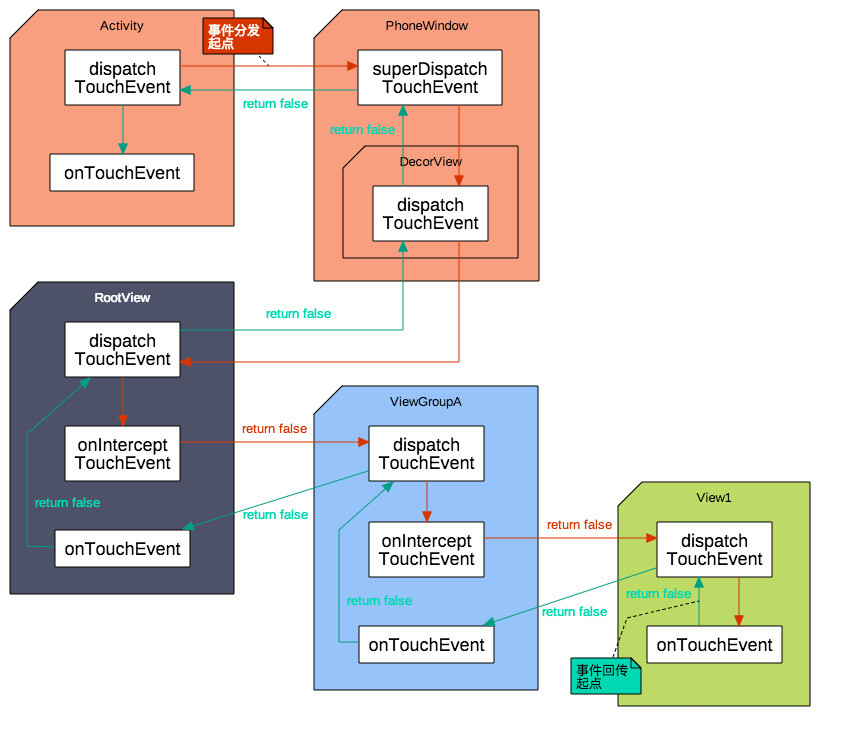

下圖是點擊View，事件傳遞但是都沒有被處理，生成的一個完整的事件分發流程圖：

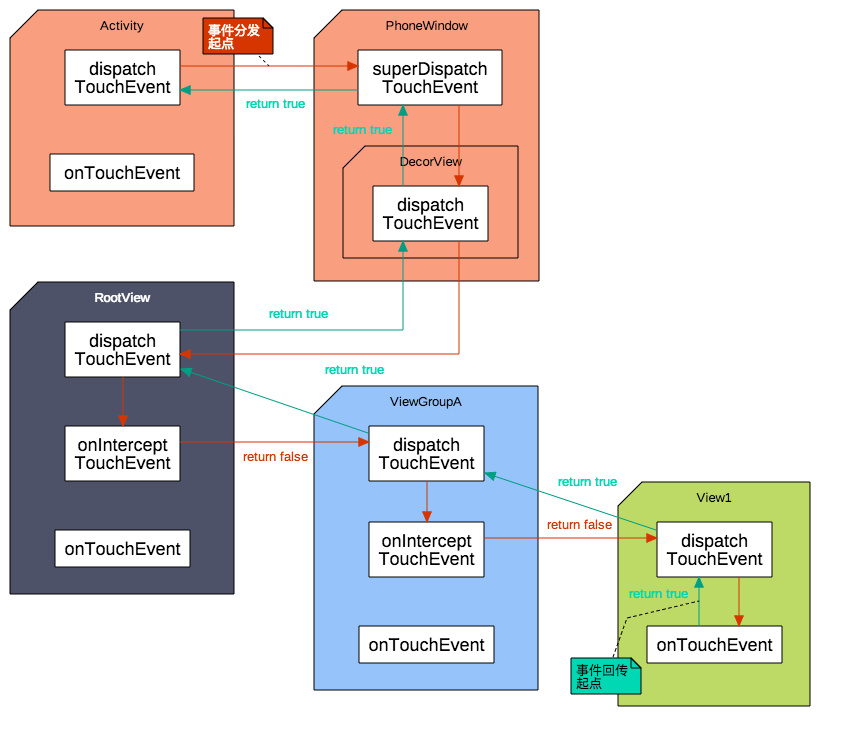

如果事件被View處理了，那么事件分發流程圖應該如下：

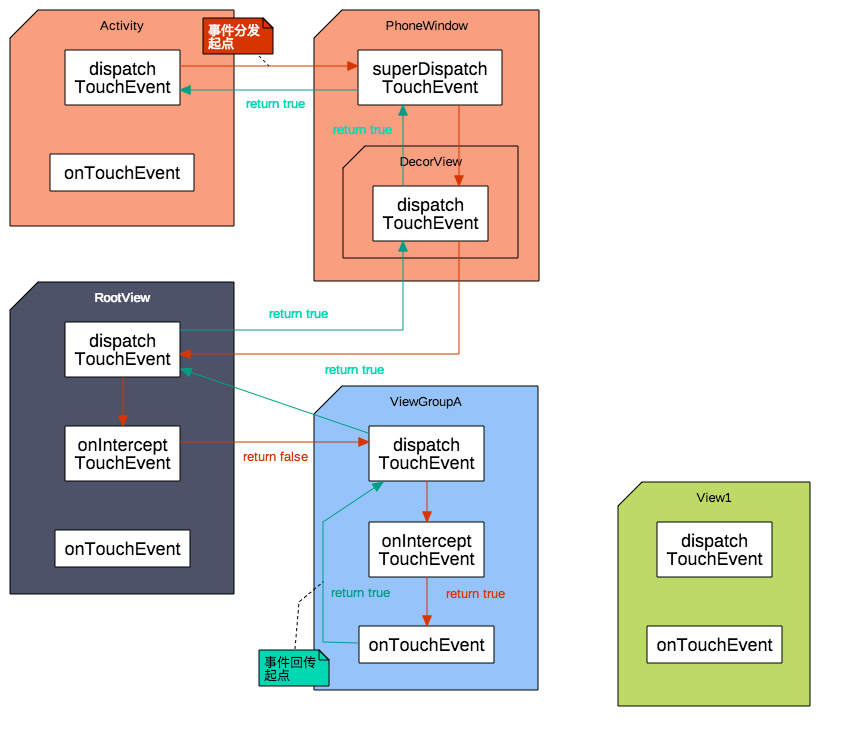

如果事件被ViewGroup攔截處理了， 那么事件分發流程圖應該如下：
從上面的流程，我們可以概括Android的事件分發機制為：責任鏈模式，事件層層傳遞，直到被消費，
三、Q&A
上面我們講解了一下Android的事件分發機制，可能很多人會有疑惑，下面我們針對部分疑惑進行分析和說明：
1. 為什么 View 會有 dispatchTouchEvent ?
答：我們知道 View 可以注冊很多事件監聽器，例如：單擊事件(onClick)、長按事件(onLongClick)、觸摸事件(onTouch)，并且View自身也有 onTouchEvent 方法，那么問題來了，這么多與事件相關的方法應該由誰管理？毋庸置疑就是 dispatchTouchEvent，所以 View 也會有事件分發，
View的dispatchTouchEvent原始碼：
/** * Pass the touch screen motion event down to the target view, or this * view if it is the target. * * @param event The motion event to be dispatched. * @return True if the event was handled by the view, false otherwise. */ public boolean dispatchTouchEvent(MotionEvent event) { // If the event should be handled by accessibility focus first. if (event.isTargetAccessibilityFocus()) { // We don't have focus or no virtual descendant has it, do not handle the event. if (!isAccessibilityFocusedViewOrHost()) { return false; } // We have focus and got the event, then use normal event dispatch. event.setTargetAccessibilityFocus(false); } boolean result = false; if (mInputEventConsistencyVerifier != null) { mInputEventConsistencyVerifier.onTouchEvent(event, 0); } final int actionMasked = event.getActionMasked(); if (actionMasked == MotionEvent.ACTION_DOWN) { // Defensive cleanup for new gesture stopNestedScroll(); } if (onFilterTouchEventForSecurity(event)) { if ((mViewFlags & ENABLED_MASK) == ENABLED && handleScrollBarDragging(event)) { result = true; } //noinspection SimplifiableIfStatement ListenerInfo li = mListenerInfo; if (li != null && li.mOnTouchListener != null && (mViewFlags & ENABLED_MASK) == ENABLED && li.mOnTouchListener.onTouch(this, event)) { result = true; } if (!result && onTouchEvent(event)) { result = true; } } if (!result && mInputEventConsistencyVerifier != null) { mInputEventConsistencyVerifier.onUnhandledEvent(event, 0); } // Clean up after nested scrolls if this is the end of a gesture; // also cancel it if we tried an ACTION_DOWN but we didn't want the rest // of the gesture. if (actionMasked == MotionEvent.ACTION_UP || actionMasked == MotionEvent.ACTION_CANCEL || (actionMasked == MotionEvent.ACTION_DOWN && !result)) { stopNestedScroll(); } return result; }View Code
2. View事件分發時各個方法呼叫順序是怎樣的？
a). 單擊事件(onClickListener) 需要兩個兩個事件(ACTION_DOWN 和 ACTION_UP )才能觸發，如果先分配給onClick判斷，等它判斷完再交由其他相應時間顯然是不合理的，會造成 View 無法回應其他事件，應該最后呼叫，(所以此呼叫順序最后)
b). 長按事件(onLongClickListener) 同理，也是需要長時間等待才能出結果，肯定不能排到前面，但因為不需要ACTION_UP，應該排在 onClick 前面，(onLongClickListener > onClickListener)
c). 觸摸事件(onTouchListener) 如果用戶注冊了觸摸事件，說明用戶要自己處理觸摸事件了，這個應該排在最前面，(最前)
d). View自身處理(onTouchEvent) 提供了一種默認的處理方式，如果用戶已經處理好了，也就不需要了，所以應該排在 onClickListener 后面，(onTouchListener > onClickListener)
所以事件的調度順序應該是 onTouchListener > onTouchEvent > onLongClickListener > onClickListener，
3. ViewGroup 的事件分發流程又是如何的呢？
在默認的情況下 ViewGroup 事件分發流程是這樣的，
a). 判斷自身是否需要(詢問 onInterceptTouchEvent 是否攔截)，如果需要，呼叫自己的 onTouchEvent，
b). 自身不需要或者不確定，則詢問 ChildView ，一般來說是呼叫手指觸摸位置的 ChildView，
c). 如果子 ChildView 不需要則呼叫自身的 onTouchEvent，
ViewGroup的dispatchTouchEvent原始碼：
@Override public boolean dispatchTouchEvent(MotionEvent ev) { if (mInputEventConsistencyVerifier != null) { mInputEventConsistencyVerifier.onTouchEvent(ev, 1); } // If the event targets the accessibility focused view and this is it, start // normal event dispatch. Maybe a descendant is what will handle the click. if (ev.isTargetAccessibilityFocus() && isAccessibilityFocusedViewOrHost()) { ev.setTargetAccessibilityFocus(false); } boolean handled = false; if (onFilterTouchEventForSecurity(ev)) { final int action = ev.getAction(); final int actionMasked = action & MotionEvent.ACTION_MASK; // Handle an initial down. if (actionMasked == MotionEvent.ACTION_DOWN) { // Throw away all previous state when starting a new touch gesture. // The framework may have dropped the up or cancel event for the previous gesture // due to an app switch, ANR, or some other state change. cancelAndClearTouchTargets(ev); resetTouchState(); } // Check for interception. final boolean intercepted; if (actionMasked == MotionEvent.ACTION_DOWN || mFirstTouchTarget != null) { final boolean disallowIntercept = (mGroupFlags & FLAG_DISALLOW_INTERCEPT) != 0; if (!disallowIntercept) { intercepted = onInterceptTouchEvent(ev); ev.setAction(action); // restore action in case it was changed } else { intercepted = false; } } else { // There are no touch targets and this action is not an initial down // so this view group continues to intercept touches. intercepted = true; } // If intercepted, start normal event dispatch. Also if there is already // a view that is handling the gesture, do normal event dispatch. if (intercepted || mFirstTouchTarget != null) { ev.setTargetAccessibilityFocus(false); } // Check for cancelation. final boolean canceled = resetCancelNextUpFlag(this) || actionMasked == MotionEvent.ACTION_CANCEL; // Update list of touch targets for pointer down, if needed. final boolean split = (mGroupFlags & FLAG_SPLIT_MOTION_EVENTS) != 0; TouchTarget newTouchTarget = null; boolean alreadyDispatchedToNewTouchTarget = false; if (!canceled && !intercepted) { // If the event is targeting accessibility focus we give it to the // view that has accessibility focus and if it does not handle it // we clear the flag and dispatch the event to all children as usual. // We are looking up the accessibility focused host to avoid keeping // state since these events are very rare. View childWithAccessibilityFocus = ev.isTargetAccessibilityFocus() ? findChildWithAccessibilityFocus() : null; if (actionMasked == MotionEvent.ACTION_DOWN || (split && actionMasked == MotionEvent.ACTION_POINTER_DOWN) || actionMasked == MotionEvent.ACTION_HOVER_MOVE) { final int actionIndex = ev.getActionIndex(); // always 0 for down final int idBitsToAssign = split ? 1 << ev.getPointerId(actionIndex) : TouchTarget.ALL_POINTER_IDS; // Clean up earlier touch targets for this pointer id in case they // have become out of sync. removePointersFromTouchTargets(idBitsToAssign); final int childrenCount = mChildrenCount; if (newTouchTarget == null && childrenCount != 0) { final float x = ev.getX(actionIndex); final float y = ev.getY(actionIndex); // Find a child that can receive the event. // Scan children from front to back. final ArrayList<View> preorderedList = buildTouchDispatchChildList(); final boolean customOrder = preorderedList == null && isChildrenDrawingOrderEnabled(); final View[] children = mChildren; for (int i = childrenCount - 1; i >= 0; i--) { final int childIndex = getAndVerifyPreorderedIndex( childrenCount, i, customOrder); final View child = getAndVerifyPreorderedView( preorderedList, children, childIndex); // If there is a view that has accessibility focus we want it // to get the event first and if not handled we will perform a // normal dispatch. We may do a double iteration but this is // safer given the timeframe. if (childWithAccessibilityFocus != null) { if (childWithAccessibilityFocus != child) { continue; } childWithAccessibilityFocus = null; i = childrenCount - 1; } if (!canViewReceivePointerEvents(child) || !isTransformedTouchPointInView(x, y, child, null)) { ev.setTargetAccessibilityFocus(false); continue; } newTouchTarget = getTouchTarget(child); if (newTouchTarget != null) { // Child is already receiving touch within its bounds. // Give it the new pointer in addition to the ones it is handling. newTouchTarget.pointerIdBits |= idBitsToAssign; break; } resetCancelNextUpFlag(child); if (dispatchTransformedTouchEvent(ev, false, child, idBitsToAssign)) { // Child wants to receive touch within its bounds. mLastTouchDownTime = ev.getDownTime(); if (preorderedList != null) { // childIndex points into presorted list, find original index for (int j = 0; j < childrenCount; j++) { if (children[childIndex] == mChildren[j]) { mLastTouchDownIndex = j; break; } } } else { mLastTouchDownIndex = childIndex; } mLastTouchDownX = ev.getX(); mLastTouchDownY = ev.getY(); newTouchTarget = addTouchTarget(child, idBitsToAssign); alreadyDispatchedToNewTouchTarget = true; break; } // The accessibility focus didn't handle the event, so clear // the flag and do a normal dispatch to all children. ev.setTargetAccessibilityFocus(false); } if (preorderedList != null) preorderedList.clear(); } if (newTouchTarget == null && mFirstTouchTarget != null) { // Did not find a child to receive the event. // Assign the pointer to the least recently added target. newTouchTarget = mFirstTouchTarget; while (newTouchTarget.next != null) { newTouchTarget = newTouchTarget.next; } newTouchTarget.pointerIdBits |= idBitsToAssign; } } } // Dispatch to touch targets. if (mFirstTouchTarget == null) { // No touch targets so treat this as an ordinary view. handled = dispatchTransformedTouchEvent(ev, canceled, null, TouchTarget.ALL_POINTER_IDS); } else { // Dispatch to touch targets, excluding the new touch target if we already // dispatched to it. Cancel touch targets if necessary. TouchTarget predecessor = null; TouchTarget target = mFirstTouchTarget; while (target != null) { final TouchTarget next = target.next; if (alreadyDispatchedToNewTouchTarget && target == newTouchTarget) { handled = true; } else { final boolean cancelChild = resetCancelNextUpFlag(target.child) || intercepted; if (dispatchTransformedTouchEvent(ev, cancelChild, target.child, target.pointerIdBits)) { handled = true; } if (cancelChild) { if (predecessor == null) { mFirstTouchTarget = next; } else { predecessor.next = next; } target.recycle(); target = next; continue; } } predecessor = target; target = next; } } // Update list of touch targets for pointer up or cancel, if needed. if (canceled || actionMasked == MotionEvent.ACTION_UP || actionMasked == MotionEvent.ACTION_HOVER_MOVE) { resetTouchState(); } else if (split && actionMasked == MotionEvent.ACTION_POINTER_UP) { final int actionIndex = ev.getActionIndex(); final int idBitsToRemove = 1 << ev.getPointerId(actionIndex); removePointersFromTouchTargets(idBitsToRemove); } } if (!handled && mInputEventConsistencyVerifier != null) { mInputEventConsistencyVerifier.onUnhandledEvent(ev, 1); } return handled; }View Code
可能看這么長的代碼，我們會比較懵，下面我們用偽代碼來表示一下：
public boolean dispatchTouchEvent(MotionEvent ev) { boolean consume = false; if (onInterceptTouchEvent(ev)) { consume = onTouchEvent(ev); } else { consume = child.dispatchTouchEvent(ev) } return consume; }
這樣我們就能更直白的看懂View事件的傳遞機制了，
4. ViewGroup將事件分發給ChildView的機制
- ViewGroup分發事件時會遍歷 ChildView，如果手指觸摸的點在 ChildView 區域內就分發給這個View，當 ChildView 重疊時，一般會分配給顯示在最上面的 ChildView，
- ViewGroup判斷是否需要攔截，主要是根據onInterruptTouchEvent的回傳值進行判斷，
- 在Down事件中將touch事件分發給ChildView，如果有ChildView捕獲消費了Down事件，就會對mFirstTouchTarget進行賦值，mFirstTouchTarget的作用就是記錄消費事件的View，
- 在ViewGroup的dispatchTouchEvent方法中，會根據mFirstTouchTarget 是否為 null，決定是自己處理 touch 事件，還是分發給子 View，
- Down事件是touch事件序列的起點，決定了后續的事件由誰來消費處理，Cancel事件的觸發場景為：父View先不攔截，但在MOVE事件中又重新攔截，此時子View會收到一個Cancel事件，
5. ViewGroup 和 ChildView 同時注冊了事件監聽器(onClick等)，哪個會執行?
事件優先給 ChildView，會被 ChildView消費掉，ViewGroup 不會回應，
四、參考資料
1. Android事件傳遞機制分析
2. Android 事件分發機制詳解
3. 安卓自定義View進階-事件分發機制原理
4. 必問的事件分發，你答得上來嗎
