一、專案概述

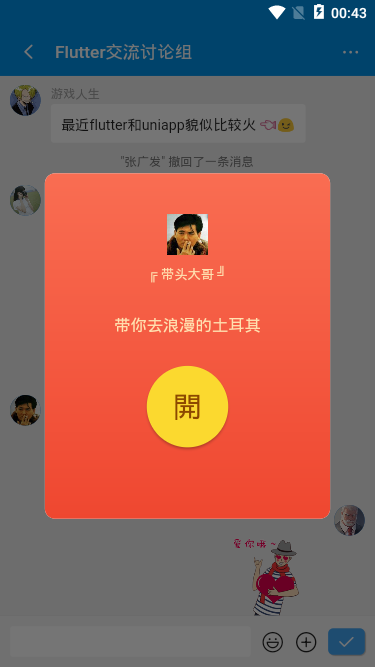

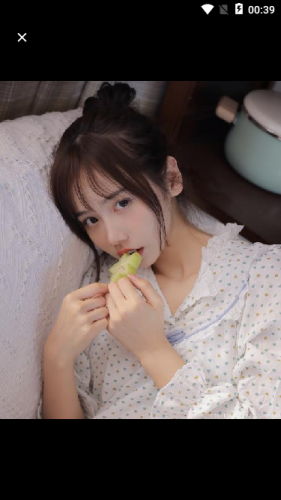

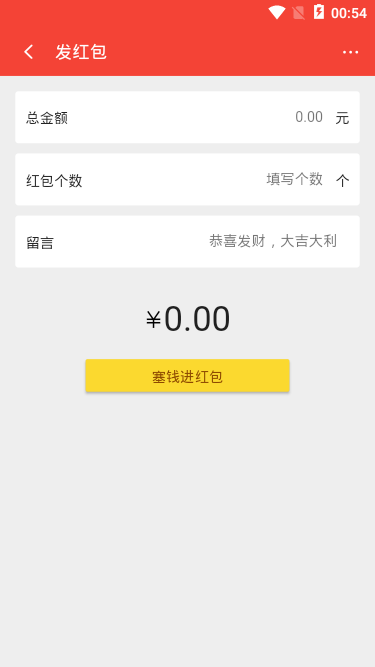

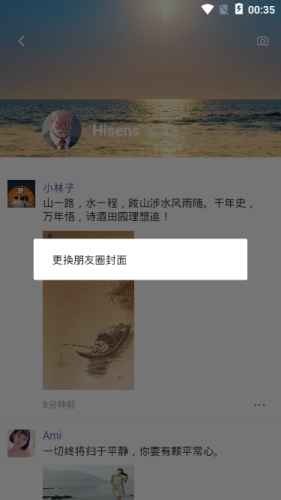

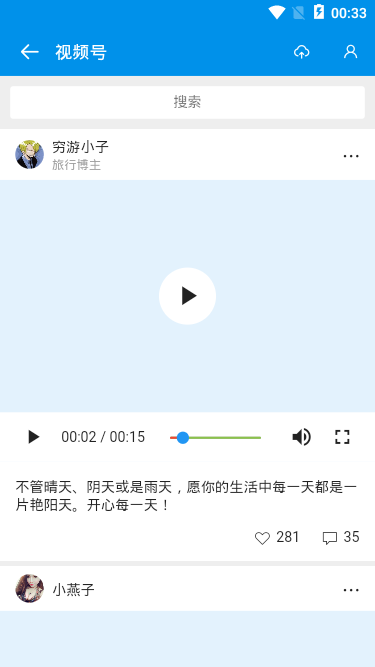

flutter-chatroom是采用基于flutter+dart+chewie+image_picker+photo_view等技術跨端開發仿微信app界面聊天室專案，實作了訊息發送/動態gif表情、彈窗、圖片預覽、紅包/朋友圈/小視頻號等功能，

二、技術框架

編碼/技術：Vscode + Flutter 1.12.13/Dart 2.7.0
視頻組件：chewie: ^0.9.7
圖片/拍照：image_picker: ^0.6.6+1
圖片預覽組件：photo_view: ^0.9.2
彈窗組件：SimpleDialog/showModalBottomSheet/AlertDialog/SnackBar（flutter封裝自定義）
本地存盤：shared_preferences: ^0.5.7+1
字體圖示：阿里iconfont字體圖示庫

由于flutter基于dart語言，需要先安裝Dart Sdk / Flutter Sdk，如何搭建開發環境，不作過多介紹，可以去官網查閱檔案資料

https://flutter.cn/

https://flutterchina.club/

https://pub.flutter-io.cn/

https://www.dartcn.com/

如果使用vscode編輯器開發，可先安裝Dart 、Flutter 、Flutter widget snippets等擴展插件

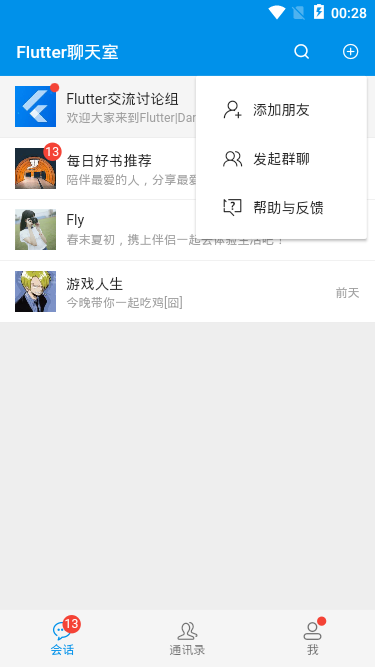

◆ flutter沉浸式狀態欄/底部tabbar導航

在flutter中如何實作沉浸式透明狀態欄(去掉狀態欄黑色半透明背景)，去掉右上角banner提示，可以去看這篇文章

https://www.cnblogs.com/xiaoyan2017/p/12784076.html

◆ flutter中使用字體圖示 (阿里iconfont圖示)

方法1：使用系統圖示組件： Icon(Icons.search)
方法2：使用IconData方式： Icon(IconData(0xe60e, fontFamily: 'iconfont'), size: 24.0)

方法2 需要先下載阿里圖示庫字體檔案，然后在pubspec.yaml中申明字體

通過IconData呼叫簡單封裝： GStyle.iconfont(0xe635, color: Colors.red, size: 14.0)

class GStyle {
    // __ 自定義圖示
    static iconfont(int codePoint, {double size = 16.0, Color color}) {
        return Icon(
            IconData(codePoint, fontFamily: 'iconfont', matchTextDirection: true),
            size: size,
            color: color,
        );
    }
}

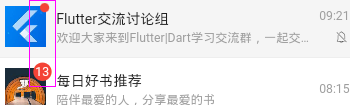

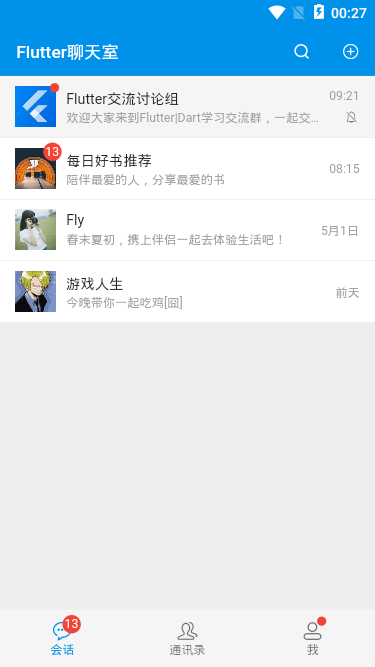

◆ flutter中紅點/圓點提示

在flutter中沒有上圖這個紅點提示組件，如是簡單封裝個badge組件

GStyle.badge(0, isdot: true)

GStyle.badge(13, color: Colors.green, height: 12.0, width: 12.0)

class GStyle {
    // 訊息紅點
    static badge(int count, {Color color = Colors.red, bool isdot = false, double height = 18.0, double width = 18.0}) {
        final _num = count > 99 ? '···' : count;
        return Container(
            alignment: Alignment.center, height: !isdot ? height : height/2, width: !isdot ? width : width/2,
            decoration: BoxDecoration(color: color, borderRadius: BorderRadius.circular(100.0)),
            child: !isdot ? Text('$_num', style: TextStyle(color: Colors.white, fontSize: 12.0)) : null
        );
    }
}

◆ flutter主入口頁面main.dart

/**
 * @tpl Flutter入口頁面 | Q：282310962
 */

import 'package:flutter/material.dart';

// 引入公共樣式
import 'styles/common.dart';

// 引入底部Tabbar頁面導航
import 'components/tabbar.dart';

// 引入地址路由
import 'router/routes.dart';

void main() => runApp(MyApp());

class MyApp extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'Flutter App',
      debugShowCheckedModeBanner: false,
      theme: ThemeData(
        primaryColor: GStyle.appbarColor,
      ),
      home: TabBarPage(),
      onGenerateRoute: onGenerateRoute,
    );
  }
}

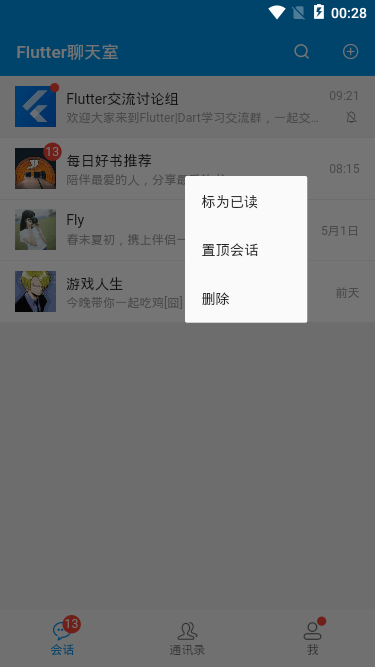

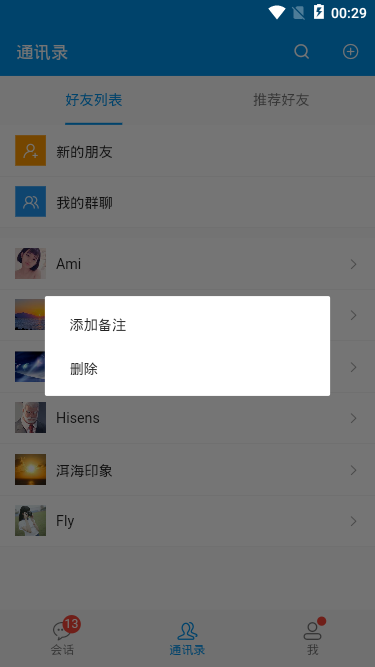

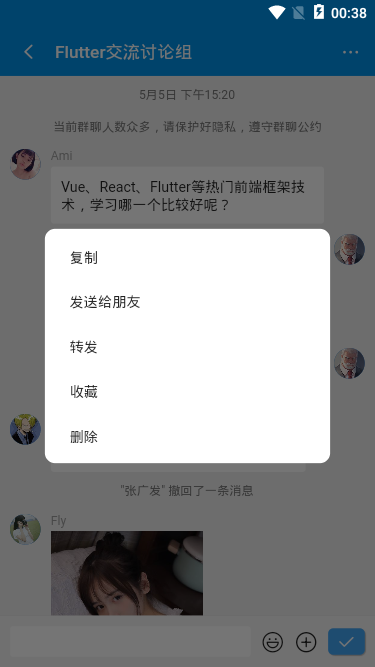

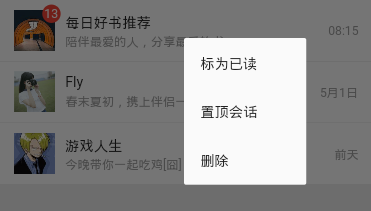

◆ flutter自定義彈窗實作

長按獲取點坐標，通過Positioned組件left top屬性實作定位，width控制彈窗寬度

InkWell(
    splashColor: Colors.grey[200],
    child: Container(...),
    onTapDown: (TapDownDetails details) {
        _globalPositionX = details.globalPosition.dx;
        _globalPositionY = details.globalPosition.dy;
    },
    onLongPress: () {
        _showPopupMenu(context);
    },
),

// 長按彈窗
double _globalPositionX = 0.0; //長按位置的橫坐標
double _globalPositionY = 0.0; //長按位置的縱坐標
void _showPopupMenu(BuildContext context) {
    // 確定點擊位置在左側還是右側
    bool isLeft = _globalPositionX > MediaQuery.of(context).size.width/2 ? false : true;
    // 確定點擊位置在上半螢屏還是下半螢屏
    bool isTop = _globalPositionY > MediaQuery.of(context).size.height/2 ? false : true;

    showDialog(
      context: context,
      builder: (context) {
        return Stack(
          children: <Widget>[
            Positioned(
              top: isTop ? _globalPositionY : _globalPositionY - 200.0,
              left: isLeft ? _globalPositionX : _globalPositionX - 120.0,
              width: 120.0,
              child: Material(
                ...
              ),
            )
          ],
        );
      }
    );
}

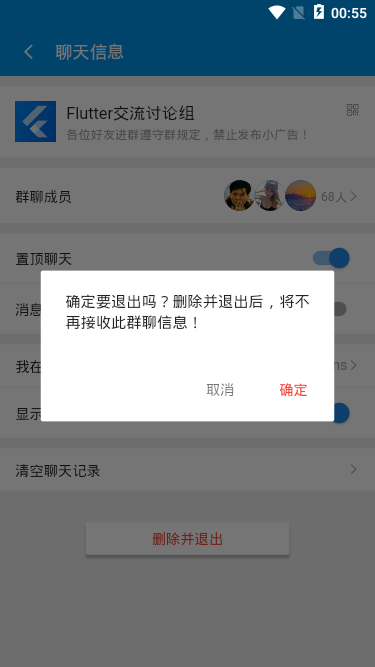

flutter中可否去掉彈窗寬高限制？通過SizedBox組件設定寬度，外層包裹布局無限制容器UnconstrainedBox組件

void _showCardPopup(BuildContext context) {
    showDialog(
      context: context,
      builder: (context) {
        return UnconstrainedBox(
          constrainedAxis: Axis.vertical,
          child: SizedBox(
            width: 260,
            child: AlertDialog(
              content: Container(
                ...
              ),
              elevation: 0,
              contentPadding: EdgeInsets.symmetric(horizontal: 10.0, vertical: 20.0),
            ),
          ),
        );
      }
    );
}

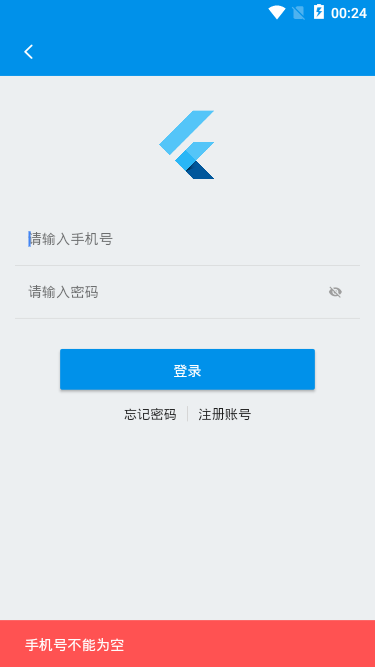

◆ flutter/dart登錄、注冊表單驗證

TextField文本框，右側清空文本框按鈕通過Visibility組件控制

TextField(
  keyboardType: TextInputType.phone,
  controller: TextEditingController.fromValue(TextEditingValue(
    text: formObj['tel'],
    selection: new TextSelection.fromPosition(TextPosition(affinity: TextAffinity.downstream, offset: formObj['tel'].length))
  )),
  decoration: InputDecoration(
    hintText: "請輸入手機號",
    isDense: true,
    hintStyle: TextStyle(fontSize: 14.0),
    suffixIcon: Visibility(
      visible: formObj['tel'].isNotEmpty,
      child: InkWell(
        child: GStyle.iconfont(0xe69f, color: Colors.grey, size: 14.0), onTap: () {
          setState(() { formObj['tel'] = ''; });
        }
      ),
    ),
    border: OutlineInputBorder(borderSide: BorderSide.none)
  ),
  onChanged: (val) {
    setState(() { formObj['tel'] = val; });
  },
)

// SnackBar提示
final _scaffoldkey = new GlobalKey<ScaffoldState>();
void _snackbar(String title, {Color color}) {
    _scaffoldkey.currentState.showSnackBar(SnackBar(
      backgroundColor: color ?? Colors.redAccent,
      content: Text(title),
      duration: Duration(seconds: 1),
    ));
}

本地存盤使用的是 shared_preferences

https://pub.flutter-io.cn/packages/shared_preferences

void handleSubmit() async {
    if(formObj['tel'] == '') {
      _snackbar('手機號不能為空');
    }else if(!Util.checkTel(formObj['tel'])) {
      _snackbar('手機號格式有誤');
    }else if(formObj['pwd'] == '') {
      _snackbar('密碼不能為空');
    }else {
      // ...介面資料

      // 設定存盤資訊
      final prefs = await SharedPreferences.getInstance();
      prefs.setBool('hasLogin', true);
      prefs.setInt('user', int.parse(formObj['tel']));
      prefs.setString('token', Util.setToken());

      _snackbar('恭喜你，登錄成功', color: Colors.greenAccent[400]);
      Timer(Duration(seconds: 2), (){
        Navigator.pushNamedAndRemoveUntil(context, '/tabbarpage', (route) => route == null);
      });
    }
}

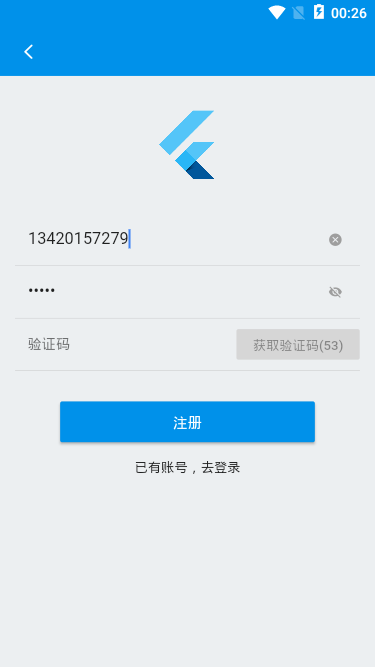

flutter中獲取驗證碼60s倒計時，使用Timer.periodic實作

// 60s倒計時
void handleVcode() {
    if(formObj['tel'] == '') {
      _snackbar('手機號不能為空');
    }else if(!Util.checkTel(formObj['tel'])) {
      _snackbar('手機號格式有誤');
    }else {
      _countDown();
    }
}
_countDown() {
    if(_validTimer != null) return;

    _validTimer = Timer.periodic(Duration(seconds: 1), (t) {
      setState(() {
        if(formObj['time'] > 0) {
          formObj['disabled'] = true;
          formObj['vcodeText'] = '獲取驗證碼(${formObj["time"]--})';
        }else {
          formObj['time'] = 60;
          formObj['vcodeText'] = '獲取驗證碼';
          formObj['disabled'] = false;

          _validTimer.cancel();
          _validTimer = null;
        }
      });
    });
}

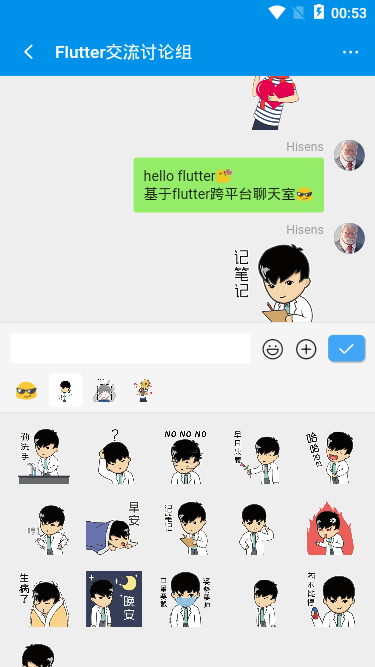

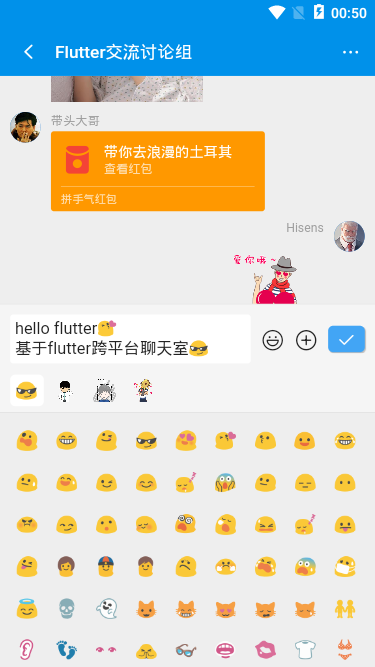

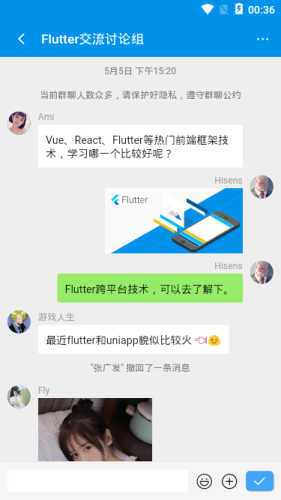

◆ flutter聊天頁面決議

flutter中如何實作TextField換行文本框(類似微信聊天編輯框)，設定 maxLines 屬性就能實作多行文本，

不過設定maxLines，文本框有一定高度，這時只需設定maxLines: null及keyboardType并在外層加個容器限制最小高度即可，

Container(
    margin: GStyle.margin(10.0),
    decoration: BoxDecoration(color: Colors.white, borderRadius: BorderRadius.circular(3.0)),
    constraints: BoxConstraints(minHeight: 30.0, maxHeight: 150.0),
    child: TextField(
        maxLines: null,
        keyboardType: TextInputType.multiline,
        decoration: InputDecoration(
          hintStyle: TextStyle(fontSize: 14.0),
          isDense: true,
          contentPadding: EdgeInsets.all(5.0),
          border: OutlineInputBorder(borderSide: BorderSide.none)
        ),
        controller: _textEditingController,
        focusNode: _focusNode,
        onChanged: (val) {
          setState(() {
            editorLastCursor = _textEditingController.selection.baseOffset;
          });
        },
        onTap: () {handleEditorTaped();},
    ),
),

另外通過文本框focusNode屬性可以實作隱藏鍵盤

FocusNode _focusNode = FocusNode();
...
void clickMsgPanel() {
    // 隱藏鍵盤
    _focusNode.unfocus();
    setState(() { showFootToolbar = false; });
}

flutter中如何實作滾動聊天資訊至底部？

通過ListView里controller的獲取最大滾動距離，并通過jumpTo方法滾動，

ScrollController _msgController = new ScrollController();
...
ListView(
    controller: _msgController,
    padding: EdgeInsets.all(10.0),
    children: renderMsgTpl(),
)

// 滾動訊息至聊天底部
void scrollMsgBottom() {
    timer = Timer(Duration(milliseconds: 100), () => _msgController.jumpTo(_msgController.position.maxScrollExtent));
}

ok，基于flutter+dart跨平臺開發仿微信聊天實體專案就分享到這里，希望大家能喜歡！????

最后附上基于electron+vue桌面端IM實體

https://www.cnblogs.com/xiaoyan2017/p/12169391.html
