我想遍歷一組坐標，我想將其用于標記并在谷歌地圖中畫一條線。是否有解決方案來創建具有 const 位置回圈的路徑屬性？

請在下面查看我的示例：

const lineSymbol = {
  path: google.maps.SymbolPath.FORWARD_CLOSED_ARROW,
  strokeColor: "red",
      scale: 4
};

const locations = [
      ["Tampere", 61.50741562413278, 23.75886761967578,  1, "Termin: xx.xx"],
      ["Helsinki", 60.219957, 25.196776,  2, "test2"],
      ["Travemünde", 55.778989, 18.271974,  2, "test3"],
      ["Stuttgart", 48.7733567672875, 9.174572759931003, 3, "test4"],
      ["Ludwigsburg", 48.8893286910321,  9.197454231637288, 4, "test5"],
]

const line = new google.maps.Polyline({

    path: [
        { lat:  locations[0][1], lng: locations[0][2] },
        { lat:  60.219957, lng:  25.196776 },
        { lat:  locations[2][1], lng: locations[2][2] },
        { lat:  53.941362, lng:  10.860464 },
        { lat: 48.7733567672875, lng: 9.174572759931003 },
    ],
    strokeColor: "red",
        scale: 7,
    icons: [
        {
          icon: lineSymbol,
          offset: "100%",
        },
    ],
 map: map,
});

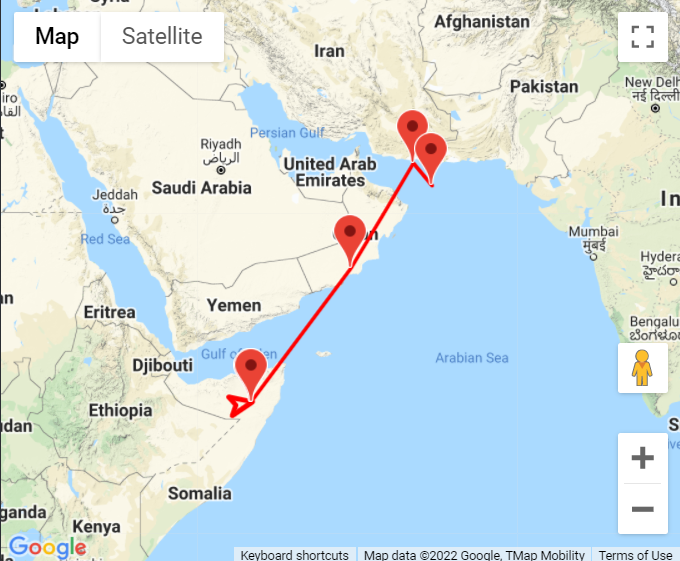

通過使用上面的代碼，它在谷歌地圖中創建：

谷歌地圖 - 遍歷陣列以獲取折線

代碼片段：

// This example creates a 2-pixel-wide red polyline showing the path of
// the first trans-Pacific flight between Oakland, CA, and Brisbane,
// Australia which was made by Charles Kingsford Smith.
function initMap() {
  const map = new google.maps.Map(document.getElementById("map"), {
    zoom: 3,
    center: {
      lat: 0,
      lng: -180
    },
    mapTypeId: "terrain",
  });
  const lineSymbol = {
    path: google.maps.SymbolPath.FORWARD_CLOSED_ARROW,
    strokeColor: "red",
    scale: 4
  };

  const locations = [
    ["Tampere", 61.50741562413278, 23.75886761967578, 1, "Termin: xx.xx"],
    ["Helsinki", 60.219957, 25.196776, 2, "test2"],
    ["Travemünde", 55.778989, 18.271974, 2, "test3"],
    ["Stuttgart", 48.7733567672875, 9.174572759931003, 3, "test4"],
    ["Ludwigsburg", 48.8893286910321, 9.197454231637288, 4, "test5"],
  ]
  var path = [];
  var bounds = new google.maps.LatLngBounds();
  for (var i = 0; i < locations.length; i  ) {
    path.push({
      lat: locations[i][2],
      lng: locations[i][1]
    });
    bounds.extend(path[path.length - 1]);
    new google.maps.Marker({
      position: path[path.length - 1],
      map: map
    })

  }

  const line = new google.maps.Polyline({

    path: path,
    strokeColor: "red",
    scale: 7,
    icons: [{
      icon: lineSymbol,
      offset: "100%",
    }, ],
    map: map,
  });
  map.fitBounds(bounds);
}

/* Always set the map height explicitly to define the size of the div
       * element that contains the map. */

#map {
  height: 100%;
}


/* Optional: Makes the sample page fill the window. */

html,
body {
  height: 100%;
  margin: 0;
  padding: 0;
}

<!DOCTYPE html>
<html>

<head>
  <title>Simple Polylines</title>
  <script src="https://polyfill.io/v3/polyfill.min.js?features=default"></script>
  <!-- jsFiddle will insert css and js -->
</head>

<body>
  <div id="map"></div>

  <!-- Async script executes immediately and must be after any DOM elements used in callback. -->
  <script src="https://maps.googleapis.com/maps/api/js?key=AIzaSyCkUOdZ5y7hMm0yrcCQoCvLwzdM6M8s5qk&callback=initMap&v=weekly&channel=2" async></script>
</body>

</html>
