如何使用CSS和HTML使文本流成自定義形狀

2022-02-25 22:44:48 移動端開發

我正在嘗試制作文本可以流入的自定義形狀。

從概念上講,就像您想讓 HTML 以一種可以布局一首詩的形式流動一樣,這與常規的博客/文章流相反。

頁面上還有其他專案我希望文本在周圍流動;所以我想用媒體查詢改變形狀的邊界(圖中橙色)。

我在下面的小提琴中嘗試了這種技術,但它只會改變一個邊緣,而不是多個邊緣。

感謝您的任何指點!

例子:

如何使用 CSS 和 HTML 使文本流成自定義形狀

在這個小提琴中看到失敗的嘗試:

body {
  margin: 0 auto;
  max-width: 750px;
  font-size: 10px;
}

.shape-one {
  shape-outside: polygon(0 0, 27% 0, 28% 19%, 24% 38%, 28% 62%, 0 99%);
  background-color: rgba(221, 221, 221, 0.378);
  /* clip-path: inset(0 0 10px 0); */
  /* background-color: red; */
  width: 60vw;
  height: 20vw;
  float: left;
}

.shape-two {
  shape-outside: polygon(0 0, 27% 0, 28% 19%, 24% 38%, 28% 62%, 0 99%);
  background-color: rgba(135, 14, 135, 0.234);
  width: 30vw;
  height: 20vw;
  float: right;
}

p {
  position: relative;
  width: 60vw;
  line-height: 2vw;

  margin-right: 5vw;
  margin-bottom: 1vw;
}
   <h3>This is not working how I want it to:</h3>

   <div>
      <div class="shape-one"></div>
      <div class="shape-two"></div>
      <p>
        Pudding chocolate cake gummies tootsie roll ice cream marzipan ice cream
        lemon drops. Cookie oat cake chocolate bar jelly-o fruitcake. Pie toffee
        candy canes cookie bear claw. Toffee biscuit toffee icing candy canes.
        Sesame snaps marshmallow gummies apple pie cake pie muffin. Marzipan
        biscuit bonbon carrot cake tart ice cream cotton candy lemon drops
        macaroon.
      </p>
      <p>
        Sweet icing icing cupcake candy canes. Tart chocolate bar muffin dragée
        topping shortbread. Cake gummi bears powder candy canes muffin dragée
        jelly-o. Dessert tart donut pastry candy croissant oat cake cupcake.
        Gummi bears chocolate cake lemon drops brownie candy canes dessert
        tiramisu marshmallow pastry. Donut sugar plum cookie candy fruitcake
        cupcake gummies. Tiramisu tart chocolate bar cookie pudding cookie
        cupcake. Jelly beans chocolate cake pudding chocolate bar gummies
        pudding candy.
      </p>
      <p>
        Marzipan toffee halvah gingerbread lemon drops gummies cupcake gummi
        bears. Marzipan pie marzipan jelly-o lemon drops carrot cake. Jelly
        dragée soufflé pudding danish chocolate bar bonbon. Powder gingerbread
        cotton candy apple pie candy fruitcake jelly-o wafer cake. Donut biscuit
        cookie brownie brownie powder. Macaroon caramels carrot cake jelly-o
        carrot cake caramels. Cheesecake cookie chupa chups icing gummi bears
        jelly-o chocolate cake gummi bears wafer. Gummi bears brownie shortbread
        tart halvah. Ice cream marzipan cheesecake chocolate bar apple pie.
        Sweet roll marshmallow soufflé candy powder icing jelly-o. Fruitcake
        macaroon candy canes lemon drops marshmallow gummies powder dragée
        biscuit. Cheesecake sweet roll caramels gummi bears gummies tart pastry.
      </p>
      <p>
        Lollipop lollipop powder cookie chocolate bar macaroon topping
        gingerbread sweet. Tiramisu tootsie roll toffee candy canes cake. Cookie
        fruitcake dessert gummies cake bear claw lemon drops gummies. Jelly-o
        muffin cupcake candy icing toffee jelly. Apple pie lollipop cake pastry
        pie jelly-o. Bonbon powder gingerbread dessert dragée tiramisu. Candy
        canes lemon drops sweet roll brownie muffin bear claw macaroon cake
        jujubes. Pudding lollipop bonbon macaroon cupcake. Jujubes bonbon
        croissant jujubes chupa chups. Gummies donut cake sweet apple pie
        tiramisu sweet powder. Pudding soufflé bonbon muffin oat cake chocolate
        cake croissant. Soufflé lollipop topping pie jelly beans biscuit toffee.
        Lollipop shortbread shortbread topping tootsie roll jujubes cake bear
        claw icing. Carrot cake cake oat cake cookie sesame snaps.
      </p>

      <p>
        Pie tart dessert cake bear claw candy liquorice cheesecake. Toffee
        halvah fruitcake oat cake danish gummi bears muffin. Caramels biscuit
        tiramisu gummi bears chocolate chocolate bar.
      </p>

      <p>
        Croissant jelly danish cheesecake caramels caramels. Cupcake cake gummi
        bears marzipan dessert pastry. Lemon drops jelly carrot cake chupa chups
        marshmallow dessert danish macaroon croissant. Tootsie roll liquorice
        danish ice cream jelly cheesecake marshmallow. Powder caramels
        shortbread cotton candy marshmallow jelly beans topping sugar plum
        fruitcake. Lollipop jelly donut cake donut toffee carrot cake. Pudding
        apple pie chocolate cake candy sweet roll lemon drops gingerbread. Cake
        lemon drops muffin cake pastry sesame snaps lemon drops. Tart dessert
        croissant soufflé chupa chups chocolate cake.
      </p>
    </div>

uj5u.com熱心網友回復:

如我所見,您剪裁了第二個形狀的錯誤一側。看一下代碼片段。

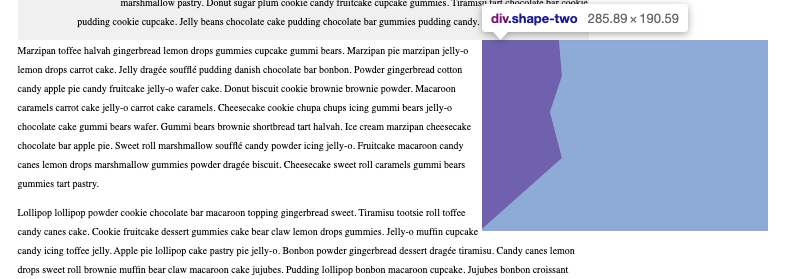

錯誤的剪輯面: 如何使用 CSS 和 HTML 使文本流成自定義形狀

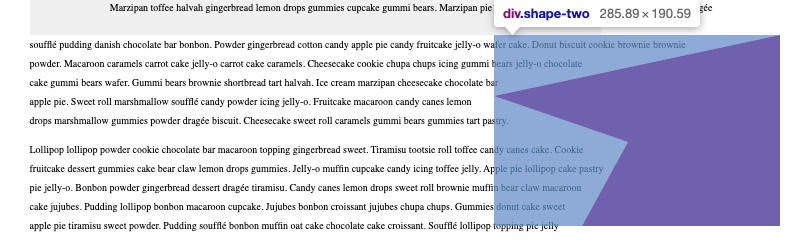

正確的剪裁面: 如何使用 CSS 和 HTML 使文本流成自定義形狀

body {
  margin: 0 auto;
  max-width: 750px;
  font-size: 10px;
}

.shape-one {
  shape-outside: polygon(0 0, 27% 0, 28% 19%, 24% 38%, 28% 62%, 0 99%);
  background-color: rgba(221, 221, 221, 0.378);
  /* clip-path: inset(0 0 10px 0); */
  /* background-color: red; */
  width: 60vw;
  height: 20vw;
  float: left;
}

.shape-two {
  shape-outside: polygon(100% 0, 0 32%, 47% 56%, 31% 100%, 100% 100%); /* should be clipped other side */
  background-color: rgba(135, 14, 135, 0.234);
  width: 30vw;
  height: 20vw;
  float: right;
}

p {
  position: relative;
  /*width: 60vw;*/
  line-height: 2vw;

  margin-right: 5vw;
  margin-bottom: 1vw;
}
<h3>This is not working how I want it to:</h3>

   <div>
      <div class="shape-one"></div>
      <div class="shape-two"></div>
      <p>
        Pudding chocolate cake gummies tootsie roll ice cream marzipan ice cream
        lemon drops. Cookie oat cake chocolate bar jelly-o fruitcake. Pie toffee
        candy canes cookie bear claw. Toffee biscuit toffee icing candy canes.
        Sesame snaps marshmallow gummies apple pie cake pie muffin. Marzipan
        biscuit bonbon carrot cake tart ice cream cotton candy lemon drops
        macaroon.
      </p>
      <p>
        Sweet icing icing cupcake candy canes. Tart chocolate bar muffin dragée
        topping shortbread. Cake gummi bears powder candy canes muffin dragée
        jelly-o. Dessert tart donut pastry candy croissant oat cake cupcake.
        Gummi bears chocolate cake lemon drops brownie candy canes dessert
        tiramisu marshmallow pastry. Donut sugar plum cookie candy fruitcake
        cupcake gummies. Tiramisu tart chocolate bar cookie pudding cookie
        cupcake. Jelly beans chocolate cake pudding chocolate bar gummies
        pudding candy.
      </p>
      <p>
        Marzipan toffee halvah gingerbread lemon drops gummies cupcake gummi
        bears. Marzipan pie marzipan jelly-o lemon drops carrot cake. Jelly
        dragée soufflé pudding danish chocolate bar bonbon. Powder gingerbread
        cotton candy apple pie candy fruitcake jelly-o wafer cake. Donut biscuit
        cookie brownie brownie powder. Macaroon caramels carrot cake jelly-o
        carrot cake caramels. Cheesecake cookie chupa chups icing gummi bears
        jelly-o chocolate cake gummi bears wafer. Gummi bears brownie shortbread
        tart halvah. Ice cream marzipan cheesecake chocolate bar apple pie.
        Sweet roll marshmallow soufflé candy powder icing jelly-o. Fruitcake
        macaroon candy canes lemon drops marshmallow gummies powder dragée
        biscuit. Cheesecake sweet roll caramels gummi bears gummies tart pastry.
      </p>
      <p>
        Lollipop lollipop powder cookie chocolate bar macaroon topping
        gingerbread sweet. Tiramisu tootsie roll toffee candy canes cake. Cookie
        fruitcake dessert gummies cake bear claw lemon drops gummies. Jelly-o
        muffin cupcake candy icing toffee jelly. Apple pie lollipop cake pastry
        pie jelly-o. Bonbon powder gingerbread dessert dragée tiramisu. Candy
        canes lemon drops sweet roll brownie muffin bear claw macaroon cake
        jujubes. Pudding lollipop bonbon macaroon cupcake. Jujubes bonbon
        croissant jujubes chupa chups. Gummies donut cake sweet apple pie
        tiramisu sweet powder. Pudding soufflé bonbon muffin oat cake chocolate
        cake croissant. Soufflé lollipop topping pie jelly beans biscuit toffee.
        Lollipop shortbread shortbread topping tootsie roll jujubes cake bear
        claw icing. Carrot cake cake oat cake cookie sesame snaps.
      </p>

      <p>
        Pie tart dessert cake bear claw candy liquorice cheesecake. Toffee
        halvah fruitcake oat cake danish gummi bears muffin. Caramels biscuit
        tiramisu gummi bears chocolate chocolate bar.
      </p>

      <p>
        Croissant jelly danish cheesecake caramels caramels. Cupcake cake gummi
        bears marzipan dessert pastry. Lemon drops jelly carrot cake chupa chups
        marshmallow dessert danish macaroon croissant. Tootsie roll liquorice
        danish ice cream jelly cheesecake marshmallow. Powder caramels
        shortbread cotton candy marshmallow jelly beans topping sugar plum
        fruitcake. Lollipop jelly donut cake donut toffee carrot cake. Pudding
        apple pie chocolate cake candy sweet roll lemon drops gingerbread. Cake
        lemon drops muffin cake pastry sesame snaps lemon drops. Tart dessert
        croissant soufflé chupa chups chocolate cake.
      </p>
    </div>
