我有這個 SVG 檔案：xml
<svg xmlns="http://www.w3.org/2000/svg" width="300mm" height="300mm" id="image">
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"></rect>
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865" transform="rotate(51)"
transform-origin="113.38582677299999 113.38582677299999"></rect>
<path d="
M 170.0787401595,113.38582677299999
Q 109.97448081636158,111.75869821811467 149.06383319514674,157.4444954545483
" fill="none" stroke-width="0.566929133865" stroke="#000000"></path>
<g transform="rotate(1.6451612903225807)" transform-origin="30mm 30mm">
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"></rect>
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"
transform="rotate(47.70967741935484)" transform-origin="113.38582677299999 113.38582677299999"></rect>
<path d="
M 170.0787401595,113.38582677299999
Q 109.9291728801154,111.85730708558926 151.53378395847778,155.32411227472434
" fill="none" stroke-width="0.566929133865" stroke="#000000"></path>
</g>
<g transform="rotate(3.2903225806451615)" transform-origin="30mm 30mm">
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"></rect>
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"
transform="rotate(44.41935483870968)" transform-origin="113.38582677299999 113.38582677299999"></rect>
<path d="
M 170.0787401595,113.38582677299999
Q 109.88671463478482,111.95717607594642 153.8779628220461,153.06546067295844
" fill="none" stroke-width="0.566929133865" stroke="#000000"></path>
</g>
<g transform="rotate(4.935483870967742)" transform-origin="30mm 30mm">
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"></rect>
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"
transform="rotate(41.12903225806451)" transform-origin="113.38582677299999 113.38582677299999"></rect>
<path d="
M 170.0787401595,113.38582677299999
Q 109.84714108325986,112.0582228564553 156.08864114581934,150.6759873101943
" fill="none" stroke-width="0.566929133865" stroke="#000000"></path>
</g>
<g transform="rotate(6.580645161290323)" transform-origin="30mm 30mm">
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"></rect>
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"
transform="rotate(37.83870967741935)" transform-origin="113.38582677299999 113.38582677299999"></rect>
<path d="
M 170.0787401595,113.38582677299999
Q 109.81048485026771,112.16036412340621 158.158530434343,148.16357016015428
" fill="none" stroke-width="0.566929133865" stroke="#000000"></path>
</g>
<g transform="rotate(8.225806451612904)" transform-origin="30mm 30mm">
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"></rect>
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"
transform="rotate(34.54838709677419)" transform-origin="113.38582677299999 113.38582677299999"></rect>
<path d="
M 170.0787401595,113.38582677299999
Q 109.7767761554767,112.26351567078673 160.08080636654395,145.5364925360554
" fill="none" stroke-width="0.566929133865" stroke="#000000"></path>
</g>
<g transform="rotate(9.870967741935484)" transform-origin="30mm 30mm">
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"></rect>
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"
transform="rotate(31.258064516129032)" transform-origin="113.38582677299999 113.38582677299999"></rect>
<path d="
M 170.0787401595,113.38582677299999
Q 109.74604278858297,112.36759245970185 161.84913129517457,142.80341578094155
" fill="none" stroke-width="0.566929133865" stroke="#000000"></path>
</g>
<g transform="rotate(11.516129032258066)" transform-origin="30mm 30mm">
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"></rect>
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"
transform="rotate(27.96774193548387)" transform-origin="113.38582677299999 113.38582677299999"></rect>
<path d="
M 170.0787401595,113.38582677299999
Q 109.71831008640042,112.47250868848064 163.45767514171737,139.97335071167026
" fill="none" stroke-width="0.566929133865" stroke="#000000"></path>
</g>
<g transform="rotate(13.161290322580646)" transform-origin="30mm 30mm">
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"></rect>
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"
transform="rotate(24.677419354838708)" transform-origin="113.38582677299999 113.38582677299999"></rect>
<path d="
M 170.0787401595,113.38582677299999
Q 109.6936009119729,112.57817786341175 164.90113461786132,137.05562791070196
" fill="none" stroke-width="0.566929133865" stroke="#000000"></path>
</g>
<g transform="rotate(14.806451612903226)" transform-origin="30mm 30mm">
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"></rect>
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"
transform="rotate(21.387096774193548)" transform-origin="113.38582677299999 113.38582677299999"></rect>
<path d="
M 170.0787401595,113.38582677299999
Q 109.67193563572567,112.68451287004946 166.1747507101772,134.0598669636379
" fill="none" stroke-width="0.566929133865" stroke="#000000"></path>
</g>
<g transform="rotate(16.451612903225808)" transform-origin="30mm 30mm">
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"></rect>
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"
transform="rotate(18.096774193548384)" transform-origin="113.38582677299999 113.38582677299999"></rect>
<path d="
M 170.0787401595,113.38582677299999
Q 109.65333211867201,112.79142604503151 167.27432437034577,130.99594474392939
" fill="none" stroke-width="0.566929133865" stroke="#000000"></path>
</g>
<g transform="rotate(18.096774193548388)" transform-origin="30mm 30mm">
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"></rect>
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"
transform="rotate(14.806451612903224)" transform-origin="113.38582677299999 113.38582677299999"></rect>
<path d="
M 170.0787401595,113.38582677299999
Q 109.6378056976883,112.89882924834941 168.19623035920955,127.87396284932184
" fill="none" stroke-width="0.566929133865" stroke="#000000"></path>
</g>
<g transform="rotate(19.741935483870968)" transform-origin="30mm 30mm">
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"></rect>
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"
transform="rotate(11.516129032258064)" transform-origin="113.38582677299999 113.38582677299999"></rect>
<path d="
M 170.0787401595,113.38582677299999
Q 109.6253691728703,113.0066339360117 168.9374291990041,124.70421429739422
" fill="none" stroke-width="0.566929133865" stroke="#000000"></path>
</g>
<g transform="rotate(21.387096774193548)" transform-origin="30mm 30mm">
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"></rect>
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"
transform="rotate(8.225806451612904)" transform-origin="113.38582677299999 113.38582677299999"></rect>
<path d="
M 170.0787401595,113.38582677299999
Q 109.61603279698062,113.11475123304022 169.49547719436387,121.49714958999664
" fill="none" stroke-width="0.566929133865" stroke="#000000"></path>
</g>
<g transform="rotate(23.03225806451613)" transform-origin="30mm 30mm">
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"></rect>
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"
transform="rotate(4.935483870967737)" transform-origin="113.38582677299999 113.38582677299999"></rect>
<path d="
M 170.0787401595,113.38582677299999
Q 109.60980426699628,113.22309200673944 169.86853448906282,118.26334225847053
" fill="none" stroke-width="0.566929133865" stroke="#000000"></path>
</g>
<g transform="rotate(24.67741935483871)" transform-origin="30mm 30mm">
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"></rect>
<rect x="170.0787401595" y="112.81889763913499" width="555.5905511877" height="0.566929133865"
transform="rotate(1.6451612903225765)" transform-origin="113.38582677299999 113.38582677299999"></rect>
<path d="
M 170.0787401595,113.38582677299999
Q 109.60668871776325,113.33156694017794 170.05537113192838,115.01345400324652
" fill="none" stroke-width="0.566929133865" stroke="#000000"></path>
</g>

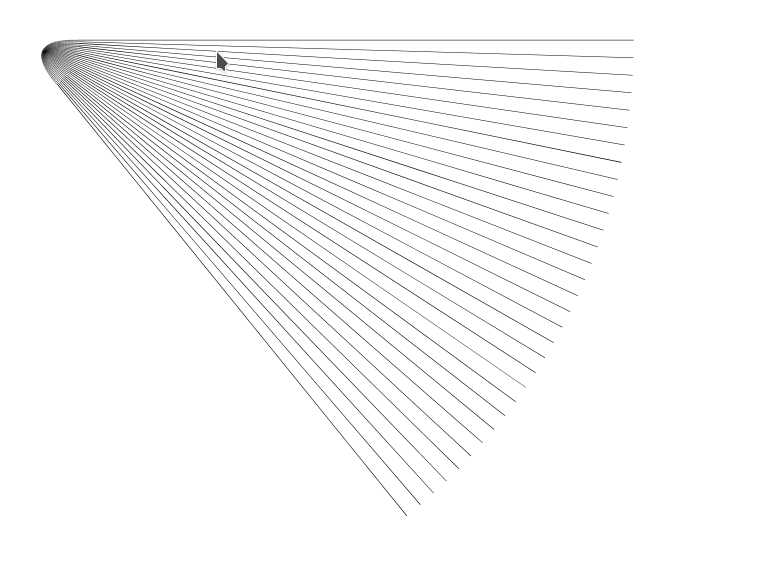

</svg>這是它在 Chrome 和 Firefox 中的呈現方式（以及我希望它的外觀）：
（截圖是手工裁剪的，這不是實際渲染的大小）

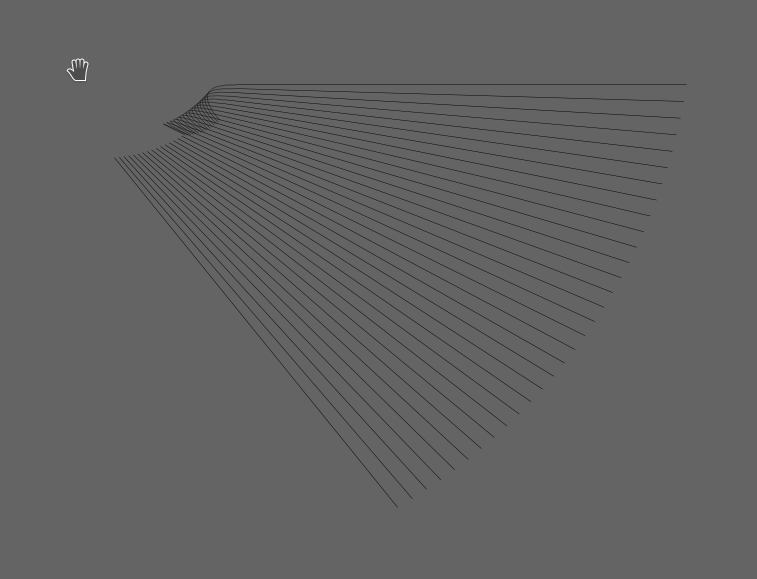

以下是它在 GIMP、Inkscape、Blender、Gwenview 和可能的許多其他應用程式中的渲染方式：
使用一些幾何圖形，我發現瀏覽器解釋transform-origin為相對于檔案邊緣的坐標（正如我所期望的那樣），而在 GIMP 和其他中，旋轉樞軸位于左上角，而不管transform-origin.
此 SVG 由腳本生成。我可以重寫它以避免使用轉換，但我想知道是否有更簡單的方法來transform-origin作業。
uj5u.com熱心網友回復：
您正在使用CSS 轉換 1 級候選推薦中定義的transform和，并且您正在使用它們作為表示屬性。作為表示屬性僅在2017 年作業草案中引入。雖然瀏覽器供應商甚至在達到推薦狀態之前就有能力將他們的產品提升到新的規范標準，但大多數開源專案都沒有。對于 Inkscape，您必須根據與CSS 不兼容的SVG 1.1 屬性標準來接受實作。transform-origintransform-origin
但這在您的情況下并不是真正的問題。您只能transform-origin與rotate()函式一起使用。為此，SVG 屬性語法和 CSS 屬性函式符號之間有一個有用的區別：您可以在函式內部定義旋轉中心。（此語法僅存rotate()在于，但不存在于scale(),skewX()或skewY()。）
一個 CSS 規則（注意強制性單位）
style="transform:rotate(51deg);transform-origin:113.38582677299999px 113.38582677299999px;"
可以寫成 SVG 屬性
transform="rotate(51 113.38582677299999 113.38582677299999)"
但請注意
- 第二種形式不能用作 CSS 屬性，并且
- 所有數字都必須是無單位的，并在parent 的當前用戶坐標系中表示。
第二個條件意味著您不能使用mm單位，但需要將它們重新計算為px單位。
