如何使用ggplot2中的geom_text對齊不同長度的標簽？

我已經在我的情節中添加了一個標題，geom_text我想分別證明左右兩邊的標簽（因為我正在使用facet_grid并且我有兩個不同的組）。

這是我的例子：

library(ggplot2)
library(dplyr)

# DATA
val1 <- c(2.1490626,2.2035281,1.5927854,3.1399245,2.3967338,3.7915825,4.6691277,3.0727319,2.9230937,2.6239759,3.7664386,4.0160378,1.2500835,4.7648343,0.0000000,5.6740227,2.7510256,3.0709322,2.7998003,4.0809085,2.5178086,5.9713330,2.7779843,3.6724801,4.2648527,3.6841084,2.5597235,3.8477471,2.6587736,2.2742209,4.5862788,6.1989269,4.1167091,3.1769325,4.2404515,5.3627032,4.1576810,4.3387921,1.4024381,0.0000000,4.3999099,3.4381837,4.8269218,2.6308474,5.3481382,4.9549753,4.5389650,1.3002293,2.8648220,2.4015338,2.0962332,2.6774765,3.0581759,2.5786137,5.0539080,3.8545796,4.3429043,4.2233248,2.0434363,4.5980727)
val2 <- c(3.7691229,3.6478055,0.5435826,1.9665861,3.0802654,1.2248374,1.7311236,2.2492826,2.2365337,1.5726119,2.0147144,2.3550348,1.9527204,3.3689502,1.7847986,3.5901329,1.6833872,3.4240479,1.8372175,0.0000000,2.5701453,3.6551315,4.0327091,3.8781182)
val3 <- c(2.1490626,2.2035281,1.5927854,3.1399245,2.3967338,3.7915825,4.6691277,3.0727319,2.9230937,2.6239759,3.7664386,4.0160378,1.2500835,4.7648343,0.0000000,5.6740227,2.7510256,3.0709322,2.7998003,4.0809085,2.5178086,5.9713330,2.7779843,3.6724801,4.2648527,3.6841084,2.5597235,3.8477471,2.6587736,2.2742209,4.5862788,6.1989269,4.1167091,3.1769325,4.2404515,5.3627032,4.1576810,4.3387921,1.4024381,0.0000000,4.3999099,3.4381837,4.8269218,2.6308474,5.3481382,4.9549753,4.5389650,1.3002293,2.8648220,2.4015338,2.0962332,2.6774765,3.0581759,2.5786137,5.0539080,3.8545796,4.3429043,4.2233248,2.0434363,4.5980727)

df1 <- data.frame(value = val1)
df2 <- data.frame(value = val2)
df3 <- data.frame(value = val3)

data <- bind_rows(lst(df1, df2, df3), .id = 'id')
data$Sex <- rep(c("Male", "Female"), times=72)
data$d <- "ff"
data <- as.data.frame(unclass(data), stringsAsFactors = TRUE)

# PLOT

p <- data %>%
  ggplot(aes(value))
  geom_density(lwd = 1.2, colour="red", show.legend = FALSE)
  geom_histogram(aes(y=..density.., fill = id), bins=10, col="black", alpha=0.2)
  facet_grid(id ~ Sex )
  xlab("type_data")
  ylab("Density")
  ggtitle("title")
  guides(fill=guide_legend(title="legend_title"))
  theme(strip.text.y = element_blank())

p

# ADD CAPTION

caption_df = data.frame(value = c(min(data$value), max(data$value)), id = c(rep(tail(levels(data$id), n=1), times=length(levels(data$Sex)))),
                        Sex = c(levels(data$Sex)))
caption_df$txt = c("This is the first caption \nThis is the second caption", "This is the first caption \nThis is the second caption")


yrange <- layer_scales(p)$y$range$range
ypos <- min(yrange) - 0.4 * diff(yrange)


p   coord_cartesian(clip = "off",
                    ylim = layer_scales(p)$y$range$range,
                    xlim = layer_scales(p)$x$range$range)
  geom_text(data = caption_df,
            aes(y = ypos, label = txt))
  theme(plot.margin = unit(c(1,1,2,1), "cm"))

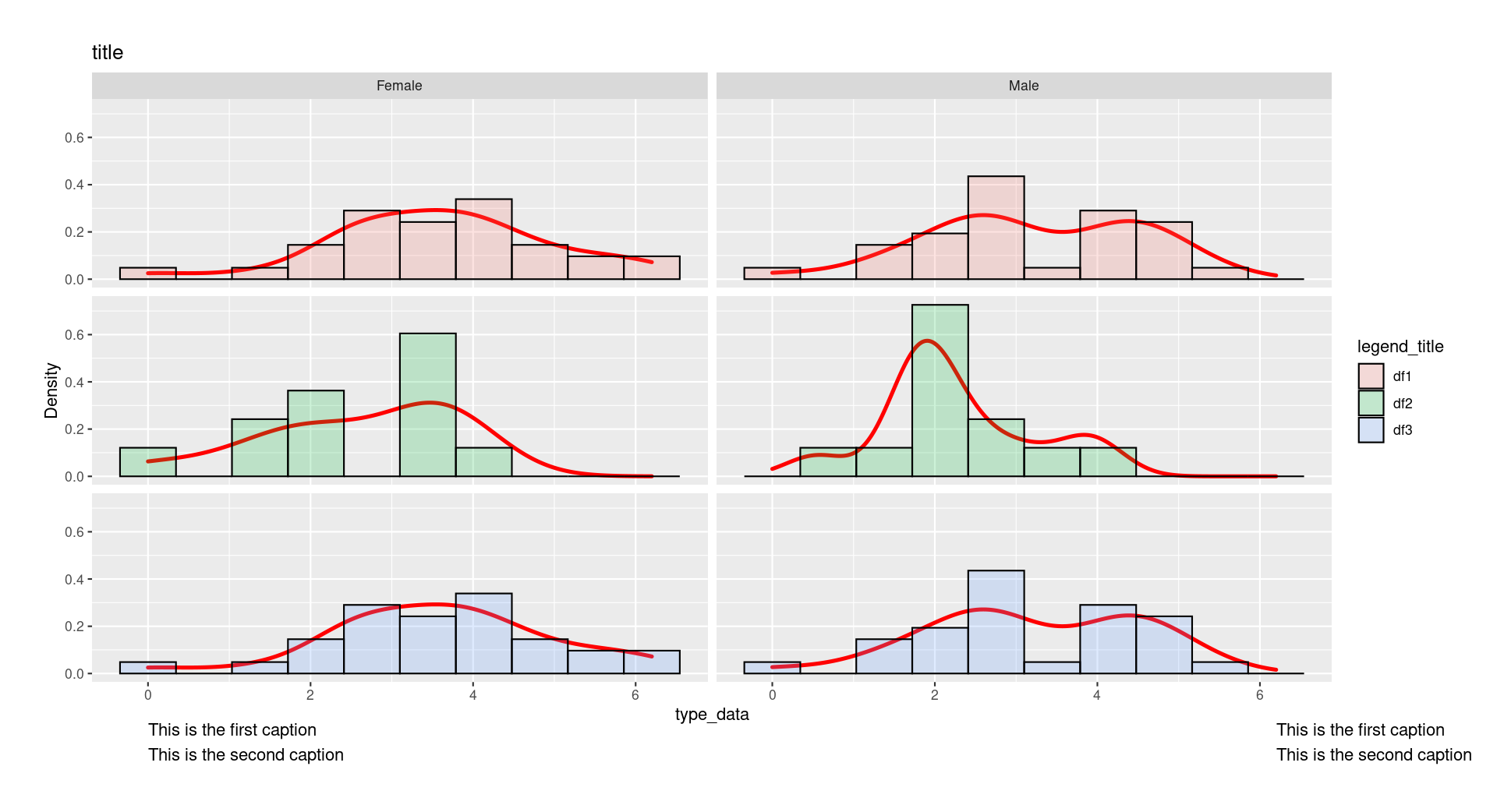

這是它的外觀：

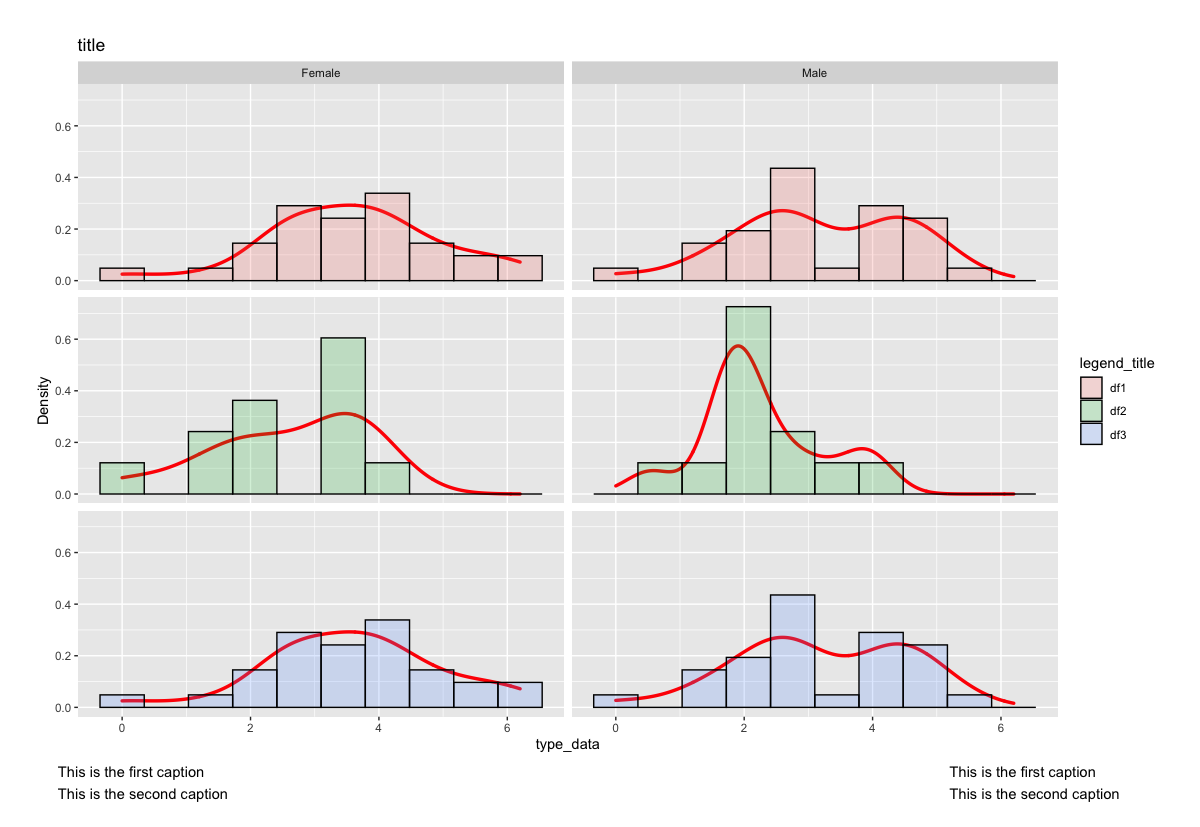

這就是我要的：

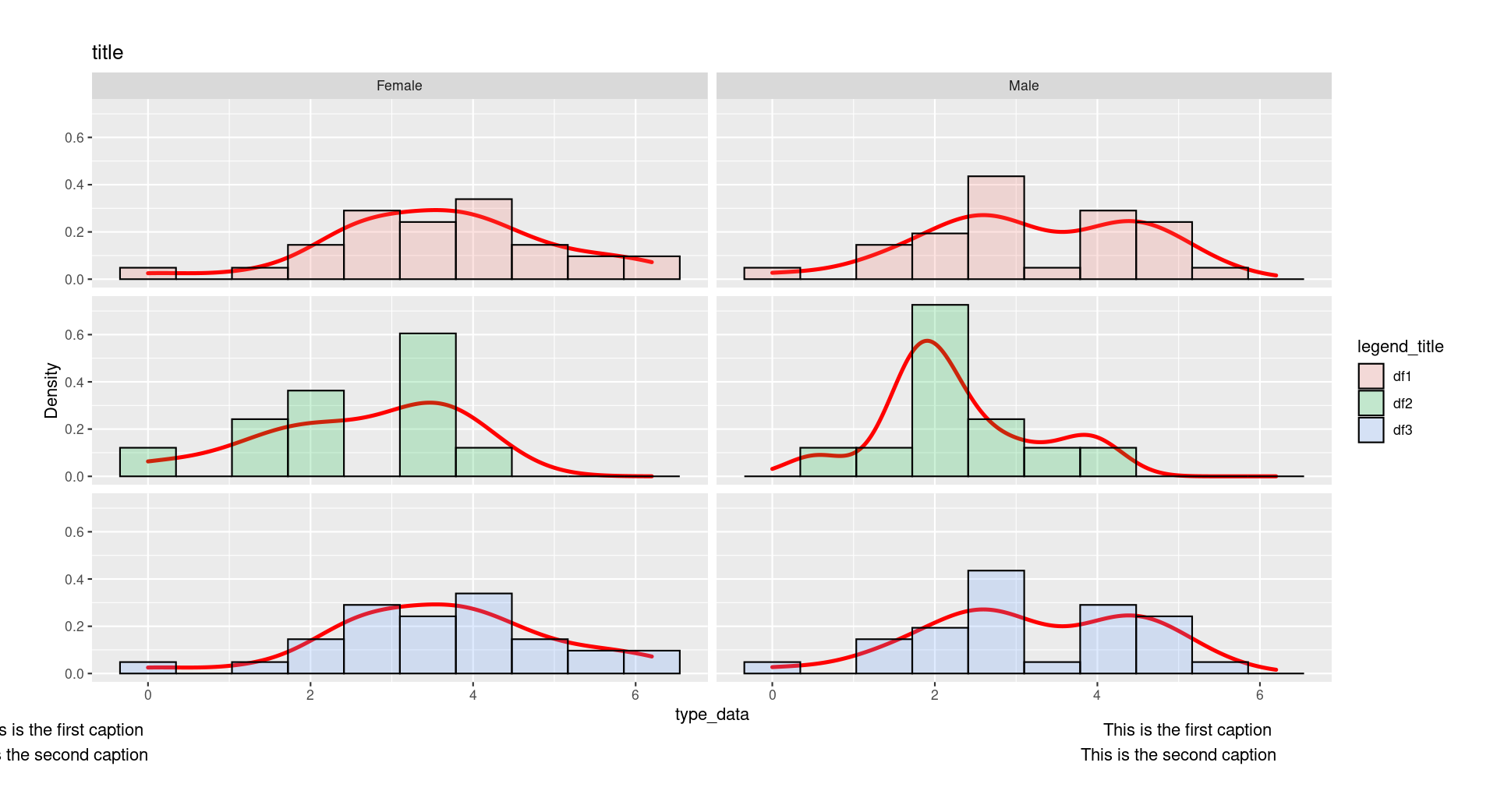

我嘗試過使用hjust=0，但看起來不太好（它們都被取代了）

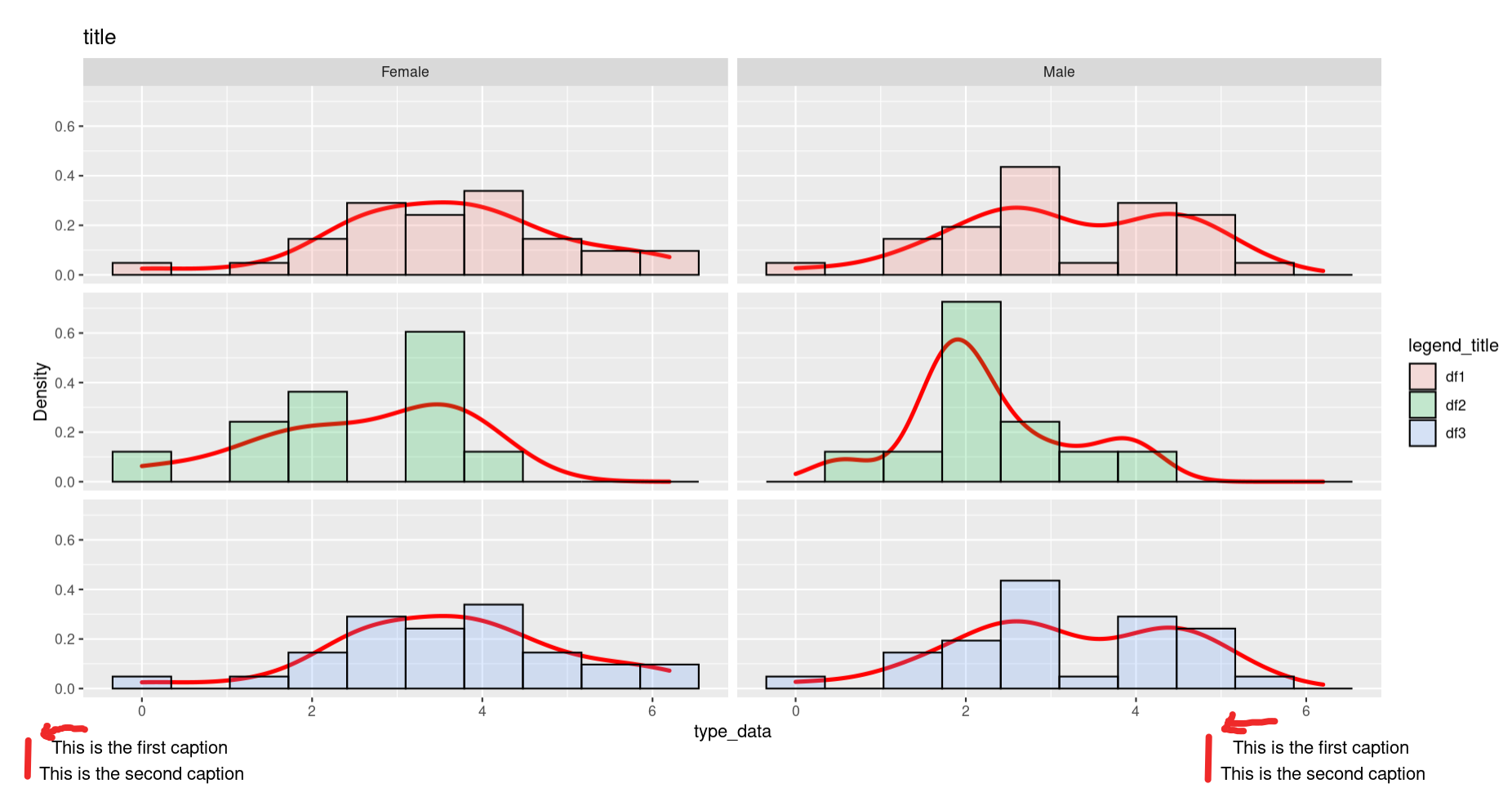

我試過hjust=1但我有同樣的問題（流離失所）：

vjust也沒有給我我需要的東西。

有誰知道如何解決它？

提前致謝

uj5u.com熱心網友回復：

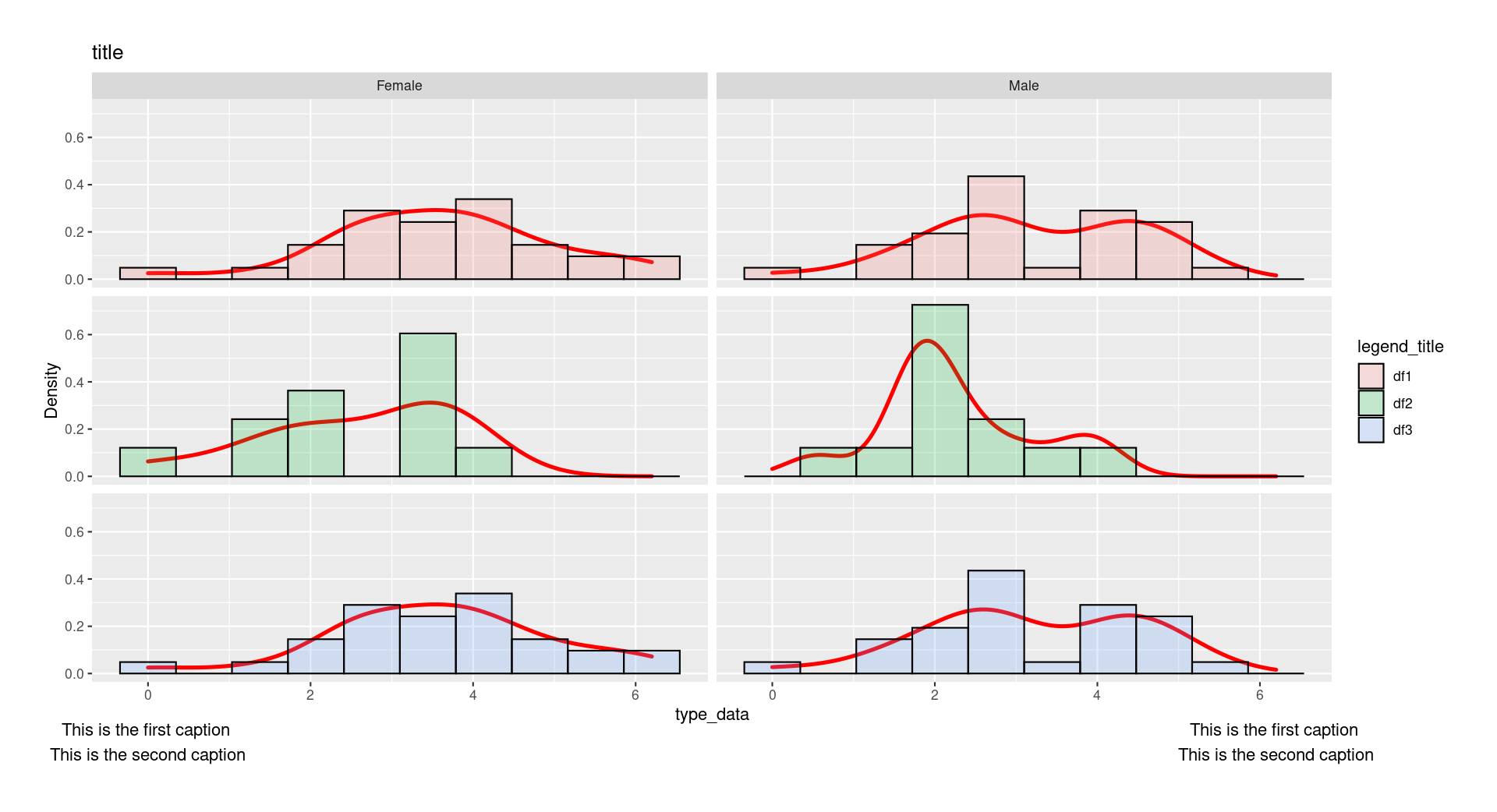

您可以hjust在nudge_x.geom_text

hjust = 0將左對齊文本，但也會移動文本的位置。通過在文本周圍添加一些“填充”來nudge_x幫助抵消這種影響。hjust

嘗試不同的值，nudge_x看看哪一個最適合您的目標。

library(ggplot2)

data %>%
  ggplot(aes(value))
  geom_density(lwd = 1.2, colour="red", show.legend = FALSE)
  geom_histogram(aes(y=..density.., fill = id), bins=10, col="black", alpha=0.2)
  facet_grid(id ~ Sex )
  xlab("type_data")
  ylab("Density")
  ggtitle("title")
  guides(fill=guide_legend(title="legend_title"))
  theme(strip.text.y = element_blank())
  coord_cartesian(clip = "off",
                  ylim = layer_scales(p)$y$range$range,
                  xlim = layer_scales(p)$x$range$range)
  geom_text(data = caption_df,
            aes(y = ypos, label = txt), hjust = 0, nudge_x =  -1)
  theme(plot.margin = unit(c(1,1,2,1), "cm"))
