在HarmonyOS中webview加載網頁的時候，需要有進度條，或者加載影片進行用戶感知的互動，這樣可以優化用戶體驗，因此今天寫一篇加載影片（效果如下）用于同學們進行學習，怎么實作？首先我們需要學習“CommonDialog”“ WebView”“影片開發指導”三個知識儲備

我們分為“準備階段”，“自定義CommonDialog實作”，“影片實作”，“webview的實作”，“運行效果”五個步驟進行實作，


1.準備階段

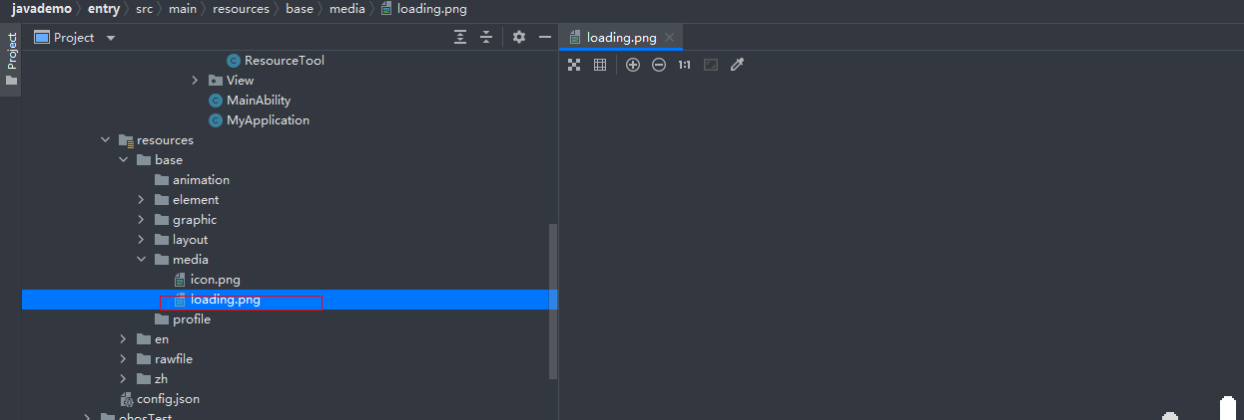

在resources \base\ media\目錄下準備一張loading圖片（圖片如下）存放位置如下

Loading圖片

存放位置

2. 自定義CommonDialog的實作

2.1新建xml命名為general_dialog.xml,在該xml檔案繪畫一張圖片（代碼如下）

<?xml version="1.0" encoding="utf-8"?>
<DirectionalLayout
    xmlns:ohos="http://schemas.huawei.com/res/ohos"
    ohos:height="80vp"
    ohos:orientation="vertical"
    ohos:alignment="center"
    ohos:>
    <Image
        ohos:id="$+id:loading"
        ohos:height="match_parent"
        ohos:
        ohos:scale_mode="clip_center"
        ohos:image_src="https://www.cnblogs.com/developer-huawei/archive/2022/03/30/$media:loading"/>
</DirectionalLayout>

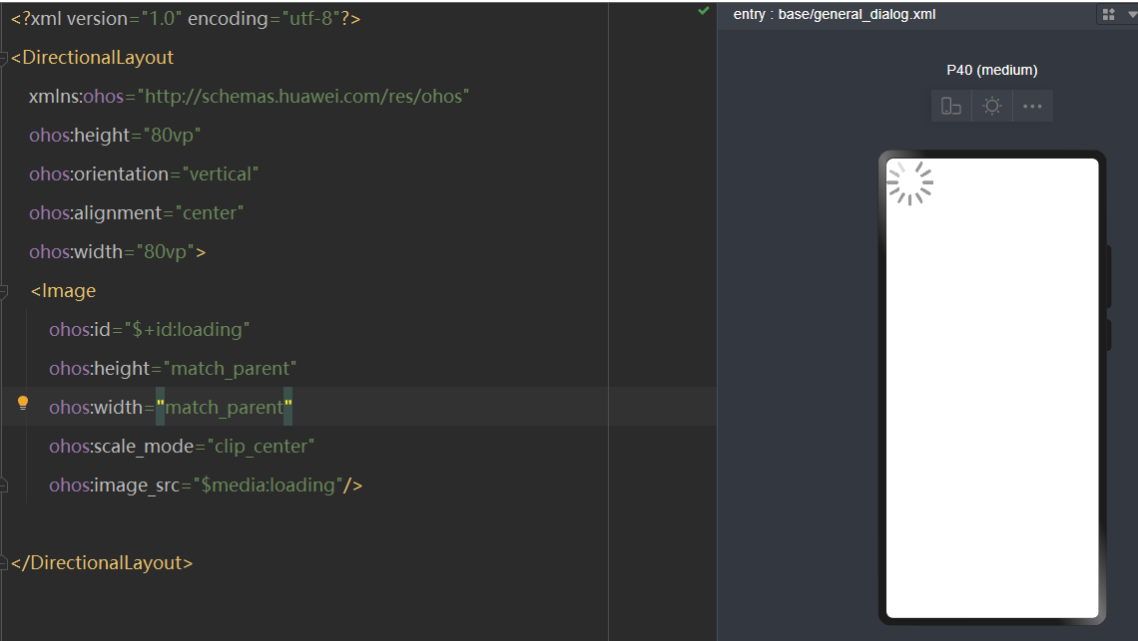

效果圖如下

2.2新建GeneralDialog檔案，我們參考HarmonyOS 的自定義CommonDialog場景示例

具體代碼如下

package com.harmony.alliance.mydemo.utils;
import java.util.Optional;
import com.harmony.alliance.mydemo.ResourceTable;
import ohos.agp.animation.Animator;
import ohos.agp.animation.AnimatorProperty;
import ohos.agp.animation.AnimatorValue;
import ohos.agp.colors.RgbColor;
import ohos.agp.components.*;
import ohos.agp.components.element.ShapeElement;
import ohos.agp.utils.LayoutAlignment;
import ohos.agp.window.dialog.CommonDialog;
import ohos.agp.window.service.WindowManager;
import ohos.app.Context;

public class GeneralDialog {
    private float dim = -1f;
    private   CommonDialog sDialog;
    private  Context mContext;
    private boolean mOutsideTouchClosable = false;
    public  GeneralDialog(Context context){
        this.mContext=context;
    }
    public void show() {
        if (sDialog != null) {
            sDialog.show();
            if (dim >= 0) {
                changeDialogDim(sDialog, dim);
            }
        }
    }
    public void remove() {
        if (sDialog != null) {
            sDialog.destroy();
        }
    }
    public void create() {
         sDialog = new CommonDialog(mContext);
        sDialog.setSize(ComponentContainer.LayoutConfig.MATCH_CONTENT, ComponentContainer.LayoutConfig.MATCH_CONTENT);
        sDialog.setAlignment(LayoutAlignment.CENTER);
        sDialog.setOffset(0,0);
        sDialog.setTransparent(true);
        sDialog.setContentCustomComponent(initDialog(sDialog));
        sDialog.setAutoClosable(mOutsideTouchClosable);
    }



    private void changeDialogDim(CommonDialog dialog, float dim) {
        Optional<WindowManager.LayoutConfig> configOpt = dialog.getWindow().getLayoutConfig();
        configOpt.ifPresent(config -> {
            config.dim = dim;
            dialog.getWindow().setLayoutConfig(config);
        });
    }
    public interface ClickedListener{
        void onClick(GeneralDialog dialog);
    }
    private Component initDialog(CommonDialog sDialog) {
        Component dialogLayout = LayoutScatter.getInstance(mContext).parse(ResourceTable.Layout_general_dialog, null, false);
        dialogLayout.setBackground(new ShapeElement(){{
            setRgbColor(RgbColor.fromArgbInt(ResourceTool.getColor(mContext, ResourceTable.Color_bg_dialog_light, 0xffffff)));
            setCornerRadius(ResourceTool.getFloat(mContext, ResourceTable.Float_dialog_corner_radius, 0));
        }});
        Image image= (Image) dialogLayout.findComponentById(ResourceTable.Id_loading);
        return dialogLayout;
    }
}

2.2.3 在 MainAbility的onStart 的方法下呼叫如下代碼

GeneralDialog mGeneralDialog = new GeneralDialog(getContext());
    mGeneralDialog.create();
    mGeneralDialog.show();

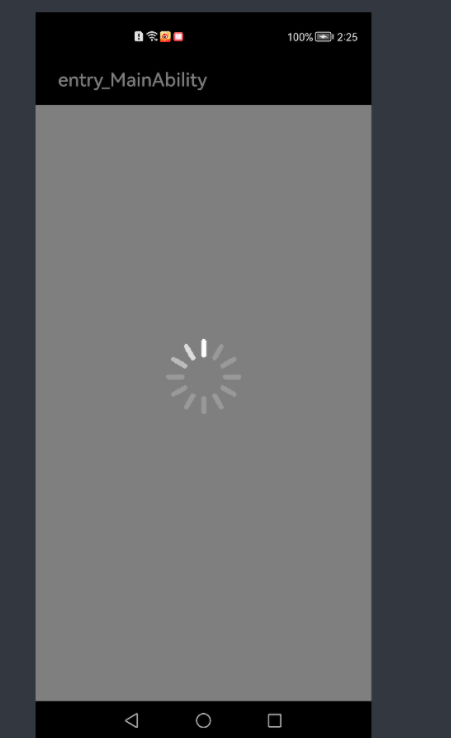

效果如下

2.3影片實作

2.3.1影片的功能我們可以參考HarmonyOS影片開發指導的AnimatorProperty的相關知識點，接下來我們initDialog開啟image的影片功能代碼如下

Image image= (Image) dialogLayout.findComponentById(ResourceTable.Id_loading);
animatorProperty = new AnimatorProperty();
animatorProperty.setTarget(image);
animatorProperty
    .rotate(360)
    //無限回圈
    .setLoopedCount(AnimatorValue.INFINITE)
    //反彈力效果
    .setCurveType(Animator.CurveType.BOUNCE);

if(sDialog!=null) {
    sDialog.setDestroyedListener(new CommonDialog.DestroyedListener() {
        @Override
        public void onDestroy() {
            if(animatorProperty.isRunning()) {
                animatorProperty.stop();
            }
        }
    });
}

2.3.2在GeneralDialog類寫一個開啟影片方法（代碼如下）

public void StartanimatorProperty() {
    if(animatorProperty!=null&&animatorProperty.isRunning()) {
        animatorProperty.stop();
    }
    if(animatorProperty!=null&&!animatorProperty.isRunning()) {
        if(!animatorProperty.isRunning()) {
            animatorProperty.start();
        }
    }
}

2.3.3封一個工具類用于顯示和播放和消失loading彈框（代碼如下）

package com.harmony.alliance.mydemo.utils;
import ohos.app.Context;
public class LoadingDialogUtils {
    private static   GeneralDialog mGeneralDialog;
    public static  GeneralDialog  getInstance(Context mContext) {
        if(mGeneralDialog==null) {
            mGeneralDialog=new GeneralDialog(mContext);
        }
        return  mGeneralDialog;
    }

    public static void show(Context mContext) {
        LoadingDialogUtils.getInstance(mContext);
        mGeneralDialog.create();
        mGeneralDialog.show();
        mGeneralDialog.StartanimatorProperty();
    }
    public static void dismiss(Context mContext) {
        LoadingDialogUtils.getInstance(mContext);
        mGeneralDialog.remove();
    }
}

2.3.4開啟影片代碼如下

  LoadingDialogUtils.show(MainAbility.this);

關閉影片代碼如下

LoadingDialogUtils.dismiss(MainAbility.this);

2.4 webview的實作

webview 加載網頁我們可以參考HarmonyOS的WebView的組件

2.4.1我們學觀測Web狀態的setWebAgent（代碼如下）

webView.setWebAgent(new WebAgent() {
    @Override
    public void onl oadingPage(WebView webview, String url, PixelMap favicon) {
        super.onLoadingPage(webview, url, favicon);
        //todo  頁面開始加載時自定義處理 開啟影片
    }
    @Override
    public void onPageLoaded(WebView webview, String url) {
        super.onPageLoaded(webview, url);
         // todo 頁面加載結束后自定義處理 關閉影片
    }
    @Override
    public void onl oadingContent(WebView webview, String url) {
        super.onLoadingContent(webview, url);
        // 加載資源時自定義處理
    }
    @Override
    public void one rror(WebView webview, ResourceRequest request, ResourceError error) {
        super.onError(webview, request, error);
        //todo 發生錯誤時自定義處理 關閉影片
    }
});

2.4.2我們新建abilitySlice的java類，新建layout布局代碼如下

<?xml version="1.0" encoding="utf-8"?>
<DirectionalLayout
    xmlns:ohos="http://schemas.huawei.com/res/ohos"
    ohos:height="match_parent"
    ohos:
    ohos:orientation="vertical">
    <ohos.agp.components.webengine.WebView
        ohos:id="$+id:my_webView"
        ohos:height="match_parent"
        ohos:>
    </ohos.agp.components.webengine.WebView>
</DirectionalLayout>

2.4.3 webview的java類代碼如下

package com.harmony.alliance.mydemo.slice;
import com.harmony.alliance.mydemo.ResourceTable;
import com.harmony.alliance.mydemo.utils.LoadingDialogUtils;
import ohos.aafwk.ability.AbilitySlice;
import ohos.aafwk.content.Intent;
import ohos.agp.components.webengine.*;
import ohos.media.image.PixelMap;

public class NewMyWebview  extends AbilitySlice {
    private WebView mMyWebview;
    private static final String EXAMPLE_URL = "https://developer.harmonyos.com/cn/docs/documentation/doc-references/js-apis-fa-calls-pa-examples-0000000000618000";
    @Override
    protected void onStart(Intent intent) {
        super.onStart(intent);
        setUIContent(ResourceTable.Layout_new_my_webview);
        mMyWebview= (WebView) findComponentById(ResourceTable.Id_my_webView);
        WebConfig webConfig = mMyWebview.getWebConfig();
        webConfig.setJavaScriptPermit(true);
        webConfig.setWebStoragePermit(true);
        webConfig.setDataAbilityPermit(true);
        webConfig.setLoadsImagesPermit(true);
        webConfig.setMediaAutoReplay(true);
        webConfig.setLocationPermit(true);
        webConfig.setSecurityMode(WebConfig.SECURITY_SELF_ADAPTIVE);
        mMyWebview.setWebAgent(new WebAgent() {
            @Override
            public void onl oadingPage(WebView webview, String url, PixelMap favicon) {
                super.onLoadingPage(webview, url, favicon);
                //todo  頁面開始加載時自定義處理 開啟影片
                LoadingDialogUtils.show(NewMyWebview.this);
            }

            @Override
            public void onPageLoaded(WebView webview, String url) {
                super.onPageLoaded(webview, url);
                // todo 頁面加載結束后自定義處理 關閉影片
                LoadingDialogUtils.dismiss(NewMyWebview.this);
            }

            @Override
            public void onl oadingContent(WebView webview, String url) {
                super.onLoadingContent(webview, url);
                // 加載資源時自定義處理
            }

            @Override
            public void one rror(WebView webview, ResourceRequest request, ResourceError error) {
                super.onError(webview, request, error);
                //todo  發生錯誤時自定義處理 關閉影片
                LoadingDialogUtils.dismiss(NewMyWebview.this);
            }
        });
        mMyWebview.load(EXAMPLE_URL);
    }
}

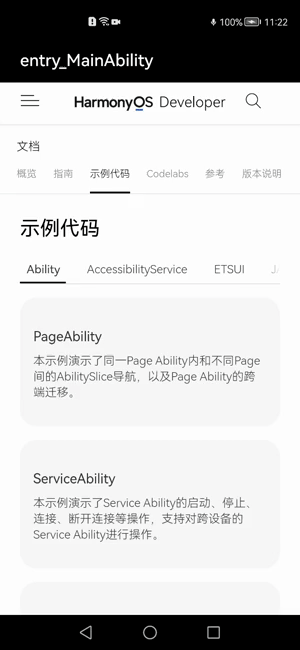

2.5 運行效果如下

全部代碼如下

2.5.1general_dialog.xml代碼

<?xml version="1.0" encoding="utf-8"?>
<DirectionalLayout
    xmlns:ohos="http://schemas.huawei.com/res/ohos"
    ohos:height="80vp"
    ohos:orientation="vertical"
    ohos:alignment="center"
    ohos:>
    <Image
        ohos:id="$+id:loading"
        ohos:height="match_parent"
        ohos:
        ohos:scale_mode="clip_center"
        ohos:image_src="https://www.cnblogs.com/developer-huawei/archive/2022/03/30/$media:loading"/>
</DirectionalLayout>

2.5.2GeneralDialog的java類

//請根據實際工程/包名引入
package com.harmony.alliance.mydemo.utils;
import java.util.Optional;
import com.harmony.alliance.mydemo.ResourceTable;
import ohos.agp.animation.Animator;
import ohos.agp.animation.AnimatorProperty;
import ohos.agp.animation.AnimatorValue;
import ohos.agp.colors.RgbColor;
import ohos.agp.components.*;
import ohos.agp.components.element.ShapeElement;
import ohos.agp.utils.LayoutAlignment;
import ohos.agp.window.dialog.CommonDialog;
import ohos.agp.window.service.WindowManager;
import ohos.app.Context;

public class GeneralDialog {
    private float dim = -1f;
    private    AnimatorProperty animatorProperty;
    private   CommonDialog sDialog;
    private  Context mContext;
    private boolean mOutsideTouchClosable = false;

    public  GeneralDialog(Context context) {
        this.mContext=context;
    }
    public void show() {
        if (sDialog != null) {
            sDialog.show();
            if (dim >= 0) {
                changeDialogDim(sDialog, dim);
            }
        }
    }
    public void remove() {
        if (sDialog != null) {
            sDialog.destroy();
        }
    }
    public void create() {
        sDialog = new CommonDialog(mContext);
        sDialog.setSize(ComponentContainer.LayoutConfig.MATCH_CONTENT, ComponentContainer.LayoutConfig.MATCH_CONTENT);
        sDialog.setAlignment(LayoutAlignment.CENTER);
        sDialog.setOffset(0,0);
        sDialog.setTransparent(true);
        sDialog.setContentCustomComponent(initDialog(sDialog));
        sDialog.setAutoClosable(mOutsideTouchClosable);
    }
    public void   StartanimatorProperty() {
        if(animatorProperty!=null&&animatorProperty.isRunning()) {
            animatorProperty.stop();
        }
        if(animatorProperty!=null&&!animatorProperty.isRunning()) {
            if(!animatorProperty.isRunning()) {
                animatorProperty.start();
            }
        }
    }
    private void changeDialogDim(CommonDialog dialog, float dim) {
        Optional<WindowManager.LayoutConfig> configOpt = dialog.getWindow().getLayoutConfig();
        configOpt.ifPresent(config -> {
            config.dim = dim;
            dialog.getWindow().setLayoutConfig(config);
        });
    }
    public interface ClickedListener {
        void onClick(GeneralDialog dialog);
    }
    private Component initDialog(CommonDialog sDialog) {
        Component dialogLayout = LayoutScatter.getInstance(mContext).parse(ResourceTable.Layout_general_dialog, null, false);
        dialogLayout.setBackground(new ShapeElement() { {
            setRgbColor(RgbColor.fromArgbInt(ResourceTool.getColor(mContext, ResourceTable.Color_bg_dialog_light, 0xffffff)));
            setCornerRadius(ResourceTool.getFloat(mContext, ResourceTable.Float_dialog_corner_radius, 0));
        }});
        Image image= (Image) dialogLayout.findComponentById(ResourceTable.Id_loading);
        animatorProperty    = new AnimatorProperty();
        animatorProperty.setTarget(image);
        animatorProperty
                .rotate(360)
                //無限回圈
                .setLoopedCount(AnimatorValue.INFINITE)
                //反彈力效果
                .setCurveType(Animator.CurveType.BOUNCE);
        if(sDialog!=null) {
            sDialog.setDestroyedListener(new CommonDialog.DestroyedListener() {
                @Override
                public void onDestroy() {
                    if(animatorProperty.isRunning()) {
                        animatorProperty.stop();
                    }
                }
            });
        }
        return dialogLayout;
    }
}

2.5.4webViewAbilitySlice的layout的xml代碼如下

<?xml version="1.0" encoding="utf-8"?>
<DirectionalLayout
    xmlns:ohos="http://schemas.huawei.com/res/ohos"
    ohos:height="match_parent"
    ohos:
    ohos:orientation="vertical">
    <ohos.agp.components.webengine.WebView
        ohos:id="$+id:my_webView"
        ohos:height="match_parent"
        ohos:>
    </ohos.agp.components.webengine.WebView>
</DirectionalLayout>

2.5.5 WebViewAbiltySlice的類代碼如下

package com.harmony.alliance.mydemo.slice;



import com.harmony.alliance.mydemo.ResourceTable;

import com.harmony.alliance.mydemo.utils.LoadingDialogUtils;

import ohos.aafwk.ability.AbilitySlice;

import ohos.aafwk.content.Intent;

import ohos.agp.components.webengine.*;

import ohos.media.image.PixelMap;



public class NewMyWebview  extends AbilitySlice {

    private WebView mMyWebview;

    private static final String EXAMPLE_URL = "https://developer.harmonyos.com/cn/docs/documentation/doc-references/js-apis-fa-calls-pa-examples-0000000000618000";

    @Override

    protected void onStart(Intent intent) {

        super.onStart(intent);

        setUIContent(ResourceTable.Layout_new_my_webview);

        mMyWebview= (WebView) findComponentById(ResourceTable.Id_my_webView);

        WebConfig webConfig = mMyWebview.getWebConfig();

        webConfig.setJavaScriptPermit(true);

        webConfig.setWebStoragePermit(true);

        webConfig.setDataAbilityPermit(true);

        webConfig.setLoadsImagesPermit(true);

        webConfig.setMediaAutoReplay(true);

        webConfig.setLocationPermit(true);

        webConfig.setSecurityMode(WebConfig.SECURITY_SELF_ADAPTIVE);

        mMyWebview.setWebAgent(new WebAgent() {

            @Override

            public void onl oadingPage(WebView webview, String url, PixelMap favicon) {

                super.onLoadingPage(webview, url, favicon);

                //todo  頁面開始加載時自定義處理 開啟影片

                LoadingDialogUtils.show(NewMyWebview.this);

            }



            @Override

            public void onPageLoaded(WebView webview, String url) {

                super.onPageLoaded(webview, url);

                // todo 頁面加載結束后自定義處理 關閉影片

                LoadingDialogUtils.dismiss(NewMyWebview.this);

            }



            @Override

            public void onl oadingContent(WebView webview, String url) {

                super.onLoadingContent(webview, url);

                // 加載資源時自定義處理

            }



            @Override

            public void one rror(WebView webview, ResourceRequest request, ResourceError error) {

                super.onError(webview, request, error);

                //todo  發生錯誤時自定義處理 關閉影片

                LoadingDialogUtils.dismiss(NewMyWebview.this);

            }

        });

        mMyWebview.load(EXAMPLE_URL);

     }

}

效果如下


轉載請註明出處，本文鏈接：https://www.uj5u.com/yidong/452904.html

標籤：其他

上一篇：HMS Core 機器學習服務6.4.0版本更新啦，文本翻譯功能增加10種小語種語言型別！

下一篇：100行代碼實作HarmonyOS“畫圖”應用，eTS開發走起！
