更改構面圖上的標簽

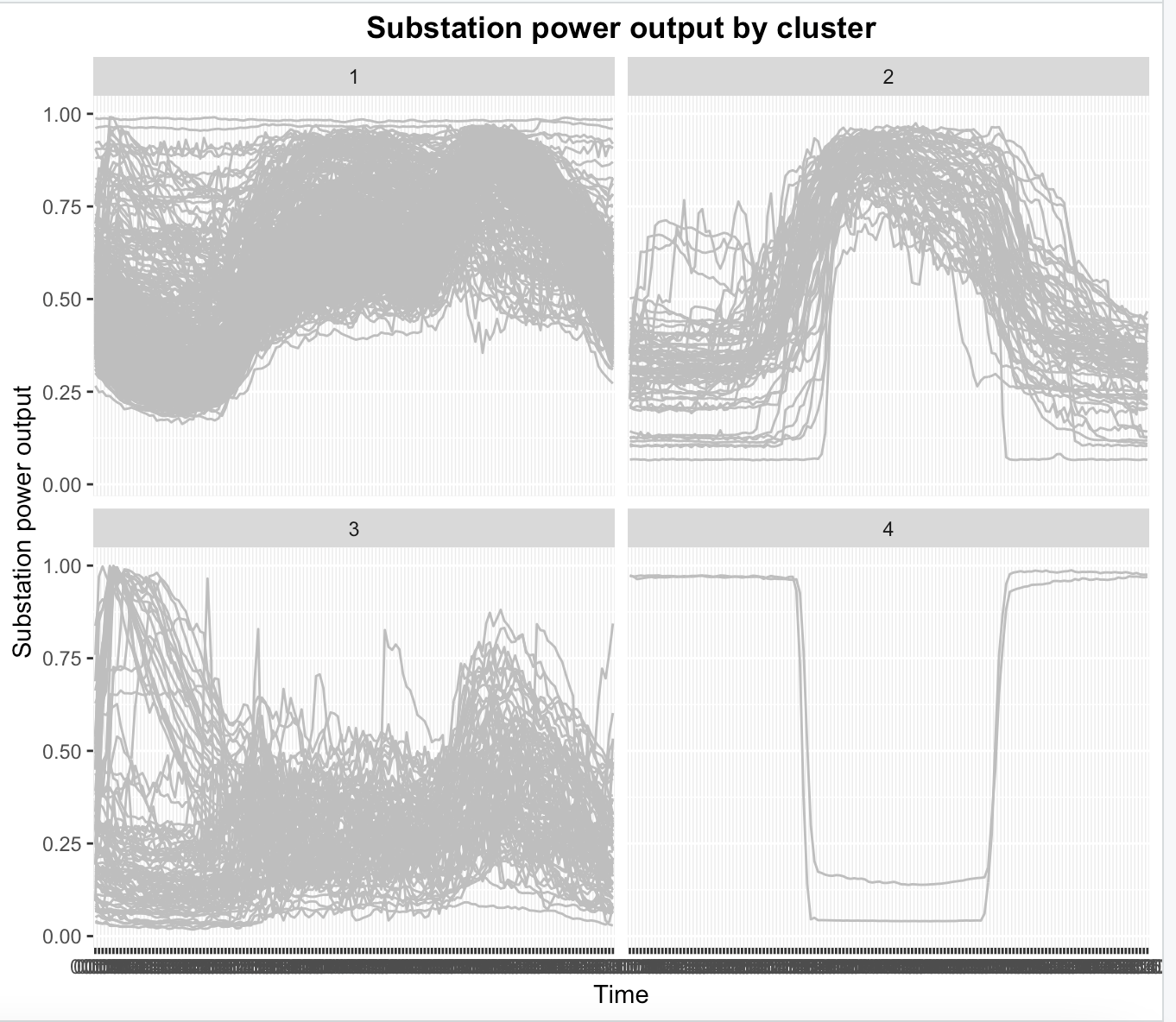

我目前有一個構面圖，我希望將每個構面的標題更改為一個新名稱。有誰知道如何做到這一點？

#data snipet
 Substation       Date cluster  Time     Value  weekday
1     511016 2013-01-17       1 00:00 0.6215941 Thursday
2     511029 2013-01-17       1 00:00 0.5677445 Thursday
3     511030 2013-01-17       1 00:00 0.6065458 Thursday
4     511033 2013-01-08       2 00:00 0.3090885  Tuesday
5     511034 2013-01-17       1 00:00 0.5263230 Thursday
6     511035 2013-01-17       1 00:00 0.5267718 Thursday



#current code

ggplot(substation_average_long, aes(Time, Value, group = Substation, colour = cluster))
  geom_line(colour = 'grey')
  facet_wrap(.~cluster)
  ylab('Substation power output')
  ggtitle('Substation power output by cluster')
  theme(plot.title = element_text(hjust = 0.5, face = 'bold'))

所以我將 1 更改為“集群 1”，將 2 更改為“集群 2”，依此類推

uj5u.com熱心網友回復：

一種選擇是as_labeller在facet_wrap.

library(tidyverse)

ggplot(df, aes(Time, Value, group = Substation, colour = cluster))
  geom_line(colour = 'grey')
  facet_wrap(.~cluster,
             labeller = as_labeller(c(`1` = "Cluster 1", `2` = "Cluster 2",
                                      `3` = "Cluster 3", `4` = "Cluster 4")))
  ylab('Substation power output')
  ggtitle('Substation power output by cluster')
  theme(plot.title = element_text(hjust = 0.5, face = 'bold'))

或者我們可以制作cluster一個因素并定義標簽。然后，我們可以使用labeller = label_parsed.

df %>%
    mutate(cluster = factor(cluster, labels = paste0("`", unique(
      paste("Cluster", df$cluster)), "`"))) %>%
    ggplot(aes(Time, Value, group = Substation, colour = cluster))
    geom_line(colour = 'grey')
    facet_wrap(. ~ cluster,
               labeller = label_parsed)
    ylab('Substation power output')
    ggtitle('Substation power output by cluster')
    theme(plot.title = element_text(hjust = 0.5, face = 'bold'))

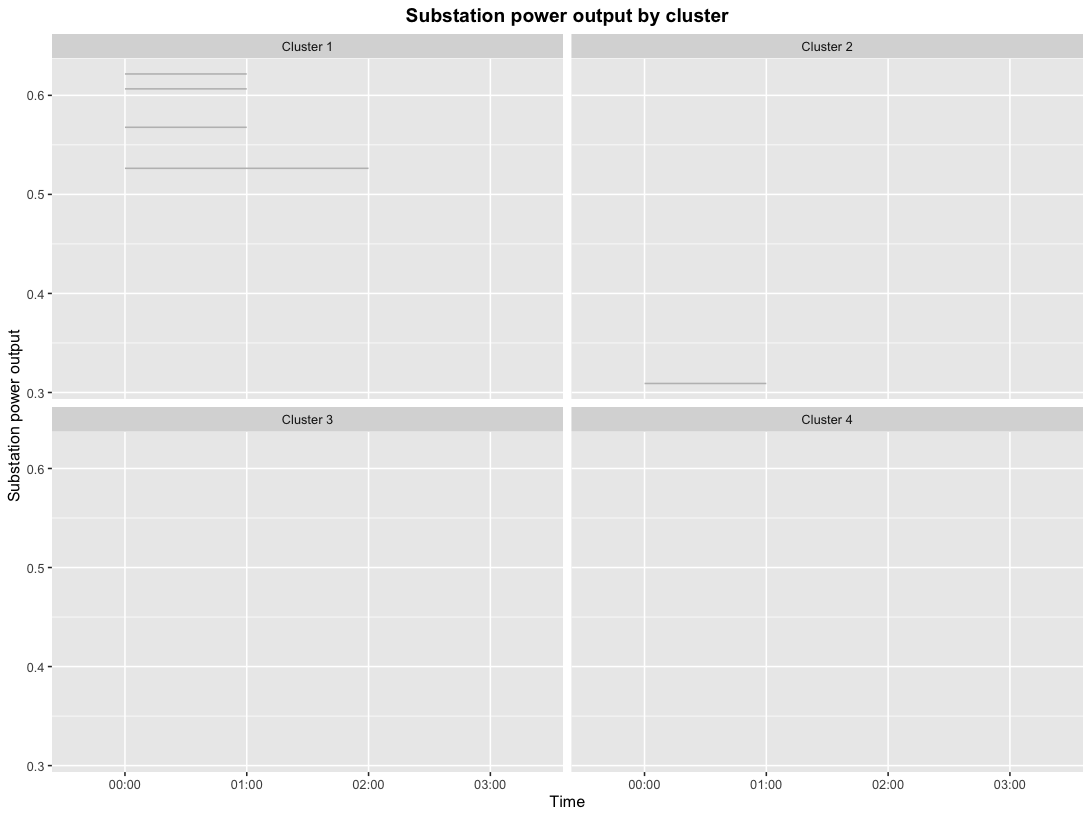

輸出

資料

df <- structure(list(Substation = c(511016L, 511029L, 511030L, 511033L,
511034L, 511035L, 511016L, 511029L, 511030L, 511033L, 511034L,
511035L, 511016L, 511029L, 511030L, 511033L, 511034L, 511035L
), Date = c("2013-01-17", "2013-01-17", "2013-01-17", "2013-01-08",
"2013-01-17", "2013-01-17", "2013-01-17", "2013-01-17", "2013-01-17",
"2013-01-08", "2013-01-17", "2013-01-17", "2013-01-17", "2013-01-17",
"2013-01-17", "2013-01-08", "2013-01-17", "2013-01-17"), cluster = c(1L,
1L, 1L, 2L, 1L, 1L, 1L, 1L, 1L, 2L, 1L, 3L, 3L, 3L, 3L, 4L, 4L,
4L), Time = c("00:00", "00:00", "00:00", "00:00", "00:00", "01:00",
"01:00", "01:00", "01:00", "01:00", "02:00", "00:00", "01:00",
"02:00", "03:00", "01:00", "02:00", "03:00"), Value = c(0.6215941,
0.5677445, 0.6065458, 0.3090885, 0.526323, 0.5267718, 0.6215941,
0.5677445, 0.6065458, 0.3090885, 0.526323, 0.5267718, 0.6215941,
0.5677445, 0.6065458, 0.3090885, 0.526323, 0.5267718), weekday = c("Thursday",
"Thursday", "Thursday", "Tuesday", "Thursday", "Thursday", "Thursday",
"Thursday", "Thursday", "Tuesday", "Thursday", "Thursday", "Thursday",
"Thursday", "Thursday", "Tuesday", "Thursday", "Thursday")), class = "data.frame", row.names = c(NA,
-18L))
