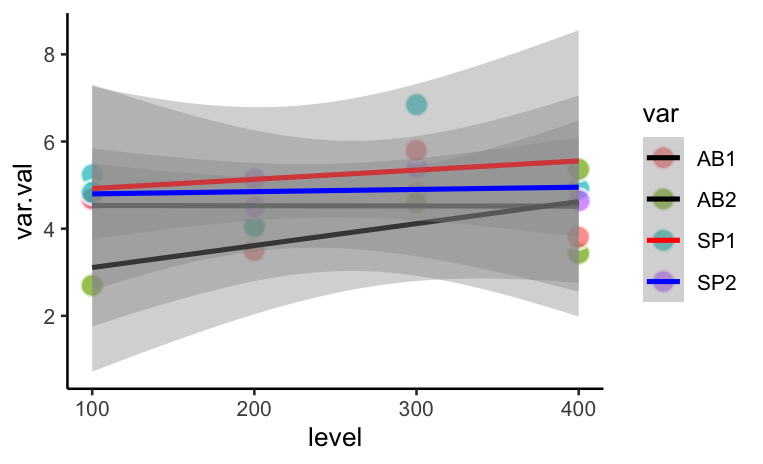

我有一個包含物種SP1 and SP2和非生物變數的資料集AB1 and AB2。我想將所有這些都繪制在圖表上，但要進行修改
點：在 SP1 和 SP2 上顯示，但不在圖形上的 AB1 和 AB2 點上顯示
線條：AB 線應該是黑色的虛線（請參閱無效的代碼嘗試）
置信區間：只有 SP 線需要有置信區間。置信區間的 alpha = 0.2
set.seed(111) var <- rep(c("SP1","SP2","AB1","AB2"), times = 5) var.val <- rnorm(20,5,1) level <- rep(c(100,200,300,400), each = 5) df <- data.frame(var, var.val, level) ggplot(df, aes(x = level, y = var.val, col = var, group = var)) geom_point(aes(fill = var),colour="white",pch=21, size=4, stroke = 1, alpha = 0.7, position = pd) theme_classic() geom_smooth(method="lm", formula = y ~ x ) scale_linetype_manual(values = c("dashed", "dashed","solid", "solid")) scale_colour_manual(values = c("black","black","red","blue"))
uj5u.com熱心網友回復：

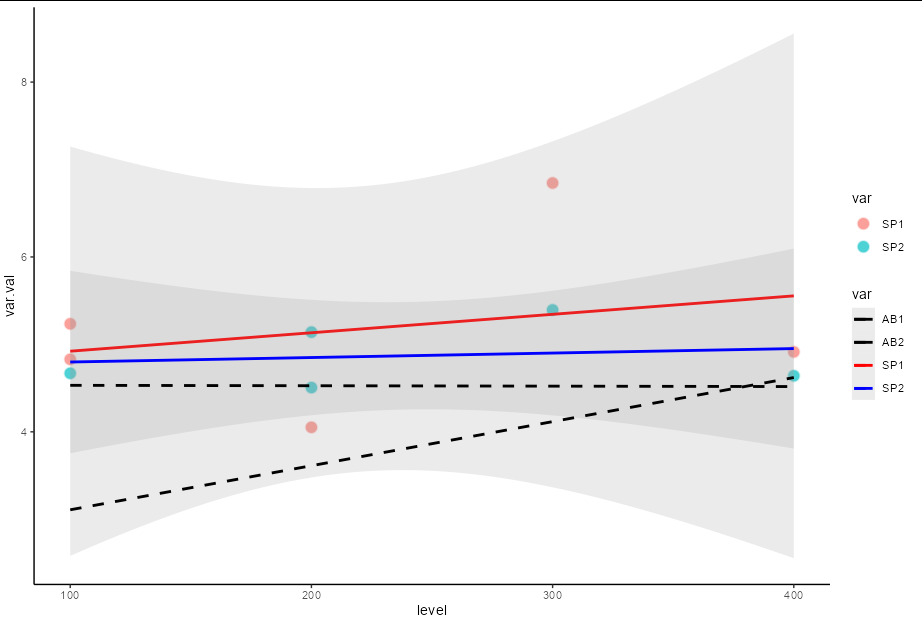

您可以通過將資料框的過濾版本傳遞給每一層來實作這一點：
ggplot(df, aes(x = level, y = var.val, col = var, group = var))
geom_point(aes(fill = var), colour="white",pch=21, size=4, stroke = 1,
alpha = 0.7, data = df[df$var %in% c("SP1", "SP2"),])
theme_classic()
geom_smooth(data = df[df$var %in% c("SP1", "SP2"),],
method = "lm", formula = y ~ x, alpha = 0.2)
geom_smooth(data = df[!df$var %in% c("SP1", "SP2"),],
method = "lm", formula = y ~ x, se = FALSE, linetype = 2 )
scale_linetype_manual(values = c("dashed", "dashed","solid", "solid"))
scale_colour_manual(values = c("black","black","red","blue"))
雖然如果 AB 和 SP 在概念上是兩個不同的變數，您可能需要考慮轉向更廣泛的格式。
