從零學ELK系列（十）:SpringBoot專案接入ELK升級版（超詳細圖文教程）

前言

之前在《從零學ELK系列（八）:SpringBoot專案接入ELK（超詳細圖文教程）》中演示了SpringBoot專案接入ELK，后來專案中對這部分進行了優化，之前博文中也有讀者問到，將優化整理成博文和大家共享；

優化前：

• 一次請求記錄兩條日志（request一條，response一條），通過UUID傳連起來

優化后：

• 一次請求記錄一條日志（request資訊與response資訊都在一起）

目錄

• 從零學ELK系列（一）:為什么要跟我學從零學ELK系列

• 從零學ELK系列（二）:VMware安裝Centos（超詳細圖文教程）

• 從零學ELK系列（三）:Centos安裝Docker（超詳細圖文教程）

• 從零學ELK系列（四）:Docker安裝Elasticsearch（超詳細圖文教程）

• 從零學ELK系列（五）:Docker安裝Kibana（超詳細圖文教程）

• 從零學ELK系列（六）:Docker安裝Logstash（超詳細圖文教程）

• 從零學ELK系列（七）:Centos安裝Filebeat（超詳細圖文教程）

• 從零學ELK系列（八）:SpringBoot專案接入ELK（超詳細圖文教程）

• 從零學ELK系列（九）:Nginx接入ELK（超詳細圖文教程）

• 從零學ELK系列（十）:SpringBoot專案接入ELK升級版（超詳細圖文教程）

架構圖&時序圖

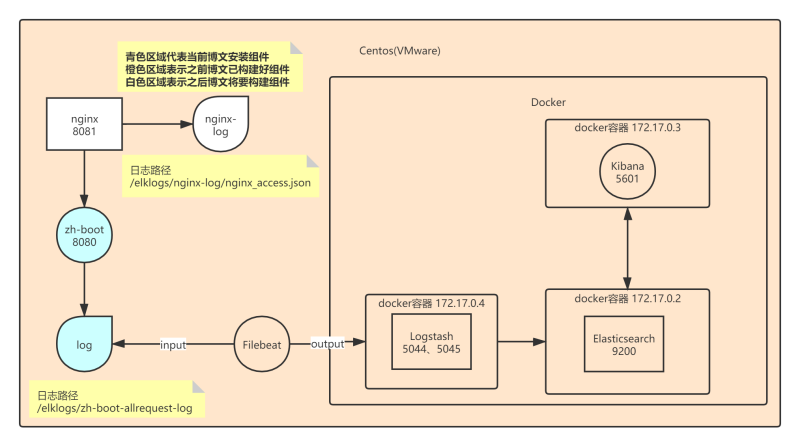

• 架構圖

• 程式寫入日志時序圖

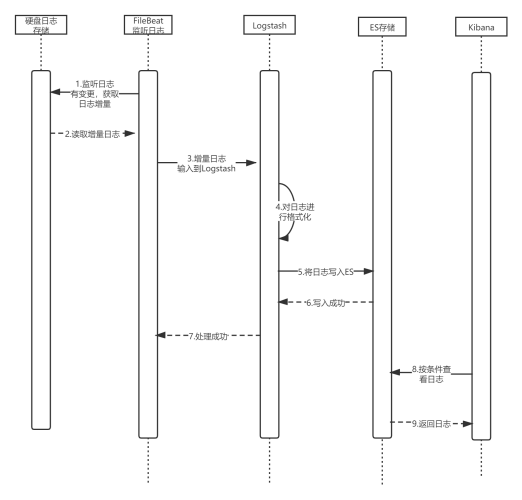

• ELK收集日志及Kibina查詢日志時序圖

代碼實作

• 完整代碼（GitHub，歡迎大家Star,Fork,Watch)

  https://github.com/dangnianchuntian/springboot

• 主要代碼展示

  • FileBeatLogUtil

  /*
   * Copyright (c) 2020. [email protected] All Rights Reserved.
   * 專案名稱：SpringBoot專案接入ELK
   * 類名稱：FileBeatLogUtil.java
   * 創建人：張晗
   * 聯系方式：[email protected]
   * 開源地址: https://github.com/dangnianchuntian/springboot
   * 博客地址: https://zhanghan.blog.csdn.net
   */

  package com.zhanghan.zhelkboot.util;

  import com.alibaba.fastjson.JSON;
  import com.zhanghan.zhelkboot.util.wrapper.Wrapper;
  import org.aspectj.lang.JoinPoint;
  import org.aspectj.lang.reflect.MethodSignature;
  import org.slf4j.Logger;
  import org.slf4j.MDC;

  import javax.servlet.http.HttpServletRequest;
  import javax.servlet.http.HttpServletResponse;
  import java.text.SimpleDateFormat;
  import java.util.*;

  public class FileBeatLogUtil {

      public static void writeRequestInfo(HttpServletRequest request, String applicationName, String reqName, String requestParams) {

          String requestURI = request.getRequestURI();

          //獲取requestHeader
          Enumeration<String> requestHeaderNames = request.getHeaderNames();
          Map<String, Object> reuestHeaderMap = new HashMap<>();
          while (requestHeaderNames.hasMoreElements()) {
              String name = requestHeaderNames.nextElement();
              String value = request.getHeaders(name).nextElement();
              reuestHeaderMap.put(name, value);
          }
          String requestHeader = "";
          if (null != reuestHeaderMap && reuestHeaderMap.size() > 0) {
              requestHeader = JSON.toJSONString(reuestHeaderMap);
          }

          //防止MDC值空指標，所有入參不為null
          applicationName = org.springframework.util.StringUtils.isEmpty(applicationName) ? "" : applicationName;
          requestURI = org.springframework.util.StringUtils.isEmpty(requestURI) ? "" : requestURI;
          reqName = org.springframework.util.StringUtils.isEmpty(reqName) ? "" : reqName;
          requestParams = "null".equals(requestParams) ? "" : requestParams;

          //MDC值為ES鍵值對JSON資訊
          MDC.put("applicationName", applicationName);
          MDC.put("requestTime", getStringTodayTime());
          MDC.put("requestURI", requestURI);
          MDC.put("requestHeader", requestHeader);
          MDC.put("sourceName", reqName);
          MDC.put("requestParams", requestParams);
      }

      public static void writeResponseLog(Object o, Logger log, HttpServletResponse response) {

          //取responseHeader內容
          Map<String, Object> responseHeaderMap = new HashMap<>();
          Collection<String> headerNames = response.getHeaderNames();
          headerNames.forEach(name -> {
              responseHeaderMap.put(name, response.getHeader(name));
          });
          String strResponseHeader = "";
          if (null != responseHeaderMap && responseHeaderMap.size() > 0) {
              strResponseHeader = JSON.toJSONString(responseHeaderMap);
          }

          //獲取response內容
          String responseCode = "";
          String responseMsg = "";
          String responseBody = "";
          Wrapper wrapper;
          if (null != o) {
              wrapper = (Wrapper) o;
              if (null != wrapper) {
                  responseCode = String.valueOf(wrapper.getCode());
                  responseMsg = wrapper.getMessage();
                  responseBody = wrapper.getResult().toString();
              }
          }


          //MDC值為ES鍵值對JSON資訊
          MDC.put("responseHeader", strResponseHeader);
          MDC.put("responseCode", responseCode);
          MDC.put("responseMsg", responseMsg);
          MDC.put("responseBody", responseBody);
          MDC.put("responseTime", getStringTodayTime());

          Map<String, String> copyOfContextMap = MDC.getCopyOfContextMap();
          String reqInfoJsonStr = JSON.toJSONString(copyOfContextMap);
          log.info(reqInfoJsonStr);
      }

      /**
       * 獲取請求引數，處理為json字串
       *
       * @param joinPoint
       * @return
       */
      public static String getParams(JoinPoint joinPoint) {
          Object[] argValues = joinPoint.getArgs();
          String[] argNames = ((MethodSignature) joinPoint.getSignature()).getParameterNames();
          LinkedHashMap<String, Object> linkedHashMap = new LinkedHashMap<>();
          if (argNames != null && argNames.length > 0) {
              for (int i = 0; i < argNames.length; i++) {
                  String thisArgName = argNames[i];
                  String thisArgValue = argValues[i].toString();
                  linkedHashMap.put(thisArgName, thisArgValue);
              }
          }
          return JSON.toJSONString(linkedHashMap);
      }

      public static String getStringTodayTime() {
          Date todat_date = new Date();
          //將日期格式化
          SimpleDateFormat simpleDateFormat = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss.SSS");
          //轉換成字串格式
          return simpleDateFormat.format(todat_date);
      }
  }



  • RequestLogAspectConf

  /*
   * Copyright (c) 2020. [email protected] All Rights Reserved.
   * 專案名稱：SpringBoot專案接入ELK
   * 類名稱：RequestLogAspectConf.java
   * 創建人：張晗
   * 聯系方式：[email protected]
   * 開源地址: https://github.com/dangnianchuntian/springboot
   * 博客地址: https://zhanghan.blog.csdn.net
   */

  package com.zhanghan.zhelkboot.aop;

  import com.zhanghan.zhelkboot.util.FileBeatLogUtil;
  import org.aspectj.lang.JoinPoint;
  import org.aspectj.lang.annotation.Aspect;
  import org.aspectj.lang.annotation.Before;
  import org.aspectj.lang.annotation.Pointcut;
  import org.slf4j.Logger;
  import org.slf4j.LoggerFactory;
  import org.springframework.beans.factory.annotation.Autowired;
  import org.springframework.core.annotation.Order;
  import org.springframework.core.env.Environment;
  import org.springframework.stereotype.Component;

  import javax.servlet.http.HttpServletRequest;

  @Aspect
  @Order(0)
  @Component
  public class RequestLogAspectConf {

      @Autowired
      private HttpServletRequest request;

      @Autowired
      private Environment env;

      private final Logger logger = LoggerFactory.getLogger(this.getClass());

      /**
       * 范圍切點方法
       */
      @Pointcut("execution(* com.zhanghan.zhelkboot.controller..*.*(..))")
      public void methodPointCut() {
      }

      @Before("methodPointCut()")
      void doBefore(JoinPoint joinPoint) {
          authLogic(joinPoint);
      }

      private void authLogic(JoinPoint joinPoint) {

          try {

              String applicationName = env.getProperty("spring.application.name");

              //獲取當前http請求
              String reqName = joinPoint.getSignature().getDeclaringTypeName() + "." + joinPoint.getSignature().getName();

              String requestParams = FileBeatLogUtil.getParams(joinPoint);

              FileBeatLogUtil.writeRequestInfo(request, applicationName, reqName, requestParams);
          } catch (Exception e) {
              logger.error("authLogic;Exception:{}", e.getMessage());
          }

      }

  }


  • ResponseLogAdvice

  /*
   * Copyright (c) 2020. [email protected] All Rights Reserved.
   * 專案名稱：SpringBoot專案接入ELK
   * 類名稱：ResponseLogAdvice.java
   * 創建人：張晗
   * 聯系方式：[email protected]
   * 開源地址: https://github.com/dangnianchuntian/springboot
   * 博客地址: https://zhanghan.blog.csdn.net
   */

  package com.zhanghan.zhelkboot.aop;

  import com.zhanghan.zhelkboot.util.FileBeatLogUtil;
  import org.slf4j.Logger;
  import org.slf4j.LoggerFactory;
  import org.springframework.beans.factory.annotation.Autowired;
  import org.springframework.core.MethodParameter;
  import org.springframework.http.MediaType;
  import org.springframework.http.server.ServerHttpRequest;
  import org.springframework.http.server.ServerHttpResponse;
  import org.springframework.web.bind.annotation.ControllerAdvice;
  import org.springframework.web.servlet.mvc.method.annotation.ResponseBodyAdvice;

  import javax.servlet.http.HttpServletResponse;


  @ControllerAdvice
  public class ResponseLogAdvice implements ResponseBodyAdvice {

      @Autowired
      private HttpServletResponse response;

      private final Logger logger = LoggerFactory.getLogger(this.getClass());

      @Override
      public boolean supports(MethodParameter methodParameter, Class aClass) {
          return true;
      }

      @Override
      public Object beforeBodyWrite(Object o, MethodParameter methodParameter, MediaType mediaType, Class aClass, ServerHttpRequest serverHttpRequest, ServerHttpResponse serverHttpResponse) {
          try {

              if (o != null) {

                  Logger log = LoggerFactory.getLogger("logstashInfo");

                  FileBeatLogUtil.writeResponseLog(o, log, response);

              }
          } catch (Exception e) {
              logger.error("beforeBodyWrite;Exception:{}", e.getMessage());
          }
          return o;
      }

  }


  • LombokController

  /*
   * Copyright (c) 2020. [email protected] All Rights Reserved.
   * 專案名稱：SpringBoot專案接入ELK
   * 類名稱：LombokController.java
   * 創建人：張晗
   * 聯系方式：[email protected]
   * 開源地址: https://github.com/dangnianchuntian/springboot
   * 博客地址: https://zhanghan.blog.csdn.net
   */

  package com.zhanghan.zhelkboot.controller;

  import com.zhanghan.zhelkboot.controller.request.LombokRequest;
  import com.zhanghan.zhelkboot.util.wrapper.WrapMapper;
  import com.zhanghan.zhelkboot.util.wrapper.Wrapper;
  import org.slf4j.Logger;
  import org.slf4j.LoggerFactory;
  import org.springframework.web.bind.annotation.RequestBody;
  import org.springframework.web.bind.annotation.RequestMapping;
  import org.springframework.web.bind.annotation.RequestMethod;
  import org.springframework.web.bind.annotation.RestController;

  import java.util.HashMap;
  import java.util.Map;

  @RestController
  public class LombokController {

      private static Logger logger = LoggerFactory.getLogger(LombokController.class);

      @RequestMapping(value = "/lombok", method = RequestMethod.POST)
      public Wrapper lombok(@RequestBody LombokRequest lombokRequest) {

          logger.info("lombok param {}", lombokRequest.toString());

          Map<String, Object> map = new HashMap();
          map.put("intLombok", lombokRequest.getIntLombok());
          map.put("strLombok", lombokRequest.getStrLombok());
          map.put("boleanLombok", lombokRequest.getBoleanLombok());
          map.put("personLombok", lombokRequest.getPersonLombok());
          return WrapMapper.ok(map);
      }

  }


測驗

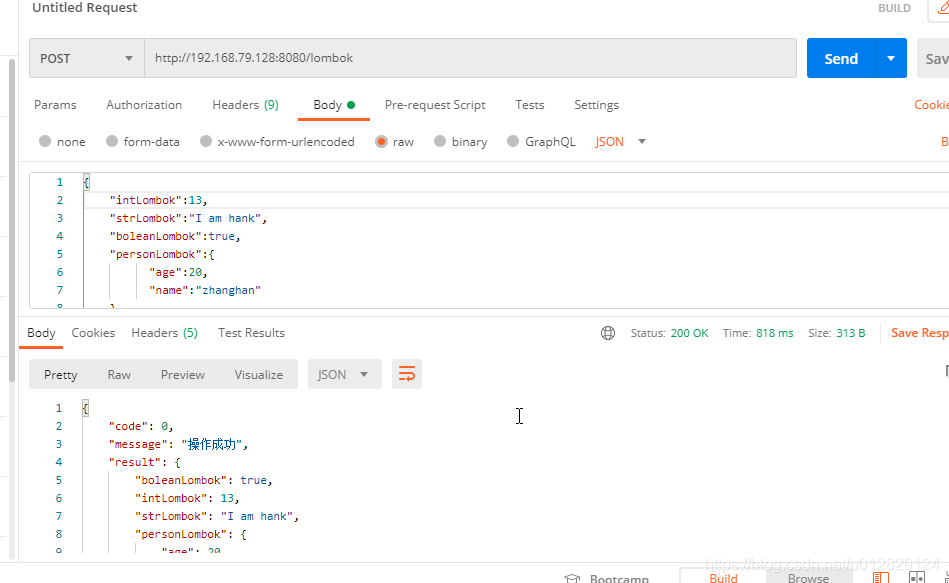

• 在服務器上部署并進行請求

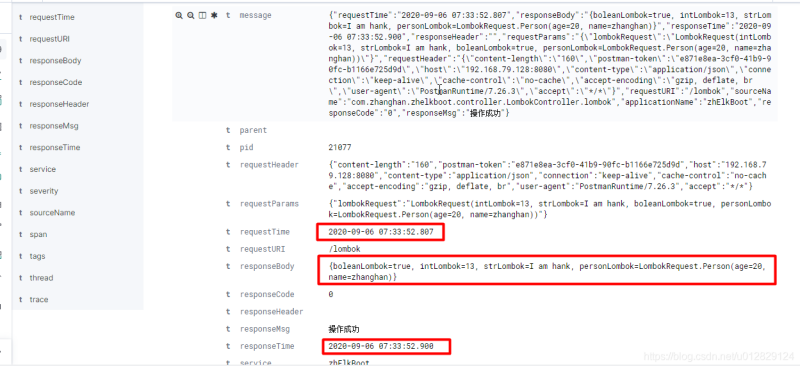

• 在Kibina上進行查看（請求時間，請求內容，回應內容，回應時間）


總結

• 通過日志收集系統可以對系統進行監控
  • 有助于排錯
  • 可以看到每個介面的處理時間，是我們對系統進行優化一個重要參考指標
• 會持續將生產專案中進行優化同步到本專案中并進行輸出
