在ggplot2中使用geom_line時進行分組

我收到此錯誤 - check_aesthetics() 中的錯誤：##！當我運行 R markdown 時，美學必須是長度 1 或與資料 (1) 相同：x 和 y 在我的代碼中。

這是我的代碼

{r, fig.show='hide'}
ggplot(data=hourlyIntensities_data)
geom_point(mapping = aes(x = ActivityHour, y = AverageIntensity, group = 1))
geom_line(mapping = aes(x = ActivityHour, y = AverageIntensity, group = 1))
theme(axis.text.x = element_text(angle = 45))
scale_x_discrete(limits = axisorder)
ggtitle("Average Intensity user_6",
      subtitle = "4-12-2016")

這是我的輸入

structure(list(Id = c("user_6", "user_6", "user_6", "user_6",
"user_6", "user_6", "user_6", "user_6", "user_6", "user_6", "user_6",
"user_6", "user_6", "user_6", "user_6", "user_6", "user_6", "user_6",
"user_6", "user_6", "user_6", "user_6", "user_6", "user_6"),
ActivityHour = c("12:00 AM", "1:00 AM", "2:00 AM", "3:00 AM",
"4:00 AM", "5:00 AM", "6:00 AM", "7:00 AM", "8:00 AM", "9:00 AM",
"10:00 AM", "11:00 AM", "12:00 PM", "1:00 PM", "2:00 PM",
"3:00 PM", "4:00 PM", "5:00 PM", "6:00 PM", "7:00 PM", "8:00 PM",
"9:00 PM", "10:00 PM", "11:00 PM"), TotalIntensity = c(0L,
0L, 0L, 0L, 0L, 0L, 0L, 28L, 13L, 13L, 143L, 20L, 11L, 19L,
54L, 9L, 19L, 24L, 19L, 9L, 0L, 0L, 0L, 0L), AverageIntensity = c(0,
0, 0, 0, 0, 0, 0, 0.466667, 0.216667, 0.216667, 2.383333,
0.333333, 0.183333, 0.316667, 0.9, 0.15, 0.316667, 0.4, 0.316667,
0.15, 0, 0, 0, 0)), row.names = c(NA, -24L), class = "data.frame")

輸入軸順序

c("7:00 AM", "8:00 AM", "9:00 AM", "10:00 AM", "11:00 AM", "12:00 AM",
"1:00 PM", "2:00 PM", "3:00 PM", "4:00 PM", "5:00 PM", "6:00 PM",
"7:00 PM", "8:00 PM")

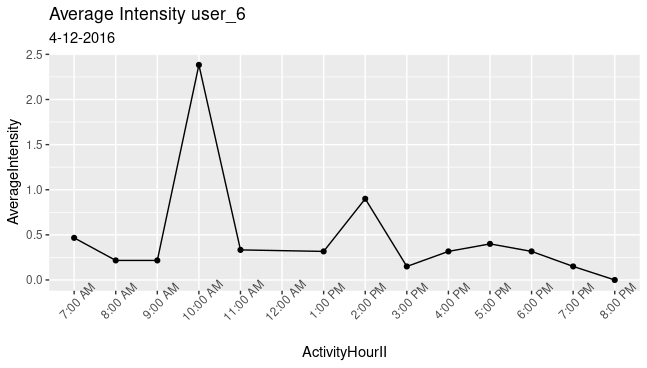

當我洗掉 group = 1 時，我在列印時不再收到錯誤但是我沒有在我的圖表上列印一條線。

uj5u.com熱心網友回復：

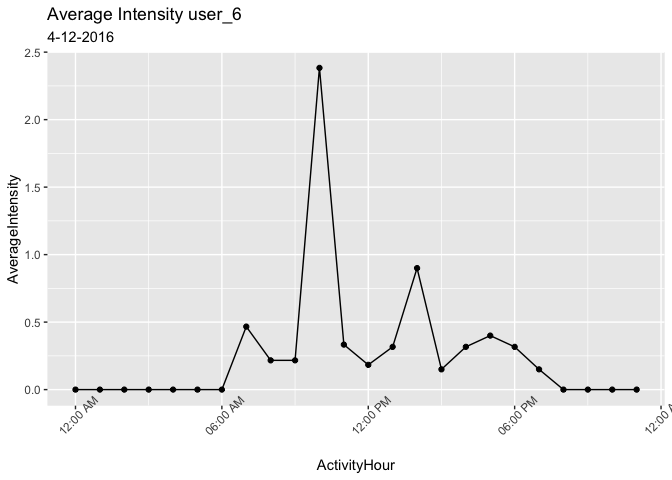

首先將您的時間變數轉換為日期時間變數，而不是字符變數：

library(ggplot2)
hourlyIntensities_data <- structure(list(Id = c("user_6", "user_6", "user_6", "user_6",
                      "user_6", "user_6", "user_6", "user_6", "user_6", "user_6", "user_6",
                      "user_6", "user_6", "user_6", "user_6", "user_6", "user_6", "user_6",
                      "user_6", "user_6", "user_6", "user_6", "user_6", "user_6"),
               ActivityHour = c("12:00 AM", "1:00 AM", "2:00 AM", "3:00 AM",
                                "4:00 AM", "5:00 AM", "6:00 AM", "7:00 AM", "8:00 AM", "9:00 AM",
                                "10:00 AM", "11:00 AM", "12:00 PM", "1:00 PM", "2:00 PM",
                                "3:00 PM", "4:00 PM", "5:00 PM", "6:00 PM", "7:00 PM", "8:00 PM",
                                "9:00 PM", "10:00 PM", "11:00 PM"), TotalIntensity = c(0L,
                                                                                       0L, 0L, 0L, 0L, 0L, 0L, 28L, 13L, 13L, 143L, 20L, 11L, 19L,
                                                                                       54L, 9L, 19L, 24L, 19L, 9L, 0L, 0L, 0L, 0L), AverageIntensity = c(0,
                                                                                                                                                         0, 0, 0, 0, 0, 0, 0.466667, 0.216667, 0.216667, 2.383333,
                                                                                                                                                         0.333333, 0.183333, 0.316667, 0.9, 0.15, 0.316667, 0.4, 0.316667,
                                                                                                                                                         0.15, 0, 0, 0, 0)), row.names = c(NA, -24L), class = "data.frame")
hourlyIntensities_data$ActivityHour <- as.POSIXct(hourlyIntensities_data$ActivityHour,
                                                  format = "%I:%M %p")

ggplot(hourlyIntensities_data)
  geom_point(mapping = aes(x = ActivityHour, y = AverageIntensity))
  geom_line(mapping = aes(x = ActivityHour, y = AverageIntensity))
  theme(axis.text.x = element_text(angle = 45))
  scale_x_datetime(date_labels = "%I:%M %p")
  ggtitle("Average Intensity user_6",
          subtitle = "4-12-2016")

^由

uj5u.com熱心網友回復：

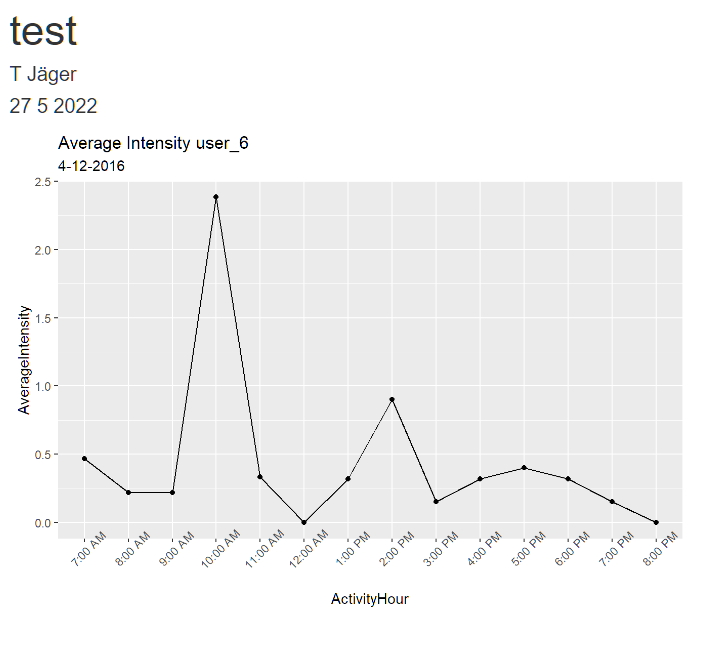

Rmarkdown 的更新 2：

---
title: "test"
author: "TarJae"
date: "27 5 2022"
output: html_document
---

```{r setup, include=FALSE}
knitr::opts_chunk$set(echo = TRUE)
library(tidyverse)
```


```{r myplot}
axisorder <- c("7:00 AM", "8:00 AM", "9:00 AM", "10:00 AM", "11:00 AM", "12:00 AM", "1:00 PM", "2:00 PM", "3:00 PM", "4:00 PM", "5:00 PM", "6:00 PM", "7:00 PM", "8:00 PM")

hourlyIntensities_data <-  structure(list(Id = c("user_6", "user_6", "user_6", "user_6",
                      "user_6", "user_6", "user_6", "user_6", "user_6", "user_6", "user_6",
                      "user_6", "user_6", "user_6", "user_6", "user_6", "user_6", "user_6",
                      "user_6", "user_6", "user_6", "user_6", "user_6", "user_6"),
               ActivityHour = c("12:00 AM", "1:00 AM", "2:00 AM", "3:00 AM",
                                "4:00 AM", "5:00 AM", "6:00 AM", "7:00 AM", "8:00 AM", "9:00 AM",
                                "10:00 AM", "11:00 AM", "12:00 PM", "1:00 PM", "2:00 PM",
                                "3:00 PM", "4:00 PM", "5:00 PM", "6:00 PM", "7:00 PM", "8:00 PM",
                                "9:00 PM", "10:00 PM", "11:00 PM"), TotalIntensity = c(0L,
                                                                                       0L, 0L, 0L, 0L, 0L, 0L, 28L, 13L, 13L, 143L, 20L, 11L, 19L,
                                                                                       54L, 9L, 19L, 24L, 19L, 9L, 0L, 0L, 0L, 0L), AverageIntensity = c(0,
                                                                                                                                                         0, 0, 0, 0, 0, 0, 0.466667, 0.216667, 0.216667, 2.383333,
                                                                                                                                                         0.333333, 0.183333, 0.316667, 0.9, 0.15, 0.316667, 0.4, 0.316667,
                                                                                                                                                         0.15, 0, 0, 0, 0)), row.names = c(NA, -24L), class = "data.frame")
ggplot(data=hourlyIntensities_data, aes(x = ActivityHour, y = AverageIntensity, group = 1 ))
  geom_point()
  geom_line()
  theme(axis.text.x = element_text(angle = 45))
  scale_x_discrete(limits = axisorder)
  ggtitle("Average Intensity user_6",
          subtitle = "4-12-2016")
```

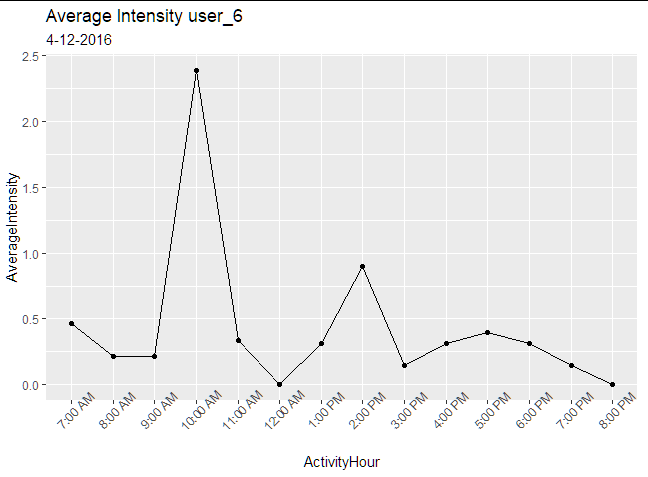

更新1：

將美學放在主呼叫中，并將ggplot()美學留空：geom_point()geom_line()

axisorder <- c("7:00 AM", "8:00 AM", "9:00 AM", "10:00 AM", "11:00 AM", "12:00 AM",
  "1:00 PM", "2:00 PM", "3:00 PM", "4:00 PM", "5:00 PM", "6:00 PM",
  "7:00 PM", "8:00 PM")


library(tidyverse)
ggplot(data=hourlyIntensities_data, aes(x = ActivityHour, y = AverageIntensity, group = 1 ))
  geom_point()
  geom_line()
  theme(axis.text.x = element_text(angle = 45))
  scale_x_discrete(limits = axisorder)
  ggtitle("Average Intensity user_6",
          subtitle = "4-12-2016")
