我JFrame使用 aBorderLayout并且它JLabel嵌套在具有不同布局管理器的多個面板中。我嘗試了幾種方法，但是無法獲得它在框架中的真實位置。
我做了一個測驗用戶界面，似乎在添加其他組件時getX，getY引數不會更新。getLocation 等其他方法也不能提供正確的結果。有沒有辦法在不手動計算每個組件的每個可能偏移量的情況下獲得確切位置。
我正在content使用一個類似大小的面板跟蹤標簽 ( )的指定位置，該面板content2位于玻璃窗格中，我想完美地坐在內容下方。
public class test {
private Dimension pSize = new Dimension(100,100);
private JFrame frame = new JFrame();
public static void main(String[] args) {
new test();
}
public test() {
//setup frame basics
frame.setPreferredSize(new Dimension(500,500));
frame.setLayout(new BorderLayout());
frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
// setup GUI
JMenuBar j = new JMenuBar();
JMenuItem a = new JMenuItem("lol");
j.add(a);
JPanel j2 = new JPanel();
//setup main panel
JPanel main = new JPanel();
main.setBackground(Color.DARK_GRAY);
//setup side panel
FlowLayout f1 = new FlowLayout(FlowLayout.LEADING);
f1.setHgap(10);
f1.setVgap(0);
JPanel side = new JPanel();
side.setLayout(new BorderLayout());
side.setBackground(Color.gray);
side.setPreferredSize(new Dimension(150,100));
//setup JLabel (the main focus)
JLabel content = new JLabel("a");
content.setOpaque(true);
content.setBackground(Color.blue);
content.setPreferredSize(pSize);
// Setup the internal panels of side
JPanel top = new JPanel();//The panel where CONTENT is, the main focus
JPanel bot = new JPanel();
top.setBackground(Color.WHITE);
bot.setBackground(Color.orange);
top.setLayout(f1);
top.add(content);
side.add(top, BorderLayout.NORTH);
side.add(bot, BorderLayout.CENTER);
frame.add(main, BorderLayout.CENTER);
frame.add(side, BorderLayout.WEST);
frame.add(j2, BorderLayout.NORTH);
frame.setJMenuBar(j);
frame.pack();
frame.setVisible(true);
//Setting up the glass panel
JPanel pane = new JPanel();
pane.setLayout(null);
pane.setOpaque(false);
JPanel content2 = new JPanel();
content2.setBackground(Color.red);
content.revalidate();
int x = content.getX();
int y = content.getY();
// y = (int) content.getLocation().getY(); //returns a completely wrong location
//y = (int) content.getLocationOnScreen(); //returns a completely wrong location
/*
Point p = new Point();
p.setLocation(x, y);
p = SwingUtilities.convertPoint(content2, x, y, frame);
//SwingUtilities.convertPoint(content, p, frame);
y = (int) p.getY();
*
* Tried multiple SwingUtility converions to no avail
*
*/
// y = y j.getHeight() j2.getHeight(); // Manually calculating the Y off set works successfully but is too tedious for large project
y = y content.getHeight();
content2.setBounds(x,y,100,100);
pane.add(content2);
frame.setGlassPane(pane);
frame.getGlassPane().setVisible(true);
frame.pack();
}
}
//frame.getContentPane().add(content);
//frame.add(content);
frame.setPreferredSize(new Dimension(500,500));
content.setBorder(BorderFactory.createEmptyBorder());
side.setLayout(new BorderLayout());
JPanel top = new JPanel();
JPanel bot = new JPanel();
top.setBackground(Color.WHITE);
bot.setBackground(Color.orange);
side.add(top, BorderLayout.NORTH);
top.setLayout(f1);
top.add(content);
side.add(bot, BorderLayout.CENTER);
frame.add(main, BorderLayout.CENTER);
frame.add(j2, BorderLayout.NORTH);
frame.add(side, BorderLayout.WEST);
frame.pack();
frame.setVisible(true);
JPanel pane = new JPanel();
pane.setLayout(null);
pane.setOpaque(false);
JPanel content2 = new JPanel();
content2.setBackground(Color.red);
content.revalidate();
int x = content.getX();
int y = content.getY();
// y = y j.getHeight() j2.getHeight();
y = y content.getHeight();
content2.setBounds(x,y,100,100);
pane.add(content2);
frame.setGlassPane(pane);
frame.getGlassPane().setVisible(true);
frame.pack();
}
}
uj5u.com熱心網友回復：

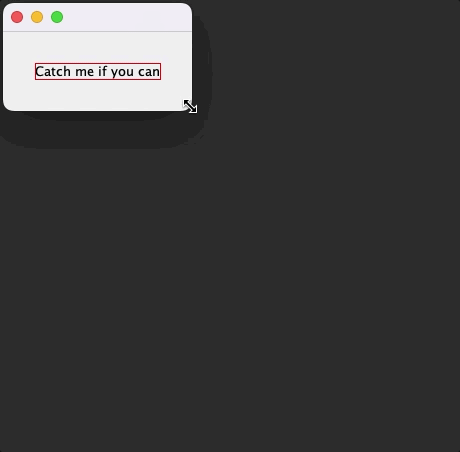

從概念上講，您可以使用
import java.awt.Color;
import java.awt.EventQueue;
import java.awt.Graphics;
import java.awt.Graphics2D;
import java.awt.GridBagLayout;
import java.awt.Rectangle;
import java.util.ArrayList;
import java.util.List;
import javax.swing.JComponent;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.SwingUtilities;
import javax.swing.border.EmptyBorder;
public class Main {
public static void main(String[] args) {
new Main();
}
public Main() {
EventQueue.invokeLater(new Runnable() {
@Override
public void run() {
GlassPane glassPane = new GlassPane();
JFrame frame = new JFrame();
frame.setGlassPane(glassPane);
frame.add(new MainPane(glassPane));
glassPane.setVisible(true);
frame.pack();
frame.setLocationRelativeTo(null);
frame.setVisible(true);
}
});
}
public interface Tracker {
public void addTrackable(Trackable trackable);
public void removeTrackable(Trackable trackable);
}
public interface Trackable {
public JComponent[] getTrackedComponents();
}
public class MainPane extends JPanel {
private JLabel label = new JLabel("Catch me if you can");
public MainPane(Tracker tracker) {
setLayout(new GridBagLayout());
setBorder(new EmptyBorder(32, 32, 32, 32));
add(label);
tracker.addTrackable(new Trackable() {
@Override
public JComponent[] getTrackedComponents() {
return new JComponent[] { label };
}
});
}
}
public class GlassPane extends JPanel implements Tracker {
private List<Trackable> trackables = new ArrayList<>(8);
public GlassPane() {
setOpaque(false);
}
@Override
public void addTrackable(Trackable trackable) {
trackables.add(trackable);
revalidate();
repaint();
}
@Override
public void removeTrackable(Trackable trackable) {
trackables.remove(trackable);
revalidate();
repaint();
}
@Override
protected void paintComponent(Graphics g) {
super.paintComponent(g);
Graphics2D g2d = (Graphics2D) g.create();
g2d.setColor(Color.RED);
for (Trackable trackable : trackables) {
for (JComponent component : trackable.getTrackedComponents()) {
Rectangle relativeBounds = SwingUtilities.convertRectangle(component.getParent(), component.getBounds(), this);
g2d.draw(relativeBounds);
}
}
g2d.dispose();
}
}
}

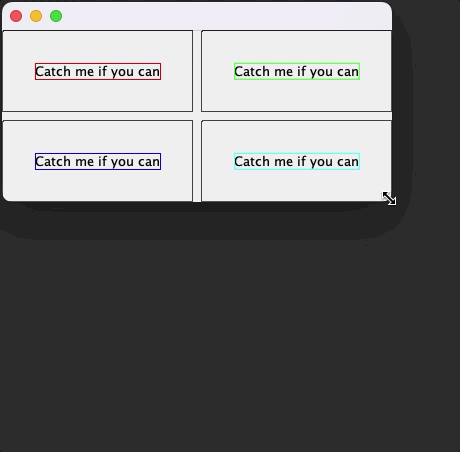

好吧，這很無聊，它是一個容器中的一個組件，讓我們嘗試一些更復雜的東西......
import java.awt.Color;
import java.awt.EventQueue;
import java.awt.Graphics;
import java.awt.Graphics2D;
import java.awt.GridBagLayout;
import java.awt.GridLayout;
import java.awt.Rectangle;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;
import javax.swing.JComponent;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.SwingUtilities;
import javax.swing.border.CompoundBorder;
import javax.swing.border.EmptyBorder;
import javax.swing.border.LineBorder;
public class Main {
public static void main(String[] args) {
new Main();
}
public Main() {
EventQueue.invokeLater(new Runnable() {
@Override
public void run() {
GlassPane glassPane = new GlassPane();
JFrame frame = new JFrame();
frame.setLayout(new GridLayout(2, 2, 8, 8));
frame.add(new MainPane(glassPane));
frame.add(new MainPane(glassPane));
frame.add(new MainPane(glassPane));
frame.add(new MainPane(glassPane));
frame.setGlassPane(glassPane);
glassPane.setVisible(true);
frame.pack();
frame.setLocationRelativeTo(null);
frame.setVisible(true);
}
});
}
public interface Tracker {
public void addTrackable(Trackable trackable);
public void removeTrackable(Trackable trackable);
}
public interface Trackable {
public JComponent[] getTrackedComponents();
}
public class MainPane extends JPanel {
private JLabel label = new JLabel("Catch me if you can");
public MainPane(Tracker tracker) {
setLayout(new GridBagLayout());
setBorder(new CompoundBorder(new LineBorder(Color.DARK_GRAY, 1, true), new EmptyBorder(32, 32, 32, 32)));
add(label);
tracker.addTrackable(new Trackable() {
@Override
public JComponent[] getTrackedComponents() {
return new JComponent[]{label};
}
});
}
}
public class GlassPane extends JPanel implements Tracker {
private List<Trackable> trackables = new ArrayList<>(8);
private List<Color> masterColors = new ArrayList<>(Arrays.asList(new Color[]{
Color.RED,
Color.GREEN,
Color.BLUE,
Color.CYAN,
Color.DARK_GRAY,
Color.GRAY,
Color.MAGENTA,
Color.ORANGE,
Color.PINK,
Color.YELLOW,}));
public GlassPane() {
setOpaque(false);
}
@Override
public void addTrackable(Trackable trackable) {
trackables.add(trackable);
revalidate();
repaint();
}
@Override
public void removeTrackable(Trackable trackable) {
trackables.remove(trackable);
revalidate();
repaint();
}
@Override
protected void paintComponent(Graphics g) {
super.paintComponent(g);
Graphics2D g2d = (Graphics2D) g.create();
g2d.setColor(Color.RED);
List<Color> colors = new ArrayList<>(masterColors);
for (Trackable trackable : trackables) {
for (JComponent component : trackable.getTrackedComponents()) {
if (colors.isEmpty()) {
colors = new ArrayList<>(masterColors);
}
g2d.setColor(colors.remove(0));
Rectangle relativeBounds = SwingUtilities.convertRectangle(component.getParent(), component.getBounds(), this);
g2d.draw(relativeBounds);
}
}
g2d.dispose();
}
}
}
這是一個新的 smipler 示例程式，試圖盡可能接近您的代碼，它使用 convertRectangle 但我無法正確運行它
int y = (int) (r.getY() r.getHeight());...您是否故意試圖抵消“覆寫”？這對我來說似乎很奇怪。
另一個問題是，如何GlassPane知道孩子何時改變了位置/大小

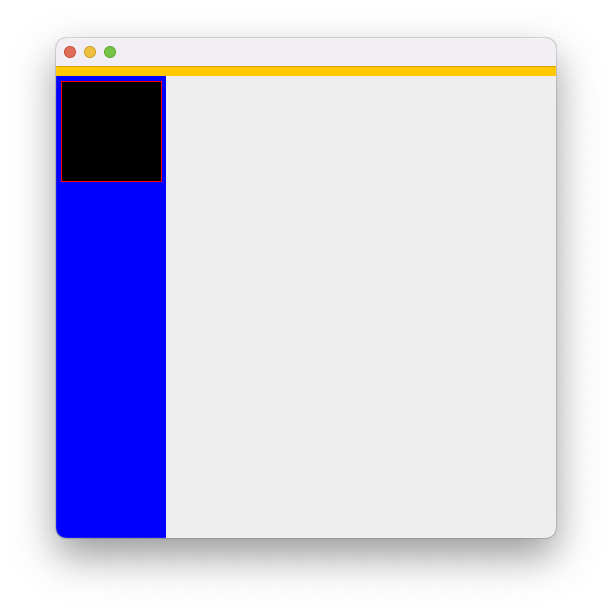

所以，我修改了你的代碼，去掉了對 x/y 位置的“修改”（所以我 100% 確定背景關系空間之間的轉換是正確的）并添加了一個ComponentListener來監視對“目標”組件的更改
import java.awt.Color;
import java.awt.EventQueue;
import java.awt.Rectangle;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.SwingUtilities;
import java.awt.*;
import java.awt.event.ComponentAdapter;
import java.awt.event.ComponentEvent;
public class Main {
private Dimension pSize = new Dimension(100, 100);
private JFrame frame = new JFrame();
private JLabel content = new JLabel("Grief");
private JPanel content2 = new JPanel();
private SidePane sidePane = new SidePane();
private GlassPane glass = new GlassPane();
private Menu menu = new Menu();
public static void main(String[] args) {
new Main();
}
public Main() {
EventQueue.invokeLater(new Runnable() {
@Override
public void run() {
content.setBackground(Color.green);
content.setPreferredSize(pSize);
content.setOpaque(true);
//setup frame basics
frame.setPreferredSize(new Dimension(500, 500));
frame.setLayout(new BorderLayout());
frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
frame.setLocationRelativeTo(null);
frame.setGlassPane(glass);
frame.add(new MainPane());
// glass.setNewLocation();
// glass.revalidate();
frame.getGlassPane().setVisible(true);
// glass.setNewLocation();
frame.pack();
frame.setVisible(true);
}
});
}
public class MainPane extends JPanel {
public MainPane() {
//this.setBackground(Color.orange);
this.setLayout(new BorderLayout());
this.add(sidePane, BorderLayout.WEST);
this.add(menu, BorderLayout.NORTH);
}
}
public class SidePane extends JPanel {
public SidePane() {
FlowLayout f1 = new FlowLayout(FlowLayout.LEADING);
this.setLayout(f1);
this.setBackground(Color.blue);
this.add(content);
}
}
public class Menu extends JPanel {
public Menu() {
this.setBackground(Color.orange);
}
}
public class GlassPane extends JPanel {
private Rectangle target;
public GlassPane() {
this.setOpaque(false);
setLayout(null);
content2.setBackground(Color.BLACK);
content2.setPreferredSize(pSize);
content2.setOpaque(true);
add(content2);
content.addComponentListener(new ComponentAdapter() {
@Override
public void componentResized(ComponentEvent e) {
updateOverlay();
}
@Override
public void componentMoved(ComponentEvent e) {
updateOverlay();
}
});
}
protected void updateOverlay() {
// Rectangle t = new Rectangle();
// t.setBounds((int) content.getLocation().getX(), (int) content.getLocation().getY(), content.getWidth(), content.getHeight());
// Rectangle r = SwingUtilities.convertRectangle(content.getParent(), content.getBounds(), this);
// Rectangle r = SwingUtilities.convertRectangle(content.getParent(), content.getBounds(), this);
target = SwingUtilities.convertRectangle(content.getParent(), content.getBounds(), this);
content2.setBounds(target);
// r = SwingUtilities.convertRectangle(content.getParent(), t, this);
// int x = (int) r.getBounds().getX();
// x = (int) r.getX();
// int y = (int) (r.getY() r.getHeight());
//
// content2.setBounds(x, y, 100, 100);
// this.add(content2);
}
@Override
public void paint(Graphics g) {
super.paint(g);
Graphics2D g2d = (Graphics2D) g.create();
if (target != null) {
g2d.setColor(Color.RED);
g2d.draw(target);
}
g2d.dispose();
}
}
}
uj5u.com熱心網友回復：
如果組件中有坐標，請使用組件的convertPointToScreen()將其傳輸到螢屏坐標。之后，您可以使用框架的convertPointFromScreen()轉回以查看它在視窗中的位置。
或者直接使用convertPoint()消除這兩個步驟之一。
uj5u.com熱心網友回復：
使用@MadProgrammer 的方法修復了定位問題，SwingUtilities.convertRectangle并在定位跟蹤器面板的末端建構式中呼叫了一個新方法。
為玻璃窗格創建了一個單獨的類
private class GlassPane extends JPanel {
public GlassPane() {
this.setLayout(null);
}
public void setNewLocation() {
Rectangle r = SwingUtilities.convertRectangle(top, content.getBounds(), this);
JPanel content2 = new JPanel();
int x = (int) r.getBounds().getX();
x = (int) r.getX();
int y = (int) (r.getY() r.getHeight() 1);
content2.setBounds(x, y, 100,100);
this.add(content2);
}
}
setNewLocation()并在建構式末尾添加了對新方法的呼叫
public test() {
**...**
frame.pack();
frame.setVisible(true);
glass.setNewLocation();
}
轉載請註明出處，本文鏈接：https://www.uj5u.com/yidong/495665.html
上一篇：從整數轉換為具有重復數字的字典
