IFC.js顯示/隱藏圖層和組件

我將“web-ifc-viewer”包裝在一個角度應用程式中。我在 IFC 內隱藏和顯示組件時遇到了一些麻煩。

我從這個

這是我的html

<div>
  <mat-sidenav-container>
    <mat-sidenav mode="side" opened>
      <mat-toolbar>
      <span>
        BIM
      </span>
      </mat-toolbar>
      <mat-progress-bar mode="determinate" [value]="loadingValue"></mat-progress-bar>
      <mat-list role="list" *ngIf="!ifcElement">
          <mat-list-item role="listitem">
            Caricamento IFC in corso...
          </mat-list-item>
      </mat-list>
      <mat-accordion *ngIf="ifcElement">
        <mat-expansion-panel *ngFor="let arch of ifcElement?.children || []">
          <mat-expansion-panel-header>
            <mat-panel-title>
              {{arch.Name?.value || arch.LongName?.value || 'Architettura'}}
            </mat-panel-title>
          </mat-expansion-panel-header>
          <mat-list role="list">
            <mat-list-item role="listitem" *ngFor="let layer of arch.children">
              <mat-checkbox (click)="toggleLayer($event, layer)">
                {{layer.Name?.value || layer.LongName?.value || 'N/A'}}
              </mat-checkbox>
            </mat-list-item>
          </mat-list>
        </mat-expansion-panel>
      </mat-accordion>
    </mat-sidenav>
    <mat-sidenav-content>
      <div id="viewer-container" #viewerContainer></div>
      <div class="loading-spinner-wrapper" *ngIf="loadingValue!==100">
        <mat-spinner mode="indeterminate" diameter="35"></mat-spinner>
      </div>
    </mat-sidenav-content>
  </mat-sidenav-container>
</div>

這是瀏覽器中的最終結果

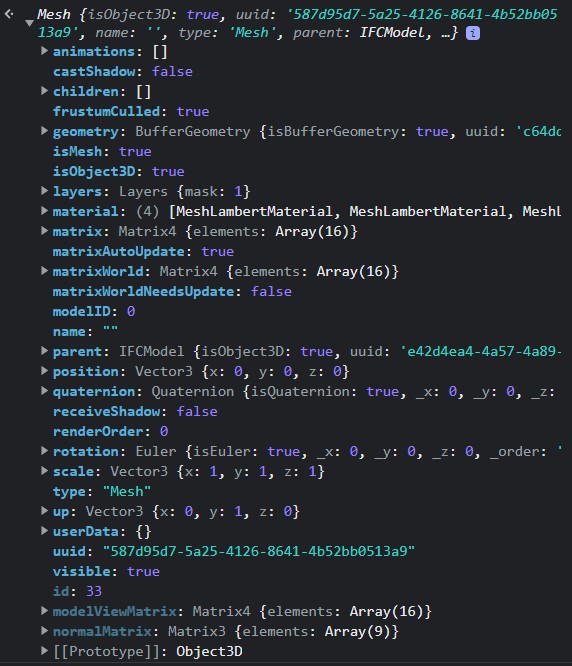

問題是當我切換圖層時沒有任何反應。子集日志看起來總是一樣的。

uj5u.com熱心網友回復：

加載 IFC 模型時，它也會添加到場景中。您需要從場景中移除原始模型。

您無需在用戶每次切換圖層時創建子集，而是需要在開始時為每個圖層創建子集，并在用戶切換圖層時從場景中添加或洗掉子集。您可以在此處找到有關該內容的教程、此處的完整示例和此處的作業應用程式。

您的邏輯結構應類似于以下代碼段。這已從上面鏈接的最小示例中提取，因此您可能需要對其進行一些調整以適應您的專案：

import {
    IFCWALLSTANDARDCASE,
    IFCSLAB,
    IFCDOOR,
    IFCWINDOW,
    IFCFURNISHINGELEMENT,
    IFCMEMBER,
    IFCPLATE,
} from 'web-ifc';

//Sets up the IFC loading
const ifcModels = [];
const ifcLoader = new IFCLoader();
ifcLoader.ifcManager.setWasmPath('../../../');
ifcLoader.load('../../../IFC/01.ifc', async (ifcModel) => {
    ifcModels.push(ifcModel);
    await setupAllCategories();
});


// Sets up optimized picking
ifcLoader.ifcManager.setupThreeMeshBVH(
    computeBoundsTree,
    disposeBoundsTree,
    acceleratedRaycast);

// List of categories names
const categories = {
    IFCWALLSTANDARDCASE,
    IFCSLAB,
    IFCFURNISHINGELEMENT,
    IFCDOOR,
    IFCWINDOW,
    IFCPLATE,
    IFCMEMBER,
};

// Gets the name of a category
function getName(category) {
    const names = Object.keys(categories);
    return names.find(name => categories[name] === category);
}

// Gets all the items of a category
async function getAll(category) {
    return ifcLoader.ifcManager.getAllItemsOfType(0, category, false);
}

// Creates a new subset containing all elements of a category
async function newSubsetOfType(category) {
    const ids = await getAll(category);
    return ifcLoader.ifcManager.createSubset({
        modelID: 0,
        scene,
        ids,
        removePrevious: true,
        customID: category.toString(),
    });
}

// Stores the created subsets
const subsets = {};

async function setupAllCategories() {
    const allCategories = Object.values(categories);
    for (let i = 0; i < allCategories.length; i  ) {
        const category = allCategories[i];
        await setupCategory(category);
    }
}

// Creates a new subset and configures the checkbox
async function setupCategory(category) {
    subsets[category] = await newSubsetOfType(category);
    setupCheckBox(category);
}

// Sets up the checkbox event to hide / show elements
function setupCheckBox(category) {
    const name = getName(category);
    const checkBox = document.getElementById(name);
    checkBox.addEventListener('change', (event) => {
        const checked = event.target.checked;
        const subset = subsets[category];
        if (checked) scene.add(subset);
        else subset.removeFromParent();
    });
}

uj5u.com熱心網友回復：

子集或createSubset()需要 customID 以及邊 id 來識別原始模型中創建的子集，而不需要覆寫子集的 customID，它可以是任何字串，在示例中它由category.toString()
