前言
在上一篇理論文章中我們介紹了YUV到RGB之間轉換的幾種公式與一些優化演算法，今天我們再來介紹一下RGB到YUV的轉換，順便使用Opengl ES做個實踐，將一張RGB的圖片通過Shader
的方式轉換YUV格式圖，然后保存到本地，
可能有的童鞋會問，YUV轉RGB是為了渲染顯示，那么RGB轉YUV的應用場景是什么？在做視頻編碼的時候我們可以使用MediaCodec搭配Surface就可以完成，貌似也沒有用到RGB轉YUV的功能啊，
硬編碼沒有用到，那么軟編碼呢？一般我們做視頻編碼的時候都是硬編碼優先，軟編碼兜底的原則，在遇到一些硬編碼不可用的情況下可能就需要用到x264庫進行軟編碼了，而此時RGB轉YUV可能就派上用場啦，
RGB到YUV的轉換公式
在前面 Opengl ES之YUV資料渲染 一文中我們介紹過YUV的幾種兼容標準，下面我們看看RGB到YUV的轉換公式：
RGB 轉 BT.601 YUV
Y = 0.257R + 0.504G + 0.098B + 16
Cb = -0.148R - 0.291G + 0.439B + 128
Cr = 0.439R - 0.368G - 0.071B + 128
RGB 轉 BT.709 YUV
Y = 0.183R + 0.614G + 0.062B + 16
Cb = -0.101R - 0.339G + 0.439B + 128
Cr = 0.439R - 0.399G - 0.040B + 128

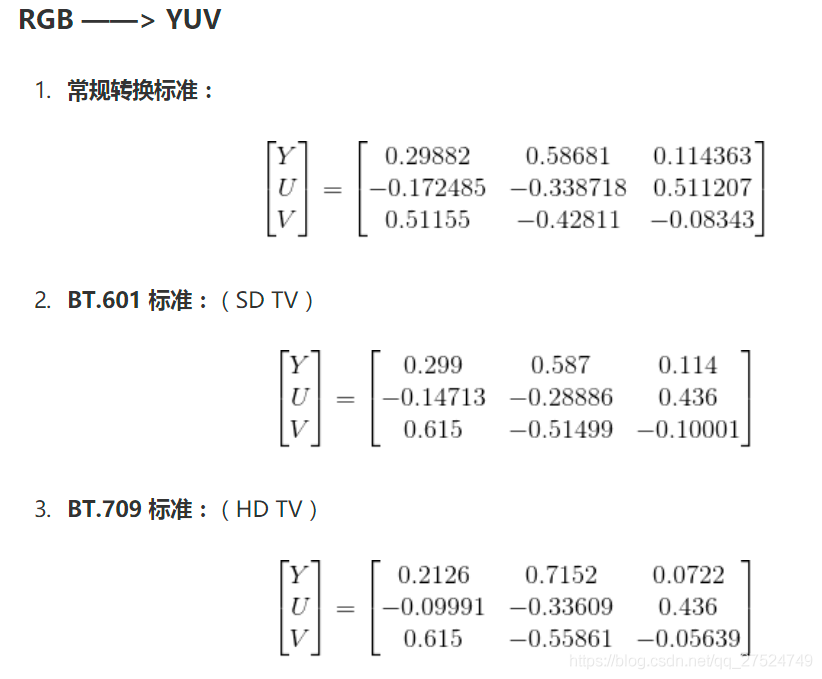

或者也可以使用矩陣運算的方式進行轉換，更加的便捷：
RGB轉YUV
先說一下RGB轉YUV的程序，先將RGB資料按照公式轉換為YUV資料，然后將YUV資料按照RGBA進行排布，這一步的目的是為了后續資料讀取，最后使用glReadPixels讀取YUV資料，
而對于OpenGL ES來說，目前它輸入只認RGBA、lumiance、luminace alpha這幾個格式，輸出大多數實作只認RGBA格式，因此輸出的資料格式雖然是YUV格式，但是在存盤時我們仍然要按照RGBA方式去訪問texture資料，
以NV21的YUV資料為例，它的記憶體大小為width x height * 3 / 2，如果是RGBA的格式存盤的話，占用的記憶體空間大小是width x height x 4（因為 RGBA 一共4個通道），很顯然它們的記憶體大小是對不上的，
那么該如何調整Opengl buffer的大小讓RGBA的輸出能對應上YUV的輸出呢？我們可以設計輸出的寬為width / 4，高為height * 3 / 2即可，
為什么是這樣的呢？雖然我們的目的是將RGB轉換成YUV，但是我們的輸入和輸出時讀取的型別GLenum是依然是RGBA，也就是說：width x height x 4 = (width / 4) x (height * 3 / 2) * 4
而YUV資料在記憶體中的分布以下這樣子的：
width / 4
|--------------|
| |
| | h
| Y |
|--------------|
| U | V |
| | | h / 2
|--------------|
那么上面的排序如果進行了歸一化之后呢，就變成了下面這樣子了：
(0,0) width / 4 (1,0)
|--------------|
| |
| | h
| Y |
|--------------| (1,2/3)
| U | V |
| | | h / 2
|--------------|
(0,1) (1,1)
從上面的排布可以看出看出，在紋理坐標y < (2/3)時，需要完成一次對整個紋理的采樣，用于生成Y資料，當紋理坐標 y > (2/3)時，同樣需要再進行一次對整個紋理的采樣，用于生成UV的資料，
同時還需要將我們的視窗設定為glViewport(0, 0, width / 4, height * 1.5);

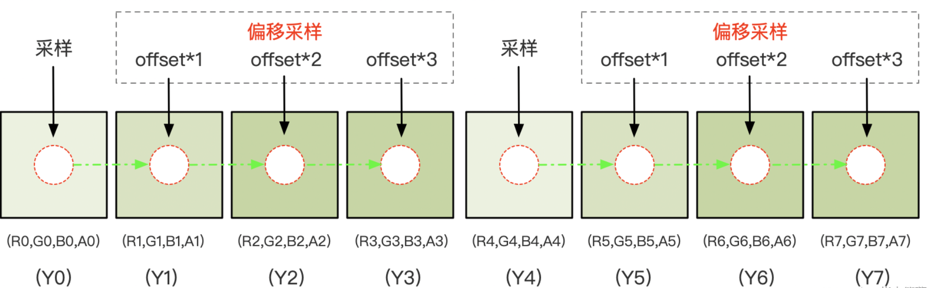

由于視口寬度設定為原來的 1/4 ，可以簡單的認為相對于原來的影像每隔4個像素做一次采樣，由于我們生成Y資料是要對每一個像素都進行采樣，所以還需要進行3次偏移采樣，

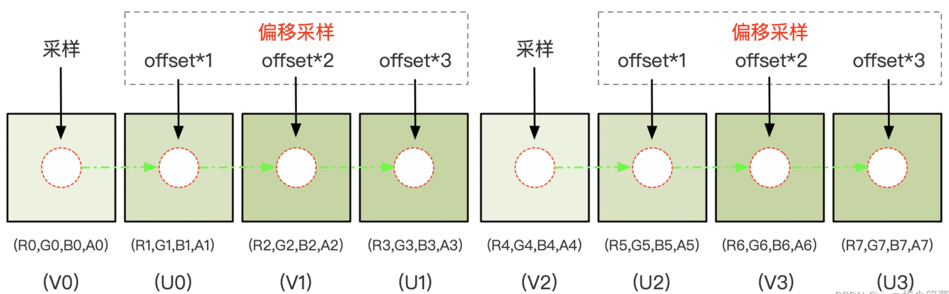

同理，生成對于UV資料也需要進行3次額外的偏移采樣，
在著色器中offset變數需要設定為一個歸一化之后的值：1.0/width, 按照原理圖，在紋理坐標 y < (2/3) 范圍，一次采樣（加三次偏移采樣）4 個 RGBA 像素（R,G,B,A）生成 1 個（Y0,Y1,Y2,Y3），整個范圍采樣結束時填充好 width*height 大小的緩沖區；
當紋理坐標 y > (2/3) 范圍，一次采樣（加三次偏移采樣）4 個 RGBA 像素（R,G,B,A）生成 1 個（V0,U0,V0,U1），又因為 UV 緩沖區的高度為 height/2 ，VU plane 在垂直方向的采樣是隔行進行，整個范圍采樣結束時填充好 width*height/2 大小的緩沖區，
主要代碼
RGBtoYUVOpengl.cpp
#include "../utils/Log.h"
#include "RGBtoYUVOpengl.h"
// 頂點著色器
static const char *ver = "#version 300 es\n"
"in vec4 aPosition;\n"
"in vec2 aTexCoord;\n"
"out vec2 v_texCoord;\n"
"void main() {\n"
" v_texCoord = aTexCoord;\n"
" gl_Position = aPosition;\n"
"}";
// 片元著色器
static const char *fragment = "#version 300 es\n"
"precision mediump float;\n"
"in vec2 v_texCoord;\n"
"layout(location = 0) out vec4 outColor;\n"
"uniform sampler2D s_TextureMap;\n"
"uniform float u_Offset;\n"
"const vec3 COEF_Y = vec3(0.299, 0.587, 0.114);\n"
"const vec3 COEF_U = vec3(-0.147, -0.289, 0.436);\n"
"const vec3 COEF_V = vec3(0.615, -0.515, -0.100);\n"
"const float UV_DIVIDE_LINE = 2.0 / 3.0;\n"
"void main(){\n"
" vec2 texelOffset = vec2(u_Offset, 0.0);\n"
" if (v_texCoord. y <= UV_DIVIDE_LINE) {\n"
" vec2 texCoord = vec2(v_texCoord. x, v_texCoord. y * 3.0 / 2.0);\n"
" vec4 color0 = texture(s_TextureMap, texCoord);\n"
" vec4 color1 = texture(s_TextureMap, texCoord + texelOffset);\n"
" vec4 color2 = texture(s_TextureMap, texCoord + texelOffset * 2.0);\n"
" vec4 color3 = texture(s_TextureMap, texCoord + texelOffset * 3.0);\n"
" float y0 = dot(color0. rgb, COEF_Y);\n"
" float y1 = dot(color1. rgb, COEF_Y);\n"
" float y2 = dot(color2. rgb, COEF_Y);\n"
" float y3 = dot(color3. rgb, COEF_Y);\n"
" outColor = vec4(y0, y1, y2, y3);\n"
" } else {\n"
" vec2 texCoord = vec2(v_texCoord.x, (v_texCoord.y - UV_DIVIDE_LINE) * 3.0);\n"
" vec4 color0 = texture(s_TextureMap, texCoord);\n"
" vec4 color1 = texture(s_TextureMap, texCoord + texelOffset);\n"
" vec4 color2 = texture(s_TextureMap, texCoord + texelOffset * 2.0);\n"
" vec4 color3 = texture(s_TextureMap, texCoord + texelOffset * 3.0);\n"
" float v0 = dot(color0. rgb, COEF_V) + 0.5;\n"
" float u0 = dot(color1. rgb, COEF_U) + 0.5;\n"
" float v1 = dot(color2. rgb, COEF_V) + 0.5;\n"
" float u1 = dot(color3. rgb, COEF_U) + 0.5;\n"
" outColor = vec4(v0, u0, v1, u1);\n"
" }\n"
"}";
// 使用繪制兩個三角形組成一個矩形的形式(三角形帶)
// 第一第二第三個點組成一個三角形，第二第三第四個點組成一個三角形
const static GLfloat VERTICES[] = {
1.0f,-1.0f, // 右下
1.0f,1.0f, // 右上
-1.0f,-1.0f, // 左下
-1.0f,1.0f // 左上
};
// FBO貼圖紋理坐標（參考手機螢屏坐標系統，原點在左下角）
// 注意坐標不要錯亂
const static GLfloat TEXTURE_COORD[] = {
1.0f,0.0f, // 右下
1.0f,1.0f, // 右上
0.0f,0.0f, // 左下
0.0f,1.0f // 左上
};
RGBtoYUVOpengl::RGBtoYUVOpengl() {
initGlProgram(ver,fragment);
positionHandle = glGetAttribLocation(program,"aPosition");
textureHandle = glGetAttribLocation(program,"aTexCoord");
textureSampler = glGetUniformLocation(program,"s_TextureMap");
u_Offset = glGetUniformLocation(program,"u_Offset");
LOGD("program:%d",program);
LOGD("positionHandle:%d",positionHandle);
LOGD("textureHandle:%d",textureHandle);
LOGD("textureSample:%d",textureSampler);
LOGD("u_Offset:%d",u_Offset);
}
RGBtoYUVOpengl::~RGBtoYUVOpengl() noexcept {
}
void RGBtoYUVOpengl::fboPrepare() {
glGenTextures(1, &fboTextureId);
// 系結紋理
glBindTexture(GL_TEXTURE_2D, fboTextureId);
// 為當前系結的紋理物件設定環繞、過濾方式
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
glBindTexture(GL_TEXTURE_2D, GL_NONE);
glGenFramebuffers(1,&fboId);
glBindFramebuffer(GL_FRAMEBUFFER,fboId);
// 系結紋理
glBindTexture(GL_TEXTURE_2D,fboTextureId);
glFramebufferTexture2D(GL_FRAMEBUFFER, GL_COLOR_ATTACHMENT0, GL_TEXTURE_2D, fboTextureId, 0);
// 這個紋理是多大的？
glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA, imageWidth / 4, imageHeight * 1.5, 0, GL_RGBA, GL_UNSIGNED_BYTE, nullptr);
// 檢查FBO狀態
if (glCheckFramebufferStatus(GL_FRAMEBUFFER)!= GL_FRAMEBUFFER_COMPLETE) {
LOGE("FBOSample::CreateFrameBufferObj glCheckFramebufferStatus status != GL_FRAMEBUFFER_COMPLETE");
}
// 解綁
glBindTexture(GL_TEXTURE_2D, GL_NONE);
glBindFramebuffer(GL_FRAMEBUFFER, GL_NONE);
}
// 渲染邏輯
void RGBtoYUVOpengl::onDraw() {
// 繪制到FBO上去
// 系結fbo
glBindFramebuffer(GL_FRAMEBUFFER, fboId);
glPixelStorei(GL_UNPACK_ALIGNMENT,1);
// 設定視口大小
glViewport(0, 0,imageWidth / 4, imageHeight * 1.5);
glClearColor(0.0f, 1.0f, 0.0f, 1.0f);
glClear(GL_COLOR_BUFFER_BIT);
glUseProgram(program);
// 激活紋理
glActiveTexture(GL_TEXTURE2);
glUniform1i(textureSampler, 2);
// 系結紋理
glBindTexture(GL_TEXTURE_2D, textureId);
// 設定偏移
float texelOffset = (float) (1.f / (float) imageWidth);
glUniform1f(u_Offset,texelOffset);
/**
* size 幾個數字表示一個點，顯示是兩個數字表示一個點
* normalized 是否需要歸一化，不用，這里已經歸一化了
* stride 步長，連續頂點之間的間隔，如果頂點直接是連續的，也可填0
*/
// 啟用頂點資料
glEnableVertexAttribArray(positionHandle);
glVertexAttribPointer(positionHandle,2,GL_FLOAT,GL_FALSE,0,VERTICES);
// 紋理坐標
glEnableVertexAttribArray(textureHandle);
glVertexAttribPointer(textureHandle,2,GL_FLOAT,GL_FALSE,0,TEXTURE_COORD);
// 4個頂點繪制兩個三角形組成矩形
glDrawArrays(GL_TRIANGLE_STRIP,0,4);
glUseProgram(0);
// 禁用頂點
glDisableVertexAttribArray(positionHandle);
if(nullptr != eglHelper){
eglHelper->swapBuffers();
}
glBindTexture(GL_TEXTURE_2D, 0);
// 解綁fbo
glBindFramebuffer(GL_FRAMEBUFFER, 0);
}
// 設定RGB影像資料
void RGBtoYUVOpengl::setPixel(void *data, int width, int height, int length) {
LOGD("texture setPixel");
imageWidth = width;
imageHeight = height;
// 準備fbo
fboPrepare();
glGenTextures(1, &textureId);
// 激活紋理，注意以下這個兩句是搭配的，glActiveTexture激活的是那個紋理，就設定的sampler2D是那個
// 默認是0，如果不是0的話，需要在onDraw的時候重新激活一下？
// glActiveTexture(GL_TEXTURE0);
// glUniform1i(textureSampler, 0);
// 例如，一樣的
glActiveTexture(GL_TEXTURE2);
glUniform1i(textureSampler, 2);
// 系結紋理
glBindTexture(GL_TEXTURE_2D, textureId);
// 為當前系結的紋理物件設定環繞、過濾方式
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA, width, height, 0, GL_RGBA, GL_UNSIGNED_BYTE, data);
// 生成mip貼圖
glGenerateMipmap(GL_TEXTURE_2D);
// 解系結
glBindTexture(GL_TEXTURE_2D, 0);
}
// 讀取渲染后的YUV資料
void RGBtoYUVOpengl::readYUV(uint8_t **data, int *width, int *height) {
// 從fbo中讀取
// 系結fbo
*width = imageWidth;
*height = imageHeight;
glBindFramebuffer(GL_FRAMEBUFFER, fboId);
glBindTexture(GL_TEXTURE_2D, fboTextureId);
glFramebufferTexture2D(GL_FRAMEBUFFER, GL_COLOR_ATTACHMENT0,
GL_TEXTURE_2D, fboTextureId, 0);
*data = https://www.cnblogs.com/goFlyer/p/new uint8_t[imageWidth * imageHeight * 3 / 2];
glReadPixels(0, 0, imageWidth / 4, imageHeight * 1.5, GL_RGBA, GL_UNSIGNED_BYTE, *data);
glBindTexture(GL_TEXTURE_2D, 0);
// 解綁fbo
glBindFramebuffer(GL_FRAMEBUFFER, 0);
}
下面是Activity的主要代碼邏輯：
public class RGBToYUVActivity extends AppCompatActivity {
protected MyGLSurfaceView myGLSurfaceView;
@Override
protected void onCreate(@Nullable Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_rgb_to_yuv);
myGLSurfaceView = findViewById(R.id.my_gl_surface_view);
myGLSurfaceView.setOpenGlListener(new MyGLSurfaceView.OnOpenGlListener() {
@Override
public BaseOpengl onOpenglCreate() {
return new RGBtoYUVOpengl();
}
@Override
public Bitmap requestBitmap() {
BitmapFactory.Options options = new BitmapFactory.Options();
options.inScaled = false;
return BitmapFactory.decodeResource(getResources(),R.mipmap.ic_smile,options);
}
@Override
public void readPixelResult(byte[] bytes) {
if (null != bytes) {
}
}
// 也就是RGBtoYUVOpengl::readYUV讀取到結果資料回呼
@Override
public void readYUVResult(byte[] bytes) {
if (null != bytes) {
String fileName = System.currentTimeMillis() + ".yuv";
File fileParent = getFilesDir();
if (!fileParent.exists()) {
fileParent.mkdirs();
}
FileOutputStream fos = null;
try {
File file = new File(fileParent, fileName);
fos = new FileOutputStream(file);
fos.write(bytes,0,bytes.length);
fos.flush();
fos.close();
Toast.makeText(RGBToYUVActivity.this, "YUV圖片保存成功" + file.getAbsolutePath(), Toast.LENGTH_LONG).show();
} catch (Exception e) {
Log.v("fly_learn_opengl", "圖片保存例外：" + e.getMessage());
Toast.makeText(RGBToYUVActivity.this, "YUV圖片保存失敗", Toast.LENGTH_LONG).show();
}
}
}
});
Button button = findViewById(R.id.bt_rgb_to_yuv);
button.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
myGLSurfaceView.readYuvData();
}
});
ImageView iv_rgb = findViewById(R.id.iv_rgb);
iv_rgb.setImageResource(R.mipmap.ic_smile);
}
}
以下是自定義SurfaceView的代碼：
public class MyGLSurfaceView extends SurfaceView implements SurfaceHolder.Callback {
private final static int MSG_CREATE_GL = 101;
private final static int MSG_CHANGE_GL = 102;
private final static int MSG_DRAW_GL = 103;
private final static int MSG_DESTROY_GL = 104;
private final static int MSG_READ_PIXEL_GL = 105;
private final static int MSG_UPDATE_BITMAP_GL = 106;
private final static int MSG_UPDATE_YUV_GL = 107;
private final static int MSG_READ_YUV_GL = 108;
public BaseOpengl baseOpengl;
private OnOpenGlListener onOpenGlListener;
private HandlerThread handlerThread;
private Handler renderHandler;
public int surfaceWidth;
public int surfaceHeight;
public MyGLSurfaceView(Context context) {
this(context,null);
}
public MyGLSurfaceView(Context context, AttributeSet attrs) {
super(context, attrs);
getHolder().addCallback(this);
handlerThread = new HandlerThread("RenderHandlerThread");
handlerThread.start();
renderHandler = new Handler(handlerThread.getLooper()){
@Override
public void handleMessage(@NonNull Message msg) {
switch (msg.what){
case MSG_CREATE_GL:
baseOpengl = onOpenGlListener.onOpenglCreate();
Surface surface = (Surface) msg.obj;
if(null != baseOpengl){
baseOpengl.surfaceCreated(surface);
Bitmap bitmap = onOpenGlListener.requestBitmap();
if(null != bitmap){
baseOpengl.setBitmap(bitmap);
}
}
break;
case MSG_CHANGE_GL:
if(null != baseOpengl){
Size size = (Size) msg.obj;
baseOpengl.surfaceChanged(size.getWidth(),size.getHeight());
}
break;
case MSG_DRAW_GL:
if(null != baseOpengl){
baseOpengl.onGlDraw();
}
break;
case MSG_READ_PIXEL_GL:
if(null != baseOpengl){
byte[] bytes = baseOpengl.readPixel();
if(null != bytes && null != onOpenGlListener){
onOpenGlListener.readPixelResult(bytes);
}
}
break;
case MSG_READ_YUV_GL:
if(null != baseOpengl){
byte[] bytes = baseOpengl.readYUVResult();
if(null != bytes && null != onOpenGlListener){
onOpenGlListener.readYUVResult(bytes);
}
}
break;
case MSG_UPDATE_BITMAP_GL:
if(null != baseOpengl){
Bitmap bitmap = onOpenGlListener.requestBitmap();
if(null != bitmap){
baseOpengl.setBitmap(bitmap);
baseOpengl.onGlDraw();
}
}
break;
case MSG_UPDATE_YUV_GL:
if(null != baseOpengl){
YUVBean yuvBean = (YUVBean) msg.obj;
if(null != yuvBean){
baseOpengl.setYuvData(yuvBean.getyData(),yuvBean.getUvData(),yuvBean.getWidth(),yuvBean.getHeight());
baseOpengl.onGlDraw();
}
}
break;
case MSG_DESTROY_GL:
if(null != baseOpengl){
baseOpengl.surfaceDestroyed();
}
break;
}
}
};
}
public void setOpenGlListener(OnOpenGlListener listener) {
this.onOpenGlListener = listener;
}
@Override
public void surfaceCreated(@NonNull SurfaceHolder surfaceHolder) {
Message message = Message.obtain();
message.what = MSG_CREATE_GL;
message.obj = surfaceHolder.getSurface();
renderHandler.sendMessage(message);
}
@Override
public void surfaceChanged(@NonNull SurfaceHolder surfaceHolder, int i, int w, int h) {
Message message = Message.obtain();
message.what = MSG_CHANGE_GL;
message.obj = new Size(w,h);
renderHandler.sendMessage(message);
Message message1 = Message.obtain();
message1.what = MSG_DRAW_GL;
renderHandler.sendMessage(message1);
surfaceWidth = w;
surfaceHeight = h;
}
@Override
public void surfaceDestroyed(@NonNull SurfaceHolder surfaceHolder) {
Message message = Message.obtain();
message.what = MSG_DESTROY_GL;
renderHandler.sendMessage(message);
}
public void readGlPixel(){
Message message = Message.obtain();
message.what = MSG_READ_PIXEL_GL;
renderHandler.sendMessage(message);
}
public void readYuvData(){
Message message = Message.obtain();
message.what = MSG_READ_YUV_GL;
renderHandler.sendMessage(message);
}
public void updateBitmap(){
Message message = Message.obtain();
message.what = MSG_UPDATE_BITMAP_GL;
renderHandler.sendMessage(message);
}
public void setYuvData(byte[] yData,byte[] uvData,int width,int height){
Message message = Message.obtain();
message.what = MSG_UPDATE_YUV_GL;
message.obj = new YUVBean(yData,uvData,width,height);
renderHandler.sendMessage(message);
}
public void release(){
// todo 主要執行緒同步問題，當心surfaceDestroyed還沒有執行到，但是就被release了，那就記憶體泄漏了
if(null != baseOpengl){
baseOpengl.release();
}
}
public void requestRender(){
Message message = Message.obtain();
message.what = MSG_DRAW_GL;
renderHandler.sendMessage(message);
}
public interface OnOpenGlListener{
BaseOpengl onOpenglCreate();
Bitmap requestBitmap();
void readPixelResult(byte[] bytes);
void readYUVResult(byte[] bytes);
}
}
BaseOpengl的java代碼：
public class BaseOpengl {
public static final int YUV_DATA_TYPE_NV12 = 0;
public static final int YUV_DATA_TYPE_NV21 = 1;
// 三角形
public static final int DRAW_TYPE_TRIANGLE = 0;
// 四邊形
public static final int DRAW_TYPE_RECT = 1;
// 紋理貼圖
public static final int DRAW_TYPE_TEXTURE_MAP = 2;
// 矩陣變換
public static final int DRAW_TYPE_MATRIX_TRANSFORM = 3;
// VBO/VAO
public static final int DRAW_TYPE_VBO_VAO = 4;
// EBO
public static final int DRAW_TYPE_EBO_IBO = 5;
// FBO
public static final int DRAW_TYPE_FBO = 6;
// PBO
public static final int DRAW_TYPE_PBO = 7;
// YUV nv12與nv21渲染
public static final int DRAW_YUV_RENDER = 8;
// 將rgb影像轉換城nv21
public static final int DRAW_RGB_TO_YUV = 9;
public long glNativePtr;
protected EGLHelper eglHelper;
protected int drawType;
public BaseOpengl(int drawType) {
this.drawType = drawType;
this.eglHelper = new EGLHelper();
}
public void surfaceCreated(Surface surface) {
Log.v("fly_learn_opengl","------------surfaceCreated:" + surface);
eglHelper.surfaceCreated(surface);
}
public void surfaceChanged(int width, int height) {
Log.v("fly_learn_opengl","------------surfaceChanged:" + Thread.currentThread());
eglHelper.surfaceChanged(width,height);
}
public void surfaceDestroyed() {
Log.v("fly_learn_opengl","------------surfaceDestroyed:" + Thread.currentThread());
eglHelper.surfaceDestroyed();
}
public void release(){
if(glNativePtr != 0){
n_free(glNativePtr,drawType);
glNativePtr = 0;
}
}
public void onGlDraw(){
Log.v("fly_learn_opengl","------------onDraw:" + Thread.currentThread());
if(glNativePtr == 0){
glNativePtr = n_gl_nativeInit(eglHelper.nativePtr,drawType);
}
if(glNativePtr != 0){
n_onGlDraw(glNativePtr,drawType);
}
}
public void setBitmap(Bitmap bitmap){
if(glNativePtr == 0){
glNativePtr = n_gl_nativeInit(eglHelper.nativePtr,drawType);
}
if(glNativePtr != 0){
n_setBitmap(glNativePtr,bitmap);
}
}
public void setYuvData(byte[] yData,byte[] uvData,int width,int height){
if(glNativePtr != 0){
n_setYuvData(glNativePtr,yData,uvData,width,height,drawType);
}
}
public void setMvpMatrix(float[] mvp){
if(glNativePtr == 0){
glNativePtr = n_gl_nativeInit(eglHelper.nativePtr,drawType);
}
if(glNativePtr != 0){
n_setMvpMatrix(glNativePtr,mvp);
}
}
public byte[] readPixel(){
if(glNativePtr != 0){
return n_readPixel(glNativePtr,drawType);
}
return null;
}
public byte[] readYUVResult(){
if(glNativePtr != 0){
return n_readYUV(glNativePtr,drawType);
}
return null;
}
// 繪制
private native void n_onGlDraw(long ptr,int drawType);
private native void n_setMvpMatrix(long ptr,float[] mvp);
private native void n_setBitmap(long ptr,Bitmap bitmap);
protected native long n_gl_nativeInit(long eglPtr,int drawType);
private native void n_free(long ptr,int drawType);
private native byte[] n_readPixel(long ptr,int drawType);
private native byte[] n_readYUV(long ptr,int drawType);
private native void n_setYuvData(long ptr,byte[] yData,byte[] uvData,int width,int height,int drawType);
}
將轉換后的YUV資料讀取保存好后，可以將資料拉取到電腦上使用YUVViewer這個軟體查看是否真正轉換成功，
參考
https://juejin.cn/post/7025223104569802789
專欄系列
Opengl ES之EGL環境搭建
Opengl ES之著色器
Opengl ES之三角形繪制
Opengl ES之四邊形繪制
Opengl ES之紋理貼圖
Opengl ES之VBO和VAO
Opengl ES之EBO
Opengl ES之FBO
Opengl ES之PBO
Opengl ES之YUV資料渲染
YUV轉RGB的一些理論知識
關注我，一起進步，人生不止coding！！！
轉載請註明出處，本文鏈接：https://www.uj5u.com/yidong/542119.html
標籤：Android
