使用說明

[[SPClipTool shareClipTool] sp_clipOriginImage:pickerImage complete:^(UIImage * _Nonnull image) {
	// 獲取到裁剪后的image 后續操作
}];

需求

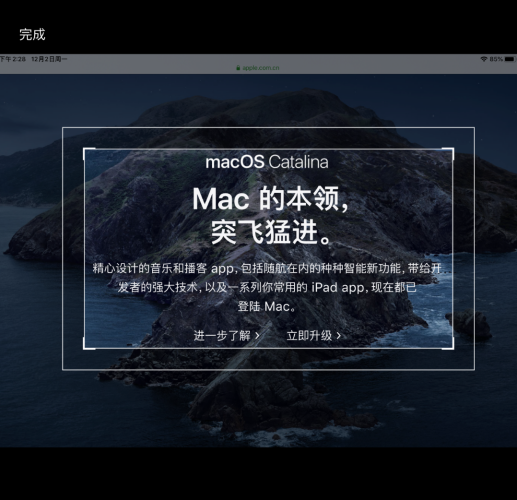

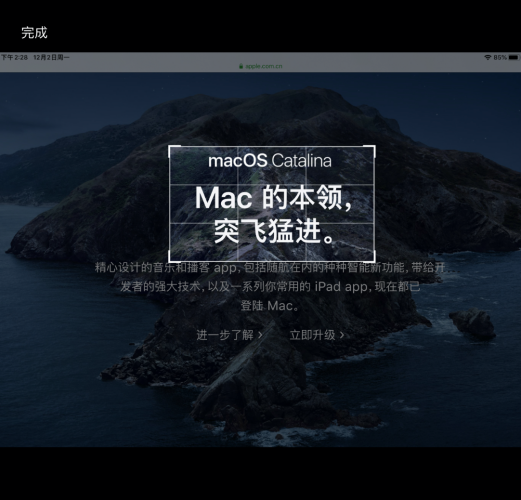

圖片裁剪，效果如下圖，支持圖片拖拽，縮放，裁剪框自由變換大小，

思路

兩個UIImageView，一個做背景，并加上蒙版效果，另外一個通過蒙版控制顯示區域，并且保證兩個UIImageView平移和縮放的時候完全重疊，最后使用一個UIView來做互動，繪制三分網格線（專業術語我不知道叫啥，截圖時一個參照，2/3 ≈0.667 接近黃金比0.618），

注意

坐標系轉換問題，
mask靈活使用問題，
手勢的處理和三分網格線繪制的時候，計算線條寬度和長度需要特別注意，
為了增強用戶體驗，在裁剪框邊緣互動設計的時候，注意額外增加用戶的可操控范圍，

實作

初始化兩個UIImageView，一個做背景圖（backgroudImageView），一個用來顯示裁剪區域（clipImageView），拖拽手勢加到了clipImageView，

- (void)setupImageView {
    // backgroudImageView
    UIImageView *backgroudImageView = [[UIImageView alloc] initWithFrame:self.view.bounds];
    backgroudImageView.contentMode = UIViewContentModeScaleAspectFit;
    backgroudImageView.image = self.originImage;
    [self.view addSubview:backgroudImageView];
    self.backgroudImageView = backgroudImageView;
    backgroudImageView.layer.mask = [[CALayer alloc] init];
    backgroudImageView.layer.mask.frame = backgroudImageView.bounds;
    backgroudImageView.layer.mask.backgroundColor = [UIColor colorWithWhite:1 alpha:0.5].CGColor;

    // clipImageView
    UIImageView *clipImageView = [[UIImageView alloc] initWithFrame:backgroudImageView.frame];
    clipImageView.userInteractionEnabled = YES;
    clipImageView.image = backgroudImageView.image;
    clipImageView.contentMode = backgroudImageView.contentMode;
    [self.view addSubview:clipImageView];
    self.clipImageView = clipImageView;
    clipImageView.layer.mask = [[CALayer alloc] init];
    clipImageView.layer.mask.backgroundColor = [UIColor whiteColor].CGColor;
    clipImageView.layer.mask.borderColor = [UIColor whiteColor].CGColor;
    clipImageView.layer.mask.borderWidth = 1;
    [clipImageView.layer.mask removeAllAnimations];

    UIPanGestureRecognizer *panGesture = [[UIPanGestureRecognizer alloc] initWithTarget:self action:@selector(imagePan:)];
    [clipImageView addGestureRecognizer:panGesture];
}

初始化用于裁剪互動的SPClipView

- (void)setupClipView {
    SPClipView *clipView = [[SPClipView alloc] init];
    clipView.backgroundColor = [UIColor clearColor];
  	// 打開下面兩行注釋，可以查看真實clipView的大小，
//    clipView.layer.borderColor = [UIColor whiteColor].CGColor;
//    clipView.layer.borderWidth = 1;
    [self.view addSubview:clipView];
    self.clipView = clipView;
    // 獲取真實frame
    dispatch_after(dispatch_time(DISPATCH_TIME_NOW, (int64_t)(0.1 * NSEC_PER_SEC)), dispatch_get_main_queue(), ^{
        clipView.frame = CGRectMake(0, 0, self.view.width / 1.5, self.view.height / 1.5);
          clipView.center = self.view.center;
        self.backgroudImageView.frame = self.view.bounds;
        self.clipImageView.frame = self.backgroudImageView.frame;
        [self dealMask];
    });

    UIPanGestureRecognizer *panGesture = [[UIPanGestureRecognizer alloc] initWithTarget:self action:@selector(clipPan:)];
    [clipView addGestureRecognizer:panGesture];

    UIPinchGestureRecognizer *pinchGesture = [[UIPinchGestureRecognizer alloc] initWithTarget:self action:@selector(pinchGestureAction:)];
    [self.view addGestureRecognizer:pinchGesture];
}

手勢處理

#pragma mark- UIPanGestureRecognizer
- (void)clipPan:(UIPanGestureRecognizer *)panGesture {
    CGPoint point = [panGesture translationInView:self.clipView];
    self.clipView.origin = [self.clipView convertPoint:point toView:self.view];
    [self expandClipView:panGesture];
    [self dealGuideLine:panGesture];
    [self dealMask];
    [panGesture setTranslation:CGPointMake(0, 0) inView:self.view];
}

- (void)imagePan:(UIPanGestureRecognizer *)panGesture {
    CGPoint point = [panGesture translationInView:self.clipImageView];
    self.clipImageView.origin = [self.clipImageView convertPoint:point toView:self.view];
    self.backgroudImageView.center = self.clipImageView.center;
    [self dealGuideLine:panGesture];
    [self dealMask];
    [panGesture setTranslation:CGPointMake(0, 0) inView:self.view];
}

#pragma mark- UIPinchGestureRecognizer
- (void)pinchGestureAction:(UIPinchGestureRecognizer *)pinchGesture {
    switch (pinchGesture.state) {
        case UIGestureRecognizerStateBegan: {
            if (lastScale <= minScale) {
                lastScale = minScale;
            }else if (lastScale >= maxScale) {
                lastScale = maxScale;
            }
            self.clipImageViewCenter = self.clipImageView.center;
            self.clipView.showGuideLine = YES;
        }
        case UIGestureRecognizerStateChanged: {
            CGFloat currentScale = lastScale + pinchGesture.scale - 1;
            if (currentScale > minScale && currentScale < maxScale) {
                [self dealViewScale:currentScale];
            }
        }
            break;
        case UIGestureRecognizerStateEnded:
            lastScale += (pinchGesture.scale - 1);
            self.clipView.showGuideLine = NO;
            [self.clipView setNeedsDisplay];
        default:
            break;
    }
}

#pragma mark- Action
- (void)dealViewScale:(CGFloat)currentScale {
    self.clipImageView.width = currentScale * self.view.width;
    self.clipImageView.height = currentScale * self.view.height;
    self.clipImageView.center = self.clipImageViewCenter;
    self.backgroudImageView.frame = self.clipImageView.frame;
    self.backgroudImageView.layer.mask.frame = self.backgroudImageView.bounds;
    [self.backgroudImageView.layer.mask removeAllAnimations];
    [self dealMask];
}

- (void)expandClipView:(UIPanGestureRecognizer *)panGesture {
    CGPoint point = [panGesture translationInView:self.clipImageView];
    CGFloat margin = 60;
    CGFloat minValue = https://www.cnblogs.com/chao8888/p/margin;
    if (panGesture.numberOfTouches) {
        CGPoint location = [panGesture locationOfTouch:0 inView:panGesture.view];
        if (location.x < margin) {
            self.clipView.width = MAX(self.clipView.width -= point.x, minValue);
        }
        if ((self.clipView.width - location.x) < margin) {
            self.clipView.frame = CGRectMake(self.clipView.x - point.x, self.clipView.y, self.clipView.width + point.x, self.clipView.height);
        }
        if (location.y < margin) {
            self.clipView.height = MAX(self.clipView.height -= point.y, minValue);
        }
        if ((self.clipView.height - location.y) < margin) {
            self.clipView.frame = CGRectMake(self.clipView.x , self.clipView.y - point.y, self.clipView.width, self.clipView.height + point.y);
        }
    }
}

- (void)dealGuideLine:(UIPanGestureRecognizer *)panGesture  {
    switch (panGesture.state) {
        case UIGestureRecognizerStateBegan:
            self.clipView.showGuideLine = YES;
            break;
        case UIGestureRecognizerStateEnded:
            self.clipView.showGuideLine = NO;
            break;
        default:
            break;
    }
}

- (void)dealMask {
    // 額外增加拖拉區域 增強邊緣手勢體驗
    CGFloat margin = 30;
    CGRect rect = [self.view convertRect:self.clipView.frame toView:self.clipImageView];
    self.clipImageView.layer.mask.frame = CGRectMake(rect.origin.x + margin, rect.origin.y + margin, rect.size.width - 2 * margin, rect.size.height - 2 * margin);
    [self.clipView setNeedsDisplay];
    [self.clipImageView.layer.mask removeAllAnimations];
}

圖片裁剪

- (void)clipImage {

    CGSize size = self.view.bounds.size;
    UIGraphicsBeginImageContextWithOptions(size, NO, [UIScreen mainScreen].scale);
    [self.view drawViewHierarchyInRect:self.view.bounds afterScreenUpdates:NO];
    UIImage *image = UIGraphicsGetImageFromCurrentImageContext();
    CGImageRef cgImage = [image CGImage];
    CGRect rect = [self.clipImageView convertRect:self.clipImageView.layer.mask.frame toView:self.view];

    // 邊框線條寬度值
    CGFloat borderW = 1;
    CGImageRef cgClipImage = CGImageCreateWithImageInRect(cgImage, CGRectMake((rect.origin.x + borderW / 2) * image.scale, (rect.origin.y + borderW / 2) * image.scale, (rect.size.width - borderW) * image.scale, (rect.size.height - borderW) * image.scale));
    UIGraphicsEndImageContext();
    if (self.complete) {
        self.complete([UIImage imageWithCGImage:cgClipImage]);

    }
    [self dismissViewControllerAnimated:YES completion:nil];
}

裁剪區域繪制

在這里，裁剪區域的矩形框我并沒有直接采用clipView的fram大小，而是在其內部繪制了一個矩形框，為了讓用戶在調節邊緣的時候更靈活，不然只有當手指在邊框內部邊緣才能觸發調節邊框大小的事件，如下圖，可以看到clipView真實的大小（外框），

@implementation SPClipView

- (void)drawRect:(CGRect)rect {
    // Drawing code
    CGContextRef currentContext = UIGraphicsGetCurrentContext();
    CGContextSetStrokeColorWithColor(currentContext, [UIColor whiteColor].CGColor);
    CGContextSetLineWidth(currentContext, 1);
    // 額外增加拖拉區域 增強邊緣手勢體驗，該值應該和上文- (void)dealMask；方法中的margin一致
    CGFloat margin = 30;

  	// 繪制矩形框
    CGContextAddRect(currentContext, CGRectMake(margin, margin, self.width - 2 * margin, self.height - 2 * margin));
    CGContextStrokePath(currentContext);

    // 繪制三分線
    CGFloat maskW = self.width - 2 * margin;
    CGFloat maskH = self.height - 2 * margin;
    CGContextSetLineWidth(currentContext, 0.5);
    if (self.showGuideLine) {
        CGContextSetStrokeColorWithColor(currentContext, [UIColor whiteColor].CGColor);
    }else {
        CGContextSetStrokeColorWithColor(currentContext, [UIColor clearColor].CGColor);
    }
    CGContextMoveToPoint(currentContext, margin, maskH / 3 + margin);
    CGContextAddLineToPoint(currentContext, self.width - margin, maskH / 3 + margin);
    CGContextMoveToPoint(currentContext, margin, 2 / 3.0 * maskH + margin);
    CGContextAddLineToPoint(currentContext, self.width - margin, 2 / 3.0 * maskH + margin);

    CGContextMoveToPoint(currentContext, maskW / 3 + margin, margin);
    CGContextAddLineToPoint(currentContext, maskW  / 3+ margin, self.height - margin);
    CGContextMoveToPoint(currentContext, 2 / 3.0 * maskW + margin, margin);
    CGContextAddLineToPoint(currentContext, 2 / 3.0 * maskW + margin, self.height - margin);

    CGContextStrokePath(currentContext);

    // 繪制四角
    CGFloat cornerL = 15;
    CGFloat cornerLW = 2;
  	// 實際的長度
    CGFloat cornerRL = cornerL + cornerLW;
    CGPoint originH = CGPointMake(margin - cornerLW, margin - cornerLW / 2);
    CGPoint originV = CGPointMake(margin - cornerLW / 2, margin - cornerLW);
    CGContextSetStrokeColorWithColor(currentContext, [UIColor whiteColor].CGColor);
    CGContextSetLineWidth(currentContext, cornerLW);

    // 左上
    CGContextMoveToPoint(currentContext, originH.x, originH.y);
    CGContextAddLineToPoint(currentContext, originH.x + cornerRL, originH.y);
    CGContextMoveToPoint(currentContext, originV.x, originV.y);
    CGContextAddLineToPoint(currentContext, originV.x, originV.y + cornerRL);

    // 左下
    CGContextMoveToPoint(currentContext, originH.x, originH.y + maskH + cornerLW);
    CGContextAddLineToPoint(currentContext, originH.x + cornerRL, originH.y + maskH + cornerLW);
    CGContextMoveToPoint(currentContext, originV.x, originV.y + maskH + 2 * cornerLW);
    CGContextAddLineToPoint(currentContext, originV.x, originV.y + maskH + 2 * cornerLW - cornerRL);

    // 右上
    CGContextMoveToPoint(currentContext, originH.x + maskW + 2 * cornerLW, originH.y);
    CGContextAddLineToPoint(currentContext, originH.x + maskW + 2 * cornerLW - cornerRL, originH.y);
    CGContextMoveToPoint(currentContext, originV.x + maskW + cornerLW, originV.y);
    CGContextAddLineToPoint(currentContext, originV.x + maskW + cornerLW, originV.y + cornerRL);

    // 右下
    CGContextMoveToPoint(currentContext, originH.x + maskW + 2 * cornerLW, originH.y + maskH + cornerLW);
    CGContextAddLineToPoint(currentContext, originH.x + maskW + 2 * cornerLW - cornerRL, originH.y + maskH + cornerLW);
    CGContextMoveToPoint(currentContext, originV.x + maskW + cornerLW, originV.y + maskH + 2 * cornerLW);
    CGContextAddLineToPoint(currentContext, originV.x + maskW + cornerLW, originV.y + maskH + 2 * cornerLW - cornerRL);

    CGContextStrokePath(currentContext);
}

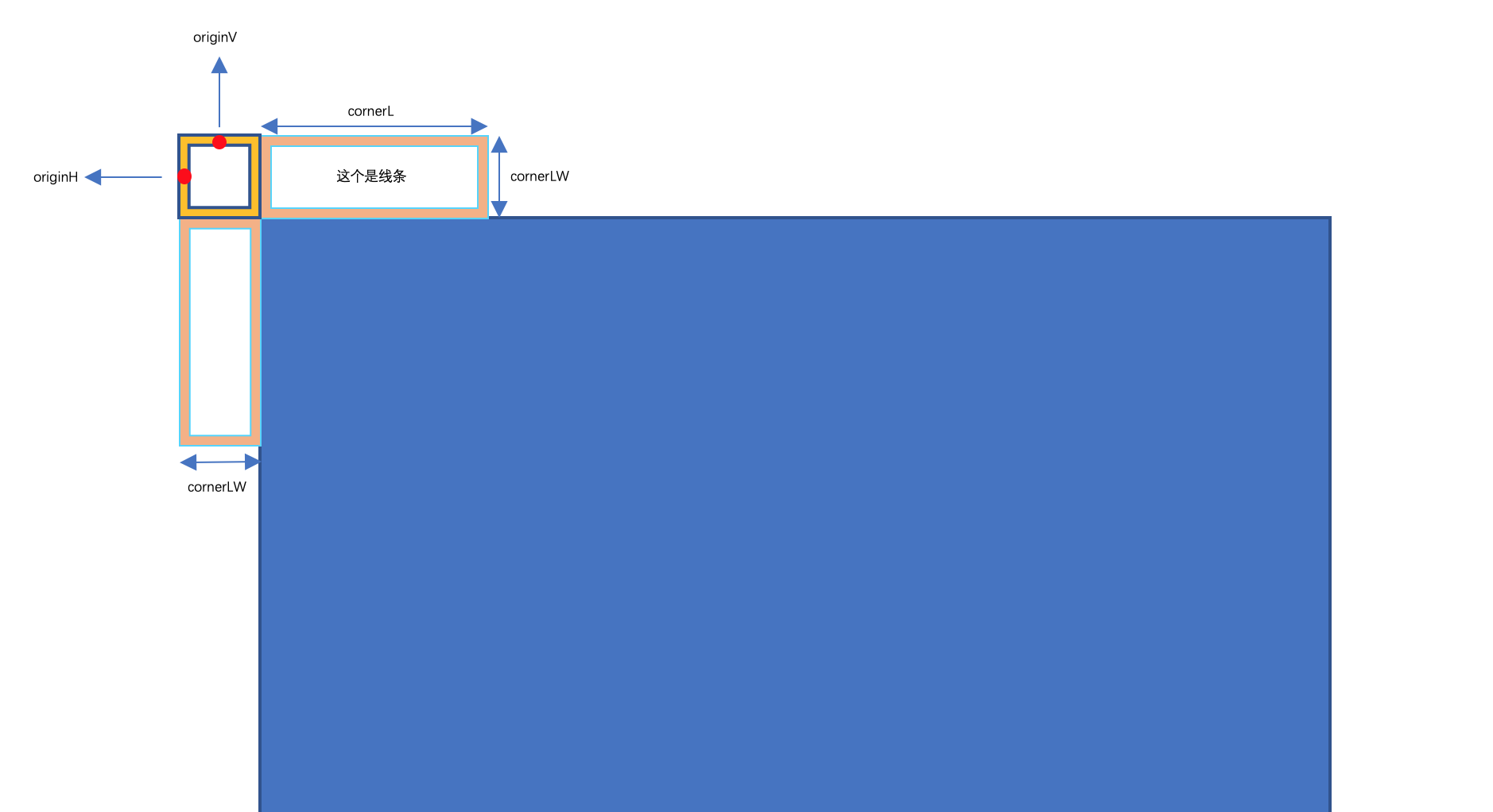

這里一定要注意線條的寬度，線條是有寬度的，繪制路徑位于線條的中心位置，
