概要

Modbus是OSI模型第七層上的應用層報文傳輸協議，最早由施耐德出版，后將其轉讓，現已變成工業自動化等領域里一種常見的、約定俗成的標準通訊協議標準，該標準包括兩個通訊規程中使用的Modbus應用層協議和服務規范：

串行鏈路上的Modbus

Modbus串行鏈路取決于TIA/EIA標準：232-F和485-A.

• Modbus RTU：用于串行通信，并使用緊湊的二進制資料表示協議通信， RTU 格式遵循命令/資料，回圈冗余校驗和校驗和作為錯誤檢查機制，以確保資料的可靠性， Modbus RTU 是 Modbus 最常用的實作方式，必須連續傳輸 Modbus RTU 訊息，而不會出現字符間的猶豫， Modbus 訊息由空閑（靜默）時段構成（分離），
• Modbus ASCII：用于串行通信，并使用 ASCII 字符進行協議通信， ASCII 格式使用縱向冗余校驗校驗和， Modbus ASCII 訊息由前導冒號（“：”）和尾隨換行符（CR / LF）構成，

TCP/IP上的Modbus

Modbus Internet協議應用取決于IETF標準：RFC793和RFC791.

• Modbus TCP / IP或Modbus TCP：這是一種 Modbus 變體，用于通過 TCP / IP 網路進行通信，通過埠 502 連接，它不需要校驗和計算，因為較低層已經提供校驗和保護，
• TCP / IP上的Modbus或TCP上的Modbus或Modbus RTU / IP：也是一種 Modbus 變體，與 Modbus TCP 的不同之處在于，與 Modbus RTU 一樣，有效載荷中包含校驗和，
• 基于UDP的Modbus ：在IP網路上使用 Modbus UDP ，可消除了 TCP 所需的開銷，

除此之外，還存在一些在標準PLC設備上的標準通訊協議，再此不做詳細說明

Modbus物件型別

以下是 Modbus 從站設備向 Modbus 主站設備提供的物件型別表

Modbus幀格式

Modbus協議定義了一個與基礎通信層無關的簡單協議資料單元（PDU），特定總線或網路上的Modbus協議映射能夠在應用資料單元（ADU）上引入一些附加域，

• Modbus_RTU幀格式

ADU = 地址域 + PDU(功能碼 + 資料） + 差錯校驗（CRC），主要應用于485等異步線路

• Modbus ASCII 幀格式

ADU = 地址域 + PDU(功能碼 + 資料） + 差錯校驗(LRC)，主要用于 7 位或 8 位異步串行線

• Modbus TCP幀格式

ADU = MBMP報文頭 + PDU(功能碼 + 資料），主要用于以太網，資料傳輸遵循大端順序，即高位在前低位在后

CRC / LRC校驗，現在還不太明白，后續自己應該跟進一下

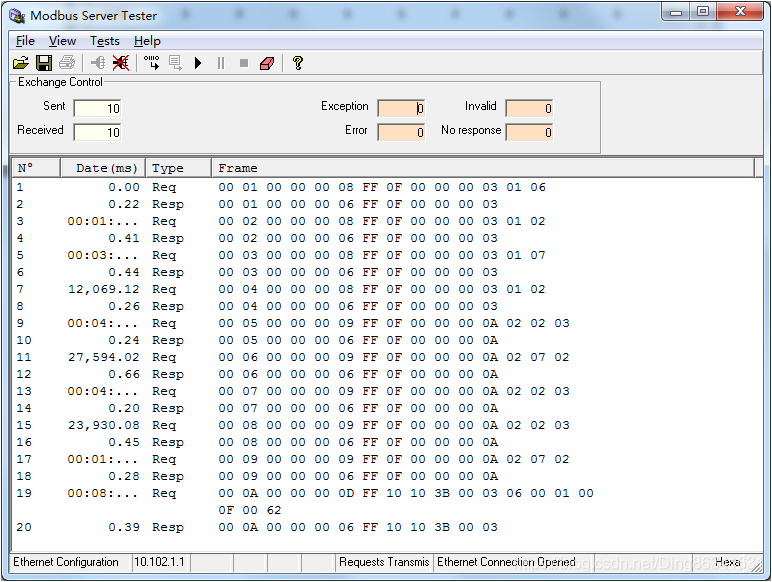

主要功能代碼的請求與回應格式

使用環境為Modbus_tcp,所以以下測驗及例子皆是在Tcp/Ip環境下使用

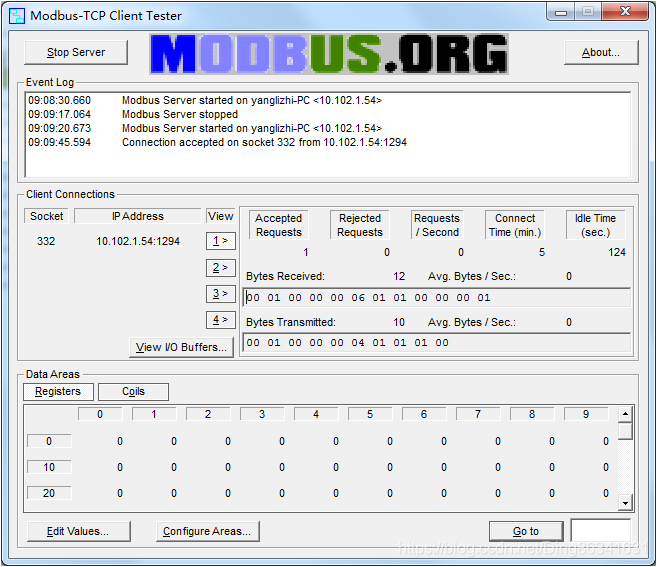

• 讀單個/多（3）個線圈

由于應答訊息中回傳的位元組數僅為 8 位寬，協議開銷為 5 位元組，因此最多可以同時讀取 2000（250 x 8）個離散輸入或線圈，

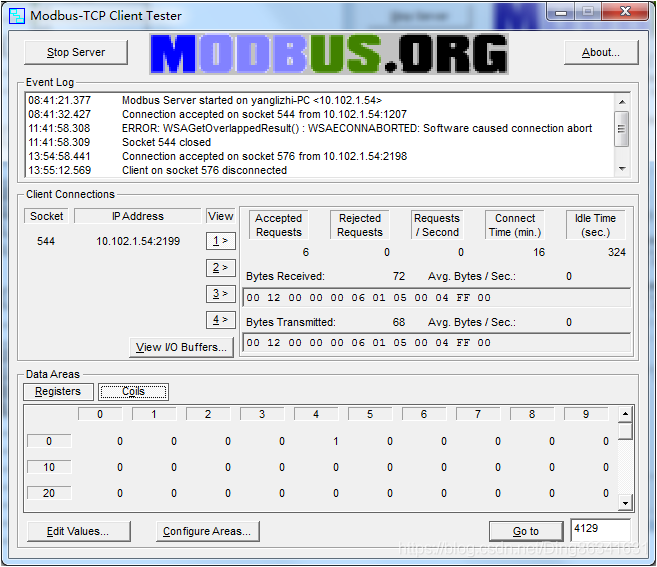

• 寫單個線圈

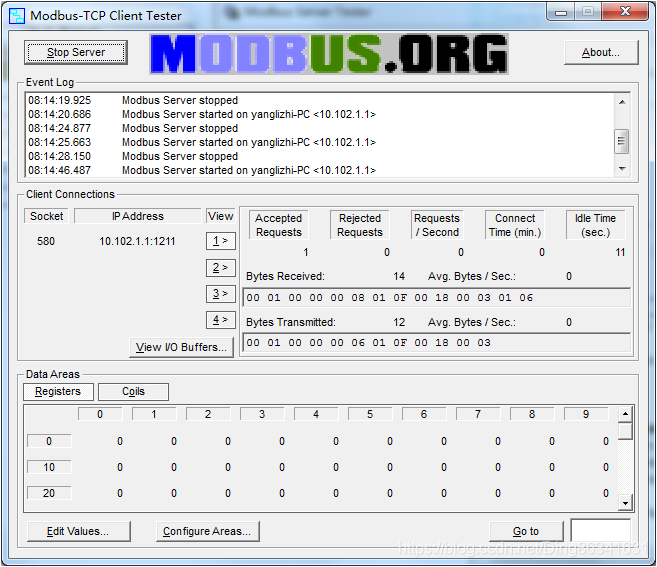

• 寫多個線圈

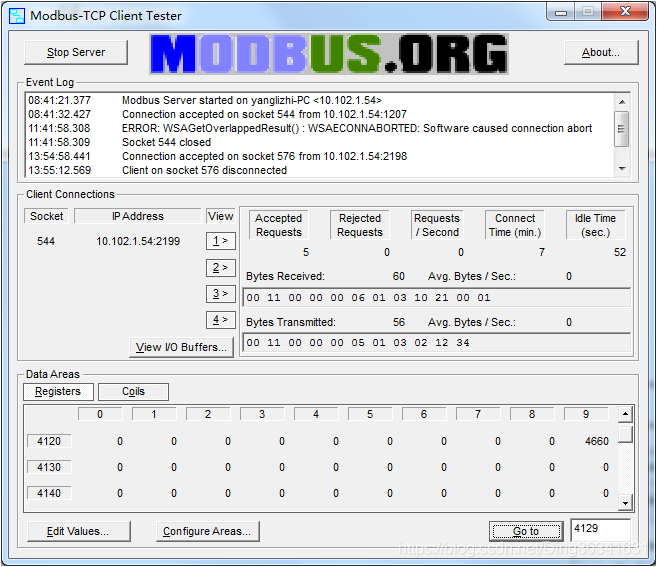

• 讀單個/多個保持暫存器（03是讀取輸入暫存器，04是讀取保持暫存器）

由于暫存器值的位元組數為 8 位寬，因此一次只能讀取 125 個暫存器，

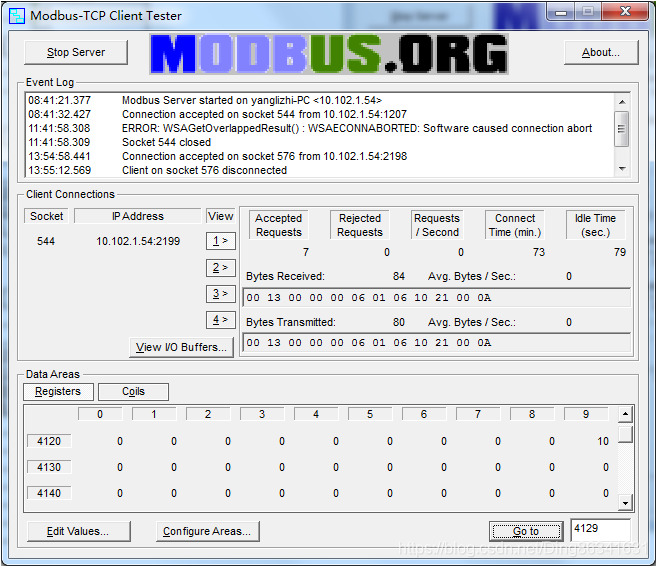

• 寫單個保持暫存器

• 寫多個保持暫存器

由于暫存器值為 2 位元組寬，并且只能發送 127 個位元組的值，因此一次只能預置/寫入 63 個保持暫存器，

• 例外處理

對于正常回應，從站重復功能代碼， 如果從站想報告錯誤，它將回復所請求的功能代碼加上 128（十六進制 0x80）（ 舉例子：3 變為 131 = 十六進制 0x83），并且只包含一個位元組的資料，稱為例外代碼，

現在來講實作了

專案中主要寫的是Client端代碼

/****************************************************************************************
Copyright (C),						2020-2021,							Siasun Robot & Automation Co., Ltd
File Name:								ModbusTCP.h
Author: 				Version:1.0.0							Date2020/04/19
Description:							Modbus_tcp類頭檔案
Other:
// ModbusTCP.h: interface for the ModbusTCP class.
Function List:
****************************************************************************************/
#ifndef MODBUSPP_MODBUS_H
#define MODBUSPP_MODBUS_H
#include <string>
#include <iostream>
#include <stdint.h>
#include <stdio.h>
#include <io.h>
#include <process.h>					//io.h與process.h檔案用來替換unistd.h頭檔案
#include <WinSock.h>
#include "word.h"
#include <map>
//功能碼
#define		READ_COILS					0x01				//讀取線圈
#define		READ_INPUT_BITS				0x02				//讀取輸入線圈
#define		READ_REGS					0x03				//讀保持暫存器
#define		READ_INPUT_REGS				0x04				//讀取輸入暫存器
#define		WRITE_COIL					0x05				//寫單線圈
#define		WRITE_REG					0x06				//寫單個保持暫存器
#define		WRITE_COILS					0x0F				//寫多線圈
#define		WRITE_REGS					0x10				//寫多個保持暫存器的功能碼
//錯誤回傳值
#define		EX_ILLEGAL_FUNCTION		    0x01				//功能碼不支持
#define		EX_ILLEGAL_ADDRESS			0x02				//非法地址
#define		EX_ILLEGAL_VALUE			0x03				//非法資料
#define		EX_SERVER_FAILURE			0x04				//從站錯誤
#define		EX_ACKNOWLEDGE				0x05				//通信超時
#define		EX_SERVER_BUSY				0x06
#define		EX_NEGATIVE_ACK				0x07
#define		EX_MEM_PARITY_PROB		    0x08
#define		EX_GATEWAY_PROBLEMP	        0x0A
#define		EX_GATEWYA_PROBLEMF	        0x0B

#define		EX_BAD_DATA					0xFF
#define		DISCONNECT					0x0C

#define MAX_MSG_LENGTH					260

class ModbusTCP
{
public:
	bool m_bConnect;
	SOCKET m_socket;				    //通信的SOCKET
	int m_iSlaveID;						//從站ID
	int m_iMsgID;
	bool err;
	int err_no;
	std::string error_msg;
public:
	ModbusTCP();
	virtual ~ModbusTCP();
	/// <summary>
	/// 服務器連接
	/// <param name="serverIP">服務器IP地址</param>
	/// <param name="serverPort">服務器埠號</param>
	/// <returns>0:連接成功 其他連接失敗 具體看回傳值</returns>
	int ConnectServer( const char* serverIP,WORD serverPort );			//連接服務端
	bool CloseServer();																					//斷開服務端
	/// <summary>
	/// 讀取與發送
	/// <param name="Address">讀取或寫入地址</param>
	/// <param name="amount">讀取或寫入暫存器的個數</param>
	/// <param name="funCode">功能碼</param>
	/// <param name="value">寫入暫存器的值</param>
	/// <returns>0:讀取或寫入成功</returns>
	int  Modbus_read(uint16_t Address, int amount,int funCode);
	int  Modbus_write(uint16_t Address, int amount,int funCode,const uint16_t *value);

	inline void set_bad_connect();
	inline void set_bad_input();

	int  Modbus_send(uint8_t *to_Send, int length);
	int  Modbus_receive(const uint8_t *buffer);
	/// <summary>
	/// 讀取或寫入單個多個線圈或暫存器
	/// <param name="Address">讀取或寫入地址</param>
	/// <param name="amount">讀取或寫入暫存器的個數</param>
	/// <param name="value">寫入暫存器的值</param>
	/// <param name="buffer">讀取到的值</param>
	/// <returns>0:讀取或寫入成功</returns>
	int  Modbus_read_coils(uint16_t Address, int amount, bool* buffer);
	int  Modbus_read_input_bits(uint16_t Address, int amount, bool* buffer);
	int  Modbus_read_holding_registers(uint16_t Address, int amount, uint16_t *buffer);
	int  Modbus_read_input_registers(uint16_t Address, int amount, uint16_t *buffer);
	int  Modbus_write_coil(uint16_t Address, const bool& to_Write);
	int  Modbus_write_register(uint16_t Address, const uint16_t& value);
	int  Modbus_write_coils(uint16_t Address, int amount, const bool *value);
	int  Modbus_write_registers(uint16_t Address, int amount,uint16_t *value);
	/// <summary>
	/// 生成請求或回傳幀PDU
	/// <param name="to_Send">所要發送的資料陣列</param>
	/// <param name="Address">地址</param>
	/// <param name="funCode">功能碼</param>
	/// <returns>無</returns>
	void Modbus_build_request(uint8_t *to_Send, uint16_t Address, int funCode);//生成請求幀
	void Modbus_set_slave_id(int id);																							//發送從站ID
	void modbuserror_handle(const uint8_t *msg, int funCode);
	/// <summary>
	/// 2個暫存器存盤float 反算時需要區分高低位
	/// <param name="buffer1">高位暫存器</param>
	/// <param name="buffer2">低位暫存器</param>
	/// <returns>無</returns>
	float Modbus_get_float(uint16_t buffer1,uint16_t buffer2);
};
#endif

#include "ModbusTCP.h"

using namespace std;
//建構式
ModbusTCP::ModbusTCP(){
	m_bConnect = false;
	m_iSlaveID = 1;
	m_iMsgID = 1;
	err = false;
	err_no = 0;
	error_msg = "";
}
ModbusTCP::~ModbusTCP() {}

/**
 * Modbus	ClientConnect
 * @param const char* serverIP			Server IP Address
 * @param WORD serverPort				Connected port
 * @return -1:埠及ip地址無效
 * @return -2:套接字創建失敗
 * @return -3:連接失敗
 * @return 0 :連接成功
 */
int ModbusTCP::ConnectServer( const char* serverIP,WORD serverPort )
{
	//輸入判斷
	if(serverIP == NULL||serverPort == 0){
			printf("ServerIP&&Port is null!\n");
			return -1;
	}
	//套接字創建
	m_socket = socket(AF_INET, SOCK_STREAM, 0);
	if(m_socket < 0){
			printf("Open Socket failed!\n");
		return -2;
	}

	//將已經處于連接狀態的socket在呼叫closesocket時強制關閉
	//BOOL m_bDontLinger = FALSE;
	//setsockopt(m_socket, SOL_SOCKET, SO_DONTLINGER, (const char*)&m_bDontLinger, sizeof(BOOL));

	//struct timeval timeout;
	//timeout.tv_sec  = 20;  // after 20 seconds connect() will timeout
	//timeout.tv_usec = 0;
	//setsockopt(m_socket, SOL_SOCKET, SO_SNDTIMEO, (char*)&timeout, sizeof(timeout));
	//setsockopt(m_socket, SOL_SOCKET, SO_RCVTIMEO, (char*)&timeout, sizeof(timeout));

	//連接服務器
	struct sockaddr_in addrServer;
	addrServer.sin_family = AF_INET;					//IPV4
	addrServer.sin_addr.s_addr = inet_addr( serverIP );
	addrServer.sin_port = htons(serverPort);
	int ret = connect(m_socket, (struct sockaddr *)&addrServer, sizeof(addrServer));
	if(ret == SOCKET_ERROR)
	{
			printf("connect failed!\n");
			closesocket(m_socket);
			return -3;
	}
	m_bConnect = true;
	// 設定通信模式非阻塞
	//u_long noblk = 1;
	//ioctlsocket( m_socket, FIONBIO, &noblk );
	return 0;
}

//客戶端斷開
bool ModbusTCP::CloseServer()
{
	if(m_socket > 0){
			closesocket(m_socket);
			m_bConnect = false;
			return true;
	}
	return false;
}
/**
 * Modbus Request Builder
 * @param to_Send			Message Buffer to Be Sent
 * @param Address			Reference Address
 * @param funCode			Modbus Functional Code
 */
void ModbusTCP::Modbus_build_request( uint8_t *to_Send, uint16_t Address, int funCode )
{
	to_Send[0] = 0;				//(uint8_t) (m_iMsgID) >> 8u;		//不計數的話可以為0
	to_Send[1] = 0;				//(uint8_t) (m_iMsgID & 0x00FFu);
	to_Send[2] = 0;
	to_Send[3] = 0;
	to_Send[4] = 0;
	to_Send[6] = (uint8_t) m_iSlaveID;
	to_Send[7] = (uint8_t) funCode;
	to_Send[8] = (uint8_t) (Address >> 8u);
	to_Send[9] = (uint8_t) (Address & 0x00FFu);
}

//發送從站ID
void ModbusTCP::Modbus_set_slave_id( int id )
{
	m_iSlaveID = id;
}


int ModbusTCP::Modbus_read( uint16_t Address, int amount,int funCode )
{
	uint8_t to_Send[12];
	Modbus_build_request(to_Send, Address, funCode);
	to_Send[5] = 6;
	to_Send[10] = (uint8_t) (amount >> 8u);
	to_Send[11] = (uint8_t) (amount & 0x00FFu);
	return Modbus_send(to_Send, 12);
}
/**
 * Write Request Builder and Sender
 * @param address   Reference Address
 * @param amount    Amount of data to be Written
 * @param func      Modbus Functional Code
 * @param value     Data to Be Written
 */
int ModbusTCP::Modbus_write( uint16_t Address, int amount,int funCode,const uint16_t *value )
{
	int status = 0;
	if(funCode == WRITE_COIL || funCode == WRITE_REG) {
		uint8_t to_Send[12];
		Modbus_build_request(to_Send, Address, funCode);
		to_Send[5] = 6;
		to_Send[10] = (uint8_t) (value[0] >> 8u);
		to_Send[11] = (uint8_t) (value[0] & 0x00FFu);
		status = Modbus_send(to_Send, 12);
	} else if(funCode == WRITE_REGS){
			uint8_t * to_Send = new uint8_t[13+2*amount];
			Modbus_build_request(to_Send, Address, funCode);
			to_Send[5] = (uint8_t) (7 + 2 * amount);
			to_Send[10] = (uint8_t) (amount >> 8u);
			to_Send[11] = (uint8_t) (amount & 0x00FFu);
			to_Send[12] = (uint8_t) (2 * amount);
			for(int i = 0; i < amount; i++) {
				to_Send[13 + 2 * i] = (uint8_t) (value[i] >> 8u);
				to_Send[14 + 2 * i] = (uint8_t) (value[i] & 0x00FFu);
		}
		status = Modbus_send(to_Send, 13 + 2 * amount);
		delete []to_Send;
	} else if(funCode == WRITE_COILS) {
			uint8_t * to_Send = new uint8_t[14 + (amount -1) / 8];
			Modbus_build_request(to_Send, Address, funCode);
			to_Send[5] = (uint8_t) (7 + (amount + 7) / 8);
			to_Send[10] = (uint8_t) (amount >> 8u);
			to_Send[11] = (uint8_t) (amount & 0x00FFu);
			to_Send[12] = (uint8_t) ((amount + 7) / 8);
			for(int i = 0; i < (amount+7)/8; i++)
				to_Send[13 + i] = 0; // init needed before summing!
			for(int i = 0; i < amount; i++) {
				to_Send[13 + i/8] += (uint8_t) (value[i] << (i % 8u));
		}
		status = Modbus_send(to_Send, 14 + (amount - 1) / 8);
		delete[]to_Send;
	}
	return status;
}

int ModbusTCP::Modbus_send( uint8_t *to_Send, int length )
{
	m_iMsgID++;
	return send(m_socket,(char *)to_Send, (size_t)length, 0);
}

int ModbusTCP::Modbus_receive( const uint8_t *buffer )
{
	return recv(m_socket, (char*) buffer, 1024, 0);
}

//
/**
 * Read Coils						讀取線圈
 * MODBUS FUNCTION	0x01
 * @param address			Reference Address
 * @param amount			Amount of Coils to Read
 * @param buffer				Buffer to Store Data Read from Coils
 */
int ModbusTCP::Modbus_read_coils( uint16_t Address, int amount, bool* buffer )
{
	if(m_bConnect){
		if(amount > 2040 || Address > 65535) {
			set_bad_input();
			return EX_BAD_DATA;
		}
		Modbus_read(Address, amount, READ_COILS);
		uint8_t to_Rec[MAX_MSG_LENGTH];
		int recvLength = Modbus_receive(to_Rec);
		if (recvLength < 0) {
			set_bad_connect();
			return DISCONNECT;
		}
		modbuserror_handle(to_Rec, READ_COILS);
		for(int i = 0; i < amount; i++) {
			buffer[i] = (bool) ((to_Rec[9u + i / 8u] >> (i % 8u)) & 1u);
		}
		return 0;
	}else{
		set_bad_connect();
		return DISCONNECT;
	}
}

void ModbusTCP::modbuserror_handle( const uint8_t *msg, int funCode )
{
	if(msg[7] == funCode + 0x80) {
		err = true;
		switch(msg[8]){
		case EX_ILLEGAL_FUNCTION:
			error_msg = "Illegal Function_1";
			break;
		case EX_ILLEGAL_ADDRESS:
			error_msg = "Illegal Address_2";
			break;
		case EX_ILLEGAL_VALUE:
			error_msg = "Illegal Value_3";
			break;
		case EX_SERVER_FAILURE:
			error_msg = "Server Failure_4";
			break;
		case EX_ACKNOWLEDGE:
			error_msg = "Acknowledge_5";
			break;
		case EX_SERVER_BUSY:
			error_msg = "Server Busy_6";
			break;
		case EX_NEGATIVE_ACK:
			error_msg = "Memory Parity Problem_7";
			break;
		case EX_MEM_PARITY_PROB:
			error_msg = "Memory Parity Problem_8";
			break;
		case EX_GATEWAY_PROBLEMP:
			error_msg = "Gateway Path Unavailable_9";
			break;
		case EX_GATEWYA_PROBLEMF:
			error_msg = "Gateway Target Device Failed to Respond_10";
			break;
		default:
			error_msg = "UNK_未知錯誤";
			break;
		}
	}
	err = false;
	error_msg = "NO ERR";
}
//
int ModbusTCP::Modbus_read_input_bits( uint16_t Address, int amount, bool* buffer )
{
	if(m_bConnect){
		if(amount > 2040 || Address > 65535) {
			set_bad_input();
			return EX_BAD_DATA;
		}
		Modbus_read(Address, amount, READ_INPUT_BITS);
		uint8_t to_Rec[MAX_MSG_LENGTH];
		int recvLength= Modbus_receive(to_Rec);
		if (recvLength<0) {
			set_bad_connect();
			return DISCONNECT;
		}
		for(int i = 0; i < amount; i++) {
			buffer[i] = (bool) ((to_Rec[9u + i / 8u] >> (i % 8u)) & 1u);
		}
		modbuserror_handle(to_Rec, READ_INPUT_BITS);
		return 0;
	}else{
		set_bad_connect();
		return DISCONNECT;
	}
}
//將讀取多個暫存器寫到一起
int ModbusTCP::Modbus_read_holding_registers( uint16_t Address, int amount, uint16_t *buffer )
{
	if(m_bConnect){
		if(amount > 65535 || Address > 65535) {
			set_bad_input();
			return EX_BAD_DATA;
		}
		Modbus_read(Address, amount, READ_REGS);
		Sleep(500);
		uint8_t to_Rec[MAX_MSG_LENGTH];
		int recvLength = Modbus_receive(to_Rec);
		if (recvLength<0) {
			set_bad_connect();
			return DISCONNECT;
		}
		modbuserror_handle(to_Rec, READ_REGS);
		for(int i = 0; i < amount; i++) {
			buffer[i] = (uint16_t)(to_Rec[9u + 2u * i] << 8u);
			buffer[i] += (uint16_t)to_Rec[10u + 2u * i];
		}
		return 0;
	}else{
		set_bad_connect();
		return DISCONNECT;
	}
}

int ModbusTCP::Modbus_read_input_registers( uint16_t Address, int amount, uint16_t *buffer )
{
	if(m_bConnect){
		if(amount > 65535 || Address > 65535) {
			set_bad_input();
			return EX_BAD_DATA;
		}
		Modbus_read(Address, amount, READ_INPUT_REGS);
		uint8_t to_Rec[MAX_MSG_LENGTH];
		int recvLength = Modbus_receive(to_Rec);
		if (recvLength < 0) {
			set_bad_connect();
			return DISCONNECT;
		}
		modbuserror_handle(to_Rec, READ_INPUT_REGS);

		for(int i = 0; i < amount; i++) {
			buffer[i] = ((uint16_t)to_Rec[9u + 2u * i]) << 8u;
			buffer[i] += (uint16_t) to_Rec[10u + 2u * i];
		}
		return 0;
	}else{
		set_bad_connect();
		return DISCONNECT;
	}
}

int ModbusTCP::Modbus_write_coil( uint16_t Address, const bool& to_Write )
{
	if(m_bConnect){
		if(Address > 65535) {
			set_bad_input();
			return EX_BAD_DATA;
		}
		int value = to_Write * 0xFF00;
		Modbus_write(Address, 1, WRITE_COIL, (uint16_t *)&value);
		uint8_t to_Rec[MAX_MSG_LENGTH];
		int recvLength = Modbus_receive(to_Rec);
		if (recvLength < 0) {
			set_bad_connect();
			return DISCONNECT;
		}
		modbuserror_handle(to_Rec, WRITE_COIL);
		return 0;
	}else{
		set_bad_connect();
		return DISCONNECT;
	}
}

int ModbusTCP::Modbus_write_register( uint16_t Address, const uint16_t& value )
{
	if(m_bConnect){
		if(Address > 65535) {
			set_bad_input();
			return EX_BAD_DATA;
		}
		Modbus_write(Address, 1, WRITE_REG, &value);
		uint8_t to_Rec[MAX_MSG_LENGTH];
		int recvLength =Modbus_receive(to_Rec);
		if (recvLength < 0) {
			set_bad_connect();
			return DISCONNECT;
		}
		modbuserror_handle(to_Rec, WRITE_REG);
		return 0;
	}else{
		set_bad_connect();
		return DISCONNECT;
	}
}

int ModbusTCP::Modbus_write_coils( uint16_t Address, int amount, const bool *value )
{
	if(m_bConnect){
		if(Address > 65535 || amount > 65535) {
			set_bad_input();
			return EX_BAD_DATA;
		}
		uint16_t* temp = new uint16_t[amount];
		for(int i = 0; i < amount; i++) {
			temp[i] = (uint16_t)value[i];
		}
		Modbus_write(Address, amount, WRITE_COILS, temp);
		delete []temp;
		uint8_t to_Rec[MAX_MSG_LENGTH];
		int recvLength = Modbus_receive(to_Rec);
		if (recvLength < 0) {
			set_bad_connect();
			return DISCONNECT;
		}
		modbuserror_handle(to_Rec, WRITE_COILS);
		return 0;
	}else{
		set_bad_connect();
		return DISCONNECT;
	}
}

int ModbusTCP::Modbus_write_registers( uint16_t Address, int amount,uint16_t *value )
{
	if(m_bConnect){
		if(Address > 65535 || amount > 65535) {
			set_bad_input();
			return EX_BAD_DATA;
		}
		Modbus_write(Address, amount, WRITE_REGS, value);
		Sleep(3);
		uint8_t to_Rec[MAX_MSG_LENGTH];
		int recvLength = Modbus_receive(to_Rec);
		if (recvLength < 0) {
			set_bad_connect();
			return DISCONNECT;
		}
		modbuserror_handle(to_Rec, WRITE_REGS);
		return 0;
	}else{
		set_bad_connect();
		return DISCONNECT;
	}
}

//從兩個uint16組合成float
float ModbusTCP::Modbus_get_float( uint16_t buffer1,uint16_t buffer2 )
{
	float fTemp;
	unsigned int *pTemp = (unsigned int *)&fTemp;
	unsigned int chTemp[4];
	chTemp[0] = buffer1&0xff;
	chTemp[1] = (buffer1>>8)&0xff;
	chTemp[2] = buffer2&0xff;
	chTemp[3] = (buffer2>>8)&0xff;
	*pTemp = ((chTemp[1]<<24)&0xff000000)|((chTemp[0]<<16)&0xff0000)|((chTemp[3]<<8)&0xff00)|(chTemp[2]&0xff);
	return fTemp;
}

void ModbusTCP::set_bad_connect()
{
	err = true;
	error_msg = "DISCONNECT";
}

void ModbusTCP::set_bad_input()
{
	err = true;
	error_msg = "BAD FUNCTION INPUT";
}

Main函式就不貼了，我去研究下CRC(回圈冗余校驗)LRC(和校驗后期再說)

Happy Ending! YapethsDY.2020/09/23 PM.

套個文案

無暇獨享艷陽天

以終為始不得閑

南來北往觀花榭

常與人言無二三

若同在

少抱怨

心有螢火克萬難！
