多層RecyclerView進行嵌套的一個開源框架

專案中有時候會讓一個界面出現多個RecyclerView來進行嵌套的情況，如淘寶，京東首頁的界面，

當我們自己的商城的首頁和淘寶、京東首頁效果類似，上面為配置資料，中間是各種分類頻道，下面是商品流資料，

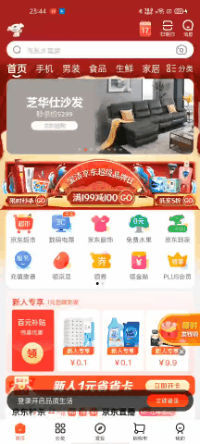

商品流部分支持左右橫滑，分類頻道是支持吸頂的，下面的左圖是京東首頁效果圖，右圖是自己實作的，基本上都能實作，

先看效果圖，后面介紹該框架的使用情況：

一、使用原理

最早是用CoordinatorLayout實作，在AppBarLayout下放一個RecyclerView，下面部分則放一個ViewPager，ViewPager里則是商品流的RecyclerView，
CoordinatorLayout支持設定他的某個子View吸頂，這樣基本可以讓這種實作滿足商業性的專案需求，但是使用開發起來比較麻煩，

### 調研淘寶京東首頁

在呼叫了淘寶和京東的實作發現可以通過兩層RecyclerView來實作，可以看到京東首頁的實作是上面這樣的，

### 大致實作方式

- 外部RecyclerView為ParentRecyclerView，將需要吸頂的懸浮效果的TabLayout和ViewPager作為ParentRecyclerView的一個item，
- 內部RecyclerView為ChildRecyclerView,ParentRecyclerView和ChildRecyclerView相互協調:
  - 當ParentRecyclerView滾動到底部的時候，讓ChildRecyclerView去滾動，
  - 當ChildRecyclerView滾動到頂部的時候，讓ParentRecyclerView去滾動，

#### 利用canScrollVertically這個方法來判斷當前View是否滾動到底或者是否滾動到頂，

```java
//ParentRecyclerView
   private boolean isScrollEnd() {
        //RecyclerView.canScrollVertically(1)的值表示是否能向上滾動，false表示已經滾動到底部
        return !canScrollVertically(1);
    }

```java
//ChildRecyclerView
 boolean isScrollTop() {
        //RecyclerView.canScrollVertically(-1)的值表示是否能向下滾動，false表示已經滾動到頂部
        return !canScrollVertically(-1);
    }
#### ParentRecyclerView和ChildRecyclerView需要拿到對方的參考，以便能夠協調滾動，

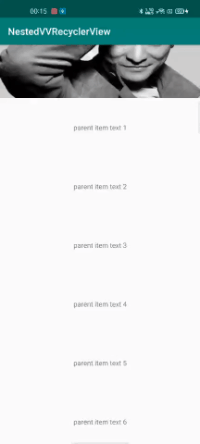

自己寫的Demo效果如下：

外層ParentRecyclerView代碼如下（重要注釋已經寫好）：

/**
 * author : AndyYuan
 * date   : 2020/12/9 000915:02
 * desc   : 最外層的RecyclerView 即父類RecyclerView
 * version: 2.0
 */
public class ParentRecyclerView extends RecyclerView {
    FlingHelper mFlingHelper;

    int mMaxDistance = 0;
    /**
     * 記錄當前滑動的y軸加速度
     */
    int velocityY = 0;
    /**
     * 記錄上次Event事件的y坐標
     */
    Float lastY = 0f;
    int mTotalDy = 0;
    /**
     * 用于判斷RecyclerView是否在fling
     */
    boolean isStartFling = false;

    AtomicBoolean canScrollVertically;

    public ParentRecyclerView(@NonNull Context context) {
        super(context);
        init(context);
    }

    public ParentRecyclerView(@NonNull Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
        init(context);
    }

    public ParentRecyclerView(@NonNull Context context, @Nullable AttributeSet attrs, int defStyle) {
        super(context, attrs, defStyle);
        init(context);
    }

    /**
     * 初始化父類滾動事件
     * @param context 背景關系當前界面
     */
    private void init(Context context) {
        mFlingHelper = new FlingHelper(context);
        mMaxDistance = mFlingHelper.getVelocityByDistance((double) (UIUtils.getScreenHeight() * 4));
        canScrollVertically = new AtomicBoolean(true);
        addOnScrollListener(new OnScrollListener() {
            @Override
            public void onScrollStateChanged(@NonNull RecyclerView recyclerView, int newState) {
                super.onScrollStateChanged(recyclerView, newState);
                //如果父RecyclerView fling程序中已經到底部，需要讓子RecyclerView滑動神域的fling
                if (newState == SCROLL_STATE_IDLE) {
                    dispatchChildFling();
                }
            }

            @Override
            public void onScrolled(@NonNull RecyclerView recyclerView, int dx, int dy) {
                super.onScrolled(recyclerView, dx, dy);
                if (isStartFling) {
                    mTotalDy = 0;
                    isStartFling = false;
                }
                //記錄當前RecyclerView在y軸的偏移
                mTotalDy += dy;

            }
        });

    }

    /**
     * 初始化LayoutManager管理RecyclerView
     * @param context 背景關系當前界面
     */
    public void initLayoutManager(Context context) {
        LinearLayoutManager layoutManager = new LinearLayoutManager(context) {
            @Override
            public int scrollVerticallyBy(int dy, Recycler recycler, State state) {
                try {
                    return super.scrollVerticallyBy(dy, recycler, state);
                } catch (Exception e) {
                    e.printStackTrace();
                    return 0;
                }
            }

            @Override
            public void onLayoutChildren(Recycler recycler, State state) {
                try {
                    super.onLayoutChildren(recycler, state);
                } catch (Exception e) {
                    e.printStackTrace();
                }
            }

            @Override
            public boolean canScrollVertically() {
                ChildRecyclerView childRecyclerView = findNestedScrollingChildRecyclerView();
                //子recycleview 未滑動到頂部父recycleview就開始滑動 按照他說的在父控制元件里面不判斷canScrollVertically.get()這個就可以了 不知道啥問題
                //return (canScrollVertically.get()  || childRecyclerView == null || childRecyclerView.isScrollTop());
                return (childRecyclerView == null || childRecyclerView.isScrollTop());

            }

            @Override
            public void addDisappearingView(View child) {
                try {
                    super.addDisappearingView(child);
                } catch (Exception e) {
                    e.printStackTrace();
                }
            }

            @Override
            public boolean supportsPredictiveItemAnimations() {
                return false;
            }
        };

        layoutManager.setOrientation(VERTICAL);
        setLayoutManager(layoutManager);
    }


    /**
     * 事件分發處理
     * @param ev 當前事件
     * @return 回傳是否分發
     */
    @Override
    public boolean dispatchTouchEvent(MotionEvent ev) {
        if (ev != null && ev.getAction() == MotionEvent.ACTION_DOWN) {
            //ACTION_DOWN的時候重置加速度
            velocityY = 0;
            stopScroll();
        }
        if (!(ev == null || ev.getAction() == MotionEvent.ACTION_MOVE)) {
            //在非ACTION_MOVE的情況下，將lastY置為0
            lastY = 0f;
        }
        try {
            return super.dispatchTouchEvent(ev);
        } catch (Exception e) {
            e.printStackTrace();
            return false;
        }
    }

    @Override
    public boolean onTouchEvent(MotionEvent e) {
        if (lastY == 0f) {
            lastY = e.getY();
        }
        if (isScrollEnd()) {
            //如果父RecyclerView已經滑動到底部，需要讓子RecyclerView滑動剩余的距離
            ChildRecyclerView childRecyclerView = findNestedScrollingChildRecyclerView();
            if (childRecyclerView != null) {
                int deltaY = (int) (lastY - e.getY());
                canScrollVertically.set(false);
                childRecyclerView.scrollBy(0, deltaY);
            }
        }
        if (e.getAction() == MotionEvent.ACTION_UP) {
            canScrollVertically.set(true);
        }
        lastY = e.getY();
        try {
            return super.onTouchEvent(e);
        } catch (Exception ex) {
            ex.printStackTrace();
            return false;
        }
    }

    /**
     * 滑動事件
     * @param velx 水平滑動距離
     * @param velY 豎直滑動距離
     * @return
     */
    @Override
    public boolean fling(int velx, int velY) {
        boolean fling = super.fling(velx, velY);
        if (!fling || velY <= 0) {
            velocityY = 0;

        } else {
            isStartFling = true;
            velocityY = velY;
        }
        return fling;
    }

    private void dispatchChildFling() {
        if (isScrollEnd() && velocityY != 0) {
            double splineFlingDistance = mFlingHelper.getSplineFlingDistance(velocityY);
            if (splineFlingDistance > mTotalDy) {
                childFling(mFlingHelper.getVelocityByDistance(splineFlingDistance - mTotalDy));
            }
        }
        mTotalDy = 0;
        velocityY = 0;
    }

    private void childFling(int velocityByDistance) {
        ChildRecyclerView childRecyclerView = findNestedScrollingChildRecyclerView();
        if (childRecyclerView != null) {
            childRecyclerView.fling(0, velocityByDistance);
        }
    }

    private ChildRecyclerView findNestedScrollingChildRecyclerView() {
        if (getAdapter() != null && (getAdapter() instanceof MultiTypeAdapter)) {
            return ((MultiTypeAdapter) getAdapter()).getCurrentChildRecyclerView();
        }
        return null;
    }

    private boolean isScrollEnd() {
        //RecyclerView.canScrollVertically(1)的值表示是否能向上滾動，false表示已經滾動到底部
        return !canScrollVertically(1);
    }

    @Override
    public void scrollToPosition(final int position) {
        ChildRecyclerView childRecyclerView = findNestedScrollingChildRecyclerView();
        if (childRecyclerView != null) {
            childRecyclerView.scrollToPosition(position);
        }
        postDelayed(new Runnable() {
            @Override
            public void run() {
                ParentRecyclerView.super.scrollToPosition(position);
            }
        }, 50);
    }

    @Override
    public boolean onStartNestedScroll(View child, View target, int nestedScrollAxes) {
        return (target != null) && (target instanceof ChildRecyclerView);
    }

    @Override
    public void onNestedPreScroll(View target, int dx, int dy, int[] consumed) {
        ChildRecyclerView childRecyclerView = findNestedScrollingChildRecyclerView();
        //1.當前Parent RecyclerView沒有滑動底，且dy> 0 是下滑
        boolean isParentCanScroll = dy > 0 && !isScrollEnd();
        //2.當前Child RecyclerView滑到頂部了，且dy < 0,即上滑
        boolean isChildCanNotScroll = !(dy >= 0
                || childRecyclerView == null
                || !childRecyclerView.isScrollTop());
        //以上兩種情況都需要讓Parent RecyclerView去scroll，和下面onNestedPreFling機制類似
        if (isParentCanScroll || isChildCanNotScroll) {
            scrollBy(0, dy);
            consumed[1] = dy;
        }
    }

    @Override
    public boolean onNestedFling(View target, float velocityX, float velocityY, boolean consumed) {
        return true;
    }

    @Override
    public boolean onNestedPreFling(View target, float velocityX, float velocityY) {
        ChildRecyclerView childRecyclerView = findNestedScrollingChildRecyclerView();
        boolean isParentCanFling = velocityY > 0f && !isScrollEnd();
        boolean isChildCanNotFling = !(velocityY >= 0
                || childRecyclerView == null
                || !childRecyclerView.isScrollTop());

        if (!isParentCanFling && !isChildCanNotFling) {
            return false;
        }
        fling(0, (int) velocityY);
        return true;
    }

    public boolean isChildRecyclerViewCanScrollUp() {
        ChildRecyclerView childRecyclerView = findNestedScrollingChildRecyclerView();
        if (childRecyclerView != null) {
            return !childRecyclerView.isScrollTop();
        }
        return false;
    }
}


目前ChildRecyclerView是直接通過往上查找的方式來進行的，而ParentRecyclerView需要通過ViewPager來找到當前顯示的是哪一個ChidRecyclerView，

```java
//ChildRecyclerView
private ParentRecyclerView findParentRecyclerView() {
        ViewParent parentView = getParent();
        while (!(parentView instanceof ParentRecyclerView)) {
            parentView = parentView.getParent();
        }
        return (ParentRecyclerView)parentView;
    }
```

```java
//ParentRecyclerView
   private ChildRecyclerView findNestedScrollingChildRecyclerView() {
        if(getAdapter()!= null && (getAdapter() instanceof MultiTypeAdapter)) {
            return ((MultiTypeAdapter)getAdapter()).getCurrentChildRecyclerView();
        }
        return  null;
    }
```

內層ChildRecyclerView的代碼比較簡單，如下：

/**
 * author : AndyYuan
 * date   : 2020/12/9 000915:02
 * desc   : 子類RecyclerView 嵌套在父類中
 * version: 2.0
 */
public class ChildRecyclerView extends RecyclerView {
    private FlingHelper mFlingHelper;
    private int mMaxDistance = 0;
    private int mVelocity = 0;

    private boolean isStartFling = false;
    private int totalDy = 0;

    //持有父類的參考
    private ParentRecyclerView mParentRecyclerView = null;

    public ChildRecyclerView(@NonNull Context context) {
        super(context);
        init(context);
    }

    public ChildRecyclerView(@NonNull Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
        init(context);
    }

    public ChildRecyclerView(@NonNull Context context, @Nullable AttributeSet attrs, int defStyle) {
        super(context, attrs, defStyle);
        init(context);
    }

    private void init(Context context) {
        mFlingHelper = new FlingHelper(context);
        mMaxDistance = mFlingHelper.getVelocityByDistance((double)(UIUtils.getScreenHeight() * 4));
        setOverScrollMode(OVER_SCROLL_NEVER);
        initScrollListener();
    }

    //設定滑動監聽
    private void initScrollListener() {
        addOnScrollListener(new OnScrollListener() {
            //滾動狀態變化時回呼
            @Override
            public void onScrollStateChanged(@NonNull RecyclerView recyclerView, int newState) {
                if(newState == SCROLL_STATE_IDLE) {
                    //靜止沒有滾動
                    dispatchParentFling();
                }
                super.onScrollStateChanged(recyclerView, newState);

            }

            //滾動時回呼
            @Override
            public void onScrolled(@NonNull RecyclerView recyclerView, int dx, int dy) {
                super.onScrolled(recyclerView, dx, dy);
                if(isStartFling) {
                    totalDy = 0;
                    isStartFling = false;
                }
                totalDy += dy;
            }
        });
    }

    private void dispatchParentFling() {
        mParentRecyclerView = findParentRecyclerView();
        if(isScrollTop() && mVelocity != 0) {
            //當前ChildRecyclerView已經滑動到頂部，且豎直方向加速度不為0,如果有多余的需要交由父RecyclerView繼續fling
            double flingDistance = mFlingHelper.getSplineFlingDistance(mVelocity);
            if(flingDistance > (Math.abs(totalDy))) {
                mParentRecyclerView.fling(0,-mFlingHelper.getVelocityByDistance(flingDistance + totalDy));
            }
            totalDy = 0;
            mVelocity = 0;
        }
    }

    @Override
    public boolean dispatchTouchEvent(MotionEvent ev) {
        if(ev != null && ev.getAction() == MotionEvent.ACTION_DOWN) {
            mVelocity = 0;
        }
        return super.dispatchTouchEvent(ev);
    }

    @Override
    public boolean fling(int velocityX, int velocityY) {
        if(!isAttachedToWindow()) return false;
        boolean fling = super.fling(velocityX, velocityY);
        if(!fling || velocityY >=0) {
            mVelocity =0;
        } else  {
            isStartFling = true;
            mVelocity = velocityY;
        }
        return fling;
    }

    boolean isScrollTop() {
        //RecyclerView.canScrollVertically(-1)的值表示是否能向下滾動，false表示已經滾動到頂部
        return !canScrollVertically(-1);

    }

    //獲取當前父類RecyclerView
    private ParentRecyclerView findParentRecyclerView() {
        ViewParent parentView = getParent();
        while (!(parentView instanceof ParentRecyclerView)) {
            parentView = parentView.getParent();
        }
        return (ParentRecyclerView)parentView;
    }
}

處理fling效果的原理
在RecyclerView的onScrolled記錄總的偏移，當ParentRecyclerView滑動到底部的時候，將多余的需要消費的總偏移轉換成加速度，從而交給子View去Fling，反之，型別，

#### 處理嵌套滾動
如果不處理嵌套滾動，在某些邊界場景下，當我們滑動不松手時會出現無法滑動的問題，

二、框架使用

（1）在專案的最外層build.gradle中的repositories 閉包中新增支持jitpack的庫如下：

maven { url 'https://jitpack.io' }

（2）在app目錄下的build.gradle的dependencies閉包中添加（目前最新版本）：

implementation 'com.github.AndyYuan317:NestedVVRecyclerView:2.0.2'

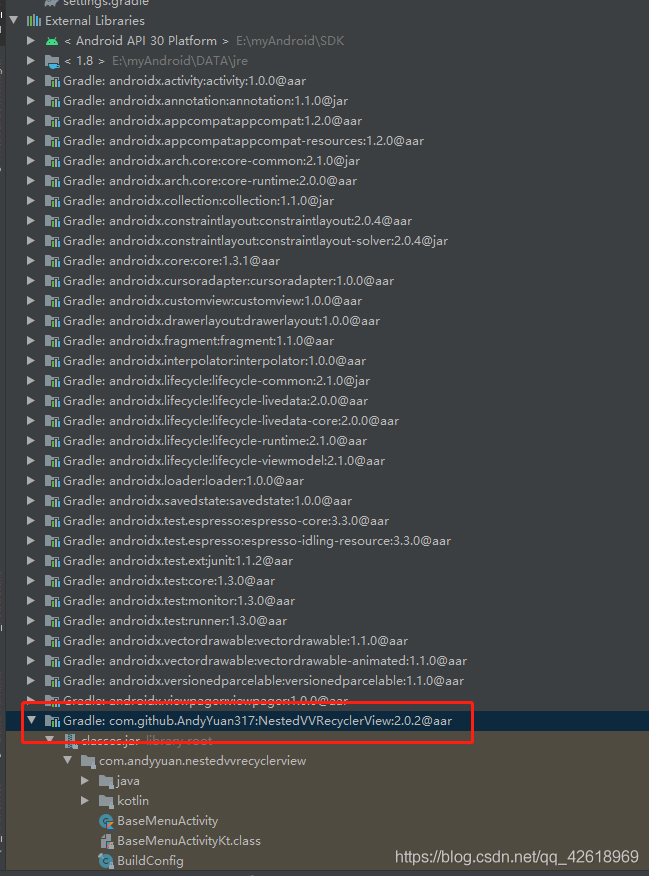

然后點擊Sync Now同步下載，AndroidStudio會自動下載該遠程依賴，完成后在External Libraries中會出現如下圖：

（3）這樣基本集成就完成了，下面開始講解使用，比如直接新建一個Demo只有Hello World!，打開主界面的xml檔案改成如下：

<?xml version="1.0" encoding="utf-8"?>
<com.andyyuan.nestedvvrecyclerview.java.view.StoreSwipeRefreshLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/swipeRefreshLayout"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:focusable="true"
    android:focusableInTouchMode="true">

    <!--    android:focusable="true"
            android:focusableInTouchMode="true"
            出現滾動的時候在外層獲取焦點來實作初始化后的自動滾動-->
    <com.andyyuan.nestedvvrecyclerview.java.view.ParentRecyclerView
        android:id="@+id/javaRecyclerView"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:overScrollMode="never" />

</com.andyyuan.nestedvvrecyclerview.java.view.StoreSwipeRefreshLayout>

（4）：主界面的代碼為：

/**
 * author : AndyYuan
 * date   : 2020/12/9 000915:02
 * desc   : 主界面，只有兩層的RecyclerView嵌套
 * version: 2.0
 */
public class MainJavaActivity extends AppCompatActivity {

    //父類資料
    ArrayList<Object> mDataList = new ArrayList<Object>();
    //子類資料
    ArrayList<String> mChildDataList = new ArrayList<>();
    //子類Fragment
    ArrayList<MyFragment> mChildFragmentList = new ArrayList<>();

    MultiTypeAdapter adapter = new MultiTypeAdapter(mDataList, mChildDataList, getSupportFragmentManager());

    StoreSwipeRefreshLayout storeSwipeRefreshLayout;
    //SmartRefreshLayout smartRefreshLayout;
    private boolean isRefresh = false;

    ParentRecyclerView javaRecyclerView;

    Long lastBackPressedTime = 0L;

    String[] strArray = new String[]{"推薦", "視頻", "直播", "圖片", "精華", "熱門"};

    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main_java);

        javaRecyclerView = findViewById(R.id.javaRecyclerView);
        storeSwipeRefreshLayout = findViewById(R.id.swipeRefreshLayout);
        //smartRefreshLayout = findViewById(R.id.refreshLayout);
        javaRecyclerView.setAdapter(adapter);
        javaRecyclerView.initLayoutManager(this);

        refresh();

        storeSwipeRefreshLayout.setColorSchemeColors(Color.RED);
        storeSwipeRefreshLayout.setOnRefreshListener(new SwipeRefreshLayout.OnRefreshListener() {
            @Override
            public void onRefresh() {
                Toast.makeText(MainJavaActivity.this, "資料已重繪", Toast.LENGTH_SHORT).show();
                refresh();
            }
        });
    }


    @Override
    public void onBackPressed() {
        if (System.currentTimeMillis() - lastBackPressedTime < 2000) {
            super.onBackPressed();
        } else {
            javaRecyclerView.scrollToPosition(0);
            Toast.makeText(this, "再按一次退出程式", Toast.LENGTH_SHORT).show();
            lastBackPressedTime = System.currentTimeMillis();
        }
    }

    private void refresh() {
        initParentData();
        initChildData();
        CategoryBean categoryBean = new CategoryBean();
        categoryBean.getTabTitleList().clear();
        categoryBean.getTabTitleList().addAll(Arrays.asList(strArray));
        mDataList.add(categoryBean);
        adapter.notifyDataSetChanged();
        storeSwipeRefreshLayout.setRefreshing(false);
        //第一次滑動出現的卡頓問題
//        javaRecyclerView.smoothScrollToPosition(adapter.getItemCount()-1);
//        javaRecyclerView.smoothScrollToPosition(0);
        //自己新增的,初始化進入會吸頂，
        // 也可以直接在父布局中添加android:focusable="true"
        // android:focusableInTouchMode="true"
        //javaRecyclerView.smoothScrollToPosition(0);
    }

    //初始化父類資料
    private void initParentData() {
        mDataList.clear();
        for (int i = 0; i < 7; i++) {
            mDataList.add("parent item text " + i);
        }
    }

    //初始化子類資料
    private void initChildData() {
        mChildDataList.clear();
        mChildFragmentList.clear();
        mChildDataList.addAll(Arrays.asList(strArray));
        for (int i = 0; i < mChildDataList.size(); i++) {
            //mChildDataList.add("child item " + i );
            mChildFragmentList.add(new MyFragment());
        }
    }

    @Override
    protected void onDestroy() {
        super.onDestroy();
        adapter.destroy();
    }
}

（5）：其中MultiTypeAdapter是連接外層RecyclerView與內層的關鍵，代碼如下：

/**
 * author : AndyYuan
 * date   : 2020/12/9 000915:02
 * desc   : 主界面中的ParentAdapter 子item都放在該層中顯示，子recyclerView放在最后一個item中
 * version: 2.0
 */
public class MultiTypeAdapter extends RecyclerView.Adapter<RecyclerView.ViewHolder> {
    private ArrayList<Object> mDataList;
    private ArrayList<String> mChildDataList;

    public static final int TYPE_TEXT = 0;
    public static final int TYPE_CATEGORY = 1;
    public static final int TYPE_FIRST = 3;

    MyCategoryViewHolder mCategoryViewHolder;
    //主界面傳遞過來的FragmentManager
    private FragmentManager fragmentManager;

    public MultiTypeAdapter(ArrayList<Object> dataList, ArrayList<String> childData, FragmentManager fragmentManager) {
        mDataList = dataList;
        mChildDataList = childData;
        this.fragmentManager = fragmentManager;
    }

    @Override
    public int getItemViewType(int position) {
        if (mDataList.get(position) instanceof String) {
            if (position == 0) {
                return TYPE_FIRST;
            }
            return TYPE_TEXT;
        } else {
            return TYPE_CATEGORY;
        }
    }

    @NonNull
    @Override
    public RecyclerView.ViewHolder onCreateViewHolder(@NonNull ViewGroup viewGroup, int viewType) {
        if (viewType == TYPE_FIRST) {
            return new SimpleFristViewHolder(LayoutInflater.from(viewGroup.getContext()).inflate(R.layout.layout_item_first_view_holer
                    , viewGroup, false));
        } else if (viewType == TYPE_TEXT) {
            return new SimpleTextViewHolder(LayoutInflater.from(
                    viewGroup.getContext()
            ).inflate(R.layout.layout_item_text, viewGroup, false));
        } else {
//            SimpleCategoryViewHolder simpleCategoryViewHolder =
//                    new SimpleCategoryViewHolder(LayoutInflater.from(viewGroup.getContext()).inflate(
//                            R.layout.layout_item_category_default,
//                            viewGroup,
//                            false
//                    ));
//            mCategoryViewHolder = simpleCategoryViewHolder;
//            return simpleCategoryViewHolder;
            //自己替換Fragment的ViewPager
            MyCategoryViewHolder simpleCategoryViewHolder =
                    new MyCategoryViewHolder(LayoutInflater.from(viewGroup.getContext()).inflate(
                            R.layout.layout_item_category_holder,
                            viewGroup,
                            false
                    ), fragmentManager, mChildDataList);
            mCategoryViewHolder = simpleCategoryViewHolder;
            return simpleCategoryViewHolder;
        }
    }

    @Override
    public void onBindViewHolder(@NonNull RecyclerView.ViewHolder viewHolder, int pos) {
        if (viewHolder instanceof SimpleTextViewHolder) {
//            Log.d("gaohui","pos " + pos + mDataList.get(pos) + mDataList.get(pos));
            ((SimpleTextViewHolder) viewHolder).mTv.setText((String) mDataList.get(pos));
        } else if (viewHolder instanceof MyCategoryViewHolder) {
            //((SimpleCategoryViewHolder)viewHolder).bindData(mDataList.get(pos));
            ((MyCategoryViewHolder) viewHolder).bindData();
        }
    }

    @Override
    public int getItemCount() {
        return mDataList.size();
    }

    public ChildRecyclerView getCurrentChildRecyclerView() {
        if (mCategoryViewHolder != null) {
            return mCategoryViewHolder.getCurrentChildRecyclerView();
        }
        return null;
    }

    public void destroy() {
        if (mCategoryViewHolder != null) {
            //mCategoryViewHolder.destroy();
        }

    }
}
