                 **第三篇**

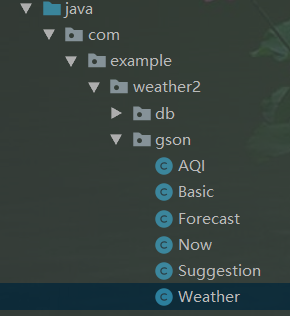

接下來我們在之前創立好的gson包下建立6個物體類分別為：AQI,Basic,Forecast,Now,Suggestion,Weather如下：
為了決議GSON回傳來的資料

AQI代碼為：

public class AQI {
    public AQICity city;
    public class AQICity
    {
        public String aqi;//空氣質量指數
        public String pm25;//pm25指數
    }
}

Basic代碼為：
//JSON格式中的一些欄位不太適合直接作為JAVA欄位來命名，
//所以使用@SerializedName注解讓JSON欄位和java欄位之間建立映射關系

public class Basic {
    @SerializedName("city")
    public String cityName;//城市名稱

    @SerializedName("id")
    public String weatherId;//城市ID
    public Update update;
    public class Update{
        @SerializedName("loc")
        public String updateTime;//更新時的時間
    }
}

Forecast代碼為:

public class Forecast {
    public String date;

    @SerializedName("tmp")
    public Temperature temperature;
    @SerializedName("cond")
    public More more;
    public class Temperature
    {
        public String max;
        public String min;
    }
    public class More
    {
        @SerializedName("txt_d")
        public String info;
    }
}

Now代碼為：

public class Now {
    @SerializedName("tmp")
    public String temperature;//溫度

    @SerializedName("cond")
    public More more;

    public class More
    {
        @SerializedName("txt")
        public String info;//溫度的內容
    }
}

Suggestion代碼為：

public class Suggestion {
    @SerializedName("comf")
    public Comfort comfort;
    @SerializedName("cw")
    public CarWash carWash;
    public Sport sport;
    public class Comfort
    {
        @SerializedName("txt")
        public String info;
    }
    public class CarWash
    {
        @SerializedName("txt")
        public String info;

    }
    public class Sport
    {
        @SerializedName("txt")
        public String info;
    }
}

Weather代碼為：

public class Weather {
    public String status;
    public Basic basic;
    public AQI aqi;
    public Now now;
    public Suggestion suggestion;
    @SerializedName("daily_forecast")
    //由于daily_forecast中包含的是一個陣列，索引這里參考了List集合來參考Forecast類
    public List<Forecast> forecastList;
}

物體類創建完成了，接下來我們建立一個WeatherActivity活動
由于要將所有的內容都在此界面顯示，所有布局檔案里的內容會很多而且復雜，所有我們采用分段形式，然后在activity_weather_activity.xml布局檔案內統一添加進來
首先我們先建立一個標題欄title.xml布局檔案
代碼如下：
其中Button的背景圖是我們事先下載好的

<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="?attr/actionBarSize">

    <Button
        android:id="@+id/nav_button"
        android:layout_width="30dp"
        android:layout_height="30dp"
        android:layout_marginLeft="10dp"
        android:layout_alignParentLeft="true"
        android:layout_centerVertical="true"
        android:background="@drawable/home" />
    <TextView
        android:id="@+id/title_city"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_centerInParent="true"
        android:textColor="#fff"
        android:textSize="20sp"/>
    <TextView
        android:id="@+id/title_update_time"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginRight="10dp"
        android:layout_alignParentRight="true"
        android:layout_centerVertical="true"
        android:layout_marginEnd="10dp"
        android:layout_alignParentEnd="true"
        android:textColor="#fff"
        android:textSize="16sp"/>
</RelativeLayout>

然后在新建一個now.xml布局檔案
用于顯示溫度和天氣資訊
代碼如下：

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_margin="15dp">

    <TextView
        android:id="@+id/degree_text"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="end"
        android:textColor="#fff"
        android:textSize="60sp"  />

    <TextView
        android:id="@+id/weather_info_text"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="end"
        android:textColor="#fff"
        android:textSize="20sp" />
</LinearLayout>

建立一個forecast.xml布局檔案
用來顯示未來幾天的天氣情況
代碼如下：

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical" android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_margin="15dp"
    android:background="#8000">
    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginLeft="15dp"
        android:layout_marginTop="15dp"
        android:text="預報"
        android:textColor="#fff"
        android:textSize="20sp"/>
    <LinearLayout
        android:id="@+id/forecast_layout"
        android:orientation="vertical"
        android:layout_width="match_parent"
        android:layout_height="wrap_content">
    </LinearLayout>
</LinearLayout>

建立一個forecast_item.xml布局檔案
用來顯示未來幾天的天氣情況的子布局檔案
未來幾天氣資訊的子項布局：
天氣預報日期
天氣概況
當天最高溫度
當天最低溫度

代碼如下：

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_margin="15dp">

    <TextView
        android:id="@+id/date_text"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:layout_gravity="center_vertical"
        android:layout_weight="2"
        android:textColor="#fff"/>

    <TextView
        android:id="@+id/info_text"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:layout_gravity="center_vertical"
        android:layout_weight="1"
        android:gravity="center"
        android:textColor="#fff"/>
    <TextView
        android:id="@+id/max_text"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:layout_gravity="center"
        android:layout_weight="1"
        android:gravity="end"
        android:textColor="#fff"/>
    <TextView
        android:id="@+id/min_text"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:layout_gravity="center"
        android:layout_weight="1"
        android:gravity="end"
        android:textColor="#fff"/>
</LinearLayout>

建立一個aqi.xml布局檔案
用于顯示空氣質量指數
代碼如下：

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical" android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_margin="15dp"
    android:background="#8000">
    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginLeft="15dp"
        android:layout_marginTop="15dp"
        android:layout_marginStart="15dp"
        android:text="空氣質量"
        android:textColor="#fff"
        android:textSize="20sp"/>
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_margin="15dp"
        android:baselineAligned="false">
        <RelativeLayout
            android:layout_width="0dp"
            android:layout_height="match_parent"
            android:layout_weight="1">
            <LinearLayout
                android:orientation="vertical"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_centerInParent="true">
                <TextView
                    android:id="@+id/aqi_text"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:layout_gravity="center"
                    android:textColor="#fff"
                    android:textSize="40sp" />
                <TextView
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:layout_gravity="center"
                    android:text="AQI指數"
                    android:textColor="#fff"/>
            </LinearLayout>
        </RelativeLayout>
        <RelativeLayout
            android:layout_width="0dp"
            android:layout_height="match_parent"
            android:layout_weight="1">
            <LinearLayout
                android:orientation="vertical"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_centerInParent="true">
                <TextView
                    android:id="@+id/pm25_text"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:layout_gravity="center"
                    android:textColor="#fff"
                    android:textSize="40sp"/>
                <TextView
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:layout_gravity="center"
                    android:text="PM2.5指數"
                    android:textColor="#fff"/>
            </LinearLayout>
        </RelativeLayout>
    </LinearLayout>
</LinearLayout>

建立一個suggestion.xml布局檔案
用于顯示官方建議，例如洗車，運動等
代碼如下：

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_margin="15dp"
    android:background="#8000">

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginLeft="15dp"
        android:layout_marginTop="15dp"
        android:text="生活建議"
        android:textColor="#fff"
        android:textSize="20sp"/>

    <TextView
        android:id="@+id/comfort_text"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_margin="15dp"
        android:textColor="#fff"/>

    <TextView
        android:id="@+id/car_wash_text"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_margin="15dp"
        android:textColor="#ffff"/>

    <TextView
        android:id="@+id/sport_text"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_margin="15dp"
        android:textColor="#fff"/>

</LinearLayout>

然后呢我們在activity_weather_activity.xml布局檔案中將他們添加進來

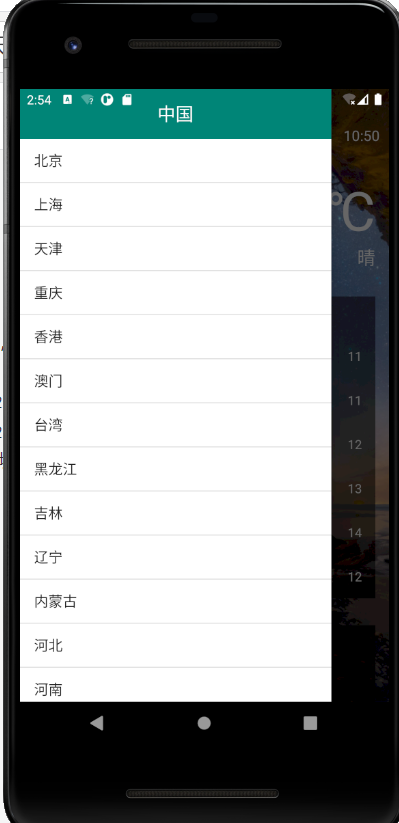

DrawerLayout 滑動選單
SwipeRefreshLayout 下拉重繪
android:fitsSystemWindows=“true” 為系統狀態留出空間，不然會和自己的APP頭部擠在一起
代碼如下:

<FrameLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@color/colorPrimary">
    <ImageView
        android:id="@+id/bing_pic_img"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:scaleType="centerCrop" />
    <androidx.drawerlayout.widget.DrawerLayout
        android:id="@+id/drawer_layout"
        android:layout_width="match_parent"
        android:layout_height="match_parent">
        <androidx.swiperefreshlayout.widget.SwipeRefreshLayout
            android:id="@+id/swipe_refresh"
            android:layout_width="match_parent"
            android:layout_height="match_parent">
            <ScrollView
                android:id="@+id/weather_layout"
                android:layout_width="match_parent"
                android:layout_height="match_parent"
                android:scrollbars="none"
                android:overScrollMode="never">
                <LinearLayout
                    android:orientation="vertical"
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:fitsSystemWindows="true">
                    <!--引入布局-->
                    <include layout="@layout/title"/>
                    <include layout="@layout/now"/>
                    <include layout="@layout/forecast"/>
                    <include layout="@layout/aqi"/>
                    <include layout="@layout/suggestion"/>
                </LinearLayout>
            </ScrollView>
        </androidx.swiperefreshlayout.widget.SwipeRefreshLayout>
        <fragment
            android:id="@+id/choose_area_fragment"
            android:name="com.example.weather2.ChooseAreaFragment"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:layout_gravity="start"/>
    </androidx.drawerlayout.widget.DrawerLayout>
</FrameLayout>

然后我們util包下建立一個名為Utility的類,用于決議GSON資料
代碼如下：

public class Utility {
    /**
     * 決議和處理服務器回傳的省級資料
     */
    public static boolean handleProvinceResponse(String response)
    {
        if(!TextUtils.isEmpty(response))
        {
            try
            {
                JSONArray allProvinces = new JSONArray(response);
                for (int i = 0; i < allProvinces.length(); i++)
                {
                    JSONObject provinceObject = allProvinces.getJSONObject(i);
                    Province province = new Province();
                    province.setProvinceName(provinceObject.getString("name"));
                    province.setProvinceCode(provinceObject.getInt("id"));
                    //呼叫save()方法將資料存盤到資料庫中
                    province.save();
                }
                return true;
            }catch (JSONException e)
            {
                e.printStackTrace();
            }
        }
        return false;
    }
    /**
     * 決議和處理服務器回傳的市級資料
     */
    public static boolean handleCityResponse(String response, int provinceId)
    {
        if(!TextUtils.isEmpty(response))
        {
            try {
                JSONArray allCities = new JSONArray(response);
                for (int i = 0; i < allCities.length(); i++)
                {
                    JSONObject cityObject = allCities.getJSONObject(i);
                    City city = new City();
                    city.setCityName(cityObject.getString("name"));
                    city.setCityCode(cityObject.getInt("id"));
                    city.setProvinceId(provinceId);
                    //呼叫save()方法將資料存盤到資料庫中
                    city.save();
                }
                return true;
            }catch (JSONException e)
            {
                e.printStackTrace();
            }

        }
        return false;
    }
    /**
     * 決議和處理服務器回傳的縣級資料
     */
    public static boolean handleCountyResponse(String response, int cityId)
    {
        if(!TextUtils.isEmpty(response))
        {
            try {
                JSONArray allCounties = new JSONArray(response);
                for (int i = 0; i < allCounties.length(); i++)
                {
                    JSONObject countyObject = allCounties.getJSONObject(i);
                    County county = new County();
                    county.setCountyName(countyObject.getString("name"));
                    county.setWeatherId(countyObject.getString("weather_id"));
                    county.setCityId(cityId);
                    //呼叫save()方法將資料存盤到資料庫中
                    county.save();
                }
                return true;
            }catch (JSONException e)
            {
                e.printStackTrace();
            }

        }
        return false;
    }

    /**
     * 將回傳的JSON資料決議成Weather物體類
     */
    public static Weather handleWeatherResponse(String response)
    {
        try {
            JSONObject jsonObject = new JSONObject(response);
            JSONArray jsonArray = jsonObject.getJSONArray("HeWeather");
            String weatherContent = jsonArray.getJSONObject(0).toString();
            return new Gson().fromJson(weatherContent,Weather.class);
        }catch (Exception e)
        {
            e.printStackTrace();
        }
        return null;
    }
}

然后我們撰寫WeatherActivity里的代碼，把資訊顯示出來
代碼如下：

public class WeatherActivity extends AppCompatActivity {
    public DrawerLayout drawerLayout;
    private Button navButton;

    public SwipeRefreshLayout swipeRefresh;
    private String mWeatherId;

    private ScrollView weatherLayout;
    private TextView titleCity;
    private TextView titleUpdateTime;
    private TextView degreeText;
    private TextView weatherInfoText;
    private LinearLayout forecastLayout;
    private TextView aqiText;
    private TextView pm25Text;
    private TextView comfortText;
    private TextView carWashText;
    private TextView sportText;

    private ImageView bingPicImg;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_weather_activty);

        //實作背景圖和手機狀態欄融合在一起，這個功能在Android5.0及以上的系統才支持，所以我們要做一個版本號的判斷
        if(Build.VERSION.SDK_INT >= 21)
        {
            //拿到當前活動的DecorView
            View decorView = getWindow().getDecorView();
            //呼叫它的setSystemUiVisibility()方法來改變系統UI的顯示，
            //這里傳入View.SYSTEM_UI_FLAG_LAYOUT_FULLSCREEN和View.SYSTEM_UI_FLAG_LAYOUT_STABLE就表示活動的布局會顯示在狀態欄上
            decorView.setSystemUiVisibility(View.SYSTEM_UI_FLAG_LAYOUT_FULLSCREEN | View.SYSTEM_UI_FLAG_LAYOUT_STABLE);
            //呼叫setStatusBarColor()方法將狀態欄設定為透明色，
            getWindow().setStatusBarColor(Color.TRANSPARENT);
        }

        //初始化各控制元件
        bingPicImg = (ImageView)findViewById(R.id.bing_pic_img);
        weatherLayout = (ScrollView)findViewById(R.id.weather_layout);
        titleCity = (TextView)findViewById(R.id.title_city);
        titleUpdateTime = (TextView)findViewById(R.id.title_update_time);
        degreeText = (TextView)findViewById(R.id.degree_text);
        weatherInfoText = (TextView)findViewById(R.id.weather_info_text);
        forecastLayout = (LinearLayout) findViewById(R.id.forecast_layout);
        aqiText = (TextView)findViewById(R.id.aqi_text);
        pm25Text = (TextView)findViewById(R.id.pm25_text);
        comfortText = (TextView)findViewById(R.id.comfort_text);
        carWashText = (TextView)findViewById(R.id.car_wash_text);
        sportText = (TextView)findViewById(R.id.sport_text);

        swipeRefresh = (SwipeRefreshLayout)findViewById(R.id.swipe_refresh);
        swipeRefresh.setColorSchemeResources(R.color.colorPrimary);

        //滑動選單功能
        drawerLayout = (DrawerLayout)findViewById(R.id.drawer_layout);
        navButton = (Button)findViewById(R.id.nav_button);

        SharedPreferences prefs = PreferenceManager.getDefaultSharedPreferences(this);
        String weatherString = prefs.getString("weather",null);
        if(weatherString != null)
        {
            //有快取時直接決議天氣資料
            Weather weather = Utility.handleWeatherResponse(weatherString);
            showWeatherInfo(weather);
            mWeatherId = weather.basic.weatherId;
        }else
        {
            //無快取時去服務器查詢天氣
            mWeatherId = getIntent().getStringExtra("weather_id");
            // String weatherId = getIntent().getStringExtra("weather_id");
            weatherLayout.setVisibility(View.INVISIBLE);
            //requestWeather(weatherId);
            requestWeather(mWeatherId);
        }
        //下拉重繪
        swipeRefresh.setOnRefreshListener(new SwipeRefreshLayout.OnRefreshListener()
        {
            @Override
            public void onRefresh()
            {
                requestWeather(mWeatherId);
            }
        });
        //按鈕點擊事件滑動選單
        navButton.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                //打開滑動選單
                drawerLayout.openDrawer(GravityCompat.START);
            }
        });
       String bingPic = prefs.getString("bing_pic",null);
        if(bingPic != null)
        {
            Glide.with(this).load(bingPic).into(bingPicImg);
        }
        else
        {
            loadBingPic();
        }
    }
    /**
     * 根據天氣id請求城市天氣資訊
     */
    public void requestWeather(final String weatherId)
    {
        String weatherUrl = "http://guolin.tech/api/weather?cityid=" + weatherId + "&key=6f6b5169b08547f483d662d4e8c5d591";
        HttpUtil.sendOkHttpRequest(weatherUrl, new Callback() {
            @Override
            public void onFailure(@NotNull Call call, @NotNull IOException e) {
                e.printStackTrace();
                runOnUiThread(new Runnable() {
                    @Override
                    public void run() {
                        Toast.makeText(WeatherActivity.this,"獲取天氣資訊失敗hahaha",Toast.LENGTH_SHORT).show();
                        swipeRefresh.setRefreshing(false);
                    }
                });
            }
            @Override
            public void onResponse(@NotNull Call call, @NotNull Response response) throws IOException {
                final String responseText = response.body().string();
                final Weather weather = Utility.handleWeatherResponse(responseText);
                runOnUiThread(new Runnable() {
                    @Override
                    public void run() {
                        if(weather != null && "ok".equals(weather.status))
                        {
                            SharedPreferences.Editor editor = PreferenceManager.getDefaultSharedPreferences(WeatherActivity.this).edit();
                            editor.putString("weather",responseText);
                            editor.apply();
                            mWeatherId = weather.basic.weatherId;
                            showWeatherInfo(weather);
                        }
                        else
                        {
                            Toast.makeText(WeatherActivity.this,"獲取天氣資訊失敗nonono",Toast.LENGTH_SHORT).show();
                        }
                        swipeRefresh.setRefreshing(false);
                    }
                });
            }
        });
        loadBingPic();
    }
    /**
     * 加載必應每日一圖
     */
    private void loadBingPic()
    {
        String requestBingPic = "http://guolin.tech/api/bing_pic";
        HttpUtil.sendOkHttpRequest(requestBingPic, new Callback() {
            @Override
            public void onFailure(@NotNull Call call, @NotNull IOException e) {
                e.printStackTrace();
            }

            @Override
            public void onResponse(@NotNull Call call, @NotNull Response response) throws IOException {
                final String bingPic = response.body().string();
                SharedPreferences.Editor editor = PreferenceManager.getDefaultSharedPreferences(WeatherActivity.this).edit();
                editor.putString("bing_pic",bingPic);
                editor.apply();
                runOnUiThread(new Runnable() {
                    @Override
                    public void run() {
                        Glide.with(WeatherActivity.this).load(bingPic).into(bingPicImg);
                    }
                });
            }
        });
    }


    /**
     * 處理并展示Weather物體類的資料
     */
    private void showWeatherInfo(Weather weather)
    {
        String cityName = weather.basic.cityName;
        String updateTime = weather.basic.update.updateTime.split(" ")[1];
        String degree = weather.now.temperature + "℃";
        String weatherInfo = weather.now.more.info;
        titleCity.setText(cityName);
        titleUpdateTime.setText(updateTime);
        degreeText.setText(degree);
        weatherInfoText.setText(weatherInfo);
        forecastLayout.removeAllViews();

        for (Forecast forecast : weather.forecastList)
        {
            View view = LayoutInflater.from(this).inflate(R.layout.forecast_item,forecastLayout,false);
            TextView dateText = (TextView)view.findViewById(R.id.date_text);
            TextView infoText = (TextView)view.findViewById(R.id.info_text);
            TextView maxText = (TextView)view.findViewById(R.id.max_text);
            TextView minText = (TextView)view.findViewById(R.id.min_text);

            dateText.setText(forecast.date);
            infoText.setText(forecast.more.info);
            maxText.setText(forecast.temperature.max);
            minText.setText(forecast.temperature.min);
            forecastLayout.addView(view);
        }
        if(weather.aqi != null)
        {
            aqiText.setText(weather.aqi.city.aqi);
            pm25Text.setText(weather.aqi.city.pm25);
        }
        String comfort = "舒適度：" + weather.suggestion.comfort.info;
        String carWash = "洗車指數：" + weather.suggestion.carWash.info;
        String sport = "運動建議：" + weather.suggestion.sport.info;
        comfortText.setText(comfort);
        carWashText.setText(carWash);
        sportText.setText(sport);
        weatherLayout.setVisibility(View.VISIBLE);
        Intent intent = new Intent(this, AutoUpdateService.class);
        startService(intent);
    }
}

最后我們在MainActivity里加入一個判斷快取資料
代碼如下：

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        SharedPreferences prefs = PreferenceManager.getDefaultSharedPreferences(this);
        if(prefs.getString("weather",null) != null)
        {
            Intent intent = new Intent(this, WeatherActivity.class);
            startActivity(intent);
            finish();
        }
    }
}

到這里天氣預報就算你告一段落了，下面我們看一下效果：

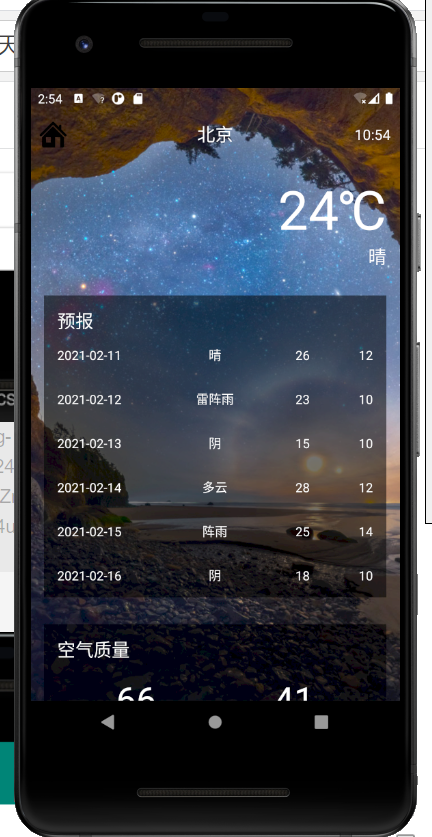

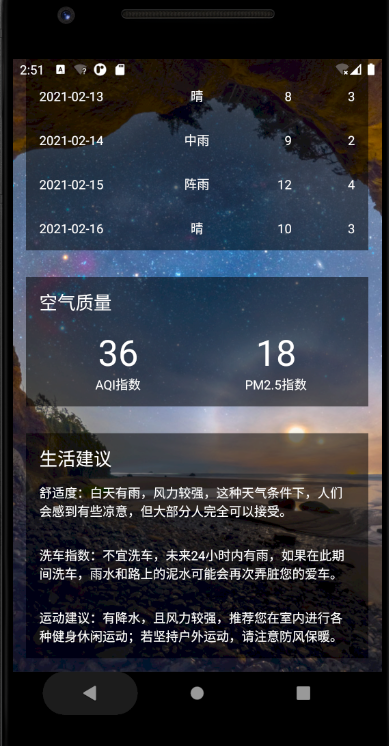

選定城市后就可以看見界面了

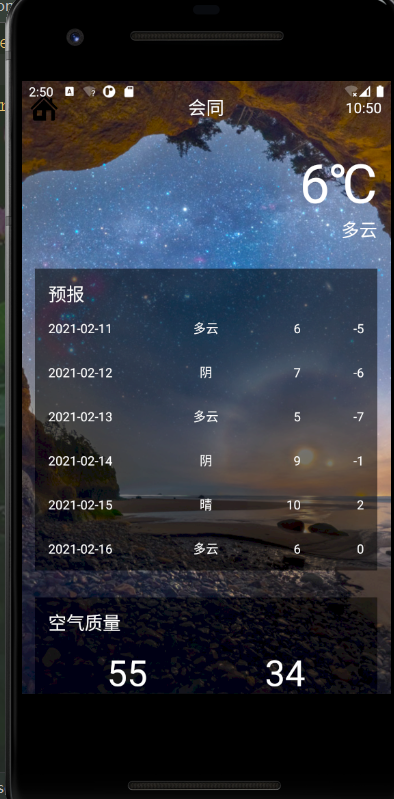

背景圖采用必應的介面，所有每天會有不同的背景

點擊左上角的小房子圖示可以切換城市

轉載請註明出處，本文鏈接：https://www.uj5u.com/yidong/258765.html

標籤：其他

上一篇：手把手教你用自定義View實作長按出現水漫效果的進度按鈕（長按取消）

下一篇：過年拍照獨缺你？用機器學習服務一秒生成全家福
