ExpandableListView的應用

使用ExpandableListView實作下拉選單欄

<ExpandableListView xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity"
    android:id="@+id/id_expandableListView"

    android:indicatorLeft="10dp"
    android:indicatorRight="40dp"
    >

</ExpandableListView>

2.item_child_chapter.xml

<?xml version="1.0" encoding="utf-8"?>
<TextView xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/id_tv_child"
    android:layout_width="match_parent"
    android:layout_height="40dp"
    android:gravity="center_vertical"
    android:textSize="16sp"></TextView>

3.item_parent_chapter.xml

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:background="#44337dd7"
    android:layout_height="56dp"
    android:orientation="horizontal">
     //這里自己可以找個圖片代替
    <ImageView
        android:id="@+id/id_indicator_group"
        android:layout_width="24dp"
        android:layout_height="24dp"
        android:layout_gravity="center_vertical"
        android:background="@drawable/indicator_group"
        />


    <TextView
        android:id="@+id/id_tv_parent"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:gravity="center_vertical"
        tools:text="Android"
        android:textSize="24dp"
        android:textStyle="bold">

    </TextView>

</LinearLayout>

public class Chapter {
    //分組條目
    private int id;
    private String name;
    private List<ChapterItem> chapterItems = new ArrayList<>();
    public void addChild(ChapterItem chapterItem){
        chapterItem.setPid(getId());
        chapterItems.add(chapterItem);
    }
    public void addChild(int id,String cname){
        ChapterItem chapterItem = new ChapterItem(id,cname);
        chapterItem.setPid(getId());
        chapterItems.add(chapterItem);
    }
    public Chapter() {

    }

    public Chapter(int id, String name) {
        this.id = id;
        this.name = name;
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public List<ChapterItem> getChapterItems() {
        return chapterItems;
    }

    public void setChapterItems(List<ChapterItem> chapterItems) {
        this.chapterItems = chapterItems;
    }

    @Override
    public String toString() {
        return "Chapter{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", chapterItems=" + chapterItems +
                '}';
    }
}

2.ChapterItem

public class ChapterItem {
    private int id;
    private String name;
    private int pid;

    public ChapterItem() {
    }

    public ChapterItem(int id, String name) {
        this.id = id;
        this.name = name;
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public int getPid() {
        return pid;
    }

    public void setPid(int pid) {
        this.pid = pid;
    }

    @Override
    public String toString() {
        return "ChapterItem{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", pid=" + pid +
                '}';
    }
}

3.ChapteeLab

//這里是自己傳入的資料，可以自己撰寫,這里做一個大概的
public class ChapteeLab {
//模擬資料[可以按照這個樣子來繼續寫]
    public static List<Chapter> generateDatas() {
        List<Chapter> chapters = new ArrayList<>();
        Chapter root1 = new Chapter(1, "Android");
        //寫值
        root1.addChild(1, "PullToRefresh");
        root1.addChild(2, "Android 8.0通知欄解決方案");
        root1.addChild(4, "Android 與WebView的js互動");
        root1.addChild(8, "Android UiAutomator 2.0 入門實戰");
        root1.addChild(10, "移動端音頻視頻入門");
        //添加
        chapters.add(root1);

        return chapters;
 }
}

ChapteAdapter封裝類

public class ChapteAdapter extends BaseExpandableListAdapter {
    private Context mContext;
    private List<Chapter> mDatas;
    private LayoutInflater mInflater;

    public ChapteAdapter(Context context, List<Chapter> chapters) {
        mContext = context;
        mDatas = chapters;
        mInflater = LayoutInflater.from(context);
    }


    @Override
    public int getGroupCount() {
        return mDatas.size();
    }

    @Override
    public int getChildrenCount(int groupPosition) {
        return mDatas.get(groupPosition).getChapterItems().size();
    }

    @Override
    public Object getGroup(int groupPosition) {
        return mDatas.get(groupPosition);
    }

    @Override
    public Object getChild(int groupPosition, int childPosition) {
        return mDatas.get(groupPosition).getChapterItems().get(childPosition);
    }

    @Override
    public long getGroupId(int groupPosition) {
        return groupPosition;
    }

    @Override
    public long getChildId(int groupPosition, int childPosition) {
        return childPosition;
    }


    // TODO
    @Override
    public boolean hasStableIds() {
        return false;
    }

    @Override
    public View getGroupView(int groupPosition, boolean isExpanded, View convertView, ViewGroup parent) {


        ParentViewHolder vh;
        if (convertView == null) {
            // 修改item height即可演示，第二個引數作用
            convertView = mInflater.inflate(R.layout.item_parent_chapter, parent, false);
            vh = new ParentViewHolder();
            vh.tv = convertView.findViewById(R.id.id_tv_parent);
            vh.iv = convertView.findViewById(R.id.id_indicator_group);
            convertView.setTag(vh);

        } else {
            vh = (ParentViewHolder) convertView.getTag();
        }
        vh.tv.setText(mDatas.get(groupPosition).getName());
        vh.iv.setSelected(isExpanded);

        return convertView;
    }

    @Override
    public View getChildView(int groupPosition, int childPosition, boolean isLastChild, View convertView, ViewGroup parent) {


        ChildViewHolder vh;
        if (convertView == null) {
            convertView = mInflater.inflate(R.layout.item_child_chapter, parent, false);
            vh = new ChildViewHolder();
            vh.tv = convertView.findViewById(R.id.id_tv_child);

            convertView.setTag(vh);

        } else {
            vh = (ChildViewHolder) convertView.getTag();
        }
        vh.tv.setText(mDatas.get(groupPosition).getChapterItems().get(childPosition).getName());
        return convertView;
    }

    // 控制child item不可點擊
    @Override
    public boolean isChildSelectable(int groupPosition, int childPosition) {

        return true;
    }

    public static class ParentViewHolder {
        TextView tv;
        ImageView iv;
    }

    public static class ChildViewHolder {
        TextView tv;
    }
}

public class MainActivity extends AppCompatActivity {
    private ExpandableListView mexpandableListView;
    private BaseExpandableListAdapter madapter;
    private List<Chapter> mDatas = new ArrayList<>();
    private static final String TAG = "xw";
    private ChapteBiz mchapteBiz = new ChapteBiz();
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        initView();
        initEvents();
    }
    private void initEvents() {
        mexpandableListView.setOnChildClickListener(new ExpandableListView.OnChildClickListener() {
            @Override
            public boolean onChildClick(ExpandableListView expandableListView, View view, int i, int i1, long l) {
                Log.d(TAG,"1"+i+"2"+i1);
                return false;
            }
        });
        mexpandableListView.setOnGroupClickListener(new ExpandableListView.OnGroupClickListener() {
            @Override
            public boolean onGroupClick(ExpandableListView expandableListView, View view, int i, long l) {
                Log.d(TAG,"1"+i);
                return false;
            }
        });
        mexpandableListView.setOnGroupCollapseListener(new ExpandableListView.OnGroupCollapseListener() {
            @Override
            public void onGroupCollapse(int i) {
                Log.d(TAG,"1"+i);
            }
        });
        mexpandableListView.setOnGroupExpandListener(new ExpandableListView.OnGroupExpandListener() {
            @Override
            public void onGroupExpand(int i) {
                Log.d(TAG,"1"+i);
            }
        });
    }

    private void initView() {
        mexpandableListView = findViewById(R.id.id_expandableListView);
        mDatas.clear();
        mDatas.addAll(ChapteeLab.generateDatas());
        //設定配接器[封裝BaseExpandableListAdapter(){......}]
        madapter = new ChapteAdapter(this,mDatas);
        mexpandableListView.setAdapter(madapter);
        //隱藏'>'
        mexpandableListView.setGroupIndicator(null);
    }
}

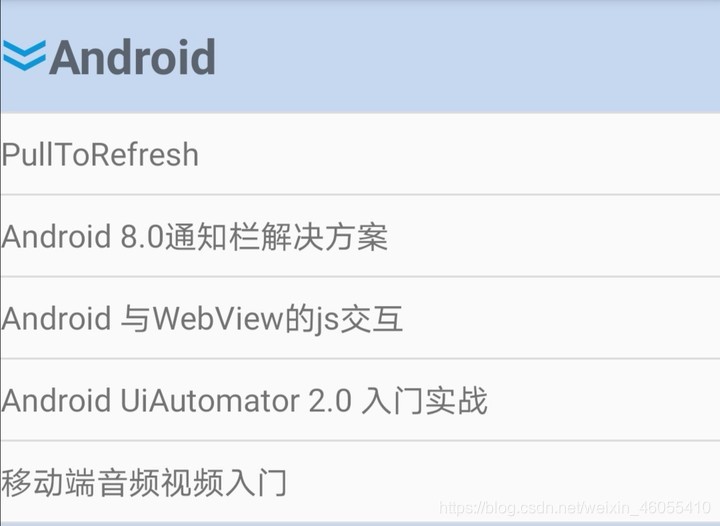

成果

謝謝看到這里，Android萌新，有問題望大佬指出，謝謝！
