Android Handler 從使用到進階

1.Handler

• 只要是開發Android的同學，Handler這個經常都會看到，也會使用到，本文章就做個筆記，
• Android規定了只能在主執行緒更新UI，那子執行緒想更新UI，在操作完成后，就可用通過Handler發訊息，然后在主執行緒更新UI了，其實可以理解為生產者-消費者模式，發送訊息，取出訊息并處理，
• Android系統原始碼中，Android的訊息機制中，大量使用Handler，所以了解Handler非常的有必要，

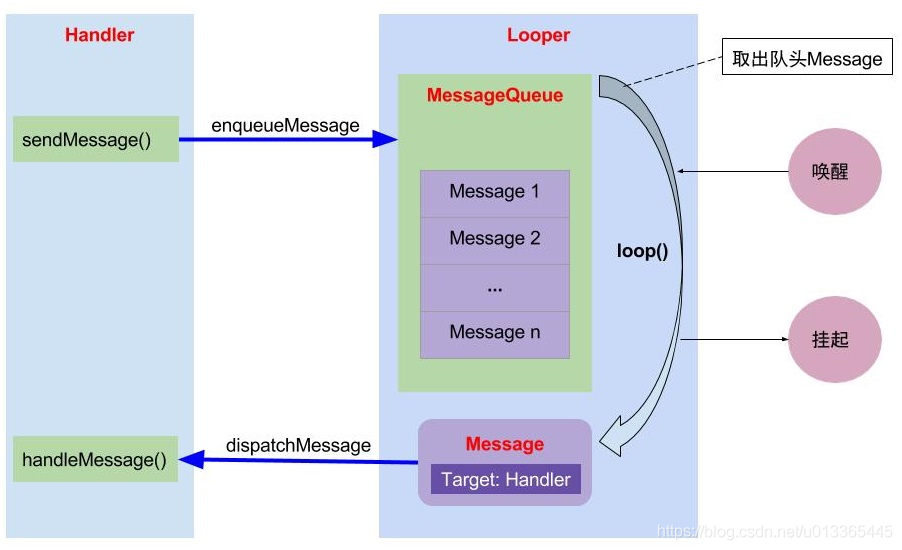

• 下圖是一個訊息發送的簡易流程，一各個步驟分析，


2.Handler簡單使用

2.1 發送訊息

• 最基本的使用就是各種sendMessage，帶不帶引數，是否延遲等，

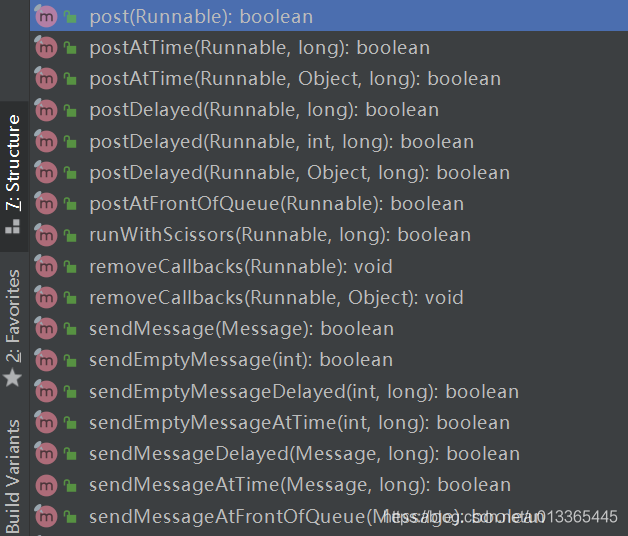

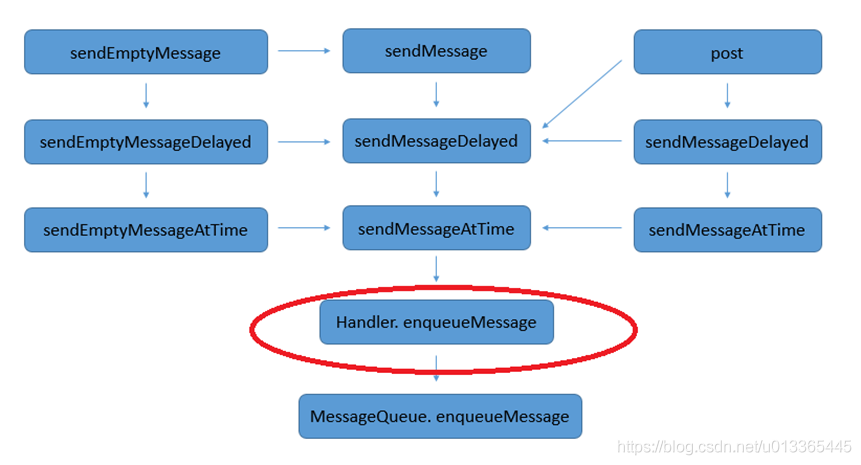

• 發送訊息方法非常多，根據自己需求選擇，所有發送訊息最后都是
• enqueueMessage(@NonNull MessageQueue queue, @NonNull Message msg,long uptimeMillis)，

2.2 使用

• 這樣直接使用會有記憶體泄漏風險，后面說，
• Handler創建有兩種，一個是在構造方法傳CallBack,一個是重寫類的 handleMessage() 方法，

	private static final int MESSAGA_TEST_1 = 1;

    /**
     * 主執行緒有初始化好Looper，所以在主執行緒處理訊息
     */
    private Handler mHandler = new Handler(new Handler.Callback() {
        @Override
        public boolean handleMessage(@NonNull Message msg) {
            switch (msg.what) {
                case MESSAGA_TEST_1:
                    if (tvTest != null) {
                        //傳遞訊息obj
                        tvTest.setText((String) msg.obj);
                    }
                    break;
            }
            return false;
        }
    });


    private Handler mHandler2 = new Handler() {
        @Override
        public void handleMessage(@NonNull Message msg) {
            switch (msg.what) {
                case MESSAGA_TEST_1:
                    if (tvTest != null) {
                        //傳遞訊息obj
                        tvTest.setText((String) msg.obj);
                    }
                    break;
            }
        }
    };

    private void onClick() {
        //當點擊事件執行，就會在子執行緒發送訊息更新textview
        new Thread(new Runnable() {
            @Override
            public void run() {
                clickEndMessage();
            }
        }).start();
    }


    /**
     * 可以在子執行緒發送
     */
    private void clickEndMessage() {
        //obtain享元模式
        Message message = Message.obtain(mHandler);
        //what相當于標記
        message.what = MESSAGA_TEST_1;
        //obj傳資料
        message.obj = new String("baozi");
        //普通發送message
        mHandler.sendMessage(message);
 		.
 		.
 		.
        //發送標記，不帶其他內容，內部會封裝成只有標記的Message物件
        mHandler.sendEmptyMessage();
        //尾部帶有Delayed，發送延遲訊息，單位毫秒
        mHandler.sendMessageDelayed(message, 1000);
        //尾部帶有AtTime,發送訊息的時間跟Delayed差別就是Delayed是執行的當前時間+傳進去的時間，AtTime就傳進去的絕對時間
        mHandler.sendMessageAtTime();
        //在佇列頭插入訊息
        mHandler.sendMessageAtFrontOfQueue(message);
    }


    @Override
    protected void onDestroy() {
        if(mHandler!=null){
        	//關閉activity時，移除訊息
            mHandler.removeMessages(MESSAGA_TEST_1);
            mHandler = null;
        }
        super.onDestroy();
    }

2.3 view.post()

• 比如view，post()、postDelayed() 方法，可以延遲五秒后更新UI，實際就是使用Handler，

tvTest.postDelayed(new Runnable() {
    @Override
    public void run() {
        tvTest.setText("5s");
    }
},5*1000);

/**
 * View 原始碼
 */
public boolean postDelayed(Runnable action, long delayMillis) {
    final AttachInfo attachInfo = mAttachInfo;
    if (attachInfo != null) {
        return attachInfo.mHandler.postDelayed(action, delayMillis);
    }

    // Postpone the runnable until we know on which thread it needs to run.
    // Assume that the runnable will be successfully placed after attach.
    getRunQueue().postDelayed(action, delayMillis);
    return true;
}

2.4 runOnUiThread

• 經常用的 runOnUiThread() 方法也是用Handler，

runOnUiThread(new Runnable() {
    @Override
    public void run() {
        //更新UI
    }
});

/**
 * Activity 原始碼
 */
public final void runOnUiThread(Runnable action) {
    if (Thread.currentThread() != mUiThread) {
        mHandler.post(action);
    } else {
        action.run();
    }
}

3.子執行緒中使用

3.1 子執行緒直接創建Handler錯誤

• 子執行緒不能直接創建Handler，會報例外，因為Looper還沒創建，而主執行緒默認就初始化好Looper，
• 應該先Looper.

    private Handler handler2;

    /**
     * 子執行緒
     */
    private void thread() {
        new Thread(new Runnable() {
            @Override
            public void run() {
                handler2 = new Handler(new Handler.Callback() {
                    @Override
                    public boolean handleMessage(@NonNull Message msg) {
                        return false;
                    }
                });
            }
        }).start();
    }

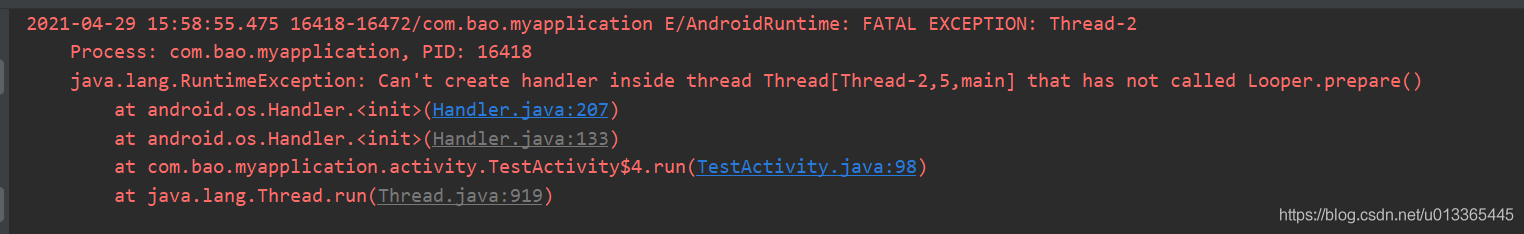

• 提示的錯誤，


3.2 主執行緒默認初始化Looper

• ActivityThread 類就能主執行緒找到Looper初始化，Looper.prepareMainLooper();，

    public static void main(String[] args) {
        .
        .
        Looper.prepareMainLooper();
		.
		.

        ActivityThread thread = new ActivityThread();
        .
        .
    }

3.3 Handler構造方法查看

• 構造方法中可以看到 mLooper = Looper.myLooper(); 獲取的 mLooper 為null，就報上面的那個例外了，

    public Handler(@Nullable Callback callback, boolean async) {
        .
        .
        mLooper = Looper.myLooper();
        if (mLooper == null) {
            throw new RuntimeException(
                "Can't create handler inside thread " + Thread.currentThread()
                        + " that has not called Looper.prepare()");
        }
        .
        .
    }

3.4 子執行緒正確的創建

• 先執行，Looper.prepare(); 初始化Looper，然后呼叫loop()方法，再創建Handler，
• 每個執行緒**Looper.prepare();**只能呼叫一次，否則會報錯，

    private Handler handler2;

    /**
     * 子執行緒
     */
    private void thread() {
        new Thread(new Runnable() {
            @Override
            public void run() {
                Looper.prepare();
                Looper looper = Looper.myLooper();
                looper.loop();

                handler2 = new Handler(looper, new Handler.Callback() {
                    @Override
                    public boolean handleMessage(@NonNull Message msg) {
                        return false;
                    }
                });
            }
        }).start();
    }

4.Message

• Message就是一個存放訊息的類，是一個鏈表結構，

4.1 基本引數

public final class Message implements Parcelable {
   	//用于handler標記處理的
    public int what;
    //可以傳遞的int引數1
    public int arg1;
    //可以傳遞的int引數2
    public int arg2;
	//可以傳遞的obj引數
    public Object obj;

    //執行時間
    public long when;
	//傳遞的bundle
    Bundle data;
	//Message系結的Handler
    Handler target;
	//Handler.post()時傳的callback
    Runnable callback;
	//鏈表結構
    Message next;

4.2 享元模式obtain()

• obtain() 可以重用Message，減少開銷提高性能，
• 菜鳥教程-享元模式

    /**
     * Return a new Message instance from the global pool. Allows us to
     * avoid allocating new objects in many cases.
     */
    public static Message obtain() {
        synchronized (sPoolSync) {
            if (sPool != null) {
                Message m = sPool;
                sPool = m.next;
                m.next = null;
                m.flags = 0; // clear in-use flag
                sPoolSize--;
                return m;
            }
        }
        return new Message();
    }

4.3 回收recycle()

• 如果發送的延遲訊息，或者訊息在執行，就會報錯，一般我們不用呼叫recycle方法，

    /**
     * Return a Message instance to the global pool.
     * <p>
     * You MUST NOT touch the Message after calling this function because it has
     * effectively been freed.  It is an error to recycle a message that is currently
     * enqueued or that is in the process of being delivered to a Handler.
     * </p>
     */
    public void recycle() {
        if (isInUse()) {
            if (gCheckRecycle) {
                throw new IllegalStateException("This message cannot be recycled because it "
                        + "is still in use.");
            }
            return;
        }
        recycleUnchecked();
    }

• Message用完并不是記憶體回收，只是把里面的內容清空，等下次復用，
• 這個鏈表也不是無限的，最多就50個節點 ，

    private static final int MAX_POOL_SIZE = 50;

    @UnsupportedAppUsage
    void recycleUnchecked() {
        // Mark the message as in use while it remains in the recycled object pool.
        // Clear out all other details.
        flags = FLAG_IN_USE;
        what = 0;
        arg1 = 0;
        arg2 = 0;
        obj = null;
        replyTo = null;
        sendingUid = UID_NONE;
        workSourceUid = UID_NONE;
        when = 0;
        target = null;
        callback = null;
        data = null;

        synchronized (sPoolSync) {
        	//最多50個
            if (sPoolSize < MAX_POOL_SIZE) {
                next = sPool;
                sPool = this;
                sPoolSize++;
            }
        }
    }

5.MessageQueue

• 這是一個阻塞佇列，
• 佇列是在不停的for回圈的，是一個死回圈，那不就一直占用著cpu？所以就有了native的方法，處理休眠喚醒，

5.1 MessageQueue每個執行緒只有一個

• 訊息佇列每個執行緒只有一個，跟Looper系結在一起，在分析Looper時會一起分析，

5.2 訊息入隊

• 前面我們知道Handler所有訊息入隊最后都是呼叫 enqueueMessage(Message msg, long when) ，
• 判斷插入訊息的位置，還判斷是否喚醒操作，

    boolean enqueueMessage(Message msg, long when) {
        //handler為空就報例外
        if (msg.target == null) {
            throw new IllegalArgumentException("Message must have a target.");
        }
        //加鎖
        synchronized (this) {
        	//訊息正在使用會報錯
            if (msg.isInUse()) {
                throw new IllegalStateException(msg + " This message is already in use.");
            }
			//判斷執行緒是否存活
            if (mQuitting) {
                IllegalStateException e = new IllegalStateException(
                        msg.target + " sending message to a Handler on a dead thread");
                Log.w(TAG, e.getMessage(), e);
                msg.recycle();
                return false;
            }

			//標記正在使用
            msg.markInUse();
            msg.when = when;
            //鏈表頭
            Message p = mMessages;
            boolean needWake;
            if (p == null || when == 0 || when < p.when) {
            	//如果佇列為空，或者訊息延遲時間為0，或者延遲時間小于mMessage的，就插入在頭部
                // New head, wake up the event queue if blocked.
                msg.next = p;
                mMessages = msg;
                //喚醒佇列
                needWake = mBlocked;
            } else {
                // Inserted within the middle of the queue.  Usually we don't have to wake
                // up the event queue unless there is a barrier at the head of the queue
                // and the message is the earliest asynchronous message in the queue.

            	//插入佇列中間，通常，除非佇列的開頭有障礙并且訊息是佇列中最早的異步訊息，否則我們不必喚醒事件佇列，
                needWake = mBlocked && p.target == null && msg.isAsynchronous();
                Message prev;
                //在中間插入，根據時間位置插入
                for (;;) {
                    prev = p;
                    p = p.next;
                    if (p == null || when < p.when) {
                        break;
                    }
                    if (needWake && p.isAsynchronous()) {
                        needWake = false;
                    }
                }
                msg.next = p; // invariant: p == prev.next
                prev.next = msg;
            }

			//是否喚醒
            // We can assume mPtr != 0 because mQuitting is false.
            if (needWake) {
                nativeWake(mPtr);
            }
        }
        return true;
    }

5.3 訊息出隊

• 訊息出隊其實應該放在 Looper.loop() 里面分析更合適，這里先寫，后面結合 loop() 一起看會更好，
• 前面 return null; 看注釋的意思是，如果looper已經退出和釋放，就回傳null，
• 這里無限回圈，就是一定要取到訊息，有訊息，阻塞時間為訊息的執行時間減去當前時間，如果沒訊息就阻塞， nativePollOnce(ptr, nextPollTimeoutMillis)，
• 這 next() 方法只有一個地方回傳msg，關注這里就行了，

    @UnsupportedAppUsage
    Message next() {
        // Return here if the message loop has already quit and been disposed.
        // This can happen if the application tries to restart a looper after quit
        // which is not supported.
        final long ptr = mPtr;
        if (ptr == 0) {
            return null;
        }

        int pendingIdleHandlerCount = -1; // -1 only during first iteration
        int nextPollTimeoutMillis = 0;
        for (;;) {
            if (nextPollTimeoutMillis != 0) {
                Binder.flushPendingCommands();
            }
			//沒訊息取就阻塞
            nativePollOnce(ptr, nextPollTimeoutMillis);

            synchronized (this) {
                // Try to retrieve the next message.  Return if found.
                final long now = SystemClock.uptimeMillis();
                Message prevMsg = null;
                Message msg = mMessages;
                if (msg != null && msg.target == null) {
                    // Stalled by a barrier.  Find the next asynchronous message in the queue.
                    do {
                        prevMsg = msg;
                        msg = msg.next;
                    } while (msg != null && !msg.isAsynchronous());
                }
                if (msg != null) {
                    if (now < msg.when) {
                        // Next message is not ready.  Set a timeout to wake up when it is ready.
                        //阻塞時間為訊息的執行時間減去當前時間
                        nextPollTimeoutMillis = (int) Math.min(msg.when - now, Integer.MAX_VALUE);
                    } else {
                        // Got a message.
                        mBlocked = false;
                        if (prevMsg != null) {
                            prevMsg.next = msg.next;
                        } else {
                            mMessages = msg.next;
                        }
                        msg.next = null;
                        if (DEBUG) Log.v(TAG, "Returning message: " + msg);
                        msg.markInUse();
                        //只有這里回傳msg
                        return msg;
                    }
                } else {
                	//沒有更多訊息，設定為-1，阻塞
                    // No more messages.
                    nextPollTimeoutMillis = -1;
                }

				.
				.
        }
    }

5.4 退出

• 主執行緒是不能退出，
• 傳入的 safe 處理，分別是移除訊息未執行的訊息，和移除全部訊息，

    void quit(boolean safe) {
    	//主執行緒是不能退出的
        if (!mQuitAllowed) {
            throw new IllegalStateException("Main thread not allowed to quit.");
        }

        synchronized (this) {
            if (mQuitting) {
                return;
            }
            mQuitting = true;

			//移除訊息
            if (safe) {
                removeAllFutureMessagesLocked();
            } else {
                removeAllMessagesLocked();
            }

            // We can assume mPtr != 0 because mQuitting was previously false.
            nativeWake(mPtr);
        }
    }

	/**
	 * 移除全部訊息
	 */
    private void removeAllMessagesLocked() {
        Message p = mMessages;
        while (p != null) {
            Message n = p.next;
            p.recycleUnchecked();
            p = n;
        }
        mMessages = null;
    }

	/**
	 * 移除未執行的訊息，正在運行的等待完成再回收
	 */
    private void removeAllFutureMessagesLocked() {
        final long now = SystemClock.uptimeMillis();
        Message p = mMessages;
        if (p != null) {

            if (p.when > now) {
            	//如果執行時間還未到，即未執行的訊息，移除回收
                removeAllMessagesLocked();
            } else {
            	//等待在執行的訊息執行完再回收移除
                Message n;
                for (;;) {
                    n = p.next;
                    if (n == null) {
                        return;
                    }
                    if (n.when > now) {
                        break;
                    }
                    p = n;
                }
                p.next = null;
                do {
                    p = n;
                    n = p.next;
                    p.recycleUnchecked();
                } while (n != null);
            }
        }
    }

6.Looper

• Handler要負責發送訊息，MessageQueue訊息佇列存放訊息，Looper就是負責訊息回圈，
• 商場的扶手電梯大家應該都知道吧，可以把扶手電梯的電機看成Looper，一梯一梯看成訊息佇列MessageQueue，坐電梯的人看成Message，就這樣不停的回圈，把訊息送去處理，

6.1 ThreadLocal

• Android 開發也要掌握的Java知識 -ThreadLocal 可以看下ThreadLocal原理，
• Looper就是用到了ThreadLocal，Looper內部直接就有一個，還定義成static，final了，也就意味著Android里面獲取的ThreadLocal只有這一個，

    @UnsupportedAppUsage
    static final ThreadLocal<Looper> sThreadLocal = new ThreadLocal<Looper>();

6.2 初始化prepare()，為何只能呼叫一次

• 在prepare()方法可以看到，如果初始化過，就呼叫就會報錯了，所以每個執行緒最多只有一個Looper，但Handler可以有很多個，

    /** Initialize the current thread as a looper.
      * This gives you a chance to create handlers that then reference
      * this looper, before actually starting the loop. Be sure to call
      * {@link #loop()} after calling this method, and end it by calling
      * {@link #quit()}.
      */
    public static void prepare() {
        prepare(true);
    }

    private static void prepare(boolean quitAllowed) {
    	//每個執行緒只能有一個looper
        if (sThreadLocal.get() != null) {
            throw new RuntimeException("Only one Looper may be created per thread");
        }
        //初始化后設定給sThreadLocal
        sThreadLocal.set(new Looper(quitAllowed));
    }

6.3 系結當前執行緒，創建訊息對列

• 創建訊息對列,Looper系結到當前Thread，
• quitAllowed訊息佇列是否可銷毀，主執行緒的是不可銷毀的，子執行緒默認是可銷毀，

    private Looper(boolean quitAllowed) {
    	//創建訊息佇列
        mQueue = new MessageQueue(quitAllowed);
        //系結當前執行緒
        mThread = Thread.currentThread();
    }

6.4 拿到當前執行緒的looper

    /**
     * Return the Looper object associated with the current thread.  Returns
     * null if the calling thread is not associated with a Looper.
     */
    public static @Nullable Looper myLooper() {
        return sThreadLocal.get();
    }

6.5 loop()

• 首先拿到當前執行緒的looper，如果沒有prepare（）那就是空，報例外，
• 然后就是不停的回圈，取出訊息，再處理訊息，
• Android中為什么主執行緒不會因為Looper.loop()里的死回圈卡死？

  /**
     * Run the message queue in this thread. Be sure to call
     * {@link #quit()} to end the loop.
     */
    public static void loop() {
      	//拿到當前執行緒的looper，如果沒有prepare（）那就是空，報例外
        final Looper me = myLooper();
        if (me == null) {
            throw new RuntimeException("No Looper; Looper.prepare() wasn't called on this thread.");
        }
        if (me.mInLoop) {
            Slog.w(TAG, "Loop again would have the queued messages be executed"
                    + " before this one completed.");
        }
      .
      .
      .

        for (;;) {
        	//不停的取訊息
            Message msg = queue.next(); // might block
            if (msg == null) {
                // No message indicates that the message queue is quitting.
                return;
            }

            .
            .
            try {
            	//處理訊息，msg.target就是系結的handler
                msg.target.dispatchMessage(msg);
                if (observer != null) {
                    observer.messageDispatched(token, msg);
                }
                dispatchEnd = needEndTime ? SystemClock.uptimeMillis() : 0;
            } catch (Exception exception) {
                if (observer != null) {
                    observer.dispatchingThrewException(token, msg, exception);
                }
                throw exception;
            } finally {
                ThreadLocalWorkSource.restore(origWorkSource);
                if (traceTag != 0) {
                    Trace.traceEnd(traceTag);
                }
            }
            .
            .
			//回收訊息
            msg.recycleUnchecked();
        }
    }

6.6 退出

• 退出 Looper 其實就是呼叫 MessageQueue 的退出，傳的 safe 不同而已，那這兩段注釋說啥，
• 傳 false ，就是說后面發送訊息都不會再處理了，發送訊息全部都失敗，而且該方法不安全，建議使用 quitSafely()，
• 傳 true,跟上面效果差不多，就是MessageQueue的邏輯，移除未執行的訊息，正在運行的等待完成，

    /**
     * Quits the looper.
     * <p>
     * Causes the {@link #loop} method to terminate without processing any
     * more messages in the message queue.
     * </p><p>
     * Any attempt to post messages to the queue after the looper is asked to quit will fail.
     * For example, the {@link Handler#sendMessage(Message)} method will return false.
     * </p><p class="note">
     * Using this method may be unsafe because some messages may not be delivered
     * before the looper terminates.  Consider using {@link #quitSafely} instead to ensure
     * that all pending work is completed in an orderly manner.
     * </p>
     *
     * @see #quitSafely
     */
    public void quit() {
        mQueue.quit(false);
    }

    /**
     * Quits the looper safely.
     * <p>
     * Causes the {@link #loop} method to terminate as soon as all remaining messages
     * in the message queue that are already due to be delivered have been handled.
     * However pending delayed messages with due times in the future will not be
     * delivered before the loop terminates.
     * </p><p>
     * Any attempt to post messages to the queue after the looper is asked to quit will fail.
     * For example, the {@link Handler#sendMessage(Message)} method will return false.
     * </p>
     */
    public void quitSafely() {
        mQueue.quit(true);
    }

7.Handler

7.1 消發送息

• Handler 發送訊息最后都是執行 enqueueMessage() ，

• 這就做了 Message 的 target 指向 handler 自己，
• 訊息入隊，
• mAsynchronous 默認就是false , 構造方法我們基本也不會去動這引數，默認handler 是同步的，

    private boolean enqueueMessage(@NonNull MessageQueue queue, @NonNull Message msg,
            long uptimeMillis) {
        //訊息的target就是handler
        msg.target = this;
        msg.workSourceUid = ThreadLocalWorkSource.getUid();
		//設定異步
        if (mAsynchronous) {
            msg.setAsynchronous(true);
        }
        //訊息入隊
        return queue.enqueueMessage(msg, uptimeMillis);
    }

7.2 處理消息

• Looper.loop() 里面 msg.target.dispatchMessage(msg); 就是讓 Handler 處理訊息，
• 這里可以看到三種，第一種是 Handler 發送訊息用的 post , 就會把 Callback 封裝到 Message ,走 Message 自己的 Callback ，
• 第二種是Handler 創建時，重寫了 Callback，這是有回傳值得，如果為 true ,就會再執行下面的 handleMessage 方法，
• 第三種就是沒傳 Callback ,就執行 Handler 自己的 handleMessage ，但要重寫該方法，

    /**
     * Handle system messages here.
     */
    public void dispatchMessage(@NonNull Message msg) {
    	//Message 內部的callback，就是Handler,post()方法封裝在Message內部的
        if (msg.callback != null) {
            handleCallback(msg);
        } else {
        	//如果Handler創建時傳Callback就執行這里
            if (mCallback != null) {
            	//如果回傳值為false 就結束
                if (mCallback.handleMessage(msg)) {
                    return;
                }
            }
            //如果mCallback為null,或者上面回傳值為true,就執行這里
            handleMessage(msg);
        }
    }

     /**
     * Message 內部的callback，就是Handler,post()方法封裝在Message內部的
     */
    private static void handleCallback(Message message) {
        message.callback.run();
    }

    /**
     * 創建時如果傳Callback，就執行
     */
    public interface Callback {
        /**
         * @param msg A {@link android.os.Message Message} object
         * @return True if no further handling is desired
         */
        boolean handleMessage(@NonNull Message msg);
    }

    /**
     * 創建時如果沒傳Callback,而是重寫了該方法
     */
    public void handleMessage(@NonNull Message msg) {
    }

8.記憶體泄漏

• 面試的時候賊喜歡問這個問題！！！
• 轉 小題大做 | 記憶體泄漏簡單問，你能答對嗎

9.HandlerThread

• HandlerThread 是谷歌封裝好 Looper 的 Thread ，子執行緒如果需要Handler推薦使用，
• 這里就是保證在使用Handler之前，Looper 一定準備好，

public class HandlerThread extends Thread {
    int mPriority;
    int mTid = -1;
    Looper mLooper;
    private @Nullable Handler mHandler;

    public HandlerThread(String name) {
        super(name);
        mPriority = Process.THREAD_PRIORITY_DEFAULT;
    }

 	@Override
    public void run() {
        mTid = Process.myTid();
        Looper.prepare();
        //獲得鎖創建looper
        synchronized (this) {
            mLooper = Looper.myLooper();
            notifyAll();
        }
        Process.setThreadPriority(mPriority);
        onLooperPrepared();
        Looper.loop();
        mTid = -1;
    }

    /**
     * This method returns the Looper associated with this thread. If this thread not been started
     * or for any reason isAlive() returns false, this method will return null. If this thread
     * has been started, this method will block until the looper has been initialized.
     * @return The looper.
     */
    public Looper getLooper() {
        if (!isAlive()) {
            return null;
        }

        // If the thread has been started, wait until the looper has been created.
        synchronized (this) {
           //如果執行緒存活而且looper為空，就等待讓出鎖，直到looper創建
            while (isAlive() && mLooper == null) {
                try {
                    wait();
                } catch (InterruptedException e) {
                }
            }
        }
        return mLooper;
    }
}

參考檔案

文章寫完了，發現別人有更好的，想了想還是把自己寫的發出去吧，，，
Android訊息機制1-Handler(Java層)
小題大做 | 記憶體泄漏簡單問，你能答對嗎
又又又又攢了一個月的Android面試題
