android popWindow組件微信式實作（較完整版）

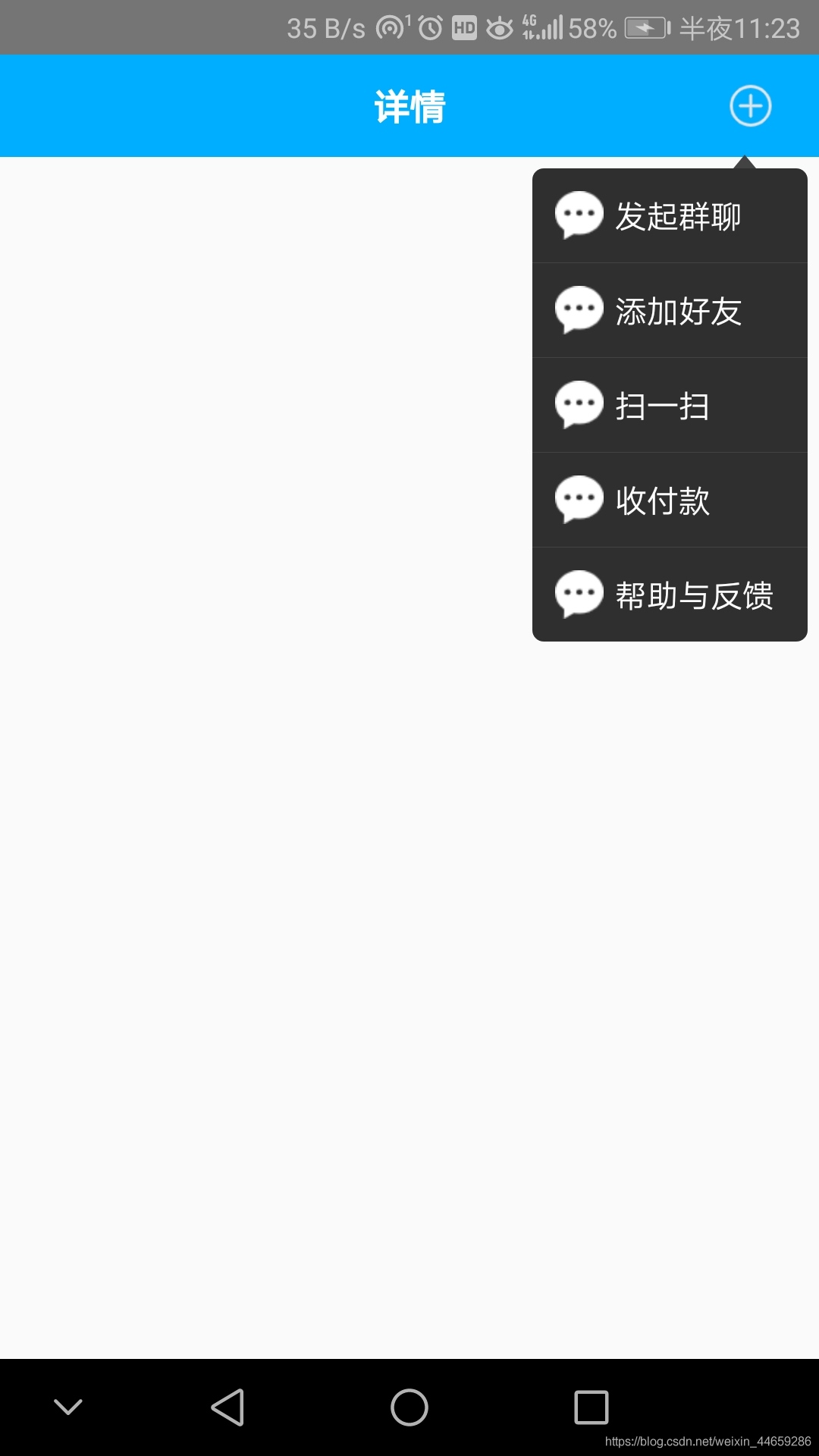

效果

PopWinLayout

package com.coral3.common_module.components;

import android.content.Context;
import android.os.Handler;
import android.os.Message;
import android.util.AttributeSet;
import android.view.Gravity;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.ImageView;
import android.widget.LinearLayout;
import android.widget.ListView;
import android.widget.PopupWindow;
import androidx.annotation.Nullable;
import com.coral3.common_module.R;
import com.coral3.common_module.adapter.PopWindowAdapter;
import com.coral3.common_module.model.PopModel;
import java.util.ArrayList;
import java.util.List;

public class PopWinLayout extends LinearLayout {

    private Context mContext;
    private ListView lv;
    private ImageView asDropDownView;
    private PopupWindow window;
    private List data = new ArrayList<>();
    private View view;
    private PopWindowAdapter adapter;
    // 定義window的寬度
    private int windowWidth = 363;
    private Boolean popWinIsShow = false;
    private ICallback mICallback;
    private Handler handler = new Handler(new Handler.Callback(){
        @Override
        public boolean handleMessage(Message message) {
            if(message.what == 0x00) popWinIsShow = false;
            return false;
        }
    });

    public PopWinLayout(Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
        mContext = context;
        initView();
        initLocalData();
        initPop();
        initLisener();
    }

    private void initView(){
        view = LayoutInflater.from(mContext).inflate(R.layout.layout_pop_window, this);
    }

    private void initLisener(){
        //消失監聽聽
        window.setOnDismissListener(new PopupWindow.OnDismissListener() {
            @Override
            public void onDismiss() {
                handler.sendEmptyMessageDelayed(0x00, 100);
            }
        });
        lv.setOnItemClickListener(new AdapterView.OnItemClickListener() {
            @Override
            public void onItemClick(AdapterView<?> adapterView, View view, int i, long l) {
                mICallback.onItemClick(i, ((PopModel)data.get(i)).getText());
                hidePopView();
            }
        });
    }

    private void initLocalData(){
        data.add(new PopModel(R.mipmap.msg, "發起群聊"));
        data.add(new PopModel(R.mipmap.msg, "添加好友"));
        data.add(new PopModel(R.mipmap.msg, "掃一掃"));
        data.add(new PopModel(R.mipmap.msg, "收付款"));
        data.add(new PopModel(R.mipmap.msg, "幫助與反饋"));
    }

    private void initPop(){
        //獲取其中的ListView
        lv = view.findViewById(R.id.lv_pop_list);
        //設定適配
        adapter = new PopWindowAdapter(mContext, R.layout.custom_spinner_dropdown_item, data);
        lv.setAdapter(adapter);
        //創建PopupWindow物件
        window = new PopupWindow(this);
        //給PopupWindow設定一個View
        window.setContentView(view);
        //設定寬和高
        window.setHeight(ViewGroup.LayoutParams.WRAP_CONTENT);
        window.setWidth(windowWidth);
        //點擊視窗意外  視窗消失
        window.setOutsideTouchable(true);
    }

    public void setDropDownBtn(ImageView v){
        asDropDownView = v;
    }

    public void showPopView(){
        //顯示在某個控制元件的下方
        if(null != asDropDownView) {
            window.showAsDropDown(asDropDownView, 0, 33, Gravity.RIGHT);
            popWinIsShow = true;
        }
    }

    public void hidePopView(){
        //顯示在某個控制元件的下方
        if(null != asDropDownView) {
            window.dismiss();
            popWinIsShow = false;
        }
    }

    public void setData(List data){
        this.data = data;
        adapter.notifyDataSetChanged();
    }

    public Boolean getPopWinStatus(){
        return popWinIsShow;
    }

    public void setPopWinStatus(Boolean status){
        popWinIsShow = status;
    }

    public void setICallback(ICallback iCallback){
        mICallback = iCallback;
    }

    public interface ICallback{
        void onItemClick(int pos, String name);
    }
}

## PopModel

package com.coral3.common_module.model;

public class PopModel {

    private int imageId;

    private String text;

    public int getImageId() {
        return imageId;
    }

    public void setImageId(int imageId) {
        this.imageId = imageId;
    }

    public String getText() {
        return text;
    }

    public void setText(String text) {
        this.text = text;
    }

    public PopModel(int imageId, String text) {
        this.imageId = imageId;
        this.text = text;
    }

    public PopModel() {
    }
}

TitleLayout

package com.coral3.common_module.components;

import android.content.Context;
import android.util.AttributeSet;
import android.view.LayoutInflater;
import android.view.MotionEvent;
import android.view.View;
import android.widget.ImageView;
import android.widget.LinearLayout;
import android.widget.TextView;
import androidx.annotation.Nullable;
import com.coral3.common_module.R;

public class TitleLayout extends LinearLayout {

    private TextView title;
    private Context mContext;
    private View view;
    private TextView back;
    private ImageView btnRight;
    private PopWinLayout popLayout;

    public TitleLayout(Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
        mContext = context;
        initView();
        initListener();
    }

    private void initView(){
        view = LayoutInflater.from(mContext).inflate(R.layout.layout_title, this);
        back = view.findViewById(R.id.btn_back);
        btnRight = view.findViewById(R.id.btn_right);
        title = view.findViewById(R.id.tv_title);
        title.setText("標題");
        popLayout = new PopWinLayout(mContext, null);
        popLayout.setDropDownBtn(btnRight);
    }

    private void initListener(){
        back.setOnClickListener(new OnClickListener() {
            @Override
            public void onClick(View view) {

            }
        });
        btnRight.setOnClickListener(new OnClickListener() {
            @Override
            public void onClick(View view) {
                if(popLayout.getPopWinStatus()){
                    popLayout.hidePopView();
                } else{
                    popLayout.showPopView();
                }
            }
        });
    }

    @Override
    public boolean onTouchEvent(MotionEvent arg0) {
        getParent().requestDisallowInterceptTouchEvent(true);
        return true;
    }

    public void showRightView(){
        btnRight.setVisibility(View.VISIBLE);
    }

    public void setTitle(String v){
        title.setText(v);
    }

    public void setRightItemCallback(PopWinLayout.ICallback iCallback){
        if(null != popLayout) popLayout.setICallback(iCallback);
    }
}

Triangle

package com.coral3.common_module.components;

import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Path;
import android.util.AttributeSet;
import android.view.View;
import androidx.annotation.Nullable;
import com.coral3.common_module.utils.DensityUtils;

/**
 * 繪制三角形
 * Update by WTY on 2021/8/4/63
 */

public class Triangle extends View {

    private int mWidth = 0; //三角形的寬度
    private int mHeight = 0; //三角形的高度
    private Context mContext;

    public Triangle(Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
        this.mContext = context;
        initView();
    }

    public Triangle(Context context) {
        super(context);
    }

    private void initView() {
        mWidth = DensityUtils.dp2px(10);
        mHeight = DensityUtils.dp2px(6);
    }
    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);
        setMeasuredDimension(mWidth,mHeight);
    }

    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);
        //創建畫筆
        Paint paint = new Paint();
        paint.setColor(Color.parseColor("#434343"));
        paint.setAntiAlias(true); //抗鋸齒
        paint.setStyle(Paint.Style.FILL);//實線
        //創建路徑
        Path path = new Path();
        path.moveTo(0,mHeight);
        path.lineTo(mWidth,mHeight);
        path.lineTo(mWidth/2,0);
        path.close();//閉合路徑
        //畫在畫布上
        canvas.drawPath(path,paint);
    }
}

PopWindowAdapter

package com.coral3.common_module.adapter;

import android.content.Context;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ArrayAdapter;
import android.widget.ImageView;
import android.widget.TextView;
import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import com.coral3.common_module.R;
import com.coral3.common_module.model.PopModel;
import java.util.List;

public class PopWindowAdapter extends ArrayAdapter<PopModel> {

    private int resource;
    private Context context;

    public PopWindowAdapter(@NonNull Context context, int resource, @NonNull List<PopModel> objects) {
        super(context, resource, objects);
        this.resource = resource;
        this.context = context;
    }

    @NonNull
    @Override
    public View getView(int position, @Nullable View convertView, @NonNull ViewGroup parent) {
        PopModel popModel = getItem(position);
        MyHolder myHolder = new MyHolder();
        if(null == convertView){
            convertView = LayoutInflater.from(context).inflate(resource, parent, false);
            myHolder.ivFruit = convertView.findViewById(R.id.iv_fruit);
            myHolder.tvFruit = convertView.findViewById(R.id.tv_fruit);
            convertView.setTag(myHolder);
        }else{
            myHolder = (MyHolder) convertView.getTag();
        }
        myHolder.ivFruit.setImageResource(popModel.getImageId());
        myHolder.tvFruit.setText(popModel.getText());
        return convertView;
    }

    class MyHolder {
        ImageView ivFruit;
        TextView tvFruit;
    }
}

DensityUtils

package com.coral3.common_module.utils;

import android.util.TypedValue;

/**
 * 常用單位轉換類
 * @author WTY
 */
public class DensityUtils {
    private DensityUtils() {
        throw new UnsupportedOperationException("cannot be instantiated");
    }

    /**
     * dp轉px
     * @param dpVal
     * @return
     */
    public static int dp2px(float dpVal) {
        return (int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP,
                dpVal, InitUtil.getContext().getResources().getDisplayMetrics());
    }

    /**
     * sp轉px
     * @param spVal
     * @return
     */
    public static int sp2px(float spVal) {
        return (int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_SP,
                spVal, InitUtil.getContext().getResources().getDisplayMetrics());
    }

    /**
     * px轉dp
     * @param pxVal
     * @return
     */
    public static float px2dp(float pxVal) {
        final float scale = InitUtil.getContext().getResources().getDisplayMetrics().density;
        return (pxVal / scale);
    }

    /**
     * px轉sp
     * @param pxVal
     * @return
     */
    public static float px2sp(float pxVal) {
        return (pxVal / InitUtil.getContext().getResources().getDisplayMetrics().scaledDensity);
    }
}

ToastUtil

package com.coral3.common_module.utils;

import android.content.Context;
import android.view.Gravity;
import android.widget.Toast;

public class ToastUtil {

    public static Toast toast;

    public static void showMsg(Context context, String msg){
        if(toast != null) toast.cancel();
        toast = Toast.makeText(context, msg, Toast.LENGTH_SHORT);
        toast.setGravity(Gravity.CENTER, 0, 0);
        toast.show();
    }
}

DetailActivity

package com.coral3.ah.ui;

import androidx.appcompat.app.AppCompatActivity;
import android.os.Bundle;
import com.coral3.ah.R;
import com.coral3.common_module.components.PopWinLayout;
import com.coral3.common_module.components.TitleLayout;
import com.coral3.common_module.utils.ToastUtil;

public class DetailActivity extends AppCompatActivity implements PopWinLayout.ICallback{

    private TitleLayout titleLayout;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_detail);
        initView();
        initListener();
    }

    private void initView(){
       titleLayout = findViewById(R.id.tl_title);
       titleLayout.showRightView();
       titleLayout.setTitle("詳情");
    }

    private void initListener(){
        titleLayout.setRightItemCallback(this);
    }

    @Override
    public void onItemClick(int pos, String name) {
        ToastUtil.showMsg(DetailActivity.this, name);
    }
}

layout_pop_window.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="wrap_content"
    android:orientation="vertical"
    android:layout_height="wrap_content">
    <com.coral3.common_module.components.Triangle
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginLeft="33dp"
        android:layout_gravity="center_horizontal"/>
    <LinearLayout
        android:background="@drawable/bg_radius"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content">
        <ListView
            android:id="@+id/lv_pop_list"
            android:divider="#434343"
            android:dividerHeight="0.1dp"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"/>
    </LinearLayout>
</LinearLayout>

bg_radius

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="wrap_content"
    android:orientation="vertical"
    android:layout_height="wrap_content">
    <com.coral3.common_module.components.Triangle
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginLeft="33dp"
        android:layout_gravity="center_horizontal"/>
    <LinearLayout
        android:background="@drawable/bg_radius"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content">
        <ListView
            android:id="@+id/lv_pop_list"
            android:divider="#434343"
            android:dividerHeight="0.1dp"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"/>
    </LinearLayout>
</LinearLayout>
