大家晚上好：
本期我們接著上次講即時通訊服務端外加客戶端檔案傳輸
服務端
1.服務端的作用：
我們在通信時不可能一對一直接連接到千里之外的另外一臺手機
有眾多原因 其一是： ip 不在同一網段，其二：每個手機地域限制影響
包括大家眾所周知的QQ,微信 等 都是 通過 中轉站 服務器（監聽端程式）
服務器所處環境在公網，客戶端可以直接通過公網IP連接，
2.客戶端與客戶端通訊：
注冊賬號是生成唯一ID,用作每個客戶端的key 存盤在服務端,客戶端連接服務端后將key用作連接物件的key 存盤在快取中，
例如: 有兩個客戶端 A,B，一個服務端C
A發訊息給B,
首先是獲取服務端所存盤的所有連接物件資訊包括Key,加載到A本地
A指定B物件得到key 發送資訊給服務端；
服務端C接收到資訊 決議接收人的key ，在連接物件記憶體中去key的連接物件
把訊息發送給B，

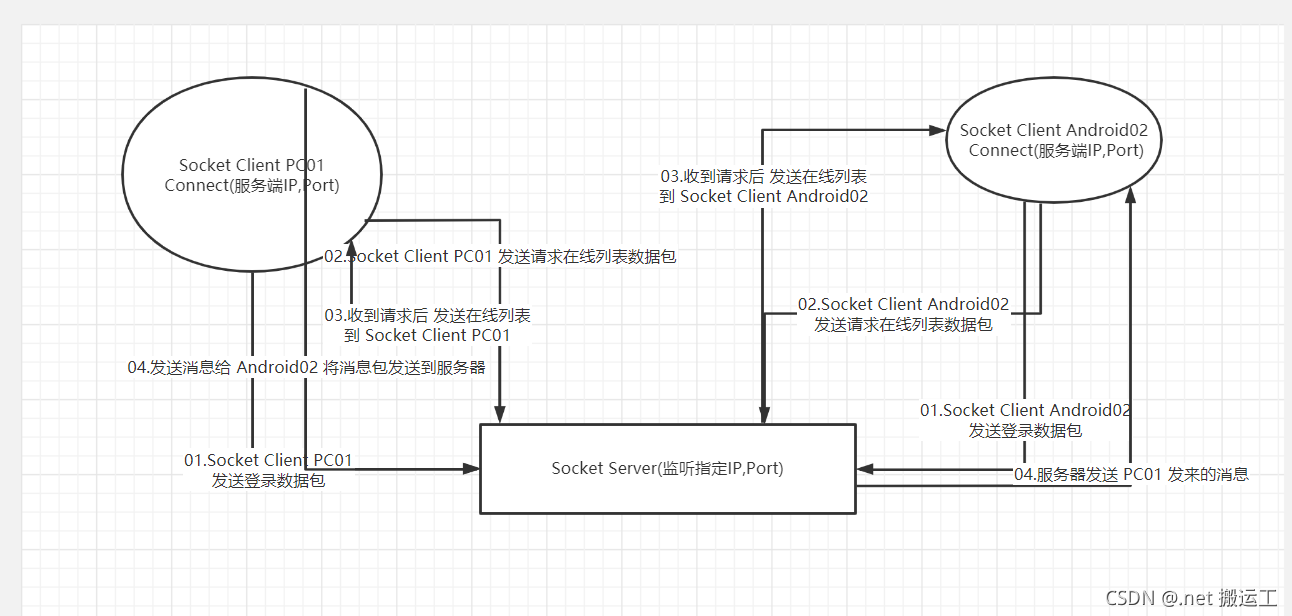

也就是上篇文章畫的草圖 ：

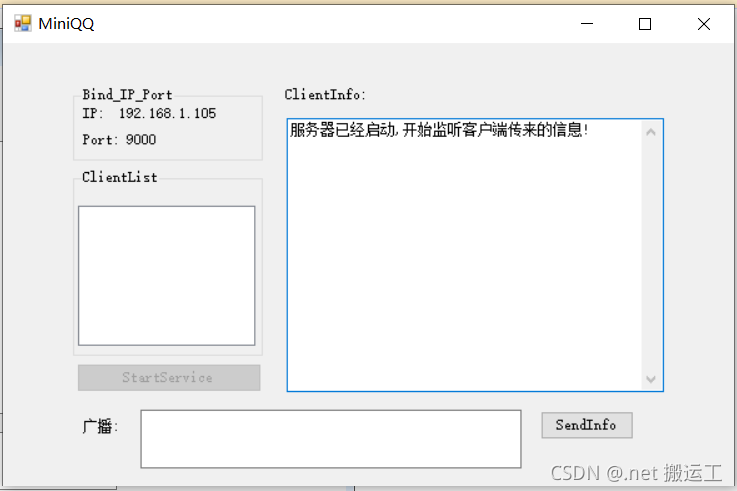

下面展示服務端程式：
##下面是服務端代碼
下面介紹下檔案傳輸思路：
客戶端把檔案發送給服務端:服務端保存至IIS站點下：
將路徑回傳給接收訊息的一端：

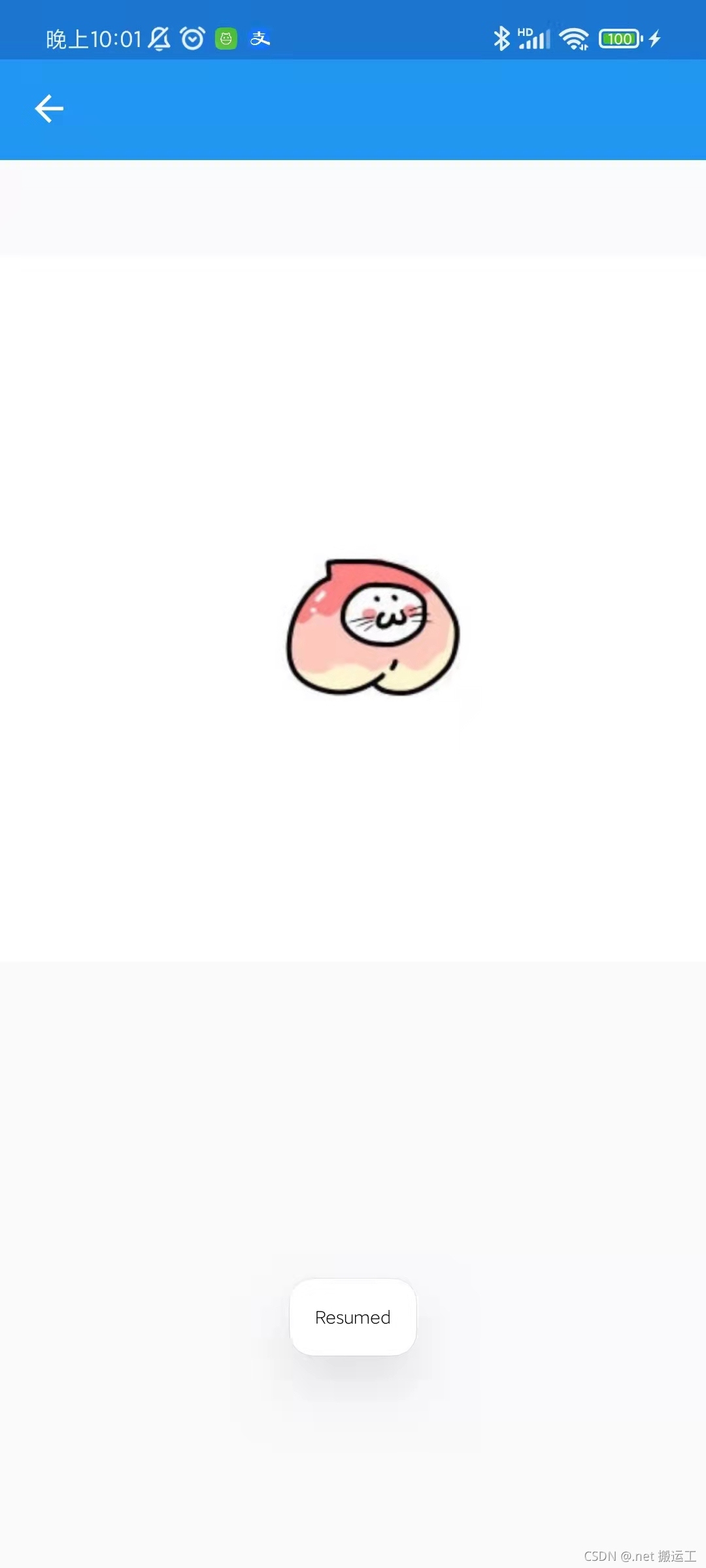

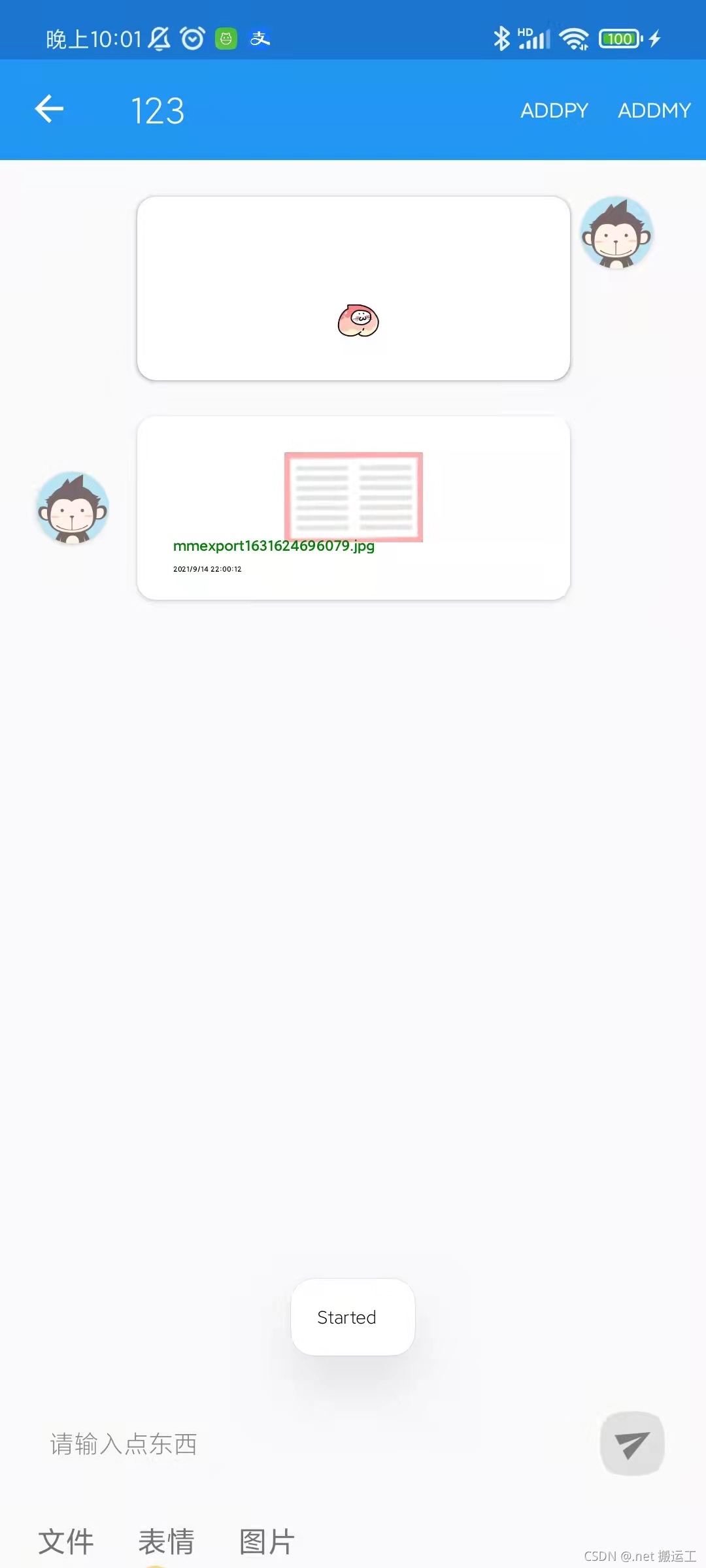

例如下面這張圖片：就是測驗所作的

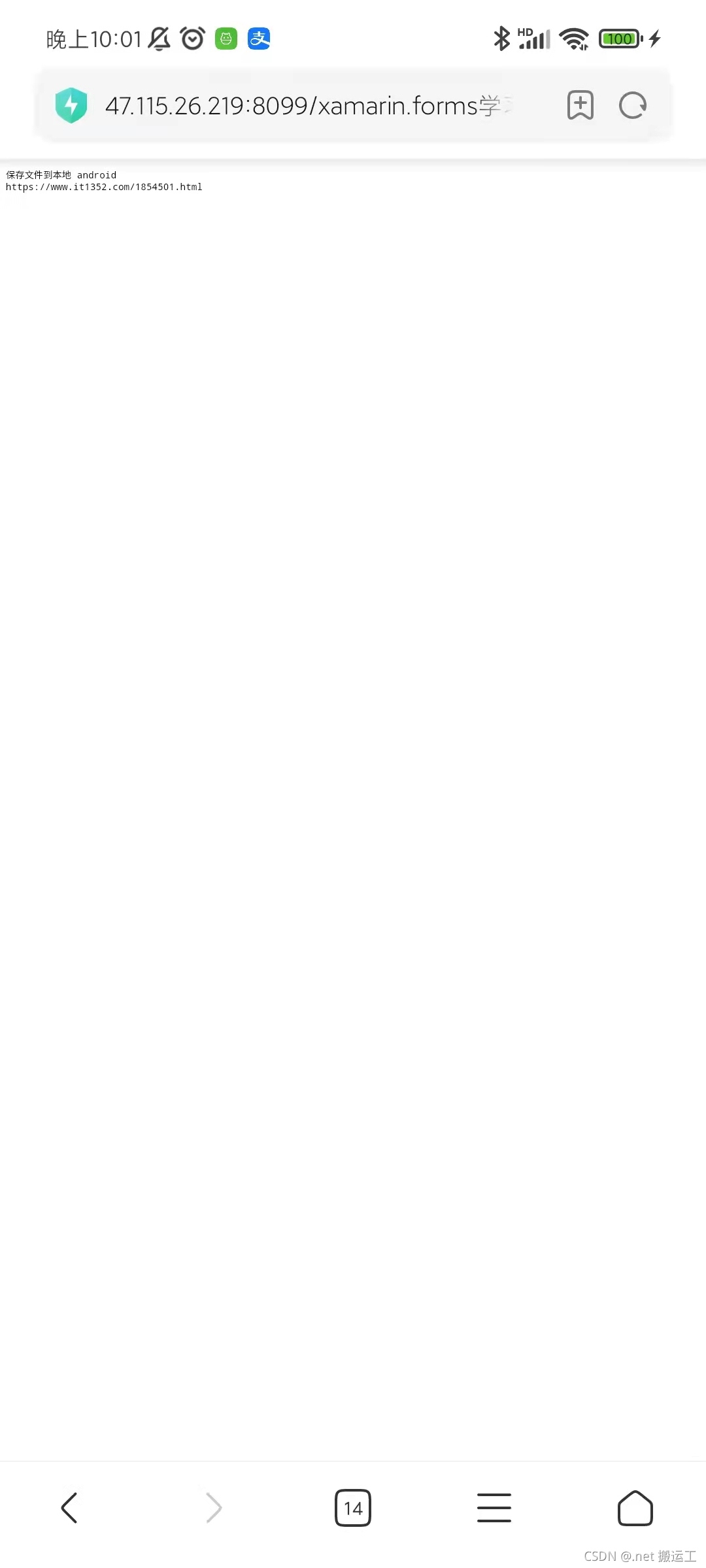

前面的ip 是我個人的服務器公網地址
http://47.115.26.219:8099/mmexport1631624696079.jpg
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using System.Threading;
using System.Net.Sockets;
using System.Net;
using System.IO;
using Newtonsoft.Json;
namespace ChatServer
{
public partial class FServer : Form
{
public FServer()
{
InitializeComponent();
//關閉對文本框的非法執行緒操作檢查
TextBox.CheckForIllegalCrossThreadCalls = false;
}
//分別創建一個監聽客戶端的執行緒和套接字
Thread threadWatch = null;
Socket socketWatch = null;
public const int SendBufferSize = 2 * 1024;
public const int ReceiveBufferSize = 8 * 1024;
private void btnStartService_Click(object sender, EventArgs e)
{
//定義一個套接字用于監聽客戶端發來的資訊 包含3個引數(IP4尋址協議,流式連接,TCP協議)
socketWatch = new Socket(AddressFamily.InterNetwork, SocketType.Stream, ProtocolType.Tcp);
//發送資訊 需要1個IP地址和埠號
//獲取服務端IPv4地址
IPAddress ipAddress = Dns.GetHostAddresses(Dns.GetHostName())[5];// GetLocalIPv4Address();
lblIP.Text = ipAddress.ToString();
//給服務端賦予一個埠號
int port = 9000;
lblPort.Text = port.ToString();
//將IP地址和埠號系結到網路節點endpoint上
IPEndPoint endpoint = new IPEndPoint(ipAddress, port);
//將負責監聽的套接字系結網路端點
socketWatch.Bind(endpoint);
//將套接字的監聽佇列長度設定為20
socketWatch.Listen(20);
//創建一個負責監聽客戶端的執行緒
threadWatch = new Thread(WatchConnecting);
//將表單執行緒設定為與后臺同步
threadWatch.IsBackground = true;
//啟動執行緒
threadWatch.Start();
txtMsg.AppendText("服務器已經啟動,開始監聽客戶端傳來的資訊!" + "\r\n");
btnStartService.Enabled = false;
}
/// <summary>
/// 獲取本地IPv4地址
/// </summary>
/// <returns>本地IPv4地址</returns>
public IPAddress GetLocalIPv4Address()
{
IPAddress localIPv4 = null;
//獲取本機所有的IP地址串列
IPAddress[] ipAddressList = Dns.GetHostAddresses(Dns.GetHostName());
foreach (IPAddress ipAddress in ipAddressList)
{
//判斷是否是IPv4地址
if (ipAddress.AddressFamily == AddressFamily.InterNetwork) //AddressFamily.InterNetwork表示IPv4
{
localIPv4 = ipAddress;
break;
}
else
continue;
}
return localIPv4;
}
//用于保存所有通信客戶端的Socket
Dictionary<string, Socket> dicSocket = new Dictionary<string, Socket>();
//創建與客戶端建立連接的套接字
Socket socConnection = null;
string clientName = null; //創建訪問客戶端的名字
IPAddress clientIP; //訪問客戶端的IP
int clientPort; //訪問客戶端的埠號
/// <summary>
/// 持續不斷監聽客戶端發來的請求, 用于不斷獲取客戶端發送過來的連續資料資訊
/// </summary>
private void WatchConnecting()
{
while (true)
{
try
{
socConnection = socketWatch.Accept();
}
catch (Exception ex)
{
txtMsg.AppendText(ex.Message); //提示套接字監聽例外
break;
}
//獲取訪問客戶端的IP
clientIP = (socConnection.RemoteEndPoint as IPEndPoint).Address;
//獲取訪問客戶端的Port
clientPort = (socConnection.RemoteEndPoint as IPEndPoint).Port;
//創建訪問客戶端的唯一標識 由IP和埠號組成
clientName = "IP: " + clientIP + " Port: " + clientPort;
lstClients.Items.Add(clientName); //在客戶端串列添加該訪問客戶端的唯一標識
dicSocket.Add(clientName, socConnection); //將客戶端名字和套接字添加到添加到資料字典中
//創建通信執行緒
ParameterizedThreadStart pts = new ParameterizedThreadStart(ServerRecMsg);
Thread thread = new Thread(pts);
thread.IsBackground = true;
//啟動執行緒
thread.Start(socConnection);
txtMsg.AppendText("IP: " + clientIP + " Port: " + clientPort + " 的客戶端與您連接成功,現在你們可以開始通信了...\r\n");
}
}
/// <summary>
/// 發送資訊到客戶端的方法
/// </summary>
/// <param name="sendMsg">發送的字串資訊</param>
private void ServerSendMsg(string sendMsg)
{
sendMsg = txtSendMsg.Text.Trim();
//將輸入的字串轉換成 機器可以識別的位元組陣列
byte[] arrSendMsg = Encoding.UTF8.GetBytes(sendMsg);
//向客戶端串列選中的客戶端發送資訊
if (!string.IsNullOrEmpty(lstClients.Text.Trim()))
{
//獲得相應的套接字 并將位元組陣列資訊發送出去
dicSocket[lstClients.Text.Trim()].Send(arrSendMsg);
//通過Socket的send方法將位元組陣列發送出去
txtMsg.AppendText("您在 " + GetCurrentTime() + " 向 IP: " + clientIP + " Port: " + clientPort + " 的客戶端發送了:\r\n" + sendMsg + "\r\n");
}
else //如果未選擇任何客戶端 則默認為群發資訊
{
//遍歷所有的客戶端
for (int i = 0; i < lstClients.Items.Count; i++)
{
dicSocket[lstClients.Items[i].ToString()].Send(arrSendMsg);
}
txtMsg.AppendText("您在 " + GetCurrentTime() + " 群發了資訊:\r\n" + sendMsg + " \r\n");
}
}
string strSRecMsg = null;
public ScokeSendFile sendFile = null;
public bool IsHead = false;
public string ReceiveUserID { get; set; }
public string SendClientMsg { get; set; }
/// <summary>
/// 接收客戶端發來的資訊
/// </summary>
private void ServerRecMsg(object socketClientPara)
{
Socket socketServer = socketClientPara as Socket;
long fileLength = 0;
while (true)
{
int firstReceived = 0;
byte[] buffer = new byte[ReceiveBufferSize];
try
{
//獲取接收的資料,并存入記憶體緩沖區 回傳一個位元組陣列的長度
if (socketServer != null) firstReceived = socketServer.Receive(buffer);
if (firstReceived > 0) //接受到的長度大于0 說明有資訊或檔案傳來
{
if (buffer[0] == 0) //0為文字資訊
{
strSRecMsg = Encoding.UTF8.GetString(buffer, 1, firstReceived - 1);//真實有用的文本資訊要比接收到的少1(識別符號)
var Mymsg = strSRecMsg.Split('#');
if (Mymsg[0] == "000200030006")
{
MessageBox box = JsonConvert.DeserializeObject<MessageBox>(Mymsg[1]);
string sendMsg = "000200030006*" + Mymsg[1];
//byte[] arrSendMsg = Encoding.UTF8.GetBytes(sendMsg);
ClientSendMsg(dicSocket.Where(x => x.Key.Contains(box.RID)).FirstOrDefault().Key, sendMsg,0);
//dicSocket.Where(x => x.Key.Contains(box.RID)).FirstOrDefault().Value.Send(arrSendMsg);
//獲得相應的套接字 并將位元組陣列資訊發送出去
// dicSocket[lstClients.Text.Trim()].Send(arrSendMsg);
}
txtMsg.AppendText("SoFlash:" + GetCurrentTime() + "\r\n" + strSRecMsg + "\r\n");
}
if (buffer[0] == 2)//2為檔案名字和長度
{
string fileNameWithLength = "";
try
{
fileNameWithLength = Encoding.UTF8.GetString(buffer, 1, firstReceived - 1);
if (!fileNameWithLength.Contains("Head#"))
{
IsHead = false;
sendFile = JsonConvert.DeserializeObject<ScokeSendFile>(fileNameWithLength);
strSRecMsg = sendFile.FileNames.Split('-').First(); //檔案名
fileLength = Convert.ToInt64(sendFile.FileNames.Split('-').Last());//檔案長度
ScokeSendFile ClientFile= JsonConvert.DeserializeObject<ScokeSendFile>(fileNameWithLength);
ClientFile.FilePath= $@"http://47.115.26.219:8099/{strSRecMsg}";
SendClientMsg = JsonConvert.SerializeObject(ClientFile);
ReceiveUserID = dicSocket.Where(x => x.Key.Contains(sendFile.ReceiveUserID)).FirstOrDefault().Key;
}
else
{
IsHead = true;
fileNameWithLength = Encoding.UTF8.GetString(buffer, 1, firstReceived - 1);
fileNameWithLength = fileNameWithLength.Replace("Head#", "").Trim();
strSRecMsg = fileNameWithLength.Split('-').First(); //檔案名
fileLength = Convert.ToInt64(fileNameWithLength.Split('-').Last());//檔案長度
}
}
catch (Exception ex)
{
IsHead = true;
fileNameWithLength = Encoding.UTF8.GetString(buffer, 1, firstReceived - 1);
strSRecMsg = fileNameWithLength.Split('-').First(); //檔案名
fileLength = Convert.ToInt64(fileNameWithLength.Split('-').Last());//檔案長度
}
}
///檔案傳輸保存在IIS站點下
if (buffer[0] == 1)//1為檔案
{
bool IsOk = false;
string savePath = "";
if (IsHead)
{
savePath = $@"C:\Files\UserHead\{strSRecMsg}";
IsOk = true;
//
}
else
{
//string fileNameSuffix = strSRecMsg.Substring(strSRecMsg.LastIndexOf('.')); //檔案后綴
//SaveFileDialog sfDialog = new SaveFileDialog()
//{
// Filter = "(*" + fileNameSuffix + ")|*" + fileNameSuffix + "", //檔案型別
// FileName = strSRecMsg
//};
//IsOk = sfDialog.ShowDialog(this) == DialogResult.OK;
savePath = $@"C:\檔案\SocketUserInfo\{strSRecMsg}";
IsOk = true;
// savePath = sfDialog.FileName; //獲取檔案的全路徑
}
//如果點擊了對話框中的保存檔案按鈕
if (IsOk)
{
//保存檔案
int received = 0;
long receivedTotalFilelength = 0;
bool firstWrite = true;
using (FileStream fs = new FileStream(savePath, FileMode.Create, FileAccess.Write))
{
while (receivedTotalFilelength < fileLength) //之后收到的檔案位元組陣列
{
if (firstWrite)
{
fs.Write(buffer, 1, firstReceived - 1); //第一次收到的檔案位元組陣列 需要移除識別符號1 后寫入檔案
fs.Flush();
receivedTotalFilelength += firstReceived - 1;
firstWrite = false;
continue;
}
received = socketServer.Receive(buffer); //之后每次收到的檔案位元組陣列 可以直接寫入檔案
fs.Write(buffer, 0, received);
fs.Flush();
receivedTotalFilelength += received;
}
fs.Close();
IsHead = false;
}
string fName = savePath.Substring(savePath.LastIndexOf("\\") + 1); //檔案名 不帶路徑
string fPath = savePath.Substring(0, savePath.LastIndexOf("\\")); //檔案路徑 不帶檔案名
txtMsg.AppendText(GetCurrentTime() + "\r\n您成功接收了檔案" + fName + "\r\n保存路徑為:" + fPath + "\r\n");
ClientSendMsg(ReceiveUserID, SendClientMsg, 2);
}
}
///獲取在線用戶資訊
if (buffer[0] == 5)
{
string UserMsg = Encoding.UTF8.GetString(buffer, 1, firstReceived - 1);//真實有用的文本資訊要比接收到的少1(識別符號)
if (UserMsg == "001001001")
{
ServerSendClientOnLine();
}
}
if (buffer[0] == 4)
{
string UserMsg = Encoding.UTF8.GetString(buffer, 1, firstReceived - 1);//真實有用的文本資訊要比接收到的少1(識別符號)
var strMymsg = UserMsg.Split('#');
if (strMymsg[0] == "002002002")
{
MessageAmanager amanager = JsonConvert.DeserializeObject<MessageAmanager>(strMymsg[1]);
//MessageAmanager
//獲取訪問客戶端的IP
clientIP = (socketServer.RemoteEndPoint as IPEndPoint).Address;
//獲取訪問客戶端的Port
clientPort = (socketServer.RemoteEndPoint as IPEndPoint).Port;
//創建訪問客戶端的唯一標識 由IP和埠號組成
clientName = "IP: " + clientIP + " Port: " + clientPort;
lstClients.Items.Remove(clientName);
lstClients.Items.Add(amanager.Message); //在客戶端串列添加該訪問客戶端的唯一標識
//var dicSocketS= dicSocket.Where(x => x.Key == clientName).FirstOrDefault();
/// dicSocket.Add(clientName, socConnection); //將客戶端名字和套接字添加到添加到資料字典中
dicSocket = dicSocket.ToDictionary(k => k.Key == clientName ? amanager.Message : k.Key, k => k.Value);
}
}
}
}
catch (Exception ex)
{
//dicSocket.Remove(dicSocket.Where(x => x.Value == socketServer).FirstOrDefault().Key);
txtMsg.AppendText("系統例外訊息:" + ex.Message);
break;
}
}
}
//將資訊發送到到客戶端
private void btnSendMsg_Click(object sender, EventArgs e)
{
ServerSendMsg(txtSendMsg.Text);
}
//快捷鍵 Enter 發送資訊
private void txtSendMsg_KeyDown(object sender, KeyEventArgs e)
{
if (e.KeyCode == Keys.Enter)
{
ServerSendMsg(txtSendMsg.Text);
}
}
/// <summary>
/// 獲取當前系統時間
/// </summary>
public DateTime GetCurrentTime()
{
DateTime currentTime = new DateTime();
currentTime = DateTime.Now;
return currentTime;
}
//關閉服務端
private void btnExit_Click(object sender, EventArgs e)
{
Application.Exit();
}
//取消客戶端串列選中狀態
private void btnClearSelectedState_Click(object sender, EventArgs e)
{
lstClients.SelectedItem = null;
}
/// <summary>
/// 發送資訊到客戶端的方法
/// </summary>
/// <param name="sendMsg">發送的字串資訊</param>
private void ServerSendClientOnLine()
{
// ClearSockectClient();
string Msg = "";
foreach (var item in dicSocket)
{
if (string.IsNullOrEmpty(Msg))
{
Msg += item.Key;
}
else
{
Msg += "#" + item.Key;
}
}
Msg = "0000100020003*" + Msg;
//將輸入的字串轉換成 機器可以識別的位元組陣列
byte[] arrSendMsg = Encoding.UTF8.GetBytes(Msg);
//遍歷所有的客戶端
for (int i = 0; i < lstClients.Items.Count; i++)
{
try
{
ClientSendMsg(lstClients.Items[i].ToString(), Msg, 0);
//dicSocket[lstClients.Items[i].ToString()].Send(arrSendMsg);
}
catch (Exception ex)
{
}
}
//txtMsg.AppendText("您在 " + GetCurrentTime() + " 群發了資訊:\r\n" + sendMsg + " \r\n");
}
//public void ClearSockectClient()
//{
// string[] keyArr = dicSocket.Keys.ToArray<string>();
// for (int i = dicSocket.Count-1; i >=1; i--)
// {
// try
// {
// dicSocket[keyArr[i]].Send(Encoding.UTF8.GetBytes("001003"));
// }
// catch (Exception ex)
// {
// dicSocket.Remove(keyArr[i]);
// }
// }
//}
/// <summary>
/// 發送字串資訊到指定客戶端的方法
/// </summary>
private void ClientSendMsg(string Key, string sendMsg, byte symbol)
{
byte[] arrClientMsg = Encoding.UTF8.GetBytes(sendMsg);
//實際發送的位元組陣列比實際輸入的長度多1 用于存取識別符號
byte[] arrClientSendMsg = new byte[arrClientMsg.Length + 1];
arrClientSendMsg[0] = symbol; //在索引為0的位置上添加一個識別符號
Buffer.BlockCopy(arrClientMsg, 0, arrClientSendMsg, 1, arrClientMsg.Length);
dicSocket[Key].Send(arrClientSendMsg);
// txtMsg.AppendText("SoFlash:" + GetCurrentTime() + "\r\n" + sendMsg + "\r\n");
}
///計時器 定時清理無效連接
private void timer1_Tick(object sender, EventArgs e)
{
foreach (var item in dicSocket.ToArray())
{
try
{
item.Value.Send(Encoding.UTF8.GetBytes("001003"));
}
catch (Exception ex)
{
lstClients.Items.Remove(item.Key);
dicSocket.Remove(item.Key);
}
//if (item.Value.Connected.)
//{
//}
}
if (dicSocket.Count == 0)
{
lstClients.Items.Clear();
}
}
}
/// <summary>
///訊息管理
/// </summary>
public class MessageAmanager
{
/// <summary>
/// 發送者ID
/// </summary>
public string SendUserID { get; set; }
/// <summary>
/// 訊息
/// </summary>
public string Message { get; set; }
/// <summary>
/// 接收者ID
/// </summary>
public string ReceiveUserID { get; set; }
}
///訊息管理
public class MessageBox
{
/// <summary>
/// 接收人
/// </summary>
public string RID { get; set; }
public string Message { get; set; }
public string Name { get; set; }
/// <summary>
/// 發送人
/// </summary>
public string SendID { get; set; }
}
/// <summary>
/// 檔案發送管理
/// </summary>
public class ScokeSendFile
{
/// <summary>
/// 檔案名稱
/// </summary>
public string FileName { get; set; }
/// <summary>
/// 決議檔案名稱
/// </summary>
public string FileNames { get; set; }
/// <summary>
/// 檔案資料
/// </summary>
public string FilePath { get; set; }
/// <summary>
/// 發送者ID
/// </summary>
public string SendUserID { get; set; }
/// <summary>
/// 接收者ID
/// </summary>
public string ReceiveUserID { get; set; }
/// <summary>
/// 0 圖片 2 檔案
/// </summary>
public int Type { get; set; } = 0;
}
}
下面是客戶端發送檔案實作： 注意發送檔案需要事先動態請求檔案讀寫權限 否則打開檔案將會報錯
public async Task<string> OnBrowse()
{
try
{
var pickFile = await CrossFilePicker.Current.PickFile();
if (pickFile is null)
{
return "";
// 用戶拒絕選擇檔案
}
else
{
ScokeSendFile scokeFile = new ScokeSendFile();
scokeFile.FileName = pickFile.FileName;
scokeFile.FilePath = pickFile.FilePath;
scokeFile.ReceiveUserID = Id;
scokeFile.SendUserID = DeviceHelp.MyUserID;
scokeFile.Type = 2;
AddMyFile(scokeFile);
DeviceHelp.xamarinSockectClient.SenFile(scokeFile);
return pickFile.FilePath;
// FileText.Text = $@"選取檔案路徑 :{pickFile.FilePath}";
}
}
catch (Exception e)
{
return e.Message;
//await DisplayAlert("Alert", "Something went wrong", "OK");
//if (SettingsPage.loggingEnabled)
//{
// LogUtilPage.Log(e.Message);
//}
}
}
///Socke內檔案發送處理
if (string.IsNullOrEmpty(scokeSendFile.FilePath))
{
return;
}
fileName = scokeSendFile.FileName;
//發送檔案之前 將檔案名字和長度發送過去
long fileLength = new FileInfo(scokeSendFile.FilePath).Length;
string totalMsg = string.Format("{0}-{1}", fileName, fileLength);
scokeSendFile.FileNames = totalMsg;
string path = JsonConvert.SerializeObject(scokeSendFile);
ClientSendMsg(path, 2);
//發送檔案
byte[] buffer = new byte[SendBufferSize];
using (FileStream fs = new FileStream(scokeSendFile.FilePath, FileMode.Open, FileAccess.Read))
{
int readLength = 0;
bool firstRead = true;
long sentFileLength = 0;
while ((readLength = fs.Read(buffer, 0, buffer.Length)) > 0 && sentFileLength < fileLength)
{
sentFileLength += readLength;
//在第一次發送的位元組流上加個前綴1
if (firstRead)
{
byte[] firstBuffer = new byte[readLength + 1];
firstBuffer[0] = 1; //告訴機器該發送的位元組陣列為檔案
Buffer.BlockCopy(buffer, 0, firstBuffer, 1, readLength);
socketClient.Send(firstBuffer, 0, readLength + 1, SocketFlags.None);
firstRead = false;
continue;
}
//之后發送的均為直接讀取的位元組流
socketClient.Send(buffer, 0, readLength, SocketFlags.None);
}
fs.Close();
}
下面是android端接受檔案處理
/// <summary>
/// 好友發來的檔案
/// </summary>
/// <param name="scokeSendFile"></param>
public void AddFriendFile(ScokeSendFile scokeSendFile)
{
Device.BeginInvokeOnMainThread(() =>
{
light monkey = new light();
monkey.Text = scokeSendFile.FileName;
monkey.TextIsVisibles = false;
monkey.ImageIsVisibles = true;
var fileKZName = Path.GetExtension(scokeSendFile.FilePath).ToLower();
if (scokeSendFile.Type == 2 && !_fileNameKZ.Contains(fileKZName.ToLower()))
{
monkey.ImageUrl = "wj.png";
monkey.FilePath = "wj.png";
}
else
{
monkey.ImageUrl = scokeSendFile.FilePath;
//monkey.ImageUrl = "wj.png";
monkey.FilePath = scokeSendFile.FilePath;
}
// monkey.ImageUrl = ""; //"https://www.baidu.com/img/PCtm_d9c8750bed0b3c7d089fa7d55720d6cf.png"// "https://upload.wikimedia.org/wikipedia/commons/thumb/f/fc/Papio_anubis_%28Serengeti%2C_2009%29.jpg/200px-Papio_anubis_%28Serengeti%2C_2009%29.jpg"
monkey.FriendImageIsVisibles = true;
monkey.FriendImageUrl = "https://profile.csdnimg.cn/8/5/A/1_psu521";
monkey.MyImageIsVisibles = false;
// monkey.Click += new EventHandler(Click);
monkey.TextHorizontalOptions = LayoutOptions.Start;
//monkey.Grd_Heigt = 200;
//monkey.Grd_Heigt = monkey.Text.Length >= 20 ? (monkey.Text.Length / 20) * 24 : 40; //GridLength.Auto;
//monkey.TextWidth = monkey.Text.Length > 17 ? App.ScreenWidth - 110 : (App.ScreenWidth - 110) * (monkey.Text.Length * 0.018);
monkey.Grd_Heigt = (monkey.Text.Length >= 10 ? (monkey.Text.Length / 7) * 24 : 40) + 30; //GridLength.Auto;
monkey.TextWidth = monkey.Text.Length > (App.ScreenWidth - 110) / 24 ? App.ScreenWidth - 110 : (App.ScreenWidth - 50) * (monkey.Text.Length * 0.08);
monkey.MsgTime = DateTime.Now.ToString();
// HomeViewModel.AddFiyee(monkey);
lights.Add(monkey);
X_listView_ScrollTo();
//SampleMessage sample = new SampleMessage { Text = box.Message, Id = box.SendID };
//sample.User = new SampleUser() { Id = box.SendID, Avatar = box.Name, Name = box.Name };
//messagesListAdapter.AddToStart(sample, true);
});
}
下面是查看檔案處理 通過httpClient 下載檔案
private async void TapGestureRecognizer_Tapped(object sender, EventArgs e)
{
try
{
//ImageViewPage
if (sender is MyImage)
{
MyImage myImage = sender as MyImage;
var data = lights.Where(x => x.ID == myImage.Text).FirstOrDefault();
var fileKZName = Path.GetExtension(data.FilePath).ToLower();
///如果是圖片型別 則打開一個image頁面 顯示 否則就跳轉到瀏覽器打開
if (myImage.imageType == ImageType.body && _fileNameKZ.Contains(fileKZName.ToLower()))
{
if (data.FriendImageIsVisibles)
{
var httpData = HttlClientDow(data.FilePath);
Navigation.PushAsync(new ImageViewPage(ImageSource.FromStream(() => httpData)), true);
}
else
{
Navigation.PushAsync(new ImageViewPage(myImage.Source), true);
}
}
else
{
///瀏覽器打開檔案
await Browser.OpenAsync(data.FilePath, new BrowserLaunchOptions
{
LaunchMode = BrowserLaunchMode.SystemPreferred,
TitleMode = BrowserTitleMode.Show,
PreferredToolbarColor = Color.AliceBlue,
PreferredControlColor = Color.Violet
});
}
}
}
catch (Exception ex)
{
DevHelp.DeviceHelp.Toast.ShortAlert(ex.Message);
}
}
下面是效果圖：程式內打開
跳轉瀏覽器打開
自此完結 謝謝大家
需要原始碼請聯系博主微信：
轉載請註明出處，本文鏈接：https://www.uj5u.com/yidong/300270.html
標籤：其他
