Flutter：如何使用 CustomPaint 繪制心形

作為程式員其實也有浪漫的一幕，今天我們一起借助CustomPaint和CustomPainter繪制心形，本文將帶您了解在 Flutter 中使用CustomPaint和CustomPainter繪制心形的端到端示例，閑話少說（比如談論 Flutter 的歷史或它有多華麗），讓我們深入研究代碼并制作一些東西，

例子

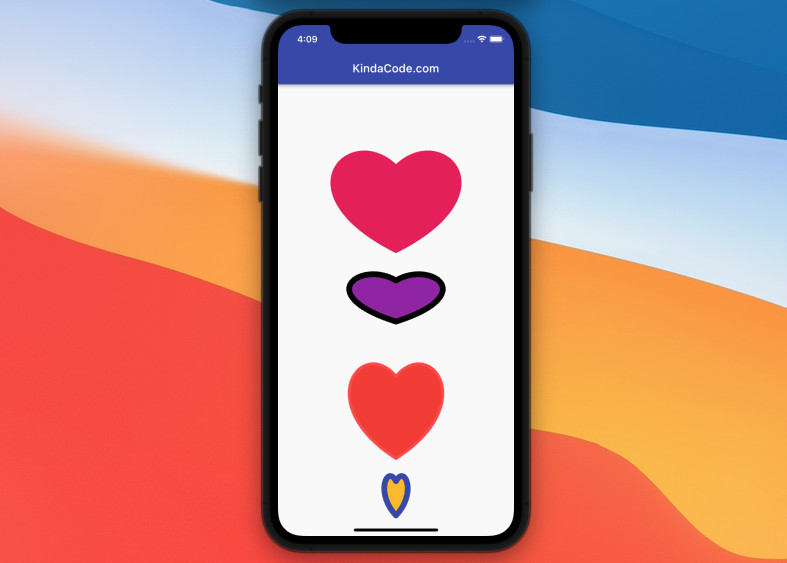

預覽

我們將創建 4 個心形，第一個沒有邊界，但其他的有，

步驟

1.通過擴展CustomPainter類來實作一個畫筆：

class MyPainter extends CustomPainter {
  // The color of the heart
  final Color bodyColor;

  // The color of the border of the heart
  final Color borderColor;
  // The thickness of the border
  final double borderWith;

  MyPainter(this.bodyColor, this.borderColor, this.borderWith);

  @override
  void paint(Canvas canvas, Size size) {
    // The body of the heart
    final Paint body = Paint();
    body
      ..color = bodyColor
      ..style = PaintingStyle.fill
      ..strokeWidth = 0;

    // The border of the heart
    final Paint border = Paint();
    border
      ..color = borderColor
      ..style = PaintingStyle.stroke
      ..strokeCap = StrokeCap.round
      ..strokeWidth = borderWith;

    final double width = size.width;
    final double height = size.height;

    final Path path = Path();
    path.moveTo(0.5 * width, height * 0.4);
    path.cubicTo(0.2 * width, height * 0.1, -0.25 * width, height * 0.6,
        0.5 * width, height);
    path.moveTo(0.5 * width, height * 0.4);
    path.cubicTo(0.8 * width, height * 0.1, 1.25 * width, height * 0.6,
        0.5 * width, height);

    canvas.drawPath(path, body);
    canvas.drawPath(path, border);
  }

2.使用 CustomPaint 小部件和我們之前創建的畫家繪制心形：

// Non-border heart
          CustomPaint(
            size: const Size(280, 260),
            painter: MyPainter(Colors.pink, Colors.transparent, 0),
          ),

// Hearts with borders
          CustomPaint(
            size: const Size(200, 120),
            painter: MyPainter(Colors.purple, Colors.black, 10),
          ),
          CustomPaint(
            size: const Size(200, 240),
            painter: MyPainter(Colors.red, Colors.redAccent, 5),
          ),
          CustomPaint(
            size: const Size(50, 100),
            painter: MyPainter(Colors.amber, Colors.indigo, 10),
          ),

最終代碼

這是main.dart中的完整代碼，它生成了上面螢屏截圖中顯示的很酷的心形：

// main.dart
import 'package:flutter/material.dart';

void main() {
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({Key? key}) : super(key: key);
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      // Hide the debug banner
      debugShowCheckedModeBanner: false,
      title: 'breeze',
      theme: ThemeData(
        primarySwatch: Colors.indigo,
      ),
      home: const HomeScreen(),
    );
  }
}

// Implementing our heart painter
class MyPainter extends CustomPainter {
  // The color of the heart
  final Color bodyColor;

  // The color of the border of the heart
  final Color borderColor;
  // The thickness of the border
  final double borderWith;

  MyPainter(this.bodyColor, this.borderColor, this.borderWith);

  @override
  void paint(Canvas canvas, Size size) {
    // The body of the heart
    final Paint body = Paint();
    body
      ..color = bodyColor
      ..style = PaintingStyle.fill
      ..strokeWidth = 0;

    // The border of the heart
    final Paint border = Paint();
    border
      ..color = borderColor
      ..style = PaintingStyle.stroke
      ..strokeCap = StrokeCap.round
      ..strokeWidth = borderWith;

    final double width = size.width;
    final double height = size.height;

    final Path path = Path();
    path.moveTo(0.5 * width, height * 0.4);
    path.cubicTo(0.2 * width, height * 0.1, -0.25 * width, height * 0.6,
        0.5 * width, height);
    path.moveTo(0.5 * width, height * 0.4);
    path.cubicTo(0.8 * width, height * 0.1, 1.25 * width, height * 0.6,
        0.5 * width, height);

    canvas.drawPath(path, body);
    canvas.drawPath(path, border);
  }

  @override
  bool shouldRepaint(CustomPainter oldDelegate) {
    return true;
  }
}

class HomeScreen extends StatefulWidget {
  const HomeScreen({Key? key}) : super(key: key);

  @override
  State<HomeScreen> createState() => _HomeScreenState();
}

class _HomeScreenState extends State<HomeScreen> {
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text('KindaCode.com'),
      ),
      body: Center(
          child: Column(
        mainAxisAlignment: MainAxisAlignment.spaceAround,
        mainAxisSize: MainAxisSize.min,
        children: [
          // Non-border heart
          CustomPaint(
            size: const Size(280, 260),
            painter: MyPainter(Colors.pink, Colors.transparent, 0),
          ),

          // Hearts with borders
          CustomPaint(
            size: const Size(200, 120),
            painter: MyPainter(Colors.purple, Colors.black, 10),
          ),
          CustomPaint(
            size: const Size(200, 240),
            painter: MyPainter(Colors.red, Colors.redAccent, 5),
          ),
          CustomPaint(
            size: const Size(50, 100),
            painter: MyPainter(Colors.amber, Colors.indigo, 10),
          ),
        ],
      )),
    );
  }
}

參考

您可以在官方檔案中找到有關 CustomPaint 小部件和 CustomPainter 類的更多詳細資訊：

• 自定義繪制小部件
• CustomPainter 類

后記

您已經學會了如何在不使用任何第三方軟體包的情況下從頭開始繪制自定義心形，此時，您應該對 Flutter 中的繪圖有了更好的了解，
