忽略熱圖中著色的特定值

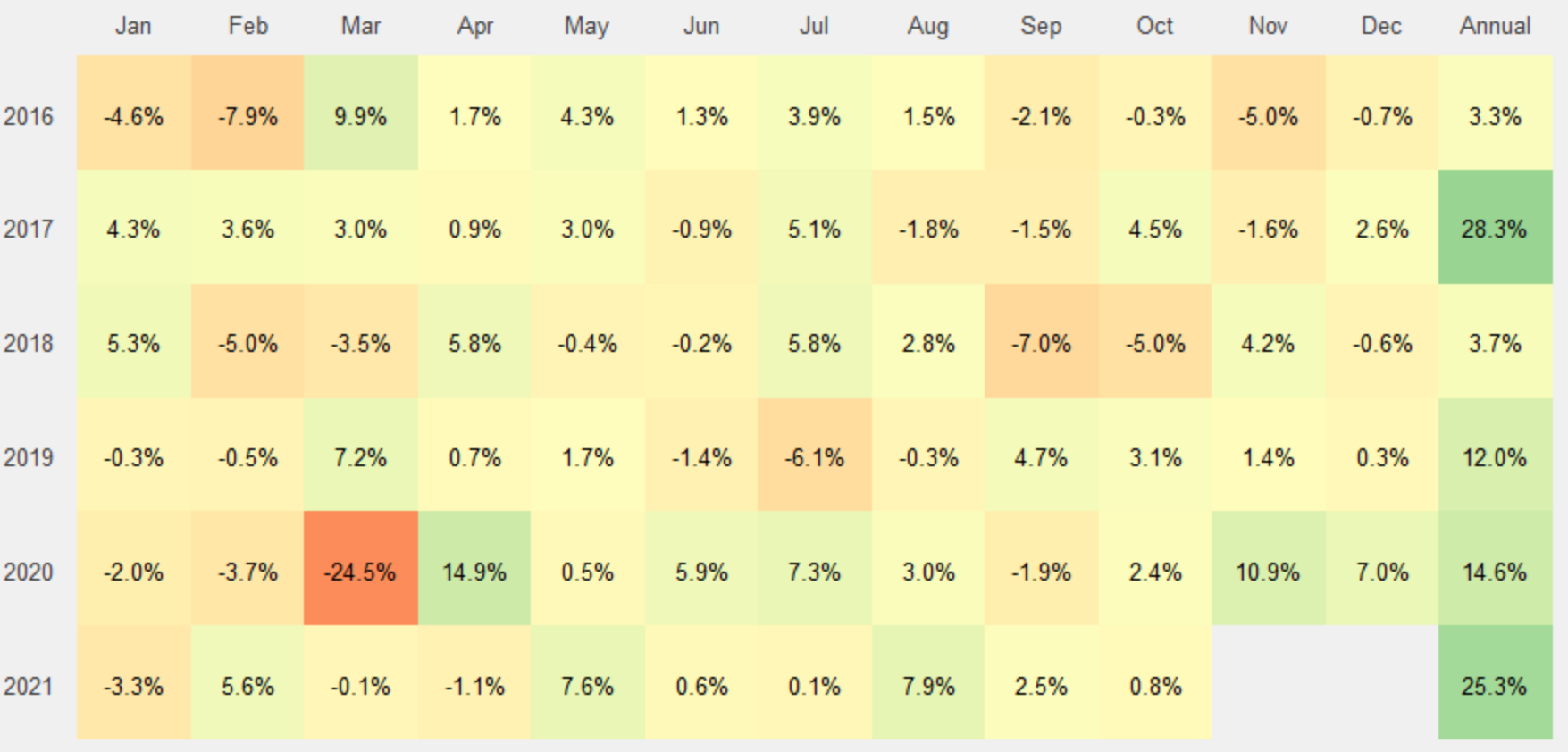

我有月份欄 - 1 月到 12 月以及“年度”值。我只想根據 1 月到 12 月為熱圖著色（忽略Annual）。反對的值Annual應該單獨著色。簡而言之，梯度應該基于 1 月到 12 月。

下面的代碼作業正常，但它的顏色基于月份列的所有唯一值。

代碼

library(RColorBrewer)
library(ggplot2)
library(ggthemes)

myPalette <- colorRampPalette(brewer.pal(3, "Spectral"), space="Lab")
yaxis <- factor(df22$Year, levels = rev(unique(df22$Year)))

ggplot(df22, aes(x=Month, y=yaxis, fill=`Monthly Returns`))   geom_tile()
  xlab("")   ylab("")
  guides(fill = FALSE)
  scale_x_discrete(position = 'top')
  scale_fill_gradientn(colours = myPalette(100))
  theme_fivethirtyeight()
  theme(
    panel.grid.major = element_blank(),
    panel.grid.minor = element_blank()
  )
  geom_text(label= scales::percent(df22$`Monthly Returns`,accuracy=0.1),
            size = 3.5)

資料

structure(list(Month = structure(c(1L, 2L, 3L, 4L, 5L, 6L, 7L,
8L, 9L, 10L, 11L, 12L, 1L, 2L, 3L, 4L, 5L, 6L, 7L, 8L, 9L, 10L,
11L, 12L, 1L, 2L, 3L, 4L, 5L, 6L, 7L, 8L, 9L, 10L, 11L, 12L,
1L, 2L, 3L, 4L, 5L, 6L, 7L, 8L, 9L, 10L, 11L, 12L, 1L, 2L, 3L,
4L, 5L, 6L, 7L, 8L, 9L, 10L, 11L, 12L, 1L, 2L, 3L, 4L, 5L, 6L,
7L, 8L, 9L, 10L, 13L, 13L, 13L, 13L, 13L, 13L), .Label = c("Jan",
"Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep", "Oct",
"Nov", "Dec", "Annual"), class = "factor"), Year = c(2016, 2016,
2016, 2016, 2016, 2016, 2016, 2016, 2016, 2016, 2016, 2016, 2017,
2017, 2017, 2017, 2017, 2017, 2017, 2017, 2017, 2017, 2017, 2017,
2018, 2018, 2018, 2018, 2018, 2018, 2018, 2018, 2018, 2018, 2018,
2018, 2019, 2019, 2019, 2019, 2019, 2019, 2019, 2019, 2019, 2019,
2019, 2019, 2020, 2020, 2020, 2020, 2020, 2020, 2020, 2020, 2020,
2020, 2020, 2020, 2021, 2021, 2021, 2021, 2021, 2021, 2021, 2021,
2021, 2021, 2016, 2017, 2018, 2019, 2020, 2021), `Monthly Returns` = c(-0.0455546382927932,
-0.0793794314513473, 0.0994778392356055, 0.0170703744247217,
0.0431308748372658, 0.0132714449349653, 0.039149313745751, 0.0152410238808452,
-0.0207479560262523, -0.0032483155414928, -0.0495369168026747,
-0.00705970342066962, 0.0427766059762552, 0.0360837088460483,
0.0302490450982238, 0.00905040881707368, 0.0301290066521883,
-0.00860613165737639, 0.0510171000111251, -0.0181317207157362,
-0.0149985938461858, 0.044676701273787, -0.0157646094851437,
0.0260140100477672, 0.0525075423394753, -0.0499522575153075,
-0.0349476851688416, 0.057891987545299, -0.0044232087547097,
-0.00224896419515394, 0.0581559876205109, 0.0282311484801734,
-0.0698913888620315, -0.0497946886834822, 0.0416646520083313,
-0.00623476893375712, -0.0034869756564318, -0.00542325250964097,
0.0720534160769843, 0.00711091062419609, 0.0168222388954323,
-0.0137948669664331, -0.0609718297586985, -0.00334082515221592,
0.0468481282064616, 0.031440487669275, 0.0142555652225132, 0.00258715177942692,
-0.0196728260436008, -0.0366116549940638, -0.244973563189387,
0.148623715952968, 0.00490898463313584, 0.0591404229656986, 0.0726138053972075,
0.0298393587023052, -0.0189065188181373, 0.0244578656451228,
0.108708436398415, 0.0703977730606203, -0.033305328712233, 0.0560050298648093,
-0.000802571331406262, -0.0113053287909243, 0.0760821911971872,
0.00587662594506211, 0.00050777370424187, 0.0792004231228312,
0.0251693738851843, 0.00797118377832791, 0.0329671724487319,
0.282651940477815, 0.0367452321549714, 0.119571125993303, 0.145843113875452,
0.252922033336702)), row.names = c(NA, -76L), class = c("tbl_df",
"tbl", "data.frame"))

uj5u.com熱心網友回復：

我冒昧地簡化了您的資料框并繪制了代碼，試圖將其歸結為本質。我重命名了您的回傳列，因為無需反勾號就可以更輕松地進行編碼，因此我使用該scale函式命名了圖例。

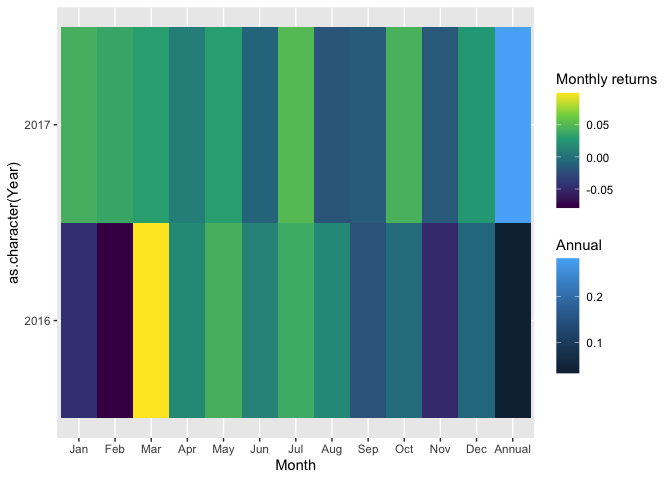

您要實作的目標需要針對資料的不同部分使用兩個單獨的填充比例。意思是，您需要單獨繪制資料，例如兩次呼叫geom_tile. 例如，您可以創建第二個填充比例ggnewscale。

一般來說，從可視化和編碼的角度來看，我覺得單獨創建兩個圖可能會更好，并將它們拼接在一起，例如patchwork。這將避免繪制資料的不同部分的麻煩，避免使用包含值和聚合的資料框，并且還將在測量值和聚合值之間創建視覺分離。

library(ggplot2)

ggplot(mapping = aes(x = Month, y = as.character(Year)))
  geom_tile(data = subset(df22, Month != "Annual"), aes(fill = returns))
  scale_fill_viridis_c("Monthly returns")
  ggnewscale::new_scale_fill()
  geom_tile(data = subset(df22, Month == "Annual"), aes(fill = returns))
  scale_fill_continuous("Annual")
  scale_x_discrete(limits = levels(df22$Month))

資料

df22 <- structure(list(
  Month = structure(c(
    1L, 2L, 3L, 4L, 5L, 6L, 7L,
    8L, 9L, 10L, 11L, 12L, 1L, 2L, 3L, 4L, 5L, 6L, 7L, 8L, 9L, 10L,
    11L, 12L, 13L, 13L
  ), .Label = c(
    "Jan", "Feb", "Mar", "Apr", "May",
    "Jun", "Jul", "Aug", "Sep", "Oct", "Nov", "Dec", "Annual"
  ), class = "factor"),
  Year = c(
    2016, 2016, 2016, 2016, 2016, 2016, 2016, 2016,
    2016, 2016, 2016, 2016, 2017, 2017, 2017, 2017, 2017, 2017,
    2017, 2017, 2017, 2017, 2017, 2017, 2016, 2017
  ), returns = c(
    -0.0455546382927932,
    -0.0793794314513473, 0.0994778392356055, 0.0170703744247217,
    0.0431308748372658, 0.0132714449349653, 0.039149313745751,
    0.0152410238808452, -0.0207479560262523, -0.0032483155414928,
    -0.0495369168026747, -0.00705970342066962, 0.0427766059762552,
    0.0360837088460483, 0.0302490450982238, 0.00905040881707368,
    0.0301290066521883, -0.00860613165737639, 0.0510171000111251,
    -0.0181317207157362, -0.0149985938461858, 0.044676701273787,
    -0.0157646094851437, 0.0260140100477672, 0.0329671724487319,
    0.282651940477815
  )
), row.names = c(NA, -26L), class = c(
  "tbl_df",
  "tbl", "data.frame"
))
